Orion Economy Series User manual

Installation and User’s Guide
http://www.orionimages.com
All contents of this document may change without prior notice, and actual product appearance may differ
from that depicted herein
Installation and User’s Guide
TFT-LCD MONITOR
(SECURITY)
ECONOMY SERIES LCD MONITOR

2
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg2
* Follow this safety instruction to use the monitor properly and prevent the damages.
* Keep this user’s guide book for later use.
Warning Statements
* This safety instruction has “ Warning” and “ Caution” as below.
WARNING: If the user does not follow this instruction,
it may cause the serious damage to the user.
CAUTION: If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Never remove the back over and touch
the inside of the monitor. If you need a
service, please contact the service center.
Keep away the monitor from the
direct sunlight and a heating appliance.
Never push objects of any kind into this
product as they may result in a risk of fire
or electric shock.
Connect the power code to the wall
outlet tightly. If the power code or plug are
defective and the wall outlet is not tight,
p
lease do not use them.

3
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg3
Warning Statements
Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-
hands.
When lightning and thundering, unplug
the monitor from the wall outlet and never
touch it.
Unplug this product from the wall outlet,
when It does not operate for a long time.
When smoking and noising from the
monitor, unplug the product from the wall
outlet and contact a service center.
How to fix
1. Do not open this product as it contains high voltage inside.
2. It may create an electric shock.
3. It the user disassembles and remove the back cover, it does not make sure
4. To make up for the damages and do a service and exchange the monitor..

4
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg4
Cautions
Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface. When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.
Before carrying the monitor, tum it off
and Unplug the signal cables and the
power code From the wall outlet.
Take the power plug out from the wall
outlet. Do not pull the cable. It may
snap the inner wires and cause
overheating and fire.
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands
or the sharpened material hardly.
For cleaning, unplug the monitor from
the Wall outlet. Do net use the liquid
cloth. Use the soft cloth.
Do not use the chemical liquid for
cleaning. It may cause fading and
breakage.

5
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg5
TABLE OF CONTENTS
1. INSTALLATION .................................................................................................................
1.1 Parts ……....................................................................................................................
1.2 How to install ............................................................................................................
2. FEATURES …..................................................................................................................
2.1 Display Mode
2.2 Specification (17INCH) ...............................................................................................
…….……..............................................................................................
2.3 Specification (19INCH) ...............................................................................................
3. OSD SETTING .................................................................................................................
3.1 OSD Menu(PC Mode)
3.2 OSD Menu(VIDEO/CVBS Mode)
................................................................................................
..........................................................................
4. INFORMATION TO THE USER ......................................................................................
5. TROUBLESHOOTING .....................................................................................................
6. LIMITED LIFETIME WARRANTY ...................................................................................
6
6
7
8
8
9
9
10
10
11-15
16
17
16

6
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg6
INSTALLATION
1.1 P
a
r
ts

7
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg7
INSTALLATION
1.2 H
o
w
to
In
sta
ll
* Warning: Tilting more than 10 degrees to the front or 30 degrees to the back
may cause collapse of the product.

8
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg8
FEATURES

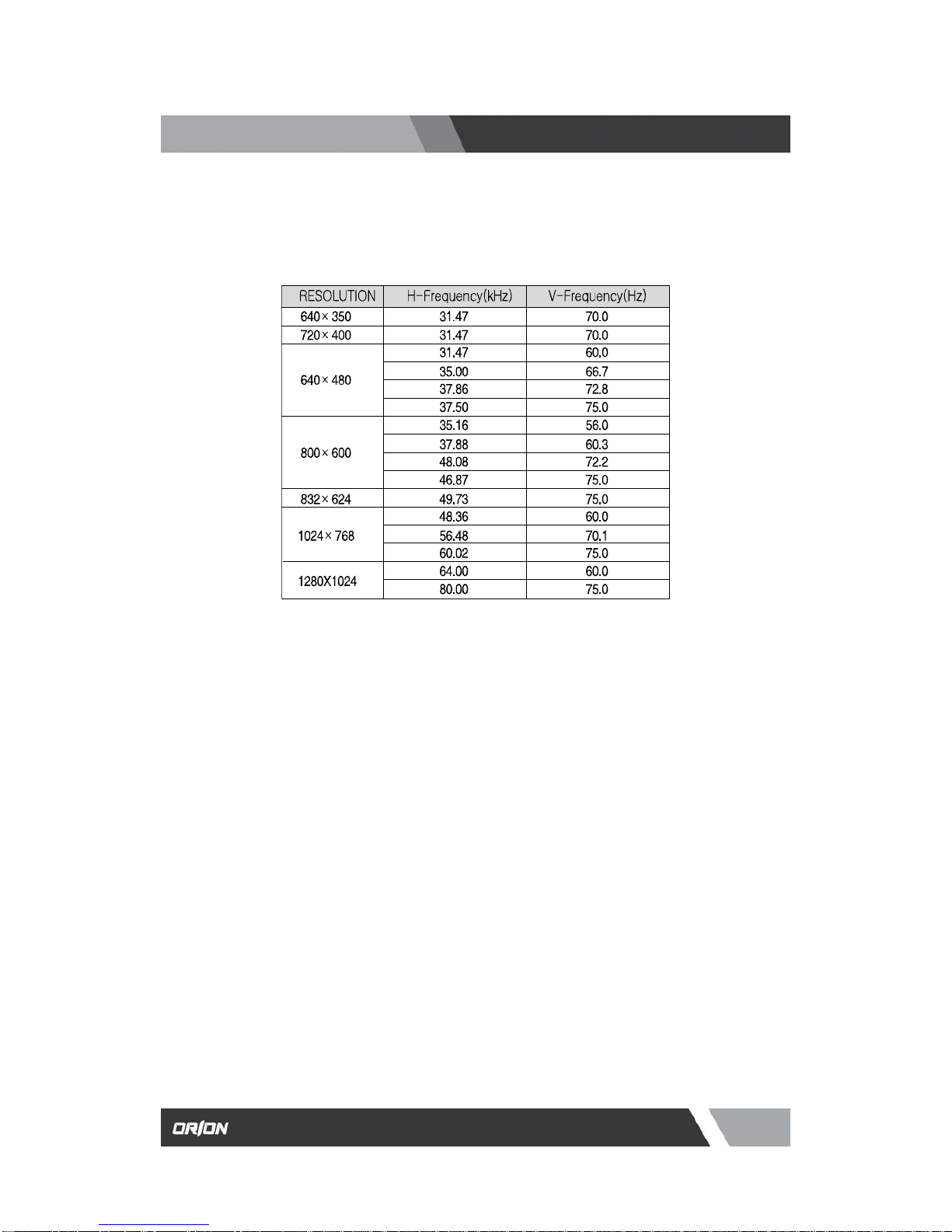

2.1 Display Mode

9
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg9
FEATURES
2.2 Specification (17INCH)
2.2 Specification (19INCH)

10
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg10
OSD (On Screen Display) Setting
3.1 OSD MENU (PC MODE)

11
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg11
OSD (On Screen Display) Setting
Contrast: The Contrast feature adjusts the Black level. Choices range from 0
to 100. Default is 60.
Brightness: The Brightness feature adjusts the brightness of the backlight.
Choices range from 0 to 100. Default is 50.
Sharpness: The Sharpness feature adjusts the clearness of the image.
Choices range from 0 to 4. Default is 2.
Color Adjust: The Color Adjust feature adjusts the Red, Green, and Blue when
Color Temp. Item is set to ‘User’.
Choices are 0 to 255. Default is 128.
Color Temp: The Color Temp. feature sets the baseline color reference for the
monitor. Choices are 9300K (cooler), 6500K(warmer) and USER.
Default is USER.
Clock: The Clock feature adjusts the horizontal image size.
Phase: Use the Clock Phase feature when noise remains on the screen
after operating the Auto adjustment of OSD menu item.

12
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg12
OSD (On Screen Display) Setting

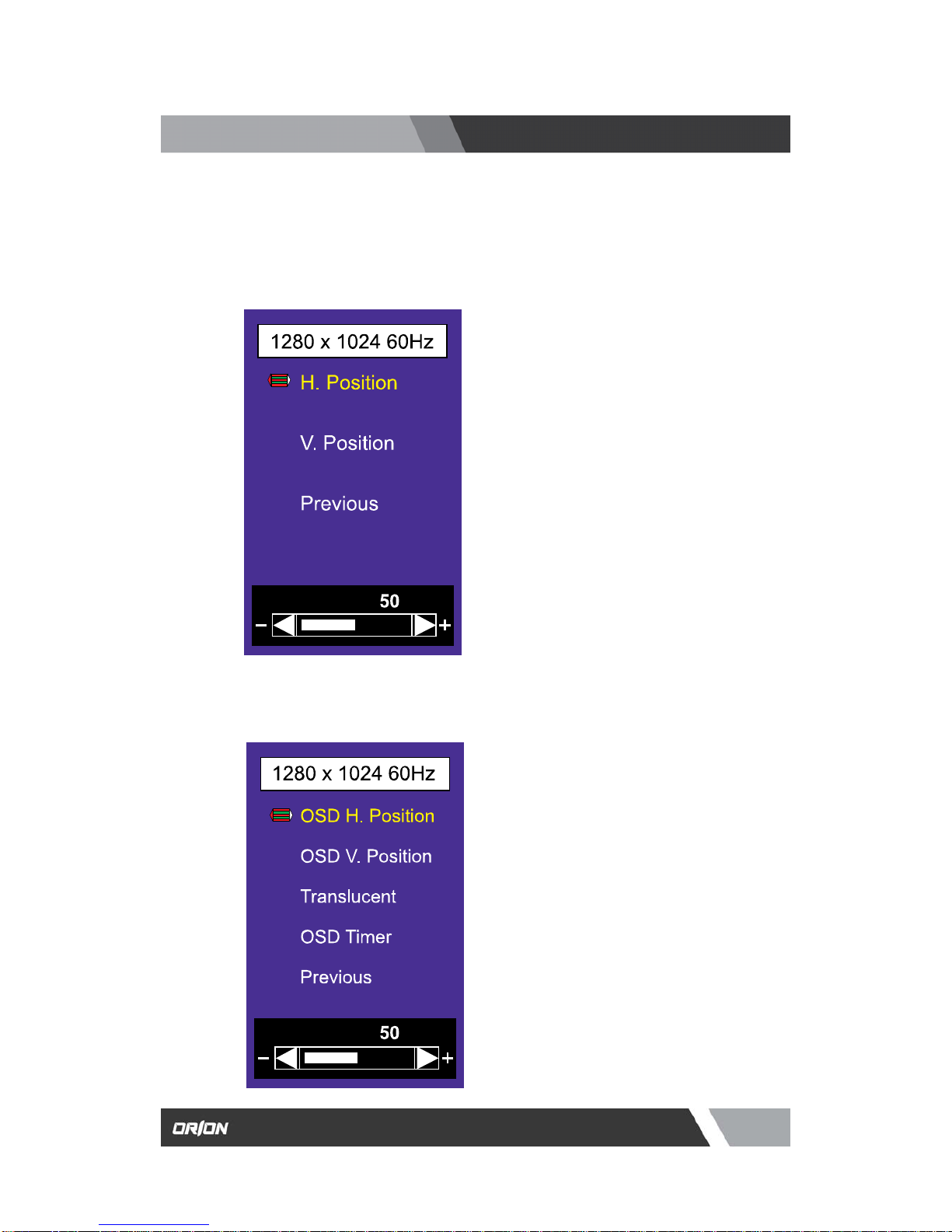

Position
OSD Menu
H. Position
The H. Position feature adjusts the
image position horizontally.
V. Position
The V. Position feature adjusts the image
position vertically.
OSD H. Position
The OSD H. Position feature adjusts the
horizontal position of the OSD window.
Choicesare0to200.
Default is 100.
OSD V. Position
The OSD V. Position feature adjusts the
vertical position of the OSD window.
Choices are 0 to 200. Default is 100.
Translucent
The Translucent feature adjust the
transparency of the OSD window.
Choices are 0 to 7. Default is 2.
OSD Timer
The OSD Timer feature sets how long
the OSD menu stays on the screen.
Choices are 5 to 60. Default is 10.

13
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg13
OSD (On Screen Display) Setting
Language
Miscellaneous
Language
The Language feature sets which
language will be used to display the OSD
menu and your entries. Choices are
English, French, Dutch, Spanish,
Italian and 한국어.
Default is English.
Input
The Signal Source feature selects the
input signal source. Choices are
ANALOG, VIDEO and S-VIDEO.
Reset
The Reset feature initializes memory
stored in the user mode.
Volume (option)
The Volume feature adjusts the speaker
volume. Choices are 0 to 100. Default is 50.
Mute (option)
The Sound feature turns the speakers on or
off. Choices are ON and OFF.
Default is OFF.

14
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg14
OSD (On Screen Display) Setting
3.2 OSD MENU (VIDEO / CVBS MODE)
+ OSD menu, Misc. and Sound menu items are same as in the VGA Mode.

15
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg15
OSD (On Screen Display) Setting
Video
Contrast: The Contrast feature adjusts the Black level. Choices range from 0
to 100. Default is 60.
Brightness: The Brightness feature adjusts the brightness of the backlight.
Choices range from 0 to 100. Default is 50.
Sharpness: The Sharpness feature adjusts the clearness of the image.
Choices range from 0 to 4. Default is 2.
Tint: The Hue feature changes the RGB (red, green, blue) colors that you see.
You can change blue objects to appear as green, or purple obnects.
Choices range from 0 to 100. Default is 50.
Color: The Saturation feature adjusts the saturation, which is color intensity.
Choices range from 0 to 100. Default is 50.
Under Scan: The Screen feature turns the size on or off. Choices are ON and OFF.
Default is OFF.
* OSD menu, Misc. and Sound menu items are same as in the VGA Mode.

16
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg16
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one more
of the following measures:
The manufacturer is not responsible for any Radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate
the equipment."
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
zConsult the dealer or an experienced radio / TV technician for help.
WARNING:

17
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg17
TROUBLESHOOTING
* When the following troubles are occurred, follow the trouble shooting. Before contacting a
service center.
Troubleshooting Troubleshooting Tip
1. Make sure if the power supply is connected property
2. Turn on the power.
The screen doesn’t show up
3. Select the input signal right for the connected port.
The screen is too light or to dark Control the BRIGHTNESS
The screen size is not fit for the PC
signal Press the AUTO key among keys in the front.
(It is used only in the PC signal)
The screen color shows strange in
the PC signal In the FUNCTION menu of OSD menu, perform the AUTO-
ADJUST.

18
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: [phone] / Fax: [phone] pg18
2Year Limited Warranty
Contact Orion Images
All Orion Images products carry a limited warranty from ship date against defects in materials
and workmanship. Orion Images is not liable for improper installation that results in damage to
mounts, adapters, display equipment or personal injury.
In the event of missing and/or damage equipment, or technical questions, the
following information can help in the completion of the installation.
Address: 7300 Bolsa Avenue, Westminster, CA 92683
Tel: [phone] / Fax: [phone]
Email: [email protected]
Website: http://www.orionimages.com
