Orion 26RTV User manual

Installation and User's Guide
All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein
LCD VALUE SERIES
(26 inches)
http://www.orionimages.com

2
Installation and User's Guide
1. SAFETY INSTRUCTION
Follow this safety instruction to use the monitor properly and prevent the damages.
Keep this user’s guide book for later use.
This safety instruction has “Warning” & “Caution” as below
Warning - If the user does not follow this instruction,
it may cause the serious damage to the user.
Caution - If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Warning
Keep away the monitor from the
direct sunlight and a heating appliance.
Never push objects of any kind into
this product as they may result in
a risk of fire or electric shock.
Connect the power code to the wall
outlet tightly. If the power code or plug
are defective and the wall outlet is not
tight, please do not use them.
Never remove the back over and
touch the inside of the monitor.
If you need a service, please
contact the service center.

3
Installation and User's Guide
Warning
Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-hands.
When lightning and thundering, unplug the
monitor from the wall outlet and never touch
it.
When smoking and noising from the monitor,
unplug the product from the wall outlet and
contact a service center.
Unplug this product from the wall outlet, when
It does not operate for a long time.
W
WA
AR
RN NI
IN NG
G:
:
How to fix
Do not open this product as it contains high voltage inside.
It may create an electric shock.
It the user disassembles and remove the back cover, it does not make sure
to make up for the damages and do a service and exchange the monitor.

4
Installation and User's Guide
Cautions
Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface.
Before carrying the monitor, tum it off and
Unplug the signal cables and the power code
From the wall outlet.
When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.
Take the power plug out from the wall
outlet.
Do not pull the cable. It may snap the inner-
wires and cause overheating and fire.

5
Installation and User's Guide
Cautions
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands or
the sharpened material hardly.
Do not use the chemical liquid for cleaning.
It may cause fading and breakage.
For cleaning, unplug the monitor from the
Wall outlet. Do net use the liquid cloth.
Use the soft cloth.

6
Installation and User's Guide
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.
N
O
TE
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio, TV technician for help.
Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the
grantee or manufacturer could void the users authority to operate such equipment.
DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus
set out in the radio interference re
g
ulation of Canadian De
p
artment of communications.
2. FCC RF INTERFERENCE STATEMENT

7
Installation and User's Guide
2
1. SAFETY INSTRUCTION
1-1 Warning
1-2 Caution
6 2. FCC STATEMENT
3-1 Parts
3-2 How to Install
26
7. TROUBLESHOOTING
6. LIMITED WARRANTY
8
3. INSTALLATION
5-1 Mode Setting
5-2 Menu Setting (VIDEO, S-VIDEO, HDMI Mode)
5-3 Menu Setting (VGA Mode)
12 4. OSD MENU SETTING
27
5. FEATURES
27
TABLE OF CONTENTS

8
Installation and User's Guide
3. INSTALLATION
3-1 Parts
LCD Monitor
VGACable Power Cable
Remote Controller
Battery User Manual
Adapter

9
Installation and User's Guide
3-2 How to Install
KEY BUTTON
SHORT KEY FUNCTION
OSD KeyFunction
Activates and exit the OSD
Select input source, and select the OSD menu
Move the OSD menu and auto adjustment of RGB source
Decrease the level of volume and move the previous menu
Increase the level of volume and select rhe OSD menu
Turns the power ON or OFF. There will be a few seconds
delay before the display appears. The power LED (next to the
power switch) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again
and the power LED goes red.
Select the scan mode of the screen

10
Installation and User's Guide
CONNECTION
2
1
3
4
5
6
7
8
1VIDEO-2 IN / OUT
DC12V
DC adapter input
VIDEO-2 signal input / looping out
5
2
AUDIO (PC)
Stereo audio input for VGA
6
3 7
4 8
VIDEO-1 IN / OUT
VIDEO-1 signal input / looping out
HDMI
HDMI signal input
AUDIO (VIDEO)
Stereo audio input for VIDEO or S-VIDEO
S-VIDEO
VGA S-VIDEO signal input
VGA (PC RGB) signal input

11
Installation and User's Guide
REMOTE CONTROLLER
MODE SELECT MENU
VIDEO1
Select VIDEO1 mode
VIDEO2
Select VIDEO2 mode
S-VIDEO
Select S-VIDEO mode
VGA (RGB)
Select VGA mode
HDMI
Select HDMI mode
POWER
Turn ON / OFF the monitor
MUTE
Turn ON / OFF the sound
AUTO
Auto adjust position of the screen (in VGA mode)
COLOR TEMPERATURE
Select color temperature of the screen
SCAN MODE
Select the scan mode of the screen
VOL- / VOL+
Increase / Decrease the volume level
MENU / EXIT
Activate and exit the OSD menu
STILL
Freeze the current image
KEY LOCK
Locking the button (Prevent operation)
POWER MUTE
VIDEO1 VIDEO2 S-VIDEO
VGA AUTO COLOR TEMP
HDMI
SCAN MODE
MENU/EXIT
STILL
KEY LOCK
VOL- VOL+
A
B
A
OSD CONTROL MENU
B

12
Installation and User's Guide
4. OSD MENU SETTING

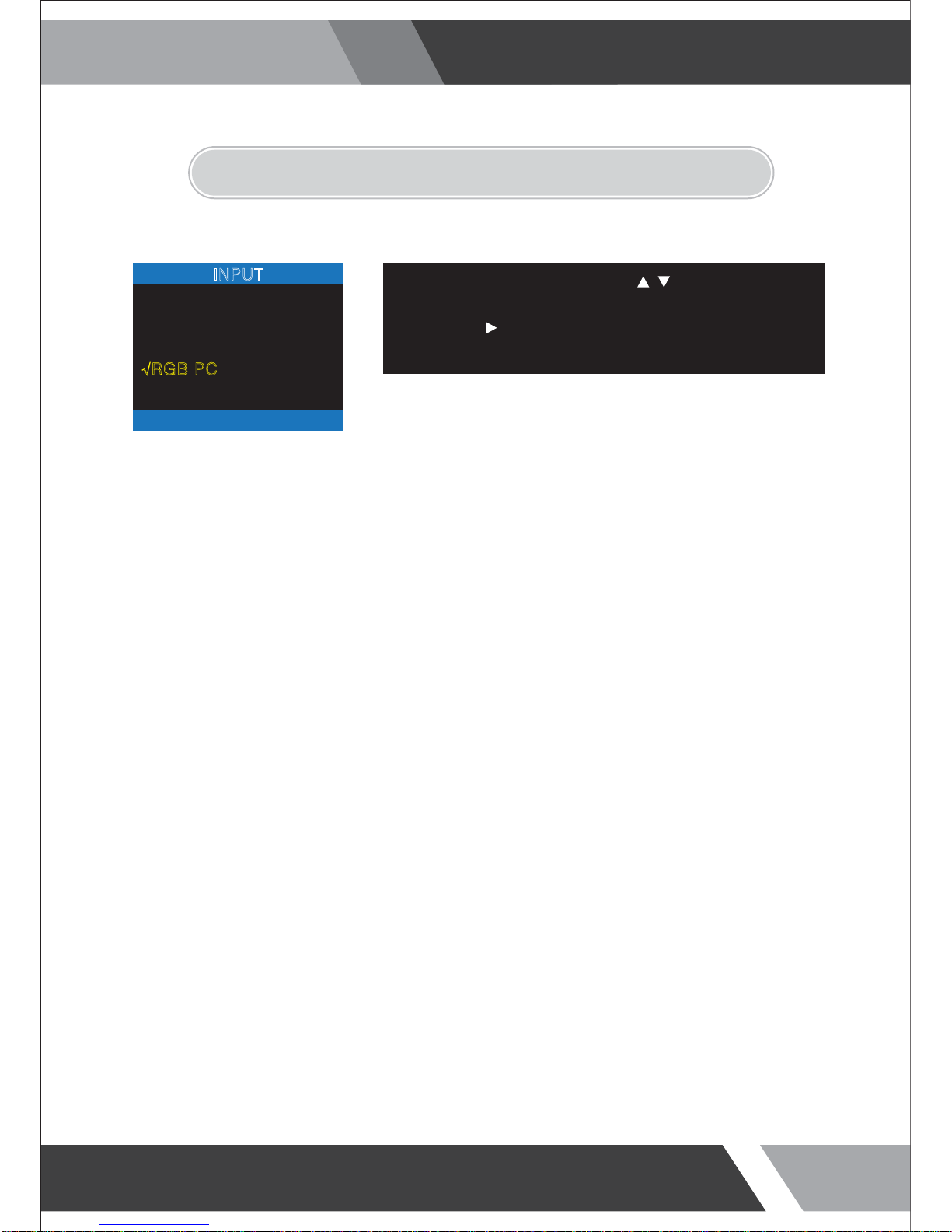

5-1 Mode Setting
VIDEO1
Select VIDEO1 mode
VIDEO2
Select VIDEO2 mode
S-VIDEO
Select S-VIDEO mode
RGB PC
Select VGA mode
HDM
Select HDMI mode
VIDEO1
VIDEO2
S-VIDEO
√RGB PC
HDMI
▼/▲:MOVE ▶:ENTER
INPUT Use SOURCE button and then /button to move the
source.
1.
Press the button to select the source.
2. Press the MENU/EXIT button to exit the INPUT menu.
3.
Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC & HDMI mode

13
Installation and User's Guide
5-2 Menu Setting (VIDEO, S-VIDEO, HDMI Mode)
Default setting is 60% and adjustable from range of 0 to 100% Default setting is 50% and adjustable from range of 0 to 100%
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2. Press the /SELECT to choose an item.
3.
4. Use the & arrow to highlight a selection.
5. Use the & arrow to adjust the setting on a
selected item.
CONTRAST : Adjust visual color contrast
CONTRAST BRIGHTNESS
BRIGHTNESS : Adjust color brightness
COLOR : Adjust visual color of screen TINT : Adjust tint of color
SHARPNESS : Adjust sharpness of screen COLOR TEMP : Switch color temperature of screen
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶

14
Installation and User's Guide
Default setting is 50% and adjustable from range of 0 to 100% Default setting is 50% and adjustable from range of 0 to 100%
COLOR TINT
Default setting is 50% and adjustable from range of 0 to 100% Default setting is MEDIUM and switch to WARM, USER and
COOL color temperature options
USER - Default setting of RED, GREEN, BLUE is 50% and
adjustable from range of 0 to 100%
SHARPNESS COLOR TEMP
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶

15
Installation and User's Guide
SCREEN
SCAN MODE : Select the scan mode of the screen
SCAN MODE
SCREEN
SCAN MODE
SCREEN
SETUP
RGB
SETUP
◀ UNDER ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
SCREEN
SCAN MODE
SCREEN
SETUP
RGB
SETUP
◀ UNDER ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2. Press the /SELECT to choose an item.
3.
4. Use the & arrow to highlight a selection.
5. Use the & arrow to adjust the setting on a
selected item.
Default setting is UNDER and switch to OVER, 16:9 and FULL
scan mode options

16
Installation and User's Guide
SETUP
INPUT : Select an input source for main screen LANGUAGE : Set to different language mode
SOUND MUTE : Turn on/off the sound BUTTON LOCK : Locking the button (Prevent operation)
NOISE REDUCTION : Set a noise reduction mode OSD TIME : Set a time duration of OSD menu
DEFAULT : Factory default setting
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2. Press the /SELECT to choose an item.
3.
4. Use the & arrow to highlight a selection.
5. Use the & arrow to adjust the setting on a
selected item.
INPUT LANGUAGE
Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC,
and HDMI mode Default setting is ENGLISH and language setting can be set to ITALIAN, FRENCH, SPANISH and GERMAN
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
DEFAULT ▶
◀ ON ▶
◀ OFF ▶
◀ OFF ▶
◀ ENGLISH ▶
◀ VIDEO1 ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
DEFAULT ▶
◀ ON ▶
◀ OFF ▶
◀ OFF ▶
◀ ENGLISH ▶
◀ VIDEO1 ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
DEFAULT ▶
◀ ON ▶
◀ OFF ▶
◀ OFF ▶
◀ ENGLISH ▶
◀ VIDEO1 ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s

17
Installation and User's Guide
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
DEFAULT ▶
◀ ON ▶
◀ OFF ▶
◀ OFF ▶
◀ ENGLISH ▶
◀ VIDEO1 ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
DEFAULT ▶
◀ ON ▶
◀ OFF ▶
◀ OFF ▶
◀ ENGLISH ▶
◀ VIDEO1 ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
DEFAULT ▶
◀ ON ▶
◀ OFF ▶
◀ OFF ▶
◀ ENGLISH ▶
◀ VIDEO1 ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
DEFAULT ▶
◀ ON ▶
◀ OFF ▶
◀ OFF ▶
◀ ENGLISH ▶
◀ VIDEO1 ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SOUND MUTE BUTTON LOCK
NOISE REDUCTION OSD TIME
Default setting is OFF and switch to ON sound mute option
Default setting is ON and switch to OFF noise reduction option
Default setting is OFF and switch to ON button lock option
Release the lock - Press KEY LOCK button on the remote control
- Press & button on the key pad
Default setting is 15s and adjustable from range of 5 to 30s

18
Installation and User's Guide
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
DEFAULT ▶
◀ ON ▶
◀ OFF ▶
◀ OFF ▶
◀ ENGLISH ▶
◀ VIDEO1 ▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
DEFAULT
DEFAULT is set OSD menu to factory default

19
Installation and User's Guide
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
5-3 Menu Setting (VGA Mode)
Default setting is 60% and adjustable from range of 0 to 100% Default setting is 50% and adjustable from range of 0 to 100%
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2. Press the /SELECT to choose an item.
3.
4. Use the & arrow to highlight a selection.
5. Use the & arrow to adjust the setting on a
selected item.
CONTRAST : Adjust visual color contrast
CONTRAST BRIGHTNESS
BRIGHTNESS : Adjust color brightness
COLOR TEMP : Switch color temperature of screen

20
Installation and User's Guide
CONTRAST 60%
BRIGHTNESS 50%
COLOR 50%
TINT 50%
SHARPNESS 50%
COLOR TEMP ◀ MEDIUM
RED 50%
GREEN 50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
▶
Default setting is MEDIUM and switch to WARM, USER and
COOL color temperature options
USER - Default setting of RED, GREEN, BLUE is 50% and
adjustable from range of 0 to 100%
COLOR TEMP
