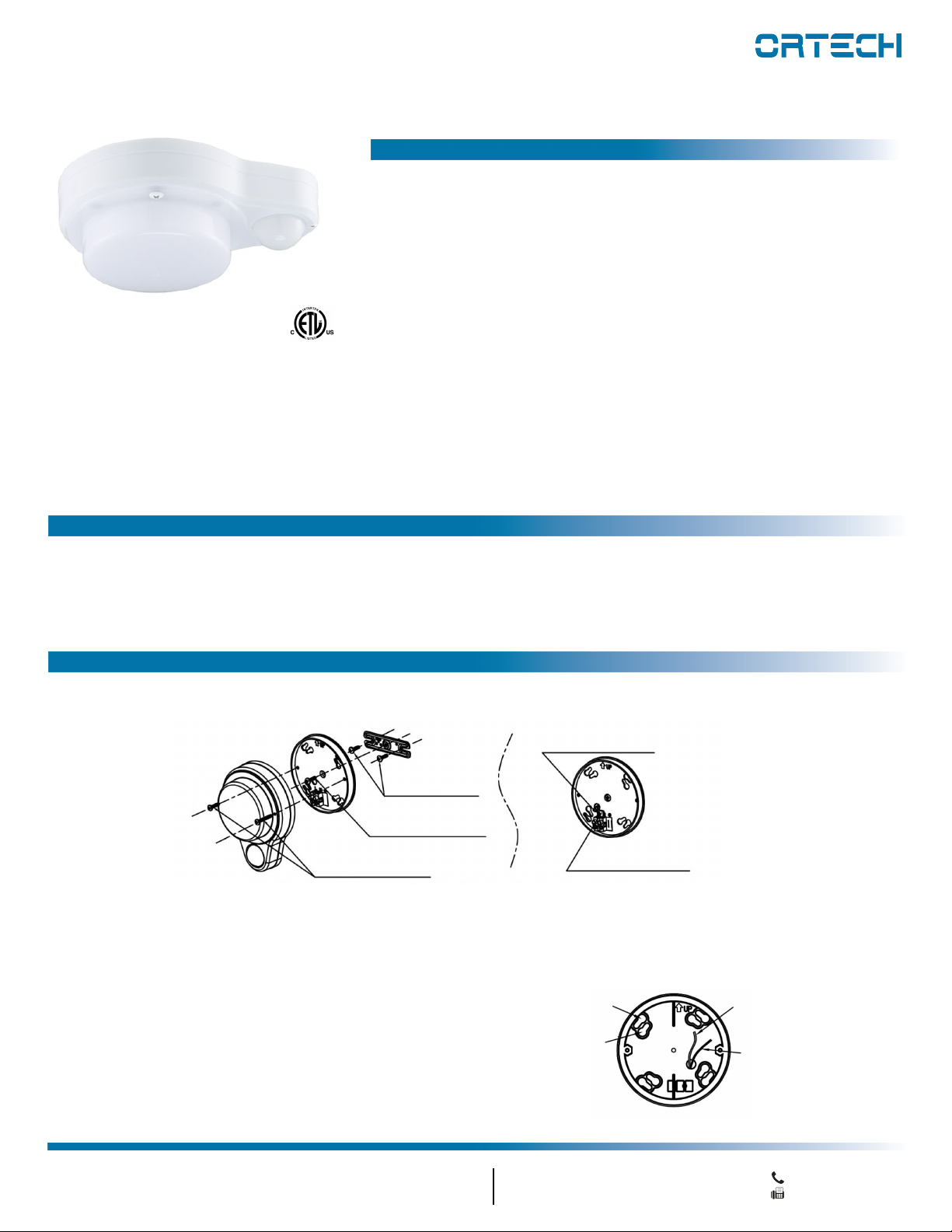

Ortech 1051-S User manual

WARNING
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A
QUALIFIED ELECTRICIAN.
CAUTION
1. LED Closet Lights are not suitable for using in wet locations
2. Please keep the LED Closet Light away from any corrosive substance,
and please use dry cloth when you clean it
3. LED Closet Light can only be installed by a qualified electrician
4. Before installation or maintenance, please disconnect the power to
prevent electric shock
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES. Electrical
products can cause death or injury, or damage to property. If in any doubt about the installation or use of this
product, consult a competent electrician. Turn off the main power at the circuit breaker before installing the fixture,
in order to prevent possible shock.
INSTALLATION GUIDE
Application Notice
1. RISK OF BURN — Allow fixture to cool completely before handling. Do not exceed maximum voltage marked on the
label. Keep combustible and other materials that can burn away from the light, lamp, and lens
2. DO NOT use with dimmers, motion activated controls or illuminated switches
3. TO AVOID FIRE SHOCK OR DEATH, turn off power at circuit breaker or fuse and test that power is off before wiring
4. Turn Occupancy Sensor Lens in the direction of the entrance for the mounting part
Mounting with Hangar Bar
Mounting to 3-1/4" or 4" Box
Attach to Standard
Octagon Box
Mount base to Hangar
Bar using provided screw
Attach Light to Base with
screws provided
"L" connects to the Black
power supply wire (Live)
"N" connects to the
White supply wire (Neutral)
1. Partially screw in two long mounting screws
provided into mounting box
2. Mount the lampholder base on the outlet box by
placing it over the mounting screws and turning
3. Tighten mounting screws. DO NOT OVERTIGHTEN
4. Attach Light to Base with screws provided. DO NOT
OVERTIGHTEN
Mounting holes for
4" octagonal box
Mounting holes for
3-1/4" octagonal box
Connects to the Black
power supply wire (Live)
Connects to the White
supply wire (Neutral)
LED Closet Lights
MODEL 1051-S Instruction Manual
1-888-543-6473
1-888-541-6474
13376 Comber Way
Surrey BC V3W 5V9
[email protected]
www.ortechindustries.com
375 Admiral Blvd
Mississauga, ON L5T 2N1

PRODUCT FEATURES
SENSOR DETECTION RANGE
Ceiling Mount Sensor Detection Range
• Indoor or outdoor without being exposed to rain or snow
• Fits 3-1/4" and 4" ceiling boxes
• Lamp goes on automatically when motion is detected
• Red LED indicator light on when motion is detected
Wall Mount Sensor Detection Range
Top View Side View
Installation Accessories
8ft
(2.4m)
20ft (6.1m)
Max. 33ft
(10m)
20ft
(6.1m)
10ft
Max. 33ft
(10m)
6ft
(1.8m)
LED Closet Lights
MODEL 1051-S Instruction Manual
1-888-543-6473
1-888-541-6474
13376 Comber Way
Surrey BC V3W 5V9
[email protected]
www.ortechindustries.com
375 Admiral Blvd
Mississauga, ON L5T 2N1
ORTECH reserves the right to modify at any time, without notice,
any or all of our product's features, designs, components and
specifications to meet market changes.
