Osburn 1600 User manual

READ AND KEEP THIS MANUAL FOR REFERENCE
45084
OWNER`S MANUAL
1600 MODEL INSERT
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOODSTOVES
OREGON DEPARTEMENT
ENVIRONMENTAL QUALITY
Verified and tested following
ULC S627 and UL 1482 Standards
Australian standard 2918 : 1990 appendix B
New Zeland standard 7421 : 1985
by:
Intertek Testing Services
Manufactured by : STOVE BUILDER INTERNATIONAL INC..
1700, Léon-Harmel, Québec (Québec) G1N 4R9
Tel : (418 ) 527-3060
Fax : (418 ) 527-4311
www.osburn-mfg.com

1
TABLE OF CONTENTS
INTRODUCTION................................................................................................................. 2
TECHNICAL SPECIFICATIONS ......................................................................................... 3
ASSEMBLY ......................................................................................................................... 4
DOOR ADJUSTMENT ..................................................................................................... 6
INSTALLATION................................................................................................................... 7
INSTALLATION................................................................................................................... 7
PRE-INSTALLATION REQUIREMENTS ......................................................................... 7
CLEARANCES FROM COMBUSTIBLES ........................................................................ 9
SUITABLE FIREPLACE DIMENSIONS ......................................................................... 10
CHIMNEY ...................................................................................................................... 11
INSTALLATION INSTRUCTIONS ................................................................................. 12
WOODSTOVE UTILISATION............................................................................................ 17
AVERAGE ENERGY YIELD OF ONE AIR DRIED CORD OF CUT WOOD .................. 17
TESTING YOUR WOOD ............................................................................................... 18
THE FIRST FIRES......................................................................................................... 18
IGNITION....................................................................................................................... 18
HEATING....................................................................................................................... 19
RELOADING.................................................................................................................. 20
CREOSOTE FORMATION AND NEED FOR REMOVAL.............................................. 20
ASH DISPOSAL ............................................................................................................ 21
MAINTENANCE ................................................................................................................ 22
GLASS...........................................................................................................................22
GASKETING.................................................................................................................. 22
PAINT ............................................................................................................................ 22
LIMITED LIFETIME WARRANTY...................................................................................... 23

2
INTRODUCTION
SBI INC., one of the most important wood stove and fireplace manufacturers in Canada,
congratulates you on your purchase and wishes to help you get maximum satisfaction
from your wood stove. In the pages that follow, we will give you advice on wood heating
and controlled combustion as well as technical specifications regarding installation,
operation and maintenance of the model you have chosen.
The instructions pertaining to the installation of your wood stove comply with ULC-S627
and UL-1482 standards.
Read this entire manual before you install and use your new stove. If this stove is
not properly installed, a house fire may result. To reduce the risk of fire, follow the
installation instructions. Failure to follow instructions may result in property
damage, bodily injury, or even death.
Consult your municipal building department or fire officials about restrictions and
installations requirements in your area and the need to obtain a permit.
Keep this instructions manual for future references.
CAUTIONS:
•HOT WHILE IN OPERATION.KEEP CHILDREN,CLOTHING AND FURNITURE AWAY.CONTACT MAY
CAUSE SKIN BURNS.
•DO NOT USE CHEMICALS OR FLUIDS TO IGNITE THE FIRE.
•DO NOT LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED.
•DO NOT BURN WASTES,FLAMMABLE FLUID SUCH AS GASOLINE,NAPHTHA OR MOTOR OIL.
•DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
•ALWAYS CLOSE THE DOOR AFTER THE IGNITION.

3
TECHNICAL SPECIFICATIONS
Combustible: Wood
Heating Capacity : E.P.A : 42400 BTU/h
63% default efficiency
Heating Capacity : DEQ : 41000 BTU/h
69% efficiency
Emissions EPA: 4.4 g/h
Emissions Australia: 2.4 g/kg
Colors : Metallic Black
Flue Pipe Diameter : 6’’ (152 mm)
Chimney type : 2 100°F (650 °C)
Minimum Vertical Flue Height : 12’ (3,66 m)
Maximum Log Length : 17 1/2’’ (445 mm)
Dimensions
Overall:
W x D x H
24 1/8 x 22 x 21 1/2"
(613 x 559 x 546 mm)
Combustion Chamber :
Width x Depth :
Volume :
W x D
17 3/4 x 10 ’’
(451 x 254 mm)
1.85 pi3(0,052 m3)
Door Opening :
W x H
8 3/8 x 15 3/4’’
(213 x 400 mm)
Weight: 400 lbs ( 182 Kg)
OPTIONS PART NUMBER
Blower OA10505
Blower Australia OA10360
Outside air intake kit OA10500

4
ASSEMBLY
CAUTION: Operation of your Osburn stove without the baffle may cause unsafe and
hazardous temperature conditions and will void the warranty.
NOTE: Before installing the firebrick, check to ensure that none are broken or damaged in
any way. If so, have the damaged ones replaced. Check the firebrick for damage at least
annually and replace any broken or damaged ones with new ones. Inspection and
cleaning of the chimney is facilitated by the removable baffle.
Install the two thin bricks into either side at the front. The 2.5" x 9" (64x229mm) piece
should be placed at the bottom, placed so that the angled piece of the brick aligns with the
bottom duct. Place the 4.5" x 2.5" (114x64mm) above it and under the brick retainer.

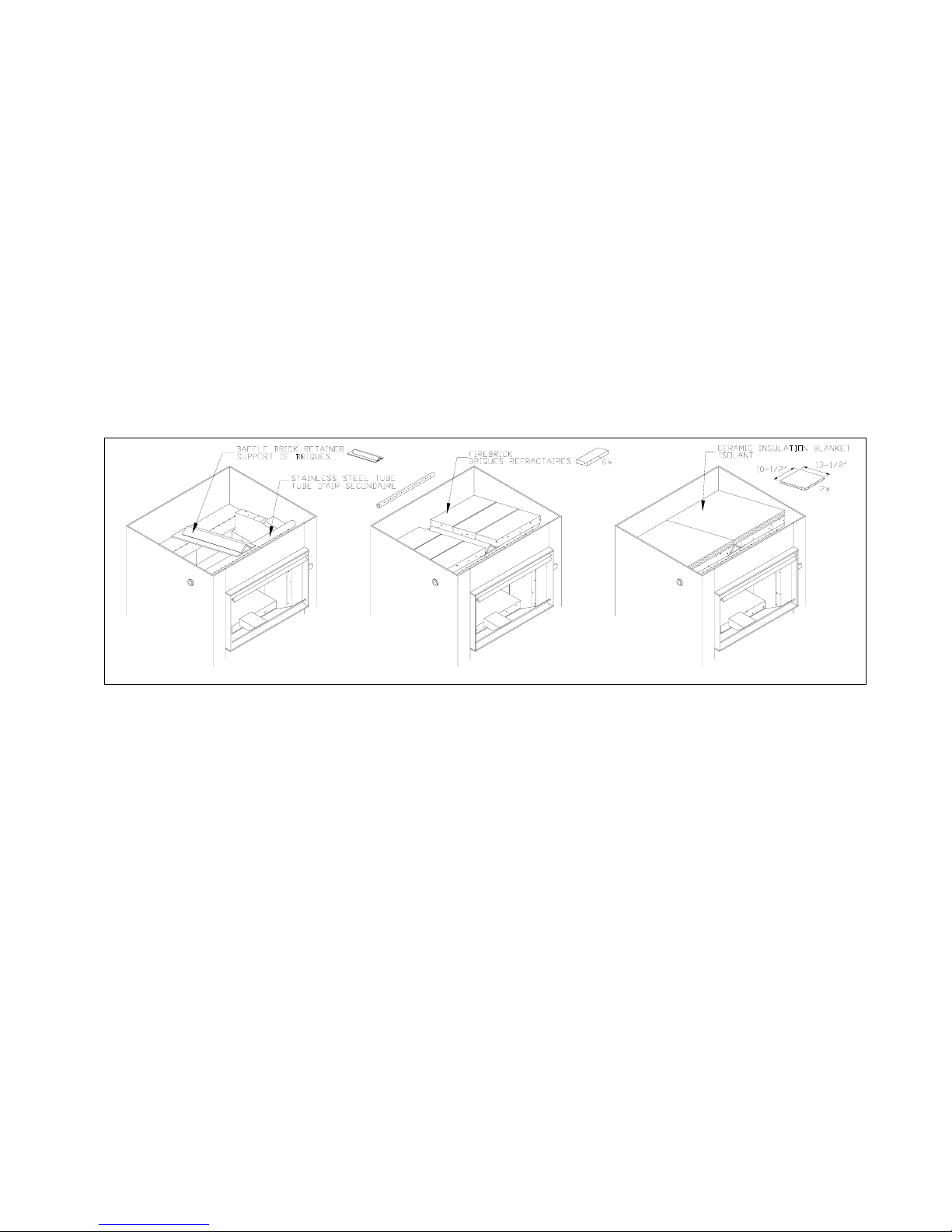

FIGURE 2
To install the baffle, follow these instructions (To remove, follow the reverse of these
instructions):
1- The ceramic insulation should be installed in place before the baffle bricks. Place
the first piece of ceramic insulation up inside the top of the firebox and place one
side over the baffle brick retainer so that the 13.5" (343mm) length goes from front
to back and the 10.5" ( 267mm) length goes from side to side as shown in Figure 2.
The ceramic blanket should lie over the stainless steel tube, over one side of the
brick retainer and rest on the firebrick sides. The second piece of insulation should
be laid on the opposite side of the baffle brick retainer, over the stainless steel tube
and over the firebrick, directly beside the first piece of ceramic insulation without
overlapping as shown in Figure 2.
Caution: As with all fibrous materials, avoid inhaling any airborne fibers.
2- Place the two bricks with the corners cut out of them under the right and left side
brick retainers and over the side bricks. They should fit so that the angled part
slopes down toward the back.

5
3- Place the two small 2" x 4 3/8" (51 x 111mm) bricks up into the top front side
spaces below the stainless steel tube.
4- Place the baffle brick retainer up over the back duct and over the stainless steel
tube so that the angled rib is on the top. Move it to the middle under the ceramic
insulation.
5- Angle each of the two rear baffle bricks up to the top right or left and place them so
that they sit crosswise under the ceramic insulation, over the back duct, over the
side bricks, and over the baffle brick retainer. Push them toward the back and
make sure that the insulation over them is flat.
6- In the same way angle each of the two front baffle bricks up to the top front right or
left so that they sit crosswise under the ceramic insulation, over the stainless steel
tube, over the baffle brick retainer, and over the side bricks. Push them toward the
front.
7- Similarly, place the two middle baffle bricks crosswise between the front and rear
baffle bricks. Make sure that the insulation is flat over them. Push them toward the
back so there are no gaps between the bricks.
8- Reach up inside and lift the insulation up slightly while pushing the right, and then
the left, front baffle bricks toward the back.
9- Once all the bricks are in, make sure that the ceramic insulation is flat over and
flush with the front edge of the bricks, and sealed against the firebox wall along the
back and sides. Push all the baffle bricks toward the back and centre - do not allow
the bricks to sit on the angled rib of the baffle brick retainer.
10-Place the included steel insulation weight at the top back centre of the ceramic
insulation. This weight will prevent the insulation from being drawn toward the flue
hole, causing a possible blockage under extreme draft conditions. The metal plate
will be located inside the firebox when the appliance is packaged.

6
DOOR ADJUSTMENT
In order for your stove to operate properly, the door should be adjusted periodically to
provide an air tight fit. To adjust:
•Remove the lock pin (spring pin) by pulling and turning it using pliers ("wise grip")
•Turn the handle counter clock wise one turn to increase pressure
•Re-install the lock pin (spring pin) with a small hammer
Figure 1: Door Adjustment

7
INSTALLATION
SAFETY NOTICE
•IF THIS STOVE IS NOT PROPERLY INSTALLED,A HOUSE FIRE MAY RESULT.TO REDUCE THE RISK
OF FIRE,FOLLOW THE INSTALLATION INSTRUCTIONS.FAILURE TO FOLLOW INSTRUCTIONS MAY
RESULT IN PROPERTY DAMAGE,BODILY INJURY,OR EVEN DEATH.
•CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATIONS REQUIREMENTS IN YOUR AREA.
•USE SMOKE DETECTORS IN THE ROOM WHERE YOUR STOVE IS INSTALLED.
•KEEP FURNITURE AND DRAPES WELL AWAY FROM THE STOVE.
•NEVER USE GASOLINE,GASOLINE-TYPE LANTERN FUEL,KEROSENE,CHARCOAL LIGHTER FLUID,
OR SIMILAR LIQUIDS TO START OR "FRESHEN UP"A FIRE.KEEP ALL SUCH LIQUIDS WELL AWAY
FROM THE STOVE.
•IN THE EVENT OF A CHIMNEY FIRE,PUSH THE AIR CONTROL FULL CLOSED TO DEPRIVE THE FIRE
OF OXYGEN.CALL THE FIRE DEPARTMENT.
•DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
•ASOURCE OF FRESH AIR INTO THE ROOM OR SPACE HEATED SHALL BE PROVIDED WHEN
REQUIRED.
•AWOOD STOVE MUST NEVER BE INSTALLED IN A HALLWAY OR NEAR A STAIRCASE,SINCE IT MAY
BLOCK THE WAY IN CASE OF FIRE OR FALL TO RESPECT REQUIRED CLEARANCES.
•DO NOT INSTALL IN A SLEEPING ROOM.
PRE-INSTALLATION REQUIREMENTS
MASONRY & ZERO CLEARANCE REQUIREMENTS
The masonry fireplace must meet the minimum code requirements, or NFPA 21,1 or
the equivalent for a safe installation. Contact your local Building Inspector for
requirements in your area. An inspection of the fireplace should include the following:
1. CONDITION OF THE FIREPLACE AND CHIMNEY: Examine the masonry
fireplace and chimney prior to installation, to determine that they are free from
cracks, loose mortar, creosote deposits, blockage, or other signs of deterioration. If
evidence of deterioration is noted, the fireplace or chimney should be upgraded
prior to installation.
2. ZERO CLEARANCE OR METAL HEATFORM FIREPLACE: These fireplaces and
chimneys must meet the conditions above, and the factory built zero clearance
fireplace must be listed. They must be suitable for use with solid fuel. The chimney
must be of at least 1" (25 mm) larger in diameter to accommodate a required
continuous stainless steel liner running from the flue collar to the top of the chimney
termination.

8
Only readily detachable parts that are easily replaced, such as damper parts,
screens, doors, and side and back refractory panels, are to be removed from the
fireplace. These parts must be stored nearby and available for retrofit if the insert is
ever removed. Removal of any parts which render the fireplace unfit for use with
solid fuel requires the fireplace to be permanently labelled by the installer as being
no longer suitable for solid fuel until the removed parts are replaced and the
fireplace is restored to its original certified condition.
3. HEARTH EXTENSION: Verify that there is a non-combustible hearth extending at
least 16" (406mm) in front of the fireplace and at least 8" (203mm) to the side of the
fireplace for a fireplace having an opening less than 6ft2 (0.55m2); or a non-
combustible hearth extending at least 20" (508mm) in front and at least 12"
(305mm) to the sides for a fireplace having an opening of 6ft2 (0.55 m2 ) or larger.
Fireplaces without this hearth extension will not meet the minimum requirements,
and will require additional protection.
4. CHIMNEY CAPS: Mesh type chimney caps must have provision for regular
cleaning, or the mesh should be removed to eliminate the potential of plugging.
5. LINER: The chimney must have an acceptable masonry liner suitable for solid fuel,
otherwise a continuous stainless steel liner must be installed.
6. ADJACENT COMBUSTIBLES: The fireplace should be inspected to make sure
that there is adequate clearance to combustibles, both exposed combustibles to the
top, side, and front as well as concealed combustibles, in the chimney and mantle
area. Your local inspector should have information on whether older fireplaces are
of adequate construction.
7. OPENING SIZE: Refer to “Suitable Fireplace Dimensions” for suitable size
fireplace openings.

9
CLEARANCES FROM COMBUSTIBLES
Sidewall 16” (405mm)
Sidefacing 10” (255 mm)
From Insert Body
Top Facing Height 35.5” (902 mm)
Mantle 42” (1070 mm)
From Hearth Expansion
•Install only on a non-combustible hearth raised 3" (75mm) above the floor, unless the
floor is protected by a UL listed “Hearth Shield” floor protector, in which case the
hearth can be level with the floor. In all cases, any combustible flooring within 18"
(457mm) to the front of the body of the unit must be protected by non-combustible
material.
•The flue pipe must not go through roof trussing, an attic, a wardrobe, a floor, a
combustible partition, or similar spaces.
•A flue pipe crossing a combustible wall must have a minimum clearance of 18".
•To reduce flue pipe clearances from combustible materials, contact your local safety
department.

10
SUITABLE FIREPLACE DIMENSIONS
MEASUREMENT
FOR MINIMUM
MAXIMUM
STANDARD
FACEPLATE
MAXIMUM
LARGE
FACEPLATE
Opening Height (F) 21.75" (553mm) 29"(737mm) 32"(813mm)
Opening Width (G) 26"(660mm) 44"(1118mm) 50"(1270mm)
Opening Depth (H) 14.5" (368mm) 21"(533mm)
NOTE: Sizes given are exact sizes of faceplate with brass.
Figure 1

11
CHIMNEY
Your wood stove may be hooked up with a factory built or masonry chimney. If you are
using a factory built chimney, it must comply with UL 103 or ULC S629 standards;
therefore it must be a Type HT (2100°F). It is extremely important that it be installed
according to the manufacturer's specifications.
If you are using a masonry chimney, it is important that it be built in compliance with the
specifications of the National Building Code. It must be lined with fire clay bricks, metal or
clay tiles sealed together with fire cement. (Round flues are the most efficient).
The interior diameter of the chimney flue must be identical to the stove smoke exhaust. A
flue which is too small may cause draught problems, while a large flue favours rapid
cooling of the gas, and hence the build-up of creosote and the risk of chimney fires. Note
that it is the chimney and not the stove which creates the draught effect; your stove's
performance is directly dependent on an adequate draught from your chimney.
The following recommendations may be useful for the installation of your chimney:
1. Do not connect this unit to a chimney flue serving another appliance.
2. It must rise above the roof at least 3' (0.9 mm) from the uppermost point of
contact.
3. The chimney must exceed any part of the building or other obstruction within a
10' (3.04 m) distance by a height of 2' (0.6 m).
4. Installation of an interior chimney is always preferable to an exterior chimney.
Indeed, the interior chimney will, by definition, be hotter than an exterior
chimney, being heated up by the ambient air in the house. Therefore the gas
which circulates will cool more slowly, thus reducing the build-up of creosote
and the risk of chimney fires.
5. The draught caused by the tendency for hot air to rise will be increased with an
interior chimney.
6. Using a fire screen at the extremity of the chimney requires regular inspection in
order to insure that it is not obstructed thus blocking the draught, and it should
be cleaned when necessary.

12
INSTALLATION INSTRUCTIONS
1. Inspect the fireplace according to the safety information and fireplace requirements
and have it cleaned and/or upgraded as necessary.
2. If the installation of the unit renders the existing damper control inaccessible, it will
be necessary to either secure the damper wide open or remove it entirely. An inaccessible
damper which may fall shut later could cause smoke to enter the room. This would be a
nuisance as well as a potential health hazard.
3. POSITIVE CONNECTOR INSTALLATION:
NOTE: A positive flue connector may provide acceptable performance, however, we
recommend the use of a chimney liner to ensure satisfactory performance. Slip
connectors for continuous liners should be installed similarly.
A. Referring to the table and Figure 3, pick a location for the positive connector plate.
It will be easiest to install the plate so that the hole for the flue is somewhere in
between the extreme positions, and to use the adjustability of the faceplate to take
up any inaccuracies in the fit. Alternatively, the plate itself can be moved up and
back by using a 6" (152mm) extension directly on the flue.
B. If you are securing the connector with a screw, the hole in the flue collar and the
connector pipe should be drilled prior to final installation.
C. Cut the plate to size and/or bend the edges over so that it will fit the cavity. The
plate can then be secured to the throat of the fireplace using steel or masonry
fasteners depending on the material. Locate the plate and drill through it into the
backing material. Install the fasteners.
D. Install the flat self-adhesive gasket around the inside of the 6" diameter (152mm)
hole in the plate. Put the handle through the two holes in the throat connector (see
Figure 2). Install the female end of the throat connector up through the hole in the
plate so that it is held in position by friction, ready to be pulled down later.
E. Positively seal any leaks between the plate and the brickwork. Any leaks will draw
air into the fire, which will affect performance.

13
4. POSITIONING THE UNIT: The more extended the insert, the greater the heat
transfer to the room. When installed as an extended insert, the front edge of the air
jacket will be installed flush with the fireplace facing. Otherwise the unit can be
moved back as much as 3.5" (89mm) or any position in between. The position
chosen will depend on your own preference for most installations (where the lintel is
less than 6" (152mm) and the depth is greater than 12.5" (318mm)). See the table
and Figure 3.
Figure 2 Figure 3
MAXIMUM
EXTENDED
I J L M N O P AIR JACKET
INCHES 8 1/2 6 1/2 23 - 28 14 1/2 8 6 24
MILLIMETERS 216 165 584-711 368 203 152 610
Flush with
facing
MINIMUM
EXTENDED
I J L M N O P AIR JACKET
INCHES 12 10 23 - 28 18 4 1/2 2 1/2 20 1/2
MILLIMETERS 305 254 584-711 457 114 64 521
Back from
facing 3 1/2"
5. If lag-bolts and anchors are to be used to secure the insert, the hole locations
should be marked with the unit in place. Remove the unit and locate the anchors.

14

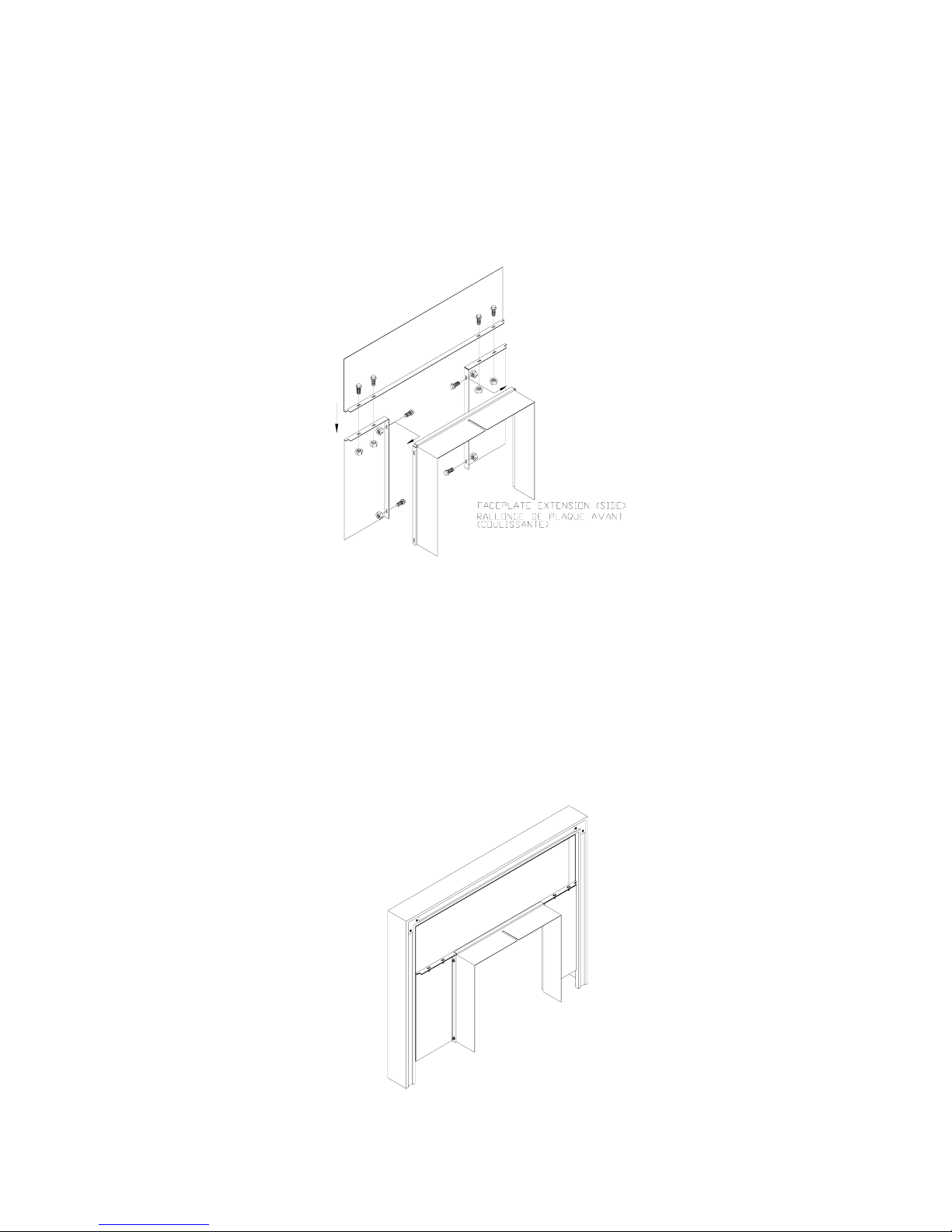

6. Remove the faceplate panels from their box and assemble according to these
faceplate instructions:
A. Remove the slide from within the air jacket.
B. Place the faceplate face down on a flat, nonabrasive surface (see Figure 4) so that
the sides are a bit towards the middle.
Figure 4
C. Place the slide onto the faceplate so that the bends of the faceplate pieces go
inside of the slide.
D. Line up the holes by pushing the sides out and install (smooth heads inside) all the
bolts loosely. Line up the edge of the faceplate top and side, tighten the two bolts
joining them, and then tighten the side bolts. Tighten the bolts on the other side in
the same manner (see Figure 5).
Figure 5

15
7. BRASS INSTALLATION ON FACEPLATE: Attach the mitred corners of the brass
trim together using the corner brackets. Slide the assembled brass trim over the edge of
the faceplate. See Figures 6 and 7.
Attach the left and right side brass to the top with corner brackets supplied. Slip the brass
trim over the faceplate and snap the eight faceplate trim clips in place (see Figure 6).
Figure 6
Figure 7
8. Lift the insert into the fireplace. Square the insert to the face of the fireplace by
adjusting the leveling legs on the sides at the rear of the insert. Check that the throat
connector is in line.
9. If there is space to push the connector down from above, do so. Reach in through
the insert and pull the throat connector down into place. If you are securing the connector
to the flue collar with the screw, do that now.

16
10. Push the air control (A) in, all the way. Slide the adjustable faceplate sleeve back
into its original location until the faceplate fits tightly against the fireplace facing. See
Figure 11. One 7/16" (11mm) open end wrench should be used to turn the nut (B), located
above the cooktop in the center, up so that it securely fastens the adjustable faceplate
sleeve to the top air jacket. Take the air control slider spring handle (C) from the firebox
and turn it onto the 1/4" diameter (6mm) air control rod (A).
Figure 11
11. Remove the plastic protective covering from all brass.

17
WOODSTOVE UTILISATION
Your heating unit was designed to burn wood only; no other materials should be burnt.
Wastes and other flammable materials should not be burnt in your wood stove. Any type
of wood may be used in your stove, but specific varieties have better energy yields than
others. Please consult the following table in order to make the best possible choice.
Average Energy Yield Of One Air Dried Cord Of Cut Wood
Wood species Energy yield
(millions of BTU/cord)
Oak 29
Sugar Maple 28
Beech 26
Yellow birch 25
Ash 24
High energy yield
Elm 23
Larch (Tamarack) 23
Red Maple 23
Douglas red fir 23
Silver birch 22
Alder 18
Poplar 17
Medium energy yield
Hemlock 17
Spruce 17
Pine 17
Bass 16
Low energy yield
Fir 13
Data provided by Energy, Mines and Resources - Canada
IT IS EXTREMELY IMPORTANT THAT YOU USE DRY WOOD ONLY IN YOUR WOOD
STOVE. The wood must have dried for 9 to 15 months, such that the humidity content (in
weight) is reduced below 20% of the weight of the log. It is very important to keep in mind
that even if the wood has been cut since one, two or even more years, it is not necessarily
dry, if it has been stored in poor conditions; under extreme conditions, it may even rot
instead of drying. The vast majority of the problems related to the operation of a wood
stove are caused by the fact that the wood used was too damp or had dried in poor
conditions. These problems can be:
•ignition problems
•creosote build-up causing chimney fires
•low energy yield
•blackened windows
•incomplete log combustion

18
Smaller pieces of wood will dry faster. All logs exceeding 6" in diameter should be split.
The wood should not be stored directly on the ground. Air should circulate through the
cord. A 24" to 48" air space should be left between each row of logs, which should be
placed in the sunniest location possible. The upper layer of wood should be protected
from the element but not the sides.
TESTING YOUR WOOD
When the stove is thoroughly warmed, place one piece of split wood (about five inches in
diameter) parallel to the door on the bed of red embers.
Keep the air control full open by pulling on it and close the door. If ignition of the piece is
accomplished within 90 seconds from the time if was placed in the stove, your wood is
correctly dried. If ignition takes longer, your wood is damp.
If your wood hisses and water or vapour escapes at the ends of the piece, your wood is
soaked or freshly cut. Do not use this wood in your stove. Large amounts of creosote
could be deposited in your chimney, creating potential conditions for a chimney fire.
THE FIRST FIRES
The fresh paint on your stove needs to be cured to preserve its quality. Once the fuel
charge is properly ignited, only burn small fires in your stove for the first four hours of
operation. Never open the air control more than necessary to achieve a medium burn rate.
Make sure that there’s enough air circulation while curing the stove. The odours could be
smelled during the 3 or 4 first fires. Never start your stove outside. You will not be able to
see if you are over heating.
IGNITION
After making sure that the stove air intake controls are fully open (completely pull-out
towards you), place several rumpled sheets of paper in the centre of the combustion
chamber. Place 8 to 10 pieces of small dry kindling wood over the paper in the form of a
tent. You may also place a few pieces of heating wood, but choose the smaller ones. No
chemical product should be used to light the fire.
Before igniting the paper and kindling wood, it is recommended that you warm up the
chimney. This is done in order to avoid back draft problems often due to negative
pressure in the house. If such is the case, open a window slightly near the stove and twist
together a few sheets of newspaper into a torch. Light up this paper torch and hold it as
close as possible to the mouth of the pipe inside the combustion chamber to warm up the
chimney. Once the updraft movement is initiated, you are ready to ignite the stove by
lighting the paper and kindling wood inside the combustion chamber.
We therefore advise you to leave the door slightly opened (1/4") for a 10 to 30 minutes
period, under supervision, in order to allow for good combustion. After this time, you
must close the door and progressively adjust the air control to obtain the desired
temperature.

19
HEATING
Controlled combustion is the most efficient technique for wood heating because it enables
you to select the type of combustion you want for each given situation. The wood will burn
slowly if the wood stove air intake control is adjusted to reduce the oxygen supply in the
combustion chamber to a minimum. On the other hand, wood will burn quickly if the air
control is adjusted to admit a larger quantity of oxygen in the combustion chamber. The
air intake control on your stove is very simple. If you move it completely to the right, it is
fully open. If you move it completely to the left, it is fully close.
Your OSBURN stove burnt between .979 kg\h and 3.517 kg\h. of wood during EPA testing.
Real operating conditions may give very different results than those obtained in the lab
according to the species of wood used, its moisture content, the size and density of the
pieces, the length of the chimney, altitude and outside temperature.
WARNINGS
•NEVER OVERFIRE YOUR STOVE.IF ANY PART OF THE STOVE STARTS TO GLOW RED,OVER
FIRING IS HAPPENING.READJUST THE AIR INTAKE CONTROL AT A LOWER SETTING.
•THE INSTALLATION OF A LOG CRADLE IS NOT RECOMMENDED IN YOUR OSBURN WOOD STOVE.
•NEVER PUT WOOD ABOVE THE FIREBRICK LINING OF THE FIREBOX.
