OSKA C Air Series User manual

User Guide
SeriesC Air
Version 2: 12.04.2022

SeriesC Air Cushion User Guide
Contents
03 The system
04 System set-up
05 Operation
05 System maintenance
06 Cleaning
06 Technicalspecication
07 Troubleshooting guide
08 Waste disposal
08 Warranty
09 Safety
Please read the following instructions carefully and observe the
warning instructions before using the system.
Airo(Xiaxen)MedicalCo.,Ltd.
1F,3F,4F,No.6,EastHaijingRoad,Haicang,Xiamen,Fujian,China
EmergoEuropeB.V.
Prinsessegracht202514AP,TheHague,TheNetherlands
REPEC

3
The system

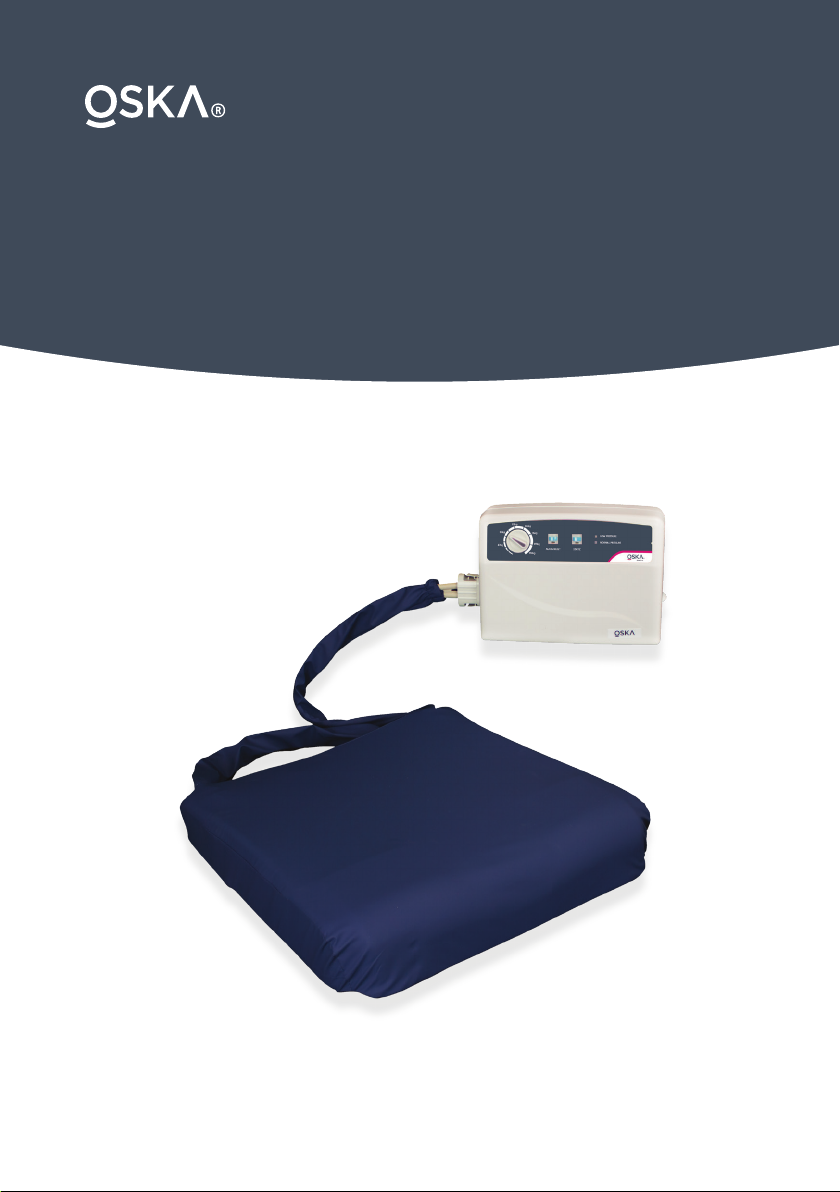

OSKA SeriesC Air is a cushion system which is
designed to be placed on any chair. It is designed
foruseinnursingcareathome,orinanursing
facility environment.
Application – for use on a chair within home
or care environment with power source nearby
to ensure that comfort and relief levels are
maintained.
The system consists of a control unit featuring a
membranepumpandacushionwith6aircells
arranged in a transverse manner.The entire cell
unit is encased in a cradle of visco foam.The
bielastictopcoverandPVCouterbasecover,
ensurestability,comfortandinfectioncontrol.
Recommendations
OSKA SeriesC Air alternating cushion system is
suitable as an aid in the prevention and treatment
of pressure ulcers up to and including category 2.
Capacity
OSKA SeriesC Air alternating cushion system is
recommendedforpatientweightupto130kg.
Heavierpatientsarebetteraccommodatedwitha
more appropriate OSKA pressure system.

SeriesC Air Cushion User Guide
System set-up
01. Place the pump on horizontal surface or
hangbymeansofthehooks.

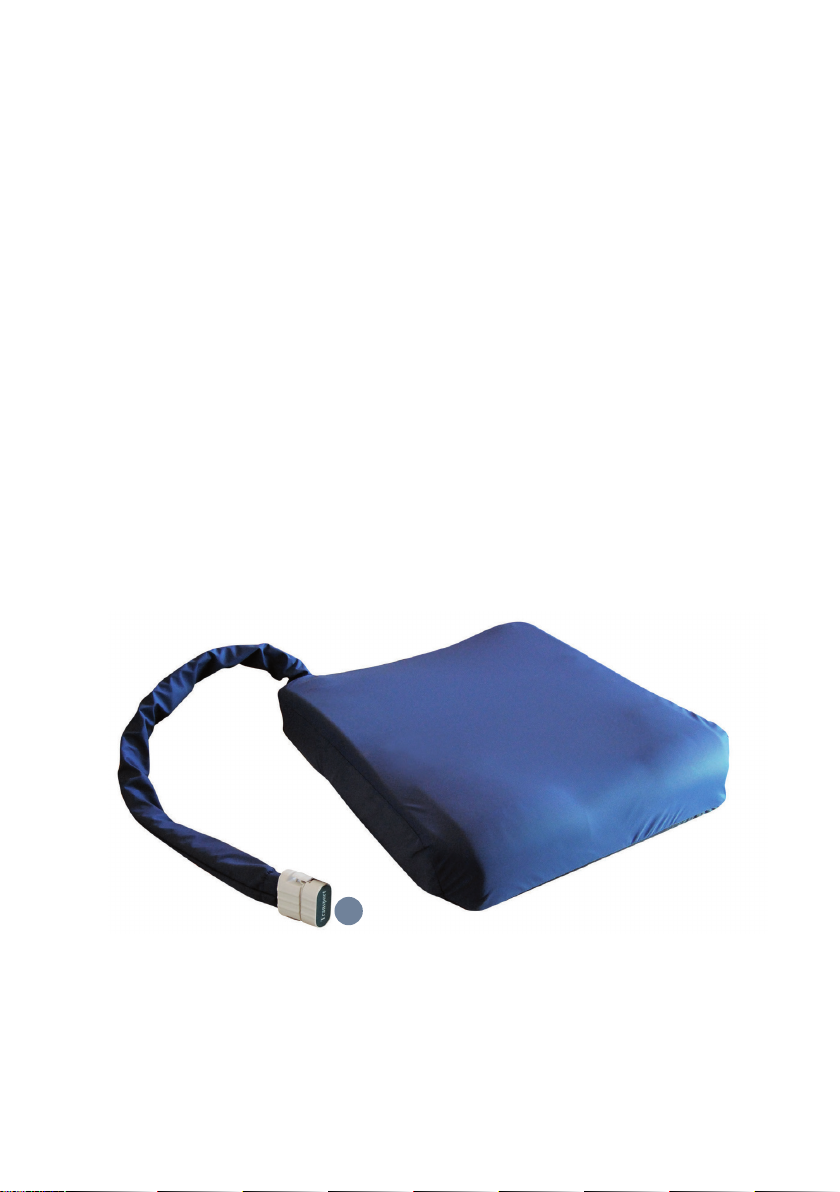

02. Place the seat cushion on the chair air tubes
should be at the rear of the chair unless
there are no openings at the rear of the chair.
Please ensure that the cushion is fully stable
on the chair.
03. Connectairfeedtubestoairoutletonthe
seatcushion(see1a)andpump(see1b),
ensuring that the tubes are not twisted or
“kinked”.Allowspacefortubestodrop
freely.
04. Switchonthepumppower(see2).
The power switch indicator should now
illuminate,andthepumpwillstarttoinate
the cushion.
05. Thelowpressureindicator(see3)will
illuminateasinationtakesplace.
06. Theaudiblealarmwon’talarmwithin60
minutes but will be activated if the pressure
remains low inside the cushion. In the case of
lowpressurechecktheconnectionsandthe
products.Pressthealarmresetbutton(see
4)tomutetheaudiblealarm,itsindicatorwill
ash.
1A

5
40kg
55kg
85kg 100kg
115kg
130kg
Operation
01. Whenthepressurereachesfullination
(withinapproximately5minutes)thenormal
pressure indicator will illuminate and the low
pressure indicator will turn off.
02. Turnthepressuredial(see5)toseta
comfortablepressurelevelfrom40kg-130kg
accordingtotheapproximateweightofthe
patient.
03. Pressthestaticbuttontoactivatestatic
mode.The static indicator will illuminate.
Staticmodewillcommenceinapproximately
5 minutes. Press the static button again to
switchbacktoalternatingmode.
54 3
1B 2
System maintenance
Maintenanceatregularintervals(mandatoryevery
2years)isnecessarytopreservethefunctionof
the OSKA SeriesC Air alternating cushion system.
Usedltersmustbeexchangedwithinthisperiod.
• Replacemembraneunit
• Replaceairlter
• Replacesynchronousmotor
• Conductfunctiontest/functioncheck
• Sealing of case and attaching an inspector
sticker
• Protectiveconductorcheckinaccordance
withDINVDE0751
ALARM RESET STATIC
LOW PRESSURE
NORMAL PRESSURE
125kg

SeriesC Air Cushion User Guide
Cleaning
Removedirtorstainswithlukewarmwateranda
cloth.Water may be treated with a mild cleaning
agent. Do not use aggressive cleaning agents or
solvents.Youmustdisinfectsurfacesregularly,
at least after every clean.Wipe disinfection is
preferred.The cleaning agent you use must comply
with the manufacturers information as stated on
the cleaning agent. If in doubt you must request
further information.
Technical specification
Pump
OSKA – SeriesC Pump
Power supply: 220~240V/50Hz,1A
Air output: 8 liter/min.
Pressure range: 30mmHg–60mmHg
Cycle time: 12 min.
StaticMode
AlarmResetMode
With normal / low pressure light
Size: 28cm(L)x20cm(W)x10cm(H)
Weight: 2.2kg
Cushion
OSKA – SeriesC Air Cushion
Size: 49cm(L)x46cm(W)x10cm(H)
Top cover:Darkbluebi-elasticcoverwithPU/
Polyester coating and zip fastening
Air cells: Nylon/PVC
Base: Nylon/PVCwithfoaminsert6AirCells

7
Troubleshooting guide
The pump appears
not to be on running
The mains supply is
plugged in.The switch
is in the on position.
The fuse in the plug is
not blown
Connect the appliance
to the nearest mains
socketandensurethat
the power indicator light
is on
Contact OSKA Service
The pump appears
to be on running
but is not reaching
the desired pressure
setting
The hoses are
connected correctly
Disconnect the hoses
and re-connect them in
to the outlet connectors
on the side of the pump
Contact OSKA Service
The pump is running
butisnotinating
the cushion
The hoses are
connected correctly
Disconnect the hoses
and re-connect them in
to the outlet connectors
on the side of the pump
Contact OSKA Service
Therearenoleaksin
the cushion
Contact OSKA Service Contact OSKA
Service
Therearenokinksin
the tubing down side
of the cushion
Carefully untwist any
kinks
Contact OSKA Service
Checkthatthe
pressure has been
set in the correct
rangeforthepatient’s
weight
Adjustthepressure
setting accordingly
Contact OSKA Service
The system does
not appear to be
alternating
Therearenokinksin
the tubing down side
of the cushion
Carefully untwist any
kinks
Contact OSKA Service
The operation pump
is noisy
The pump is not
resting against a solid
surface
Re-positionthepumpto
a suitable surface
Contact OSKA Service
Fault occurring Ensure that Possible solution If your product is still
not working

SeriesC Air Cushion User Guide
Waste disposal
The materials used to manufacture the OSKA
SeriesC Air cushion do not cause any danger to
the environment.They may be disposed of with
the household waste.
The pump control unit is considered as electrical
equipment waste. Please contact the proper waste
disposalofcials.
Warranty
Your OSKA product comes with a 1 year parts
and labour warranty.
The warranty is based on statutory regulations.
The warranty does not apply if the goods supplied
byOSKAareprocessed,handledormodiedby
other parties without prior consent from OSKA
or if these operating instructions are not followed.
FormedicaldevicesasunderstoodbytheEU-
Directive93/94,whoseusage(alsooperations)
issubjecttoregularserviceandmaintenance,
a warranty can be offered only if the service
intervals prescribed by OSKA are adhered to.
If during inspection it is found that damages
areduetowearandtearorarenotsubjectto
warranty,thenOSKAareempoweredtoclaimthe
expenses(inspection,transportcostsetc)from
the client.
The use of parts or individual components of
other systems or products or combinations
thereof are not permissible.
Warranty claims become invalid should any
damageresultfromthiskindofconductand
therefore remain the responsibility of the user/
owner.
WARNING!
For private non-professional operators. In the
caseofsystemfailurepleasecheck:
01. Istheresufcientpowersupply?
02. Istheunitturnedon?
03. Isthepowercordconnectedproperly
and is the power plug inserted
correctly?
04. Isthemattressconnectiontube
connectedproperly?
Ifalltheseprimarycheckshavebeencarried
out and the system continues not to function
then you must contact the responsible
supplier or user who is authorised to effect
the maintenance and/or repair of this
equipment.
Neverattempttorepairthesystemyourself.
Fusesmayonlybeexchangedbyqualied
and authorised personnel.

9
Safety
In the interest of your safety please be informed
thattheOSKASeriesCAiriscertiedin
accordancetothefollowingregulations:
TestingforDINEN60601-1
CPR-emergencyvalve
ISO13485
For your safety and the safety of those around
you, please adhere to all safety and warning as
detailed in this manual.
WARNING!
YouMUSTbeawareofthesusceptibilityof
thisairmattresstotheincidenceofre.In
thecaseofaretheunavoidablereleaseof
airactsasafaneffecttoassisttheames.
Youmustavoidsmokingatalltimesinthe
immediate vicinity of this product. Other
hazardscaninclude:Theuseofpetroleum
basedcreamsandgelssuchasVaselineetc.
Themanufacturerofthisproducttakesno
responsibility for actions that are in breach
ofthisrehazardwarningwhichincludes
allenvironments:Hospitals,carehomesand
private/domestic users.

SeriesC Air Cushion User Guide
Notes

11
Notes

SeriesC Air Cushion User Guide
EdwardHouse,5PennerRoad,Havant,PO91QZ
02394318318|[email protected]
oska.uk.com
Pressure Care Experts
