Ovlac Mini Guide

1
MINI
REVIEW 2016
OPERATING INSTRUCIONS AND SPARE
PARTS

2
This handbook describes the use, maintenance instructions
and spare parts supplied for the indicated plough.
The farming implement known as “plough“ is designed to
work the soil, linked to a tractor with lift and universal 3-point
coupling.
Regular and satisfactory operation together with economic
and long lasting use of the implement depends on compliance
with the instructions given in this handbook. It is, therefore,
advisable to strictly comply with the following instructions in
order to prevent faults which could jeopardise the correct and
long-lasting operation of the implement.
Compliance with the instructions in this handbook is also
important
since the Manufacturer declines all and every
responsibility caused by negligence and failure to comply
with these instructions.
The Manufacturer shall, however, remain at the customer’s
disposal for immediate and thorough assistance together with
anything else that may be required in order to ensure the correct
operation and maximum efficiency of the implement. The
Manufacturer reserves the right to make any modifications and
improvements to the implement, as may be considered
opportune, without being obliged to immediately inform the user.
CONTENTS
1. Safety provisions ........................................... 3
2. Descriptions and Technical Data.................. 5
3. “NON STOP” ................................................... 7
4. Set to work...................................................... 8
4.1 Moulboards ............................................ 8
4.2 Hitching to the tractor ........................... 8
4.3 Alignment ............................................... 9
4.4 Other adjustments................................. 9
5. Ploughing depth .......................................... 11
6. Transport and parking ................................. 11
7. Maintenance.................................................. 12
8. Optional equipment...................................... 13
9. Spare parts.................................................... 14

3
1. SAFETY PROVISIONS
1.-Comply with the instructions given by the danger signals exposed
in this handbook (Fig.1) and affixed to the plough itself.
2.-Operations and adjustments to the implement must always be
carried out when the engine is off and the tractor braked.
3.-It is absolutely forbidden to carry passengers or animals on the
plough.
4.-It is absolutely forbidden for persons without a driving license,
inexpert persons or those in precarious health conditions to drive the
tractor with the plough mounted.
5.-Strictly comply with all the recommended accident preventing
measures described in this handbook.
6.-Assembly of an implement on the tractor will shift the weights on
the axles.
7.-Before starting the tractor and plough, always check that all safety
devices guarding transport and use are in perfect conditions.
8.-The instructions labels affixed to the plough give useful advice on
how to prevent accidents.
9.-Always comply with the highway code in force in your country
when travelling on public roads.
10.-Comply with the maximum permissible weight on the axle of the
tractor, the total adjustable weight, transport regulations and the
highway code.
11.-
Always become familiar with the controls and their operation
before starting work.
12.-
Take the utmost care during the plough coupling and release
phases.
13.-Never ever leave the driving seat whilst the tractor is moving.
14.-
Remember that the road holding, steering and breaking capacity
may be notably influenced by the presence of a mounted implement.
15.-
It is absolutely forbidden to stand within the operative range of the
plough.
16.-
Before leaving the tractor, lower the mounted plough coupled to
the lift unit, stop the engine, engage the hand brake and remove the
ignition key from the control panel.
17.-
The category of the implement coupling pins must correspond to
that of the lift coupling.
18.-
Take care when working close to the lift links. This is a very
dangerous area.
19.-
It is absolutely forbidden to stand between the tractor and the
plough, to manoeuvre the outside lift control.
20.-
Set the control lever of the hydraulic lift to the locked position
during road transport with the plough mounted.
21.-
The spare parts must correspond to the requirements established
by the Manufacturer. Use only genuine spare parts.
22.-
The safety transfers must always be perfectly visible. They must
be kept clean and should be replaced if they become illegible.
Replacements are available on request from your local dealer.
23.-
The instruction manual must be kept for as long as the machine
lasts.

4
Fig.1
(Fig.1) WARNING
Thoroughly read the manual before starting to work
DANGER
Do not handle the plough when lifted, danger of flattening. Keep
safety distance.
DANGER
Damage can be caused by the rotation of the plough. Keep safety
distance.
Be prepared in case of emergency
Have near a first aid kit and an extinguisher. Write down the telephone
numbers of doctors, ambulances and firemen and keep them near the
telephone.
Use suitable clothes
Avoid loose clothes and use suitable equipment of security according to the
type of works. The safe handling of the machine requires all the attention of
the operator.
Don’t put on auricular to listen to the radio during the work with the
machine.

5
2. DESCRIPTION AND DATA TECHNICAL
1. HEADSTOCK
2. IDENTIFICATION PLATE
3. FRAME
4. FOLDING CYLINDER
5. CROOS SHAFT
6. SECURITY SYSTEM
7. BODY SET
8. FRONT WHEEL
9. BACK WHEEL
10. ADITTIONAL BODY
REMARK:
The construction number that is
engraved in the identification plate must be
coincident with the number engraved on the
headstock support.
IDENTIFICATION PLATE (2)
1
5
9
8
7
6
4
3
10

6
MINI
6
6+1
6+2
8
8+1
8+2
Working width
(cm)
195
227
260
260
292
320
Transport width
(cm)
195
227
260
260
392
300
Power (CV)
75-95
85-100
95-110
95-110
110-125
120-140
MINI
10
10+1
10+2
10+3
10+4
Working width
(cm)
320
357
390
420
450
Transport width
(cm)
300
300
300
300
300
Power (CV)
120-140
130-155
145-170
155-185
170-195
TECNICAL DATA MINI

7
3. SISTEMAS DE SEGURIDAD NON STOP
The Auto Reset protection systems work automatically. When
the share meets an obstacle the protection system pulls the beam
up (Fig. 2) thus avoiding the obstacle and returning to its original
position afterwards with no need to stop the tractor.
This way all the impacts produced by an uneven field are
absorbed by the protection system thus protecting all the elements
of the plough and of the tractor too.
For the same reason, the Auto Reset protections decreases
the traction effort by not making the tractor overcome every
eventual obstacle.
- SERIES MINI:
In heavy duty conditions one or more leafs can
be added to ease penetration of the plough. Always check that the
distance of the arch of the spring is 500 2mm (Fig. 3).
Note
: The Auto Reset systems from OVLAC are adjusted
at the works at an optimal pressure for average conditions.
Always work with a pressure of between 100 and 135
bars
Fig.2
Fig.3
500 + - 2 mm

8
Fig.4
4. SET TO WORK

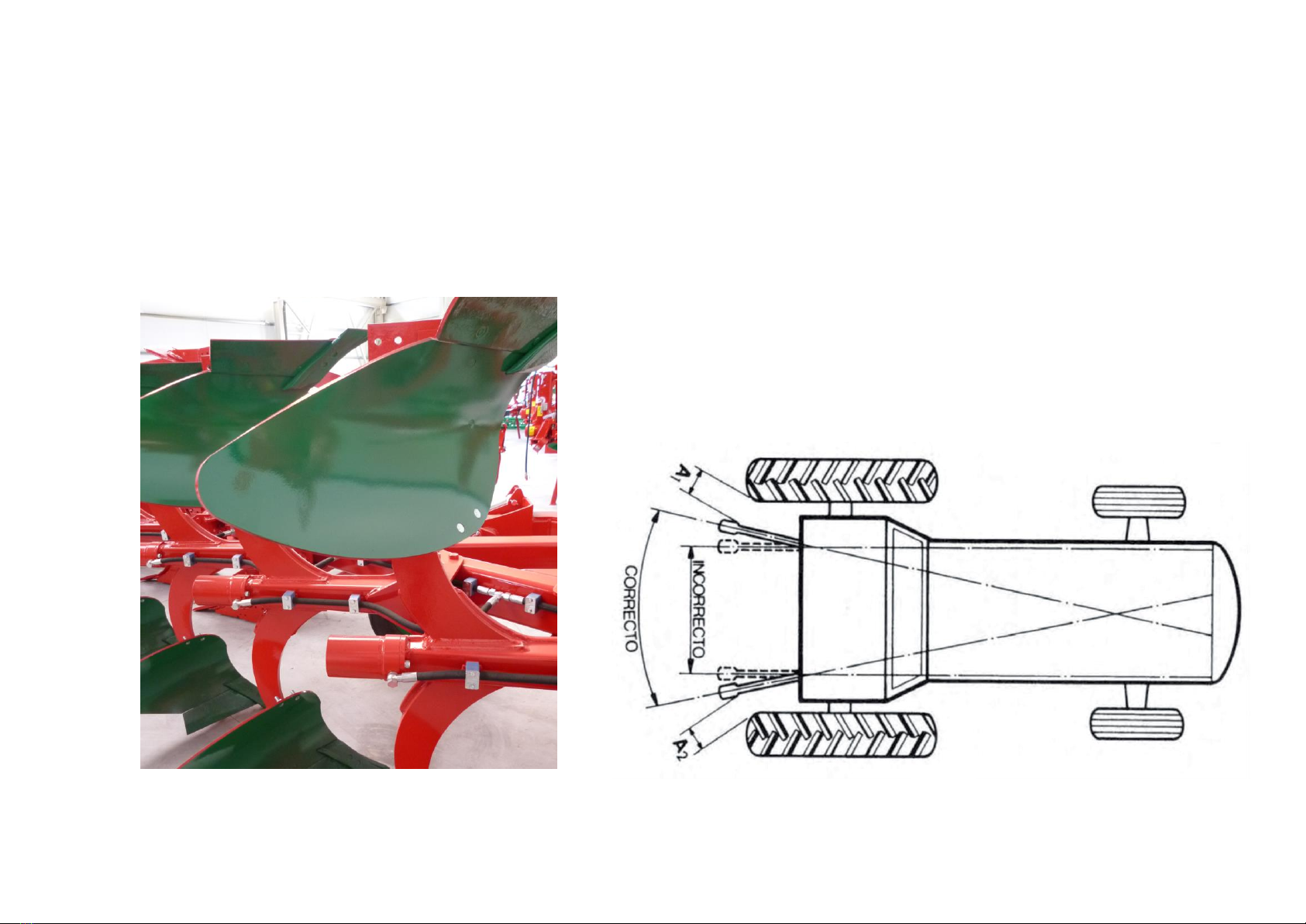

4.1 –MOULBOARDS
Before starting work, the paint on the mouldboards should be
removed to avoid that the soil remains adhered.
4.2 –HITCHING TO THE TRACTOR
The OVLAC ploughs are designed to fit to the 3-point universal
coupling of any farming tractor.
The cross shaft can be supplied in two different lengths (centre
to centre):
Category II 900 mm.
Category III 1.000 mm.
The cross shaft must have the appropriate length to make the
drawing powers converge in the centre of the frontal axle, as shown
in (Fig. 5).

9
Fig.5
4.3 –ALIGNMENT
The plough should always work in line with the tractor. If not, the
tractor will tend to leave the furrow course. Check that lengths A1=A2
(Fig. 5)
Crabbing is corrected automatically in OVLAC ploughs thanks to
their oscillating cross shaft. In ploughs with fix coupling, act on the
drifting-correction turnbuckle (hydraulic in option).
The third point should be linked so that the end linked to the
plough be slightly higher than the one linked to the tractor (Fig. 6)
The third point should always be placed in the oblong hole E (Fig.
6), trying that its length does not hinder it to move while working.
4.4 –OTHERS ADJUSTMENTS
The length of the third point should be adjusted so that the frame
works in a parallel position with respect to the field since, if not, the first
bodies would plough at a different depth than the rear ones achieving
an uneven labour (Fig. 7).
For the same reason, check that the beams work vertically to the
field (Fig. 8). To achieve this, make sure that the lifting arms of the
tractor are at the same height and act on the adjusting bolts A at the
headstock (Fig. 9).

10
Fig.8
Fig.7
Fig.6

11
6. TRANSPORT AND PARKING
In order to ease transport, the plough should be drawn to its
minimum width by means of the width control system (turnbuckle or
hydraulic cylinder), Fig.10.
The stand P guarantees a steady position when the plough is
parked.
Fig.9
Fig.10
5. PLOUGHING DEPTH
The ploughing depth is adjusted through the hydraulic lever of the
tractor. Nevertheless, obtain an even depth, all ploughs can be
equipped with a depth control wheel (Fig.10) whose height is adjusted
by the bolts.
There is a relation between depth and width which should be
respected in order to achieve a good result.
The following chart gives an excellent reference which, if complied,
will lead to satisfactory results.

12
7. MAINTENANCE
Retighten all bolts and nuts after the first 8 hours of work, specially
the ones of mouldboards, shares and points. Henceforth, check every 100
hours of work. When putting the plough away, clean and grease
thoroughly the mouldboards to prevent from rusting.
Lubrication: grease the greaser.
Safe maintenance
Be used to the maintenance procedures before carrying out the
works. The working zone must be clean and dry. Don’t carry out any work
of lubrication, repair or adjust with the motor enabled. Keep the hands,
feet and clothes always far from movable components. Turn all the
controls off, to alleviate the pressure. All the components must be in good
state and correctly installed. Repair damages immediately. Change any
worn away or broken pieces. Maintain all the components of the machine
clean of fat, oil and accumulated dirt. Because of being dragged
equipment, disconnect the cable groups of the tractor before making
works of weld in the machine.
Take care of the leaks of high pressure
The fluids that escape of the system can have as much force that
they can penetrate the skin, causing serious injuries. Therefore, it is
essential to leave the system without pressure before relaxing or
disconnecting any pipe and make sure that all the connections and the
hydraulic parts they are well tight before applying pressure to the system.
In order to locate a hydraulic oil leak, use a piece of cardboard that is put
on the connections. Do not approach the hands and the body to a leak of
high pressure. If, in spite of this precaution, it happens an accident, go
immediately to a doctor who should eliminate surgically the fluid within few
hours to avoid gangrene. The doctors who do not have experience in
dealing with these type injuries can go to a specialized medical centre.
Storage of the hydraulic sleeves.
IMPORTANT:
maintain the plugs clean. The abrasive particles, like
the sand or the metallic shaving, can damage the oil seals, shirts and
cylinders, causing internal leaks. Once disconnected of the tractor, make
sure that they are not in contact with the ground

13
8. OPTIONAL EQUIPMENT
The Ovlac ploughs can be equipped with:
8.1 Trash Boards (Fig.11).
8.2 Landslide extension (Fig.12).
8.3 Additional body screwed (Fig.13)
8.4 Additional body folding (Fig.14).
8.5 Slatted Moulboards. (Fig.15).
Fig. 11
Fig. 12
Fig. 14
Fig. 15
Fig. 13

14
CONTENT
FRAME ....................................................15
HEADSTOCK ..........................................21
ADDITIONAL BODY................................25
BODY SET...............................................27
CUERPO MINI .........................................29
SKIM BOARDS........................................31
LANDSLIDE EXTENSION.......................32
FOLDING HYDRAULIC...........................34
HYDRAULIC SYSTEM.............................35
WHEELS..................................................39
9. SPARE PARTS
Spare parts should always be ordered from your dealer and should
always include the following indications:
- Type, model and serial number of the plough.
These data are
punched on the identification plate with which every plough is equipped.
- Code number of the required spare part.
This will be found in the
attached spare parts list.
- Description of the part and required quantity.
- Means of delivery
. Transport expenses shall always be at the
consignor's charge.
- NOTE: The terms Right and Left
indicated on the descriptions, refer to
the plough when viewed from the rear. The spare parts components of
waste equipment, as shares, mouldboards, etc., are considered right if
they are mounted on a body which spills the soil to the right side and
viceversa.
- Note about the warranty
: The orders of spare parts in warranty should
always be clearly specified.
The Manufacturer will always sentence if
the spare parts are warranted in their replacement.
- Moreover, the warranty is suppressed if:
- The plough is repaired without authorisation from the
Manufacturer, or spurious spare parts, and inadequate bolts are
mounted.
-
The plough has been used beyond the specified power limit, or
anomalous manoeuvres and operations have been made.

FRAME 6
15

REFERENCIA DESCRIPCIÓN
36001906 BAST.MINI-6
36001907 TIRANTE CORTO MINI-6
36001908 TIRANTE LARGO MINI-6
36001909 TIRANTE LARGO MINI-6-P
36001996 BAST.MINI-6-P
36031900 PEON MINI/MCH-35
60000039 TORN.EXAG.DIN-931 20*150 8.8
60000098 TORN.EXAG.DIN-931 20* 60 8.8
60000146 TUER.AUTO.DIN-980 20 10.9 ZINC.
62000004 PASADOR ANILLA 10 ZINC.
70010901 SEP.B.P.36/25* 60mm.
FRAME 6
16

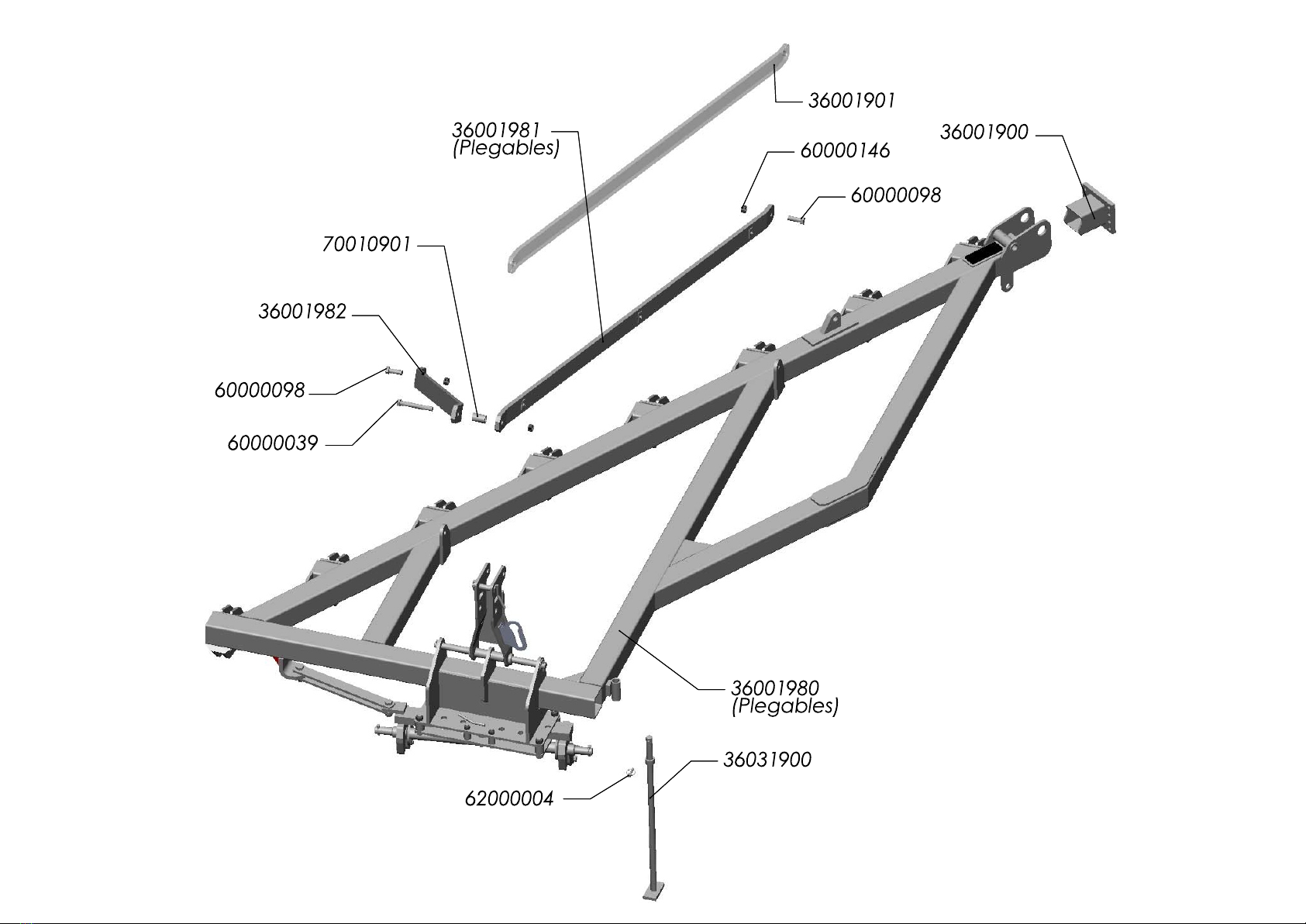

FRAME 8
17

REFERENCIA DESCRIPCIÓN
36001900 BAST.MINI-8
36001901 TIRANTE LARGO MINI-8
36001980 BAST.MINI-8-P
36001981 TIRANTE LARGO MINI-8-P
36001982 TIRANTE CORTO MINI-8
36031900 PEON MINI/MCH-35
60000039 TORN.EXAG.DIN-931 20*150 8.8
60000098 TORN.EXAG.DIN-931 20* 60 8.8
60000146 TUER.AUTO.DIN-980 20 10.9 ZINC.
62000004 PASADOR ANILLA 10 ZINC.
70010901 SEP.B.P.36/25* 60mm.
FRAME 8
18

FRAME 10
19

REFERENCIA DESCRIPCIÓN
36001910 BAST.MINI-10
36001911 TIRANTE LARGO MINI-10
36001912 TIRANTE CORTO MINI-10
36001923 TIRANTE MEDIO MINI-10
36031900 PEON MINI/MCH-35
60000030 TORN.EXAG.C/LAR.1"*175 SAE 12.9
60000138 TUER.AUTO.DIN-980 1"SAE 10.9 ZINC.
60000342 TORN.EXAG.DIN-931 24*220 8.8
60000343 TUER.AUTO.DIN-980 24 8.8 ZINC.
60000400 TORN.EXAG.DIN-931 1"* 70 SAE 12.9
62000004 PASADOR ANILLA 10 ZINC.
FRAME 10
20
