OVO KIT-LV30 User manual

User Manual
Deluxe attachment kit
Model Number:
KIT-LV30/35/40-D
WARRANTY
2
year

Index
1. Specifications .................................................................................................................. 3
2. Low-Voltage Hose .......................................................................................................... 4
3. How to use the wand ....................................................................................................... 5
4. Included cleaning tools ................................................................................................... 6
5. Easy Storage included....................................................................................................... 7
Page 2

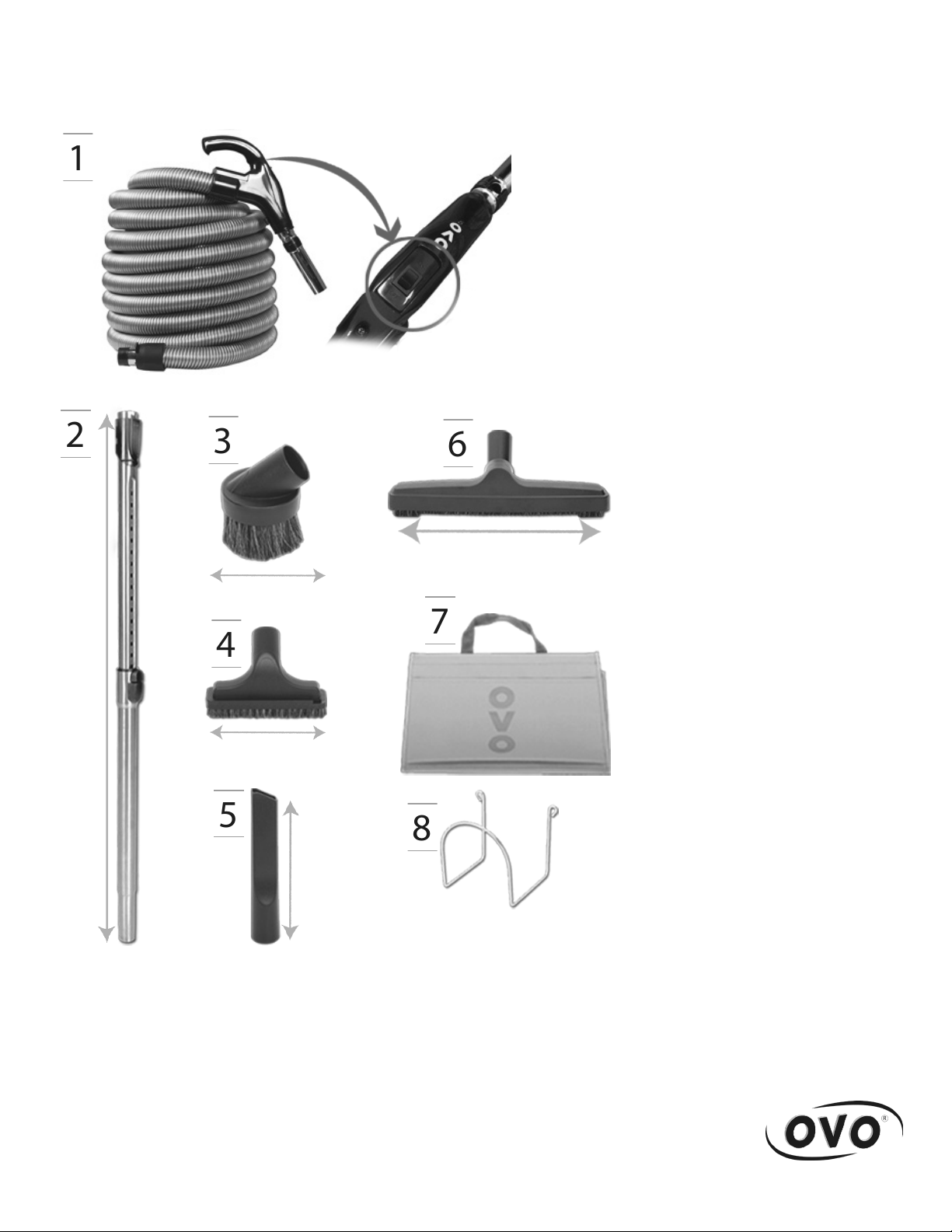

1. INCLUDED IN THE KIT
Page 3
1. Low-Voltage with ON/OFF switch
2. Adjustable wand
3. Dusting brush
4. Upholstery brush
5. Crevice Tool
6. 12’’ Floor brush
7. Accessory bag
8. Hose Hanger
ON / OFF
1
6
7
8
3
4
5
2
5’’
4’’
10’’
12’’
AJUSTABLE DE 25.5’’ À/TO 38’’

ON / OFF
SWITCH
OFF
ON
2. LOW-VOLTAGE HOSE
2.2 Connecting the hose to the wall inlet
The hose end cuff must be connected as shown in the picture below. The black part on the end cuff must be well
aligned with the 2 pins inside the inlet (C). The plastic square must be facing up (D).
2.1 Compatibility
The hose is compatible with most wall inlets. Inlets must have a 1.5’’ inner diameter (A) in order for the hose to
fit, and must have 2 low-voltage pins/metal prongs (B) in order to turn the hose ON/OFF from the switch locat-
ed on the hose handle.
2.3 Starting and stopping your central vacuum
If your inlets have 2 low-voltage pins inside as demonstrated in step 2.1, you will be able to start and stop your
central vacuum directly from the switch on the hose handle.
C
A B
D
Page 4

Page 5
To extend the wand, simply push on the button (E) and pull on the wand (F) at the same time
G
F
E
Align the hose nozzle button (G) with the lock button on the wand (H) and push the
nozzle into the wand until you hear a “click”
Insert the other end of the wand into the port on the brushes
3. HOW TO USE THE WAND
3.1 How to extend the wand
3.1 How to connect the wand to the hose nozzle
3.1 How to connect the different attachment tools
H

Ideal for hard surfaces. Made of horse hair - Will not scratch your floor
4. INCLUDED CLEANING TOOLS
Page 6
4.1 12’’ Superior Floor brush
Made of horse hair - Delicate and soft on furniture
4.2 Dusting brush
Made of horse hair - Perfect for delicate furniture
4.3 Upholstery brush
Ideal to clean nooks and crannies
4.4 Crevice tool
12’’
4’’
10’’

Page 7
5. EASY STORAGE INCLUDED
The perfect accessory to store your hose neatly.
5.2 Chrome hose hanger
The perfect accessory to have your small tools always accessible.
Install it on the hose nozzle Install your small tool on it
5.1 Tool Cady
Nozzle connection
Place for
Small tools
2 Large pockets to easily store your accessories without making a mess in your storage room.
5.3 Accessory bag
12’’
12’’
12’’
12’’
12’’
12’’
12’’
