CHARGER SAFETY WARNINGS
ELECTRICAL SAFETY
DESCRIPTION OF SYMBOLS
ZLCG-112U
FAST CHARGER
12V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 100-240V AC 50-60Hz
Output: 15V DC, 1700mA
Charge Times: 1hr (1.5Ah Battery)
ozito-diy.co.uk

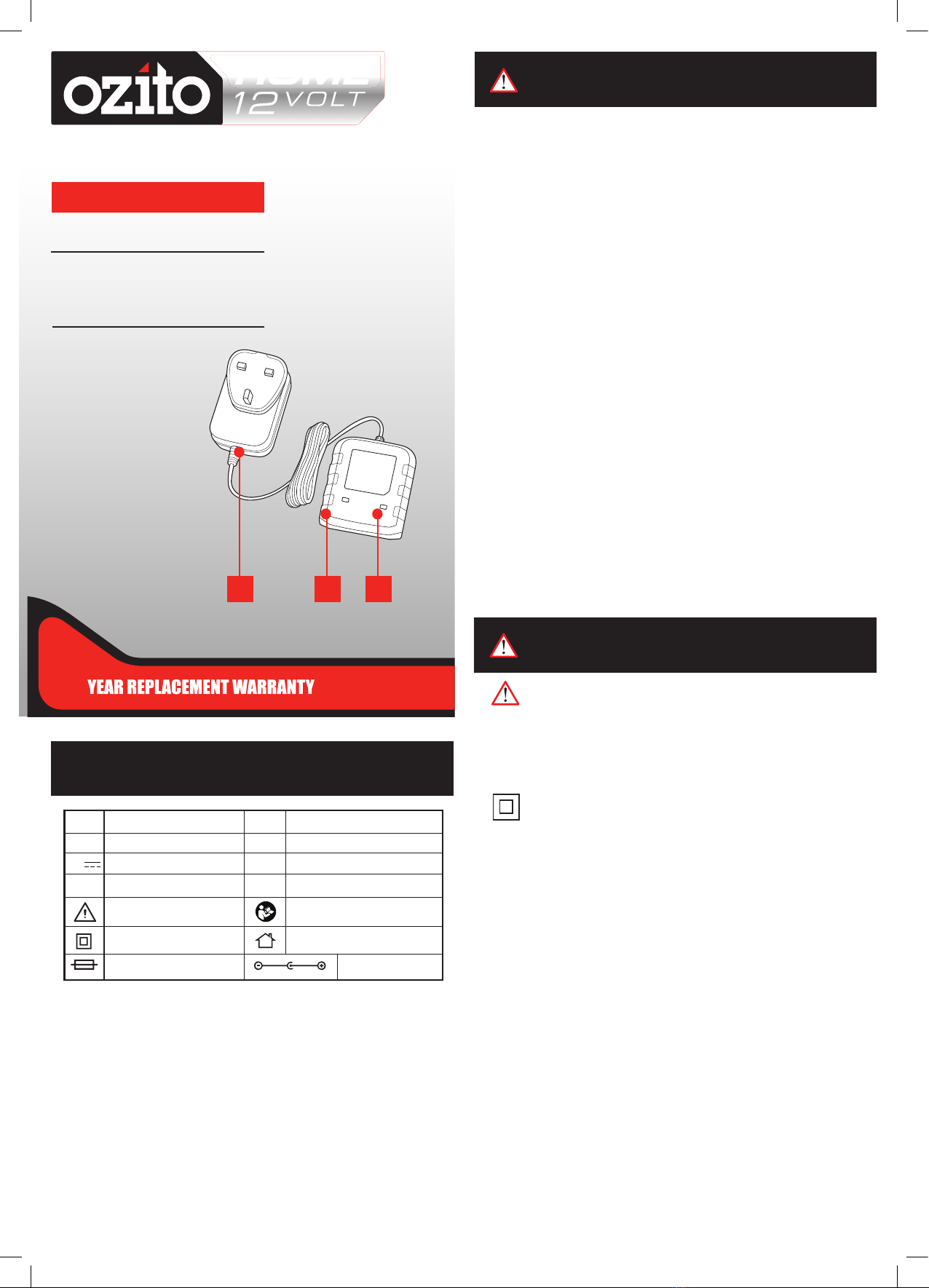

1 2 3
1 Charging Adaptor
2 Charging Cradle
3 Charge Indication Lights
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR
YOUR BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger,
battery pack and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any
otherusemayresultinriskofre,electricshockorelectrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that
may result in excessive internal heat. Place the charger in a position away from any heat
source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the
cord when disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise
subjected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper
extensioncordcouldresultintheriskofre,electricshockorelectrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise
damaged in any way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when
service or repair is required. Incorrect reassembly may result in a risk of electric shock,
electrocutionorre.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any
cleaning. Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach
or exceed 40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts).
Do not attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions
and then follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is charged
when the air temperature is between 18 - 24ºC. Do not charge the battery pack in an air
temperature below 10ºC or above 40ºC. This is important and will prevent damage to the
battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out.
Thebatterycanexplodeinare.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery
pack breaks or cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
WARNING! When using mains-powered tools, basic safety precautions,
including the following, should always be followed to reduce risk of fi re, electric
shock, personal injury and material damage.
Readthewholemanualcarefullyandmakesureyouknowhowtoswitchthetooloffinan
emergency, before operating the tool. Save these instructions and other documents supplied
with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for the UK.
This tools charger is double insulated; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating
this tool. The insulation system is for added protection against injury resulting from a possible
electrical insulation failure within the tool.
The power supply for this products charger should be protected by a residual current device
(rated at 30mA or less). A residual current device reduces the risk of electric shock.
Warning Read instruction manual
mA Milliamperes
Polarity
Thermal cut-out protection
Double insulated
A Amps
Indoor use only
VVolts Hz Hertz
ac/~ Alternating current WWatts
Direct current
dc/ Ah Amp hour
Manual_ZLCG-112U.indd 1 22.08.2019 15:35:39

• Disconnect the charger from power source before cleaning.
• Keep the charger in a dry place out of reach of children.
• If the enclosure of the charger requires cleaning, do not use
solvents. Use a dry, soft cloth only to wipe down the surface. Never
let any liquid get inside the charger; never immerse any part of the
drill into a charger.
• There are no other parts inside the charger which require
maintenance. Do not take the charger apart. If the charger is
damaged, contact your supplier or the manufacturer.
ZLCG-112U
Only use this charger with Ozito Home 12Volt batteries.
1. CHARGING A BATTERY 2. MAINTENANCE
WARRANTY
iSC GmbH · Eschenstraße 6 · 94405 Landau /Isar · Germany
All of our products undergo strict quality checks to ensure that they
reach you in perfect condition. In the unlikely event that your device
develops a fault, please contact our service department at the address
shown on this guarantee card. You can also contact us by telephone
using the customer service number shown. Please note the following
terms under which guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which
the manufacturer mentioned below promises to buyers of its new
products in addition to their statutory guarantee claims are not
affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or
manufacturing faults on
a product which you have bought from the manufacturer mentioned
below are limited to either the rectification of said defects on the
product or the replacement of the product, whichever we prefer.
Please note that our devices are not designed for use in
commercial, trade or professional applications. A guarantee contract
will not be created if the device has been used by commercial, trade
or industrial business or has been exposed to similar stresses during
the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly
instructions or due to incorrect installation, a failure to follow the
operating instructions (for example connecting it to an incorrect
mains voltage or current type) or a failure to follow the maintenance
and safety instructions or by exposing the device to abnormal
environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for
example overloading the device or the use or unapproved tools or
accessories), ingress of foreign bodies into the device (such as sand,
stones or dust, transport damage), the use of force or damage
caused by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or
natural wear or tear or by normal use of the device.
4. Your Product is guaranteed for a period of 60 months from the
original date of purchase and is intended for DIY (Do It Yourself) use
only. Lithium Ion batteries and chargers are covered by a 12 month
warranty. Warranty excludes consumable parts, for example:
grinding discs. Guarantee claims should be submitted before the
end of the guarantee period within two weeks of the defect being
noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable
to the device even if repairs are carried out or parts are replaced. In
such cases, the work performed or parts fitted will not result in an
extension of the guarantee period, and no new guarantee will
become active for the work performed or parts fitted. This also
applies if an on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR
REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing
parts, consumables and missing parts as set out in the service
information in these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk

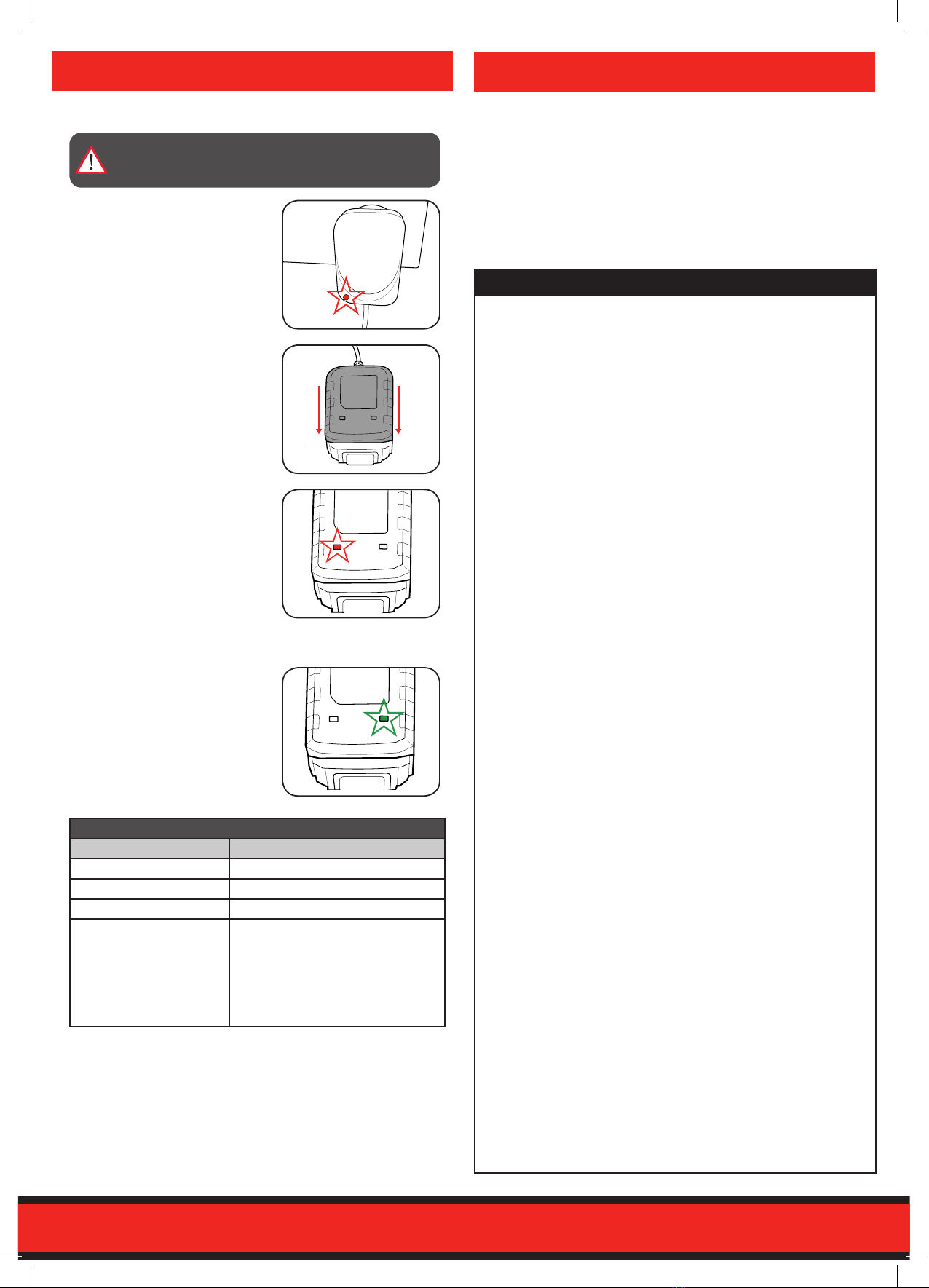

1 Connect the charging adaptor to a
mains power outlet.
The red led light on the back of the
plug will illuminate red indicating it
is connected correctly.
2 Withthebatterysittingonaat
surface, align the raised ribs on
the battery with the recess in the
charging cradle and slide onto the
batteryensuringarmconnection.
3 The red LED on the charging
cradle will illuminate signifying that
the battery is charging.
4 Once the green LED on the
charging cradle illuminates, the
battery is charged and can be
removed from the charging cradle
using the battery release button.
Note: The battery will not develop a memory, it does not have to be
fully discharged before recharging.
Charger LED Indicator
LED Indicator Situation
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is fully charged
RED & GREEN (Flashing) Battery or Charger fault
RED & GREEN (Illuminated) Battery pack is too hot or too cold
(remove battery from charger and
store at room temperature 20ºC. Insert
battery again when at correct charging
temperature). If this happens again, the
battery is defective and needs to be
replaced.
WARNING! THE POWER SUPPLY FOR THIS CHARGER IS
RECOMMENDED FOR USE WITH A RESIDUAL CURRENT
DEVICE (RATED AT 30mA OR LESS).
Manual_ZLCG-112U.indd 2 22.08.2019 15:35:39
