Ozito PXCG-030U User manual

THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR
YOUR BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery
pack and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any other
use may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that may
result in excessive internal heat. Place the charger in a position away from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when
disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise
subjected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord
could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in
any way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair
is required. Incorrect reassembly may result in a risk of electric shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any clean-
ing. Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts). Do not
attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions and then
follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is charged when the
air temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below
10ºC or above 40ºC. This is important and will prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The
battery can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks
or cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
CHARGER SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety
precautions, including the following, should always be followed to
reduce risk of fire, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency,
before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for the UK.
This tools charger is double insulated; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool.
The insulation system is for added protection against injury resulting from a possible electrical insulation
failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or
defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead
not suitable for the power input of the tool or which is damaged or defective may result in a risk of re
and electric shock.
To reduce the risk of electric shock, we recommend the use of a residual current device (rated 30mA or
less).
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Read instruction manual Double insulated
Indoor use only
Amps
AAmp Hour
Ah
Volts
VHertz Hz
DESCRIPTION OF SYMBOLS
Thermal cut out protection
2
SPECIFICATIONS
Input: 200-250V AC 50/60Hz
Output: 21V DC, 3A
Battery Charge Time: 30Min - PXBP-150U (18V 1.5Ah)
40Min - PXBP-200U (18V 2.0Ah)
60Min - PXBP-300U (18V 3.0Ah)
80Min - PXBP-400U (18V 4.0Ah)
105Min - PXBP-520U (18V 5.2Ah)
1. Charging Unit
2. Charging Unit LED
ozito-diy.co.uk
1
FAST CHARGER
ORIGINAL INSTRUCTIONS
PXCG-030U
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.

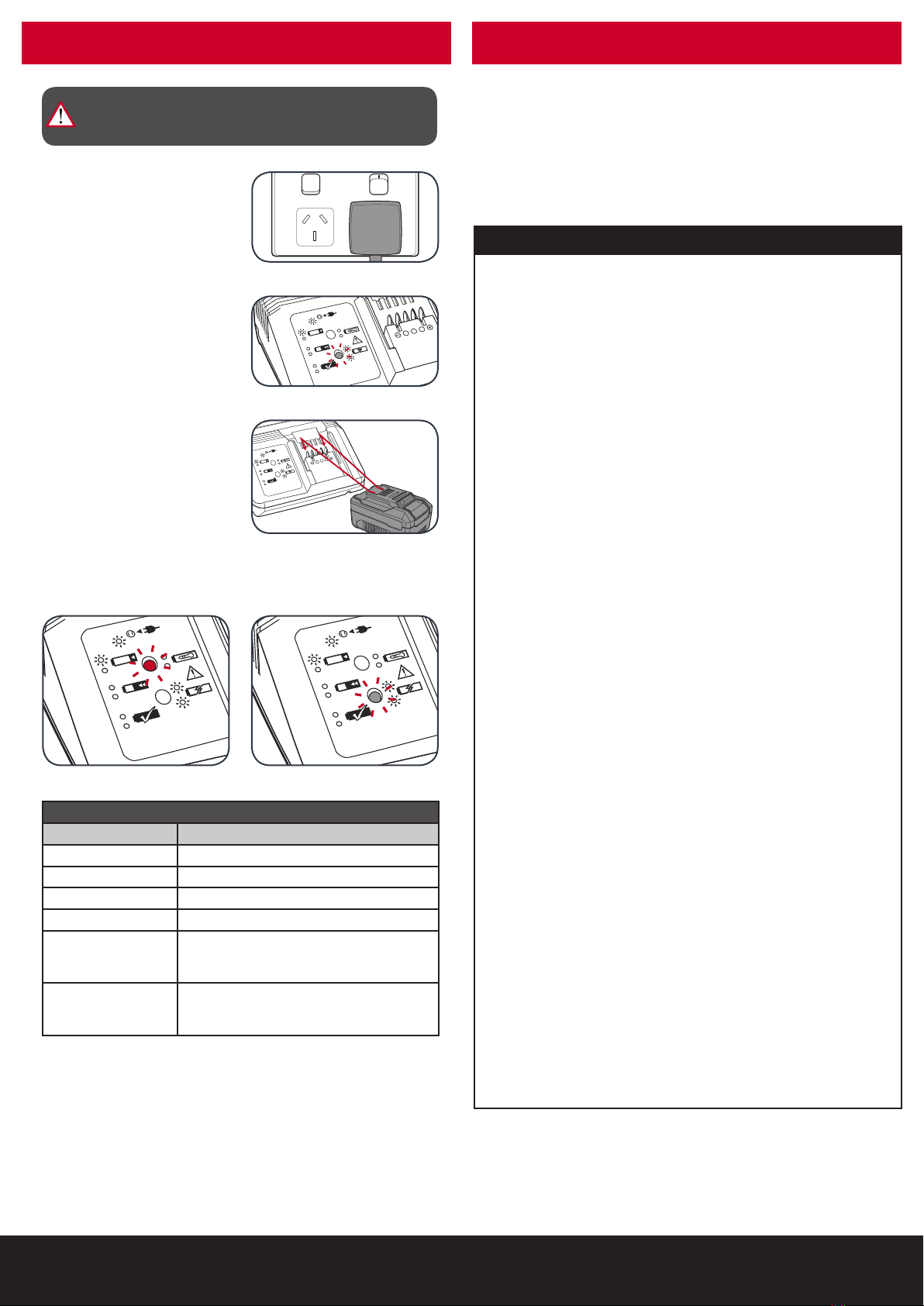

1. CHARGING A BATTERY
Charger LED Indicator Lights
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Flashing) Battery is charging (low charge)
RED (Illuminated) Battery is fast charging (mid charge)
GREEN (Illuminated) Battery is 85% - 100% charged and is ready for use.
BOTH(Illuminated) Battery pack is too hot or too cold (charging will begin
automatically when battery reaches correct charging
temperature).
BOTH (Flashing) The battery is deffective, charging is no longer
possible. Do not charge. Contact Ozito Customer
Service.
CAUTION: THE CHARGER SHOULD BE PROTECTED BY
A RESIDUAL CURRENT DEVICE (RATED AT 30MA OR
LESS).
1. Place the charger on a at
surface then connect the charger
into a mains power outlet.
3. Align and then slide the ribs on
the battery into the recess in the
charger.
2. The charger LED will ash green
showing power is being supplied
to the charger.
4. The red LED will illuminate while
the battery charges.
5. The green LED will illuminate once
the battery is charged.
2. MAINTENANCE
• Disconnect the charger from power source before cleaning.
• Keep the charger in a dry place out of reach of children.
• If the enclosure of the charger requires cleaning, do not use solvents. Use a dry, soft
cloth only to wipe down the surface. Never let any liquid get inside the charger; never
immerse any part of the drill into a charger.
• There are no other parts inside the charger which require maintenance. Do not
take the charger apart. If the charger is damaged, contact your supplier or the
manufacturer.
Mounting the charging unit on a wall
The charging unit can be mounted to a wall or workbench.
The correct dimensions for drill holes can be found on the back of the charging unit.
Note: When mounting on a wall you must use suitable screws, e.g.M3 pan-head
screws, in order to prevent damage to the housing and risk of falling.
PXCG-030U
