Ozito BJK-1010U User manual
BISCUIT
JOINER
1010W
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 230-240V ~ 50Hz
Power: 1010W
No Load Speed: 12,000/min
Blade Bore Diameter: 22mm
Max. Cutting Depth: 14mm
Fence Adjustment: 0 - 90°
Spindle Dimension: M10
Weight: 3.25kg
BJK-1010U
WHAT’S IN THE BOX
Biscuit Joiner
Pin Spanner
Dust Bag
ozito-diy.co.uk
WARRANTY
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG 0716
All of our products undergo strict quality checks to ensure that they reach
you in perfect condition. In the unlikely event that your device develops a
fault, please contact our service department at the address shown on this
guarantee card. You can also contact us by telephone using the customer
service number shown. Please note the following terms under which
guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the
manufacturer mentioned below promises to buyers of its new products
in addition to their statutory guarantee claims are not affected by this
guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or
manufacturing faults on a product which you have bought from the
manufacturer mentioned below are limited to either the rectication of said
defects on the product or the replacement of the product, whichever we
prefer.
Please note that our devices are not designed for use in commercial, trade
or professional applications. A guarantee contract will not be created if the
device has been used by commercial, trade or industrial business or has
been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly
instructions or due to incorrect installation, a failure to follow the operating
instructions (for example connecting it to an incorrect mains voltage or
current type) or a failure to follow the maintenance and safety instructions
or by exposing the device to abnormal environmental conditions or by lack
of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example
overloading the device or the use or unapproved tools or accessories),
ingress of foreign bodies into the device (such as sand, stones or dust,
transport damage), the use of force or damage caused by external forces
(for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural
wear or tear or by normal use of the device.
4. Your Product is guaranteed for a period of 36 months from the original
date of purchase and is intended for DIY (Do It Yourself) use only. Lithium
Ion batteries and chargers are covered by a 12 month warranty. Warranty
excludes consumable parts. Guarantee claims should be submitted
before the end of the guarantee period within two weeks of the defect
being noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable to the
device even if repairs are carried out or parts are replaced. In such cases,
the work performed or parts tted will not result in an extension of the
guarantee period, and no new guarantee will become active for the work
performed or parts tted. This also applies if an on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR
REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts,
consumables and missing parts as set out in the service information in
these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
WARNING! ENSURE THE BISCUIT JOINER IS SWITCHED
OFF AND DISCONNECTED FROM THE POWER SUPPLY
BEFORE PERFORMING ANY OF THE FOLLOWING TASKS.

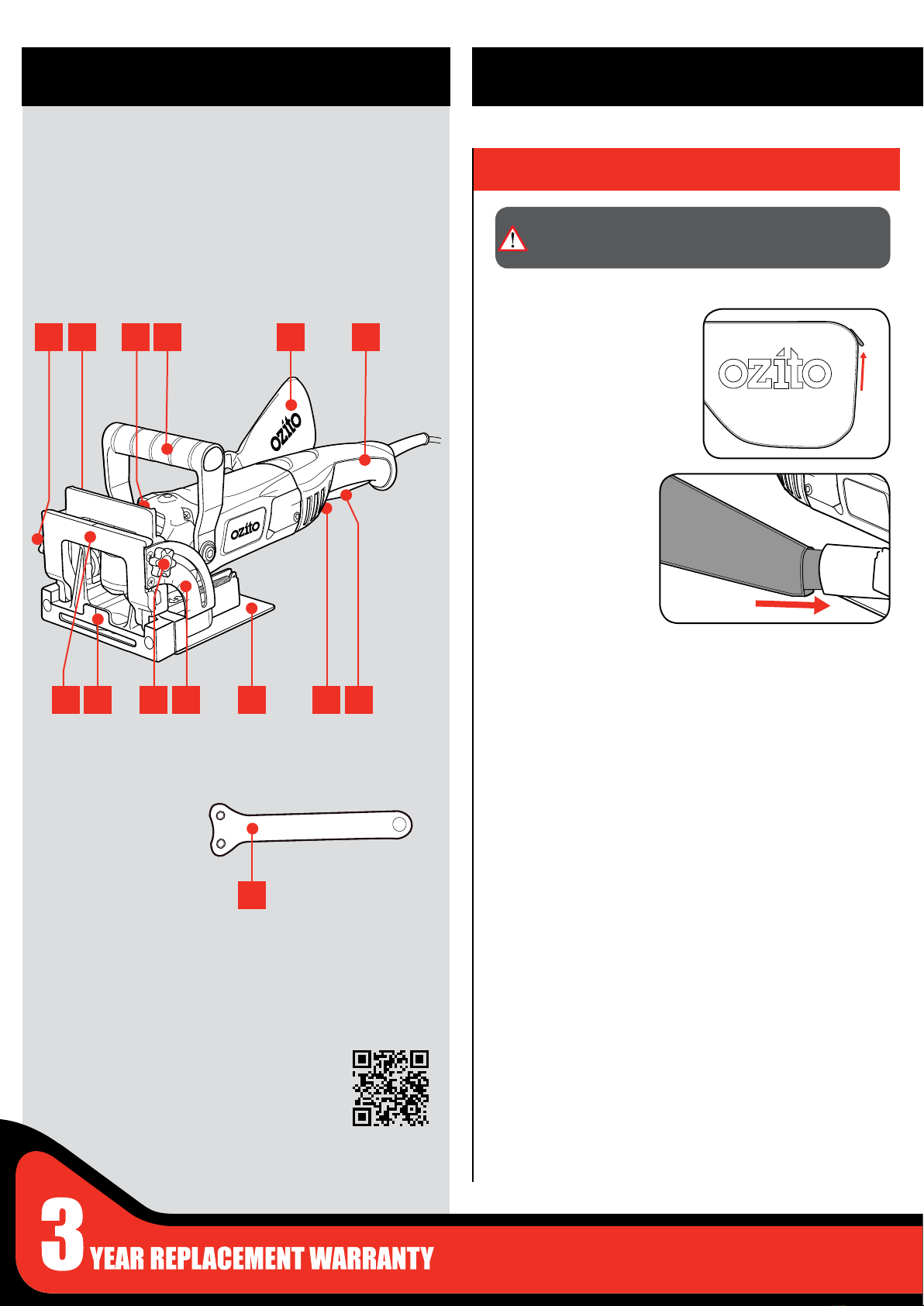

1 Height Locking Knob
2 Depth Adjustment Dial
3 Spindle Lock
4 Secondary Handle
5 Dust Bag
6 Rear Handle
7 Fence
8 Centreline Indicator
9 Bevel Locking Knob
10 Bevel Adjustment Scale
11 Base
12 Lockoff Switch
13 On/Off Trigger
BISCUIT JOINER
KNOW YOUR PRODUCT
1
7 8 9 10 11 12 13
14
2 3 45 6
1. ASSEMBLY
14 Pin Spanner
ACCESSORIES
SETUP & PREPARATION
Attaching the Dust Bag
1 Ensure the zip at the back of
the dust bag is closed and
that the clip on the dust bag is
located in its recess.
2 Align the at edges on
the dust bag and dust
port. Then slide in rmly.
2. MARKING THE WORKPIECE 3. ADJUSTING THE CUTTING DEPTH

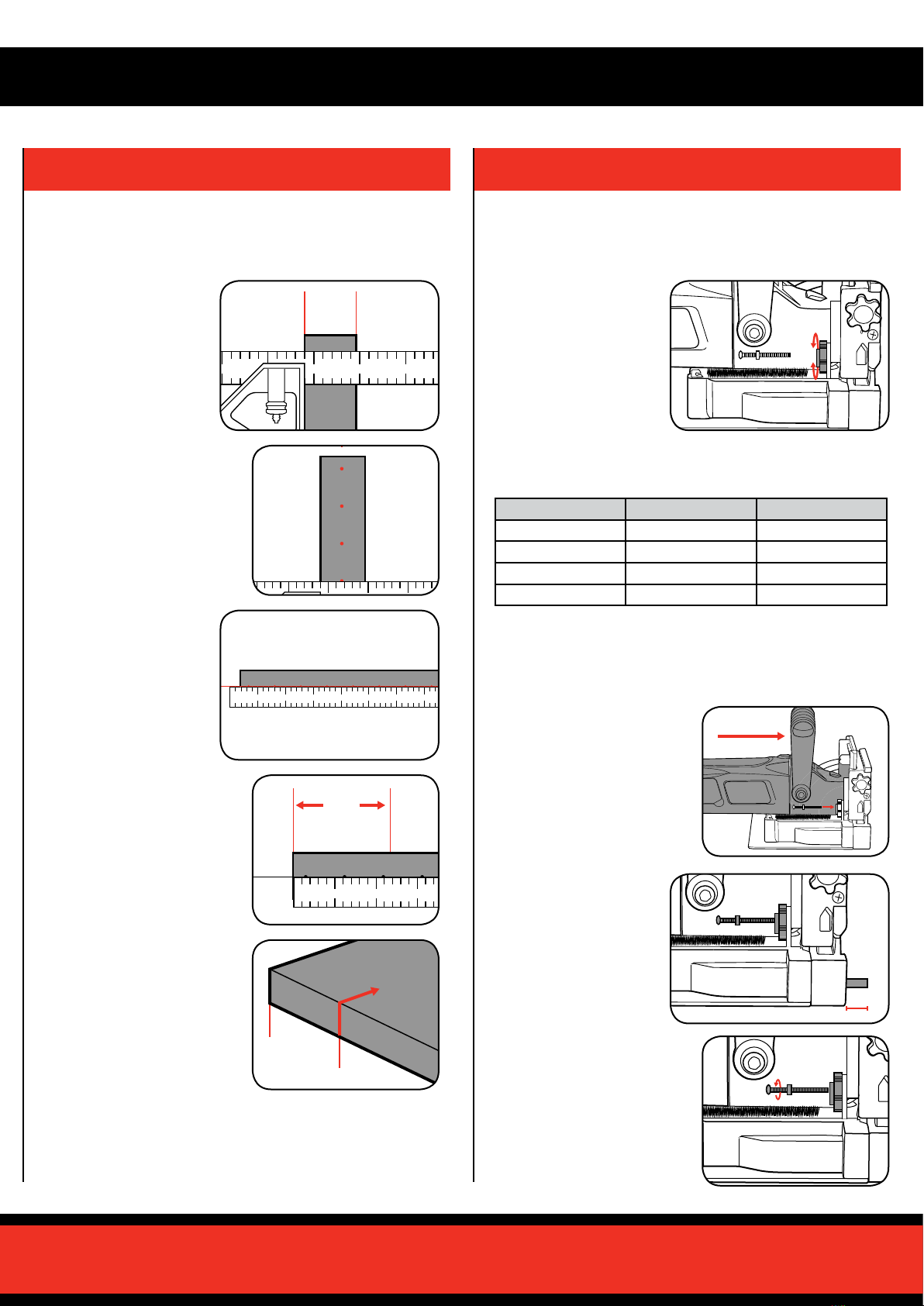

Centrelines
1 Measure the width of
your workpiece with a
square.
The centreline of the workpiece and the centreline of the biscuit must
be lined up accurately to ensure a successful joint. The centreline
marking procedure is outlined below.
2 Divide the measurement by 2
to get the midpoint. Mark this
point several times along the
workpiece with a pencil.
3 Using a ruler, mark
the centreline across
the entire face of the
workpiece.
4 Using a square measure, mark
a line 65mm from the edge of
the workpiece.
Note: 65mm is the recommended
distance from the edge
of the workpiece to the
centreline of the biscuit.
5 Using a square, draw a
continuation of the centreline
on the top of the workpiece
for use when aligning the
centreline indicator of your
biscuit joiner.
1 Set the depth adjustment dial
using the procedure above,
then extend the blade until the
depth stop contacts the depth
adjustment dial.
3 To adjust the scale, rotate
the depth stop screw until the
depth of the blade matches the
scale as outlined in the above
table. Repeat this process for
each depth setting.
measure
65mm
65mm
Adjusting the Cutting Depth
Checking the Accuracy of the Depth Stop
1 Rotate the depth
adjustment dial so that
it clicks into the desired
setting.
2 Measure the distance
between the blade and
the face of the fence.
The depth adjustment dial controls the depth of the cut made in the
workpiece as required for your biscuit.
Your choice of biscuit is dictated by the size of the workpiece. The
following table shows the relationship of the markings on the depth
adjustment dial to cutting depth and the biscuit used.
Note: It is recommended to check the accuracy of the depth adjustment
dial as part of your setup procedure.
Marking Biscuit Cutting Depth
0 #0 8mm
10 #10 10mm
20 #20 12.5mm
M N/A 14mm (maximum)
OPERATION
5. PRE-OPERATION CHECKS4. ADJUSTING THE ANGLE & HEIGHT
1 Ensure the joiner’s plunge is
moving freely along its rails.
2 Check the disc carefully for
cracks or damage and replace
in necessary.
3 Ensure the dust bag is secure
and the zip is closed.
4 Make sure the cutting depth,
height and angle have been
set to match the desired cut
and material thickness.
5 Clamp the workpiece securely
so that it will not move during
the cut.
Adjusting the Cutting Angle
Adjusting the Height of the Fence
1 Loosen the bevel locking
knob anti-clockwise.
1 Loosen the height locking
knob.
3 Retighten the bevel locking knob securely by rotating it clockwise.
2 Move the fence to the desired
angle on the bevel adjustment
scale.
2 Adjust the fence to the
desired height using the
height adjustment scale.
3 Retighten the height locking knob securely by rotating it clockwise.
4 Perform a visual check to ensure the centre of the blade lines up
with the centreline you marked on the face of the workpiece and
re-adjust if necessary.
Note: The indicator on the height adjustment scale measures the
distance between the face of the fence and the centre of the blade.
Note: After completing this operation, double check the cutting angle to
ensure the face of the fence is ush with the workpiece.
When using your biscuit joiner to make mitred joins, it is necessary to
change the angle of cut to match the bevel for an accurate join.
The height should correspond to half of the material thickness of the
workpiece taking into account the width of the blade. The groove for
the biscuit should always be in the middle of the workpiece, unless you
are joining thick workpieces, where multiple adjacent biscuit joins are
sometimes used.
WARNING! ENSURE THE BISCUIT JOINER IS SWITCHED
OFF AND DISCONNECTED FROM THE POWER SUPPLY
BEFORE PERFORMING ANY OF THE FOLLOWING TASKS.
BJK-1010U
6. MAKING A CUT 7. JOINING
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
WE RECOMMEND THE USE OF A RESIDUAL CURRENT
DEVICE (RATED 30MA OR LESS).

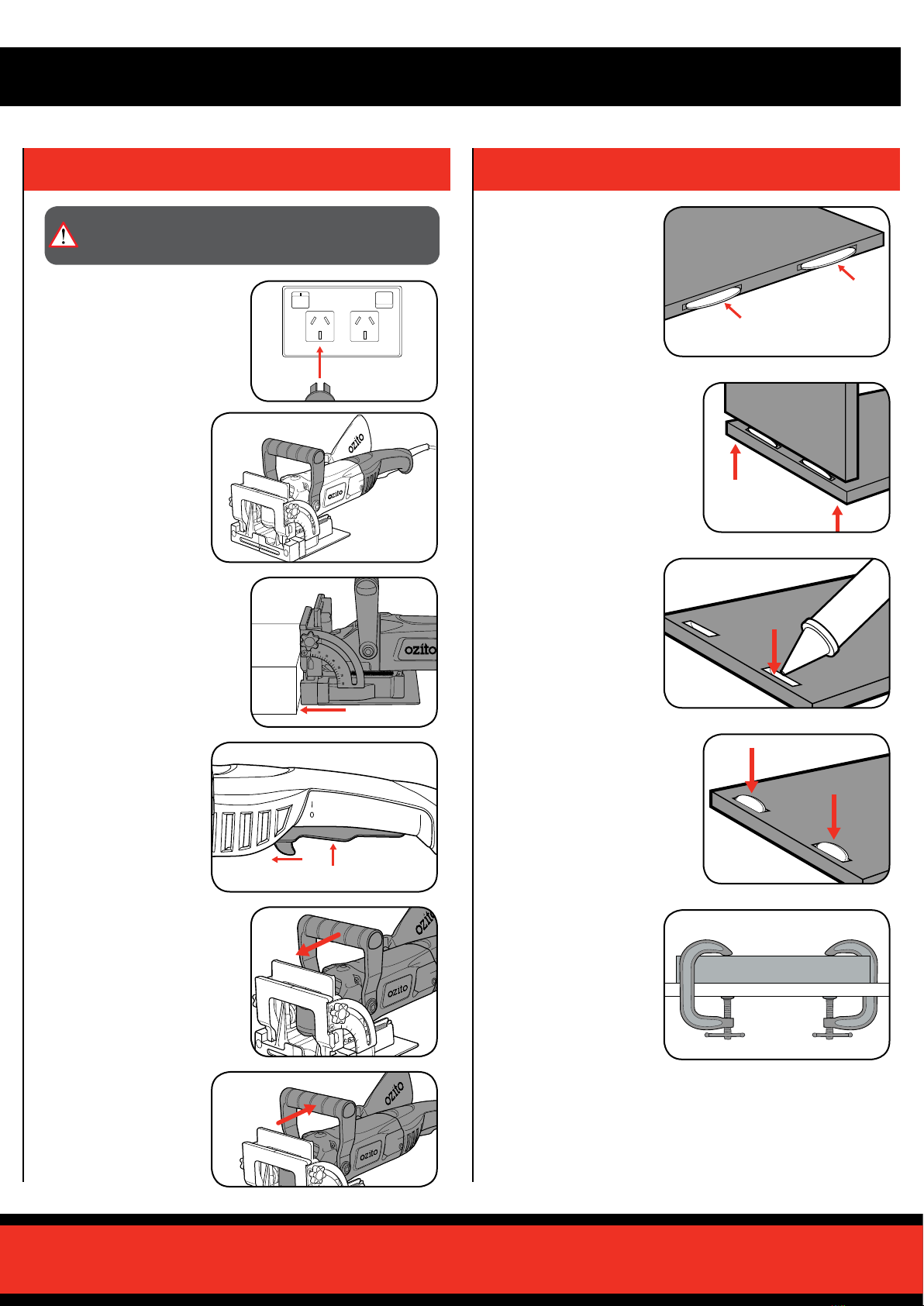

1 Plug the power cord into the
power supply.
2 Hold the biscuit joiner
rmly using both
handles.
1 Once all biscuit slots
have been cut, place a
biscuit in each joint.
4 Push the lock off switch
forward and depress the
on/off trigger to start the
tool.
Note: Allow the biscuit
joiner to reach
maximum speed.
3 Finally, disassemble the
workpieces and place a
bead of glue in each slot
as well as over the entire
joining face.
Note: If necessary, remove
any pencil markings
before applying glue.
5 Clamp the workpieces
together until the glue
sets.
Note: Refer to the glue
manufacturer’s
recommended
setting times before
removing the clamps.
6 Once the cut is complete
allow the biscuit joiner
blade to retract and then
release the on/off trigger.
3 Place the fence ush against
the workpiece and align the
centreline indicator with the
centreline marking on the
workpiece.
2 Assemble the piece without
glue rst to ensure the
workpieces line up and
biscuits t as required.
4 Reinsert the biscuits and
assemble the work pieces.
Note: Refer to the biscuit guide
for more information
relating to glue and biscuit
joints.
5 Push the biscuit joiner forward
to extend the blade into the
workpiece.
ab
BISCUIT & JOINT GUIDE
8. BISCUIT SELECTION 9. TYPES OF JOINTS
Below is a table outlining the dimensions of the 3 common biscuits
sizes which your biscuit joiner has preset depths for on the depth
adjustment knob.

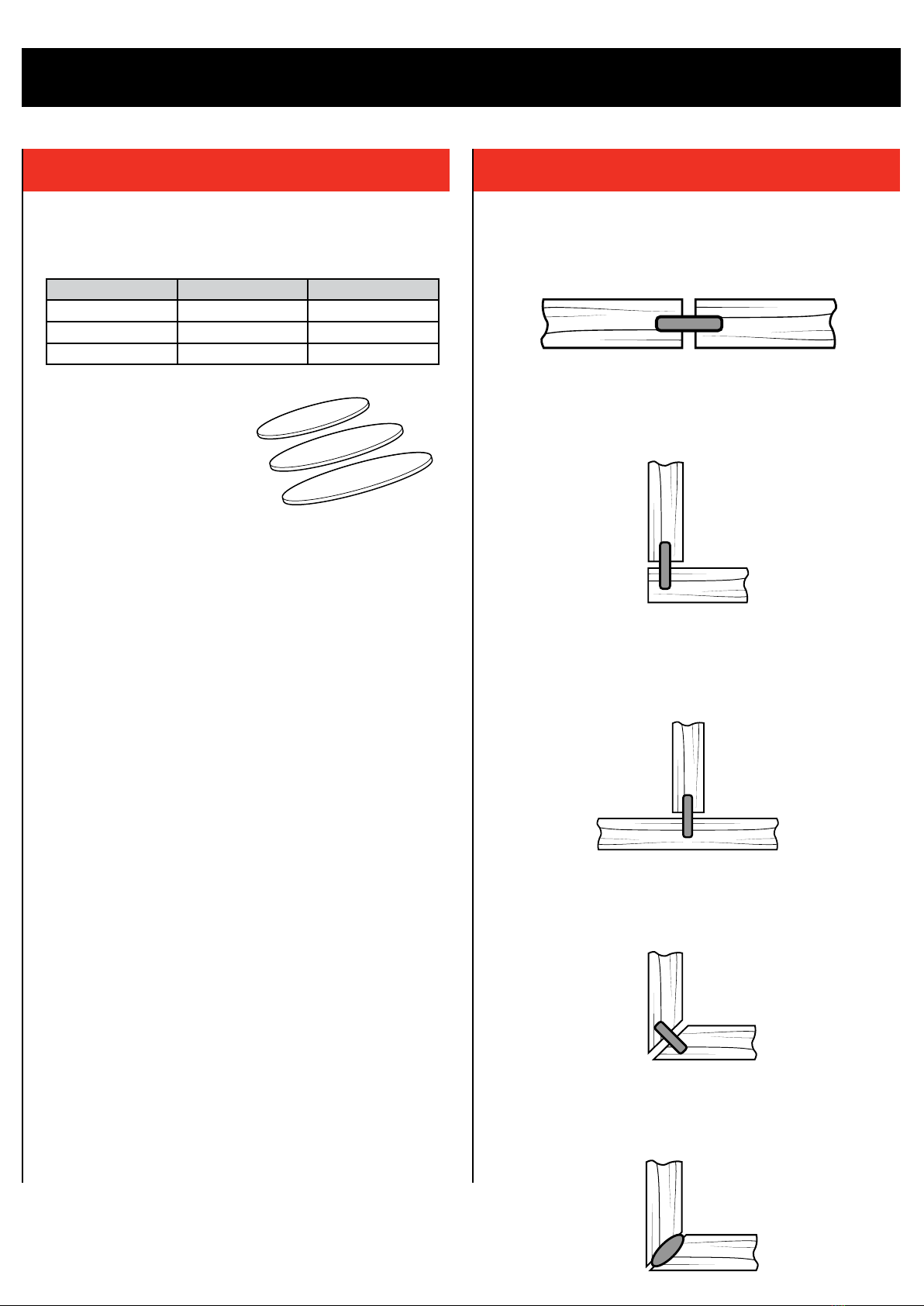

Edge to Edge Joint
Edge-to-edge joinery is one of the easiest joints to construct. It is
commonly used when making larger panels from smaller boards. One
such application is a table top.
Butt Joint
A butt joint is one of the weakest joints in woodworking. This type
of joint is mating the end grain of one board with the edge grain of
another. The bonding of glue on this type of surface is poor.
However, by using biscuits you can create a very strong joint that gives
a mortise-and-tenon effect.
T-joint
A T-joint is used when the end of a board is joined to the face of
another board. Typical applications for T-joints are attaching shelves to
bookcases, or inner support braces to frames. Actual cutting of a T-joint
is as simple as any other cut. However, it is critical that you mark the
centrelines, mark the intersection points for each slot and cut each slot
correctly.
Mitre Joint
Mitre joints provide a neat nish to a corner joint as they do not show
the end grain of the workpiece. Reinforcing the joint with the addition
of a biscuit is a great way to add strength. Mitre joints are used when
making boxes or drawers.
Corner Joint
Corner joints are used when making picture frames. Using biscuits for
corner joints makes assembly much simpler. Clamping of corner joints
can be difcult. The biscuit helps to hold the workpieces in place while
the glue cures to secure the join.
Always try to use the largest biscuit
that will t. In most cases this will
be #20. Occasionally, when using
thin workpieces you will need to
scale down to a #0 or #10 biscuit.
Biscuits are typically 3.75mm thick
and made from compressed beech
wood shavings stamped out in an
oval pattern.
Glue is applied to the biscuit and the joint. The glue soaks into the
biscuit causing it to swell and tighten up in the joint. The expansion of
the biscuit adds strength to the joint.
Note: Always refer to the glue manufacturer’s instructions regarding
setting times.
Storage
Store your biscuits in a clean dry container. They can absorb moisture
from the air and swell, rendering them useless.
Biscuit Width Length
#0 16mm 44mm
#10 19mm 54mm
#20 25mm 60mm
Edge to Edge Joint
Butt Joint
T-joint
Mitre Joint
Corner Joint
Edge to Edge Joint
Butt Joint
T-joint
Mitre Joint
Corner Joint
Edge to Edge Joint
Butt Joint
T-joint
Mitre Joint
Corner Joint
Edge to Edge Joint
Butt Joint
T-joint
Mitre Joint
Corner Joint
Edge to Edge Joint
Butt Joint
T-joint
Mitre Joint
Corner Joint

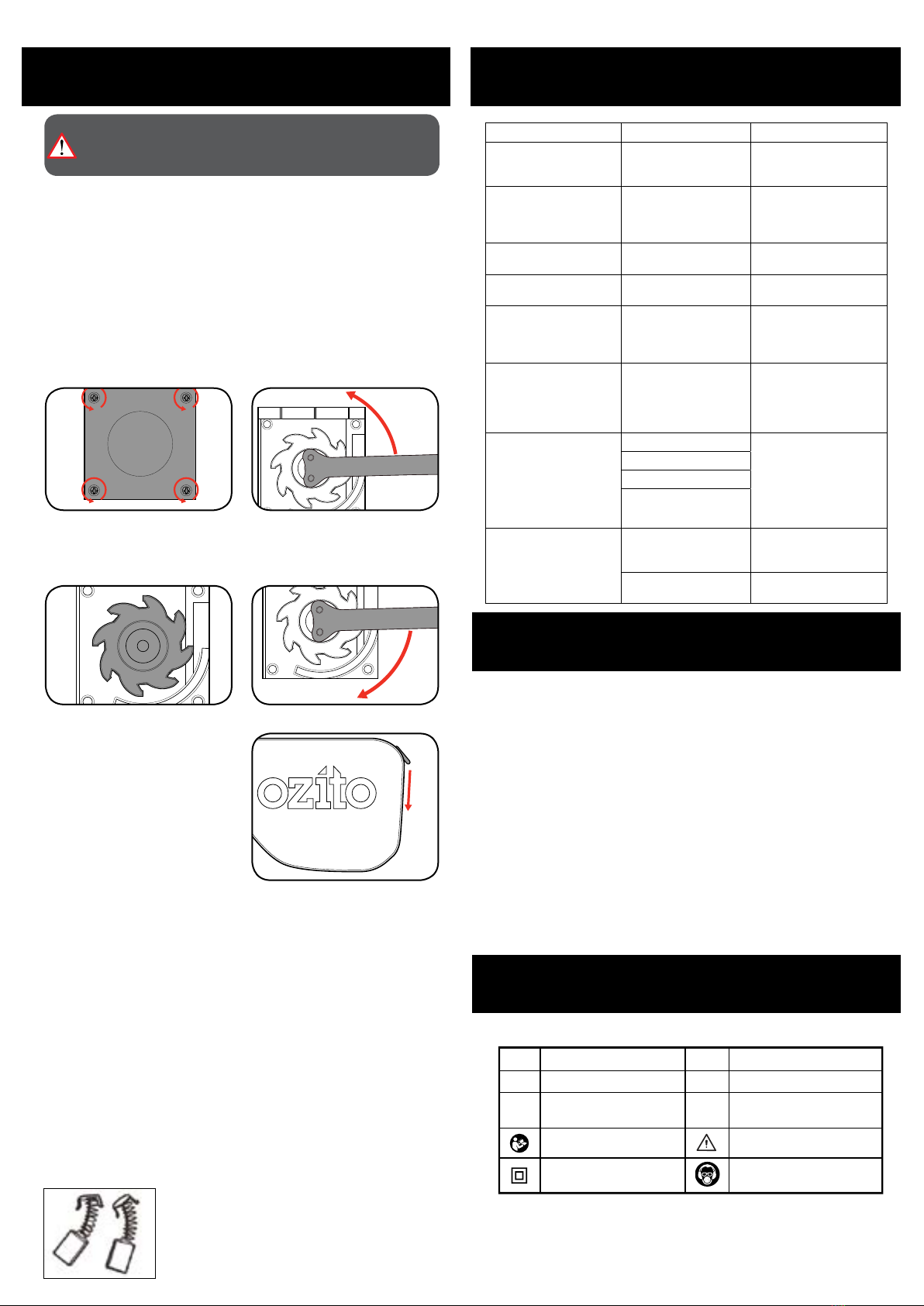

MAINTENANCE
DESCRIPTION OF SYMBOLS
TROUBLESHOOTING
Cleaning
• Keep the ventilation vents of the joiner clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the joiner housing to ensure it is free from all
dust particles which may build up. Build up of dust particles may cause the joiner
to overheat and fail.
• If the enclosure of the joiner requires cleaning, do not use solvents but a moist
soft cloth only. Never let any liquid get inside the joiner; never immerse any part
of the joiner into a liquid.
• The rails which the plunge run along must be kept free of dust and debris to
ensure proper operation of your biscuit joiner.
• The grease in the gearbox will require replacement/replenishment after
extensive use of the biscuit joiner. Please see your authorised service agent to
provide this service.
Carbon Brushes
When the carbon brushes wear out, the joiner will spark and/or stop. Discontinue
use as soon as this happens. They should be replaced prior to recommencing use
of the joiner. Carbon brushes are a wearing component of the joiner therefore not
covered under warranty. Continuing to use the joiner when carbon brushes need
to be replaced may cause permanent damage to the joiner. Carbon brushes will
wear out after many uses but when the carbon brushes need to be replaced, take
the joiner to an electrician or a power tool repairer for
a quick and low cost replacement. Always replace both
carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any
damage or injuries caused by the repair of the joiner by
an unauthorised person or by mishandling of the joiner.
SPARE PARTS
Replacing the Blade
After extended use, the blade on your biscuit joiner may become dull
and need replacing. If you accidentally hit a nail or other blunt object,
it will break the carbide tips on the blade. These situations also require
replacement of the blade.
Replacement Blade ACBJ-0001 can be ordered through the Special
Orders Desk at any Bunnings store.
Problem Cause Remedy
Plunge will not move
forward to cut
Excessive build-up of
sawdust in plunge rails
Clean plunge rails with
compressed air to remove
any sawdust and debris
Incorrect depth of cut Misalignment of depth
stop
Calibrate depth stop
using the instructions in
the setup section of this
manual
Incorrect height of cut Misalignment of height
adjustment scale
Calibrate height
adjustment scale
Workpiece smoking
during cutting operation
Blade is blunt Replace blade.
Sparking visible through
housing air vents
Normal operation It is normal for some
sparking to be visible
through the housing air
vents during operation
Excessive sparking visible
through housing air vents
Carbon brushes are worn Replace brushes. This
operation should
be completed by an
authorised service agent
only.
Does not start No supply voltage Check the mains power,
power cord, extension
cord, plug and house
fuse.
Contact Ozito customer
service
On/Off switch broken
Carbon brushes are worn
Motor Defective
Biscuit joiner works
intermittently
Damaged electricity
power cord
Check power cable. If
damaged, contact Ozito
customer service.
On/Off switch may be
damaged
Contact Ozito customer
service
WARNING! ENSURE THE BISCUIT JOINER IS SWITCHED
OFF AND DISCONNECTED FROM THE POWER SUPPLY
BEFORE PERFORMING ANY OF THE FOLLOWING TASKS.
1 Turn the joiner upside down
and remove the 4 screws on
the base with a screw driver.
3 Replace the blade, making
sure the blade is in the same
direction as the arrow on the
gear case.
1 To remove the dust and debris,
simply unzip the zip at the
back of the dust bag.
Emptying the Dust Bag
2 Depress the spindle lock with
one hand and loosen the
ange with the other using the
pin spanner.
4 Depress the spindle lock and
tighten the ange with the pin
spanner.
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated
Read instruction manual Warning
noNo load speed
Wear eye, breathing,
ear protection
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: enquires@ozito-diy.co.uk
BISCUIT JOINER SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
Before you connect the equipment to the mains supply make sure that the data on the rating plate are
identical to the mains data.
This tool is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
To reduce the risk of electrical shock, we recommend the use of a residual current device (rated 30mA or
less).
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! This appliance is not intended for use by young of inrm persons unless
supervised by a responsible person to ensure that they can use the appliance safely. Young
children should be supervised to ensure that they do not play with the appliance.
Hold power tool by insulated gripping surface, because the cutter may contact its own cord.
Cutting a “live” wire may make exposed metal parts of the power tool “live” and shock the operator.
Use clamps or another practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against the body leaves it unstable and may lead to loss of
control.
Disc cutters must be rated for at least the speed marked on the tool. Disc cutters running over
rated speed can y apart and cause injury.
Always use the guard. The guard protects the operator from broken disc cutter fragments and
unintentional contact with the disc cutter.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged
or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension
lead not suitable for the power input of the tool or which is damaged of defective may result in a risk
of re and electric shock.
It is recommended that the extension lead is a maximum of 25m in length. Do not use multiple
extension leads.
• Wear safety glasses or goggles when operating this tool.
• Do not use the tool in an inverted position.
• Do not attempt to use the tool in a stationary mode.
• Take special care when cutting MDF or surfaces coated with lead-based paint.
• Wear a dust mask specically designed for protection against lead paint dust and fumes and
ensure that persons within or entering the work area are also protected.
• Do not let children or pregnant women enter the work area.
• Do not eat, drink or smoke in the work area.
• Dispose of dust particles and any other debris safely.
size 445 x 210 mm
Danger! - Read the operating instructions to re-
duce the risk of inquiry
Caution! Wear ear-mus. The impact of noise
can cause damage to hearing.
Caution! Wear a breathing mask. Dust which
is injurious to health can be generated when
working on wood and other materials. Never use
the device to work on any materials containing
asbestos!
Caution! Wear safety goggles. Sparks gene-
rated during working or splinters, chips and dust
emitted by the device can cause loss of sight.
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes
BJK-1010U
GB Additonal operating & safety instructions Biscuit Joiner
Service information
We have competent service partners in all countries named on the guarantee certicate whose contact
details can also be found on the guarantee certicate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Carbon brushes
Consumables* Cutter blade
Missing parts
* Not necessarily included in the scope of delivery!
In the eect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Plea-
se ensure that you provide a precise description of the problem and answer the following questions in all
cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Mayr/Product-ManagementWeichselgartner/General-Manager
- 135 -
explains the following conformity according to EU directives and norms for
the following product
Biscuit Joiner BJK-1010U (Ozito)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X2011/65/EU
X2006/42/EC
Annex IV
Noti ed Body:
Noti ed Body No.:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured LWA = dB (A); guaranteed LWA = dB (A)
P = KW; L/Ø = cm
Noti ed Body:
2012/46/EU
Emission No.:
Standard references: EN 60745-1; EN 60745-2-19; EN 55014-1;
EN 55014-2; EN 61000-3-2; EN 61000-3-3
Landau/Isar, den 15.07.2016
First CE: 16 Archive-File/Record: NAPR014328
Art.-No.: 44.722.49 I.-No.: 11016 Documents registrar: Robert Gehard
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of conrmity
size 445 x 210 mm
Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suocating!
Proper use
The biscuit jointer is designed for cutting slots for
biscuit joints in solid wood, plywood and particle-
board.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Voltage: .................................. 230-240 V ~ 50 Hz
Power rating: ...................................... 1010 watts
Idling speed: .......................................12,000/min
Cutter dimensions:................ø 100 x ø 22 x 4 mm
Cutting depth: ................................... max. 14 mm
Angle settings: .......................................... 0°-90°
Protection class: ............................................ II/&
Danger!
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
LpA sound pressure level ........................ 89 dB(A)
KpA uncertainty ............................................. 3 dB
LWA sound power level ........................ 100 dB(A)
KWA uncertainty ............................................. 3 dB
Wear ear-mus.
The impact of noise can cause damage to hea-
ring.
Total vibration values (vector sum of three direc-
tions) determined in accordance with EN 60745.
Handle
Vibration emission value ah= 2.830 m/s2
K uncertainty = 1.5 m/s2
Additional handle
Vibration emission value ah= 2.562 m/s2
K uncertainty = 1.5 m/s2
The specied vibration value was established in
accordance with a standardized testing method. It
may change according to how the electric equip-
ment is used and may exceed the specied value
in exceptional circumstances.
The specied vibration value can be used to
compare the equipment with other electric power
tools.
The specied vibration value can be used for initi-
al assessment of a harmful eect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect wor-
king order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever
necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in ac-
cordance with instructions, certain residual
risks cannot be rules out. The following ha-
zards may arise in connection with the equip-
ment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protecti-
on is used.
3. Health damage caused by hand-arm vibra-
tions if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old elec-
tric power tools have to be separated from other
waste and disposed of in an environment-friendly
fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment.The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
Table of contents
Other Ozito Biscuit Joiner manuals
