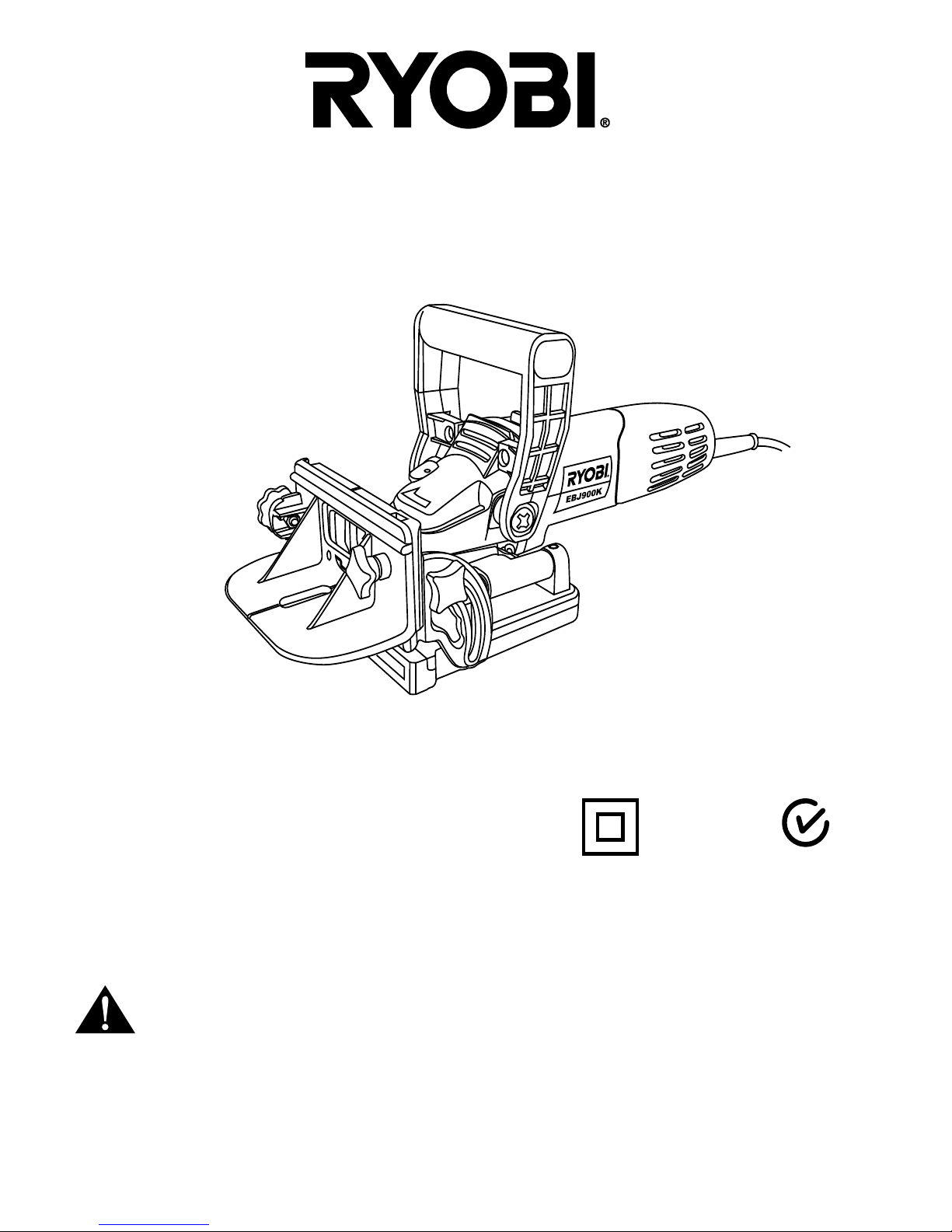

Ryobi EBJ900K Operation manual

SPECIFICATIONS :
Motor I nput................................. 900 watt
No Load Speed ........................ 12,000 rpm
Adjustable Height ..................... 5 - 35 mm
Adjustable Angle ....................... 0o - 90o
Blade Size ................................ 100 x 22 x 4 mm
Biscuit Size ............................... #0, #10, #20
Net Weight ................................ 2.65 kg
SAVE THIS MANUAL FOR FUTURE REFERENCE.
DOUBLE
INSULATED
Pay close attention to the Rules for Safe Operation, Warnings and Cautions.
If you use your Biscuit Joiner properly and only for what it is intended, you will enjoy years
of safe, reliable service.
Thank You again for buying Ryobi tools.
THANK YOU FOR BUYING A RYOBI BISCUIT JOINER
N197
OWNER'S OPERATING MANUAL
900 WATT BISCUIT JOINER
MODEL EBJ900K
CAUTION: Carefully read through this entire owner's manual before using your
Biscuit Joiner
Your new Biscuit Joner has been engineered and manufactured to Ryobi's high standard for
dependability, ease of operation and operator safety. Properly cared for, it will give you years of
rugged, trouble free performance.

The operation of any tool can result
in foreign objects being thrown
into your eyes, which can result
in severe eye damage. Before
beginning power tool operation,
always wear safety goggles or
safety glasses with side shields and a full face shield
when needed. We recommend Wide Vision Safety Mask
for use over eyeglasses or standard safety glasses with
side shields.
The purpose of safety rules is to attract your attention to
possible dangers. The safety symbols and the explanations
with them, require your careful attention and understanding.
The safety warnings do not by themselves eliminate any
danger. The instruction or warnings they give are not
substitutes for proper accident prevention measures.
RULES FOR SAFE OPERATION
SAFETY ALERT SYMBOL. Indicates caution
or warning. May be used in conjunction with
other symbols or pictures.
WARNING: Failure to obey a safety warning
can result in serious injury to yourself or to
others. Always follow the safety precautions
to reduce the risk of re, electric shock and
personal injury.
WARNING: Do not attempt to operate this tool
until you have read thoroughly and understood
completely, safety rules, etc. contained in this
manual. Failure to comply can result in accidents
involving re, electric shock or serious personal
injury. Save owners manual and review frequently
for continuing safe operation and instructing
others who may use this tool.
9. DRESS PROPERLY. Do not wear loose clothing or
jewellery. They can be caught in moving parts. Rubber
gloves and non-skid footwear are recommended when
working outdoors. Also wear protective hair covering to
contain long hair.
10. ALWAYS WEAR SAFETY GLASSES. Everyday
eyeglasses have only impact resistant lenses, they are
not safety glasses.
11. PROTECT YOUR LUNGS. Wear a dust mask if operation
is dusty.
12. PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
13. DON'T OVERREACH. Keep proper footing and balance at
all times. Do not use tool on a ladder or unstable support.
Secure tools when working at elevated levels.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and
clean for better and safer performance. Follow instructions
for lubricating and changing accessories.
15. REMOVE ADJUSTING KEYS AND WRENCHES. Form a
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
16. NEVER USE IN AN EXPLOSIVE ATMOSPHERE. Normal
sparking of the motor could ignite fumes.
17. KEEP HANDLES DRY, CLEAN AND FREE FROM OIL
AND GREASE. Always use a clean cloth when cleaning.
Never use brake fluids, gasoline, petroleum based
products, or any strong solvents to clean your tool.
18. STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate tool
when you are tired. Do not rush operation of tool.
19. CHECK DAMAGED PARTS. Before further use of the
tool, a guard or any other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect
its operation. A guard or any other part that is damaged
should be properly repaired or replaced by an authorised
service centre.
20. DO NOT USE TOOL IF SWITCH DOES NOT TURN IT ON
AND OFF. Have defective switches replaced by authorised
service centre.
21. DO NOT OPERATE THIS TOOL WHILE UNDER
THE INFLUENCE OF DRUGS, ALCOHOL OR ANY
MEDICATION.
22. THE APPLIANCE IS NOT INTENDED FOR USE
BY YOUNG OR INFIRM PERSONS WITHOUT
SUPERVISION. YOUNG CHILDREN SHOULD BE
SUPERVISED TO ENSURE THAT THEY DO NOT PLAY
WITH THE APPLIANCE.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Due to continued product
renement policy, product features
and specications can and will
change without notice. Check
current features and specications
with your retailer.
1. KNOW YOUR POWER TOOL. Read owners manual
carefully. Learn its applications and limitations as well as
the specic potential hazards related to this tool.
2. GUARD AGAINST ELECTRICAL SHOCK By
PREVENTING BODY CONTACT WITH GROUNDED
SURFACES. For example, pipes, radiators, ranges,
refrigerator enclosures.
3. KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
4. AVOID DANGEROUS ENVIRONMENT. Don't use power
tools in damp or wet locations or expose to rain. Keep work
area well lit.
5. KEEP CHILDREN AND VISITORS AWAY. Visitors should
wear safety glasses and be kept a safe distance from work
area. Do not let visitors contact tool or extension cord.
6. STORE IDLE TOOLS. When not in use, tools should be
stored in a dry and high or locked-up place, out of reach of
children.
7. DON'T FORCE TOOL. It will do the job better and safer at
the rate at which it was designed.
8. USE RIGHT TOOL. Don't force small tool or attachment to
do the job of a heavy duty tool. Don't use tool for purpose
not intended.
Page 1

9
4
3
5
6
1
8
7
2
FEATURES
Page 2
7. Depth Adjustment Rod
8. Arbor Lock
9. Dust Port
10. Height Adjustment Knob
11. Angle Lock Knob
12. Motor Housing
12
11
10
1. Power Switch
2. Handle
3. Fixed Fence
4. Adjustable Fence
5. Height Lock Knob
6. Depth Selector

The adjustable fence will cut joints at angles from 0 to 90 at
a xed cut height of 9mm (5/16") (the center of a 25.4mm
board). To utilize the adjustable fence (4), remove the xed
fence by loosening the height lock knob and rotating the
height adjustment knob until the xed fence comes clear
of the top of the joiner fence. Loosen the angle lock knob
(11) and move the adjustable fence to the desired angle
and re-tighten the knob. When using the adjustable fence
for 90 degree cuts. it is recommended that you verify the
angle of cut with a measuring tool such as a combination
square or other device. Angle cuts of other degrees should
also be vered with additional measuring tools.
Plunge Depth Adjustment (Fig. 3)
The depth of cut can be set to match the dimensions of the
particular size biscuit you use. The numbers on the depth
selector (6) coincide with the three most common sizes
of biscuits, 0-10-20. The letter "M" stands for maximum
depth capacity of the tool (18 mm).
To select a depth, align the appropriate number with the
mark on the tool's housing. Rotate the depth adjustment
dial to the desired position and it "clicks" into place.
Use your biscuit joiner only for the purposes listed
below:
Cutting and jointing of timber
Edge jointing long boards of either natural wood or
manufactured sheeting
APPLICATIONS
Page 3
The Biscuit Jointer is designed for the cutting and jointing
of timber. It provides an accurate, effective and convenient
alternative to the other means of jointing (such as doweling)
and can be particularly useful for edge jointing long boards
of either natural wood or manufactured sheeting.
The 100mm (4") TCT blade is plunged into the wood
to the required depth, which is pre-set depending on
the biscuit to be used. Commonly available biscuits
are #20 (12 mm wide), #10 (10 mm wide) and #0 (8
mm wide). Glue is applied and the biscuit inserted into
the semicircular slot that is left by the blade. As the glue
sets, it expands the biscuit, resulting in an extremely
strong joint. The adjustable fence allows the height and
angle of the blade to be positioned to suit different joint
requirements. The depth of cut can be dialed up on the
pre-set control dial, depending on the biscuit to be used.
As with dowels, two biscuits can be used, one above the
other, for extra strength.
FEATURES
Before making any adjustments, unplug the tool.

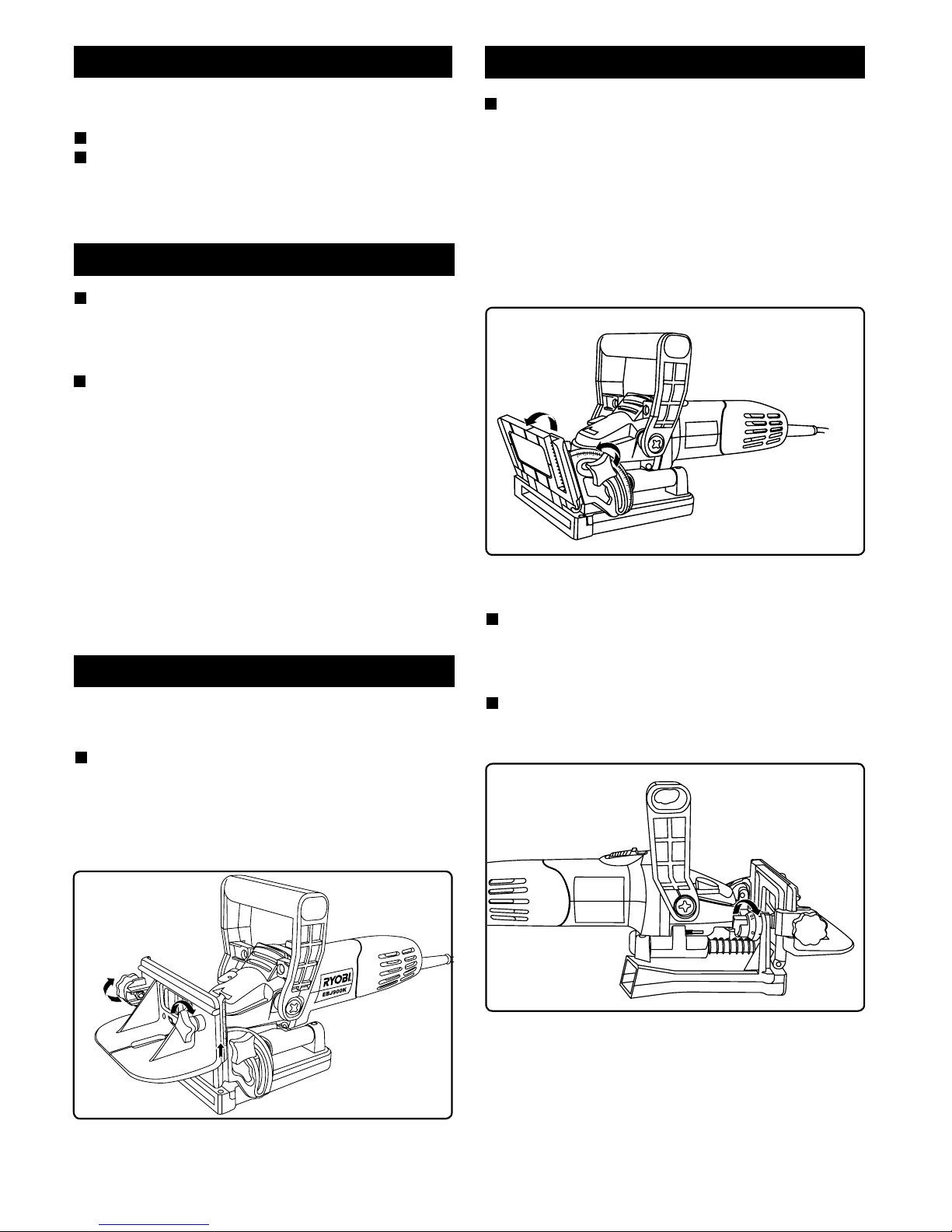

Fence Adjustments (Fig. 1~2)
The joiner comes with two fence options. The joiner comes
with the xed fence (3) attached. This allows cuts at 90
degrees to a cut height of a maximum of 35mm (1-3/8").
To adjust the cut height. loosen the height lock knob (5)
and rotate the height adjustment knob (10) to achieve the
desired cut height. Tighten the height lock knob rmly using
nger pressure only.
ADJUSTMENTS
ADJUSTMENTS
Fig. 2
Fig. 1
Fig. 3

Page 4
Making a Normal Biscuit Cut (Fig. 6~7)
Position your work pieces together and draw a reference
mark at 90o to the center point of each proposed joint
location. Space the joints about 4 inches apart.
Separate your work material and clamp each piece securely
to a stable work bench or work table.
Set the biscuit depth selector (6) to correspond with the size
of biscuit you are using. Generally #20 biscuits suit most
applications. If you are using stock that is 16mm thick or
less, you will need smaller biscuits.
Adjust the height of the fence as required and if using the
xed fence rmly tighten height lock knob (5) using nger
pressure only. If using the adjustable fence rmly tighten
angle lock knob (11).
Place one hand on the handle (2) and the other hand on
the motor housing (12).

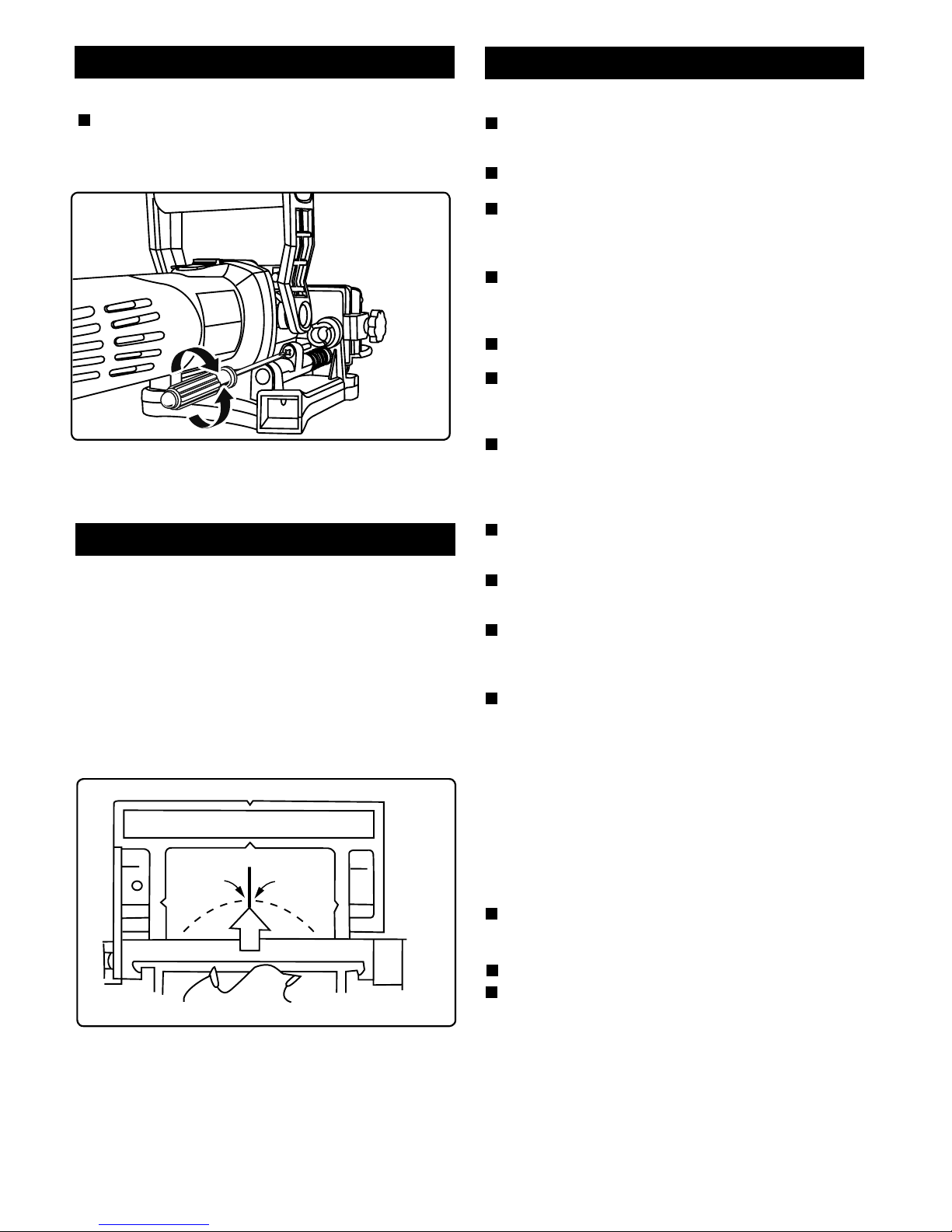

Place the cutting guide at the center point of each slot in
turn and press the fence against the edge of the work piece
(see gure 6). Make sure the jointer fence is ush to both
sides of your work surface.
Switch on the power switch and push the motor housing
towards the work material. Once the cut is made pull the
motor housing back and allow the return spring to retract the
blade from the slot. Turn the power switch off. Repeat the
procedure until all slots are cut in your work piece.
Cut the slots in the matching piece of work material,
again lining up the center point of each slot and to make
the cuts.
Once all the cuts are complete dry t your biscuits into
your joints and test t your materials to ensure proper
alignment.
Remove the biscuits and insert glue into the slots using a
nozzle applicator or thin wood scrap. It is also helpful to
apply a small amount of glue to the biscuits themselves
before inserting them into the slot.
Place the biscuits in position and clamp your work materials
together until the joint line becomes invisible. Keep your
work materials clamped until the biscuits swell and the
glue sets.
It is possible that thick pieces of timber may require two biscuits
at each location, one at a height of about 1/3 the thickness of
the wood, and the other at about 2/3 the tickness.
NOTE: Unlike other saws and drills, mastering the biscuit joiner
does take some practice. Remember that the ultimate goal is
to achieve a parallel set of cuts in your work surface. If you
nd yourself making uneven cuts, you are probably working
too fast. Make sure of these points:
When the tool powers on it might vibrate out of position.
Prior to making a cut make sure the center of the tool is
aligned with the center of your cut mak.
Make sure the height lock knob is rmly tightened.
Go slow - visually make sure you have the joiner lined up
with your cut mark and most importantly that the fence is
ush with both the top and side edge or your work material
prior to making the cut. Once these are accomplished then
make the cut. Patience and practice are the keys to creating
perfect joints.
OPERATION
ADJUSTMENTS
Fine Depth Adjustment (Fig. 4)
All biscuits are manufactured to slightly different sizes, so
you might need to adjust the depth of cut on the tool. The
depth adjustment rod (7) can be rotated to increase or
decrease the depth of cut.
Biscuit jointers can be used for making various types of strong,
accurate joints in pieces of timber or wood sheeting.
To cut the biscuit slot the body of the jointer is moved toward
the material after alignment, by utilizing the various features of
the Biscuit Joiner you can create a wide range of different types
of joints. Always make a reference line to line up the machine
with the center of the material to be plunged to ensure accurate
biscuit placement (Figure. 5 - Please note in the picture the
center of the adjustable fence is omitted in order to better
explain the joining process).
OPERATION
Crescent-
shaped slot
Layout line
Fig. 5
Fig. 4

MAINTENANCE
Replacing the blade
Pull out the power plug.
Remove the xed fence and raise the adjustable fence to
the o degree position.
Turn the machine over and unscrew the two screws in the
base plate. Pivot the base plate open.(see Fig. 8)
Now, with the arbor lock (8) in the top of the gearbox housing
depressed, rotate the blade by hand until the blade locks.
Loosen the blade ange anti-clockwise using the pin wrench
supplied.(see Fig. 9)
Remove the outer blade ange.
Remove the blade leaving the inner ange in place.
Mount the new blade, insert the outer blade ange and
fasten.
Important: The cutting bevel of the teeth (i.e. the direction
of rotation of the saw blade) has to conform to the direction
of the arrow marked on the housing.
Make sure the blade lock is released.
Important: After replacing the blade, make sure the blade
runs freely by turning the saw head by hand.
Close the base and re-install the two screws.
Before using the machine again, check that the safety
devices are in good working order.
Plug the machine into a main socket outlet and run the
machine without actually cutting any work material. This is
to make sure the blade is spinning freely.
Fig. 6
OPERATION
Page 5
Fig. 8
Fig. 7
Fig. 9

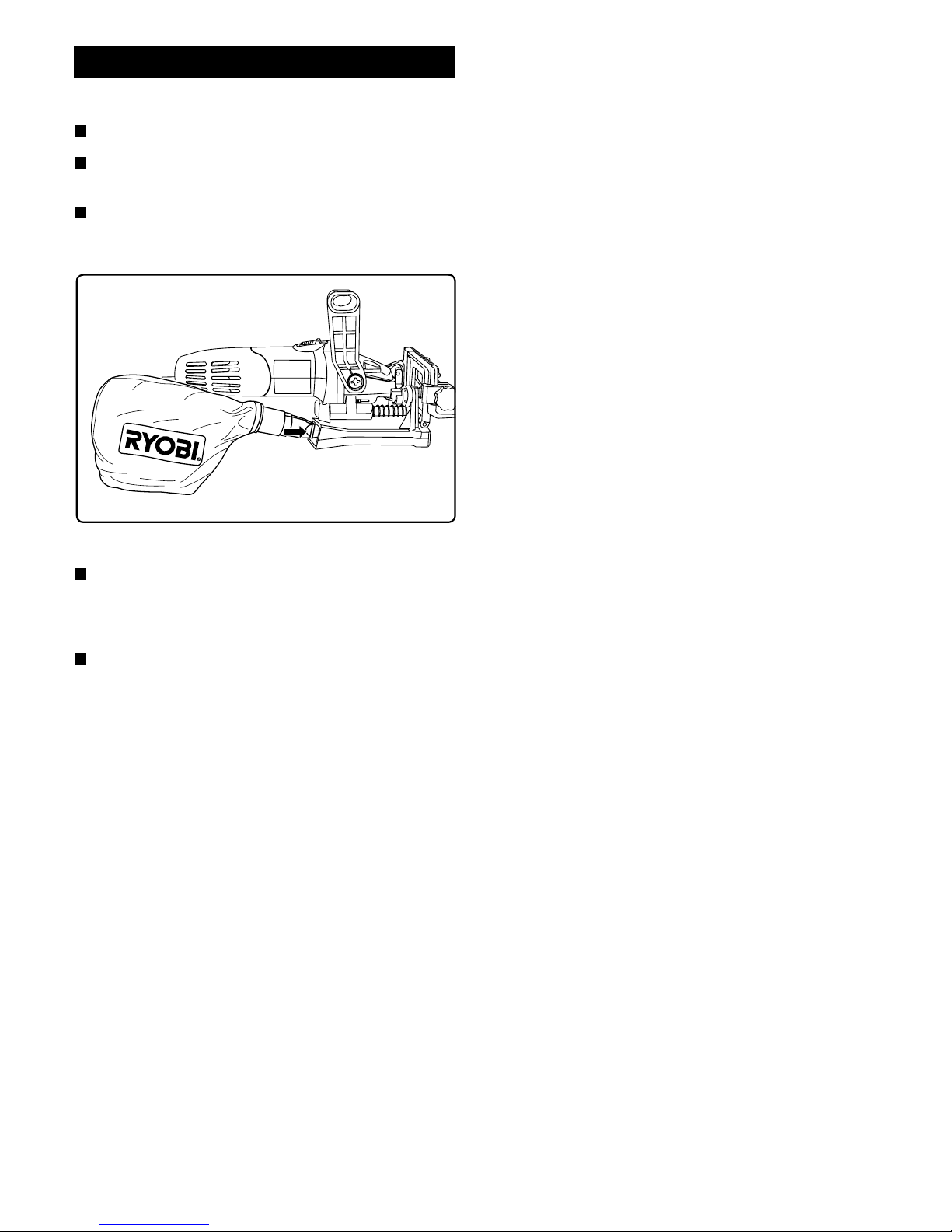

Dust Extraction (Fig. 10)
You can use the dust bag provided or with the aid of the
adaptor accessory, connect the tool to a vacuum system.
The plastic dust extraction assembly ts in the dust port (9)
on the joiner. You can then attach a vacuum hose or the
supplied dust bag, to the adaptor.
Please note, when the bag becomes full, the dust will back-
up into the adaptor and the dust port. To clean them, turn off
and unplug the tool and remove the packed dust.
Maintenance
Do not allow brake uid, gasoline, and other petroleum
base products come in contact with the plastic parts of the
joiner. They contain chemicals that can damage, weaken
or destroy the housing of the tool and thus compromising
the integrity of the double insulation.
Keep the machine's air vents unclogged and clean at all
times. Remove dust and dirt regularly from the machine.
Cleaning is best done with compressed air or a rag. Re-
lubricate all exposed moving parts at regular intervals.
Fig. 10
MAINTENANCE
Page 6

RYOBI TECHNOLOGIES AUSTRALIA PTY.LTD.
GUARANTEE
RYOBI TECHNOLOGIES AUSTRALIA PTY. LTD.
A.B.N. 98 002 277 509
SYDNEY: 359-361 Horsley Road, Milperra, N.S.W. 2214.
Contact during normal business hours.
RYOBI NEW ZEALAND PTY. LTD.
AUCKLAND: 27 Clemow Drive, Mt Wellington, N.Z.
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi tool
(hereinafter called “the product”) is guaranteed by Ryobi
(hereinafter called “the Company”) to be free from
defects in material or workmanship for a period of 24
months from the date of original purchase covering
both parts and labour. Under the terms of this
guarantee, the repair or replacement of any part shall
be the opinion of the Company or its authorised agent.
Should service become necessary during the warranty
period, the owner should contact the RYOBI HELPLINE
1300 361 505 or contact the retailer from whom the
product was purchased.
In order to obtain guarantee service, the owner must
present the sales docket and Guarantee Certificate
to confirm date of purchase. This product is sold by the
dealer or agent as principal and the dealer has no
authority from the Company to give any additional
guarantee on the Company’s behalf except as herein
containedorhereinreferred to.
Guarantee Conditions
This guarantee only applies provided that the Product
has been used in accordance with the manufacturer’s
recommendations under normal use and reasonable
care (in the opinion of the Company) and such
guarantee does not cover damage, malfunction or
failure resulting from misuse, neglect, abuse, or used
for a purpose forwhich it was not designed or is not
suited and no repairs, alterations or modifications
have been attempted by other than an Authorised
Service Agent.This guarantee will not apply if the tool is
damagedbyaccident or if repairs arise from normal
wear and tear.
The Company accepts no additional liability pursuant to
this guarantee for the costs of travelling or
transportation of the Product or parts to and from the
service dealer or agent - such costs are not included in
this guarantee.
Certain legislation, including the Trade Practices Act,
1974 (as amended) and other state and territorial laws
give rights to the buyer and impose liability on the seller in
certain circumstances. Nothing herein shall have the effect
of excluding, restricting or modifying any condition,
guarantee, right or liability imposed, to the extent only
that such exclusion, restriction or modification
would render any term herein void.
BRISBANE : All enquiries Tel : [phone]
TOWNSVILLE: All enquiries Tel : [phone]
MELBOURNE: 960 Stud Road, Rowville,Vic. 3178
Tel : [phone]
HOBART: All enquiries Tel : [phone]
ADELAIDE: All enquiries Tel : [phone]
PERTH: 33-35 Sorbonne Cres. Canning Vale, W.A. 6155
Address Of Dealer
Present This Form With Your Purchase Docket When Guarantee Service Is Required.
Tel: [phone] - Fax: [phone] - www.ryobi.com.au
Tel: [phone] - Free Call: 0800 279 624 - Fax: [phone] - www.ryobi.co.nz
For your record and to assist in establishing date of purchase (necessary for in-guarantee service)
please keep your purchase docket and this form completed with the following particulars.
This Guarantee Form Should Be Retained By The Customer At All Times
Date Model No Serial No
Tel : [phone]
