Ozito ELV-1400 User manual

Collection Bag
Knobs, Bolts & Cord
Clip
ELECTRIC
GARDEN VACUUM
1600W
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 230-240V ~ 50Hz
Power: 1600W
No Load Speed: 14,000/min
Mulching Ratio: 10:1
Suction Air Speed: 15m³/min
Collection Bag: 25L
IP Rating: IPX4
Weight: 5.6kg
ELV-1400
WHAT’S IN THE BOX
Garden Vacuum
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: Carbon brushes
and collection bag.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
1017

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1. Place the mid-handle tube
onto the motor housing
tube, t the bolt through
both handles from the
underside and secure with
the locking knob.
1. Switch Handle
2. Cord Retainer
3. Trigger Switch
4. Mid-Handle Tube
5. Bag Connector Handle
6. Motor Housing
7. Collection Bag
8. Cord Clip
9. Bag Connector
10.Locking Knobs
11. Rear Wheel
12.Guide Wheel
13.Assemble Bolts
14.Vacuum Inlet
GARDEN VACUUM
KNOW YOUR PRODUCT
1 2 3 4 5 6
87 9 10 11 12
1. ASSEMBLY
SETUP & PREPARATION
Fitting the handle
WARNING!: ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
Assembling the collection bag
2. Place the switch handle
tube onto the mid-handle
tube, t the bolt through
both handles from the
underside and secure with
the locking knob.
3. Attach the loop on the top
of the collection bag to the
hook on the handle.
1. Attach the collection
bag connector to the
discharge outlet as
shown.
13 14
2. Rotate bag connector
handle upright to
secure.

¥For the highest ground
clearance (16mm), locate the
guide wheel axle back into the
slot closest to the rear wheels
(1).
¥ For the lowest ground
clearance (8mm), locate the
guide wheel axle forward into
the slot closest to the front of the
Garden vac (2).

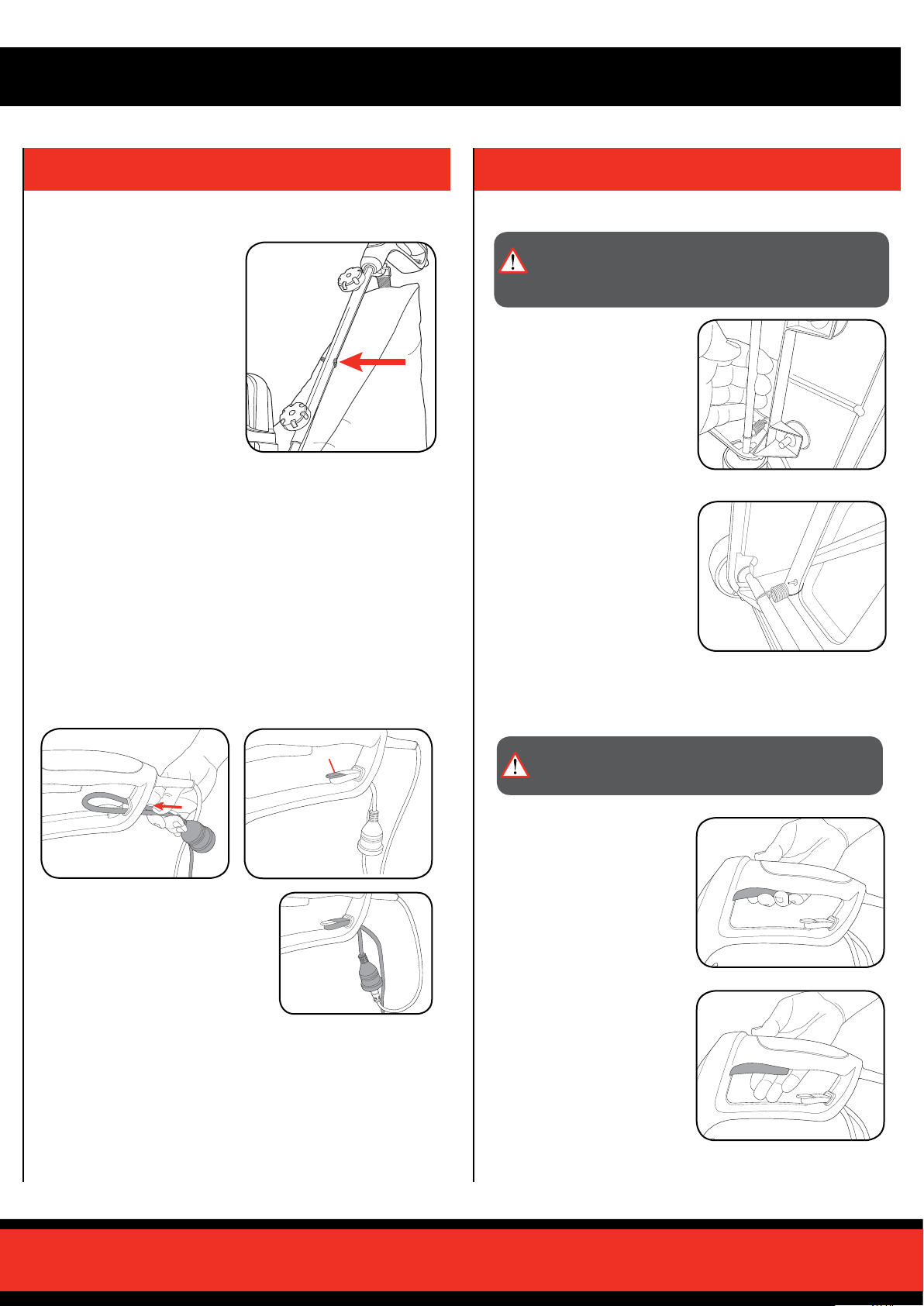

2. PREPARATION
Vacuum height adjustment
Extension cord retainer
3. Once tted, connect the
extension lead socket onto the
Garden vac’s power plug.
1. Make a loop with the
extension lead (socket end
of lead), push it through
the hole in the rear of the
switch handle.
To turn the Garden vac on,
depress the trigger switch.
WARNING!: THE POWER SUPPLY FOR THIS PRODUCT
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE RATED AT 30mA OR LESS.
Turning ON/Off
To turn the Garden vac off,
release the trigger switch.
The cord retaining hook is used to “anchor” an extension lead
(not included) when it is connected to the power cord of the
tool. It prevents the extension lead from being accidentally
disconnected from the Garden vac’s power cable or shaken
loose during use. It should be used at all times.
1
2
NOTE: Only use Heavy Duty extension lead suitable for outdoor
use with electric garden tools, no longer than 25 meters.
WARNING!: MAKE SURE THAT THE GARDEN VAC IS
SWITCHED OFF AND UNPLUGGED. WAIT UNTIL THE
IMPELLER HAS STOPPED BEFORE ADJUSTING THE
HEIGHT.
1. Place the Garden vac on its
side.
2. Pull the wheel axle from the
housing.
3. Locate the guide wheel
axle into the desired height
adjustment position.
2. Place the loop onto the
cord retainer.
RETAINER
RETAINER
RETAINER
1
2
Securing the power cord to the handle
Secure the power cord running
from the switch handle to the
body of the garden vacuum by
using the cord clip.

3. USING THE GARDEN VACUUM 4. COLLECTION BAG
OPERATION
CAUTION! DO NOT ATTEMPT TO VACUUM STONES,
GLASS OR OTHER SOLID OBJECTS, DOING SO
COULD CAUSE MAJOR DAMAGE TO THE IMPELLOR
AND COLLECTION BAG.
Emptying the collection bag
The Garden vacuum is ideal for collecting dry leaves, grass
clippings and other garden debris while shredding and
reducing the volume collected for composting if desired. For best results when vacuuming it is recommended to empty
the collection bag after it becomes half full. As the bag lls
beyond half way, vacuuming performance will decrease.
Always empty the collection bag after you have nished your
job.
ELV-1400
Hold the switch handle rmly, depress the trigger switch, point
the Garden vacuum in front of you and move forward slowly
over the area to be cleared, resting the guide wheels on the
ground.
¥Always use an approved extension lead suitable for power
input of this tool.
¥Heavy duty power leads recommended not exceeding 25m.
¥Do not over-reach and keep your balance at all times.
¥Always be sure of your footing on slopes.
¥Walk, never run.
WARNING!: MAKE SURE THAT THE GARDEN VAC IS
SWITCHED OFF AND UNPLUGGED. WAIT UNTIL THE
IMPELLER HAS STOPPED BEFORE ATTEMPTING TO
EMPTY OR REMOVE THE COLLECTION BAG.
1. Rotate bag connector
handle downward, then
pull away to remove.
2. Unhook bag from the
switch handle.
3. Open the zip at the rear
of the bag and empty in
desired location.
4. Be sure to close the zip prior to operating the Garden vac.

TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist. Check
with your local council authority for recycling advice.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
Double insulated VVoltage
Regulator compliance mark Hz Hertz
no No load speed WWattage
/min Revolutions or
reciprocation per minute
Warning
Keep bystanders away
Keep hands out of the openings while the tool is running
m3Metres cubed Disconnect from power supply
when performing maintenance
Wear eye protection
Do not use in wet weather Read instruction manual
before use
Disconnect and discontinue use
should the power-cord
be damaged
104
Sound power level Wear hearing protection
~Alternating current IPX4 Ingress protection from water
CARING FOR THE ENVIRONMENT
MAINTENANCE
WARNING!: MAKE SURE THAT THE GARDEN VAC IS
SWITCHED OFF AND UNPLUGGED. WAIT UNTIL THE
IMPELLER HAS STOPPED BEFORE PERFORMING ANY
OF THE FOLLOWING OPERATIONS.
Clearing debris
• There are no user serviceable parts in the Garden vac; if a fault is suspected
or the supply cord requires replacement, return the Garden vac to a power tool
repairer.
• The collection bag is a consumable item. Check frequently for wear and
deterioration. As a result it will need replacing from time to time.
• Keep air intake clean and air vents free from debris to avoid overheating the
motor.
• Do not use cleaning agents to clean the plastic parts of the Garden vac. A
mild detergent on a damp cloth is recommended. Water must never come into
contact with the Garden vac.
• If the Garden vac vibrates abnormally, stop motor immediately. Abnormal
vibration usually indicates a mechanical problem continued operation could lead
to injury or damage.
• No lubrication is necessary as the motor is equipped with lifetime-lubrication
bearings.
• Keep the ventilation vents of the Garden vac clean at all times, if possible,
prevent foreign matter from entering the vents.
• After each use, blow air through the Garden vac housing to ensure it is free from
all dust particles which may have built-up. Build up of dust particles may cause
the Garden vac to overheat and fail.
• If the enclosure of the Garden vac requires cleaning do not use solvents but
a moist soft cloth only. Never let any liquid get inside the Garden vac; never
immerse any part of the Garden vac into liquid.
• When not in use, the Garden vac should be stored in a dry, frost free location not
within the reach of children.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the blower vac by an unauthorised person or by mishandling of
the blower vac. This tool is designed for DIY use - use in commercial or industrial
environments will void the warranty.

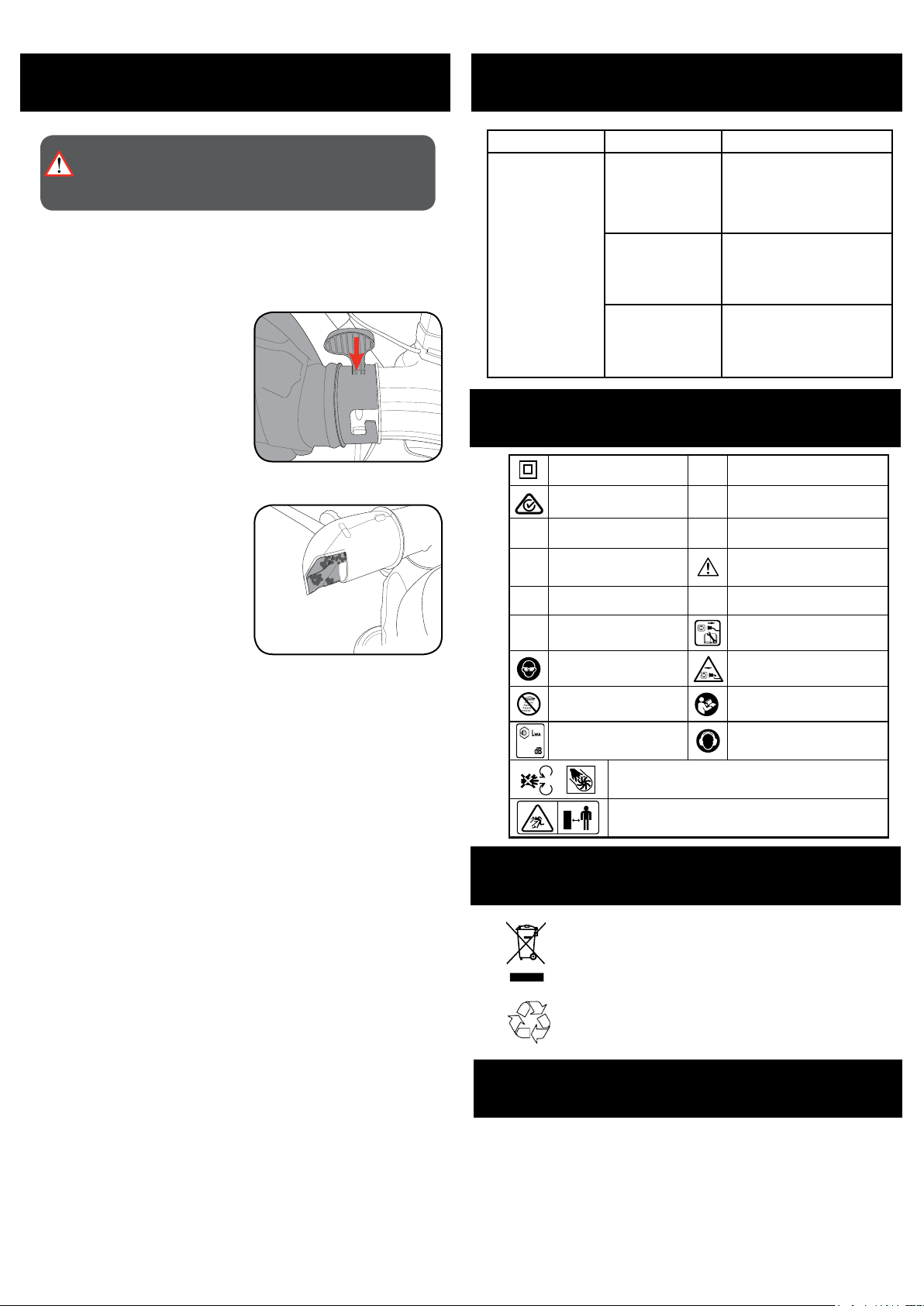

If air speed power decreases, remove build up of debris from
discharge outlet.
2. Unhook bag from the handle
3. Remove any debris from
discharge outlet.
DESCRIPTION OF SYMBOLS
Problem Cause Remedy
Poor Suction Collection bag full Empty the collection bag.
Clogged discharge
outlet
Remove any debris or build
up within the discharge
outlet.
Clogged vacuum
inlet
Remove build up of debris
from in the inlet housing.
1. Rotate connector
handle downward, then
pull away to remove.

Always wear adequate protective clothing when operating the tool to avoid injuries to face, eyes,
hand, feet, head or hearing. Use safety glasses or a face shield, high boots or sturdy shoes, long
trousers, work gloves, a hard hat and ear defenders.
Do not start the tool when it is upside down or when it is not in the operating position.
Switch the motor off and remove the plug when the tool is not being used, left unattended, being
cleaned, being moved from one place to another or when the extension cord is entangled or
damaged.
Do not operate the tool near people, especially children or pets. Turn it off if they get too close.
Maintain a safe distance of at least 5m from other people when using the tool.
Never direct the blower direction nozzle towards bystanders or pets. Never blow debris in the
direction of bystanders or pets. The operator is responsible for accidents or hazards occurring to
other people or their property.
Do not handle the plug or the tool with wet hands and do not use the tool in the rain.
Use only outdoor rated extension leads that are so marked. Keep the extension cord away from heat,
oil and sharp edges.
Ensure that the extension lead is secured in a manner that prevents it from disconnecting from the
plug whilst in use.
Keep all the air intakes and the blower tube free of dust, lint, hair and other material that may cause a
reduction in air ow.
Keep a balanced and stable stance while using the tool. Do not switch on the tool in enclosed or
poorly ventilated spaces or in the presence of inammable and/or explosive substances such as
liquids, gasses and powders.
Do not get distracted and always concentrate on what you are doing. Use common sense. Never
operate the tool when you are tired, sick or under the inuence of alcohol or other drugs.
Do not operate this appliance with long loose hair or loose tting jewellery. Tie long loose hair back
and remove loose tting jewellery.
Only operate the tool during broad daylight or with adequate articial light.
This appliance is not intended for use by young children or inrm persons unless they
have been adequately supervised by a responsible person to ensure that they can use the
appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
Only use the tool according to the instructions given in this manual.
Check regularly that the screws are tight.
Do not allow the blower vac to pick up any burning or smouldering materials like ashes, cigarette
butts etc.
Do not attempt to pick up breakable objects like glass, plastics, china etc.
Do not use in vacuum operation without the collection bag tted.
Do not use in the rain or leave outdoors while raining.
1) Training
¥Read the instructions carefully. Be familiar with the controls and the proper use of the appliance.
¥Never allow children to use the appliance.
¥Never allow people unfamiliar with these instructions to use the appliance. Local regulations may
restrict the age of the operator.
¥Never operate the appliance while people, especially children, or pets are nearby.
¥The operator or user is responsible for accidents or hazards occurring to other people or their
property.
2) Preparation
¥While operating the appliance, always wear substantial footwear and long trousers.
¥ Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away
from the air inlets.
¥Wear protective goggles while operating
¥To prevent dust irritation the wearing of a face mask is recommended
¥Before using, check the supply and extension cord for signs of damage and aging.
¥Do not use the appliance if the cord is damaged or worn.
¥Never operate the appliance with defective guards or shields, or without safety devices, for
example debris collector in place.
¥ Only use a weather proof extension cord tted with a coupler according to IEC 60320-2-3.
3) Operation
¥Always direct the cord to the rear away from the appliance.
¥If a cord becomes damaged during use, disconnect the supply cord from the mains immediately.
DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
¥Do not carry the appliance by the cord.
¥Disconnect the appliance from the mains supply
- whenever you leave the machine;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- if the appliance starts to vibrate abnormally.
¥ Operate the appliance only in daylight or in good articial light.
¥Do not overreach and keep your balance at all times.
¥Always be sure of your footing on slopes.
¥Walk, never run.
¥Keep all cooling air inlets clear of debris.
¥Never blow debris in the direction of bystanders.
4) Maintenance and storage
¥Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
¥Check the debris collector frequently for wear or deterioration.
¥Replace worn or damaged parts.
¥Use only genuine replacement parts and accessories
¥Store the appliance only in a dry place.
ELECTRIC GARDEN VACUUM SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire is required.
To reduce the risk of electrical shock, a residual current device (rated 30mA or less) must be used.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a
hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure within
the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
Supply cords shall not be lighter than:
- if rubber insulated, ordinary tough rubber sheathed exible cord (code designation 60227 IEC 53);
- if polyvinyl chloride insulated, ordinary polyvinyl chloride sheathed exible cord (code designation 60227 IEC
53).
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of
electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on
the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
