Ozito PXSCS-0182 User manual

STANDARD EQUIPMENT
PXSCS-0182
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V x 2
No Load Speed: 3,300/min
Working Width: 350mm
Scarier Roller: 16 Blades
Height Adjustment: -9/-6/-3/3mm
Noise Rating: 94dB
Weight: 9.8kg
ozito.com.au
0622
Brushless Scarier
Handle Parts
Handle Assembly Fasteners
BRUSHLESS
SCARIFIER
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
WARNING
The following actions will result in the warranty being
void.
• If the tool or machine has been operated on a supply voltage other than that
specied on the tool or machine.
• If the tool or machine shows signs of damage or defects caused by or
resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool or machine is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts, for example: cable clips, roller blade, bearings etc.
Cable Clip x 3, Safety Key

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
b
Bolts
a
b
Bolts
a
b
Bolts
a
b
Bolts
a
Fitting the Lower Handles
1. Remove the quick-release lever and
washer from one side of the scarier
housing. Connect lower handle to the
mounting thread (a). As you do this
make sure that the embossing (b)
faces inwards.
2. Ret the washer and secure in place
with the quick-release lever.
3. Repeat the process with the
remaining lower handle. Ensure both
lower handles are set to the same
angle.
Note: If necessary, turn the quick-
release lever back sufciently on the
thread so that the handle quick-release
lever can then still be ipped upwards.
1. Upper Handle
2. Start/Stop Lever
3. Safety Switch Button
4. Mid Handle
5. Cable Clip x 3
6. Carry Handle
7. Depth Adjustment Lever
8. Battery Cover
9. Handle Securing Set x 4
10. Lower Handle x 2
11. Quick-Release Lever
12. Safety Key
This machine is compatible with all batteries & chargers from the
Ozito Power X Change range.
BRUSHLESS SCARIFIER
BATTERY & CHARGER

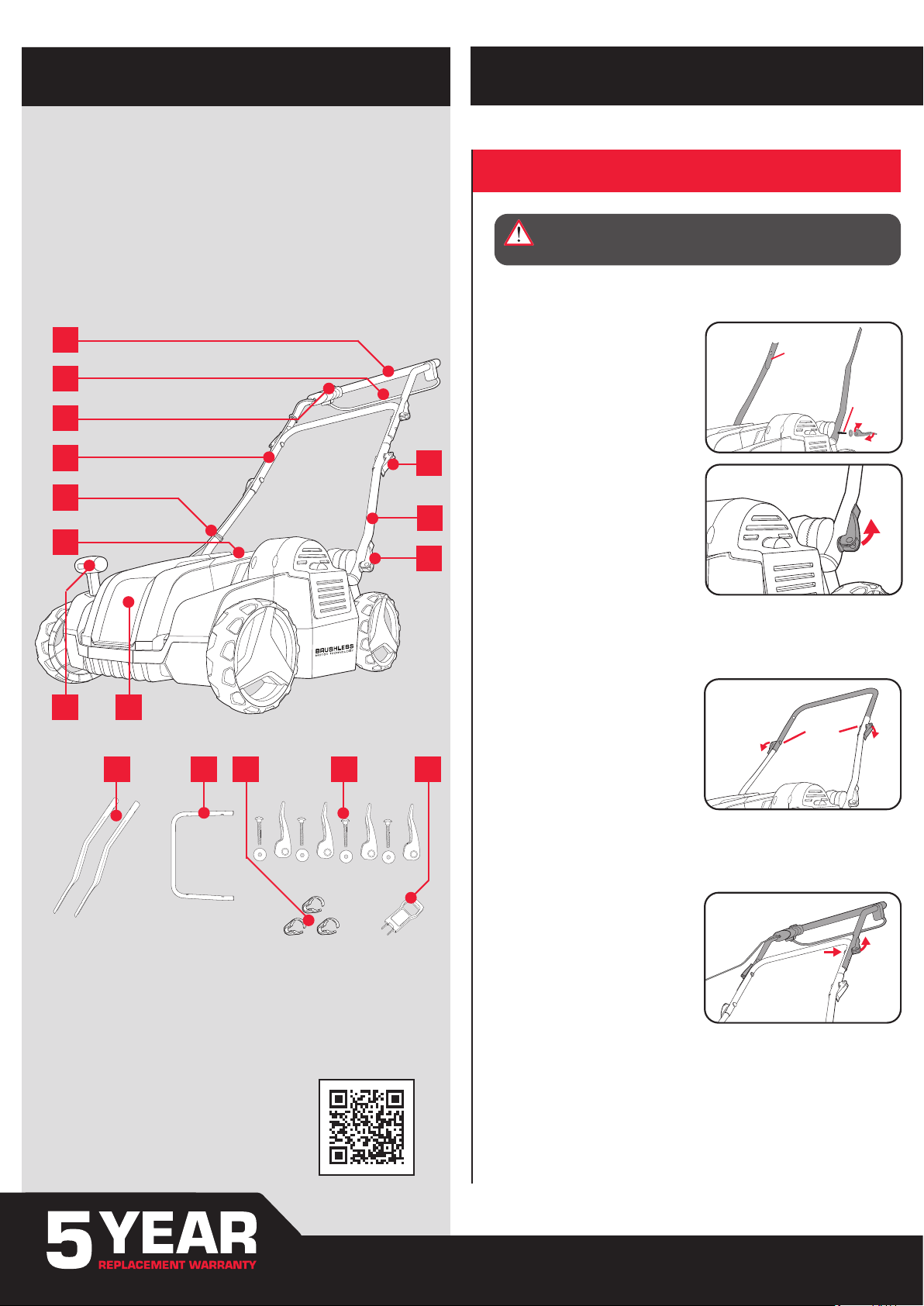

KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
1
2
3
4
5
6
7
9
10
8
10 94 125
WARNING! ENSURE THE MACHINE IS SWITCHED
OFF AND THE BATTERIES ARE REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
Fitting the Mid Handle to the Lower Handles
1. Using two bolts from the handle
securing set, hold the mid handle
piece to the inside ends of the lower
handle. Ensure the bolts t through
the inside of the mid handle and then
through the hole in the lower handles.
2. Secure each side with washer and
quick-release lever.
Fitting the Upper Handle to the Mid Handle
1. Place the upper handle over each side
of the mid handle. From the handle
securing set, t the bolts through the
inner side of the mid handle and then
through the hole in the upper handle.
Note: When you t the upper handle
you can decide the height of the handle
by selecting the appropriate fastening
hole. Ensure you use the same hole on
both sides.
2. Secure in place with washer and quick-release lever.
11

1
2
P
-9 -6 -3 +3
P 1
2
1
2
P
-9 -6 -3 +3
P 1
2
PRESS
2. PREPARATION
WARNING! ENSURE THE MACHINE IS SWITCHED
OFF AND THE BATTERIES ARE REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
Securing the Power Cord to the Handle
1. Secure the power cord from the
switch housing to the scarier
using the three cable clips.
Note: Ensure that the power
cord follows the handle smoothly
from the switch to the body of the
scarier.
Adjusting the Scarifier Working Depth
The scarier depth is adjusted with the depth adjustment lever.
1. Hold the depth adjustment lever
rmly as you pull inwards away from
the scarier front wheel.
2. Adjust the lever to the required
position, ensure that the lever is
seated in place correctly.
Working height positions
+3 Transport position +3mm
-3 Scarier depth -3mm (shallowest)
-6 Scarier depth -6mm
-9 Scarier depth -9mm (deepest)
Inserting/Removing the Batteries and Safety
Key
Only use two 18V battery packs of equal
capacity and charge state. For best
performance use 2.5Ah batteries and above.
1. Open the battery cover and slide two
batteries of the same capacity and same
charge state into the scarier, aligning the
ribs so that it clicks into place.
2. Insert the safety key. (If the scarier is not
going to be used immediately, do not insert the safety key).
3. Carefully close the battery cover.
4. To remove a battery, open the battery
cover. Press and hold the battery release
tab as you remove the battery.
5. Carefully close the battery cover.
WARNING! ALWAYS ENSURE THE KEY AND BATTERIES
ARE REMOVED WHEN NOT IN USE.
Fitting & Removing Grass Catcher (accessory)
This unit does not include a grass catcher. This is available separately.
1. Lift up the catcher ap on the rear of the scarier with one hand and hook
grass catcher onto the housing from above.
2. Lower the catcher ap. The catcher ap is held against the catcher by a
spring.
3. To empty the catcher, lift the catcher ap with one hand, while unhooking the
catcher with the other.
WARNING! ONLY FIT AND REMOVE THE GRASS
CATCHER WHEN THE SCARIFIER IS SWITCHED OFF AND
THE MOTOR HAS COME TO A STOP.
WARNING! WHEN FITTING THE GRASS CATCHER AFTER
EMPTYING, ALWAYS ENSURE THERE IS NO BUILD UP
OF GRASS IN THE GRASS CHUTE.
Assembling the Grass Catcher (accessory)
This unit does not include a grass catcher. This is available separately.
1. Push both frame parts into each
other.
2. Pull the catcher over the catcher
frame.
3. Pull the rubber clips over the catcher
frame.
Handle Height Positions
1. Release the quick-release levers on
both sides of the scarier housing.
2. Set the handle height to best suit
the user during operation, either
position 1 or 2 MUST BE
SELECTED.
3. Secure the quick-release lever to hold
the handle in the selected position.
Make sure that both sides are set to the same position.

2
1
3. USING THE SCARIFIER 4. OPERATION TIPS
OPERATION
PXSCS-0182
Switching On and Off
To prevent accidental start up, the scarier is tted with a dual action switch.
1. Press and hold the safety switch button.
2. Pull the start/stop lever towards the
handle to start the scarier and then
release the safety switch button.
3. Release the start/stop lever to stop the
scarier.
WARNING! THE SCARIFIER ROLLER BLADE WILL STOP
A FEW SECONDS AFTER THE START/STOP LEVER HAS
BEEN RELEASED. BE AWARE OF THE NECESSARY
TIME IT TAKES FOR THE ROLLER BLADE TO STOP. DO NOT
ATTEMPT TO STOP THE ROLLER BLADE.
Proper Use
The scarifying roller is designed for removing lawn thatch, moss and weeds
from your lawn. It also helps loosens the soil, in turn improving airow and
drainage which allows your lawn to better absorb nutrients and promotes
growth. Before scarifying, your lawn should be cut; grass height not more
than 5cm.
Scarifying can be done once a year before Spring, from about October through
to February.
WARNING! DUE TO THE HIGH RISK OF BODILY INJURY
TO THE USER, THE EQUIPMENT MAY NOT BE USED
TO GRIND UP BRANCH OR HEDGE CLIPPINGS. IN
ADDITION, THE EQUIPMENT MAY NOT BE USED AS A
POWER CULTIVATOR TO LEVEL OUT HIGH AREAS.
• Cut your lawn before scarifying, grass height not more than 5cm.
• It is recommended to start with smallest working depth position setting -3mm
(shallowest) and complete a trial cut on a small section of the lawn and re-
adjust if necessary.
•Make sure the lawn is clear of sticks, stones, wire and debris; they could be
thrown by the blade.
•It is recommended not to use the Scarifier in poor visibility conditions, in the
rain or when the grass is wet.
•Always ensure that a safe distance (provided by the long handles) is
maintained between the user and the housing.
•Be especially careful when scarifying and changing direction on slopes and
inclines.
•Always scarify along the incline (not up and down).
•For safety reasons, the scarier may not be used to scarify inclines whose
gradient exceeds 15 degrees.
•Use special caution when backing up and pulling the scarier (tripping
hazard).
•It is recommended that you
overlap scarifying paths a
little.
•Try to scarify in straight lines
for a nice, clean look. In so
doing, the aeration swaths
should always overlap each
other by a few centimetres in
order to avoid bare strips.
•Keep the underside of the equipment clean and remove soil and grass build-
up. Deposits make it more difficult to start the scarifier and decrease the
quality of the scarifying.
•For optimum operation, always scarify in a straight line; do not swing the
scarifier from side to side.
Run Time
The operating time of the PXC battery (the area in square meters that can be
covered with a single battery charge) is largely dependent on the state of the
grass (e.g. Density, moisture, height, scarifying depth, etc.) and the scarier
speed (walking speed).
Frequently turning the equipment on and off while scarifying will also reduce the
amount of area that you can cover. If the operating time of the PXC battery (area
coverage) is still unsatisfactory in spite of the above measures, you can remedy
the problem by using PXC batteries with a larger capacity (Ah).
WARNING! ALWAYS WEAR STURDY, NON-SLIP
FOOTWEAR, LONG TROUSERS, SAFETY GLASSES AND
HEARING PROTECTION WHEN USING THE EQUIPMENT.
NEVER USE THE EQUIPMENT BAREFOOT OR IN SANDALS
WARNING! ALWAYS WEAR HEAVY DUTY GLOVES WHEN
CLEANING THE EQUIPMENT, THE BLADES ARE VERY
SHARP AND CAN CUT YOU WHEN IT IS NOT MOVING.

Amp hour
Pull out Safety Key
before carry out any
repair work, storing or
transporting the
scarifier.
Warning
Regulatory Compliance Mark
(RCM)
Do not operate in the rain or leave
the scarifier outdoors while raining.
VVolts Hz
W
Hertz
a.c./~
n0
/min
Alternating Current Watts
No load speed
Revolutions or reciprocations
per minute
Read Instruction Manual to reduce the risk of injury.
IPX1 Ingress protection from water d.c./ Direct current
Ah
Always keep the scarifier on the ground when operating.
Tilting or lifting the scarifier may cause stones to be thrown out.
Keep bystanders away. Do not operate whilst people especially children or
pets are in the scarifing area.
94
Caution! Sharp teeth. Beware of servering toes or hands. Do not put hands
or feet near a rotating blade.
Wear hearing and eye protection.
Sound power level: 94dB
mm Milimetre
The equipment`s operating time depends on the battery with the lower charge
level. Therefore, only use rechargeable batteries which are charged to the
same level.
MAINTENANCE
DESCRIPTION OF SYMBOLS
Power tools and machines that are no longer usable should not be
disposed of with household waste but in an environmentally friendly
way. Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
WARNING! ALWAYS ENSURE THE SCARIFIER ROLLER
BLADE HAS COMPLETELY STOPPED, REMOVE SAFETY
KEY, BATTERY AND GRASS CATCHER PRIOR TO ANY
MAINTENANCE.
Cleaning
• Keep the ventilation slots of the machine clean at all times to ensure
efcient operation.
• After each use, blow it with compressed air at low pressure through the
machine housing to ensure it is free from all dust, dirt, etc. Build up of dust or
dirt particles may cause the machine to overheat and shorten the life of the
machine.
• If the housing of the machine requires cleaning, do not use solvents. Use of a
soft cloth and brush only is recommended.
• Never allow any liquid to get inside the machine, never immerse any part of
the machine into liquid or clean the scarier with running water, particularly
with high-pressure water.
Maintenance
• A worn out or damaged roller blade should be replaced by an authorised
expert.
• Take care that all fastening elements (screws, nuts, etc.) are rmly tightened,
so that you can work safely with the scarier.
• Replace worn or damaged parts for safety.
Storage
• When not in use, the machine should be stored in a dry, frost free location,
keep out of children’s reach.
• Store the equipment and its accessories in a dark and dry place at above
freezing temperature. The ideal storage temperature is between 5°C and
30°C.
• Remove the batteries and safety key from the scarier when in storage.
• Allow the motor to cool before you put
the equipment in an enclosed area.
• The handle has a Pposition in order to
take up less space during storage. To
adopt this position you must loosen the
quick-release levers by approx. 3 turns
to allow for the higher parking position.
With the handle in this position, the
scarier can be stood in a corner in
minimum space. When you return the
handle to the working position, remember
to tighten the quick-release levers again
by 3 turns!
Transport
• Switch the machine off and remove both batteries and safety key before
transporting it.
• Set the depth adjustment lever to +3 transport position.
• For easier transport and/or storage, open the quick-release levers enough
to allow the handle to be ipped together at these points. Take care not to
damage the cable and the handle tubes.
• Protect the machine from damage and the strong vibrations that can occur
particularly when transporting in vehicles.
• Secure the machine against slipping and tipping over.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the scarier by an unauthorised person or by
mishandling of the scarier. This machine is designed for
DIY use - use in commercial or industrial environments will void the warranty.
Battery protection system
The tool/machine is equipped with the battery protection system, which helps to ensure a
long service life.
The output power automatically cuts off during operation when the tool, machine and/or
battery are placed under the following situations:
• When the tool/machine is overloaded:
If this occurs, release the start/stop lever remove the safety key and batteries and
remove causes of overload, then reinsert the safety key and batteries, then press and
hold the lock-off button and pull the start/stop lever again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The indicated capacity may be lower than the actual level during use or immediately
after using the tool/machine.
