Ozito NSG-5000 User manual

BRAD NAILER
& STAPLER
15-30MM
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 230-240V ~ 50Hz
Rated Power: 50W
Impact Rate: 20 /min
Magazine Capacity: 50 Nails
Nail Type: C1 Brad
Nail Length: 15-30mm
Staple Type: Narrow Crown
Staple Length: 15-25mm
Weight: 1.6kg
NSG-5000
WHAT’S IN THE BOX
Brad Nailer & Stapler
Nails x 500
Staples x 500
ozito.com.au Hex Key

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
7 20mm Nails x 500
8 20mm Staples x 500
9 Hex Key

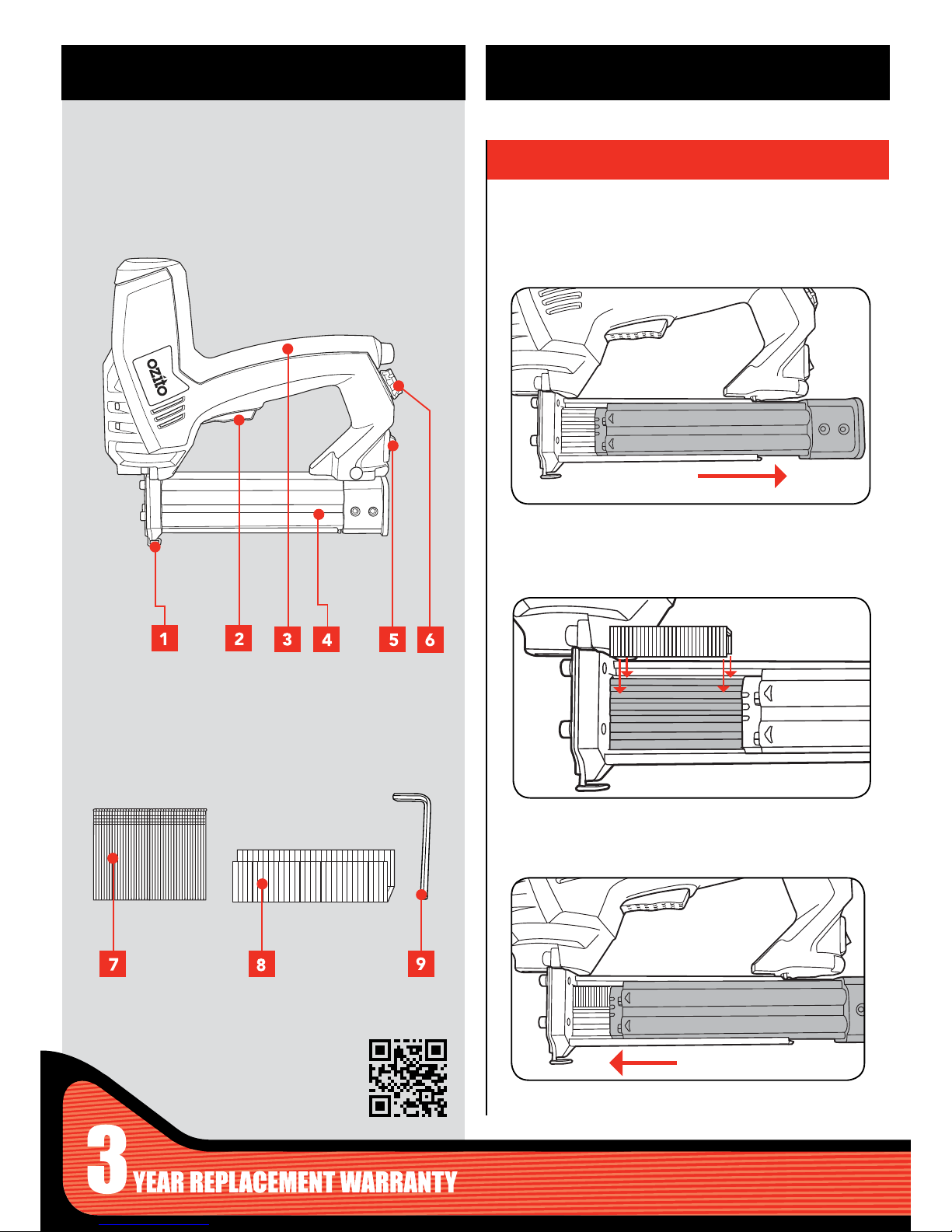

ACCESSORIES
1 Safety Striker Pin
2 On/off Trigger
3 Handle
4 Magazine
5 Power Switch
6 Variable Depth Adjustment Dial
2 IN 1 BRAD NAILER AND STAPLER
KNOW YOUR PRODUCT
1. LOADING STAPLES
1. Squeeze the magazine latch and pull the magazine away from
the tool.
3. Close the magazine, ensuring it clicks into place.
2. Slide a row of staples over the the middle of the magazine so that
the staples straddle the inner chamber.
SETUP & PREPARATION
Ensure the tool is disconnected from the power supply
before performing any of the following operations.

2. LOADING NAILS 3. CONTROLS
OPERATION
The tool is recommended for use with a residual current
device with a rated residual current of 30mA or less.
1. Squeeze the magazine latch and pull the magazine away from the
tool.
3. Close the magazine, ensuring it clicks into place.
2. Insert a row of nails into the second track of the magazine. The
nails should be ush against the inner chamber. To re the nail and
staple gun, squeeze
the on/off trigger.
1. To supply the tool with
power, ick the power
switch to the “I” position.
Power Switch
On/off Trigger
Variable Depth Adjustment Dial
2. To turn off, ick the power
switch to the “0” position.
The variable depth adjustment dial allows you to control the depth
at which the nail gun res a nail or staple.
To increase depth,
turn the variable depth
adjustment dial toward the
“+” symbol.
To decrease depth, turn
the dial to the “-” symbol.
Note: IF THE MAGAZINE WILL NOT CLOSE, THE
MAGAZINE MAY BE OVER CAPACITY. REMOVE SOME
NAILS/ STAPLES THEN TRY TO CLOSE AGAIN.
1. To nd the correct depth
setting, re a nail into a
scrap piece of material.
2. Adjust the dial and re
another nail. Repeat until
the nail is driven ush with
the work surface

NSG-5000

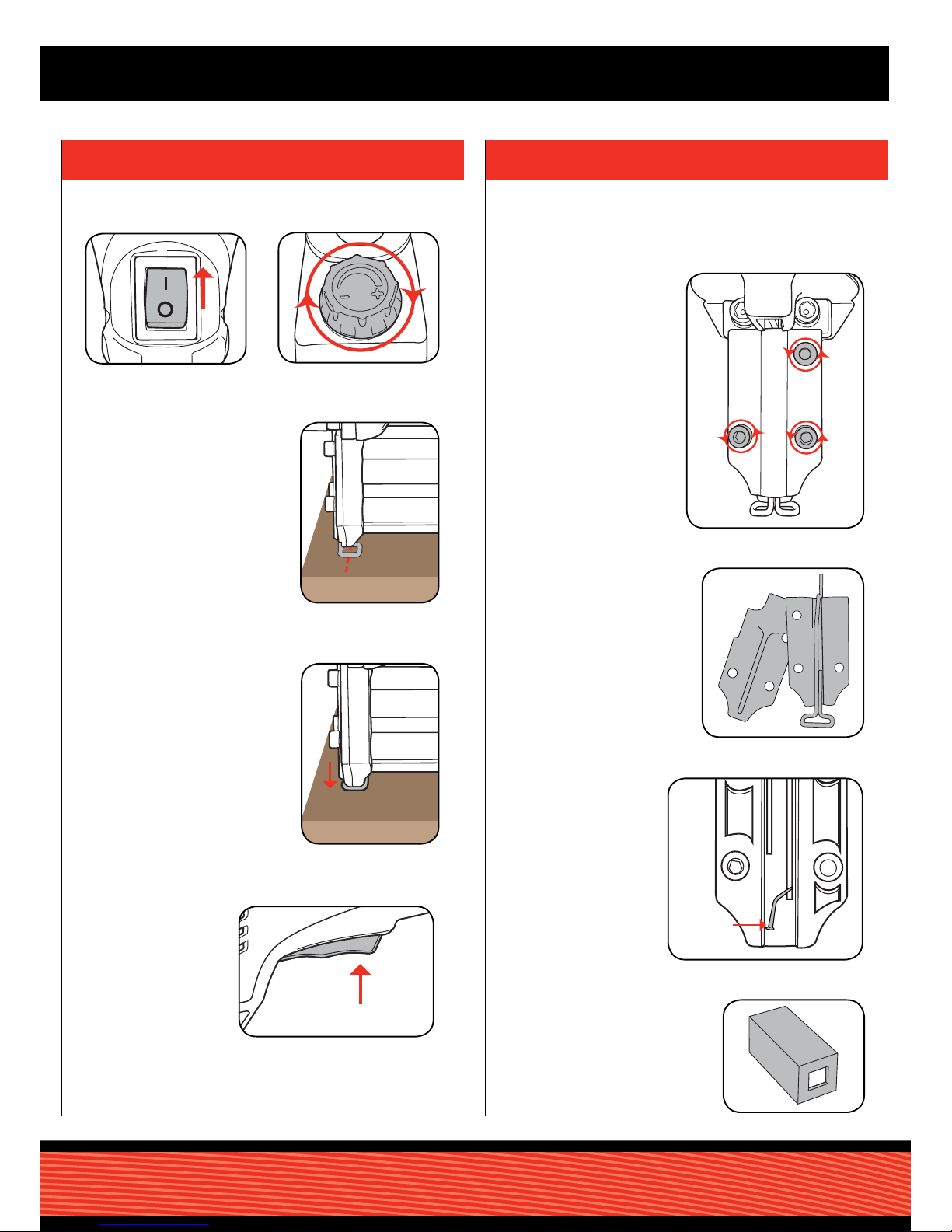

4. OPERATING THE NAIL GUN 5. TROUBLESHOOTING
1. Push the power switch to
the “I” position.
4. Push the tool rmly
down on the work
surface to depress
the safety striker pin.
3. Place the staple
nail gun against the
work surface so that
the nosepiece of the
tool is where you
want the staple/nail
to be located.
5. Squeeze the trigger
switch to re a
staple/nail.
NOTE: The on/off trigger cannot be squeezed unless the safety
striker pin is fully depressed.
Clearing Jammed Nails/Staples
2. Remove the two
plates from the front
of the gun.
1. Remove the three
screws on gun
head.
3. Remove any staples
or nails that may be
causing the jam.
Clear any
jams
2. Set the variable depth
adjustment dial.
4. Reassemble the nail gun. Be sure
not to lose the square plastic cap.
If you reassemble the nail gun
without this piece, the safety
striker pin will not depress and
the gun will not re.
Ensure the tool is disconnected from the power supply
before performing any of the following operations.

MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
• Keep the ventilation vents of the nail gun clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the nail gun housing to ensure it is free from all
dust particles which may build up. Build up of dust particles may cause the nail
gun to overheat and fail.
• If the enclosure of the nail gun requires cleaning, do not use solvents but a
moist soft cloth only. Never let any liquid get inside the nail gun; never immerse
any part of the nail gun into a liquid.
Carbon Brushes
When the carbon brushes wear out, the nail gun will spark and/or stop.
Discontinue use as soon as this happens. They should be replaced prior to
recommencing use of the nail gun. Carbon brushes are a wearing component of
the nail gun therefore not covered under warranty. Continuing to use the nail gun
when carbon brushes need to be replaced may cause permanent damage to
the nail gun. Carbon brushes will wear out after many uses but when the carbon
brushes need to be replaced, take the nail gun to an
electrician or a power tool repairer for a quick and low
cost replacement. Always replace both carbon brushes
at the same time.
Note: Ozito Industries will not be responsible for any
damage or injuries caused by the repair of the nail gun
by an unauthorised person or by mishandling of the
nail gun.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the brad nailer & stapler failing to operate
May indicate the carbon brushes have worn out and need to be
replaced. Carbon brushes should only be replaced by a qualied
electrician or power tool repairer.
Nail gun res but the nail does not enter the workpiece
The variable depth adjustment dial may be set too low. Increase the variable
depth adjustment dial setting and try again.
Nail gun does not re
Check that the safety striker pin is fully depressed. If it is and the gun still does not
re, you may be missing the plastic cap from the striker pin assembly. In this case
please contact Ozito Customer Service.
The magazine will not close
The magazine chamber may be over capacity. Remove some nails/ staples then
try to close the magazine again.
Plastic Cap SPNSG5000-15
Switch SPNSG5000-43
Variable Depth Adjustment SPNSG5000-44
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency,
before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60745-1;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to
avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool.
The insulation system is for added protection against injury resulting from a possible electrical insulation
failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or
defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead
not suitable for the power input of the tool or which is damaged or defective may result in a risk of re
and electric shock.
ELECTRICAL SAFETY
V Hz
~ W
/min
n
o
Volts
Alternating current
Revolutions or
reciprocation per minute
Double insulated
Warning
Hertz
Watts
No load speed
Regulator compliance mark
Read instruction manual

SPARE PARTS Tool: Brad Nailer & Stapler
Model No. NSG-5000
Item
No. Description Part No.
How To Order
15-16
42-44
Safety Arm & Cap
Switch Kit
SPNSG5000-16A
SPNSG5000-43K
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
12 3 4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
222324252627282930
3132333435
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Item
No. Description Part No.

• Always assume that the tool contains fasteners. Careless handling of the
nailer or stapler can result in unexpected ring of fasteners and personal injury.
• Do not point the tool towards yourself or anyone nearby. Unexpected
triggering will discharge the fastener causing an injury.
• Do not actuate the tool unless the tool is placed rmly against the
workpiece. If the tool is not in contact with the workpiece, the fastener may be
deected away from your target.
• Disconnect the tool from the power source when the fastener jams in
the tool. While removing a jammed fastener, the nailer or stapler may be
accidentally activated if it is plugged in.
• Do not use this nailer or stapler for fastening electrical cables. It is not
designed for electric cable installation and may damage the insulation of
electric cables thereby causing electric shock or re hazards.
NAILER SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY
STAPLE/NAIL COMPATIBILITY
C1 BRAD NAILS
Size Compatible Available at
Bunnings
15mm P P
20mm P P
25mm P P
30mm P O
NARROW CROWN STAPLES
16mm P P
22mm P P
25mm P O
Width
2mm
15
20
25
30
1mm
16
22
25
Width
5.7mm
The NSG-5000 accepts nails and staples with the below
measurements
NAIL STAPLE
PLEASE NOTE: The NSG-5000 does not accept cable or
round “U” shaped nails. Only attempt to use staples with the
measurements outlined in this manual.

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: staples, nails,
carbon brushes etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0813
