Ozito OZSNG16A User manual

STAPLE
NAIL GUN
8MM-14MM
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 230V ~ 50Hz
Impact Rate: 20/min
Magazine Capacity: 100Pcs
Staple Type: T50 18 Gauge
Staple Length: 8-14mm
Nail Type: Brad 18 Gauge
Nail Length: 14-16mm
Weight: 0.95kg
OZSNG16A
WHAT’S IN THE BOX
Staple Nail Gun
Staples
ozito.com.au
Nails

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1 Safety Striker Pin
2 Nosepiece
3 Magazine Window
4 On/off Trigger
5 Handle
6 Power Switch
7 Magazine Latch
STAPLE NAIL GUN
KNOW YOUR PRODUCT

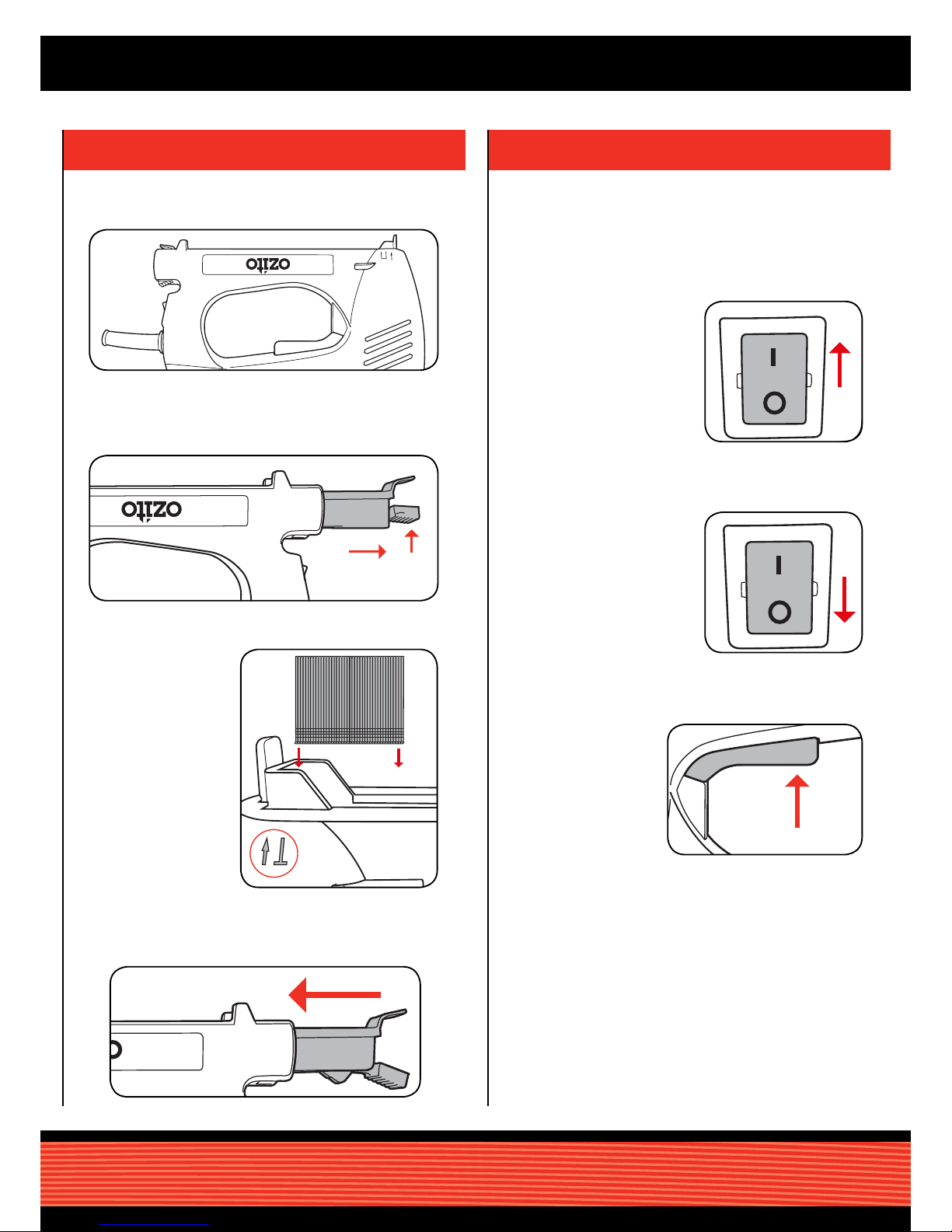

1. LOADING STAPLES
1. Hold the tool upside down.
3. Insert a row of
staples into the
opening behind the
nose piece.
2. Squeeze the magazine latch and pull the magazine out of the
tool.
8 18g T-Brad Nails (15mm) x 100
9 18g T50 Staples (10mm) x 1500
ACCESSORIES
SETUP & PREPARATION
Ensure the tool is disconnected from the power supply
before performing any of the following operations.
4. Push the loaded magazine back into the unit until it clips into
place.
a
b
NOTE: THIS STAPLER ONLY ACCEPTS T50
18 GAUGE STAPLES. OTHER TYPES OF STAPLES,
INCLUDING PAPER STAPLES, WILL JAM THE UNIT.
NOTE: Rows of staples longer than 120mm do not t in the staple
nail gun.

2. LOADING NAILS 3. CONTROLS
OPERATION
The tool is recommended for use with a residual current
device with a rated residual current of 30mA or less.
1. Hold the tool upside down.
2. Squeeze the magazine latch and pull the magazine out of the
tool.
3. Insert a row of nails
into the opening
behind the nose
piece. Be sure to
align them to the
side marked with a
nail marker.
4. Push the loaded magazine back into the unit until it clips into
place.
1. To supply the tool with
power, push the power
switch to the “I” position.
3. To re the staple
nail gun, squeeze
the on/off trigger.
2. To turn off, push the
power switch to the
“O” position.
a
b

OZSNG16A

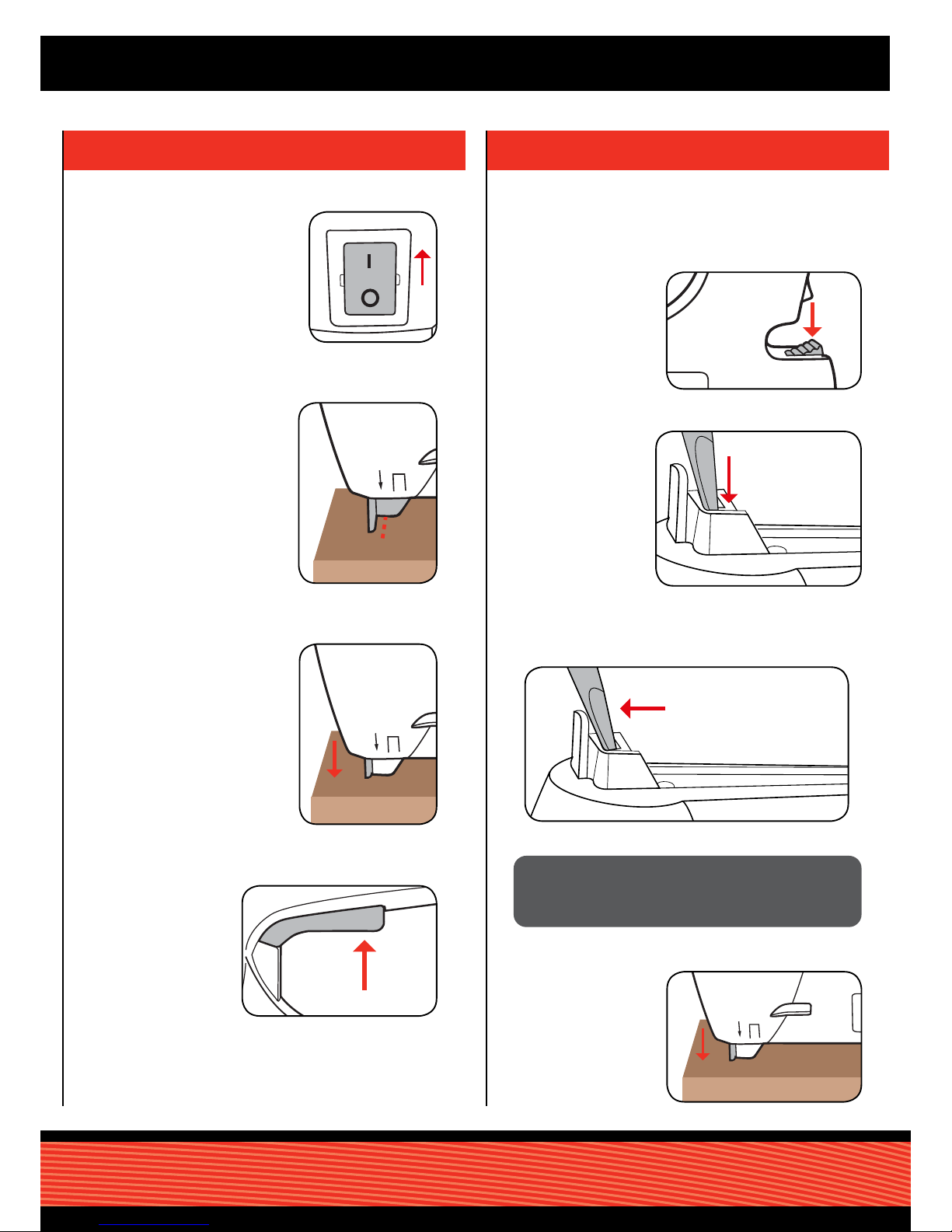

4. OPERATING THE STAPLE NAIL GUN 5. TROUBLESHOOTING
1. Push the power
switch to the “I”
position.
3. Push the tool rmly
down on the work
surface to depress
the safety striker pin.
2. Place the staple
nail gun against the
work surface so that
the nosepiece of the
tool is where you
want the staple/nail
to be located.
4. Squeeze the trigger
switch to re a
staple/nail.
Jammed Staple Nail Gun
Note: Ensure the staple nail gun is switched off and unplugged
from the power supply before trying to remove any jammed nails.
1. Keep pressure on
the magazine latch.
2. Insert a small
athead screwdriver
into the gap
between the nose
piece and the end
of the magazine.
3. Gently lever the screwdriver to pry the magazine open. Keep
pressure on the magazine latch until it can be fully depressed.
4. With the magazine
still open, tap the
safety striker pin
against a surface to
disloge any loose
staples.
NOTE: The on/off trigger cannot be squeezed unless the safety
striker pin is fully depressed.
NOTE: BE CAREFUL WHEN LEVERING THE
MAGAZINE OPEN. USING TOO MUCH FORCE
MAY BEND THE END OF THE MAGAZINE. IF THIS
OCCURS THE UNIT WILL BE INOPERABLE.

MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
• If the enclosure of the staple nail gun requires cleaning, do not use solvents
but a moist soft cloth only. Never let any liquid get inside the staple nail gun;
never immerse any part of the staple nail gun into a liquid.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the staple nail gun by an unauthorised person or by
mishandling of the staple nail gun.
STAPLE/ NAIL SELECTION
Common Applications for Staple Length
5/16”
(8mm)
Insulation, Upholstery, Weather Stripping,
Wall Decorations, Crafts, Covering Cornices,
Webbing, Light Fabrics.
3/8”
(10mm)
Insulation, Carpeting, Wire Mesh, Plastic
or Canvas Coverings, Roong Paper, Felt
Stripping, Weather Stripping.
1/2”
(12mm)
Insulation, Carpet Underlay, Porch Screens,
Picture Frames, Wire Mesh, Netting, Roong
Paper, Panelling.
9/16”
(14mm)
Ceiling Tile, Heavy Insulation, Insulation Board,
Trellises, Roong, Carpeting.
Common applications: T-Nails
9/16”
(14mm)
Trim Moulding, Panelling, Picture Frames,
Model Work, Any Finish Nailing Application.
8
10
12
14
Width
10.6mm
Depth
1.2mm
0.6mm
Front View Side View

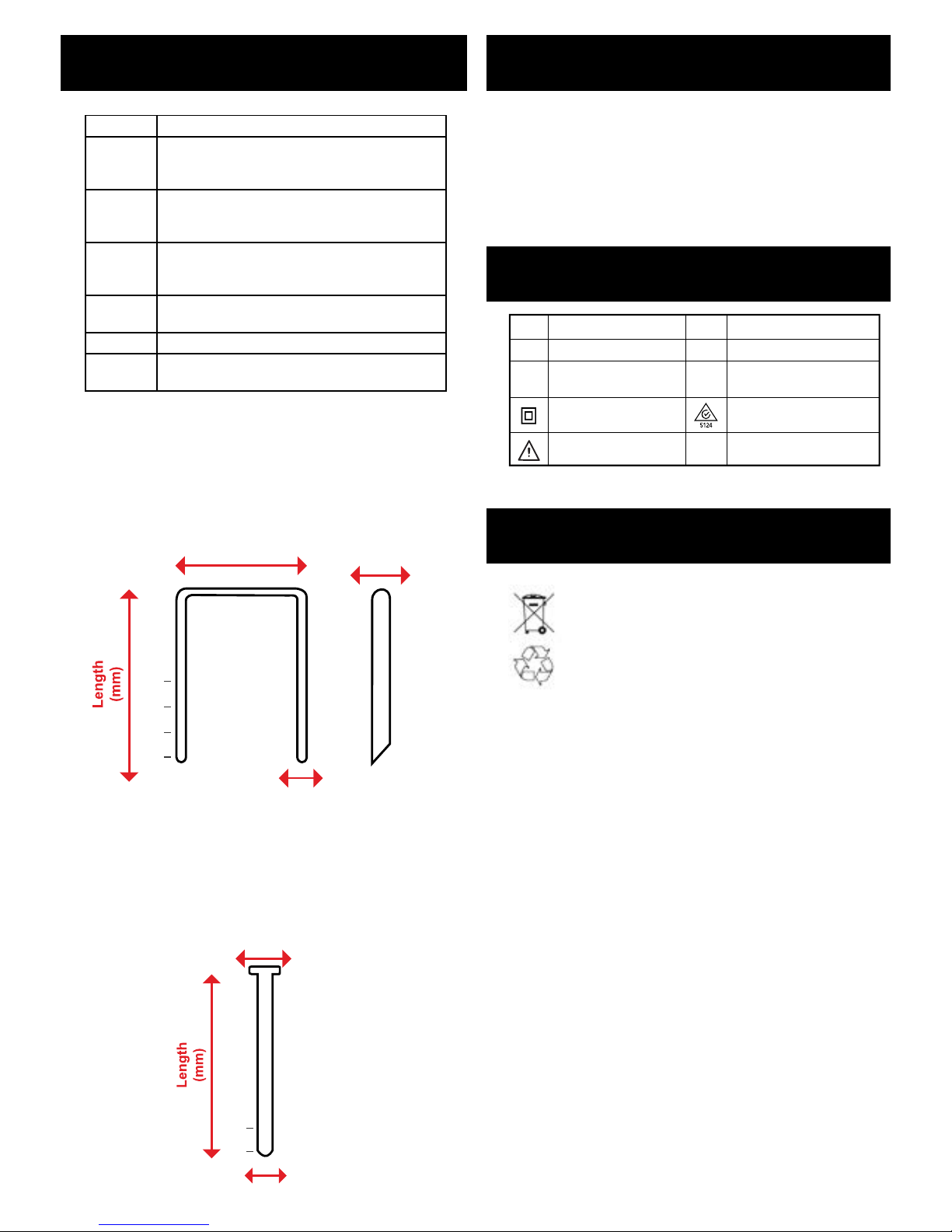

T50 STAPLE SIZE
18 GAUGE BRAD NAIL SIZE
Width
2mm
Front View
14
16
1mm
The OZSNG16A accepts staples with the below
measurements
The OZSNG16A accepts nails with the below measurements
V Hz
~ W
/min
n
o
Volts
Alternating current
Revolutions or
reciprocation per minute
Double insulated
Warning
Hertz
Watts
No load speed
Regulator compliance mark
ga Gauge

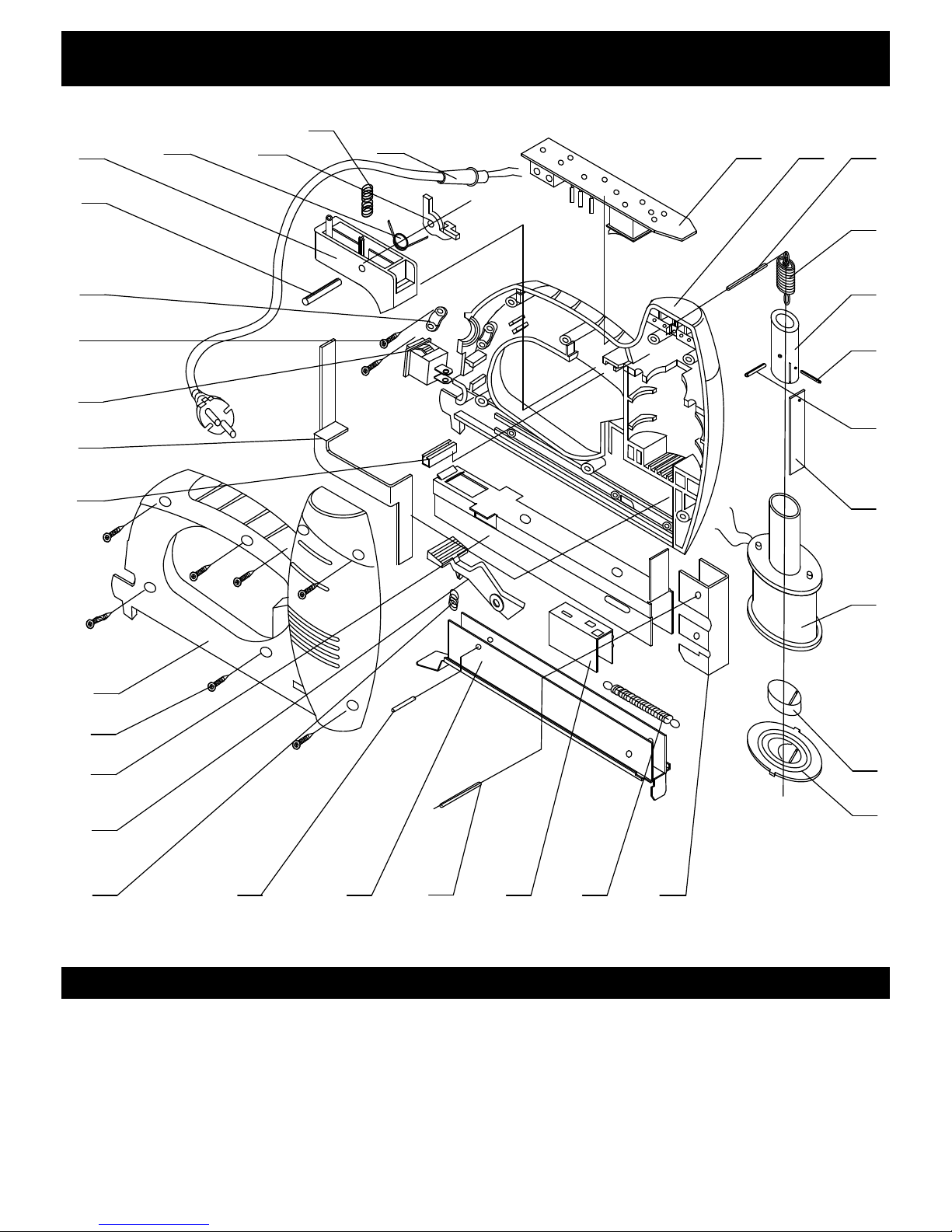

SPARE PARTS Tool: Staple Nail Gun
Model No. OZSNG16A
How To Order
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
0
1
2
3
4
5
6
7
8
91011
12
13
33
14
15
16
17
18
19
20
21
22
23
24
25
26 27 28 29 30 31 32

• Never aim the gun at people or animals.
• In the event of a staple or nail jamming within the gun, disconnect from the
power supply before attempting to clear the jam.
• Keep your hands clear of where you are stapling or nailing.
STAPLE NAIL GUN SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 3100;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY
ELECTRICAL SAFETY

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: staples etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0613
