Ozito ZLSGS-012 User manual

STAPLE
NAIL GUN
12V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 12V
Impact Rate: 30/min
Max. Capacity: 90 x Staples
90 x Nails
Staple Size: T50 18 gauge 8-16mm
Nail Size: C1 Brad 18 gauge 15mm
Weight: 1.2kg
ZLSGS-012
WHAT’S IN THE BOX
Cordless Staple Nail Gun
ozito.com.au
400 x T50 Staples
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Lithium Ion batteries and chargers
are covered by a 12 month warranty. Warranty excludes
consumable parts, for example: accessories etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0618
100 x C1 Brad Nails

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
KNOW YOUR PRODUCT SETUP & PREPARATION
CORDLESS STAPLE NAIL GUN
9 C1 Brad 15mm Nails x 100 10 T50 10mm Staples x 400
ACCESSORIES
This tool is compatible with all batteries and chargers from the
Ozito Home-12volt range.
BATTERY & CHARGER
1. FITTING THE BATTERY
Installing the Battery Pack
1. Slide the battery into the tool base until it clicks into place.
Removing the Battery Pack
1. Hold down the battery release button and
then slide the battery out.
1 Battery Seating
2 Magazine Latch
3 Sure Grip Handle
4 On/O󰀨Trigger
5 Force Adjustment Dial
6 Magazine Window
7 Safety Striker Pin
8 Low Charge Indicator LED
1 2 5 6 7
38
9 10
4

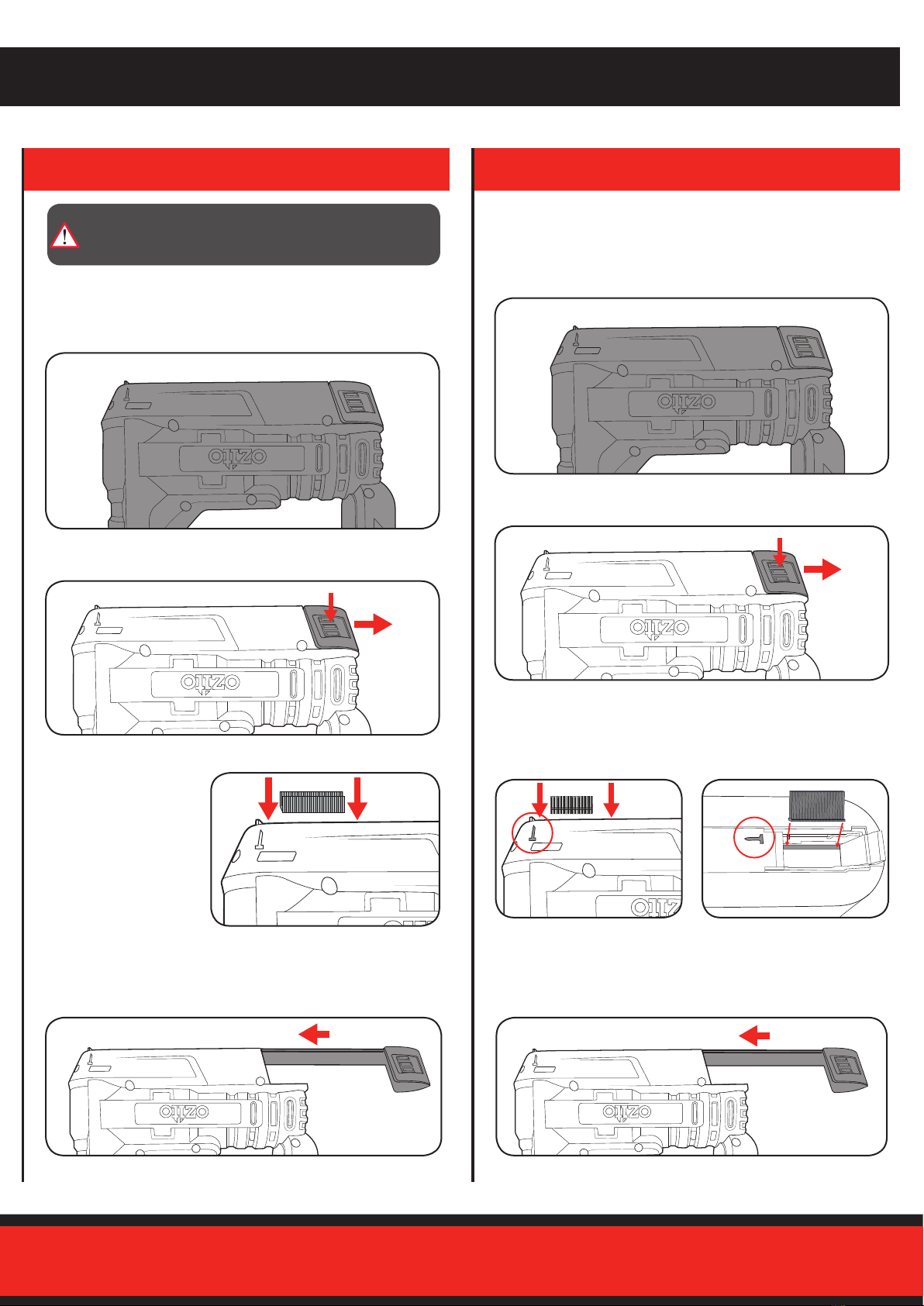

3. LOADING NAILS2. LOADING STAPLES
1 Hold the tool upside down.
1 Hold the tool upside down.This staple nailer only accepts T50 18 gauge 8-16mm staples. Other
types of staples, including paper staples, will jam the unit.
This staple nailer only accepts 15mm 18 gauge C1 Brad nails. Other
types of nails will jam the unit.
3 Insert a row of staples
into the opening behind
the nose piece.
2 Squeeze the magazine latches on either side of the tool and pull the
magazine out of the tool.
2 Squeeze the magazine latches on either side of the tool and pull the
magazine out of the tool.
4 Push the loaded magazine back into the unit until it clips into place. 4 Push the loaded magazine back into the unit until it clips into place.
Note: Rowsofmorethan90staplesdonottinthestaplenailgun. Note: Rowsofmorethan90nailsdonottinthestaplenailgun.
3 Insert a row of nails into the opening behind the nose piece. Be sure
to align them to the side marked with a nail marker so that the nail
head is against the internal groove.
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
THE BATTERY IS REMOVED BEFORE PERFORMING ANY
OF THE FOLLOWING TASKS.

OPERATION
ZLSGS-012
4. CONTROLS
Firing A Staple or Nail
Charge Indicator Light
2 Torethestaple
nail gun, squeeze
theon/o󰀨trigger.
The Safety Striker System is a two step process where a staple or nail
willonlyrewhenthesafetystrikerpinispushedagainstthematerial
to be fastened.
The charge indicator will
illuminate red if the battery is low,
indicating that the battery needs
charging.
1 Push the safety striker pin
and nosepiece down onto the
surface to be fastened.
5. TROUBLESHOOTING
Jammed Staple Nail Gun
2 Using a pair of pliers, remove
any jammed staples or nails.
3 With the magazine still open,
tap the safety striker pin
against a surface to dislodge
any loose staples.
Note: Be careful not to bend the end of the magazine. If this occurs the
unit will be inoperable.
Ensure the battery is properly charged. It will take 4-5 charging cycles
before the battery reaches optimum charge and run time.
1 Squeeze the magazine latches on either side of the tool and pull the
magazine out of the tool.
1 To adjust the
force of the staple
nail gun, turn the
dial clockwise
to increase
the strength or
anti-clockwise to
decrease it.
Staple/Nail Firing Force Adjustment
Some jobs require a lighter touch than others; reducing the force that
staplesornailsareredatreducesthechanceofdamagingthinner
more delicate surfaces.
Note: Always test the setting on a piece of scrap material after making
any adjustments.
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
THE BATTERY IS REMOVED BEFORE PERFORMING ANY
OF THE FOLLOWING TASKS.
The battery has a short run time

Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority for
recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
CARING FOR THE ENVIRONMENT
MAINTENANCE
DESCRIPTION OF SYMBOLS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
• When not in use, the staple nail gun should be stored in a dry,
frost free location, keep out of children’s reach.
• If the housing of the staple nail gun requires cleaning, do not
use solvents. Use of a cloth only is recommended. Never im-
merse any part of the staple nail gun into liquid.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the staple nail gun by an unauthorised
person or by mishandling.
Staples Common Applications for Staple Length
5/16”
(8mm)
Insulation, Upholstery, Weather Stripping, Wall
Decorations, Crafts, Covering Cornices, Webbing,
Light Fabrics.
3/8”
(10mm)
Insulation, Carpeting, Wire Mesh, Plastic or
CanvasCoverings,RoongPaper,FeltStripping,
Weather Stripping.
Nails Common applications: C1 Brads
9/16”
(15mm)
Trim Moulding, Panelling, Picture Frames, Model
Work, Any Finish Nailing Application.
10
14
16
Width
10.6mm
Depth
1.25mm
0.6mm
Front View Side View
Width
2mm
Front View
15
0.85mm
8 - 16mm
15mm
12
8
18 GAUGE T50 STAPLE SIZE
18 GAUGE C1 BRAD NAIL SIZE
10
14
16
Width
10.6mm
Depth
1.25mm
0.6mm
Front View Side View
Width
2mm
Front View
15
0.85mm
8 - 16mm
15mm
12
8
This tool accepts staples with the measurements below:
Accessories to suit this Staple Nail Gun can be purchased from
Bunnings Warehouse.
This tool accepts nails with the measurements below:
STAPLE/ NAIL SELECTION
Warning Read instruction manual
ø Diameter
mA Milliamperes
Double insulated
Ah Amp hour
Regulator compliance
mark (RCM)
VVolts Hz Hertz
ac/~ Alternating current WWatts
Direct current
dc/

STAPLE NAIL GUN WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Readthewholemanualcarefullyandmakesureyouknowhowtoswitchthetoolo󰀨inanemergency,before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The manufacturer cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
This product has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V is interchangeable for Australia and New Zealand.
This tools charger is double insulated therefore no earth wire is required.
The power supply for this product should be protected by a residual current device (rated at 30mA or less). A
residual current device reduces the risk of electric shock.
Ifthesupplycordisdamaged,itmustbereplacedbythemanufacturer,itsserviceagentorsimilarlyqualied
persons in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofreandelectric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
ngerontheswitchorenergisingpowertoolsthathavetheswitchoninvitesaccidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operationsdi󰀨erentfromthoseintendedcouldresultinahazardoussituation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Always assume that the tool contains fasteners. Careless handling of the
nailerorstaplercanresultinunexpectedringoffastenersandpersonalinjury.
• Do not point the tool towards yourself or anyone nearby. Unexpected
triggering will discharge the fastener causing an injury.
• Do not actuate the tool unless the tool is placed rmly against the
workpiece. If the tool is not in contact with the workpiece, the fastener may be
deectedawayfromyourtarget.
• Disconnect the tool from the power source when the fastener jams in
the tool. While removing a jammed fastener, the tacker may be accidentally
activated if it is plugged in.
• Do not use this nailer or stapler for fastening electrical cables. It is not
designed for electric cable installation and may damage the insulation of electric
cablestherebycausingelectricshockorrehazards.
