Ozito SNG-2050U User manual

ELECTRIC
STAPLE
NAIL GUN
8MM - 14MM
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Input: 230-240V ~ 50Hz
Power: 45W
Impact Rate: 30/min
Staple Size: 8-14mm, Type 53
Nail Size: 15mm, C1 Brad
Magazine Capacity: 80 Pcs
Weight: 0.73kg
SNG-2050U
WHAT’S IN THE BOX
Staple Nail Gun
ozito-diy.co.uk
Staples x 1500
Nails x 100
WARRANTY
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG 0516
All of our products undergo strict quality checks to ensure that they reach
you in perfect condition. In the unlikely event that your device develops a
fault, please contact our service department at the address shown on this
guarantee card. You can also contact us by telephone using the customer
service number shown. Please note the following terms under which
guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the
manufacturer mentioned below promises to buyers of its new products
in addition to their statutory guarantee claims are not affected by this
guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or
manufacturing faults on a product which you have bought from the
manufacturer mentioned below are limited to either the rectication of said
defects on the product or the replacement of the product, whichever we
prefer.
Please note that our devices are not designed for use in commercial, trade
or professional applications. A guarantee contract will not be created if the
device has been used by commercial, trade or industrial business or has
been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly
instructions or due to incorrect installation, a failure to follow the operating
instructions (for example connecting it to an incorrect mains voltage or
current type) or a failure to follow the maintenance and safety instructions
or by exposing the device to abnormal environmental conditions or by lack
of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example
overloading the device or the use or unapproved tools or accessories),
ingress of foreign bodies into the device (such as sand, stones or dust,
transport damage), the use of force or damage caused by external forces
(for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural
wear or tear or by normal use of the device.
4. Your Product is guaranteed for a period of 36 months from the original
date of purchase and is intended for DIY (Do It Yourself) use only. Lithium
Ion batteries and chargers are covered by a 12 month warranty. Warranty
excludes consumable parts, for example: staples and nails. Guarantee
claims should be submitted before the end of the guarantee period within
two weeks of the defect being noticed. No guarantee claims will be
accepted after the end of the guarantee period. The original guarantee
period remains applicable to the device even if repairs are carried out or
parts are replaced. In such cases, the work performed or parts tted will not
result in an extension of the guarantee period, and no new guarantee will
become active for the work performed or parts tted. This also applies if an
on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR
REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts,
consumables and missing parts as set out in the service information in
these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1. LOADING STAPLES
1 Hold the tool upside down.
This staple nailer only accepts Type 53 staples. Other types of staples,
including paper staples, will jam the unit.
3 Insert a row of staples into
the opening behind the
nose piece.
2 Squeeze the magazine latches on either side of the tool and pull the
magazine out of the tool.
4 Push the loaded magazine back into the unit until it clips into place.
a
b
Note: Rows of staples longer than 120mm do not t in the staple nail
gun.

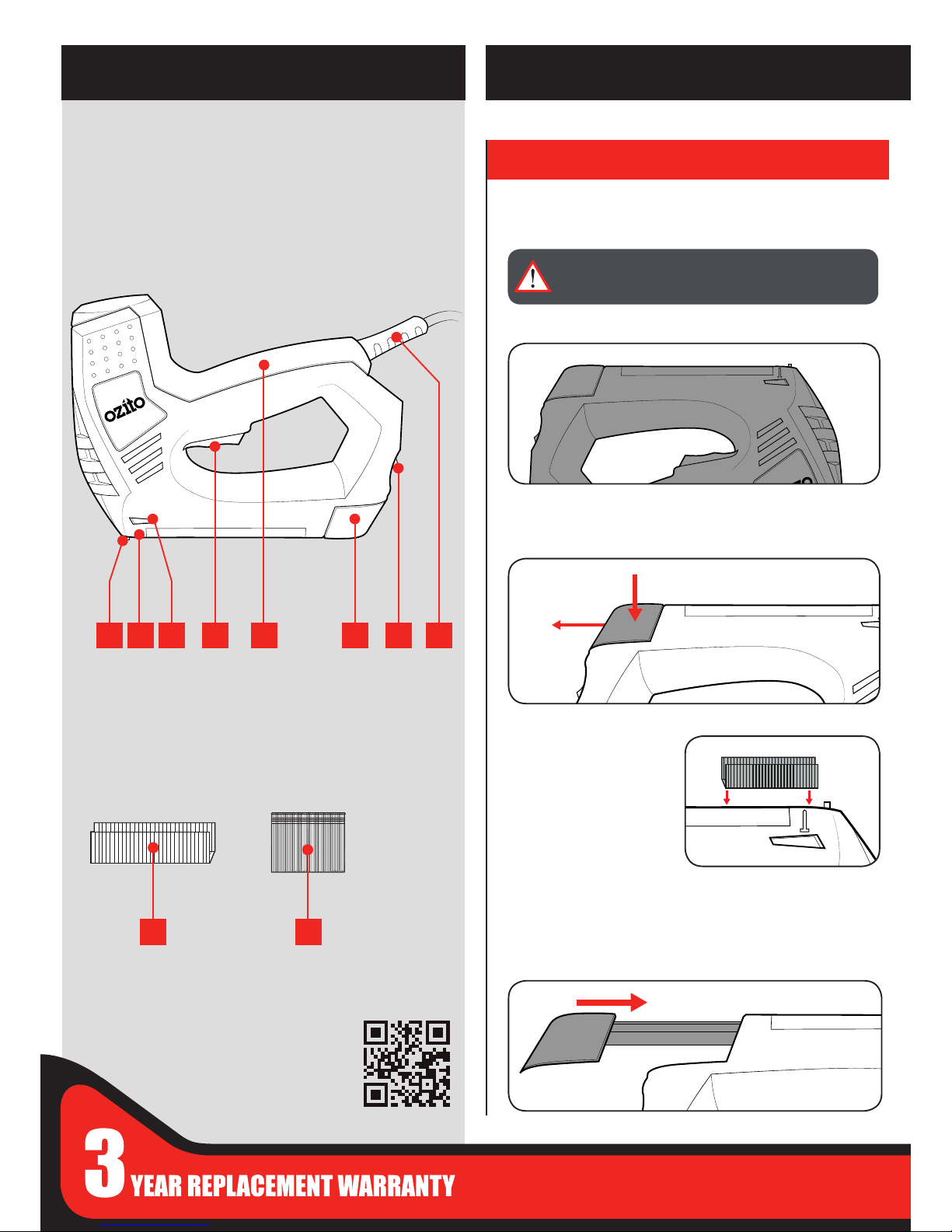

KNOW YOUR PRODUCT SETUP & PREPARATION
1 Safety Striker Pin
2 Nose Piece
3 Magazine Window
4 Trigger
5 Sure Grip Handle
6 Magazine Latch
7 On/Off Switch
8 Power Cord
ELECTRIC STAPLE NAIL GUN
1
9 10
3 5 72 4 6 8
9 Staples x 1500 10 Nails x 100
ACCESSORIES
CAUTION! ENSURE THE TOOL IS SWITCH OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING THE FOLLOWING PROCEDURES.

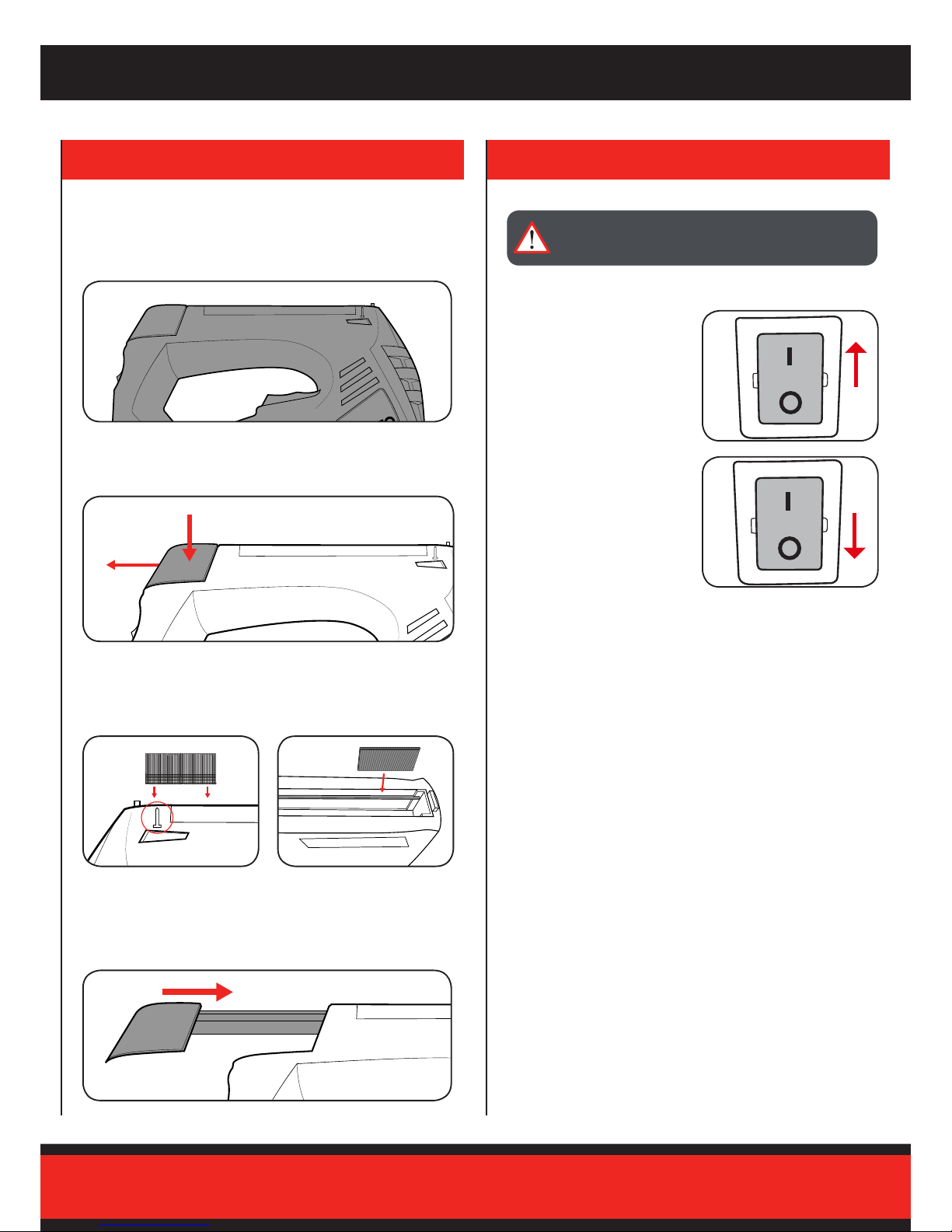

2. LOADING NAILS
1 Hold the tool upside down.
This staple nailer only accepts 18 Gauge C1 Brad nails up to 15mm in
length. Other types of nails will jam the unit.
3 Insert a row of nails into the opening behind the nose piece.
Be sure to align them to the side marked with a nail marker so that
the nail head is against the internal groove.
2 Squeeze the magazine latches on either side of the tool and pull the
magazine out of the tool.
4 Push the loaded magazine back into the unit until it clips into place.
a
b
3. CONTROLS
Switching On and Off
1 To supply the tool with power,
push the power switch to the
“I” position.
2 To turn off, push the power
switch to the “O” position.
CAUTION! THE POWER SUPPLY FOR THIS PRODUCT
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30MA OR LESS).

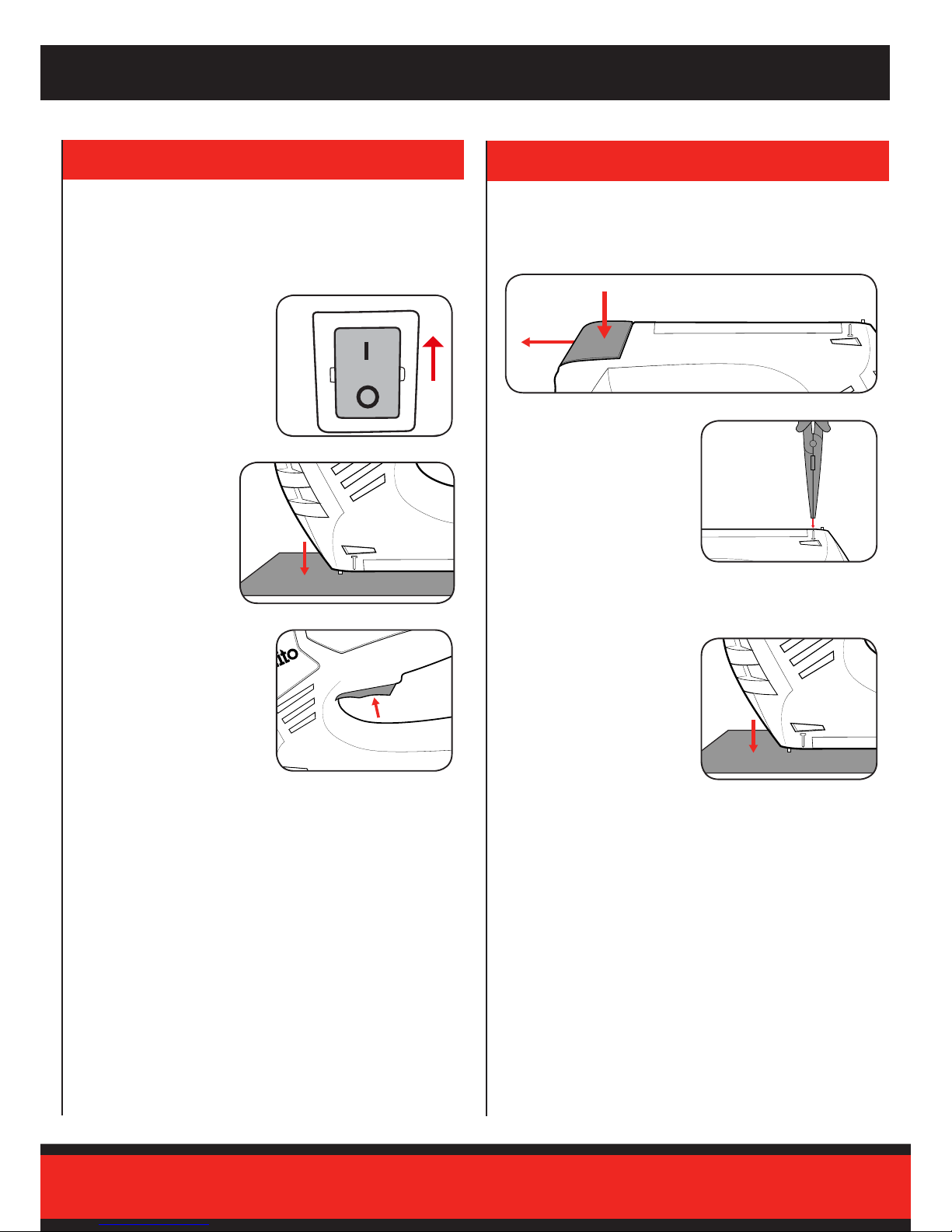

4. OPERATING THE STAPLE NAIL GUN
Firing a Staple or Nail
2 Place the staple nail
gun against the work
surface so that the
nosepiece of the tool
is where you want the
staple/nail to be located.
Push the safety striker
pin and nosepiece down
onto the surface to be
fastened.
A staple or nail will only re when the trigger is pressed if the safety
striker pin is pushed against the material to be fastened.
1 Switch the on/off switch into
the on position.
3 To re the staple nail gun,
squeeze the trigger.
SNG-2050U
5. TROUBLESHOOTING
OPERATION
Jammed Staple Nail Gun
2 Using a pair of pliers, remove
any jammed staples or nails.
3 With the magazine still open,
tap the safety striker pin
against a surface to dislodge
any loose staples.
Note: Be careful not to bend the end of the magazine. If this occurs the
unit will be inoperable.
1 Squeeze the magazine latches on either side of the tool and pull the
magazine out of the tool.
a
b

MAINTENANCE
DESCRIPTION OF SYMBOLS
STAPLE/ NAIL SELECTION
Common Applications for Staple Length
5/16”
(8mm)
Insulation, Upholstery, Weather Stripping,
Wall Decorations, Crafts, Covering Cornices,
Webbing, Light Fabrics.
3/8”
(10mm)
Insulation, Carpeting, Wire Mesh, Plastic
or Canvas Coverings, Roong Paper, Felt
Stripping, Weather Stripping.
1/2”
(12mm)
Insulation, Carpet Underlay, Porch Screens,
Picture Frames, Wire Mesh, Netting, Roong
Paper, Panelling.
9/16”
(14mm)
Ceiling Tile, Heavy Insulation, Insulation Board,
Trellises, Roong, Carpeting.
Common applications: C1 Brads
9/16”
(15mm)
Trim Moulding, Panelling, Picture Frames,
Model Work, Any Finish Nailing Application.

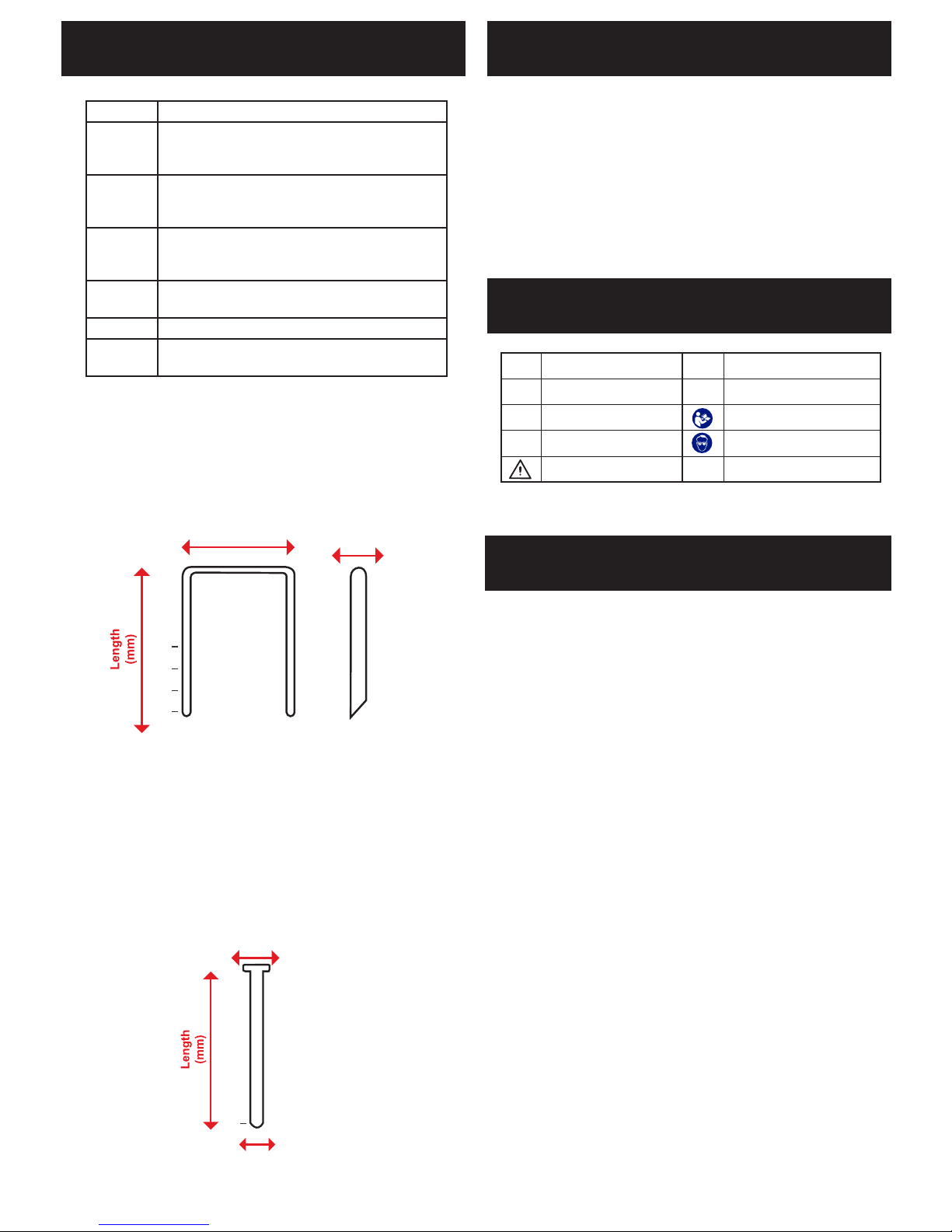

TYPE 53 STAPLE SIZE
18 GAUGE C1 BRAD NAIL SIZE
The SNG-2050U accepts staples with the below
measurements
The SNG-2050U accepts nails with the below measurements
• When not in use, the staple nail gun should be stored in a dry,
frost free location, keep out of children’s reach.
• If the housing of the staple nail gun requires cleaning, do not
use solvents. Use of a cloth only is recommended. Never im-
merse any part of the staple nail gun into liquid.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the staple nail gun by an unauthorised
person or by mishandling.
8
10
12
14
Width
11.3mm
Depth
0.75mm
Front View Side View
Width
2mm
Front View
15
1.2mm
8
10
12
14
Width
11.3mm
Depth
0.75mm
Front View Side View
Width
2mm
Front View
15
1.2mm
Read instruction manual
Wear eye protection
Warning
ga
/min
Gauge
Impacts per minute
V Volts Hz Hertz
ac/~ Alternating current W Watts
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: [e-mail]
