Ozito HPW-1885K User manual

RELEASE
RELEASE
RELEASE
RELEASE
HIGH PRESSURE
WASHER KIT
1500W 1885PSI
INSTRUCTION MANUAL
SPECIFICATIONS
Mains Voltage: 230-240V ~ 50Hz
Input Power: 1500W
Allowable Pressure: 13MPa (1885psi)
Rated Pressure: 9MPa (1305psi)
Max. Flow Rate: 8L/min
Rated Flow: 5L/min
Max. Inlet Pressure: 1MPa (145psi)
Hose Length: 5m
Power Cord Length: 5m
IP Rating: IPX5
Noise Rating: 92dB
Weight: 7.6kg
HPW-1885K
STANDARD EQUIPMENT
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase. If
a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: valve adapters and accessories.
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
Ozito Industries Pty. Ltd. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
ozito.com.au
Pressure Washer & High Pressure
Hose
Spray Gun, Adjustable Turbo Lance,
Extension Lance, Patio Cleaner,
Foam Bottle & Wash Brush
2 x Wheels, Handle, 2 x Screws,
Accessory Holder, Cable Hook,
Cleaning Needle & Hose Adaptor
with Filter
0722
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.

OFF/ 0
ON/ I
1885PSI
1600W
HIGH PRESSURE WASHER
RELEASE
Attaching The Handle
1. Slide the base of the handle
into the tabs on the top of
the unit.
2. Insert the two screws
(supplied) through the tabs
and into the handle.
3. Using a phillips head
screwdriver, tighten the
screws into place.
Installing The Wheels
1. Press the wheel onto the tab
on one side of the unit until it
clicks into place.
2. Repeat the step above for the
other wheel.
Attaching The Accessory Holder & Cable Hook
1. Slide the accessory holder onto
the slots on one side of the unit
until it clicks into place.
2. Slide the cord hook onto the slot
on the other side of the unit until it
too clicks into place.
1. Transport Handle
2. Spray Gun
3. On/Off Dial
4. Accessory Holder
5. Spray Gun Lance
6. Water Outlet Port
7. Wheel
8. Water Inlet Port
9. Foam Bottle
10. Accessory Storage Holder
11. Adjustable Turbo Lance
12. Hose Release Button
13. Extension lance
14. Spray Trigger
15. Trigger Lock
16. Patio Cleaner
17. Hose Hook
HIGH PRESSURE WASHER
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
3
2
1
6
5
4
16
9
8
7
17
15
14
13
12
11
10
WARNING! ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.

Attaching The Spray Gun & Accessories
1. Push the desired accessory
into the spray gun lance and
twist clockwise to lock it into
place.
Note: If a longer reach is required, connect the extension lance to
the spray gun lance, and attach the desired accessory to the free
end of the extension lance.
Note: There is a locking sleeve
on the patio cleaner and spray
gun to prevent the accessory
from coming loose during use.
Rotate the sleeve counter
clockwise until it tightens
up against the accessory it’s
connected to.
2. To disconnect the accessory, push the accessory towards the
spray gun, twist the accessory counter clockwise and pull it.
3. Push the end of the pressure
hose into the inlet port on the
spray gun until it clicks into
place.
4. Tug gently on the pressure hose to check that it is inserted
correctly.
WARNING! PRESSURISED WATER. SHUT OFF WATER
SUPPLY, TURN OFF UNIT AND SQUEEZE THE SPRAY
GUN TRIGGER TO RELIEVE THE PRESSURE BEFORE
DISCONNECTING THE HIGH PRESSURE HOSE.
5. To disconnect the spray gun,
press and hold down the
quick release tab and pull
out the pressure hose.
2. ACCESSORIES
a.
b.
RELEASE
WARNING! ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
WARNING! THIS PRODUCT MUST NOT BE CONNECTED
TO THE POTABLE WATER MAINS WITHOUT BACKFLOW
PREVENTION. CHECK LOCAL AND NATIONAL
PLUMBING REGULATIONS BEFORE CONNECTING THE
MACHINE TO THE POTABLE WATER MAINS.
a. b.
RELEASE
a.
b.
RELEASE
RELEASE
a.
b.
RELEASE

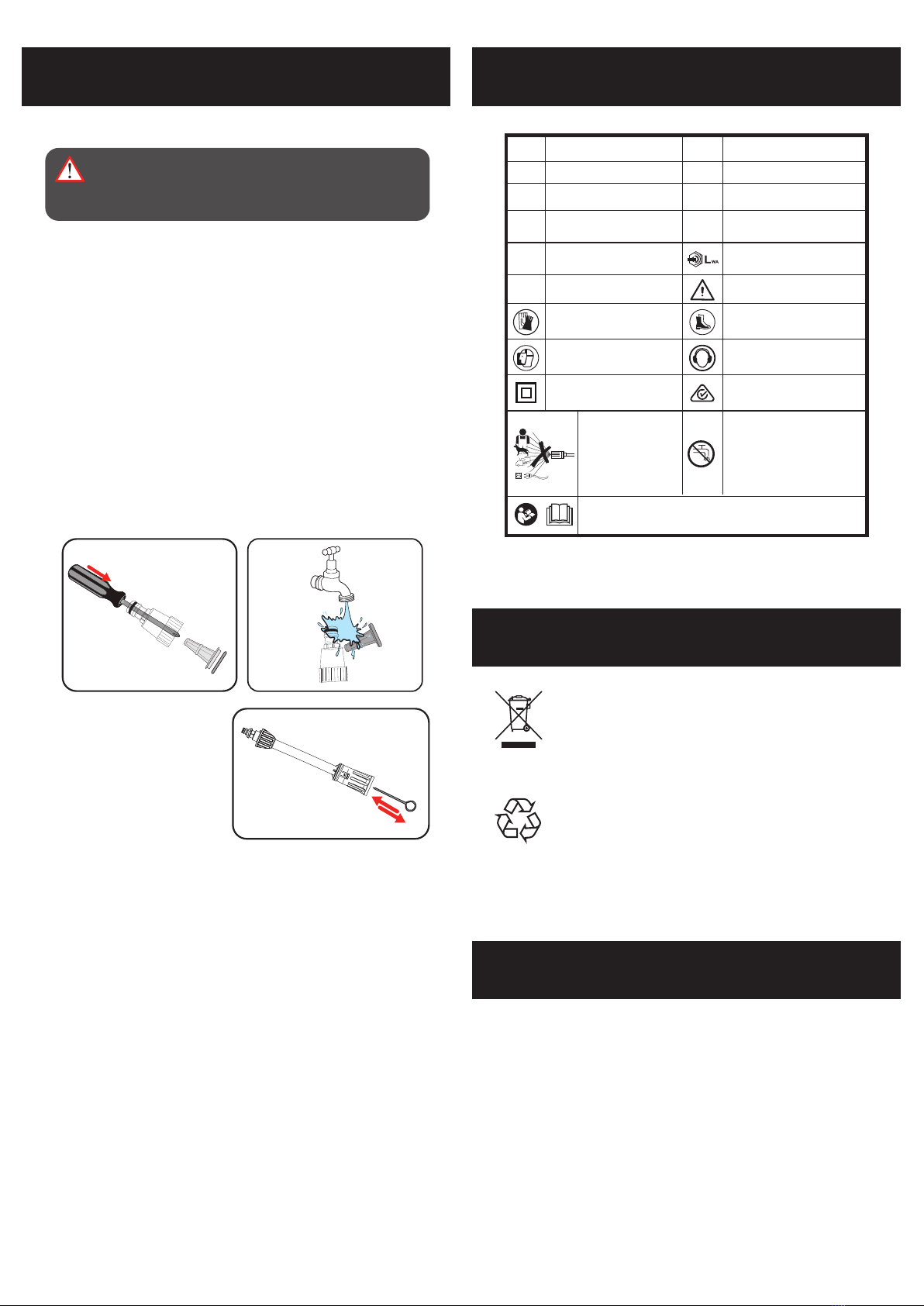

Connecting The Water Supply
This pressure washer requires a pressurised water source with
a maximum pressure of 1MPa (145psi). It is recommended that
a reinforced garden hose (with minimum diameter of 12mm) is
used for the inlet connection. It cannot be used with a bucket and
siphon.
WARNING! RUN WATER THROUGH THE GARDEN HOSE
BEFORE ATTACHING IT TO THE PRESSURE WASHER TO
PREVENT ANY SAND OR DIRT FROM ENTERING THE
UNIT.
1. Place the mesh inlet filter
into the hose adaptor, and
then screw this onto the
water inlet port.
Note: The mesh inlet filter must
be in place to prevent impurities in the water source from entering
the unit and damaging the pump.
WARNING! ENSURE THE GARDEN HOSE IS
ADEQUATELY RATED AND SUFFICIENTLY LONG FOR
THE INTENDED APPLICATION.
2. Push the standard quick
coupling adaptor on the end
of the garden hose onto the
hose adaptor on the pressure
washer until it clicks into
place.
Note: The standard 12mm quick coupling adaptor should be used.
3. Pull gently on the hose to ensure the connection is secure.
Connecting The Pressure Hose
1. Push the flat end of the high
pressure hose into the water
outlet port and screw it
clockwise into place.

Using The Foam Bottle
Pour detergent directly into
the foam bottle and attach it to
the lance. Follow the detergent
manufacturers’ directions for
use.

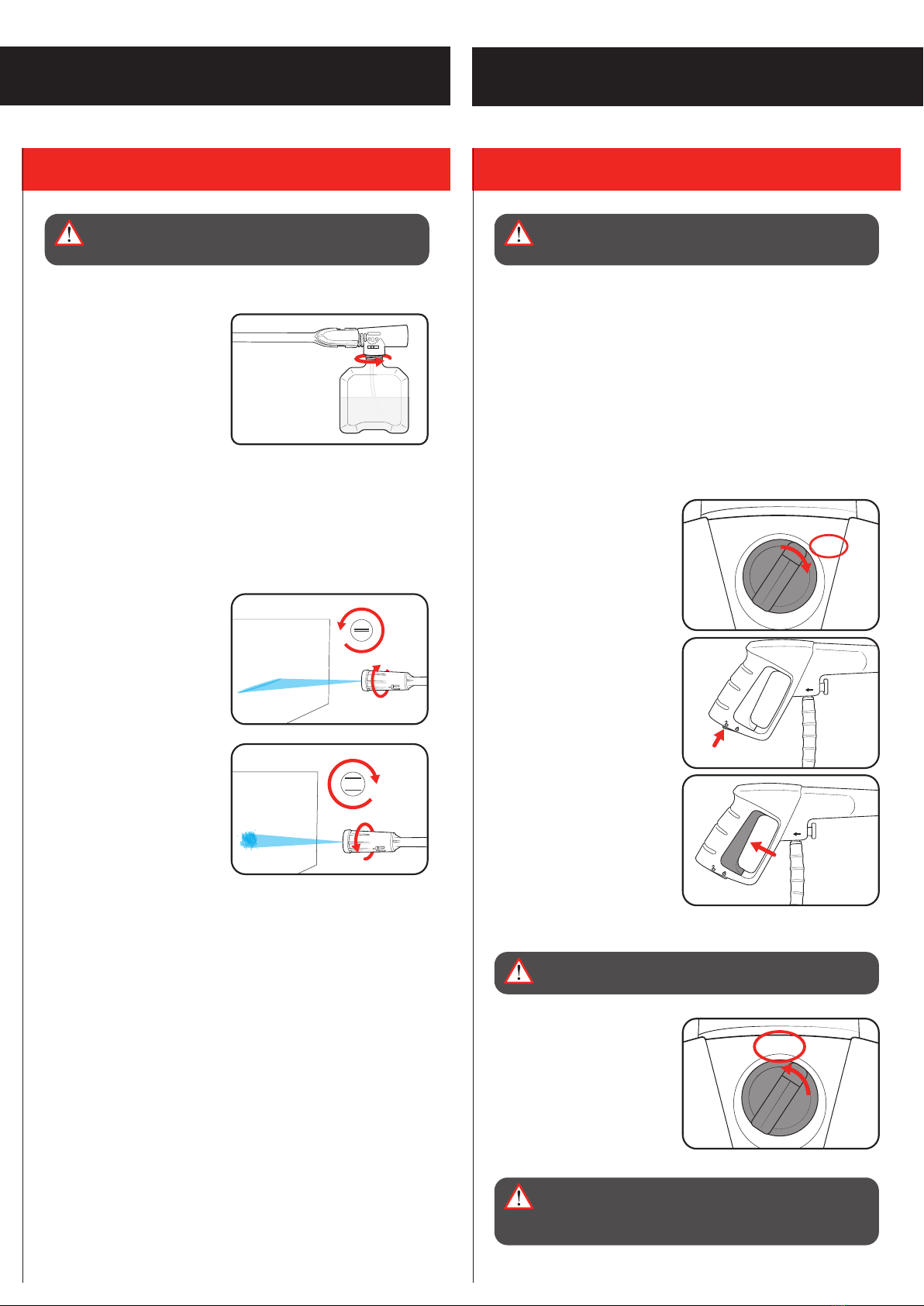

Adjusting The Spray Jet
The water jet output can be controlled when using the adjustable
turbo lance.
1. Turn the nozzle clockwise for
a wide, fan jet to clean larger
areas faster.
2. Turn the nozzle anti-
clockwise for a narrow
jet over a small area for
concentrated cleaning.
3. CONTROLS
OPERATION
RELEASE
WARNING! NEVER RUN BLEACH OR DETERGENTS NOT
DESIGNED FOR PRESSURE WASHERS IN THE UNIT TO
PREVENT DAMAGING THE PUMP.
The high pressure washer is designed to force water at high
pressure via a pump through a concentrating nozzle.
It is intended for washing dirt, mud and dust from cars, garden
equipment, outdoor furniture, clean grime from barbecue hot
plates and grills, wash down driveways, patios, decks and brick
walls.
Starting & Stopping The Unit
1. Rotate the on/off dial to the
‘ON I’ position to turn the
unit on.
2. Unlock the spray gun by
pressing the back end of the
trigger lock.
2. Squeeze the spray gun
trigger to start spraying.
3. Release the trigger to stop spraying.
WARNING! LOCK THE SPRAY GUN TRIGGER WHEN NOT
IN USE TO PREVENT ACCIDENTAL STARTING.
4. Rotate the dial to the ‘OFF
0’ position to switch the unit
off.
WARNING! DO NOT LEAVE THE UNIT IDLING IN THE
‘ON’ POSITION FOR MORE THAN 5 MINUTES WITHOUT
ACTIVATING THE SPRAY GUN. DOING SO MAY DAMAGE
THE PUMP IN THE UNIT.
WARNING! THE POWER SUPPLY FOR THIS PRODUCT
MUST BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30mA OR LESS).
OFF/ 0
ON/ I
1885PSI
1600W
HIGH PRESSURE WASHER
OFF/ 0
ON/ I
1885PSI
1600W
HIGH PRESSURE WASHER
a.
b.
RELEASE
a.
b.
RELEASE
Flat Fan
Solid Cone

4. USAGE
HPW-1885K
Overload Protection
The tool is equipped with an overload protection feature. If an
overload occurs, the tool will automatically shut off to protect the
tool.
1. In the event of an overload
turn the on/off dial to the
‘OFF 0’ position, allow
the tool to cool down and
remove the power plug from
the mains socket.
2. Shut off the water supply completely and squeeze the spray gun
trigger several times to release any built up pressure and water
in the system, then disconnect the garden hose from the water
inlet port.
3. Unscrew the hose adaptor
from the water inlet port and
inspect the mesh filter for
any blockages.
4. Clean the filter as necessary
and reinstall it when done.
5. Once the unit has cooled sufficiently, restart the unit and use as
normal.
WARNING! DO NOT CONTINUE USING THE UNIT IF
THE OVERLOAD SWITCH TRIPS AGAIN IMMEDIATELY
AFTER THE RESET.
WARNING! WHEN INSPECTING EQUIPMENT FOR
FAULTS, ENSURE THE UNIT IS SWITCHED OFF AND THE
POWER CABLE IS DISCONNECTED BEFORE CARRYING
OUT INSPECTION.
Shutting Down The Pressure Washer
WARNING! PRESSURISED WATER. SHUT OFF WATER
SUPPLY, TURN OFF UNIT AND SQUEEZE THE SPRAY
GUN TRIGGER TO RELIEVE THE PRESSURE BEFORE
DISCONNECTING THE HIGH PRESSURE HOSE.
1. Twist the on/off dial to the off position and disconnect the power
plug.
2. Shut off the water supply completely and squeeze the spray gun
trigger several times to release any built up pressure and water
in the system.
Quick Start Procedure
1. With the adjustable spray
nozzle attached, adjust it to
the widest spray setting.
2. Attach the garden hose to
the water inlet port and turn
on the water at the tap.
3. Squeeze the spray gun
trigger to prime the pump
and purge any air from the
system.
4. Plug the power cord into mains power.
5. Turn the unit on using the on/
off dial to start washing.
WARNING! ENSURE THE PRESSURE WASHER IS
PLACED ON A FLAT, HARD SURFACE. ALWAYS HAVE
THE PRESSURE WASHER IN AN UPRIGHT POSITION
DURING USE.
WARNING! ENSURE THAT THE SPRAY JET IS NOT
DIRECTED AT POWER LINES, ELECTRICAL OUTLETS OR
ELECTRONICS.
WARNING! HIGH PRESSURE HOSES, FITTINGS &
COUPLINGS ARE IMPORTANT FOR THE SAFETY OF
THE USER. USE ONLY HOSES, FITTING & COUPLINGS
SUPPLIED.
WARNING! ALWAYS WEAR SAFETY BOOTS, SAFETY
GLOVES, SAFETY HELMET WITH VISOR AND HEARING
PROTECTION WHILE OPERATING THE EQUIPMENT.
WARNING! DO NOT POINT THE SPRAY JET AT ANY
PART OF YOUR BODY, OTHER PEOPLE, PETS OR
ANIMALS. THE PRESSURISED WATER STREAM CAN
CAUSE SERIOUS CUTS AND INJURIES.
OFF/ 0
ON/ I
1885PSI
1600W
HIGH PRESSURE WASHER
Flat Fan
a.
b.
RELEASE
PRESS & HOLD
30s to 1min
OFF/ 0
ON/ I
1885PSI
1600W
HIGH PRESSURE WASHER
