Ozito SCMS-2125 User manual

ozito.com.au
DOUBLE BEVEL
SLIDE COMPOUND
MITRE SAW
254mm (10”)
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 2100W
No Load Speed: 4,000/min
Blade: Ø254mm x Ø25.4 x 48T
Mitre Angle: 0-45°left & right
Bevel Angle: 0-45°left & right
Max. Cutting Capacity:
Mitre 0° x Bevel 90°: 75 x 320mm
Mitre 45°x Bevel 90°: 75 x 220mm
Mitre 0°x Bevel 45°: 45 x 320mm
Mitre 45°x Bevel 45°: Left 42 x 220mm
Right 25 x 220mm
SCMS-2125
STANDARD EQUIPMENT
Material Clamp
Compound Mitre Saw
Material Support Bar x 2
Hex Key, 5 & 6mm
Dust Bag
WARRANTY
0819
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself) use
only. If a product is defective it will be replaced in accordance with
the terms of this warranty. Warranty excludes consumable parts, for
example: blade, carbon brushes and dust bag.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction
manual.
• If the tool is disassembled or tampered with in any way.
•Professional, industrial or high frequency use.
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

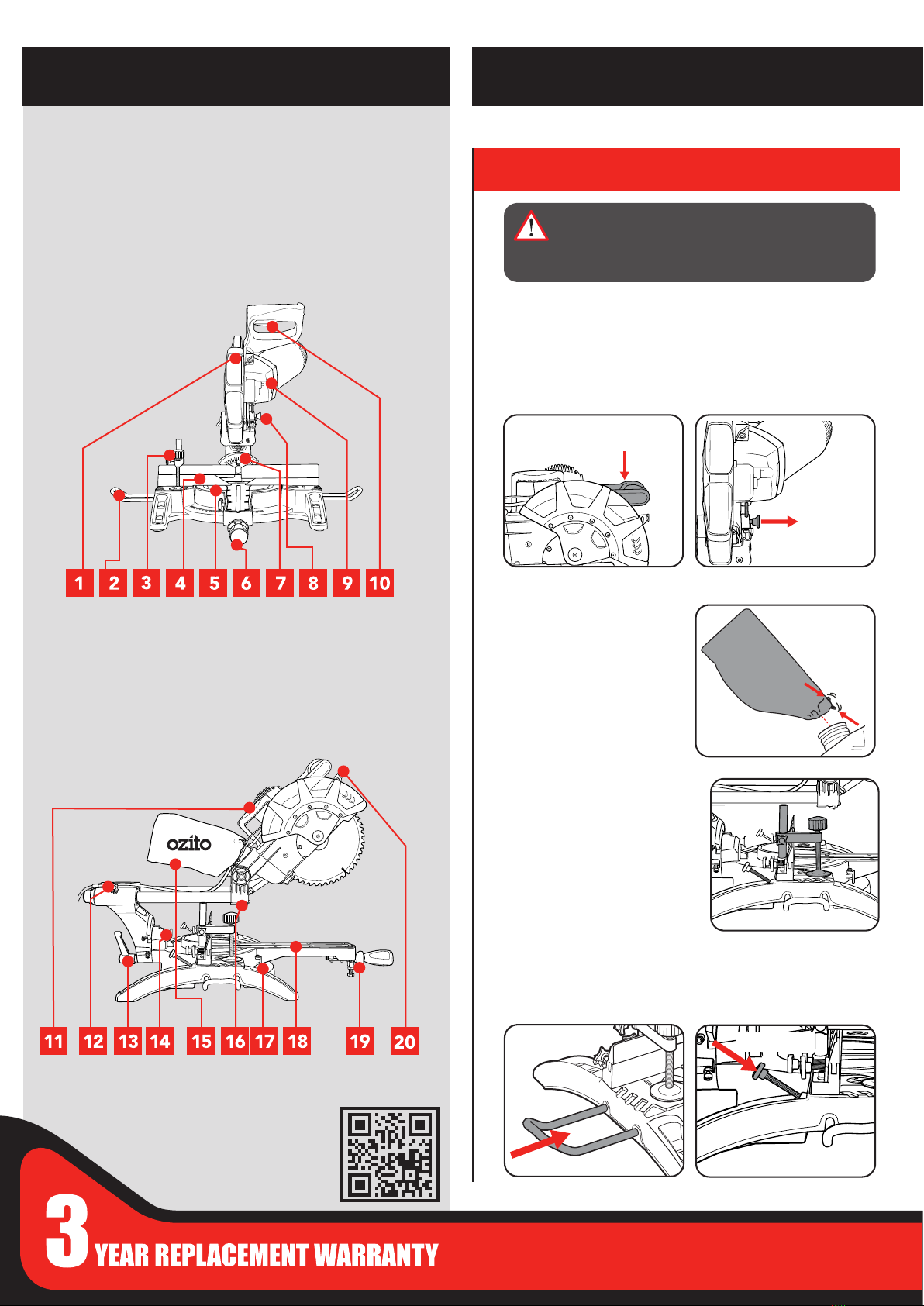

1. Retractable Safety Guard
2. Material Support Bar
3. Material Clamp
4. Fence
5. Mitre Table
6. Mitre Table Lock
7. Bevel Angle Pointer
8. Lock Down Pin
9. Spindle Lock Button
10.Trigger
MITRE SAW
KNOW YOUR PRODUCT
1. ASSEMBLY
1. Remove foam packaging materials and using the carry handle,
carefully lift the mitre saw from its box and place it on a level
work surface.
1. Squeeze the clamp at the
end of the dust bag, place
over the dust extraction
port.
1. Insert each bar into the
two holes located on
both sides of the base.
2. Release cutting head from its transport position. While holding
the head of the saw down release the lock down pin.
11. Carry Handle
12.Slide Lock
13.Bevel Lock
14.Bevel Release
15.Dust Bag
16.Laser Guide
17.Mitre Angle Pointer
18.Table Insert
19.Mitre Release
20.Release Lever
SETUP & PREPARATION
Unpacking
Material Support Bars
Dust Bag
WARNING!: ENSURE THE TOOL IS SWITCHED
OFF AND DISCONNECTED FROM THE POWER
SUPPLY BEFORE PERFORMING ANY OF THE
FOLLOWING PROCEDURES.
HOLD
DOWN
TIGHTEN
2. Tighten screw when in
place.
Material clamp will assist
securing timber when making
cuts.
Note: The clamp can be
mounted on either the left or
right side of the blade.
Material Clamp

2. SET-UP AND ADJUSTMENTS
1. Loosen mitre
table lock
1. Loosen bevel
lock.
2. While pulling the mitre
release set the desired mitre
angle (left or right) as shown
by the mitre angle pointer
2. BEVEL LEFT - Tilt the cutting head
to the desired
bevel angle
left as shown
by the bevel
angle pointer.
Mitre Angle Adjustment
MITRE ANGLE
POINTER
3. Tighten mitre table lock at selected angle
Bevel Angle Adjustment
3. Tighten bevel lock at selected angle
Note: The mitre table features positive click stops at 0°, 15°, 22.5°,
31.6° and 45° for quick setting of common mitre angles.
Bench Mounting
The base of the saw has
bench mounting holes that
can be used to mount it to
a workbench or mitre saw
stand. Use screws or bolts (not
included) to secure.
Note: If required, the Mitre Saw can be mounted onto a 13mm piece
(or thicker) of plywood which can then be clamped to the work bench
or mitre saw stand. This provides the exibility to transport the Mitre
Saw to other work areas
WARNING!: ENSURE THE MITRE TABLE LOCK
IS TIGHT BEFORE MAKING A CUT. FAILURE
TO DO SO MAY RESULT IN THE MITRE TABLE
MOVING DURING OPERATION AND CAUSE
SERIOUS PERSONAL INJURY.
WARNING!: ENSURE THE BEVEL LOCK IS
TIGHT BEFORE MAKING A CUT. FAILURE TO
DO SO MAY RESULT IN THE CUTTING HEAD
MOVING DURING OPERATION AND CAUSE
SERIOUS PERSONAL INJURY.
Trenching refers to restricting the depth of cut and permits a “trench”
to be cut in the workpiece.
Bevel Angle Adjustment
Trenching
1. Ensure the cutting head is
raised, move the trenching
stop to the right as far as it
will go.
2. To adjust the trenching
depth rotate the trenching
depth adjustment screw.
3. To check that the blade
stops at the desired position,
lower the cutting head
until the trenching stop
adjustment screw touches
the trenching stop.
4. When the correct depth
is set. Lock it in position
using the trenching depth
lock nut.
Slide Lock
When cutting a narrow piece of
wood it is not necessary to use
the slide mechanism. In these
circumstances, push back the
cutting head and ensure the slide
locking knob is tight to prevent the
cutting head from sliding.
2a.BEVEL RIGHT - Tilt
the cutting head slighty
LEFT then pull the
bevel release.
BEVEL ANGLE
POINTER
BEVEL ANGLE
POINTER
2b.Tilt the cutting head to the desired
bevel angle right as shown by the
bevel angle
pointer.
BEVEL ANGLE
POINTER
BEVEL ANGLE
POINTER

CAUTION!: FOR ALL TYPES OF CUTS ENSURE THE
SAW IS LOCKED INTO POSITION.
Depending on the cut, the material clamp will need to be mounted
on the appropriate side. When performing bevel cuts, the work
clamp must be on the
opposite side of the bevel
(otherwise it will interfere
with the cutting action).
The lower guard provides protection to your hands and limbs when
the mitre saw head is in the up position. During the operation of the
saw, when the saw is turned on and you are making a cut, the lower
guard retracts over the upper guard as the saw is lowered into the
work piece.
A compound mitre cut involves
using a mitre angle and a bevel
angle at the same time.
1.
2.
OPERATION
The tool is recommended for use with a residual current device
with a rated residual current of 30mA or less.
Retractable Safety Guard
CAUTION!: DO NOT USE THE MITRE SAW TO CUT
METAL OR MASONRY.
A straight cut is made by cutting
the grain of the workpiece. A 90°
straight cut is made with the mitre
scale set in the 0°.
Mitre
45º< >45º
Mitre cuts are made with the mitre
scale set at an angle other than 0°
Mitre
45º< >45º
A bevel cut is made by cutting
across the grain of the workpiece
with the blade angled to the mitre
table.
3. TYPES OF CUTS
Spindle Lock
The spindle lock prevents the
blade in the saw from rotating.
Depress and hold the spindle
lock while installing, changing,
or removing the blade.
Straight Cutting
When cutting a narrow piece of wood, it is not necessary to use the
slide mechanism.
Bevel Cutting
Fence
Make sure that no part
of the tool contacts the
upper fence when bevel
or compound mitre
cutting. Always make
a dry run with the saw
turned o󰀨 and check
clearance. Tighten
securely before making
a cut.
Mitre Cuts
Note: For Bevel Cuts ensure the rear fence is adjusted for
blade clearance.
Compound Mitre Cuts
Material Clamp
1. To retract the lower guard,
slide the release lever right
with your thumb and press
handle down.
Max. cutting
capacity wood:
75 x 320mm
Max. cutting
capacity wood:
75 x 220mm
Max. cutting
capacity wood:
45 x 320mm
Max. cutting
capacity wood:
left 42 x 220mm
right 25 x 220mm

SCMS-2125
4. OPERATING THE SAW
Turning On and O󰀨
1. To turn the mitre saw on,
squeeze the trigger switch.
2. To turn the mitre saw off,
release the trigger switch.
Laser Guide
It is extremely important to
always secure the workpiece
properly and tightly with the
material clamp.
Note: Before performing a cut, ensure the blade is at full speed.
Failure to do this may cause the blade to become blunt and cause
the blade to lock-up.
Slide Action
When cutting wide pieces of
wood, ensure the slide lock is
loose.
1. First pull carriage fully, slide the release lever right with your
thumb and press handle down.
2. Push carriage toward the rear fence.
Place the workpiece at on the
mitre table with one edge securely
against the rear fence.
Note: If the workpiece is warped,
ensure the concave (curves inward)
side is against the rear fence.
Workpiece
WARNING!: DO NOT STARE DIRECTLY AT
THE LASER BEAM.
1. To switch the laser guide on,
press the laser guide switch to
the On (I) position.
2. To switch the laser guide off,
press the laser guide switch to
the Off (0) position.
Note: Ensure that the laser guide is switched o󰀨 when the saw is
not in use.
Note: Periodically check the laser for any dust build up; gently wipe
the laser outlet with a dry soft cloth.
Material Clamp
A laser line is projected onto the material you wish to cut, providing
an exact guide for the cut.

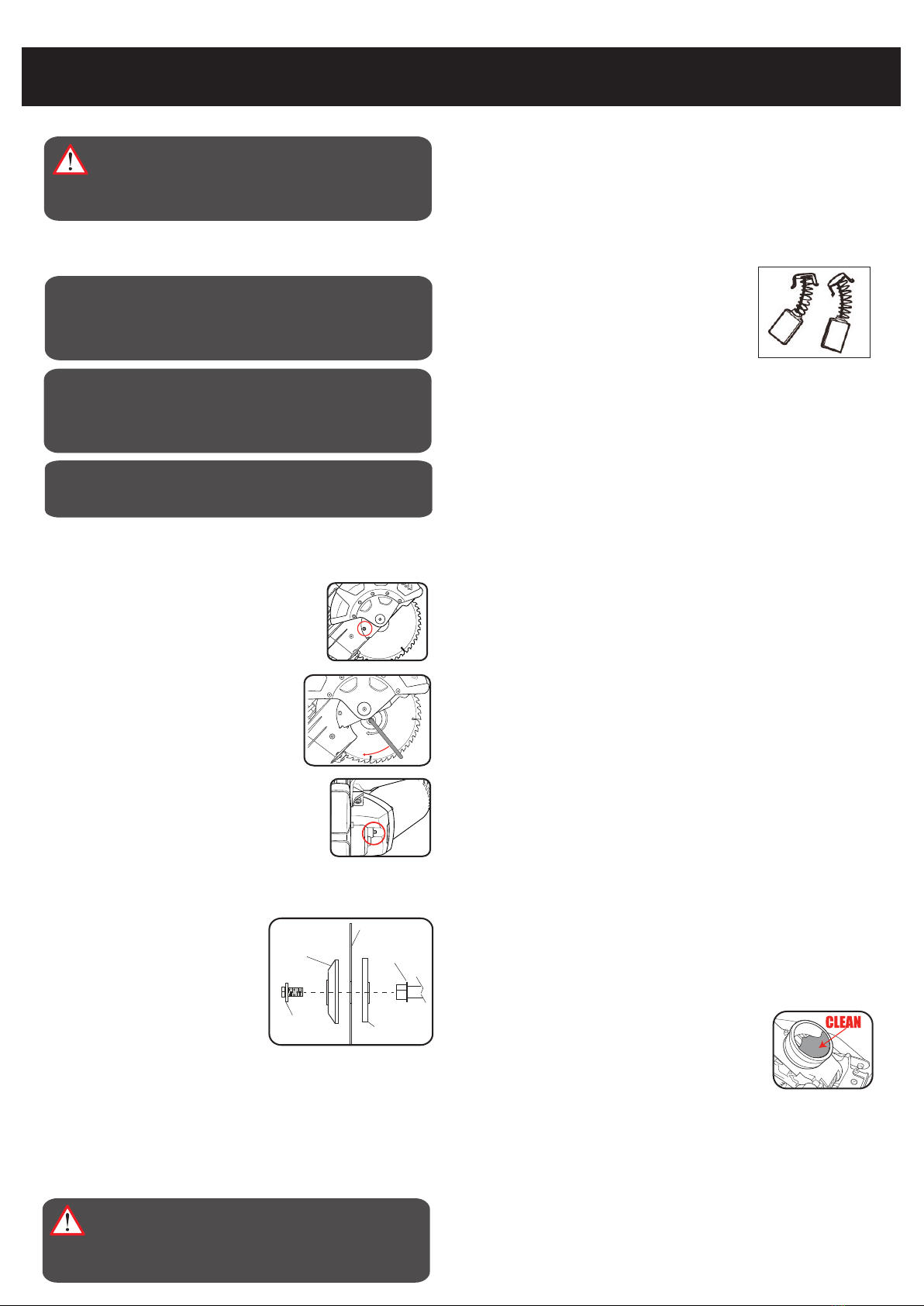

Changing the Blade
1. Ensure the plug is disconnected from the mains power supply.
2. Ensure the cutting head is raised. If the head lock down pin is locked in
place, pull the head lock down pin and gently raise the cutting head.
3. Raise the lower guard out of the way and hold it.
4. Using the 5mm Hex Key loosen the guard cover screw
until it disengages the blade bolt cover.
5. Swing the blade bolt cover up and out of the way to
reveal the bolt head in the centre of the blade.
6. Place the 6mm Hex Key onto the blade bolt in the
centre of the blade
7. Depress the spindle lock button. To ensure it
engages correctly, rotate the Hex Key until the
spindle lock clicks into position.
Note: The spindle lock button holds the blade in place
when using the 6mm Hex Key to change the blade.
8. Loosen the bolt in the centre of the blade by turning
the Hex Key clockwise as the blade bolt is a left hand
thread.
Note: Make sure the inner ange stays in place on the spindle.
9. Remove the blade bolt followed by the outer ange. The blade can now be
removed by pulling away from the spindle.
Put it aside ready to use in the reassembly
of the new blade.
10. Install the new blade over the spindle and
onto the inner ange
11. Replace the outer ange by placing the
cupped side of the ange against the
blade followed by the blade bolt.
12. Place the 6mm Hex Key provided onto the
blade bolt in the centre of the blade
13 Depress the spindle lock button. To ensure it engages correctly, rotate the
Hex Key until the spindle lock clicks into position.
14. Tighten the blade bolt in the centre of the blade by turning the Hex Key ant-
clockwise as the blade bolt is a left hand thread.
15. Swing the blade bolt cover back into place and secure it with the guard cover
screw.
16. Make sure the lower guard operates smoothly and properly protects from the
blade before using the saw.
WARNING!: BEFORE CLEANING YOUR MITRE SAW
OR CARRYING OUT ANY MAINTENANCE PROCEDURE,
MAKE SURE THAT THE MOTOR IS OFF AND THE TOOL
DISCONNECTED FROM THE POWER SUPPLY TO
PREVENT ACCIDENTAL STARTING.
Carbon Brushes
When the carbon brushes wear out, the mitre saw
will spark and/or stop. Discontinue use as soon
as this happens. They should be replaced prior to
recommencing use of the mitre saw. Carbon brushes
are a wearing component of the mitre saw therefore not
covered under warranty. Continuing to use the mitre
saw when carbon brushes need to be replaced may
cause permanent damage to the mitre saw. Carbon
brushes will wear out after many uses but when the carbon brushes need to be
replaced, take the mitre saw to an electrician or a power tool repairer for a quick
and low cost replacement. Always replace both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the mitre saw by an unauthorised person or by mishandling of
the mitre saw.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents. This is
normal and does not indicate a problem.
CAUTION! NEVER TRY TO USE A BLADE THAT IS LARGER
THAN THE STATED CAPACITY OF THE MITRE SAW. IT MIGHT
COME INTO CONTACT WITH THE BLADE GUARDS AND RISK
PERSONAL INJURY OR DAMAGE TO THE MITRE SAW. THIS
WILL NOT BE COVERED UNDER WARRANTY.
CAUTION! NEVER USE A BLADE THAT IS TOO THICK TO
ALLOW THE OUTER BLADE WASHER TO ENGAGE WITH
THE FLATS ON THE SPINDLE. IT WILL PREVENT THE BLADE
SCREW FROM PROPERLY SECURING THE BLADE ONTO THE
SPINDLE.
CAUTION! ENSURE THAT THE CORRECT BLADE BUSH THAT
MAY BE REQUIRED SUITS THE SPINDLE AND BLADES THAT
ARE FITTED.
WARNING!: TO ENSURE THE CORRECT BLADE
ROTATION ALWAYS INSTALL THE BLADE WITH THE
BLADETEETHPOINTINGDOWNWARDS.ENSURETHE
ARROW DIRECTION ON THE BLADE CORRESPONDS
WITH THE ARROW ON THE UPPER BLADE GUARD.
The lock down pin is provided for holding the cutting head down whilst
transporting or storing the mitre saw. The saw must never be used with the lock
down pin locking the head down. Tighten the slide lock during transportation.
Transportation
MAINTENANCE
Blade Bolt
Inner Flange
Outer Flange
Blade
Spindle
Fence Alignment
The fence holds the workpiece in a xed position while the table and or the blade
assembly are adjusted in a mitre or bevel angle.
To make accurate cuts, the Fence must be perpendicular (at a 90°angle) to the
saw blade.
1. Before beginning work, make a test cut on a scrap material with the table set
at 90°.
2. Check the cut with an accurate square. You can also reverse the two pieces,
hold the cut ends together, and hold a good straight edge along the side of
the pieces
3. If either test reveals that the cut is not a true 90°angle, adjust the fence
before beginning work.
If Fence Needs Adjustment:
1. First unplug the tool
2. Lower the blade assembly and lock it in place using the Lock Down Pin.
3. Lay a carpenters’ square on the turn table one edge along the blade and the
other along the fence. Any inaccuracy should be visible. Note: The square
must contact the blade, not the teeth, for an accurate reading.
4. The fence is held in place with bolts at each end. Loosen the bolts slightly
and, gently tap the fence into position using a soft mallet. Retighten the bolts
and make another test cut. Repeat the process until the fence is adjusted
accurately.
5. Once the fence is accurately adjusted, tighten the bolts firmly in place.
Recheck one last time, then proceed to work.
Dust extraction port can block easily with dust and requires
to be periodically cleaned. For more e󰀩cient operation,
empty the dust bag when it is no more than half full. This
allows better air ow through the bag. Dust bags will not
collect all the saw dust generated by the mitre saw. For
best results a dust extractor should be used in place of the
dust bag.
Dust Bag

DESCRIPTION OF SYMBOLS
SPARE PARTS
VVolts Hz Hertz
~Alternating current WWatts
min¯ ¹ Revolutions or
reciprocation per minute
Double insulated
no No load speed
Warning Wear eye protection
Wear hearing protection
Wear safety gloves
Danger! Keep hands away
from blades
Read instruction manual
Regulator compliance mark
PROBLEM CAUSE REMEDY
No power at power point. Check power point switch On.
Cord not connected. Check that the cord is plugged in.
Low power supply or improper extension
cord.
Inspect power supply or power cords.
Worn or cracked Carbon Brushes. Inspect Carbon Brushes. Replace if damaged or
worn
Wood burns at
ends of cut.
Dirty blade Clean blade using blade cleaner or mineral
spirits.
Workpiece frays or
chips out
Finished side is down.
Blade chipped or dull.
Blade inappropriate for material.
Material is binding.
Workpiece is unsupported.
Check blade manufacture’s recommendations
for material being cut. For cross curtting
hardwood and for precision cuts use a thin kerf
blade with 60 or more teeth.
Use a thin piece of scrap materia, such as 6mm
plywood, underneath or behind the workpiece
to support the edges of the workpiece as it is
being cut..
Blade binds, slowing
or stopping saw
Check condition or workpiece and check
compatibility of blade to workpiece.
Workpiece is misaligned on the or ends are
not supported.
Workpiece must be flat on table, flush against
the fence and supported on both ends
Workpiece is wet, contaminated or
inappropriate blade is being used.
Depth Stop setting in use. Move Depth Stop to right to disengage.
Adjust Depth Stop Bolt for desired depth of
cut.
Mite Saw will not
start
Mitre Saw operates
sporadically or at low
power.
Blade does not
cut completely
through workpiece.
Laser is blocked by dust/foreign particles Gently wipe the laser outlet with a dry soft cloth.
WARNING: Make sure unit is switched off and
laser is also turned off. Do not stare directly into
the laser. Always check the laser on a workpiece.
Laser is not visible
Depth Stop set too shallow.
Check position of workpiece on table. Material
must be flat, flush against fence and supported on
ends
Keep finished side of workpiece up or facing
operator
Check for damaged teeth. Sharpen or replace
blade
TROUBLESHOOTING
Limited spare parts are available subject to availability. Please
contact your local Bunnings Special Orders Desk to order the
required spare parts.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.

This appliance is not intended for use by young or inrm persons unless supervised by a
responsible person to ensure that they can use the appliance safely. Young children should be
supervised to ensure that they do not play with the appliance.
WARNING! Before connecting a tool to a power source (mains switch power
point receptacle, outlet, etc.) be sure that the voltage supply is the same as that specied on
the nameplate of the tool. A power source with a voltage greater than that specied for the
tool can result in serious injury to the user,as well as damage to the tool. If in doubt, do not plug in the
tool.
Using a power source with a voltage less than the nameplate rating is harmful to the
motor.
Your tool is double insulated for additional protection against a possible electrical insulation failure
within the tool.
Always remove the plug from the mains socket before making any adjustments or
maintenance, including changing the blade.
• When operating the saw, use safety equipment including safety goggles or shield, ear protection,
dust mask and protective clothing including safety gloves.
• Ensure that there is adequate general or localised lighting.
• Do not use the saw unless the guards are in place.
• Do not use the saw to cut metal or masonry.
• Do not let anyone under 18 years operate this saw.
• Ensure that the operator is adequately trained in the use, adjustment and operation of the
machine.
• Do not use this saw to cut rewood.
• Keep the area free of tripping hazards.
• Report faults in the machine, including guards and saw blades, as soon as they are discovered.
• Ensure that the machine is always xed to a bench, whenever possible.
• Always stand to one side when operating the saw.
• Never use a cracked or distorted saw blade.
• When cutting round wood, use clamps that prevent the workpiece from turning on both sides of the
blade.
• Never use your hands to remove sawdust, chips or waste close by the blade.
• Do not use blades of High Speed Steel (HSS blades).
• If the table insert is damaged or worn, have it replaced by a power tool repairer.
• Rags, cloths, cord and string and the like should never be left around the work area.
• Avoid cutting nails. Inspect the workpiece and remove all nails and other foreign objects before
operating the saw.
• Support the work properly.
• Refrain from removing any cut-o󰀨s or other parts of the workpiece from the cutting area whilst the
machine is running and the saw head is not in the rest position.
• Do not attempt to free a jammed blade before rst switching o󰀨 the machine.
• Do not slow or stop a blade with a piece of wood. Let the blade come to rest without assistance.
• If you are interrupted when operating the saw, complete the process and switch o󰀨 before looking
up.
• Periodically check that all nuts, bolts and other xings are properly tightened.
• Do not store materials or equipment above a machine in such a way that they could fall into it.
• Always hold the saw on parts that are insulated. If you accidentally cut into hidden wiring or the
saw’s own cable, the metal parts of the saw will become “live”. Switch o󰀨 at the mains and remove
the plug immediately.
• Never saw near combustible liquids or gases.
• Note the direction of rotation of the motor and the blade.
• Do not lock the movable guard in the open position and always ensure that it is working properly,
freely rotating and returning to fully cover the teeth of the blade.
• Connect the saw to a dust collection device and ensure that it is operating properly. As the
operator of the saw, please make sure that you understand factors that inuence exposure to dust,
including the type of material to be cut, the importance of local extraction and the proper
adjustment of hoods/ba󰀪es/chutes of your dust extraction system. We recommend that you
always wear a dust mask when operating this saw.
• Wear gloves when handling saw blades and rough materials.
• Saw blades shall be carried in a holder wherever possible.
• Select saw blades in relation to the material being cut.
• Use correctly sharpened saw blades and observe the maximum speed marked on the blade.
• Take additional care when trenching (slotting).
• The mitre saw can be safely carried by the carrying handle but only once it has been removed
from the mains power and secured in the locked down position.
• Ensure that the arm is properly secure when bevelling.
• Keep the oor area around the machine level, well maintained and free of loose materials.
• Ensure that you are trained in the use, adjustment and operation of the machine.
• Do not remove any cut-o󰀨s from the cutting area until the mitre saw head is in the full upright
position, the blade guard is fully enclosing the blade and the blade has come to a rest or complete
stop.
• When cutting long pieces which extend well over the table width, ensure that the ends are
adequately supported at the same height as the saw table top. Supports should be positioned in
such a way to ensure that the workpiece does not fall to the ground once the cut has been made.
Operating Mitre Saws with out the correct hearing protection may result in impairment of hearing.
A number of supports at regular intervals may be required if the workpiece is extremely long.
- Wear goggles
- Wear earmu󰀨s
- Wear a breathing mask
MITRE SAW SAFETY WARNINGS
WARNING! When using mains-powered stationary appliances, basic safety precautions,
including the following, should always be followed to reduce risk of re, electric shock,
personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool o󰀨 in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings
refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b.Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations di󰀨erent from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
