Ozito UMS-1810 S User manual

Ø6x12mm
bolts
8 pc.
Ø6mmx20mm
bolts
16pc.
Ø6mm
washers
28pc.
Ø8mm
washers
4pc.
Ø6mm
nuts
28pc.
Ø8x75mm
bolts
4pc.
Ø8mm
lock nuts
4pc.
Ø6x45mm
saw mounting
bolts
4pc.
MULTI CUT
MITRE SAW
1800W 250mm
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 1800W
Input: 230-240V ~ 50Hz
No Load Speed: 2,500/min
Blade: Ø250mm x 30 x 48T
Mitre Angle: 0-52°left, 0-60°right
Bevel Angle: 0-45°left
Max. Cutting Capacity:
Mitre 0° x Bevel 0°: 75x305mm wood
Mitre 45°x Bevel 0°: 75x210mm wood
Mitre 0°x Bevel 45°: 45x305mm wood
Mitre 45°x Bevel 45°: 75x40mm wood
UMS-1810 S
WHAT’S IN THE BOX
Multi Cut Mitre Saw
Material Support Bars
& Clamps
Assembly Fasteners,
Hex Keys (M4, 5 & 6)
Mitre Saw Stand
ozito.com.au

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
Ø6x12mm
bolts
8 pc.
Ø6mmx20mm
bolts
16pc.
Ø6mm
washers
28pc.
Ø8mm
washers
4pc.
Ø6mm
nuts
28pc.
Ø8x75mm
bolts
4pc.
Ø8mm
lock nuts
4pc.
Ø6x45mm
saw mounting
bolts
4pc.
1 Rear Fence
2 Bevel Locking Lever
3 Material Support Bars
4 Spindle Lock Button
5 Head Locking Pin
6 Operating Handle
7 On/Off Switch
8 Retractable Safety Guard
9 Depth Stop
10 Material Clamp
11 Rotating Mitre Table
12 Mitre Lock Handle
13 Dust Collection Box
14 Sliding Lock
MITRE SAW
20 M4,5 & 6 Hex Keys
21 Assembly Bolts, Washers and Nuts
ACCESSORIES
15 Side Panels
16 Upper/Lower Supports
17 Corner Brackets
18 Handle Panels
19 Legs
STAND
KNOW YOUR PRODUCT
1. ASSEMBLING THE SAW
SETUP & PREPARATION
WARNING! ENSURE THE SAW IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING ASSEMBLY.
Release Cutting Head From Transport Position
Material Support Bars
Material Clamp
2 To keep the head unlocked
rotate the head locking pin 900
while holding the pin out.
The cutting head will now be
free to move.
2 Tighten the screws on the
base to secure both bars in
place.
1 Press the cutting
head down gently
and pull the head
locking pin out.
1 Slide the support
bars with roller into
the two holes on
either side of the
base.
1 Totthematerialclamp
simply place the shaft
into hole in the mitre table
behind the rear fence.
Note: The clamp can be
mounted on either the left or
right.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
20 21
15
16
17
18
19

2. ASSEMBLING THE STAND 3. ADJUSTING THE MITRE SAW
WARNING! ENSURE THE MITRE LOCK HANDLE IS
TIGHT BEFORE MAKING A CUT. FAILURE TO DO SO MAY
RESULT IN THE ROTATING TABLE MOVING DURING
OPERATION AND CAUSE SERIOUS INJURY.
Assembling the Stand Mitre Angle Adjustment
Limiting the Cutting Depth
Fixing the Mitre Saw to the Stand
2 Place the side panel onto the
handle panels and secure
each corner with 2, Ø6x12mm
screws, washers and nuts.
3 Secure the desired table
angle by turning the mitre lock
handle clockwise.
1 Loosen the mitre lock handle
and press the mitre adjustment
lever down.
1 Rotate the depth
stop outward so the
screw will contact
the stop.
2 Position the mitre saw onto the
stand making sure the holes
align.
Secure together with the 4
supplied Ø6x45mm bolts,
washers and lock nuts.
Note: The mitre saw can be mounted to a bench following the same
process using 4 holes in the bench.
4 Place the upper supports onto
the side panel and position a
corner bracket over the top so
that the webbing touches the
side panel as shown.
Secure in place with 2
Ø6x20mm bolts, washers and
nuts into the side panels.
5 Repeat steps 3 and 4 with the other side panel to complete the stand
assembly.
b
a
1 Insert the legs into
the handle panels
and tighten with the
supplied Ø8x75mm
bolts, washers and
lock nuts.
Note: Ensure they are
ttedsotherubber
feetwilllayatonthe
ground.
For a more detailed assembly guide, please see the assembly manual.
2 Rotate the mitre
table to the desired
angle using the mitre
table angle scale.
2 Adjust the depth stop screw to
the required cutting depth by
rotating in or out.
1 Remove the 4 rubber
feet from the mitre
saw.
3 Insert the lower
supports into their
groves on one
handle panel and
secure each corner
with 2, Ø6x20mm
bolts, washers and
nuts.
Note: The mitre table features click stops at 00, 150, 22.50, 300and 450
for quick setting.

4. STRAIGHT AND ANGLE CUTTING
A compound mitre cut involves using
a mitre angle and a bevel angle at
the same time.
Max. cutting capacity:
Wood:
210 x 40mm.
Nonferrous metals:
70 x 40mm
52º< >60º
0º
Mitre 52º< >60º
Mitre
>45ºLeft
0º
0º
A straight cut is made by cutting the
grain of the workpiece. A 90°straight
cut is made with the mitre scale set in
the 0°position.
Max. cutting capacity
Wood:
105 x 75mm.
Nonferrous Metals:
105 x 75mm
52º< >60º
0º
Mitre 52º< >60º
Mitre
>45ºLeft
Mitre cuts are made with the mitre
scale set at an angle other than 0°
either to the right or left
Max. cutting capacity
Wood:
210 x 75mm.
Nonferrous Metals:
70 x 75mm
>45ºLeft
A bevel cut involves using a bevel
angle other than 0°, tilting the saw
head to the left
Max. cutting capacity
Wood:
305 x 45mm.
Nonferrous metals:
70 x 40mm
Note: To obtain good cuts when performing bevel or compound cuts the
workpiece should be clamped.
WARNING! ENSURE THE BEVEL ANGLE LEVER IS
TIGHT BEFORE MAKING A CUT. FAILURE TO DO SO
MAY RESULT IN THE CUTTING HEAD MOVING DURING
OPERATION AND CAUSE SERIOUS INJURY.
Bevel Angle Adjustment
Retractable Safety Guard
3 Secure the cutting head by
tightening the bevel angle
lever.
1 Loosen the bevel angle lever
by rotating anti-clockwise.
The safety guard provides
protection to your hands and
limbs when the mitre saw head
is in the up position or during
operation.
The safety guard automatically
retracts over the upper guard as
the saw is lowered into the work
piece.
2 Tilt the cutting head
to the desired bevel
angle using the
bevel angle indicator.
The Multi Cut Slide Compound Saw is designed for cross-cutting wood
and plastic. In accordance with the instruction manual the equipment can
alsobeusedtosawhollownonferrousmetalproleswitharectangular
cross-section using the supplied blade.

Note: Before performing a cut,
ensure the blade is at full speed.
Failure to do this will cause the
blade to become blunt and cause
the blade to lock-up.
Note: When the cut is complete
allow the blade to stop rotating
before raising the cutting head.
This is required for safe operation
of the unit to prevent personal
injury.
UMS-1810 S
5. OPERATING THE MITRE SAW
OPERATION
Turning On and Off
Making a Cut
1 To turn the mitre saw on,
depress the on/off switch.
2 To turn the mitre saw off,
release the on/off switch.
CAUTION! TO REDUCE THE RISK OF ELECTRICAL
SHOCK, THE USE OF A RESIDUAL CURRENT DEVICE
(RATED 30mA OR LESS) IS RECOMMENDED.
Workpiece
Placetheworkpieceatonthe
rotating mitre table with one edge
securely against the rear fence.
Note: If the workpiece is warped,
ensure the convex side is against
the rear fence.
Material clamp will assist when
making cuts when feeding
materials from either side of the
saw.
When performing a bevel or
compound cut, the material clamp
should be positioned on the right
hand side of the fence.
When cutting long
pieces of timber,
support the opposite
end of the timber with
the material support
bars.
1 Ensure the bench or stand and
mitre saw is stable and the
work piece is secured by the
clamps against the rear fence.
3 For a wider workpiece where
the blade needs to slide
through the piece, ensure that
the cutting head is pulled back
before starting the saw.
5 Lower the cutting head and
perform a smooth cut.
2 Set the mitre and
bevel angle for the
desired cut.
4 Hold the safety
guard stop away
with your thumb and
start the saw.
6 Once the cut has
been made, release
the on/off switch.
When the blade has
stopped you can
then raise the cutting
head.
52º< >60º
0º
Mitre 52º< >60º
Mitre
>45ºLeft

1 Ensure the cutting head is raised. If the head
locking pin is locked in place, pull the head
locking pin and gently raise the cutting head.
2 Hold the safety guard stop back and swing
the blade guard up.
3 Place a 13mm spanner (not supplied)
ontheangeboltandloosenbyturning
in a clockwise direction (left-hand
thread) while holding the spindle lock
in.
4 Removetheangeboltwiththeange
and blade.
5 Removethebladefromtheinnerange
and replace the blade.
6 Fit and fasten the new blade in the
reverse order.
7 Check that the blade guard operates
correctly and covers the blade as the
saw arm is lowered.
Carbon Brushes
When the carbon brushes wear out, the mitre saw will
spark and/or stop. Discontinue use as soon as this
happens. They should be replaced prior to recommencing
use of the mitre saw. Carbon brushes are a wearing
component of the mitre saw therefore not covered under
warranty. Continuing to use the mitre saw when carbon
brushes need to be replaced may cause permanent
damage to the mitre saw. Carbon brushes will wear out after many uses but when
the carbon brushes need to be replaced, take the mitre saw to an electrician or
a power tool repairer for a quick and low cost replacement. Always replace both
carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the mitre saw by an unauthorised person or by
mishandling of the mitre saw.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents. This is
normal and does not indicate a problem.
MAINTENANCE
Changing the Blade
WARNING! ENSURE THE SAW IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING MAINTENANCE.
WARNING! NEVER TRY TO USE A BLADE THAT IS
LARGER THAN THE STATED CAPACITY OF THE SAW.
IT MIGHT COME INTO CONTACT WITH THE BLADE
GUARDS AND RISK INJURY OR DAMAGE TO THE MITRE
SAW. THIS WILL NOT BE COVERED UNDER WARRANTY.
WARNING! NEVER USE A BLADE THAT IS TOO THICK
TO ALLOW THE OUTER BLADE WASHER TO ENGAGE
WITH THE FLATS ON THE SPINDLE. IT WILL PREVENT
THE BLADE SCREW FROM PROPERLY SECURING THE
BLADE ONTO THE SPINDLE.
WARNING! TO ENSURE THE CORRECT BLADE
ROTATION ALWAYS INSTALL THE BLADE WITH THE
BLADE TEETH POINTING DOWNWARDS. ENSURE THE
ARROW DIRECTION ON THE BLADE CORRESPONDS
WITH THE ARROW ON THE UPPER BLADE GUARD.
CAUTION! ENSURE THAT ANY SPACERS AND SPINDLE
RINGS THAT MAY BE REQUIRED SUIT THE SPINDLE AND
BLADE THAT ARE FITTED.
Transportation
Emptying the Dust Collection Box
2 Pull the head locking pin out
and rotate 900so that when
released the pin will stop the
cutting head from raising.
1 Press the cutting
head down.
1 To empty the dust
collection box, open
the lid and tap the
dirt out into a bin.
The head locking pin is provided for holding the cutting head down for
transporting of storing the mitre saw.

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
VVolts Hz Hertz
~Alternating current WWatts
min¯ Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
no No load speed
Warning Wear eye protection
Wear hearing protection
Wear safety gloves
Danger! Keep hands away
from blades
Read instruction manual
TROUBLESHOOTING
Problem Possible Cause Solution
Sparking visible through the housing
vents
A small amount of sparking is normal
Excessive sparking could be due to worn carbon
brushes
Does not indicate a problem
Replace carbon brushes
Saw will not start No power supply Ensure saw is connected to a mains outlet
Saw starts but runs and performs
poorly
Workpiece too thick
Incorrect blade size
Motordifculties
Ensure workpiece is within the saws cutting capacity
Ensurecorrectbladesizeistted
Contact Ozito customer service
Cutting head will not lower Safety guard preventing lowering The safety guard stop needs to be pulled back to allow the guard to swing up
Mitre table will not rotate The mitre lock handle not loosened
Mitre adjustment lever needs to be pressed
Loosen the mitre lock handle before rotating
Press the mitre adjustment lever down
Bevel angle will not adjust Thebevelangleleverneedstobereleasedrst Loosen the bevel angle lever then tilt the cutting head
Cutting head will not slide forwards
or backwards
The cutting head slide is locked Loosen the sliding lock before sliding the cutting head

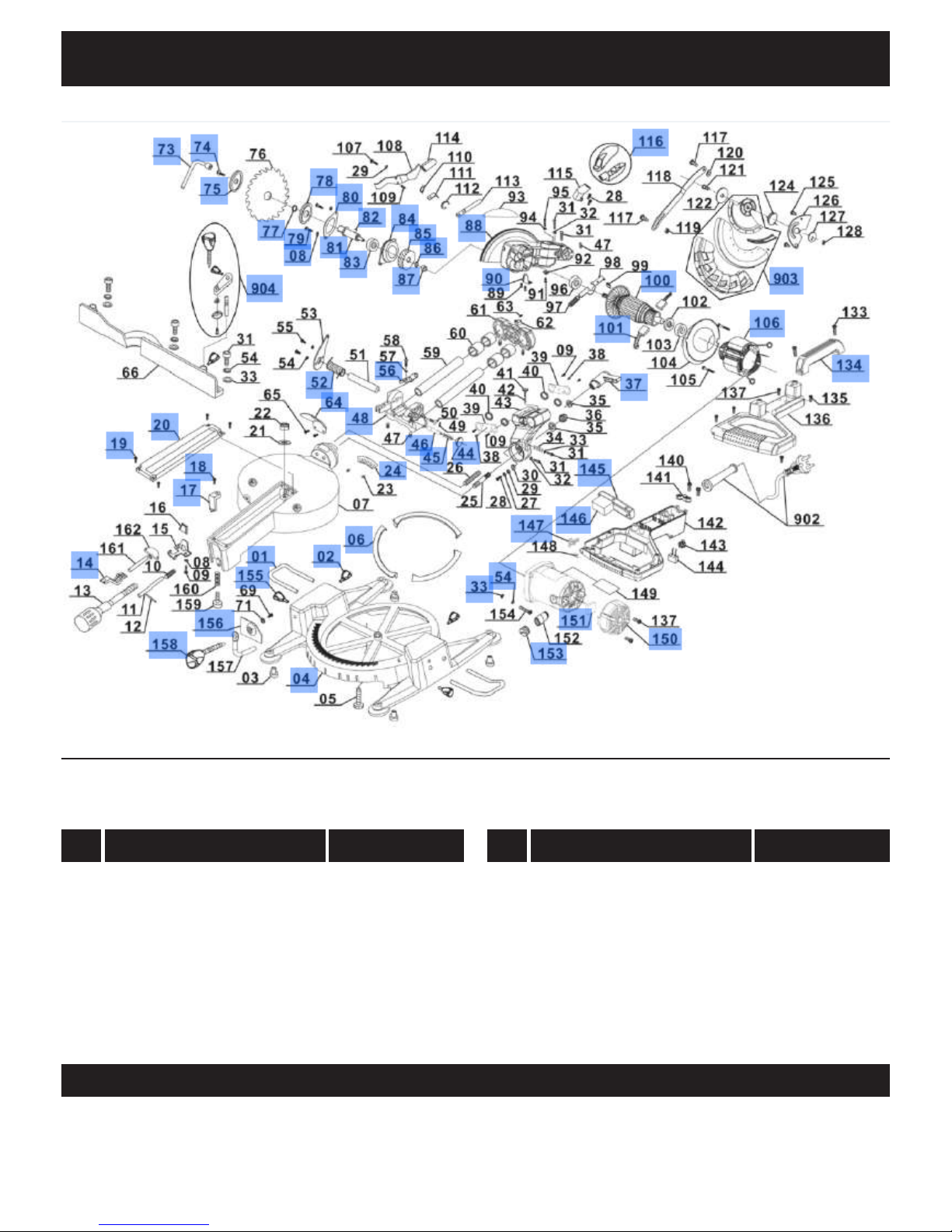

SPARE PARTS Tool:
Model No.
Item
No. Description Part No.
How To Order
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
Item
No. Description Part No.

This appliance is not intended for use by young or inrm persons unless supervised by a
responsible person to ensure that they can use the appliance safely. Young children should be
supervised to ensure that they do not play with the appliance.
WARNING! Before connecting a tool to a power source (mains switch power
pointreceptacle,outlet,etc.)besurethatthevoltagesupplyisthesameasthatspeciedonthe
nameplateofthetool.Apowersourcewithavoltagegreaterthanthatspeciedforthetoolcanresult
in serious injury to the user,as well as damage to the tool. If in doubt, do not plug in the tool.
Using a power source with a voltage less than the nameplate rating is harmful to the
motor.
Your tool is double insulated for additional protection against a possible electrical insulation failure
within the tool.
Always remove the plug from the mains socket before making any adjustments or
maintenance, including changing the blade.
• Whenoperatingthesaw,usesafetyequipmentincludingsafetygogglesorshield,earprotection,
dust mask and protective clothing including safety gloves.
• Ensurethatthereisadequategeneralorlocalisedlighting.
• Donotusethesawunlesstheguardsareinplace.
• Donotusethesawtocutmetalormasonry.
• Donotletanyoneunder18yearsoperatethissaw.
• Ensurethattheoperatorisadequatelytrainedintheuse,adjustmentandoperationofthe 
machine.
• Donotusethissawtocutrewood.
• Keeptheareafreeoftrippinghazards.
• Reportfaultsinthemachine,includingguardsandsawblades,assoonastheyarediscovered.
• Ensurethatthemachineisalwaysxedtoabench,wheneverpossible.
• Alwaysstandtoonesidewhenoperatingthesaw.
• Neveruseacrackedordistortedsawblade.
• Whencuttingroundwood,useclampsthatpreventtheworkpiecefromturningonbothsidesofthe
blade.
• Neveruseyourhandstoremovesawdust,chipsorwasteclosebytheblade.
• DonotusebladesofHighSpeedSteel(HSSblades).
• Ifthetableinsertisdamagedorworn,haveitreplacedbyapowertoolrepairer.
• Rags,cloths,cordandstringandthelikeshouldneverbeleftaroundtheworkarea.
• Avoidcuttingnails.Inspecttheworkpieceandremoveallnailsandotherforeignobjectsbefore
operating the saw.
• Supporttheworkproperly.
• Refrainfromremovinganycut-offsorotherpartsoftheworkpiecefromthecuttingareawhilstthe
machine is running and the saw head is not in the rest position.
• Donotattempttofreeajammedbladebeforerstswitchingoffthemachine.
• Donotsloworstopabladewithapieceofwood.Letthebladecometorestwithoutassistance.
• Ifyouareinterruptedwhenoperatingthesaw,completetheprocessandswitchoffbeforelooking
up.
• Periodicallycheckthatallnuts,boltsandotherxingsareproperlytightened.
• Donotstorematerialsorequipmentaboveamachineinsuchawaythattheycouldfallintoit.
• Alwaysholdthesawonpartsthatareinsulated.Ifyouaccidentallycutintohiddenwiringorthe
saw’s own cable, the metal parts of the saw will become “live”. Switch off at the mains and remove
the plug immediately.
• Neversawnearcombustibleliquidsorgases.
• Notethedirectionofrotationofthemotorandtheblade.
• Donotlockthemovableguardintheopenpositionandalwaysensurethatitisworkingproperly,
freely rotating and returning to fully cover the teeth of the blade.
• Connectthesawtoadustcollectiondeviceandensurethatitisoperatingproperly.Asthe 
 operatorofthesaw,pleasemakesurethatyouunderstandfactorsthatinuenceexposuretodust,
including the type of material to be cut, the importance of local extraction and the proper
 adjustmentofhoods/bafes/chutesofyourdustextractionsystem.Werecommendthatyou
always wear a dust mask when operating this saw.
• Weargloveswhenhandlingsawbladesandroughmaterials.
• Sawbladesshallbecarriedinaholderwhereverpossible.
• Selectsawbladesinrelationtothematerialbeingcut.
• Usecorrectlysharpenedsawbladesandobservethemaximumspeedmarkedontheblade.
• Takeadditionalcarewhentrenching(slotting).
• Themitresawcanbesafelycarriedbythecarryinghandlebutonlyonceithasbeenremoved
from the mains power and secured in the locked down position.
• Ensurethatthearmisproperlysecurewhenbevelling.
• Keeptheoorareaaroundthemachinelevel,wellmaintainedandfreeofloosematerials.
• Ensurethatyouaretrainedintheuse,adjustmentandoperationofthemachine.
• Donotremoveanycut-offsfromthecuttingareauntilthemitresawheadisinthefullupright
position, the blade guard is fully enclosing the blade and the blade has come to a rest or complete
stop.
• Whencuttinglongpieceswhichextendwelloverthetablewidth,ensurethattheendsare 
adequately supported at the same height as the saw table top. Supports should be positioned in
such a way to ensure that the workpiece does not fall to the ground once the cut has been made.
Operating Mitre Saws with out the correct hearing protection may result in impairment of hearing.
A number of supports at regular intervals may be required if the workpiece is extremely long.
- Wear goggles
- Wear earmuffs
- Wear a breathing mask
MITRE SAW SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60335-1;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofreandelectric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
ngerontheswitchorenergisingpowertoolsthathavetheswitchoninvitesaccidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer,
itsserviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.
GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY
ELECTRICAL SAFETY

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example:
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1114
