Ozito SSB-406 User manual

VARIABLE
SPEED
SCROLL SAW
406mm (16”)
INSTRUCTION MANUAL
SSB-406
WHAT’S IN THE BOX
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself) use
only. If a product is defective it will be replaced in accordance with
the terms of this warranty. Warranty excludes consumable parts, for
example: blades, carbon brushes, fuses etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction
manual.
• If the tool is disassembled or tampered with in any way.
•Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
0915
SPECIFICATIONS
Motor: 120W , S6 (30%)
Input: 230 – 240V ~ 50Hz
No Load Speed: 500 – 1700/min
Depth of Throat: 406mm (16”)
Max. Thickness of Cut: 57mm @ 90º
27mm @ 45º
Blade Length: 127mm
Stroke: 21mm
Table Tilt: 0º– 45° Left
Table Size: 413 x 253mm
Weight : 12.70kg
6 x Blades (various)
2 x Hex Key
Variable Speed
Scroll Saw
Carbon Brush Set (spare)

3
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
ACCESSORIES
L
19
Unpacking
• Open the carton and remove top packing material
• Carefully lift the variable speed scroll saw from the packaging and
place it on a level work surface.
• By applying thin coats of a paste wax (not included) to the entire
saw table, you will allow the work piece to glide smoothly across
the work surface. Let it dry then use a clean piece of cloth to buff
the surface out. Reapply as necessary for a smooth nish.
Work piece holder & Front guard
Mounting to a workbench
The variable speed scroll
saw features four holes in
the base for mounting to a
workbench or worktable.
This is recommended to gain
maximum stability and reduce
noise and vibration. It is best to
attach the variable speed scroll
saw to a stable, at surface at
a convenient working height.
Each hole in the base should
be bolted securely using bolts,
lock washers and nuts (not
supplied).
If you are using the variable speed scroll saw in several different
places, it is recommended that you fasten it permanently to a
mounting board that can be clamped to a workbench or worktable. The
mounting board should be large enough to prevent the variable speed
scroll saw from tipping while in use. A minimum 19mm thickness is
recommended.
Note: It may be necessary to countersink the bolt head on the bottom
side of mounting board.
Reducing noise and vibration
Place a foam pad or a piece of carpet between the variable speed
scroll saw and the workbench to further reduce noise and vibration.
The size should be approximately 610mm x 305mm x 13mm thick. If
padding is to be used do not overtighten the mounting bolts.
1. Blade Tension Lever
2. Work Piece Holder Lock Knob
3. Flexible Work Light
4. Upper Blade Holder
5. Work Piece Holder
6. Sawdust Blower
7. Bearing Covers
8. Mounting Holes
9. Toolbox
10. Table
11. Table Insert
12. Bevel Scale
13. Front Guard
14. Flexible Worklight Switch
15. Table Bevel Lock Knob
16. Dust Extraction Port
17. On/Off Switch
18. Fuse Holder
19. Speed Selector Dial
SCROLL SAW
KNOW YOUR PRODUCT
1 3 4 52
7
6
1110
12
20 21
14
15 16 17
8 9
1. ASSEMBLY
SETUP & PREPARATION
WARNING! THE POWER SUPPLY FOR THIS
PRODUCT SHOULD BE PROTECTED BY A
RESIDUAL CURRENT DEVICE (RATED AT 30MA OR LESS).
A RESIDUAL CURRENT DEVICE REDUCES THE RISK OF
ELECTRIC SHOCK.
20. Pin Type Blade
21. Hex Key
18
13
1. Attach Work Piece Holder Arm
to scroll saw clamp. Screw
Work Piece Holder to arm.
2. Place Front Guard over
Work Piece Holder and
secure with screw and nut.

Fitting Blades:
4. Place the new blade through the opening
in the saw table, teeth to the front of
the saw pointing downwards. Gently t
the pins of the blade into the V-notch of
the lower blade holder. Keeping slight
upward pressure on the blade to ensure
the blade is locked in place.
5. With the lower blade securely attached
to the lower blade holder, keep a slight
upward pressure on the blade. With your
other hand gently press the upper blade
holder down, insert the pins of the blade
in the notch of the upper blade holder.
6. Tension the blade in place by
turning clockwise as described in
“Adjusting blade tension”.
7. Replace the table insert to the
position required for straight
cutting or bevel cutting as
described in “Adjusting the
table insert.
Removing Blades:
8. Gently pull up on the blade
and push down on the upper
blade holder to disengage the
upper pins in the V-notch of
the upper blade holder.
The variable speed scroll saw accepts 127mm - 133mm pin end
scroll saw blades. The blade width, thickness and the number of teeth
per inch will be determined by the material and size of the radius
being cut. Very ne narrow blades should be used to scroll cut in thin
material, 6mm thick or less. Wider blades cannot cut curves as tight
or as small as thinner blades. To cut thicker material, use wider blades
with fewer teeth.
Blade selection
• When cutting wood, best
results are achieved with
pieces less than 25mm
thick
• When cutting wood
thicker than 25mm, the
user should guide the
workpiece very slowly into
the blade, taking extra
care not to bend or twist
the blade while cutting.
Fitting & removing blades
1. Lift the blade tension lever to
“Release” the blade tension,
and turn anti-clockwise to further
reduce the tension.
2. BLADES
OPERATION
Teeth/
Inch
Speed Material
10 1200 – 1700 Hard & soft woods 6mm up to 51mm.
Plastic, paper, felt, etc.
15 500 – 1200 Wood, plastic, thin cuts 2.4mm up to
13mm thick
18-20 500 – 600 Tight radius work 2.4mm up to 13mm
thick. Wood, veneer, bre, plastic, etc.
WARNING! PRIOR TO FITTING OR REPLACING
BLADES, ENSURE YOU SWITCH THE MACHINE OFF
AND DISCONNECT FROM MAINS POWER SUPPLY.
2. Loosen the work piece holder
lock knob and raise the work
piece holder to provide access
to the table insert.
RELEASE
3. Remove the table insert, by
pushing up from under the
saw table.
9. Gently pull down the blade to
disengage the lower pins in
the V-notch of the lower blade
holder and remove the blade.
TENSION
127mm
133mm

Adjusting the table insert
The way that the table insert is positioned depends on whether a
straight cut or bevel cut is required. Incorrect positioning can result in
damaging the table insert and damaged or broken blades.
• For a straight cut the table
insert opening must be
positioned as shown.
1. Remove the table insert, by pushing up from the bottom of the table.
2. Position the opening of the table insert depending on the cutting
application required.
3. Align the 4 grooves in the table insert with the lugs on the table and
gently push into place.
Adjusting the height
To prevent the workpiece from lifting, the
work piece holder should be adjusted so it
just sits on top of the workpiece. The work
piece holder should not be adjusted so
tightly that the workpiece drags.
1. Loosen the work piece holder
lock knob.
2. Lower or raise the work piece holder
to the desired position.
3. Retighten the work piece holder lock
knob.
Adjusting the angle
When bevel cutting the work piece holder must be adjusted so it is
parallel to the table (as described in “Bevel Cutting”).
Adjusting blade tension
•Lift the blade tension lever to
“Release” the blade tension
• Tension (or tighten) the blade further
by turning the blade tension lever
clockwise.
• Release (or loosen) the blade
further by turning the blade tension
lever anti-clockwise.
Tighten the blade with the clamp lever
by pressing down again. Check tension
by the sound the blade makes when
plucking the blade, similar to plucking
a guitar string. This requires good
knowledge of your scroll saw.
• Pluck the back edge of the blade. The sound should be a musical
note. The sound becomes less at as tension increases.
The sound level will decrease with too much tension.
Note: Be careful as over tension may cause the blade to break as soon
as you start cutting. Too little tension may cause the blade to bend or
break.
Sawdust blower
The variable speed scroll saw features a
sawdust blower to direct air to the most
effected point on the cutting line. The blower
tube is fully adjustable and can be directed
as required.
Flexible worklight
The worklight will illuminate the work area
for greater visibility of the cutting line.
1. Press the exible worklight switch to the
On (I) position.
2. The light will illuminate when the saw is
turned on by pushing the green On (I)
button. The light cannot be operated without the saw running
3. ADJUSTMENTS
WARNING! ALWAYS ENSURE THAT THE VARIABLE
SPEED SCROLL SAW IS SWITCHED OFF AND
DISCONNECT FROM MAINS POWER SUPPLY BEFORE
MAKING ANY ADJUSTMENTS
• For a bevel cut the table
insert openings must be
positioned as shown.
RELEASE

SSB-406
4. OPERATION
On/Off switch
• To turn the machine on, press
the green On (I) button.
• To turn the machine off, press
the red Off (O) button.
Note: This variable speed scroll saw is automatically turned off in
the event of a power failure, accidently unplugged or turned off at the
mains power supply. You will need to push the green On (I) button
again to restart the variable speed scroll saw.
Speed setting
The speed can be adjusted by turning the speed selector dial. Adjust
to suit the work piece/ material being cut. The saw’s speed can be
adjusted from 500 to 1,700 SPM (strokes per minute).
• Turn the machine On by pressing the green On ( I ) button.
• Rotate the speed selector dial clockwise
direction “H” for a higher or faster speed.
• Rotate the speed selector dial anti-
clockwise direction “L” for a lower
or slower speed.
• Turn the machine Off by pressing
the red Off (O) button.
Note: By using a scrap piece of timber to determine the optimum
speed by making a trial cut will increase the life of the saw blade.
Dust extraction port
This feature will allow Ø35mm attachments of
a vacuum hose for easy sawdust collection.
L

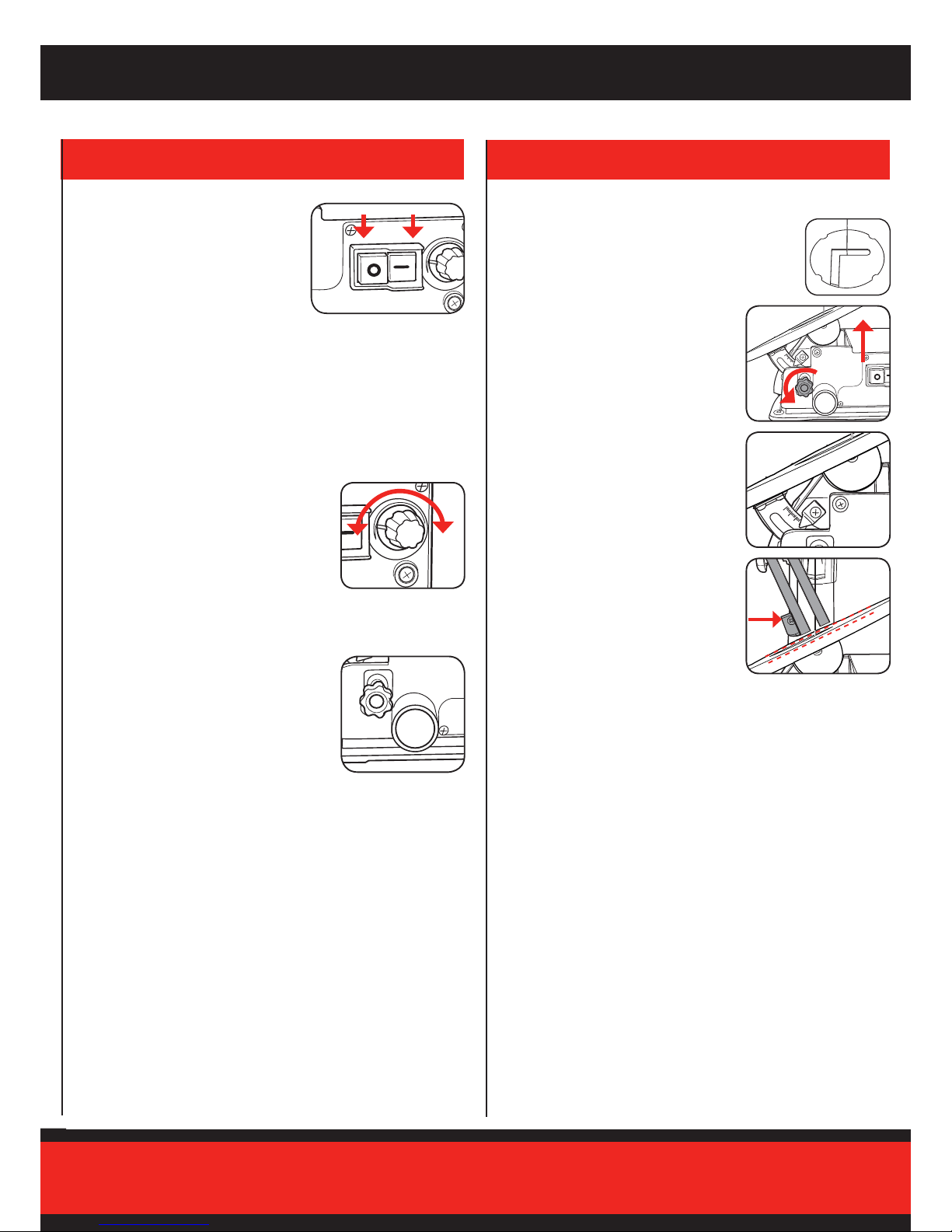

Bevel cutting
1. Remove the table insert by gently pushing up
from under the saw table and rotate so the slots
of the table inserts are facing down and to the
right as shown.
2. Loosen the table lock knob to allow the
saw table to be tilted to the left. The
saw table can be locked at any angle
from 0° to a 45° to the left for bevel
cutting. Turn lock knob clockwise to
lock.
3. A bevel scale is located under the saw
table as a convenient guide for setting
the appropriate table angle for bevel
cutting. The bevel scale is a guide only,
make a practice cut on scrap material
and adjust the saw table as necessary
for your desired setting.
Note: When bevel cutting, the work piece
holder can be adjusted so that it is parallel
to the saw table.
4. Loosen the screw at the front of the
work piece holder and then tilt so that it
is parallel to the saw table. Tighten the
screw to secure the work piece holder
in place.
L
L
OFF ON

SCROLL SAW SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of re, electric shock,
personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New
Zealand.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged
or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension
lead not suitable for the power input of the tool or which is damaged or defective may result in a risk
of re and electric shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury. Save all
warnings and instructions for future reference. The term “power tool” in the warnings
refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools
with your nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
Hold power tool by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a
“live” wire may make exposed metal parts of the power tool “live“ and could give the operator an
electric shock.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they don’t play with the appliance.
We recommend the use of a residual current device with a rated residual current
of 30mA or less.
• Pull out all nails in the material before starting to saw. Cutting nails may damage your tool.
• Do not operate your scroll saw until it is completely assembled and installed according to the
instructions and until you have read and understood all of the instructions.
• Do not touch moving parts with your ngers or hands.
• Ensure that you have tightened the blade prior to starting the machine.
• When nishing sawing, wait until the saw blade has ceased moving prior to removing it from
the material.
• Do not touch the saw blade immediately after use. Allow time for the blade to cool, otherwise it
could burn you due to the heat generated during sawing.
• Always check accessories to ensure that they are suitable for the operating speeds of this tool.
• Incorrect accessories can break apart at high speed and cause serious damage or personal
injury.
• Never turn your scroll saw on before clearing the table of all objects (tools, scraps of wood, etc.)
except for the workpiece.
• Hold the work rmly against the table.
• Do not feed the material too fast while cutting. Only feed the material fast enough so that the
blade will cut.
• Never leave the scroll saw running unattended. Always turn the saw off, make sure that it has
come to a complete stop, and then remove plug from the power supply before leaving the work
area.
• Use caution when cutting off material which is irregular in cross section as it could pinch the
blade before the cut is completed. A piece of moulding, for example, must lay at on the table
and not be permitted to rock whilst being cut.
WARNING! Some dust created by sanding, sawing, grinding, drilling and other
construction activities contain chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks, cement and other masonry products, and;
• Arsenic and chromium from chemically-treated timber.
The risk from such exposures vary depending on how often you do this type of work.
To reduce your exposure to these chemicals; work in a well ventilated area, and work with approved
safety equipment, such as those dust masks that are specically designed to lter out microscopic
particles.
Always wear eye protection and a dust mask for dusty applications and when drilling/ chiselling
overhead. Sanding particles can be absorbed by your eyes and inhaled easily and may cause health
complications.
Caution: Always Wear safety goggles, ear protection and a respiratory mask.

Problem Cause Remedy
Motor will
not run
Problem with
On-Off switch,
power cord or
outlet.
Check plugged in and
switched On at mains power
supply. Check with another
appliance to ensure power is
being supplied to outlet.
Motor defective Do not attempt any repair.
Have it repaired by a qualied
service technician.
Blown fuse Refer to Inspecting or
replacing the fuse
Blades
breaking
Blade over
tensioned
Adjust tension, refer to
Adjusting blade tension.
Feeding too
quickly
Reduce feed rate
Incorrect blade Use narrow blades for cutting
thin wood or tight corners and
curves. Use wide blades for
thicker wood or wide curves,
refer to Blade selection.
Blade twisting
in wood
Reduce side pressure on
blade, check blade tension.
Vibration (there
is always a
certain amount
of vibration
when saw is
running).
Improper
mounting of saw
Check mounting
Improper
bracing.
Check saw mounting
instructions
Loose table or
table resting
against motor
Tighten table lock knob
Loose motor
mounting
Tighten motor mounting
screws.
Work piece
holder
incorrectly
positioned
Refer to Fitting and
removing blades.
Blade runout
(blade not
properly aligned
with arm
motion)
Blade holders
out of line
Realign blade holders and
blade
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
Limited spare parts are available subject to availability. Please
contact your local Bunnings Special Orders Desk to order the
required spare parts.
Most common spare parts listed below
Spare Part Part No.
Carbon Brush (Pair) SPSSB406-50
Carbon Brush Cap (Pair) SPSSB406-51
Carbon Brush Holder (Pair) SPSSB406-49
Table Insert SPSSB406-54
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
WARNING! FAILURE TO UNPLUG YOUR VARIABLE
SPEED SCROLL SAW COULD RESULT IN
ACCIDENTAL STARTING CAUSING POSSIBLE SERIOUS
PERSONAL INJURY.
TROUBLESHOOTING
VVolts Hz
~Alternating current W
/min Revolutions or
reciprocation per minute
Regulator compliance mark
no
Warning Wear eye, breathing &
hearing protection
Read instruction manual
5124
Hertz
Watts
No load speed

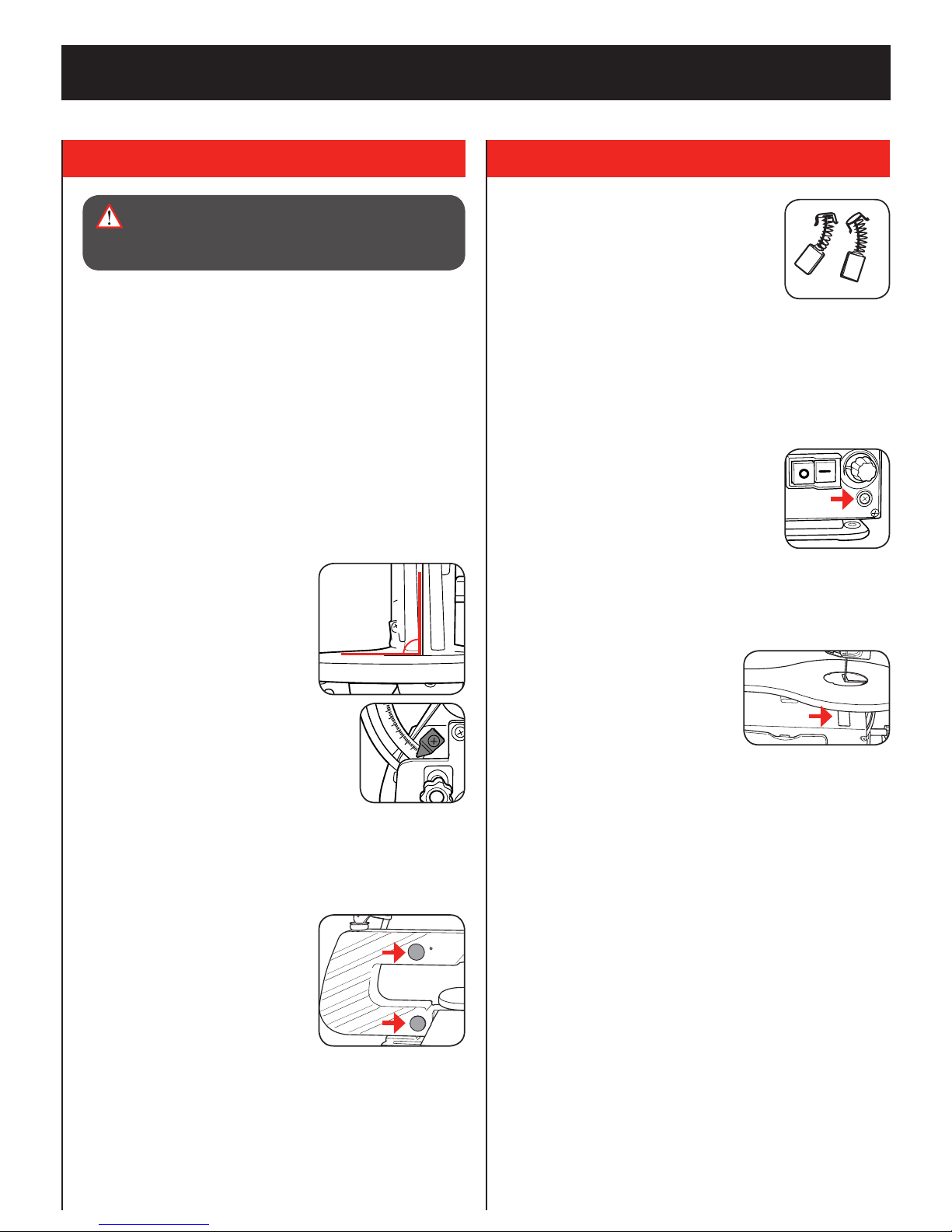

MAINTENANCE
Carbon brushes
When the carbon brushes wear out the tool will
spark and/or stop. Discontinue use as soon as
this happens.
They should be replaced prior to recommencing
use of the tool. Carbon brushes are a wearing
component of the tool and are therefore not
covered under warranty. Continuing to use the tool when carbon
brushes need to be replaced may cause permanent damage to the
tool. Carbon brushes will wear out after many uses but when the
carbon brushes need to be replaced take the tool to an electrician or
a power tool repairer for a quick and low cost replacement. Always
replace both carbon brushes at the same time.
Inspecting or replacing the fuse
When required, inspect or replace blown fuse.
1. Switch off and disconnect variable speed
scroll saw from mains power supply.
2. Using a Phillips head screwdriver, remove the
fuse holder together with the fuse.
3. Remove fuse from fuse holder, inspect and
replace with new 5 amp, 250V fuse if required. A fuse is blown when
the lament (thin silver wire) is broken or out of place (not centred).
Always replace a fuse with the same amperage rating as the one
that came out.
4. Ret fuse holder together with fuse.
Clearing dust (access hole)
Over time sawdust can accumulate
behind the dust port if dust extraction
is not used, this should be checked
periodically.
•Using a brush or vacuum, clean away
the sawdust and any broken blades
that may have accumulated.
Note: This panel hole gives easy access to the lower blade holder, and
will aid in the tting of blades.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the scroll saw by an unauthorised person
or by mishandling.
• Keep the ventilation vents of the tool clean at all times, if possible,
prevent foreign matter from entering the vents.
• After each use, blow air through the tool housing to ensure it is free
from all dust particles which may build up. Build up of dust particles
may cause the tool to overheat and fail.
• If the enclosure of the tool requires cleaning do not use solvents but
a moist soft cloth only. Never let any liquid get inside the tool; never
immerse any part of the tool into a liquid.
• The motor mount screws could work loose over time, periodically
inspect and when required tighten the screws.
• Re-application of a paste wax (not included) on the entire saw table
will allow the work piece to glide smoothly across the work surface.
Let it dry then use a clean piece of cloth to buff the surface out.
Squaring the table to the blade
1. Loosen the table bevel lock knob to
allow the saw table to be approximately
at a right angle to the blade.
2. Place a square on the saw table next
to the blade to check if the table is at
a 90° angle to the blade. If not, then
adjustment is required. Change the
bevel angle until the saw table is at a
90° angle to the blade and tighten the
table bevel lock knob.
3. Loosen the screw holding the scale pointer.
Move the pointer to the 0° position and tighten
the screw.
Oiling arm bearings
Lubricate the arm bearings every 50 hours of use or whenever
there is a squeak coming from the bearings.
1. Carefully place the saw on its side and remove the rubber caps from
the upper and lower arm of the saw.
2. Squirt a few drops of SAE 20 oil on
the end of the shaft and bearings.
3. Leave the saw in this position
overnight to allow the oil time to
soak in.
4. Replace the rubber caps and repeat
the above procedure on the opposite
side of the saw.
5. GENERAL MAINTENANCE
L
WARNING! ENSURE THE VARIABLE SPEED SCROLL
SAW IS TURNED OFF & DISCONNECTED FROM THE
POWER SUPPLY BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.
90°
