Ozito JSW-8100 User manual

PENDULUM
JIGSAW
810W
INSTRUCTION MANUAL
SPECIFICATIONS
Input Power: 230-240V~50Hz
Motor: 810W
No Load Speed 800-2,900/min
Stroke Depth: 22mm
Bevel: +/- 45°
Blade Fitment: Bayonet
Cutting Capacities: Timber 80mm
Plastic 12mm
Mild Steel 8mm
Weight: 2.4kg
JSW-8100
WHAT’S IN THE BOX
Jigsaw
Dust Extraction Adaptor
Hex Key
Parallel Guide
3 x Cutting Blades
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: saw blades,
dust extraction adaptor, carbon brushes.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
1017
3
2
1
3
2
1
TIMBER BLADE
TIMBER BLADE
METALBLADE

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
TIMBER BLADE
TIMBER BLADE
METAL BLADE
TIMBER BLADE
TIMBER BLADE
METAL BLADE
TIMBER BLADE TIMBER BLADE
METAL BLADE
3
2
1
3
2
1
3
2
1

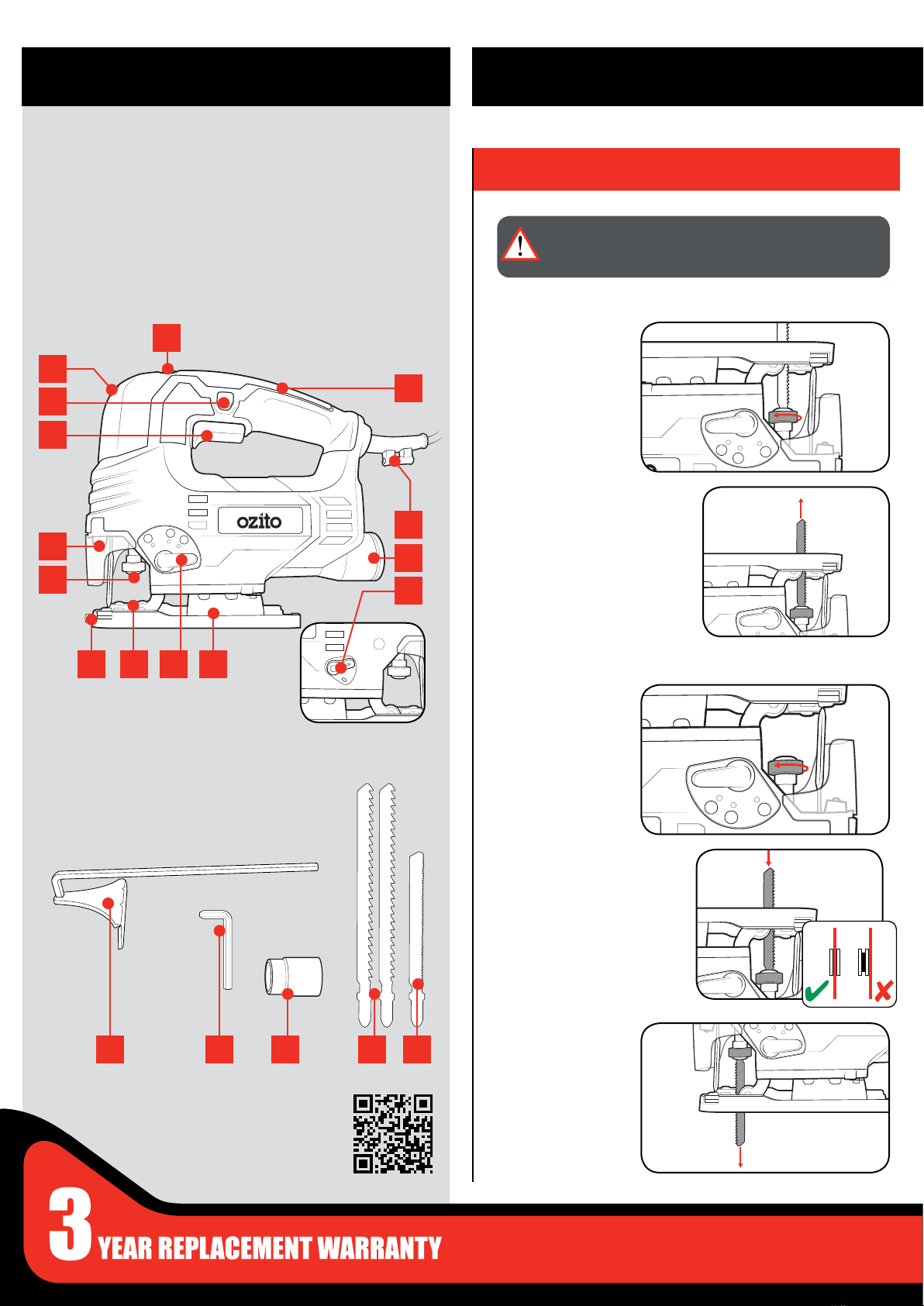

KNOW YOUR PRODUCT
1. CHANGING THE BLADE
Ensure the shoulder of the
blade sits right at the bottom
of the blade holder.
11 Parallel Guide
12 Hex Key
13 Dust Extraction Adaptor
14 Timber Blade x 2
15 Metal Blade x 1
ACCESSORIES
1 Variable Speed Dial
2 Worklight Switch
3 Lock On Button
4 On/Off Trigger
5 Worklight
6 Blade Lock
7 Guide Locking Screws
8 Guide Roller
9 Pendulum Action Selector
10 Adjustable Shoe
11 Soft Grip Handle
12 Hex Key Holder
13 Dust Extraction Port
14 Blower Switch
PENDULUM JIGSAW
SETUP & PREPARATION
2
1
3
4
5
6
11 12 1413 15
11
13
14
12
WARNING! ENSURE THE SAW IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING ASSEMBLY.
Removing the Blade
Inserting the Blade
2 Raise the blade to remove.
2 Slide the blade into the lock
with the teeth facing forward
making sure the blade is in
the middle of the guide roller
groove.
3
2
1
1 Flip the saw upside
down and rotate the
blade lock.
1 Flip the saw upside
down and rotate the
blade lock.
3 Release the blade
lock and pull on the
blade to ensure it is
secured.
3
2
1
3
2
1
7 8 9 10

3. ATTACHING THE ACCESSORIES
The parallel guide assists in cutting in a line parallel to an edge.
A dust extractor can be tted to the jigsaw dust extractor adaptor
to remove dust and chips while cutting. The adaptor can also be
removed if it gets in the way.
2. ADJUSTING SHOE ANGLE
The angle of the shoe can be adjusted to allow for bevel cuts
between 0 and 45°.
Attaching the Parallel Guide
Dust Extraction Adaptor
2 Slide the shoe
backwards to allow
the shoe to rotate.
1 Unscrew the 2 guide
locking screws at the
front of the jigsaw.
5 Secure in place tightening
the 2 screws at the bottom
of the jigsaw.
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
1 Loosen the 2 screws at the
bottom of the jigsaw using
the hex key.
4 Once the angle is
correct, slide the
shoe forward for the
pin to make contact.
3
2
1
1 Align the tabs on the adaptor with the recess in the extraction port,
then rotate clockwise to secure in position.
2 To remove, rotate anti-clockwise and pull away from the tool.
3
2
1
3
2
1
3 Tilt the shoe to the
desired angle using the
measurements.
Note: If the shoe doesn’t rotate,
you may need to loosen the 2
screws further.
2 Slide the parallel guide into
the slots under the locking
screws. Once positioned,
tighten the locking screws.

3
2
1
3
2
1
4. CONTROLS
The lock-on switch allows the jigsaw to continue operating without
having to hold the on/off switch down.
The cutting speed should be adjusted to match the material of the
workpiece. In general, use faster speeds for softer materials.
The jigsaw has a pendulum action feature which enables the blade to
cut faster and more efciently in thick and softer materials. See below
for a guide on choosing the correct setting.
1 To use the pendulum action,
rotate the pendulum action
selector anti-clockwise to a
higher setting.
2 To use standard cutting action,
rotate the pendulum action
selector clockwise to a lower
setting.
3
2
1
3
2
1
5. CONTROLS CONTINUED
OPERATION
Adjusting the Cutting Speed
Adjusting the Cutting Action
0 - No pendulum action for ne clean cuts
on thin or hard materials
1 - Small pendulum action for faster
cutting on hard materials
2 - Medium pendulum action for faster
cutting on softer materials
3 - Large pendulum action for fast cutting
along the grain on soft materials.
CAUTION! TO REDUCE THE RISK OF ELECTRICAL
SHOCK, THE USE OF A RESIDUAL CURRENT DEVICE
(RATED 30mA OR LESS) IS RECOMMENDED.
3 To stop the tool, squeeze
and release the on/off
trigger.
1 Hold in the on/off trigger,
then press the lock on
button.
Lock-On Button
2 You can now release the on/
off trigger & lock on button.
3
2
1
a
b
3
2
1
3
2
1
1 To start cutting, squeeze the
on/off trigger.
2 To stop cutting, release the
on/off trigger.
On/Off Trigger 1 For faster speeds, rotate the
variable speed dial to a higher
number.
For slower speeds, rotate the dial
to a lower number.

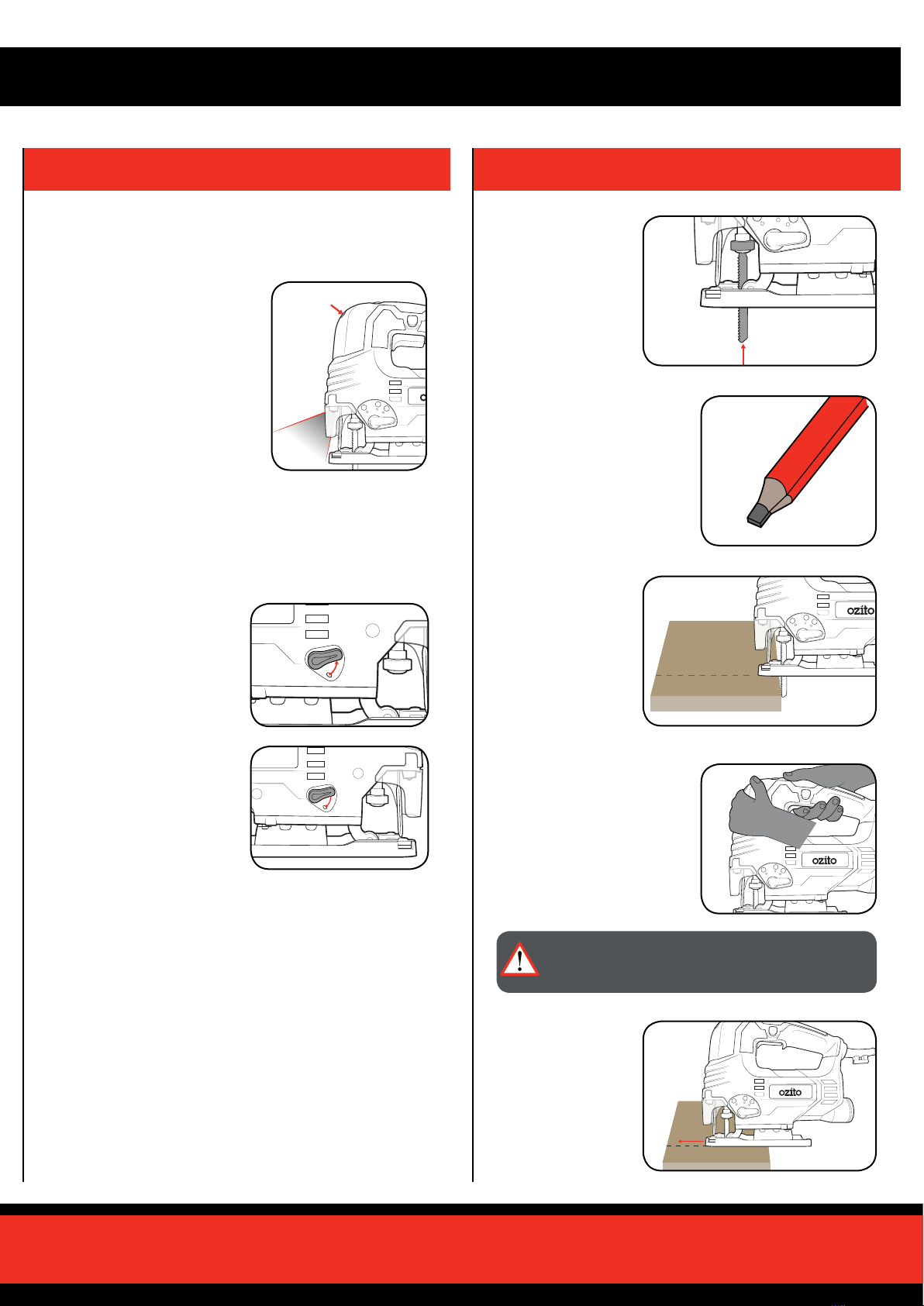

6. CONTROLS CONTINUED 7. CUTTING
The worklight will illuminate the path in front of the jigsaw to help you
see the cutting path.
The jigsaw features a blower function that allows air from the internal
fan to ow out of a vent, pushing away dust from the cutting path
making it easier for you to follow a cutting line.
1 Rotate the blower switch anti-
clockwise to enable the blower
function.
2 Rotate the blower switch
clockwise to disable the blower
function.
Turning on the Worklight
Blower Function
JSW-8100
2 Mark your cutting line with a
pencil or attach the parallel
guide.
4 Hold the jigsaw rmly ensuring
that your hands cannot slip
down onto the blade and start
the jigsaw by depressing the
on/off switch.
3
2
1
1 Ensure the correct
blade is inserted into
the blade lock and is
secure.
3 Place the base onto
the workpiece with
the blade away from
the edge.
5 Move jigsaw forward
with light pressure.
Allow the blade to
stop before lifting the
jigsaw away.
3
2
1
3
2
1
3
2
1
1 To turn the worklight on, press the
worklight switch in.
2 To turn the worklight of, press the
worklight switch again.
3
2
1
CAUTION! ENSURE HANDS AND FINGERS ARE KEPT
WELL AWAY FROM THE BLADE AND THE CUTTING
PATH AT ALL TIMES TO AVOID INJURIES.

TROUBLESHOOTING
Excessive sparking visible through the housing air vents
and/or the jigsaw failing to operate
May indicate the carbon brushes have worn out and need to be
replaced. Carbon brushes should only be replaced by a qualied
electrician or power tool repairer.
Cutting Metal
Your jigsaw can be used for cutting light gauge ferrous sheet and non-ferrous
metals such as copper, brass, aluminium, etc. It is advisable when cutting sheet
metal to clamp a backing sheet of soft wood or plywood to the work as this will
enable you to obtain a clean cut without vibration and the possibility of tearing the
metal. Both metal and wood backing are sawn together. Do not force the cutting
blade into the metal as this will reduce the life of the blade and possibly damage
the motor. Cutting thin metal will take longer than cutting even a relatively thick
piece of wood, so do not be tempted to speed up the operation by forcing the
saw. Spread a thin lm of oil along the proposed cutting line before commencing
to saw metal. Always select the right blade for the job.

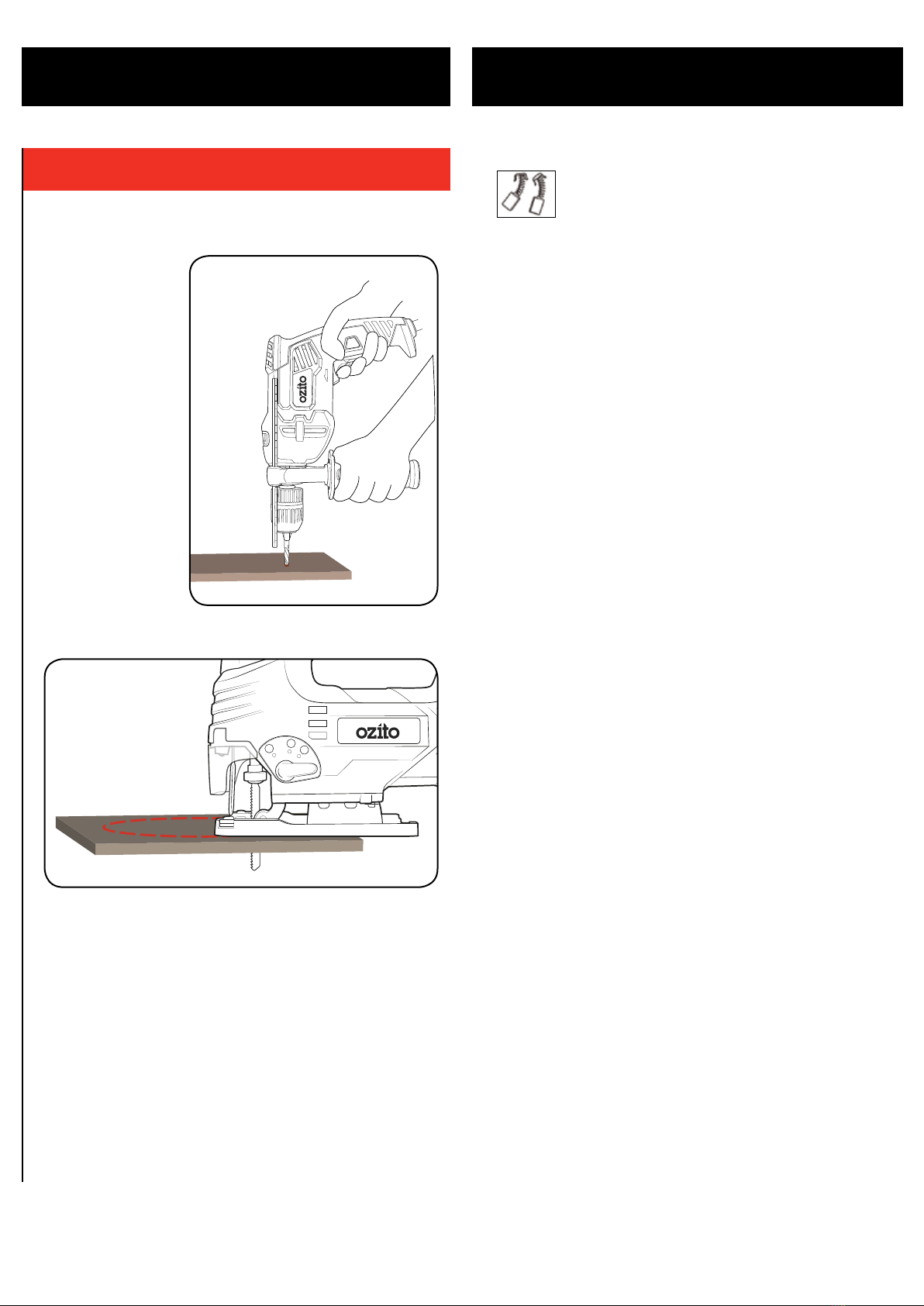

9. POCKET CUTTING
A pocket cut is when you need to cut a hole in the middle of a
workpiece
OPERATION
2 Pass the blade through the hole and begin the cut.
3
2
1
1 Drill a hole in the
workpiece using a
drill bit.

Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
MAINTENANCE
DESCRIPTION OF SYMBOLS CARING FOR THE ENVIRONMENT
1. After each use, blow air through the tool housing to ensure it is free from all
dust particles that may build up. Build up of dust particles may cause the tool to
overheat and fail.
2. If the enclosure of the tool requires cleaning do not use solvents but a moist
soft cloth only. Never let any liquid get inside the tool; never immerse any part
of the tool into a liquid.
Carbon Brushes
When the carbon brushes wear out, the jigsaw
will spark and/or stop. Discontinue use as soon
as this happens. They should be replaced prior to
recommencing use of the jigsaw. Carbon brushes
are a wearing component of the jigsaw therefore
not covered under warranty. Continuing to use the
jigsaw when carbon brushes need to be replaced
may cause permanent damage to the jigsaw. Carbon
brushes will wear out after many uses but when the carbon brushes need to be
replaced, take the jigsaw to an electrician or a power tool repairer for a quick
and low cost replacement. Always replace both carbon brushes at the same
time.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the jigsaw by an unauthorised person or by mishandling
of the jigsaw.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions per minute
Double insulated Regulator compliance mark
Warning
no No load speed
Read instruction manual

WARNING! The tool is recommended for use with a residual current
device with a rated residual current of 30mA or less.
1. Hold power tool by insulated gripping surfaces when performing an
operation where the cutting accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a “live” wire may make exposed metal parts of
the power tool “live” and could give the operator an electric shock.
2. Remove all nails in the work piece before using the jigsaw. Cutting nails may
damage your tool.
3. Do not cut hollow pipe with the jigsaw
4. Do not cut material thicker or of a wider diameter than the specied limits.
5. Always allow enough clearance underneath the work piece to ensure the blade
does not touch the oor or work bench, etc.
6. Hold the tool at a comfortable distance from your body. Do not over reach to
access the work piece.
7. Do not touch moving parts with your ngers or hand. 8. Do not cut through walls or
cavities without rst checking for hidden electrical wires.
9. Ensure that you have tightened the blade prior to starting the machine. 10. When
you have nished the cut, wait until the saw blade has stopped moving prior to
removing it from the work piece.
11.Do not touch the saw blade immediately after use. Allow time for the blade to cool,
as it may burn you due to the heat generated during sawing.
12.Always check accessories to ensure that they are suitable for the operating
speeds of this tool.
13.Incorrect accessories can break apart at high speed and cause serious damage
or injury.
This appliance is not intended for use by young or inrm persons unless
supervised by a responsible person to ensure that they can use the appliance
safely. Young children should be supervised to ensure that they do not play with the
appliance.
JIGSAW SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The manufacturer cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
This product has been designed for 230-240V only. Always check that the power supply corresponds to the
voltage on the rating plate.
Note: The supply of 230-240V is interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire is required.
The power supply for this product should be protected by a residual current device (rated at 30mA or less). A
residual current device reduces the risk of electric shock.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available
through the service organization.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
