Ozito PRS-012 User manual

CORDLESS
PRUNING
SAW
12V Lithium Ion
INSTRUCTION MANUAL
PRS-012
WHAT’S IN THE BOX
Cordless Pruning Saw
ozito.com.au
3 x Cutting Blades
Battery Charger & Battery
Clamping Jaw
SPECIFICATIONS
Voltage: 12V
Stroke Length: 20mm
No Load Speed: 0-2700SPM
Battery: 1.5Ah Li-ion
Charge Time: 1 Hour
Max. Cutting Diameter: 60mm (with clamping jaw)
80mm (w/o clamping jaw)
Weight: 1.40 kg

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
KNOW YOUR PRODUCT SETUP & PREPARATION
1. ASSEMBLY
1 Cutting Blade
2 Clamping Jaw
3 Shoe
4 Blade Holder
5 Clamping Jaw Release
6 Safety Switch
7 Variable Speed Trigger
8 Battery Release Tab
CORDLESS PRUNING SAW
9 Battery Charger 10 Wood Blade (6 TPI) x 3
ACCESSORIES
1 2 3 4
9 10
5 6 7 8
WARNING! ENSURE THE BATTERY IS DISCONNECTED
FROM THE TOOL BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.
Fitting the Clamping Jaw
2 Align the upper tab of the
clamping jaw with the hole in
the saw housing.
4 Push the clamping jaw tab
into the hole in the housing
and release the clamping jaw
release.
Note: Ensure the clamp is
secured by pulling the
clamp away from the body.
1 Slide the clamping
jaw up over the
shoe.
3 Press and hold the
clamping jaw release
into the unlock
position.
The clamping jaw allows branches to be gripped, providing cutting of
unsupported branches easier. When cutting wider branches or timber,
the clamping jaw can be removed and the pruning saw can be used as
a standard reciprocating saw.
The clamping jaw can not be tted or removed with the blade tted.
If the blade is tted, rst remove the blade and then follow the steps
below.

2. CUTTING BLADES
CAUTION! DO NOT HANDLE BLADES WITHOUT GLOVES
AS THEY ARE SHARP AND CAN BECOME HOT AFTER
USE, POTENTIALLY CAUSING PERSONAL INJURY.
2 Insert the cutting blade into the
blade holder.
2 Remove the cutting blade from
the blade holder.
2 Pull the clamping jaw away
from the saw body.
1 Rotate and hold
the blade holder
clockwise.
1 Rotate and hold
the blade holder
clockwise.
3 Release the blade
holder and ensure
the blade is secure
by pulling on the
blade.
1 Press and hold the
clamping jaw release
into the unlock
position.
3 Lower the clamping
jaw from the shoe to
remove.
The pruning saw can be tted with standard reciprocating saw blades,
therefore can be used to cut various timbers and plastics. If the
clamping jaw is going to be used, ensure it is tted before installing the
blade.
Fitting a Cutting Blade
Removing the Cutting Blade
Removing the Clamping Jaw

PRS-012
3. BATTERY AND CHARGING 4.
CONTROLS AND OPERATION
OPERATION
WARNING! THE POWER SUPPLY FOR THIS CHARGER
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30MA OR LESS). A RESIDUAL CURRENT
DEVICE REDUCES THE RISK OF ELECTRIC SHOCK.
Installing and Removing the Battery Switching the Saw On and Off
Cutting Branches Using the Clamping Jaw
Cutting Without the Clamping Jaw
Charging the Battery
2 To remove, push the battery
release tabs on both sides of
the battery and then remove
from the tool.
2 Release the variable speed
trigger to stop the pruning saw.
2 Place the branch in between
the clamping jaws and then
lower to perform the cut.
2 Plug the charger into a power
socket and the red charging
light should illuminate.
1 Push the battery into
the battery seating
at the rear of the
pruning saw until it
clicks into place.
1 Push the safety
switch in from either
side of the tool
and then squeeze
the variable speed
trigger to start the
pruning saw.
1 Ensure the blade
and the clamping jaw
is secured correctly
and hold the saw
rmly.
1 Position the shoe
of the saw onto
the material to be
cut for stability and
then perform the
cut holding the saw
rmly.
When cutting thicker branches or sawing wood or plastic the clamping
jaws can be removed to prevent them getting in the way of the cut.
1 Place the battery
into the seating of
the charger.
3 Once the battery
is fully charged
the green light will
illuminate.
Note: It will take 4-5 charging cycles before the battery reaches
optimum charge and run time.

Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
MAINTENANCE

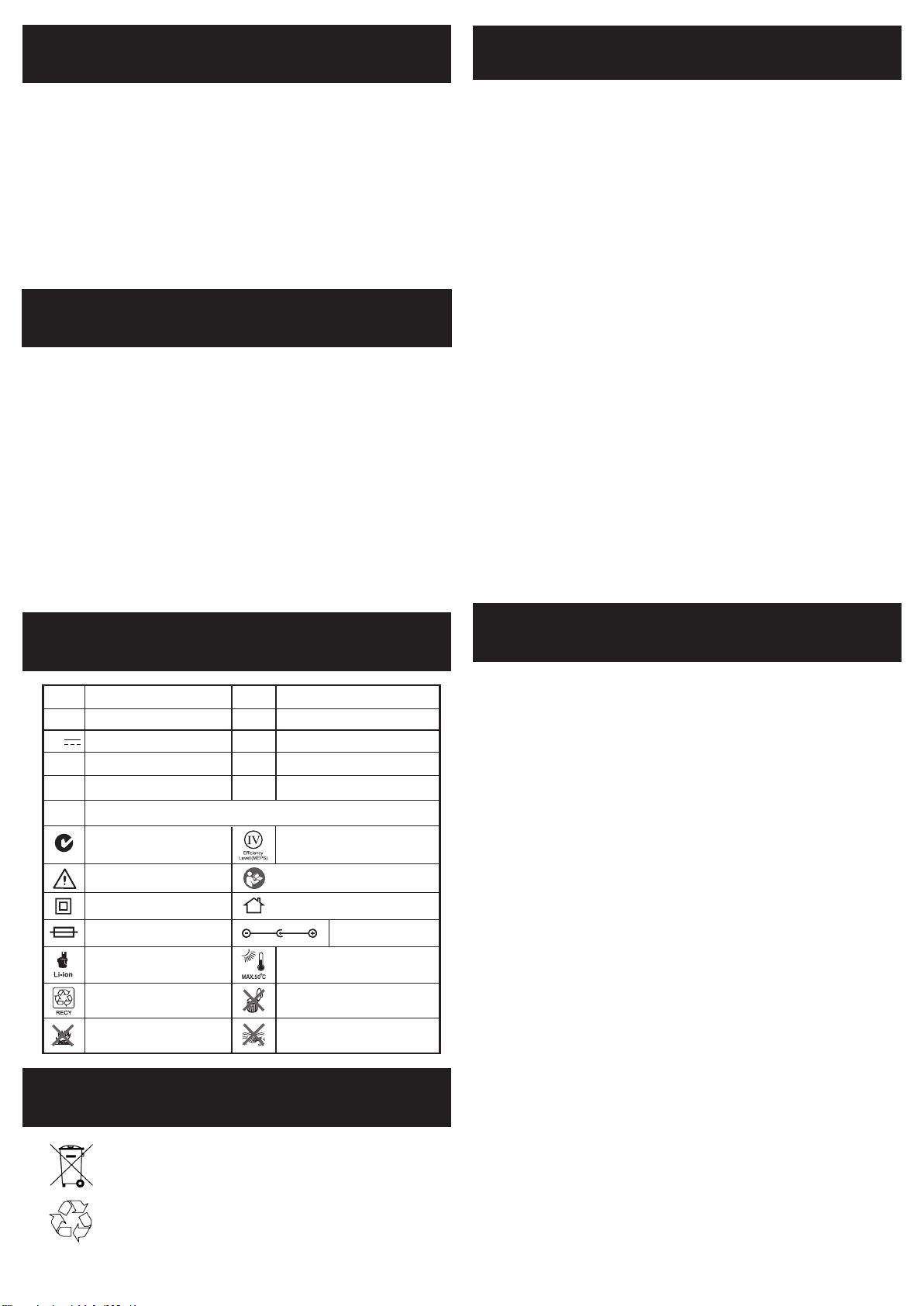

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
1. When not in use, the tool should be stored in a dry, frost free
location, keep out of children’s reach.
2. Keep ventilation slots of the saw clean at all times and prevent
anything from entering.
3. If the housing of the saw requires cleaning, do not use solvents.
Use of a cloth only is recommended.
4. Blow out the ventilation slots with compressed air periodically.
5. The blade can be sprayed with light oil to avoid rusting.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the pruning saw by an unauthorised
person or by mishandling.
Spare Part Part No.
Battery pack SPPRS012-45
Battery charger SPPRS012-47
Trigger switch SPPRS012-39
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
BATTERY AND CHARGER SAFETY WARNINGS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery
pack and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any other
use may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that may
result in excessive internal heat. Place the charger in a position away from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when
disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise sub-
jected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper extension
cord could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged
in any way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when service or
repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any clean-
ing. Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach or
exceed 40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts). Do not
attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions and then
follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is charged when the
air temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature
below 10ºC or above 40ºC. This is important and will prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The
battery can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack
breaks or cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
Warning Read instruction manual
ø Diameter
mA Milliamperes
Recycle battery Do not put in the rubbish
Polarity
Do not incinerate Do not get battery wet
Thermal cut-out protection
Transformer Energy
Rating (MEPS)
Double insulated
/min Revolutions or reciprocation per minute
Ah Amp hour
Indoor use only
Lithium Ion battery Do not use or store battery in
temperatures exceeding 50ºC
Electrical Emissions
Conformity (EMC)
Nm Newton Meters no No load speed
VVolts Hz Hertz
ac/~ Alternating current WWatts
Direct current
dc/
LED lights do not illuminate on charger
Check the charging adaptor is securely plugged into the wall outlet.
Check the battery is rmly connected to the charging cradle.
The battery has a short run time
Ensure the battery is properly charged. It will take 4-5 charging cycles
before the battery reaches optimum charge and run time.
Variable speed trigger is locked
Ensure that the safety switch is pressed left or right to enable the trigger
to be pressed.
The blade will not insert or remove from the blade holder
Ensure the blade holder is rotated completely clockwise before trying to
insert or remove the blade.
Saw has cut out during use
The battery may have run out of power and requires charging. If the
battery is fully charged, it is likely that the battery’s thermal voltage
protection has been activated. This can happen when the saw has been
used for extended periods.
Place the battery on the charger for an hour. It will need this time to cool
down and for the protection circuits to be reset.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.

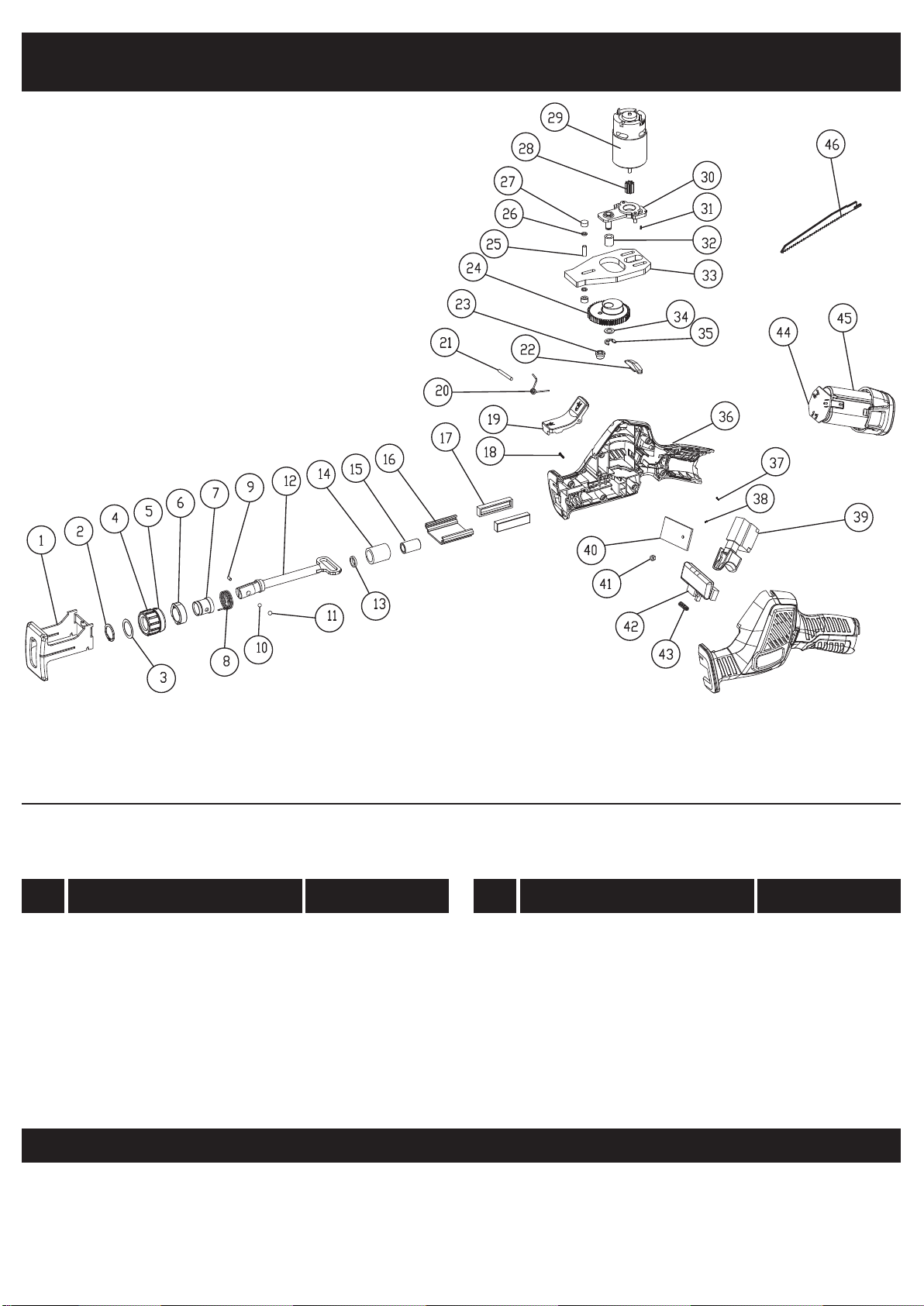

SPARE PARTS Tool: Cordless Pruning Saw
Model No. PRS-012
Item
No. Description Part No.
How To Order
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
Tool: 12Volt Pruning Saw Model No. PRS-012
Item
No. Description Part No.

PRUNING SAW SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The manufacturer cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
This charger has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V is interchangeable for Australia and New Zealand.
This tools charger is double insulated in accordance with AS/NZS 60745-1; therefore no earth wire
is required.
The power supply for this products charger should be protected by a residual current device (rated at 30mA or
less). A residual current device reduces the risk of electric shock.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on
the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
• Keep all parts of the body away from the saw blade when the saw is operating. Before you start
the pruning saw, make sure the saw blade is not contacting anything. A moment of inattention while
operating saws may cause entanglement of your clothing or body with the saw blade.
• Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs
and feet is recommended. Adequate protective clothing will reduce personal injury by ying debris or
accidental contact with the saw blade.
• Do not operate a pruning saw in a tree. Operation of a pruning saw while up in a tree may result in
personal injury.
• Always keep proper footing and operate the pruning saw only when standing on xed, secure
and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control
of the saw.
• When cutting a limb that is under tension be alert for spring back. When the tension in the wood
bres is released the spring loaded limb may strike the operator and/or throw the pruning saw out of
control.
• Use extreme caution when cutting brush and saplings. The slender material may catch the saw
blade and be whipped toward you or pull you off balance.
• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss
of control.
Kickback
Kickback may occur when the nose or tip of the blade touches an object, or when the wood closes in and
pinches the saw blade in the cut.
Tip contact in some cases may cause a sudden reverse reaction, kicking the blade up and back towards the
operator.
Pinching the saw blade along the top of the guide bar may push the saw rapidly back towards the operator.
Either of these reactions may cause you to lose control of the saw which could result in serious personal
injury. Do not rely exclusively upon the safety devices built into your saw. As a pruner saw user, you should
take several steps to keep your cutting jobs free from accident or injury.
Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided
by taking proper precautions as given below:
• Maintain a rm grip, with thumbs and ngers encircling the pruning saw handles, with both hands on
the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be
controlled by the operator, if proper precautions are taken. Do not let go of the pruning saw.
• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and
enables better control of the pruning saw in unexpected situations.
• Only use replacement blades specied by the manufacturer. Incorrect blades may cause blade breakage
and/or kickback.

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Lithium Ion batteries are covered
by a 12 month warranty. Warranty excludes consumable parts, for
example: blades, etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1214
