Ozito LTR-300 User manual

Motor: 500W
Input: 230-240V ~ 50Hz
No load speed: 11,000/min
Cutting diameter: 300mm
Line diameter: 1.5mm x 4.5m
Feed type: Semi-Automatic
Weight (tool only): 2.7kg
1. Main Handle
2. On/Off Switch
3. Cord Retainer
4. Handle Locking Knob
5. Telescopic Shaft Collar
6. Head Angle Lock Button
7. Safety Guard
8. Edging Wheel
9. Cutter Head
10. Rotating Head Lock Button
11. Telescopic Shaft
12. Auxiliary Handle
2
SPECIFICATIONS - MODEL NO. LTR-300
12
10
1
3

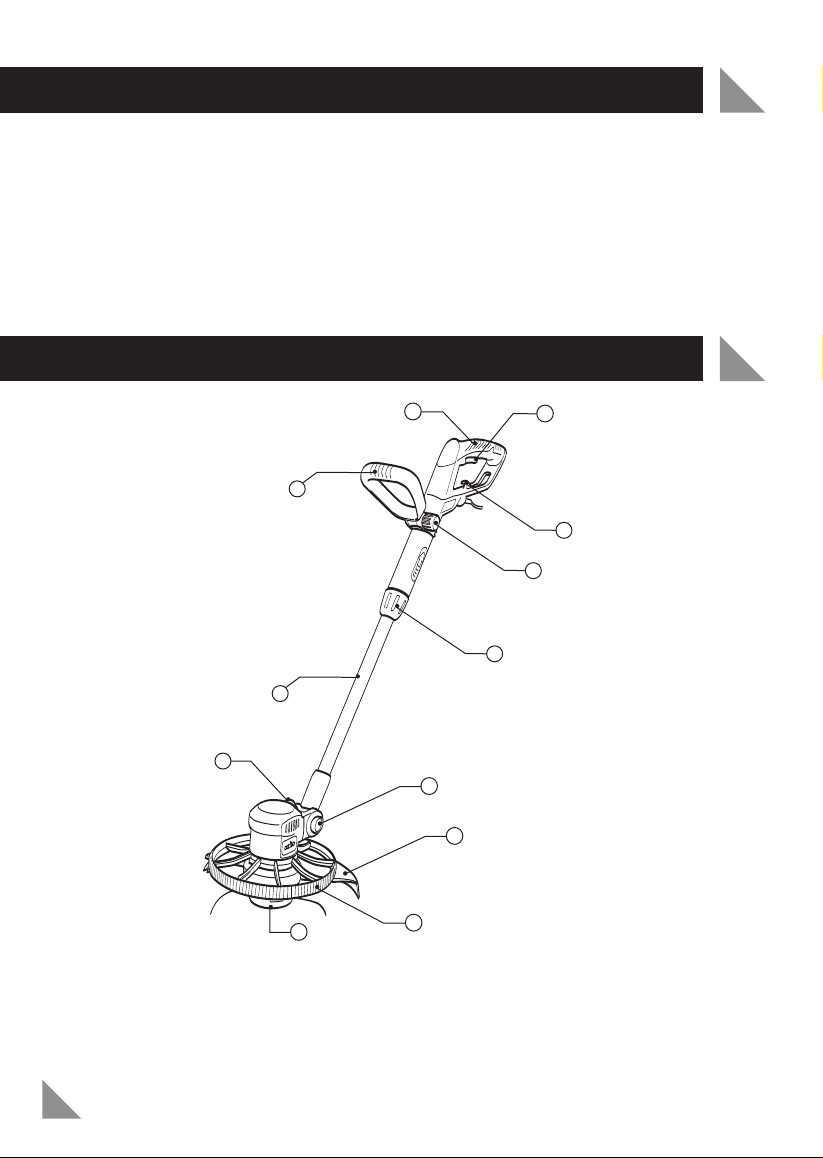

KNOW YOUR PRODUCT
2
4
5
6
7
8
9
11

3
TABLE OF CONTENTS
SPECIFICATIONS ………………………………………..
INTRODUCTION…………………………………………
ELECTRICAL SAFETY…………….………………………
GENERAL SAFETY WARNINGS…………………………
LINE TRIMMER SAFETY WARNINGS
………………….
ASSEMBLY………………………………………………..
OPERATION………………………………………………
MAINTENANCE…………….……………………………
SPARE PARTS …………….……………………………...
DESCRIPTION OF SYMBOLS ………………………….
PACK CONTENTS ………………………………………
WARRANTY………………………………………………
Page 2
Page 4
Page 4
Page 5
Page 7
Page 9
Page 10
Page 12
Page 14
Page 14
Page 15
Page 16

INTRODUCTION
4
Congratulations on purchasing an Ozito Line Trimmer.
We aim to provide quality tools at an affordable price.
We hope you will enjoy using this tool for many years.
Your Line Trimmer LTR-300 has been designed for
trimming lawn edges and grass around shrubs and
trees. This product is intended for DIY use only.
WARNING! When using mains-powered equipment, basic safety
precautions, including the following, should always be followed to reduce
risk of fire, electric shock, personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future
reference.
The electric motor has been designed for 230V and 240V only. Always check that
the power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60335;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by a qualified electrician or a
power tool repairer in order to avoid a hazard.
If operating a power tool in a damp location is unavoidable use a residual current
device (RCD) protected supply Use of an RCD reduces the risk of electric shock.
Note: Double insulation does not take the place of normal safety precautions
when operating this tool. The insulation system is for added protection against
injury resulting from a possible electrical insulation failure within the tool.
Using an extension lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective. When using an extension
lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may
result in a risk of fire and electric shock.
ELECTRICAL SAFETY
!
!
!
!

5
GENERAL POWER TOOL SAFETY WARNINGS
!
!
WARNING! Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool" in all of the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energising power tools
that have the switch on invites accidents.
!
!

6
GENERAL POWER TOOL SAFETY WARNINGS
!
!
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.

7
LINE TRIMMER SAFETY WARNINGS
!
!
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make exposed metal parts of the power tool
"live“ and could give the operator an electric shock.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
Using an Extension Lead
Extension Cords shall be not lighter than:
• if rubber insulated, ordinary tough rubber sheathed flexible cord (code designation
60245 IEC 53);
• if polyvinyl chloride insulated, ordinary polyvinyl chloride sheathed flexible cord
(code designation 60227 IEC 53).
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing. Replace
the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an
extension lead not suitable for the power input of the tool or which is damaged or
defective may result in a risk of fire and electric shock.
It is recommended that the extension lead is a maximum of 25m in length. Do Not use
multiple extension leads.
•Before use check the supply and extension cord for signs of damage or aging. If
the cord becomes damaged during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE
SUPPLY. Do not use the line trimmer if the cord is damaged or worn.
•Keep extension cord away from cutting line.
•Never allow children or people unfamiliar with these instructions to use the
line trimmer.
• Avoid using the line trimmer, while people, especially children or pets, are nearby.
• Use the line trimmer only in daylight or good artificial light.
• Never operate the line trimmer with damaged guards or without guards in place.
• Switch on the line trimmer only when the hands and feet are away from the
cutting head.
• Never fit metal cutting blades.
• Use only the manufacturer's recommended replacement parts and accessories.
•Always disconnect the line trimmer from the mains when leaving the line
trimmer unattended.

8
LINE TRIMMER SAFETY WARNINGS (cont.)
!
!
• Disconnect the line trimmer from the mains before carrying out maintenance
or cleaning work.
• Inspect and maintain the line trimmer regularly. Have the line trimmer
repaired only by an authorized repairer.
• Take care against injury from the blade(s) fitted for trimming the cutting line
length. After extending new cutting line, always return the line trimmer to its
normal operating position before switching on.
• When not in use, store the line trimmer out of the reach of children.
• Face the cutting head away from yourself, other people and animals while the
power is connected to the line trimmer (especially during operation).
•Disconnect the power when changing spools or clearing grass from under
the guard.
• Disconnect the power from the line trimmer before making any adjustments.
• Use both handles.
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of
oil and grease.
•Never reach underneath the line trimmer (the cutting line area) until it has
completely stopped and the power has been disconnected.

9
WARNING! Before assembly, make sure that the line trimmer is switched off
and unplugged .
Fitting the edging wheel
1. Align both halves of the edging wheel (8) onto the
line trimmer housing as shown (Fig. 1).
2. Secure the edging wheel (8) in place with the two
screws supplied using a Phillips head screwdriver (Fig. 2).
3. When secured ensure that the edging wheel is free to
rotate on the housing.
Fitting the safety guard
1. Align the safety guard (7) with the screw holes in the
base of the motor housing and secure it with the two
screws supplied (Fig. 3).
WARNING! Never use the line trimmer unless the
safety guard is properly fitted.
Fitting the auxiliary handle
1. Rotate the bracket to the
foreside of the main
handle (1) (Fig. 4).
2. Place the auxiliary handle
(12) on the bracket and
adjust the angle to a
comfortable position.
3. Insert bolt through the
bracket and auxiliary handle (12), screw the auxiliary handle locking knob (4) onto
the bolt. Do not overtighten (Fig. 5).
ASSEMBLY
!
!
Fig. 1
Fig. 2
Fig. 3
Fig. 4
!
!
Fig. 5
Align
Align
Secure
Secure
Align
Holes
Align
Holes
Handle
Bracket 4

10
Preparing the line trimmer for use
WARNING! The line trimmer runs for a few seconds after it has been
switched off. Let the motor come to a complete standstill before setting
the tool down.
Telescopic shaft adjustment (Fig. 6)
1. The line trimmer shaft can be adjusted to suit the
height of the operator.
2. Loosen the telescopic shaft collar (5) by rotating in
a clockwise direction.
3. Adjust the telescopic shaft (11) up or down to the
appropriate height. Tighten the telescopic shaft
collar (5) once adjustment is complete.
Manually increasing the cutting line (Fig. 7)
1. Before starting ensure the cutting line is the
correct length.
2. Push the tab on the side of the spool housing
and then pull on the end of both pieces of line
protruding from the spool housing until it extends
a few centimetres past the edge of the safety
guard (7).
3. Carefully peel off the tape over the cutting blade if
you have not already done so.
Semi-Automatic line feed
1. Depress the On/Off switch and allow the line trimmer to reach full speed.
2. Release the On/Off switch and allow the line trimmer to come to a stop or
until you hear a click. repeat steps 1 & 2 until required length is achieved.
Adjusting the cutting head (Fig. 8)
By adjusting the cutting head angle to any of the 11
preset angles the line trimmer can be used to trim
under low hanging branches and shrubs or garden
furniture.
Depress the head angle lock button (6) and adjust the
cutting head to the desired angle. Release the button
(6) and ensure that the cutting head locks in position.
OPERATION
Fig. 6
Fig. 7
Fig. 8
!
!
5
11
7Remove
Tape
Line
Tab
6

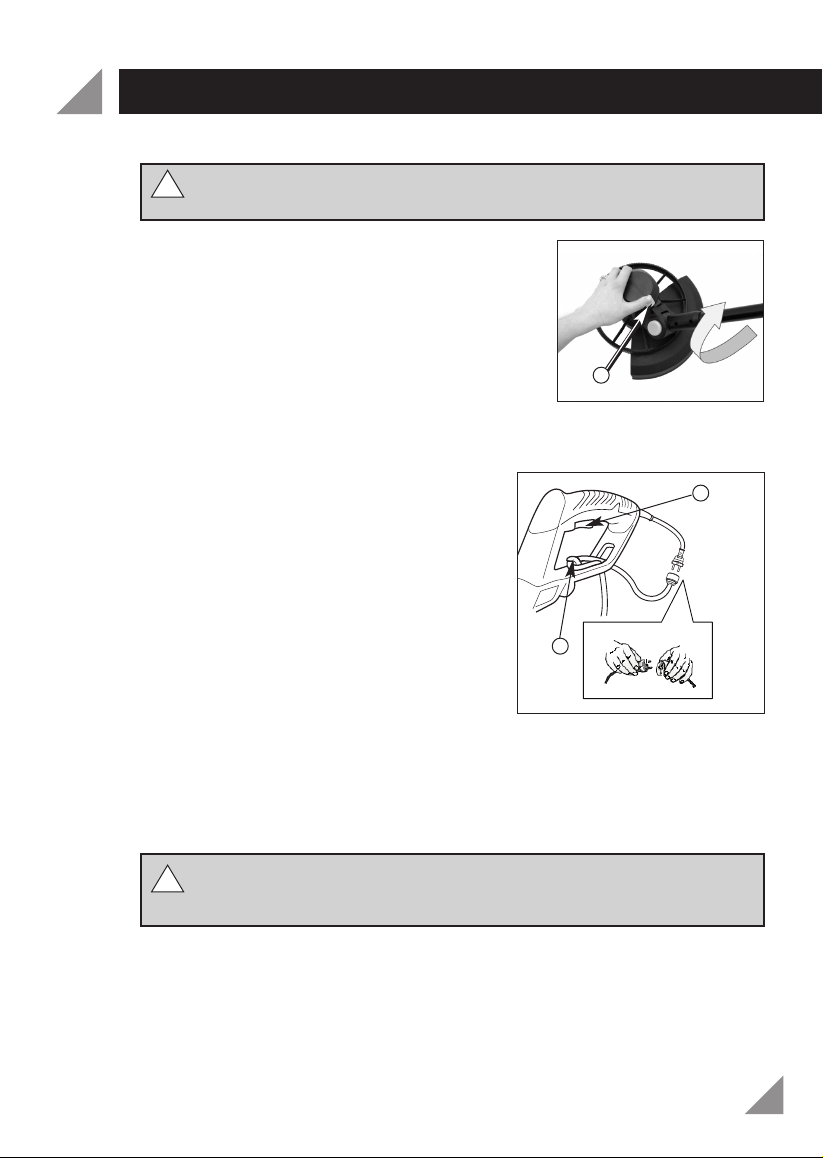

Edging mode (Fig. 11)
WARNING! Before making this change, make sure that line trimmer is
switched off and unplugged.
In order to use the line trimmer as an edger, adjust
as follows:
1. Push the rotating head button (10) on the motor
housing, then rotate the housing to the edging
position.
2. Release rotating head button (10), ensure the motor
housing firmly clicks into position and you hear the
“click” sound.
3. The trimmer can now be used for edging.
Extension cord retainer (Fig. 9)
To avoid detaching the extension cord always
check that it is attached to the cord retainer (3)
before using trimmer.
1. Make a loop with the extension cord and push
it through the square hole under the grip of
the On/Off switch (2).
2. Place the end of the loop round cord retainer
(3) and ensure it is pulled firmly enough to
prevent it from coming loose whilst operating
the trimmer.
3. Connect the extension cord socket to the line
trimmer cord plug.
Starting the line trimmer
1. Connect the extension cord to a power supply.
2. To switch ON the line trimmer press the On/Off switch (2).
3. To switch OFF simply release the On/Off switch (2).
WARNING! The line trimmer runs for a few seconds after it has been
switched off. Let the motor come to a complete standstill before setting the
tool down.
11
OPERATION (cont.)
Fig. 9
!
!
2
3
!
!
Fig. 11
10

12
OPERATION (cont.)

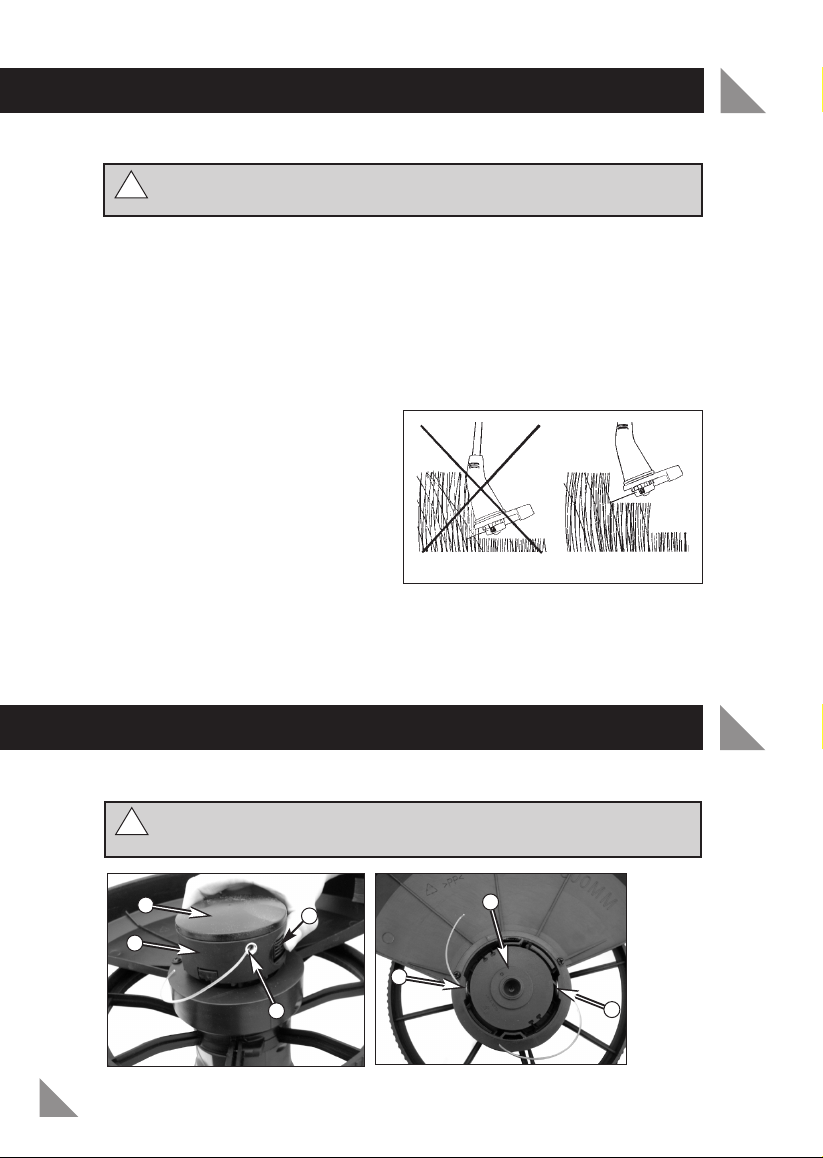

Trimming
WARNING! Make sure that the work area is free of rocks, debris, lines and
other foreign objects.
Your line trimmer will work at its best if you observe the following instructions:
• Never use the line trimmer without its safety devices.
• Do not cut grass when it is wet. The best results are achieved on dry grass.
• To switch ON your line trimmer, press the On/Off switch (2).
• To switch OFF your line trimmer, let go of the On/Off switch (2).
• Do not move the line trimmer against the grass until the switch is pressed, i.e.
wait until the line trimmer is running before placing in grass.
• For the correct cutting action, swing
the line trimmer from side to side as
you walk forward, holding it at an
angle of approx. 30° as you do so.
•Make several passes to cut long
grass shorter step by step from the
top (Fig. 10).
•Keep the line trimmer away from hard
objects in order to avoid unnecessary
line wear.
Note: Periodically clean out the grass between the spool and the rim of the guard to
prevent the tool from vibrating, ensure the line trimmer is switched off and unplugged.
Removing & replacing the spool & line assembly (Fig. 12a & Fig.12b)
WARNING! Before making this change, make sure that line trimmer is
switched OFF and unplugged.
Replacement spool & line can be purchased from your local Bunnings store. The
Ozito ACCLT-05 spool & line is compatible with the LTR-300 line trimmer.
!
!
Fig. 12b
Fig. 12a
a
c
g
e
g
g
f
!
!
Fig. 10
MAINTENANCE

Fig. 13
a
b
j
f
d
d
1. Turn your line trimmer upside down.
2. Depress both tabs (e) on both sides of the spool housing and remove the spool
cover (a) from the spool housing (c).
3. Remove the empty spool (f) from the spool housing (c).
4. Remove any dirt and grass from the spool cover (a) and spool housing (c).
5. Secure the ends of each line (a) either side into the notches (d) leaving 10cm of
cutting line (a) for feeding into the two eyelets (g).
6. Insert the rewound spool (f) into the spool housing (c). Rotate the spool (f) slightly
until it is seated.
7. Align the tabs (e) on the spool cover (a) with the cut outs in the spool housing (c).
Then push the spool cover (a) back into the spool housing (c) until the clips (e) click
into position.
8. Pull each end of the line (a) to release from the notches (d).

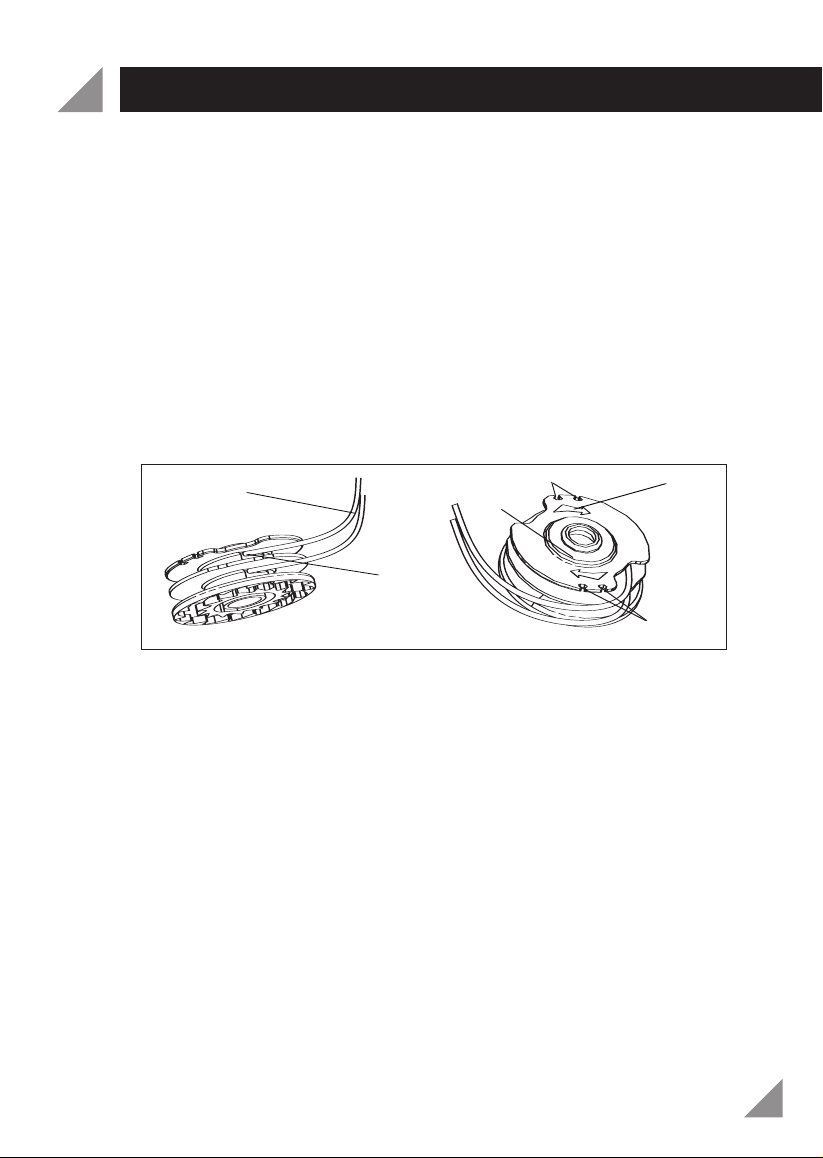

Winding new line onto a spool (Fig. 13)
You may wind new cutting line onto an empty spool. Cutting line is available from any
Bunnings Warehouse. Only use cutting line that is 1.5mm (solid) or 1.6mm (twisted) in
diameter, using different line can result in poor performance or damage the motor.
1. Remove the empty spool from the line trimmer as described above steps 1-4.
2. Remove any remaining cutting line from the spool.
3. Measure no more than 10 metres of new line. Divide the line evenly so you find
the half-way point and cut in half.
4. Place each end of the cutting line through the hole in the spool (b) to lock it in place.
5. Wind the cutting line (a) onto the spool (f) in the direction of the arrow (j). Make
sure to wind the line (a) on neatly and in layers. Do not cross the line as this will
stop it from feeding.
6. Complete winding the line and ensure that the line does not protrude past the end
of the spool (f) edge.
7. Secure the ends of each line (a) either side into the notches (d) leaving 10cm of
cutting line (a) for feeding into the two eyelets (g).
8. Insert the rewound spool (f) into the spool housing (c). Rotate the spool (f) slightly
until it is seated.
9. Align the tabs (e) on the spool cover (a) with the cut outs in the spool housing (c).
Then push the spool cover (a) back into the spool housing (c) until the clips (e) click
into position.
10. Pull each end of the line (a) to release from the notches (d). 13
MAINTENANCE (cont.)

14
MAINTENANCE (cont.)
• Keep the ventilation vents of the tool clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the tool housing to ensure it is free from all
dust particles which may build up. Build up of dust particles may cause the
tool to overheat and fail.
• If the enclosure of the tool requires cleaning do not use solvents but a moist
soft cloth only. Never let any liquid get inside the tool; never immerse any part
of the tool into a liquid.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the tool by an unauthorised person or by mishandling of the tool.
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Spool Cover SPLTR300-01
Spool & Line ACCLT-005
SPARE PARTS
Warning Read instruction manual
VVolts Hz Hertz
~ Alternating current WWatts
n o No load speed
Double insulated
/min Revolutions or reciprocation per minute
Regulator compliance mark
Wear eye protection
Wear hearing protection Keep bystanders away
Do not operate in the rain
Keep bystanders away Keep bystanders away
Disconnect and discontinue use should the power-cord be damaged
DESCRIPTION OF SYMBOLS

15
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
OZITO INDUSTRIES PTY LTD
1 x Line Trimmer
1 x Safety Guard
2 x Screws ST4.2x15 (for fitting guard)
1 x Spool & Line (fitted)
1 x Edging Wheel
AUSTRALIA (Head Office)
1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: [phone]
Facsimile: [phone]
Website: www.ozito.com.au
Email: [email protected]
PACK CONTENTS
2 x Screws ST3x12 (for fitting edging wheel)
1 x Auxiliary Handle
1 x Locking Knob & Nut for Auxiliary Handle
1 x Instruction Manual

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD
BE RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt.
PURCHASED FROM:________________________________________________
DATE PURCHASED: ________________________________________________
2 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of
purchase under the following conditions: Professional, industrial or high frequency
use will VOID this warranty.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on
the unit.
• If the tool shows signs of damage or defects caused by or resulting from abuse
accidents or alterations.
• If the tool has been disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as carbon brushes, batteries,
sanding pads, blades, discs, drill bits, collets and router bits.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
