Ozito PXCPHTA-400 User manual

CORDLESS POLE
HEDGE TRIMMER HEAD
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 18V
Cutting Length: 400mm
Max. Cutting Capacity: 12mm
No Load Speed: 1,700/min
Weight: 1.57kg
PXCPHTA-400
WHAT’S IN THE BOX
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE
WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING
YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Ofce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benets provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer service helpline
above.
ozito.com.au
0617
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specied on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty. Warranty excludes consumable parts, for example blades, blade
cover.
Blade Cover
Hedge Trimmer Head

ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.

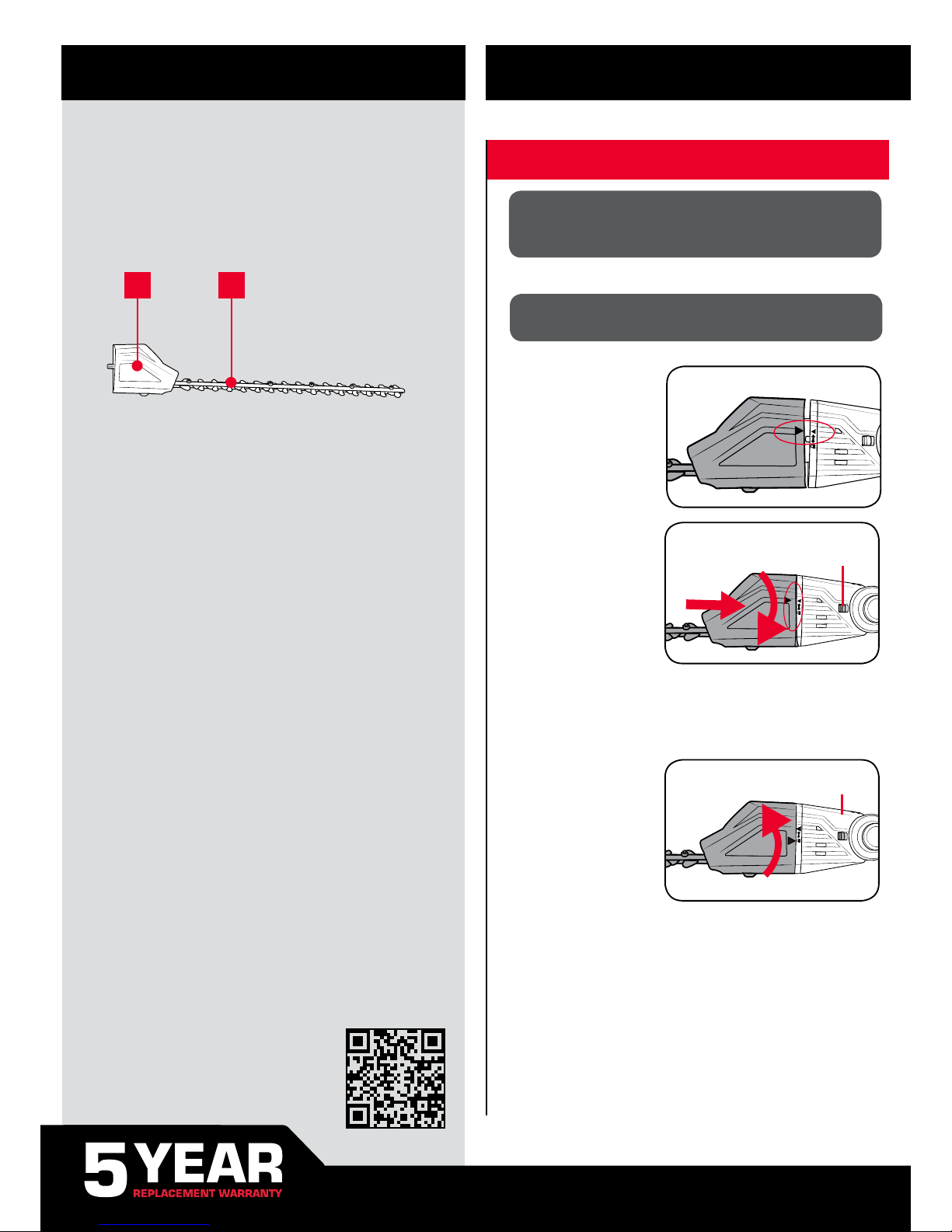

KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
POLE HEDGE TRIMMER HEAD
1. Trimmer Head
2. Blade
1 2
CAUTION: ENSURE THE TOOL IS OFF & THE BATTERY
REMOVED BEFORE PERFORMING ANY OF THE FOLLOWING
OPERATIONS.
Note: The Lock Button will “CLICK” back to the left (original position) when
the trimmer head is correctly secured in place.
CAUTION: THE BLADE HAS SHARP EDGES. FOR YOUR OWN
SAFETY, PLEASE WEAR WORK GLOVES.
Fitting Trimmer Head
1. Align the Trimmer head
and the motor head so the
arrows on both coincide.
2. (a) Press the trimmer head
against the motor head.
This will cause the lock
button to be pushed to the
right.
(b) Turn the trimmer head
clockwise. The trimmer
head will lock onto the
motor head and is then
secured in place.
Lock Button
a
b
Removing Trimmer Head
Motor Head
a
b
1. (a) Pull and hold the Lock
Button to the right.
(b) Turn the Trimmer
Head anti-clockwise so
the arrows on the Motor
Head and the Trimmer
Head coincide, allowing
the Trimmer Head to be
removed.

2. PREPARATION
Adjusting the Rear Handle
Adjusting the telescope length
1. To unlock the telescopic tube lock, twist it in a
clockwise direction while pointing the trimmer
blade away from the user.
2. Pull out the telescopic tubes to suit the required working height.
1. Press the two pivoting
handle releases, one
each side and adjust
the angle of the handle
up or down to any of 4
positions.
Note: The locking and unlocking
directions are indicated on
the locking collar.
3. To lock in the desired position, twist the telescopic tube lock in a counter-
clockwise direction.
Adjusting the Additional Handle
a
b
a
b
a
b
a
b
1. (a) Open the handle lever and
set the required (b) tilt of the
additional handle, close to lock
into position.
2. (a) Open the mounting bracket
lever and (b) slide the additional
handle into the required position,
close to lock into position.
2. Wear the shoulder strap
so that it lies over the left
shoulder.
1. Fasten to the shoulder strap
holder on the main tube.
Attaching the Shoulder Strap
Pivoting the Trimmer Head
1. Press the two pivoting
head releases, one each
side and adjust the angle
of the trimmer head
up or down to any of 7
positions.

3. APPLICATIONS
OPERATION
PXCPHTA-400
WARNING!: FAMILIARISE YOURSELF WITH
SURROUNDING HAZARDS SUCH AS POWER LINES,
PHONE LINES, METAL FENCES AND OTHER OBJECTS
THAT COULD BE IN YOUR TRIMMING PATH, FAILURE
TO DO SO COULD RESULT IN ELECTRICAL SHOCK,
PERSONAL INJURY OR DAMAGE TO YOUR POLE
HEDGE TRIMMER.
WARNING!: NEVER USE THE POLE HEDGE TRIMMER
WHEN STANDING ON A LADDER OR UNEVEN
GROUND. DO NOT OVERREACH. ALWAYS USE BOTH
HANDS TO HOLD THE POLE HEDGE TRIMMER.
CAUTION: ENSURE APPROPRIATE CARE IS TAKEN WHEN
CUTTING ABOVE SHOULDER HEIGHT.
• Working position. Maintain proper
footing and balance and do not overreach.
Wear safety goggles, non-slip footwear
and rubber gloves when trimming. Hold
the pole hedge trimmer firmly in both
hands before turning the pole hedge
trimmer on. Always hold the pole hedge
trimmer with one hand on the rear handle
and one hand on the auxiliary handle.
Trimming
• Trimming new growth.
Using a wide sweeping motion,
feed the blade teeth through the
twigs. A slight downward tilt
of the blade, in the direction of
motion gives the best cut.
15°
Note: Do not use the pole hedge trimmer for cutting stems greater than
12mm. Use the trimmer only for cutting normal shrubbery found
around houses and buildings.
• Level hedges. To obtain exceptionally level hedges a piece of string
can be stretched along the length of the hedge as a guide.
• Side-trimming hedges. Hold the pole hedge trimmer and begin
at the bottom and sweep up.
• Cutting sequence. First cut both sides, starting at the bottom and
work to the top: this prevents cuttings from falling into the area where
you are still working.
• General information. When older hedges are to be cut back a
substantial amount, use pruning shears or some other device to trim
thicker branches (greater than 12mm diameter) to the desired length
before starting work with the pole hedge trimmer. Ensure the blades do
not come into contact with any object made of hard material that could
damage the blades, such as wire fencing or metal plant supports.
• Trimming the top.
Where the branches have
grown extremely long, cut
back the hedge in several
stages.
CAUTION!: IF THE BLADES COME IN CONTACT WITH
A HARD OBJECT, VISUALLY INSPECT THE BLADE
FOR DAMAGE. IF THE BLADE IS DAMAGED, DO NOT
CONTINUE TO OPERATE THE POLE HEDGE TRIMMER.
15°

MAINTENANCE
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of with household waste
but in an environmentally friendly way. Please recycle where facilities exist. Check
with your local council authority for recycling advice.
Recycling packaging reduces the need for landll and raw materials. Reuse of recycled
material decreases pollution in the environment. Please recycle packaging where
facilities exist. Check with your local council authority for recycling advice.
WARNING: BEFORE CLEANING YOUR POLE HEDGE
TRIMMER OR CARRYING OUT ANY MAINTENANCE
PROCEDURE, ENSURE THE TOOL IS OFF & THE BATTERY
REMOVED.
•When not in use, the Hedge Trimmer Head should be stored in a dry, frost
free location not within the reach of children.
•If the enclosure of the Hedge Trimmer Head requires cleaning do not use
solvents but a moist cloth only.
•There are no user serviceable parts in the Hedge Trimmer Head; if a fault is
suspected, please contact Ozito customer service.
•The blade rail should be cleaned and treated with light machine oil or spray
lubricant (such as WD40, CRC 5.56 or RP7) after each use. When a job lasts
for a longer period of time it is recommended that the blade rail also be
treated with spray lubricant at regular intervals during operation.
Wear eye, ear and head protection
Read instruction manual
Do not use in the rain or leave the pole hedge trimmer outdoors
while raining.
Regulator compliance mark
Wear safety gloves Keep bystanders away
10 m
102
Maintain a minimum clearance of 10 m from current-carrying lines.
Life-threatening danger from electric shock.
Sound pressure levelWear safety boots
Keep hands away from blade
-¹
Do not use or store battery
in temperatures exceeding
50ºC
Hertz
Alternating Current
Milliamperes
Watts
Amp Hour
Ah
W
Hz
ac/~
mA
Lithium Ion Battery
Do not put in the rubbish
Do not get battery wet
Recycle Battery
Do not incinerate
Thermal cut out protectionIndoor use only

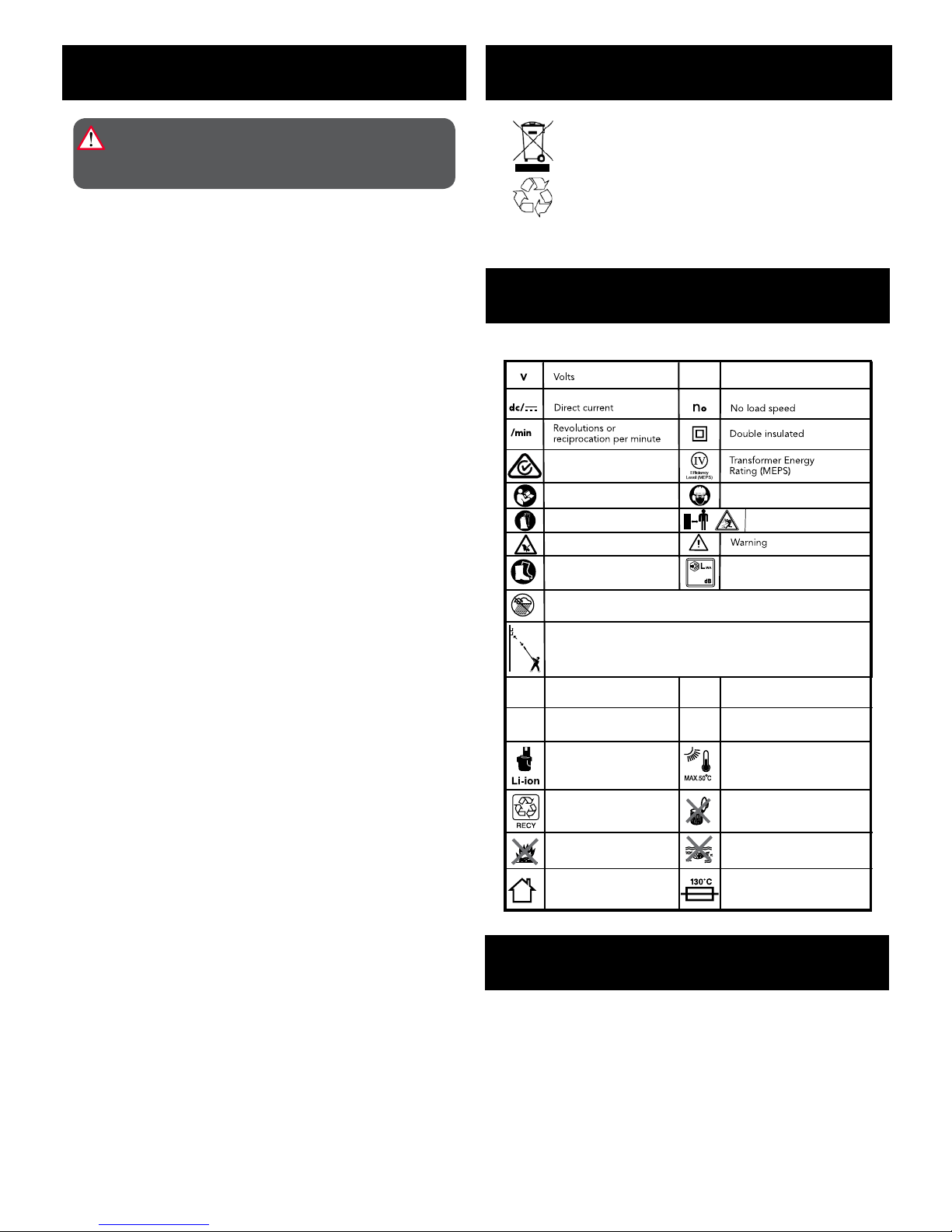

DESCRIPTION OF SYMBOLS

WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of fire, electric shock, personal
injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating
plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tools charger is double insulated in therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for
added protection against injury resulting from a possible electrical insulation failure within the tool.
The power supply for this products charger should be protected by a residual current device (rated at 30mA or less). A residual current
device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
POLE HEDGE TRIMMER SAFETY WARNINGS
• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold
material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment
of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When
transporting or storing the hedge trimmer always t the blade cover. Proper handling of the hedge trimmer will
reduce possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade
may contact hidden wiring or its own cord. Cutter blades contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give the operator an electric shock.
• Perform visual inspection on the hedge being trimmed. Ensure that there are no wire fences
or foreign objects that may come into contact with the Pole Hedge Trimmer during operation.
• Inspect and maintain the Pole Hedge Trimmer regularly. Have the Pole Hedge Trimmer
repaired by an authorized repairer.
• Never allow children or people unfamiliar with these instructions to use the Pole Hedge Trimmer.
• Avoid using the Pole Hedge Trimmer, while people, especially children or pets are nearby.
• Use the Pole Hedge Trimmer only in daylight.
• Never operate the Pole Hedge Trimmer with a damaged cutting blade.
• Switch on the Pole Hedge Trimmer only when hands and feet are away from the cutting blades.
• Use only manufacturer’s recommended replacement parts and accessories.
• Always disconnect the battery from the Pole Hedge Trimmer and put the blade cover on when leaving the Pole Hedge
Trimmer unattended.
• Disconnect the battery from the Pole Hedge Trimmer before carrying out any maintenance or cleaning work.
• When not in use, store the Pole Hedge Trimmer out of the reach of children
• Face the cutting blades away from yourself, other people and animals while the power is connected to the Pole
Hedge Trimmer (especially during operation).
• Use both handles and shoulder strap.
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil and grease.
• Never reach underneath the Pole Hedge Trimmer cutting blades until it has completely stopped and the power has
been disconnected.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a person responsible for their
safety.
