Ozito PXLTS-1830 User manual

STANDARD EQUIPMENT
PXLTS-1830
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V
No Load Speed: 8,500/min
Cutting Width: 300mm
Cutting Line: Ø1.6 x 5m max.
Line Feed: Bump
Noise Rating: 94dB
Weight: 2.10kg
ozito.com.au
0623
Line Trimmer
Safety Guard & Screw
LINE
TRIMMER
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria 3175, Australia
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts, for example: cutting line, spool, spool cover.
Guide Wheels

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
Blade
Bracket
Bracket
Blade
1. Blade
2. Tilting Head Lock
3. Rotating Head Lock
4. Additional Handle
5. Adjustable Handle Lock
6. Safety Switch
7. Sure Grip Handle
8. On/Off Trigger
9. Battery Seating
10. Shaft Lock
11. Telescopic Shaft
12. Rotating Head Adjustment
13. Guide Wheels
14. Safety Guard
15. Cutting Line
16. Edging Guide
This tool is compatible with all batteries & chargers from the Ozito
PXC range.
CORDLESS LINE TRIMMER
BATTERY & CHARGER
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
1 2 3 4 5 7 8
9
10
11
16
14
WARNING! ENSURE THE LINE TRIMMER IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
Fitting the Safety Guard
1. Turn the trimmer
upside down and
place the safety
guard over the motor
housing.
WARNING! NEVER USE THE LINE TRIMMER UNLESS
THE SAFETY GUARD IS PROPERLY FITTED.
12
15
WARNING! ALWAYS USE GLOVES WHEN HANDLING
THE BLADE. SHARP EDGES COULD CAUSE INJURY.
2. Ensure the safety guard is
positioned up against the
motor housing with no gap.
3. Secure the safety guard
to the motor housing with
supplied screw in the hole
provided.
Fitting the Guide Wheels
1. Push the guide wheels onto the metal mounting bracket from above
until the wheels latch into place.
4. A blade on the underside
of the safety guard
automatically cuts the cutting
line to length. It is provided
with tape. Remove the tape before starting work.
13
6

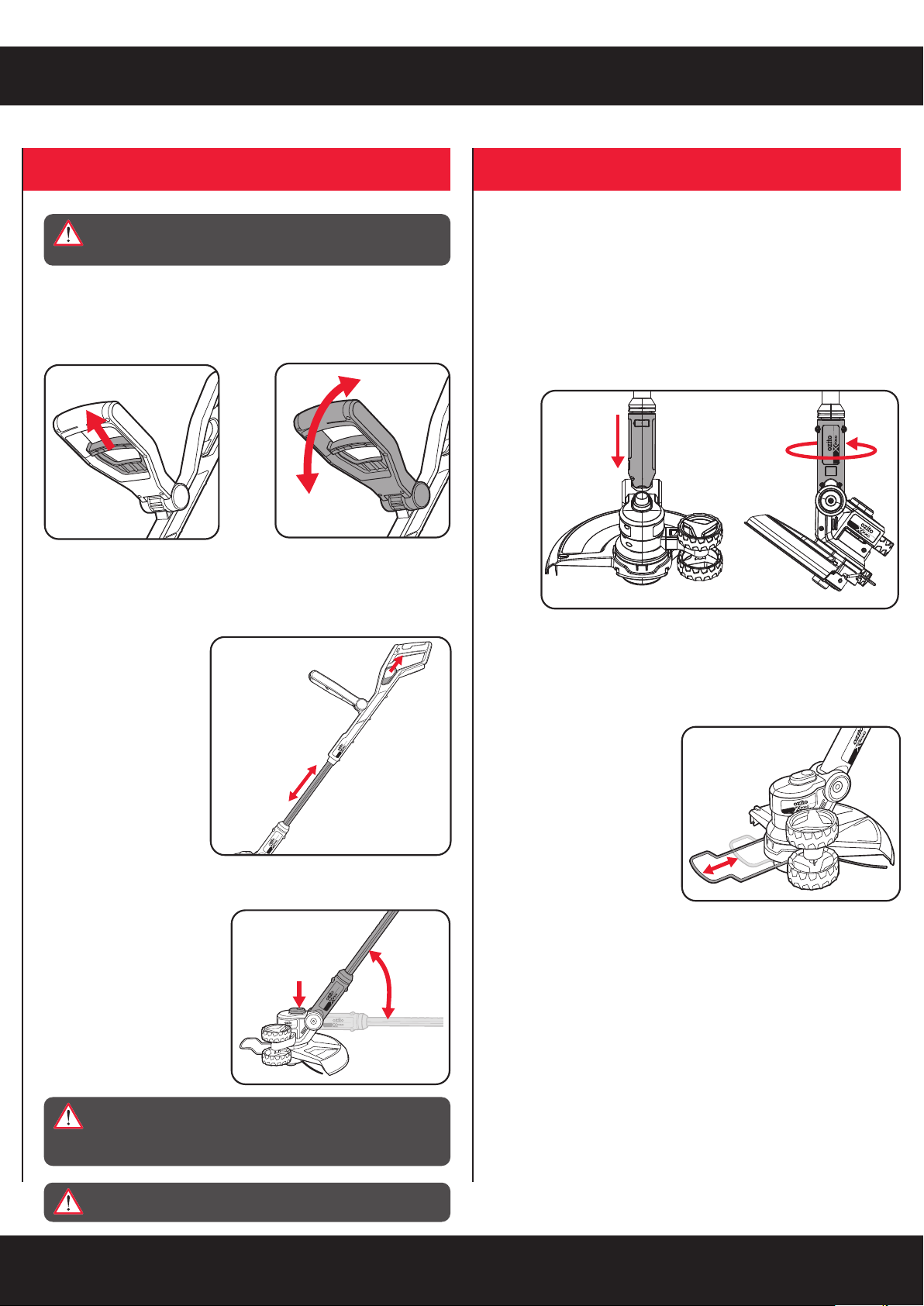

2. ADJUSTMENTS
Adjusting the Additional Handle
Adjusting the Working Height
1. Pull the shaft lock and
adjust the telescopic
shaft up or down to the
required working height in
any of the preset working
positions.
2. Release the shaft lock
to allow the telescopic
shaft to latch in place.
Only operate when the
telescopic shaft is locked
in position.
Adjusting the Tilting Angle
1. Depress the tilting head lock
to allow the handle to tilt.
2. Set the handle to the required
angle. To x the angle of tilt,
release the button and allow
the handle to lock into one of
four available positions.
WARNING! TO PREVENT PERSONAL INJURY OR
DAMAGE TO THE LINE TRIMMER ENSURE THE TILTING
ANGLE IS LOCKED IN ONE OF THE FOUR POSITIONS
BEFORE OPERATING.
Adjusting the Edging Guide
Extend the edging guide to
prevent the cutting head from
getting too close to an object
such as a tree trunk or wall.
There are two locking points,
minimum or maximum guide
length.
To change the position of the
edge guide after it has latched
in place, pull or push it out of
the lock.
Adjusting the Rotating Head Position
The line trimmer is tted with a 90°rotating head to allow for edging
and trimming. To switch between the two, the head must be rotated
following the steps below.
1. Hold the telescopic shaft rmly with one hand and pull the rotating
head adjustment away, out of the rotating head lock.
2. Turn the rotating head adjustment 90°anti-clockwise until it latches
in position.
WARNING! ENSURE THE LINE TRIMMER IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
3. Release the handle lock to allow the additional handle to latch
into position. Only operate when the handle is locked in place.
1. Release the additional
handle lock.
2. Tilt the handle to a preset
working position, 5 in total.
WARNING! DO NOT PUT FULL WEIGHT ON THE TILTING
HEAD LOCK.
3. To rotate head to original position, rotate adjustment 90° clockwise
until it latches in position.

“CLICK”
PRESS
“CLICK”
PRESS
Bump Line Feed
The line trimmer is fitted with a bump feed function which allows the
line to be fed without stopping the line trimmer. If the line trimmer is
not cutting correctly the line
may need to be fed using
this feature.
1. While the line trimmer is
still on, simply bump the
head of the trimmer on
the ground to allow the
line to feed out.
2. The bump feed will
automatically lock once
off the ground so that the
line will stop feeding.
If the line does not feed out, check if there is any tangles in the line or if
the line needs to be replenished. Refer to “Replacing the spool/
clearing jams and tangled lines” section and follow the
instructions as needed.
OPERATION
WARNING! DO NOT OPERATE THE LINE TRIMMER ON
A TREE, ON A LADDER, OR ON SCAFFOLD. THIS IS
EXTREMELY DANGEROUS.
3. INSERTING & REMOVING THE BATTERY
Inserting the Battery
1. Align the ribs of the
battery with the recess
below the handle and
push in until it clicks into
place.
WARNING! BEFORE YOU START THE UNIT, MAKE SURE
THAT THE LINE TRIMMER IS NOT MAKING CONTACT
WITH ANY OBJECTS.
Removing the Battery
1. Press and hold the battery
release tab as you slide the
battery out.
4. CONTROLS
Switching On & Off
1.Press and hold the safety switch
then squeeze the on/off trigger
to start the line trimmer.
WARNING! THE LINE TRIMMER MAY RUN FOR A FEW
SECONDS AFTER IT HAS BEEN SWITCHED OFF. LET
THE MOTOR COME TO A COMPLETE STANDSTILL
BEFORE SITTING THE TOOL DOWN.
Run Time
The operating time of the PXC battery (the area that can be covered
with a single battery charge) is largely dependent on the state of the
grass (e.g. Density, moisture, height, etc.) and the rate of work (walking
speed).
Frequently turning the equipment on and off while trimming will also
reduce the runtime and area that you can cover. If the operating time
of the PXC battery (area coverage) is still unsatisfactory in spite of the
above measures, you can remedy the problem by using PXC batteries
with a larger capacity (Ah).
2.To stop the line trimmer,
release the on/off trigger.
WARNING! DO NOT BUMP THE HEAD ON ANY HARD
SURFACES SUCH AS CONCRETE OR BRICK, THIS
COULD CAUSE DAMAGE TO THE LINE TRIMMER.

30°
30°
30°
5. USING THE LINE TRIMMER
PXLTS-1830
WARNING! STONES, PIECES OF METAL AND OTHER
OBJECTS CAN BE THROWN OUT AT HIGH SPEED BY
THE CUTTING LINE.
WARNING! INSPECT THE AREA TO BE TRIMMED AND
REMOVE ANY WIRE, CORD OR STRING-LIKE OBJECTS
WHICH COULD BECOME ENTANGLED IN THE ROTATING
SPOOL & LINE.
• Hold the trimmer with both handles for best control and balance.
• Do not push the line against hard material (rocks or concrete) during
cutting as this may result in damaged line.
• Never use the line trimmer without its safety devices.
•. Do not cut grass that is wet (The best results are achieved on dry
grass).
•. Wait until the line trimmer reaches full speed before cutting the
grass.
• Keep the line trimmer away from hard objects in order to avoid
unnecessary wear to the line.
• Several passes will be
required to cut long grass as
shown.
• To prevent the line from
breaking ensure you approach
the edge/object slowly.
• Watch out for kickbacks in
the event of impact with hard
objects.
• After finishing the cutting
operation, keep the head
close to ground level, release the on/off trigger and allow the motor
to come to a complete standstill. Remove battery and place the line
trimmer on the ground.
• Keep ventilation slots of the trimmer clean at all times. Periodically
clean out the grass from the cutting head and the rim of the safety
guard to ensure efficient operation at all times.
WARNING! DO NOT CONTINUALLY TAP, BUMP OR
HOLD THE CUTTER HEAD ON THE GROUND AS THIS
MAY RESULT IN DAMAGE TO THE SPOOL HOLDER OR
OVERLOAD THE UNIT.
Trimming
Move the line trimmer from side
to side as you walk forward,
holding it at an angle of approx.
30° (Light cuts are better than
heavy cuts as they allow the
cut grass to fall away from the
cutting head).
Use only the tip of the cutting line to do the trimming especially near
walls and fences. Trimming with the side of the cutting line may
overload the motor, wear out the line faster, and break the line more
often.
Edging
Place the Guide Wheels along the
ground and slid the line trimmer
along the edge of the footpath,
driveway etc.
WARNING! BYSTANDERS MUST KEEP A MINIMUM SAFE
DISTANCE OF 15M AWAY ROM THE LINE TRIMMER
WHILE IT IS OPERATING.
WARNING! ALWAYS WEAR STURDY, NON-SLIP
FOOTWEAR, LONG TROUSERS, SAFETY GLASSES AND
HEARING PROTECTION WHEN USING THE EQUIPMENT.
NEVER USE THE EQUIPMENT BAREFOOT OR IN SANDALS.
The line trimmer is designed for cutting lawns and grassed areas. The
equipment is intended for private use i.e. for use in home and gardening
environments. Public facilities, parks, sporting grounds, along roadways,
or agriculture and forestry are excluded.

15cm
15cm
15cm
15cm
15cm
15cm
MAINTENANCE
WARNING! ALWAYS ENSURE THE LINE TRIMMER HAS
COMPLETELY STOPPED AND THE BATTERY IS REMOVED
PRIOR TO ANY MAINTENANCE.

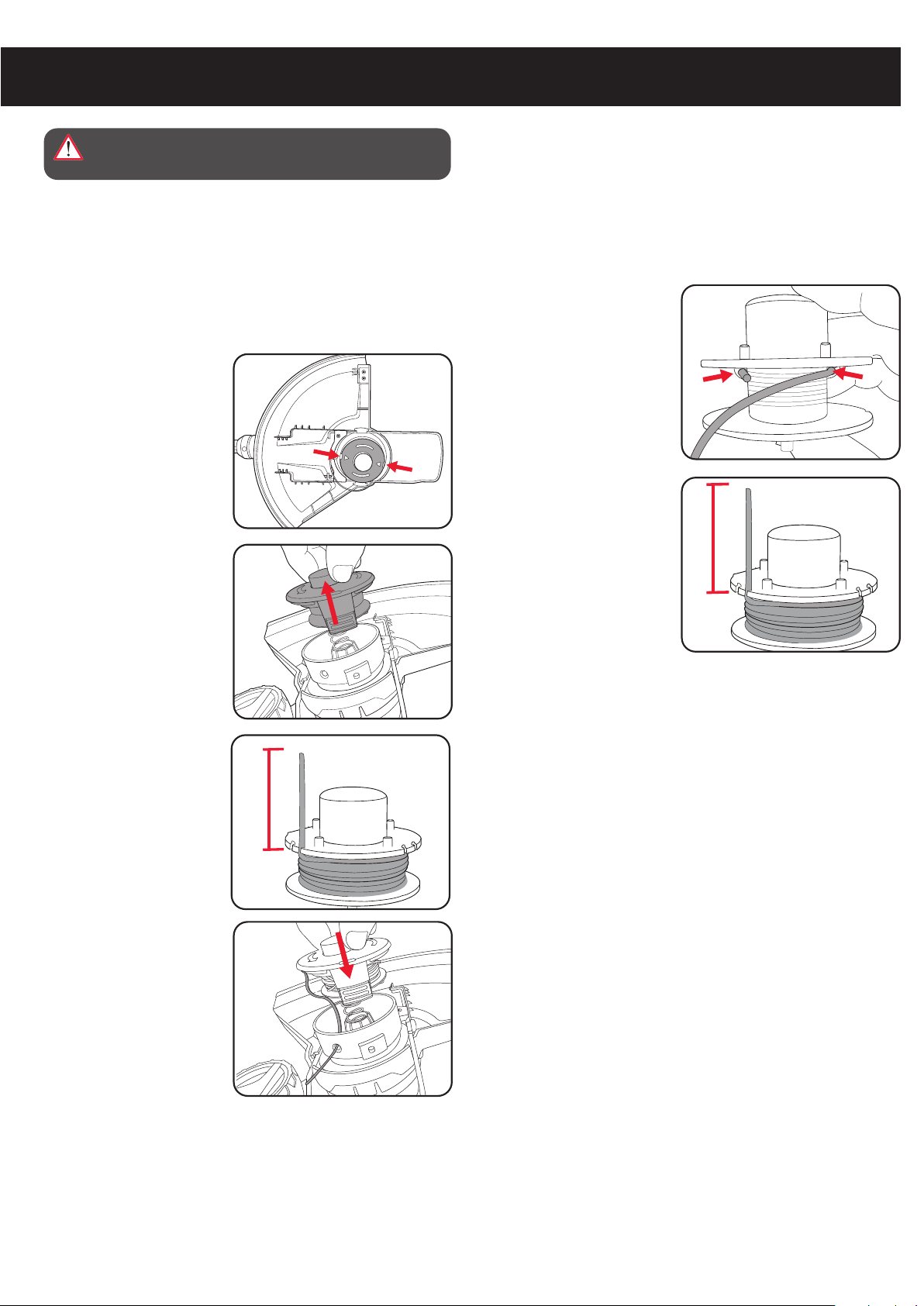

Replacing the Spool/Clearing Jams and Tangled
Lines
From time to time, especially when cutting thick or stocky weeds, the line cutter
spool housing may become clogged with sap or other material and the line will
become jammed as a result. To clear the jam, follow these steps.
1. Turn off the line trimmer and
remove the battery.
2. Press the release tabs on the line
spool cover and remove the cover
by pulling it straight off.
3. Lift the spool of nylon line out of
the spool housing and clear any
broken line or cutting debris from
the spool area.
Note: Take care not to misplace
the spring.
4. In case of jams and tangled line,
unwrap about 15cm of line to
ensure that it is undamaged.
5. If it is OK, insert the spool into
the spool housing and thread the
end of the line through the eyelet.
6. Unclip the end of the line if
necessary by pully the line
sharply to release it from the
notch.
7. Snap the spool cover back onto
the spool housing ensuring the
spring is in place.
8. Turn the line trimmer back to its normal orientation, insert the battery and turn
the line trimmer on. If the length of the line is excessive, you’ll hear it being
cut automatically to the proper length.
Winding New Line onto Empty Spool
Replacement Ø1.6mm bulk line for your line trimmer is available from your local
dealer. To install, follow steps:
1. Remove the spool as described in steps 1 - 3 of the “Replacing the
spool/clearing jams and tangled lines” section.
2. Using Ø1.6mm line, cut a length of line approximately 5m long. Only use
Ø1.6mm replacement line, anything larger will cause stress
on the motor and will
void the warranty.
3. Thread the end of the line into
the hole in the spool and hold
in place
4. Wind the line around the spool
in the direction of the arrow on
the top of the spool. Make sure
to wind the line on neatly and in
layers. Do not cross the line as
this will stop it from feeding.
5. When the length of line is wound
onto the spool place the end
of the line into the clips in the
outside of the spool. Leaving
about 15cm protruding from the
spool. Do this to ensure that the
line doeas not unravel while the
spool is being loaded.
6. Re-t the line & spool as described in steps 5-8 of the “Replacing the
spool/clearing jams and tangled lines” section.
Cleaning, Storage & Transport
• Keep air vents of the line trimmer clear or debris to prevent overheating. After
each use, blow air through the vents to ensure it is free from a build up of
grass, dust or dirt particles.
• Periodically clean out the grass from the cutting head and the rim of the
safety guard to ensure efcient operation at all times.
• If the housing of the trimmer requires cleaning, do not use solvents but a
moist soft cloth or soft brush only.
• Never let any liquid get inside the machine, never immerse any part of the
line trimmer into liquid.
• No lubrication is necessary as the line trimmer has sealed bearings.
• When not in use, the line trimmer should be stored in a dry, frost free location
not within the reach of children.
• Switch the machine off and remove the batteries before transporting it.
• Always carry the tool with both handles. Do not carry the line trimmer by the
motor housing.
• Secure the machine against slipping if transporting in vehicles.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by repair of the line trimmer by an unauthorised person or by
mishandling. This machinel is designed for DIY use - use in commercial or
industrial environments will void the warranty.

Direct current
Do not use in the rain or leave
the line trimmer outdoors
while raining
Wear hearing protection
Wear eye protection
Warning
Regulatory Compliance Mark
(RCM)
Wear safety footwear
VVolts Hz
W
Hertz
~
n0
/min
Alternating Current Watts
No load speed
Revolutions or reciprocations
per minute
Read Instruction Manual
to reduce the risk of
injury
5
d.c./ ØDiameter
Sound power level 94dB
Keep bystanders away. Do not operate whilst people especially
children or pets are in the area
Milliameres
mA
94
The equipment continues to rotate!
DO NOT use metal blades
DESCRIPTION OF SYMBOLS
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly
way. Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
TROUBLESHOOTING
Problem Cause Remedy
Trimmer is not
starting
Possible clogging Clean the cutter head of any grass.
Battery is low in charge Charge battery
Battery not inserted
properly
Insert battery pack correctly
Trimmer is not
operating at
full capacity
Possible clogging Clean the cutter head of any grass.
Cutting tall grass at
ground level.
Make several passes from top down.
Motor
stops while
operating
Battery has no power Charge battery
Grass wraps
around the
shaft and
trimmer head.
Cutting tall grass at
ground level.
Make several passes from top down.
Battery protection system
The tool is equipped with the battery protection system, which helps to ensure a
long service life.
The output power automatically cuts off during operation when the tool and/or
battery are placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload, then
pull the switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use or
immediately after using the tool.

LINE TRIMMER SAFETY WARNINGS
WARNING! This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Hold power tool by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool “live“ and could give the operator an electric
shock.
• Never allow children or people unfamiliar with these instructions to use the line trimmer.
• Avoid using the line trimmer, while people, especially children or pets, are nearby.
• Use the line trimmer only in daylight or good artificial light.
• Never operate the line trimmer with damaged guards or without guards in place.
• Switch on the line trimmer only when the hands and feet are away from the cutting head.
• Never fit metal cutting line.
• Use only the manufacturer’s recommended replacement parts and accessories.
• Always remove the battery from the line trimmer when leaving the line trimmer unattended.
• Always remove the battery from the line trimmer before carrying out maintenance or cleaning
work.
• Inspect and maintain the line trimmer regularly. Have the line trimmer repaired only by an
authorized repairer.
• When not in use, store the line trimmer out of the reach of children.
• Face the cutting head away from yourself, other people and animals while the battery is
connected to the line trimmer (especially during operation).
• Remove the battery when changing spools or clearing grass from under the guard.
• Remove the battery from the line trimmer before making any adjustments.
• Use both handles at all times
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil and grease.
• Never reach underneath the line trimmer (the cutting line area) until it has completely stopped
and the battery has been removed.
• Maintain a safe distance of at least 15m from other people when using the tool.
• Always wear adequate protective clothing when operating the blower to avoid injuries to face,
eyes, hands, feet, head or hearing. Use safety glasses or a face shield, high boots or sturdy
shoes, long trousers, work gloves, a hard hat and ear defenders.
• Do not get distracted and always concentrate on what you are doing. Use common sense.
Never operate the tool when you are tired, sick or under the influence of alcohol or other
drugs.
• Do not operate this appliance with long loose hair or loose fitting jewellery. Tie long loose hair
back and remove loose fitting jewellery.
WARNING! When servicing, use only identical replacement parts. Use of any other
parts may create a hazard or cause product damage. To ensure safety and reliability, all
repairs should be performed by a qualified service technician.
WARNING! This appliance is not intended for use by young or infirm persons unless
supervised by a responsible person to ensure that they can use the appliance safely.
Children should be supervised to ensure that they do not play with the appliance.
DANGER! Always remove the battery from the line trimmer:
• when the equipment is left unattended,
• when the equipment is being checked, cleaned, or having maintenance work done,
• or if the equipment vibrates abnormally.
ELECTRICAL SAFETY
WARNING! When using mains-powered tool & machines, basic safety
precautions,
including the following, should always be followed to reduce risk of fire, electric shock,
personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool or machine off in
an emergency, before operating the tool or machine.
Save these instructions and other documents supplied with this tool or machine for future
reference.
-Use, store and charge the tool or machine and battery pack in dry conditions, ideally at 15°C.
Avoid exposing battery pack and charger to direct sunlight.
-Do not keep battery pack in places where temperatures are liable to reach over 50°C, such as in
a car, metal shed or similar that is in direct sunlight.
-This equipment is battery-operated and the battery must be charged outside the equipment.
Before you connect the charger to the mains supply make sure that the data on the rating plate
are identical to the mains data.
If the supply cord is damaged, it must be replaced by an electrician or a machine repairer in order
to avoid a hazard.
The power supply for this products charger should be protected by a residual current device (rated
at 30mA or less). A residual current device reduces the risk of electric shock.
GENERAL MACHINE SAFETY WARNINGS
WARNING! Read all safety warnings, instructions, illustrations and specifications
provided with this machine. Failure to follow all instructions listed below may result in electric shock, re
and/or serious injury.
Save all warnings and instructions for future reference.
The term “machine” in the warnings refers to your mains-operated (corded) machine or battery-operated (cordless) machine.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate machines in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a machine. Distractions can cause you to lose
control.
2) Electrical safety
a) Machine plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) machines. Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose machines to rain or wet conditions. Water entering a machine will increase the risk of electric
shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
e) When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a machine. Do
not use a machine while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating machines may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the machine. Carrying machines with your
nger on the switch or energising machines that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to
a rotating part of the machine may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
machine in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of machines allow you to become complacent
and ignore machine safety principles. A careless action can cause severe injury within a fraction of a second.
4) Machine use and care
a) Do not force the machine. Use the correct machine for your application. The correct machine will do
the job better and safer at the rate for which it was designed.
b) Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable,
from the machine before making any adjustments, changing accessories, or storing
machines. Such preventive safety measures reduce the risk of starting the machine accidentally.
d) Store idle machines out of the reach of children and do not allow persons unfamiliar with the
machine or these instructions to operate the machine. Machines are dangerous in the hands of untrained
users.
e) Maintain machines and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the machine’s operation. If
damaged, have the machine repaired before use. Many accidents are caused by poorly maintained machines.
f) Keep cutting machines sharp and clean. Properly maintained cutting machines with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the machine, accessories and machine bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the machine for
operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the machine in unexpected situations.
5) Battery machine use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of re when used with another battery pack.
b) Use machines only with specifically designated battery packs. Use of any other battery packs may create
a risk of injury and re.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or a re.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or machine that is damaged or modified. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in re, explosion or risk of injury.
f) Do not expose a battery pack or machine to fire or excessive temperature. Exposure to re or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or machine outside the
temperature range specified in the instructions. Charging improperly or at temperatures outside the specied
range may damage the battery and increase the risk of re.
6) Service
a) Have your machine serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the machine is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or
authorized service providers.

CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of with
household waste but in an environmentally friendly way. Please recycle
where facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
DESCRIPTION OF SYMBOLS
Warning
Do not store or use battery in
temperatures exceeding 50°C
Volts Hertz
Alternating Current
Direct Current
Milliamperes
Watts
Amp Hour
Ah
W
HzV
ac/~
mA
Lithium Ion Battery
Do not put in the rubbish
Do not get battery wet
Recycle Battery
Do not incinerate
dc
Regulatory Compliance
Mark (RCM)
Do not store battery when the charge
is low; store between 40-60%.
40-60%
0%
4.0Ah BATTERY
INSTRUCTION MANUAL
PXBP-400
SPECIFICATIONS
Input: 18V
Battery Capacity: 4.0Ah Li-ion
Power Consumption: 72Wh
Weight: 0.65kg
2
1. Battery
2. Battery Release Button
3. Charge Indicator Button
ozito.com.au
31
Before using the charger or battery read all instructions and cautionary markings on the charger, battery pack and the
product using the battery pack. Do not lose these safety instructions.
Battery Warnings
1. The battery pack is not fully charged out of the carton. First read the safety instructions and then follow the charging
notes and procedures.
2. For optimum battery performance avoid low discharge cycles. Charge the battery pack frequently.
3. Use and store the battery pack in dry conditions with low humidity between 0-50°C, ideally at 15°C. Avoid exposing
battery pack and charger to direct sunlight.
4. Do not keep battery pack in places where temperatures are liable to reach over 50°C, such as in a car, metal shed or
similar that is in direct sunlight.
5. Do not ignite the battery pack or expose it to re. There is a risk of explosion!
6. Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common
cause of exhaustive discharge is long-term storage and continued use of low-charge batteries. Always store the
battery with some charge. Charge the batteries every 2-3 months to restore charge. Stop working as soon as the
performance of the battery falls noticeably or the electronic protection system triggers.
7. Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside
the battery housing without this overheating being apparent externally.
8. Avoid damage and shocks. Do not use batteries which have been dropped from a height of more than one meter or
strong external impact, even if the housing of the battery pack appears to be undamaged. The battery cells inside
the battery may have suffered serious damage. 
9. If the battery pack suffers overloading and overheating, the integrated protective cut-off will switch off the equip-
ment. Do not press the ON/OFF switch on the tool if the protective cut-off has actuated. This may damage the
battery pack. Allow the battery to cool to room temperature before use.
10. Use only original battery packs. The use of other batteries may result in injuries, explosion and a re risk.
11. Protect your rechargeable battery against moisture, rain and high humidity. Moisture, rain and high humidity can
cause dangerous cell damage. Never charge or use batteries which have been exposed to moisture, rain or high
humidity.
12. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack is damaged, do not
use the battery.
13. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or
other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a re.
14. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If accidental contact occurs, ush
with water and seek medical help immediately. Liquid ejected from the battery may cause irritation or burns.
15. Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredict-
able behaviour resulting in re, explosion or risk of injury.
16. Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or temperature above 130°C
may cause explosion.
17. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer.
18. Do not disassemble Battery. This may result in a risk of electric shock, electrocution or re.
Charger Warnings
19. Please check the data marked on the rating plate of the battery charger. Ensure to only connect the battery charger
to a power supply with the voltage marked on the rating plate.
20. Protect the battery charger and its cable from damage and sharp edges. Have damaged cables repaired by an
authorised service agent before use.
21. Keep the battery charger, batteries and the cordless tool out of children’s reach.
22. Do not use damaged battery chargers.
23. Do not use the supplied battery charger to charge other cordless tools. Only charge Ozito Power X Change
rechargeable batteries with an Ozito Power X Change Charger.
24. The battery pack may become warm during use. Allow the battery pack to cool to room temperature before
commencing with the charging.
25. Do not over-charge batteries. Do not exceed the maximum charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or partly charged battery pack will result in over-charging and
cell damage. Do not leave fully charged batteries in the charger.
26. Charge the battery pack in dry conditions with low humidity between 10-40°C. Avoid exposing battery pack and
charger to direct sunlight.
27. Do not use batteries which have suffered deformation during the charging process or shows any other signs of
abnormalities including, excessive curvature of the housing, gassing, hissing or cracking.
28. Never fully discharge the battery pack. A complete discharge of the battery pack will lead to premature ageing of
the battery cells.
29. Never charge the batteries unsupervised.
30. Do not cover or place any object on top of the charger, place the charger away from heat sources.
31. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when disconnecting the
charger.
32. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or
stress.
33. An extension cord should not be used unless necessary. Use of an improper extension cord could result in the risk of
re, electric shock or electrocution.
34. Do not disassemble charger. This may result in a risk of electric shock, electrocution or re.
35. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning. Removing the
battery pack will not reduce this risk.
36. Do not use the cordless tool or the battery charger near vapours and inammable liquids.
BATTERY & CHARGER SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the following, should
always be followed to reduce risk of re, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool. Save these instructions and other documents supplied with this tool for future reference.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in
order to avoid hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation
system is for added protection against injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for
signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the
power input of the tool or which is damaged or defective may result in a risk of re and electric shock.
To reduce the risk of electric shock, we recommend the use of a residual current device (rated 30mA or less).
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

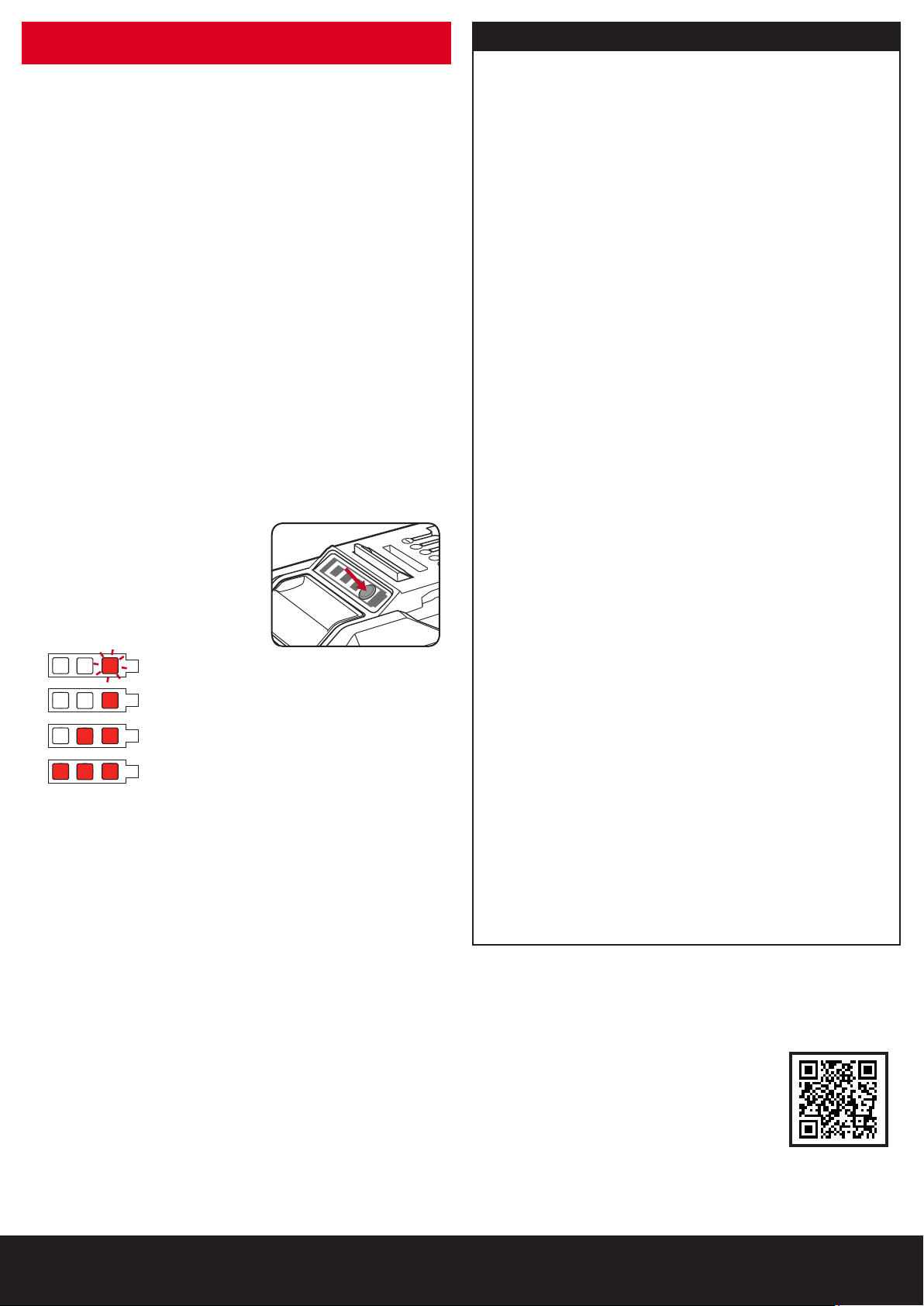

BATTERY CHARGE INDICATOR
The purchased battery is equipped with a
battery charge indicator to show the state of
the battery charge.
Press the charge indicator button and look to
see which LED lights.
Battery requires immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state of charge.
BATTERY PROTECTION SYSTEM
The tool is equipped with a battery protection system, which helps to ensure longevity
of the battery.
The output power automatically cuts off during operation when the tool and/or battery
are placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload, then pull
the switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use or
immediately after using the tool.
WARRANTY
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are
entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under
this warranty, however, where you have suffered any additional direct loss as
a result of a defective product you may be able to claim such expenses by
contacting our customer service helpline above.
36 MONTH REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the original date
of purchase and is intended for DIY (Do It Yourself) use only. If a product is
defective it will be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
OZITO Australia/New Zealand (Head Ofce)
25 Fox Drive, Dandenong South, Victoria, Australia 3175.
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
PXBP-400
1. OPERATION

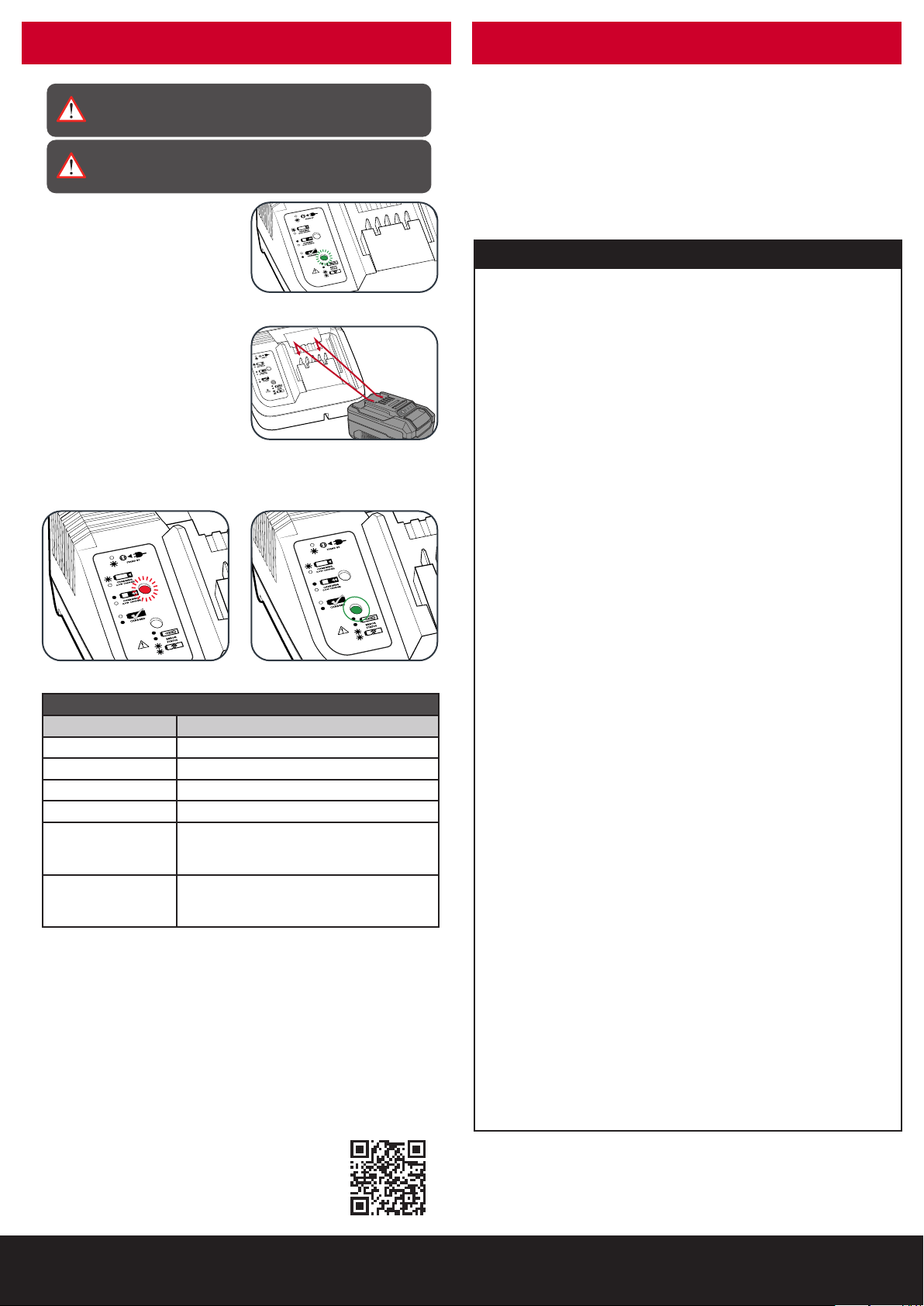

CHARGING YOUR LITHIUM ION BATTERY
This battery has been shipped in a low charge condition, and requires charging prior to
use. Allow several cycles of charging and discharging (through use with a compatible
tool) for the battery to reach its optimum performance / runtime.
This battery is compatible with chargers from the 18V Ozito Power X Change range
available through your local Bunnings Warehouse. Product availability may differ.
Only use the battery pack with Ozito Power X Change 18V cordless products.
1. Insert the power plug of the charger into the mains socket outlet. The green LED
will begin to ash when properly connected to power supply.
2. Insert the battery pack into the battery charger .
3. Remove battery from the charger once fully charged. Disconnect the charger from
the power supply.
Note: The battery pack can become a little warm during the charging. This is normal.
If the battery pack fails to charge, check:
if there is voltage at the socket outlet
that the battery and charger are properly connected.
If the battery pack still fails to charge, please contact our customer service center.
0121
