Ozito LTR-529 User manual

LINE
TRIMMER
500W 290mm
INSTRUCTION MANUAL
SPECIFICATIONS
Power: 500W
No Load Speed: 9,300/min
Cutting Diameter: 290mm
Line Diameter: 1.5mm
Line Feed: Automatic
Weight: 2.8kg
LTR-529
WHAT’S IN THE BOX
Line Trimmer
Safety Guard
Edging Wheel
Adjustable Handle &
Locking Knob
Assembly Fasteners
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: carbon brushes,
line etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
thanthatspeciedonthetool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/NewZealand(HeadOfce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
Thebenetsprovidedunderthiswarrantyareinaddition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
0916

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
13.Edging Wheel Assembly
Screws x2
14.Guard Assembly Screw x1
1. Turn the trimmer
upside down and
slide the Safety
Guard into the
recess in the line
trimmer housing.
1. Align both halves of the
Edging Wheel with the
recess around the line
trimmer housing.
3. Once secure, check that
the Edging Wheel is free to
rotate.
Ifnot,rettheEdging
Wheel and Safety Guard
ensuring they are in the
correct orientation.
2. Secure in place
with supplied
Guard Assembly
Screw.
2. Secure in place
with the 2 supplied
Edging Wheel
Assembly Screws.

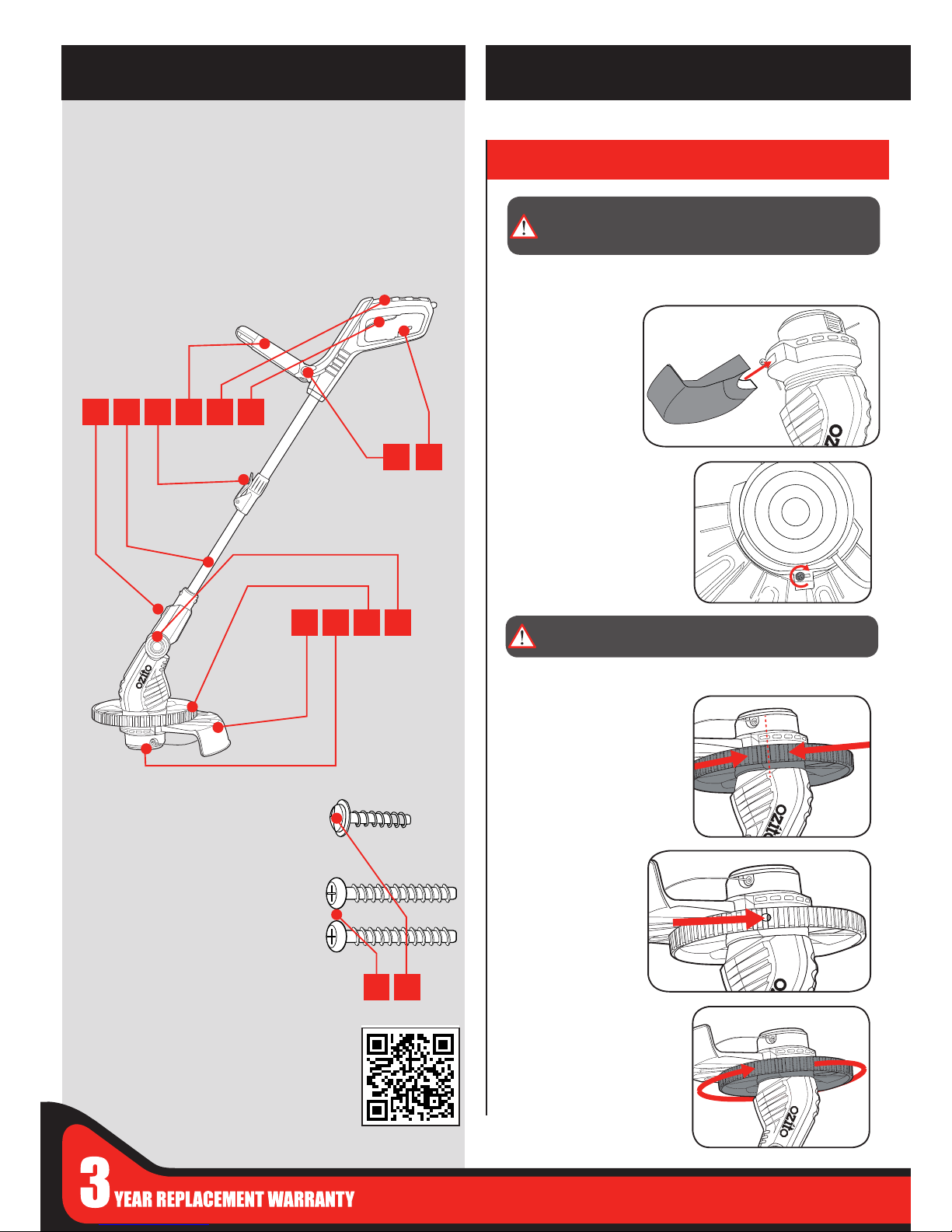

1. Rotating Head Lock Button
2. Telescopic Shaft
3. Telescopic Shaft Lever
4. Adjustable Handle
5. Main Handle
6. On/Off Trigger
7. Safety Guard
8. Cutter Head
9. Edging Wheel
10.Head Angle Lock Button
11. Locking Knob
12.Cord Retainer
LINE TRIMMER
ACCESSORIES:
KNOW YOUR PRODUCT
1 2 3 4 5 6
87 9
11
13 14
10
12
1. ASSEMBLY
SETUP & PREPARATION
Fitting the Safety Guard
Fitting the Edging Wheel
WARNING! ENSURE THE TOOL IS DISCONNECTED FROM
THE POWER SUPPLY BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.
WARNING! NEVER USE THE LINE TRIMMER UNLESS THE
SAFETY GUARD IS PROPERLY FITTED AND SECURED.

1. Place the Adjustable
Handle between the
bracket so it is positioned
correctly.
2. Insert the supplied Locking
Knob and secure with the
locking nut.
Do not overtighten.

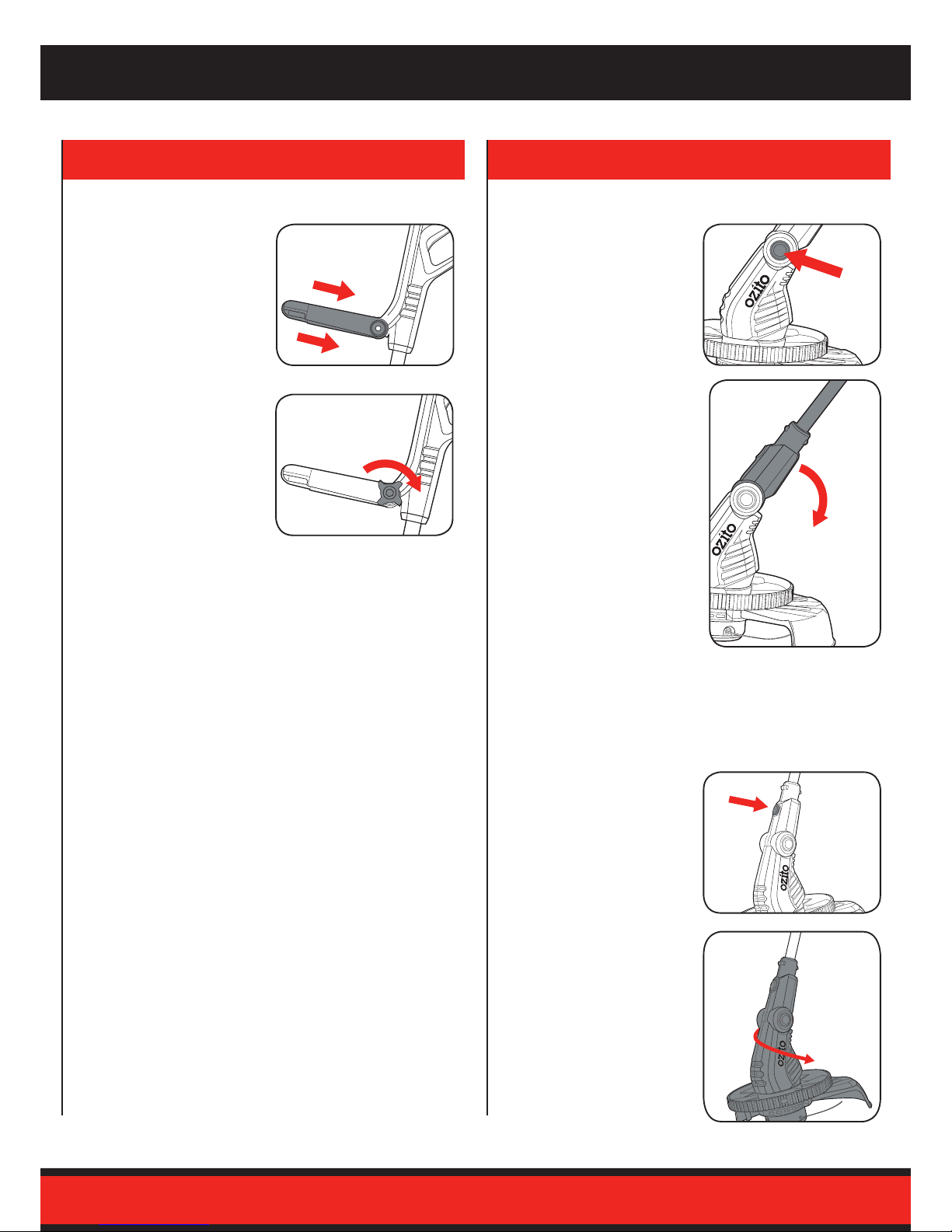

2. ADJUSTMENTS
Fitting the Adjustable Handle
1. Depress the Head Angle
Lock Button to allow the
head to tilt.
2. Move the Telescopic Shaft
into the required position
and release the Head
Angle Lock Button.
Note: Ensure the cutter head
angle is locked into place before
operating.
Adjusting the Cutter Head Angle
1. Press the Rotating Head
Lock Button up to allow the
head to rotate.
2. Rotate the head 90° ant-
clockwise and release the
button to lock in place.
Thelinetrimmeristtedwitharotatingheadtoallowforedging
and trimming. To switch between the two, the head must be
rotated following the steps below.
Rotating the Cutting Head
Note: The head will only rotate
in one direction.

3. CORD RETAINER
1. Make a loop with the
extension cord and push it
through the hole under the
on/off trigger.
3. Connect the extension cord
socket to the line trimmer
cord.
2. Place the loop onto the
cord retainer and ensure it
ispulledrmlyintoplace.
CAUTION: TO AVOID THE EXTENSION CORD FROM
DETACHING; ALWAYS CHECK THAT THE CORD IS ATTACHED
TO THE CORD RETAINER BEFORE USE.
Using the Cord RetainerAdjusting the Working Height
1. Release the Telescopic
Shaft Lever.
2. Adjust the Telescopic
Shaft up or down to the
appropriate height.
3. Tighten the Telescopic Shaft Lever once adjustment is
complete.

LTR-529
OPERATION
1. To switch ON, depress the
On/Off trigger.
2. To switch OFF, release the
On/Off trigger.
On/Off Trigger
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
A RESIDUAL CURRENT DEVICE (RATED 30mA OR LESS)
SHOULD BE USED.
WARNING! THE LINE TRIMMER MAY RUN FOR A FEW
SECONDS AFTER IT HAS BEEN SWITCHED OFF. LET THE
MOTOR COME TO A COMPLETE STANDSTILL BEFORE
SITTING THE TOOL DOWN.
1. Wear eye protection and stout shoes at all times while operating the
line trimmer.
2. Start cutting nearest the mains
power source and work away
to make it easier to avoid the
extension cord.
3. Do not push the line against
hard material (rocks or concrete)
during cutting as this may result
in damaged line.
4. Never use the line trimmer without its safety devices.
5. Do not cut grass that is wet (The best results are achieved on dry
grass).
6. Wait until the line trimmer reaches full speed before cutting the
grass
7. Keep the line trimmer away from hard objects in order to avoid
unnecessary wear to the line.
8. Several passes will be required to
cut long grass as shown.
9. To prevent the line from breaking
ensure you approach the edge/
object slowly.
10.Watch out for kickbacks in the
event of impact with hard objects.
11.Afternishingthecuttingoperation,keeptheheadclosetoground
level, release the switch and allow the motor to come to a complete
standstill. Unplug and place the line trimmer on the ground.
12.Keep ventilation slots of the trimmer clean at all times. Periodically
clean out the grass from the cutting head and the rim of the safety
guardtoensureefcientoperationatalltimes.
WARNING! MAKE SURE THAT THE WORK AREA IS FREE OF
ROCKS, DEBRIS, LINES AND OTHER FOREIGN OBJECTS.
CAUTION: DO NOT CONTINUALLY TAP, BUMP OR HOLD
THE SPOOL HOLDER ON THE GROUND AS THIS MAY
RESULT IN DAMAGE TO THE SPOOL HOLDER OR
OVERLOAD THE UNIT.
5. USING THE TRIMMER4. CONTROLS
•To automatically advance the line, allow the line trimmer to
come to a complete stop. When the head comes to a stop,
a “Click” can be heard. The line will have automatically
advanced approximately 5cm. If a longer length of line is
required, repeat the automatic line advancement instruction.
This line trimmer is equipped with Automatic Line Advancement
which automatically feeds the additional line to the correct
length as it wears down.
Automatic Line Feed
Manual Line Feed
•To manually advance the line, ensure the line trimmer is
off and turn the line trimmer upside down. Push the tab on
the side of the cutter head and then pull on the end of both
pieces of line protruding from the cutter head.

6. TRIMMING & EDGING 7. LINE AND SPOOL
Replacing the spool/clearing jams and tangled lines
From time to time, especially when cutting thick or stocky weeds,
the line feeding hub may become clogged with sap or other material
and the line will become jammed as a result. To clear the jam, follow
these steps.
1. Press the release tabs on
the line spool cover and remove
the cover by pulling
it straight off.
2. Lift the spool of nylon line out of
the hub and clear any broken line
or cutting debris from the spool
area. In case of jams and tangled
line, unwrap about 11cm of line to
ensure that it is undamaged.
3. Insert the spool into the spool
housing.
4. Unclip the ends of the cutting
lines and guide them into the
eyelets. The line should protrude
approximately. 11cm from the
spool housing.
Note: If the cutting lines protrude
beyond the trimming blade, cut them
off so that they just reach the blade.
5. Snap the spool cover back onto
the spool housing.
WARNING! ENSURE THE TOOL IS DISCONNECTED
FROM THE POWER SUPPLY BEFORE PERFORMING
ANY OF THE FOLLOWING OPERATIONS.
MAINTENANCEOPERATION
30°
Trimming
Edging
Move the line trimmer from side to
side as you walk forward, holding
it at an angle of approx. 30° (Light
cuts are better than heavy cuts as
they allow the cut grass to fall away
from the cutting head).
Place the edging wheel along the
ground and roll the line trimmer
along the edge of the path.

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
•Keepventilationslotsofthetrimmercleanatalltimes.Periodicallycleanout
thegrassfromthecuttingheadandtherimofthesafetyguardtoensureefcient
operation at all times.
•Aftereachuse,blowairthroughthetoolhousingtoensureitisfreefromalldust,
dirt, etc. Build up of dust, dirt particles may cause the tool to overheat and shorten
the life of the tool.
•Ifthehousingofthetrimmerrequirescleaning,donotusesolventsbutamoist
soft cloth or soft brush only.
•Neverletanyliquidgetinsidethetool,neverimmerseanypartofthetoolinto
liquid.
•Nolubricationisnecessaryasthetoolhassealedbearings.
•Whennotinuse,thelinetrimmershouldbestoredinadry,frostfreelocationnot
within the reach of children.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the line trimmer by an unauthorised person or by mishandling of
the line trimmer. This tool is designed for DIY use - use in commercial or industrial
environments will void the warranty.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
VVolts Hz
~Alternating current W
/min Revolutions or
reciprocation per minute
Double insulated
no
Warning
Wear eye protection
Regulator compliance mark
Read instruction manual
Disconnect the mains plug
if the cord is damaged
or entangled Decibel level
Do not operate in the rain
Danger, flying objects
Keep bystanders away
5124
Wear hearing protection
Hertz
Watts
No load speed
96
dB
Problem Cause Remedy
Grass wraps
around the
attachment shaft
and the trimmer
head.
Cutting tall grass
at ground level.
Make several passes from
top down.
Rewinding spool from a bulk line
Bulk line for your line trimmer is available from your local dealer.
To install, follow steps:
1. Remove the spool as described in steps 1 - 2 of the “Replacing the
spool/clearing jams and tangled lines” section.
2. Using 1.5mm or 1.6mm of line, cut a length of line approximately 8m
long.Dividethelineevenlysoyoundthehalf-waypointandcutinhalf.
3. Feed approximately 15mm on one end
of each line into the hole in the spool to
lock it in place.
4. Wind the 2 lines onto each section of the
spool in the direction of the arrow. Make
sure to wind the line on neatly and in
layers. Do not cross the line as this will
stop it from feeding.
5. When the length of line is wound onto
the spool place the end of the line into
the clips in the outside of the spool.
Leaving about 11cm protruding from the
spool
6. Re-seat the spool as described in steps
3 - 5 of the “Replacing the spool/clearing jams and tangled lines”
section.

EE.2 Safe operating practices
EE.2.1 Training
a) Read the instructions carefully. Be familiar with the controls and the proper use of
the machine.
b) Never allow people unfamiliar with these instructions or children to use the
machine. Local regulations can restrict the age of the operator.
c) Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
EE.2.2 Preparation
a) Before use, check the supply and extension cord for signs of damage or aging.
If the cord becomes damaged during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE
SUPPLY. Do not use the appliance if the cord is damaged or worn.
b) Never operate the machine while people, especially children, or pets are nearby.
c) Wear eye protection and stout shoes at all times while operating the machine.
EE.2.3 Operation
a) Keep supply and extension cords away from cutting means.
b) Usethemachineonlyindaylightorgoodarticiallight.
c) Never operate the machine with damaged guards or shields or without guards or
shields in place.
d) Switch on the motor only when the hands and feet are away from the cutting
means.
e) Always disconnect the machine from the power supply (i.e. remove the plug from
the mains or remove the disabling device)
– whenever leaving the machine unattended;
– before clearing a blockage;
– before checking, cleaning or working on the machine;
– after striking a foreign object;
– whenever the machine starts vibrating abnormally.
f) Take care against injury to feet and hands from the cutting means.
g) Always ensure that the ventilation openings are kept clear of debris.
EE.2.4 Maintenance and storage
a) Disconnect the machine from the power supply (i.e. remove the plug from the
mains or remove the disabling device) before carrying out maintenance or
cleaning work.
b) Use only the manufacturer’s recommended replacement parts and accessories.
c) Inspect and maintain the machine regularly. Have the machine repaired only by
an authorized repairer.
d) When not in use, store the machine out of the reach of children.
EE.2.5 Recommendation
a) The appliance should be supplied via a residual current device (RCD) with a
tripping current of not more than 30 mA.
LINE TRIMMER SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
notuseapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
ngerontheswitchorenergisingpowertoolsthathavetheswitchoninvitesaccidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Haveyourpowertoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacement
parts. This will ensure that the safety of the power tool is maintained.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following,shouldalwaysbefollowedtoreduceriskofre,electricshock,personalinjury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire is required.
To reduce the risk of electrical shock, a residual current device (rated 30mA or less) must be used.
Ifthesupplycordisdamaged,itmustbereplacedbythemanufacturer,itsserviceagentorsimilarlyqualied
persons in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofreandelectric
shock.
It is recommended that the extension lead is a maximum of 25m in length. Do Not use multiple extension
leads.
Supply cords shall not be lighter than:
-ifpolyvinylchlorideinsulated,ordinarypolyvinylchloridesheathedexiblecord(codedesignation60227
IEC 53).
