Ozito HTE-360 User manual

Motor: 450W
Input: 230-240V ~ 50Hz
No load speed: 1600min-1
Blade length: 360mm
Blade spacing: 14mm
Weight (tool only): 2.25kg
1. Rear handle
2. On/Off switch
3. Front handle
4. Safety guard
5. Blade support rail
6. Cutting blade
7. Safety switch
8. Cord retainer
2
SPECIFICATIONS - MODEL NO. HTE-360

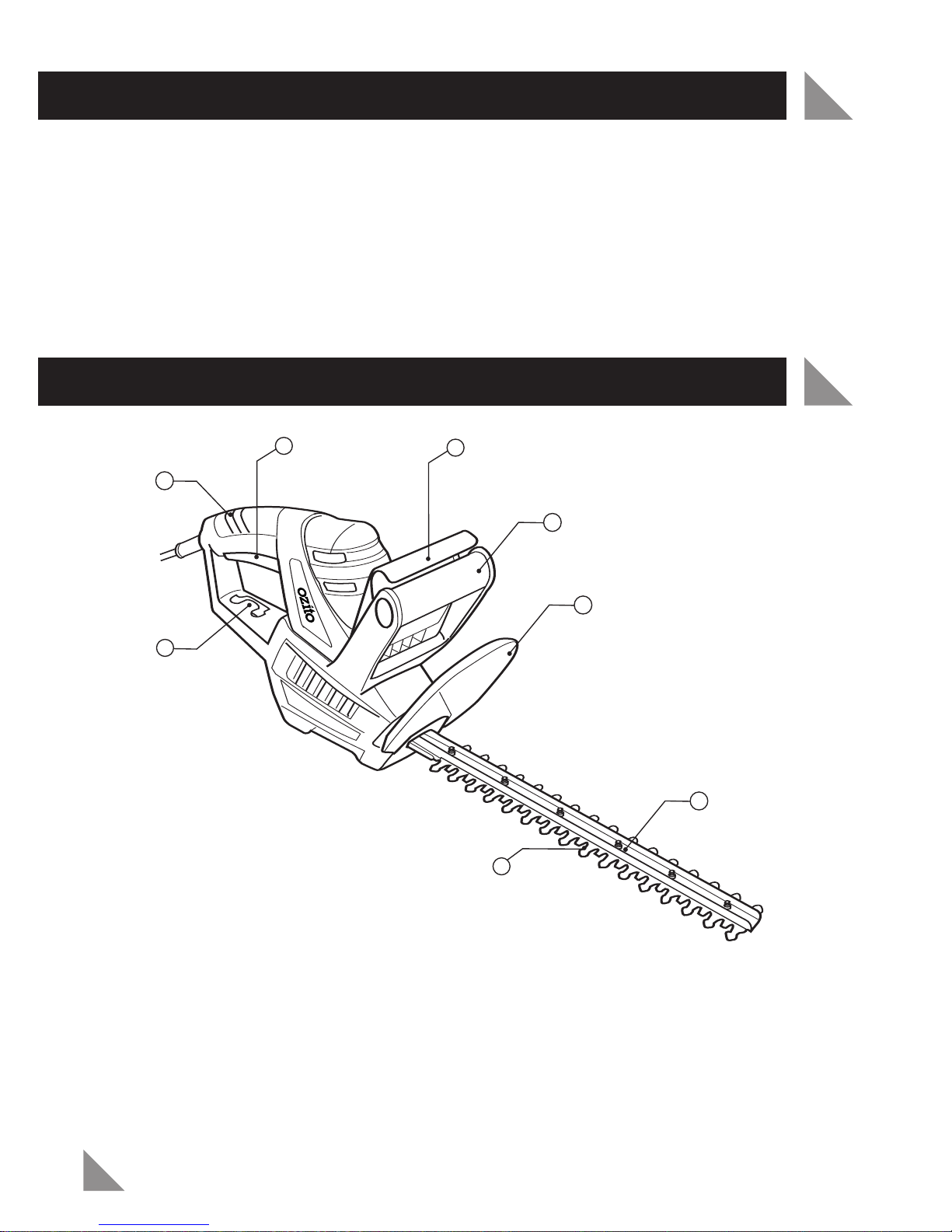

KNOW YOUR PRODUCT
6
1
3
8
2
4
5
7

3
TABLE OF CONTENTS
SPECIFICATIONS ………………………………………..
INTRODUCTION…………………………………………
ELECTRICAL SAFETY…………….………………………
GENERAL SAFETY WARNINGS…………………………
HEDGE TRIMMER SAFETY WARNINGS
………………
ASSEMBLY…………………………………………… ……
OPERATION………………………………………………
MAINTENANCE…………….……………………………
SPARE PARTS …………….……………………………...
DESCRIPTION OF SYMBOLS ………………………….
PACK CONTENTS ………………………………………
WARRANTY………………………………………………
Page 2
Page 4
Page 4
Page 5
Page 7
Page 8
Page 9
Page 11
Page 12
Page 12
Page 13
Page 14

INTRODUCTION
4
Congratulations on purchasing an Ozito Hedge
Trimmer. We aim to provide quality tools at an
affordable price
We hope you will enjoy using this tool for many years.
The HTE-360 Hedge Trimmer has been designed for
trimming light foliage and is intended for DIY use only.
WARNING! When using mains-powered equipment, basic safety
precautions, including the following, should always be followed to reduce
risk of fire, electric shock, personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future
reference.
The electric motor has been designed for 230V and 240V only. Always check that
the power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60745-2-15;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by a qualified electrician or a
power tool repairer in order to avoid a hazard.
If operating a power tool in a damp location is unavoidable use a residual current
device (RCD) protected supply Use of an RCD reduces the risk of electric shock.
Note: Double insulation does not take the place of normal safety precautions
when operating this tool. The insulation system is for added protection against
injury resulting from a possible electrical insulation failure within the tool.
Using an extension lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective. When using an extension
lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may
result in a risk of fire and electric shock.
ELECTRICAL SAFETY
!
!
!
!

5
GENERAL POWER TOOL SAFETY WARNINGS
!
!
WARNING! Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool" in all of the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energising power tools
that have the switch on invites accidents.
!
!

6
GENERAL POWER TOOL SAFETY WARNINGS
!
!
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.

7
HEDGE TRIMMER SAFETY WARNINGS
!
!
•Keep all parts of the body away from the cutter blade. Do not remove cut
material or hold material to be cut when blades are moving. Make sure the switch
is off when clearing jammed material. A moment of inattention while operating the
hedge trimmer may result in serious personal injury.
•Carry the hedge trimmer by the handle with the cutter blade stopped. When
transporting or storing the hedge trimmer always fit the cutting device cover.
Proper handling of the hedge trimmer will reduce possible personal injury from the
cutter blades.
•Hold the power tool by insulated gripping surfaces only, because the cutter
blade may contact hidden wiring or its own cord. Cutter blades contacting a
"live" wire may make exposed metal parts of the power tool "live" and could give
the operator an electric shock.
•Keep cable away from cutting area. During operation the cable may be hidden
in shrubs and can be accidentally cut by the blade.
•Perform visual inspection on the hedge being trimmed. To ensure no wire
fences or foreign objects that the hedge trimmer may contact during operation.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing. Replace
the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an
extension lead not suitable for the power input of the tool or which is damaged or
defective may result in a risk of fire and electric shock.
It is recommended that the extension lead is a maximum of 25m in length. Do not use
multiple extension leads.
• Before use check the supply and extension cord for signs of damage or aging. If
the cord becomes damaged during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE
SUPPLY. Do not use the Hedge Trimmer if the cord is damaged or worn.
• Keep extension cord away from cutting blades.
• Never allow children or people unfamiliar with these instructions to use the Hedge Trimmer.
• Avoid using the Hedge Trimmer, while people, especially children or pets, are nearby.
• Use the Hedge Trimmer only in daylight or good artificial light.
• Never operate the Hedge Trimmer with damaged guards or without guards in place.
• Switch on the Hedge Trimmer only when the hands and feet are away from the
cutting blades.
•Use only the manufacturer's recommended replacement parts and accessories.

8
HEDGE TRIMMER SAFETY WARNINGS (cont.)
• Always disconnect the Hedge Trimmer from the mains when leaving the Hedge
Trimmer unattended.
• Disconnect the Hedge Trimmer from the mains before carrying out
maintenance or cleaning work.
• Inspect and maintain the Hedge Trimmer regularly. Have the Hedge Trimmer
repaired only by an authorized repairer.
• When not in use, store the Hedge Trimmer out of the reach of children.
• Face the cutting blades away from yourself, other people and animals while the
power is connected to the Hedge Trimmer (especially during operation).
• Disconnect the power from the Hedge Trimmer before making any adjustments.
• Use both handles.
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of
oil and grease.
• Never reach underneath the Hedge Trimmer (the cutting blade area) until it has
completely stopped and the power has been disconnected.
WARNING! Before assembly, make sure that the hedge trimmer is
switched off and unplugged from the mains power.
Fitting the safety guard (Fig. 1)
1. Align both sides of the supplied safety guard (4)
over the blade support rail (5) and holes in the
base of the motor housing.
2. Push the safety guard (4) down and fix securely
on both sides of the motor housing using the
screws provided.
WARNING! Never use the hedge trimmer unless the safety guard is
properly fitted.
!
!
Fig. 1
ASSEMBLY
!
!
!
!

9
Cord retainer

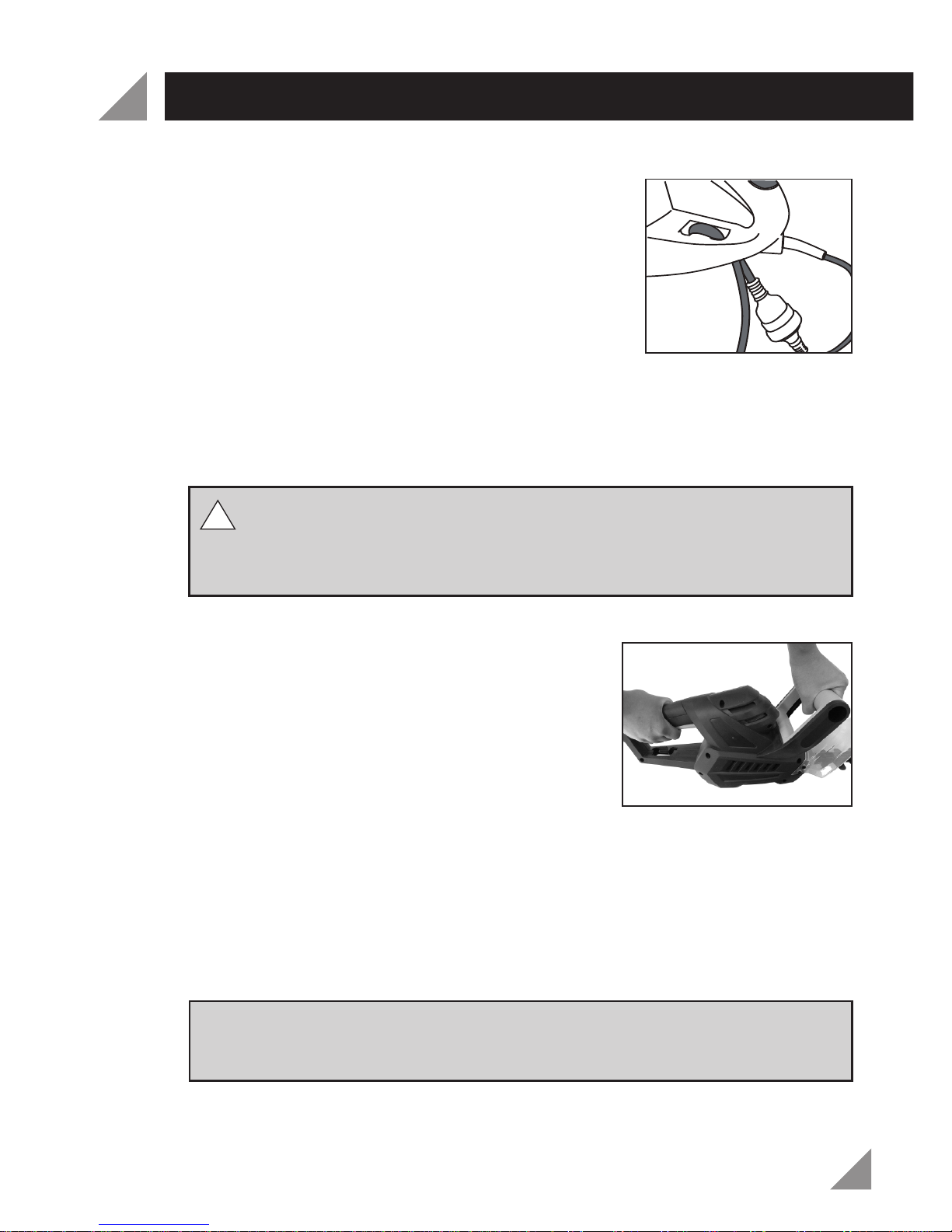

When attaching an extension cord to the Hedge Trimmer,
hook the end of the extension cord into the cord retainer
(8) built into the rear of the Hedge Trimmer's housing
(Fig. 2). Using the retainer prevents accidental
disconnection of the trimmer and extension cords plug
and socket.
Always be sure to route the cord away from the work area
to prevent it from coming near the blade.
Decide how you want to route the cord before starting work. Start trimming at the
point nearest the electrical outlet, then move away while working.
The cable will then be pulled through the area which has already been cut and thus
reduce the danger of itself being cut.
WARNING! If cordset is cut or damaged remove it immediately from the power
point. This product requires the use of two hands to ensure safe operation. Inspect
the area to be cut before starting. Remove any objects or debris that could be
thrown, jammed or become entangled in the blades.
Switching on
For your safety the Hedge Trimmer is designed with a
two handed safety switch. If only one switch is
squeezed, the tool will not operate.
This ensures both hands are on the tool body during
use. It prevents accidental start up and also keeps
both hands away from the blades during operation.
To turn the Hedge Trimmer ON, squeeze the safety
switch (7) and then the On/Off switch (2) (Fig. 3).
Switching off
To turn the Hedge Trimmer OFF, simply release either switch.
Blade brake
The Hedge Trimmer is fitted with a motor brake which will stop the cutting blade
within 1 second as soon as either switch is released.
Note: When the unit is switched off and the motor brake operates there may be
some sparking (or flashing) occurring in the area of the upper motor ventilation
slots. This is normal and will not damage the machine.
OPERATION
Fig. 2
Fig. 3
!
!

10
Trimming Instructions
1. Extension cord. Always keep the extension cord behind the Trimmer and
away from the trimming operation. Never drape it over a hedge being
trimmed. If you cut or damage the cord, unplug it at the electrical outlet
immediately. It must be repaired by an electrician or a power tool repairer
before being used again.
2. Working position. Maintain proper footing and balance and do not
overreach. Wear safety goggles, non-slip footwear and rubber gloves when
trimming. Hold the tool firmly in both hands and turn the tool ON. Always
hold the trimmer with one hand on the body handle and one hand on the
front handle. Never hold the tool by the blade guard.
3. Trimming new growth. Use wide sweeping motion, feeding the blade teeth
through the twigs is most effective. A slight downward tilt of the blade, in the
direction of motion gives the best cut.
Note: Do not use the Trimmer for cutting stems greater than 14mm. Use the
Trimmer only for cutting normal shrubbery found around houses and buildings.
4. Level hedges. To obtain exceptionally level hedges a piece of string can be
stretched along the length of the hedge as a guide.
5. Side-trimming hedges. Hold the Hedge Trimmer and begin at the bottom
and sweep up.
6. Shaping. The hedge should be trimmed to achieve a trapezoidal form, that is,
it should widen toward the bottom at both sides. This improves the
penetration of light to the lower extremities. A general guideline is
approximately 10cm slant for each 1 metre of hedge height.
7. Cutting sequence. First cut both sides, starting at the bottom and work to the
top: this prevents cuttings from falling into the area where you are still working.
8. Trimming the top. Where the branches have grown extremely long, cut back
the hedge in several stages. The shorter the cuttings the better suited
for composting.
9. General information. When older hedges are to be cut back a substantial
amount, use pruning shears or some other device to trim thicker branches
(greater than 14mm diameter) to the desired length before starting work with
the Hedge Trimmer.
To shape precisely, run a taught line between the extreme edges of the hedge
and then trim along the length of the line.
Ensure the blades do not come into contact with any object made of hard
material that could damage the blades, such as fencing wire or metallic
plant supports.
OPERATION (cont.)

WARNING! Always ensure that the trimmer is switched off and the plug is
removed from the power point before making any adjustments
• When not in use, the Hedge Trimmer should be stored in a dry, frost free location
not within the reach of children.
• Keep ventilation slots of the Hedge Trimmer clean at all times and prevent any
foreign matter from entering.
• If the enclosure of the Hedge Trimmer requires cleaning do not use solvents but a
moist cloth only.
• There are no user serviceable parts in the Hedge Trimmer; if a fault is suspected or
the supply cord requires replacement, return the Trimmer to a power tool repairer.
• The blade rail should be cleaned and treated with light machine oil or spray
lubricant (such as WD40, CRC 5.56 or RP7) after each use. When a job lasts for a
longer period of time it is recommended that the blade rail also be treated with
spray lubricant at regular intervals during operation.

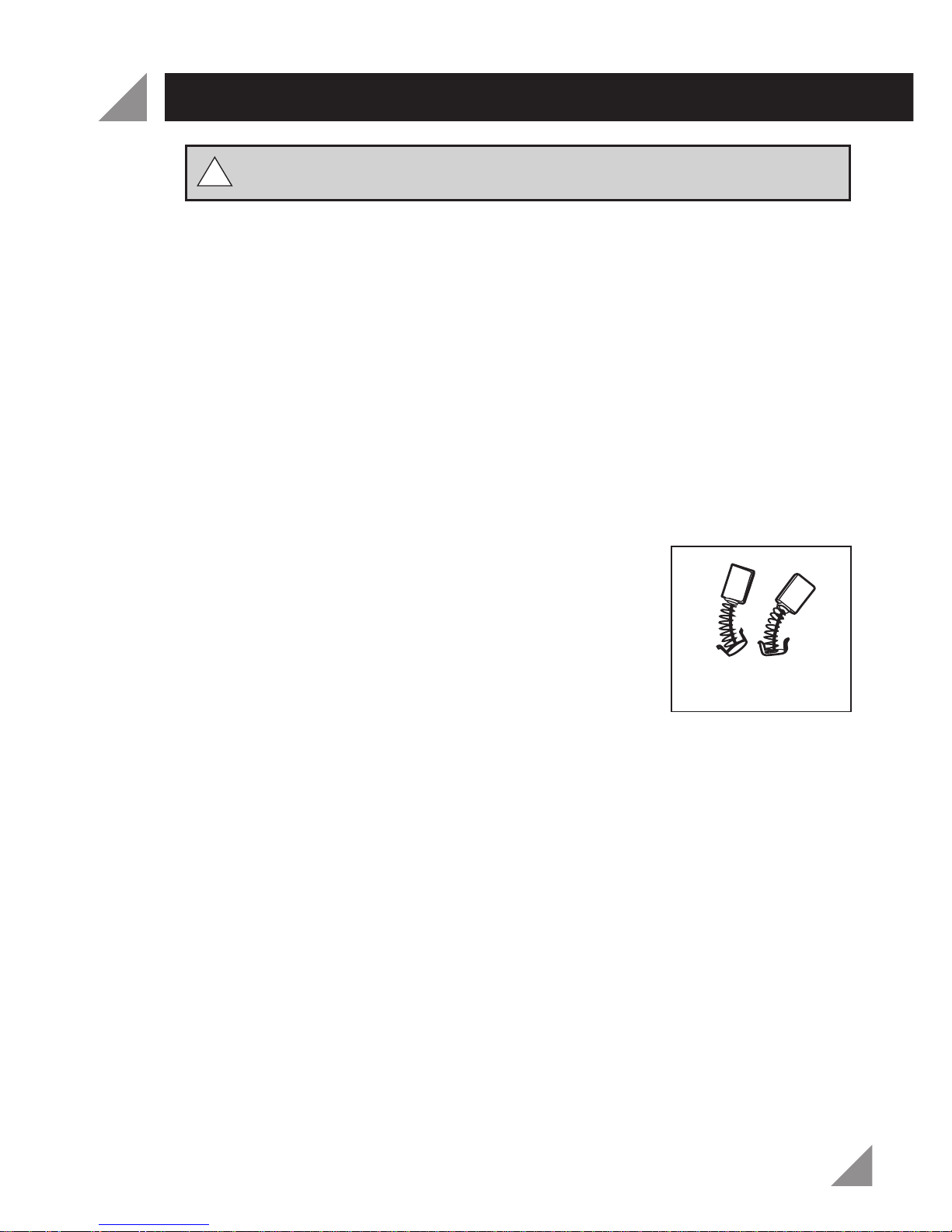

Carbon brushes
When the carbon brushes wear out the tool will spark and/or
stop. Discontinue use as soon as this happens. They should
be replaced prior to recommencing use of the tool.
Carbon brushes are a wearing component of the tool and
therefore not covered under warranty. Continuing to use the
tool when carbon brushes need to be replaced may cause
permanent damage to the tool. Carbon brushes will wear out
after many uses but when the carbon brushes need to be
replaced take the tool to an electrician or a power tool repairer for a quick and low
cost replacement. Always replace both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
the repair of the tool by an unauthorised person or by mishandling of the tool.
11
MAINTENANCE
!
!
carbon brushes

12
SPARE PARTS
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Carbon Brush (Pair) SPHTE360-21
Brush Holder (Pair) SPHTE360-30
Blade Assembly SPHTE360-34
DESCRIPTION OF SYMBOLS
Warning Read instruction manual
VVolts Hz Hertz
~ Alternating current WWatts
n o No load speed
Double insulated
min
-1
Revolutions or reciprocation per minute
Regulator compliance mark
Do not expose to rain Remove plug from the mains immediately
if the cable is damaged or cut

13
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
OZITO INDUSTRIES PTY LTD
1 x Hedge Trimmer HTE-360
1 x Blade cover
1 x Safety guard
4 x Screws ST4x12 (for fitting guard)
1 x Instruction manual
AUSTRALIA (Head Office)
1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: [phone]
Facsimile: [phone]
Website: www.ozito.com.au
Email: [email protected]
PACK CONTENTS

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD
BE RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt.
PURCHASED FROM:________________________________________________
DATE PURCHASED: ________________________________________________
2 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of
purchase under the following conditions: Professional, industrial or high frequency
use will VOID this warranty.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on
the unit.
• If the tool shows signs of damage or defects caused by or resulting from abuse
accidents or alterations.
• If the tool has been disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as carbon brushes, cord and blades.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
