PLEASE READ BEFORE SETTING UPYOURTENT/SHELTER
At the time of purchase we guarantee that this product is supplied without fault in
construction, materials or function. We recommend that you assemble it as a trial before going
away. If problems are discovered in the brand new product, they will be dealt with under our
warranty.
• This product is designed as a portable and temporary structure; it is not designed to be a
permanent structure or dwelling.
• Intermittent use only. Although our polyester fabrics are treated for extra UV resistance,
continuous exposure to sun light will break the fabric down. Fading of colour is an early
warning sign. These tents/shelters are not designed as permanent dwellings or structures.
• Do not leave this product unattended if bad weather is expected. If assembly instructions
are followed correctly, this product will withstand mild winds and rain. In gusty winds
and storms you must collapse the tent/shelter.
• We recommend that you discuss adding this investment to your household Insurance
Policy with your Insurance Agent.

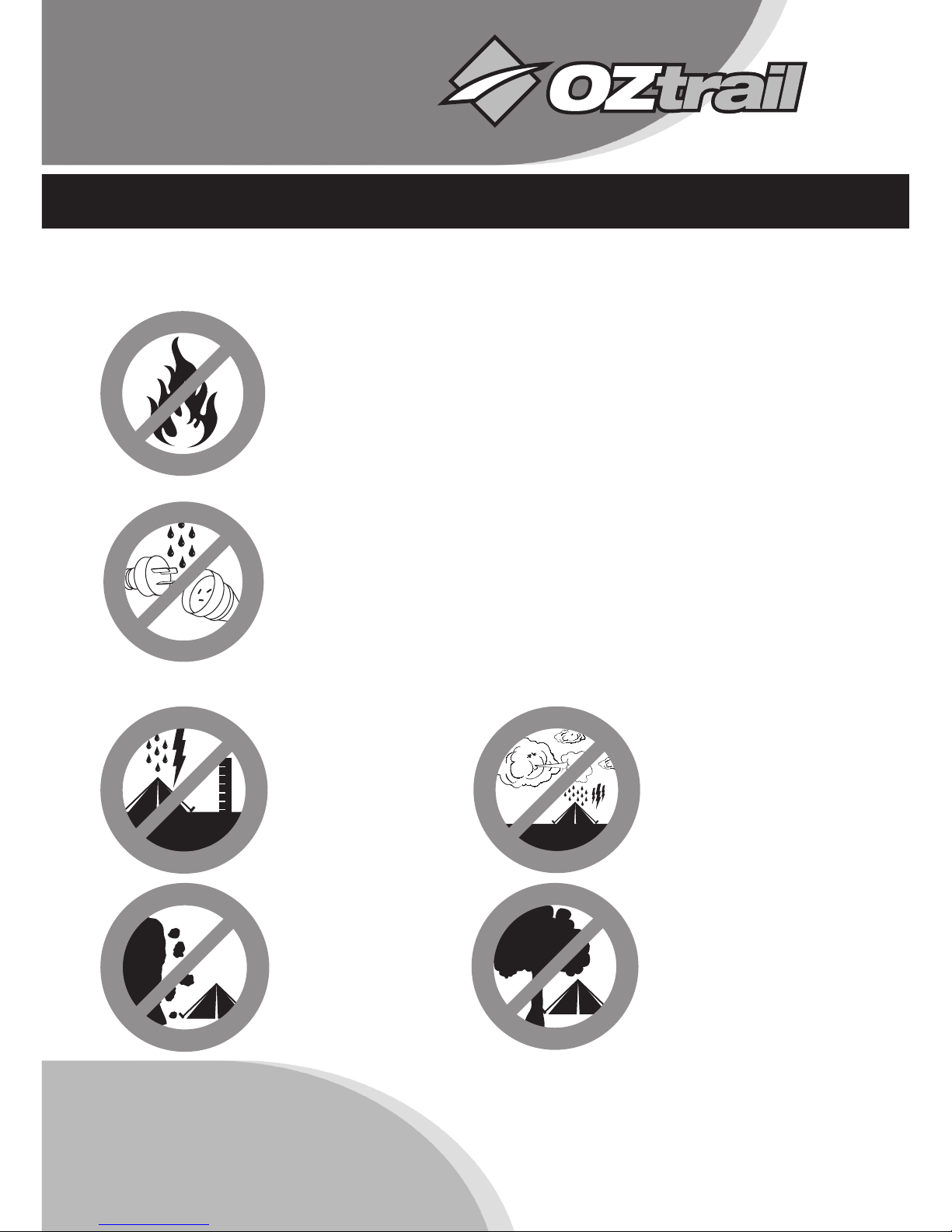

CAMP SAFE - SAFETY HABITS
The fabric may burn if left in continuous contact with a ame from any source. Also, the
application of any foreign substance to the tent fabric may render the ame resistant properties
ineective.
To prevent injury caused by gas poisoning or suocation -
•Do not use fuel burning, oxygen consuming devices inside the tent. This includes candles,
gas lanterns, kerosene lamps, stoves, cooking and heating appliances
•Do not use gas appliances of any kind inside the tent/shelter
IMPORTANT SAFETY AND CARE INFORMATION
EXTREME CAUTION - Gas or fumes or lack of oxygen within the tent/shelter
could result in unconsciousness, brain damage and even death

3
5
4
3
2
1
•Do not leave your
tent/shelter erected
in strong winds -
collapse the tent onto
the ground and seek
refuge in your vehicle
•Do not pitch the tent/shelter near a camp re or any other ame source
•Do not use candles, matches or any other ame source in or near the
tent (this includes stoves, cooking equipment, lighting and heating
appliances)
•Only use recommended water repellent compounds on the
tent/shelter y
•Do not spray tent fabrics with insecticides
To prevent injury caused by electricity -
• Always exercise care when using electricity and electric lighting
in and near tents/shelters. Only use 12 volt lighting.
•Do not pitch your
tent/shelter near
clis in case of
collapse or rock fall
•Do not pitch your
tent/shelter on an
area that could get
ooded
•Do not pitch your
tent/shelter under
trees with dead
branches or under
trees known to
drop branches
To prevent injury caused by re -
To prevent injury caused by your camping environment -

4
Product Code ~ CTC-1008-A
PLEASE NOTE - Due to our policy of continual product development,
specications and features of the product may vary from details within this
Owners Manual.
Thank you for purchasing a superior OZtrail product.
Please keep this Owners Manual in a safe and dry place, it
contains important and helpful information.
IMPORTANT
We recommend that you set up this product before you leave for your trip.
Check that all parts are present and that you familiarise yourself with the
assembly and disassembly of the product. If you have any problems, your
OZtrail dealer will be able to sort it out for you.
You should have the following parts: -
Product Code ~ CTC-1008-A
Part Description
3 x Ridge Pole (1)
4 x Corner Upright Poles (2)
2 x Centre Upright Poles (3)
2 x Corner Upright Awning Poles (4)
2 x Diagonal Ridge Awning Poles (5)
3 x Horizontal Ridge Awning Poles (6)
1 x Centre Upright Awning Pole (9)
6 x Elbow Poles (7)
2 x Steel Awning Poles (8)

5
PRODUCT AND PARTS
Part Description Cont.
1 x Tent Bag
1 x Pole Bag
1 x Peg Bag
18 x Pegs
6 Guy Ropes

6
ASSEMBLY INSTRUCTIONS
Step 1
Select a sheltered camp site protected from the wind that will not allow water to pond under the tent oor.
Clear a level area of all stones, twigs, etc.
Lay out tent with doors facing the desired direction.
Open doors and windows to allow air inside when standing tent up.
WARNING
Failing to open doors and windows will put excessive stress on the fabric as the tent is raised and may
cause damage. This damage is not covered by warranty.
Peg down the corners of the tent. See Figure 1. Peg down all remaining peg loops.
Join tent poles sections together ensuring each section is rmly secured into the next. See Figure 2.
Step 2 Install the ridge poles
Select the three ridge poles (1), slide one ridge pole through the sleeve that runs along the centre of the roof. Slide
the remaining ridge poles through the loops along both sides of the roof. Make sure that you do not miss any loops
including the webbing loops . See gure 1.
WARNING
Do not force poles through the sleeves as this may damage the sleeve. Check to ensure the pole does
not snag when sliding it through the sleeve.
Select the six elbow poles (7) and connect them to the ends of the three ridge poles (1). The three elbow poles (7)
to be attached to the front of the tent need to be pushed up through the fabric socks in the awning roof. The end of
the elbow pole with the hole in the side should point to the ground. With the webbing ties attached to the tent tie a
knot onto the D rings of the elbow pole. Please note to leave an equal distance at the front and the back of the tent
between the tent and poles.
Step 3 Install the upright poles
Select the three corner upright poles (2) and connect them to the corner elbow poles except the elbow at the front
door , use pole #13 with the adjustment. Have the two adjustable centre upright poles (3) ready to connect to the
centre ridge elbow poles once the tent has been raised . See gure 2.
IMPORTANT
1. After unpacking the tent, use the check list on page 4 to make sure you have all the parts.
2.You need to condition your Canvas tent/shelter before use. See page 12 - CONDITIONINGYOUR
NEW CANVAS TENT/SHELTER

7
ASSEMBLY INSTRUCTIONS
Step 4 Standing the tent up
With a friend at one end of the tent and you at the other end of the tent, lift one side of the tent until the side
wall is fully upright and the corner upright poles (2) support the side of the tent. Repeat this for the other side of
the tent, the tent should now be supported by the four corner uprights (2). Connect the two adjustable centre
upright poles (3) and adjust height until tent sits correctly.
WARNING
Do not push the poles up too high as this may cause damage to the fabric. This damage is not covered
by warranty.
Step 5 Erect the Front awning
Begin by selecting the three horizontal ridge awning poles (6) to attach to the three front elbow poles (7) under
the awning. Insert the tip of the right angle spigot into the hole on the front of the elbow pole(7) and adjust the
pole length to match the length of the awning. Select the centre upright awning pole (9) and with a friend place
the ends of the two diagonal ridge awning poles (5) with holes onto the spigot of the centre ridge upright (9)
(ensure the adjustment screw for the diagonal ridge awning poles are facing down). Position the spigot of this
assembly through the hole in end of the centre awning ridge pole (6) and then through eyelet in the awning,
attach a guy rope and peg down. Ensure peg point is approximately 1.5 – 2m from pole base. Repeat this proce-
dure for the two corner awning upright poles (4) and side awning ridge poles (6) while remembering to attach
the other end of the diagonal ridge awning poles (5) through the corner upright spigot.
Attach the guy ropes to the webbing tabs along each side of the awning roof.
Tension all adjustable poles and guy ropes so the roof sits taut and will not hold water.
WARNING
If the awning is not tensioned correctly, water will pond and may cause damage to the fabric and
poles. This damage is not covered by warranty.
Step 6 Erect the side awning
Open side entrances as required.
to erect awnings select awning poles (8) and position top of pole through eyelet in awning. Attach guy rope
to top of pole and peg down. It is recommended awnings are lowered during heavy rain.
Step 7 Install room divider

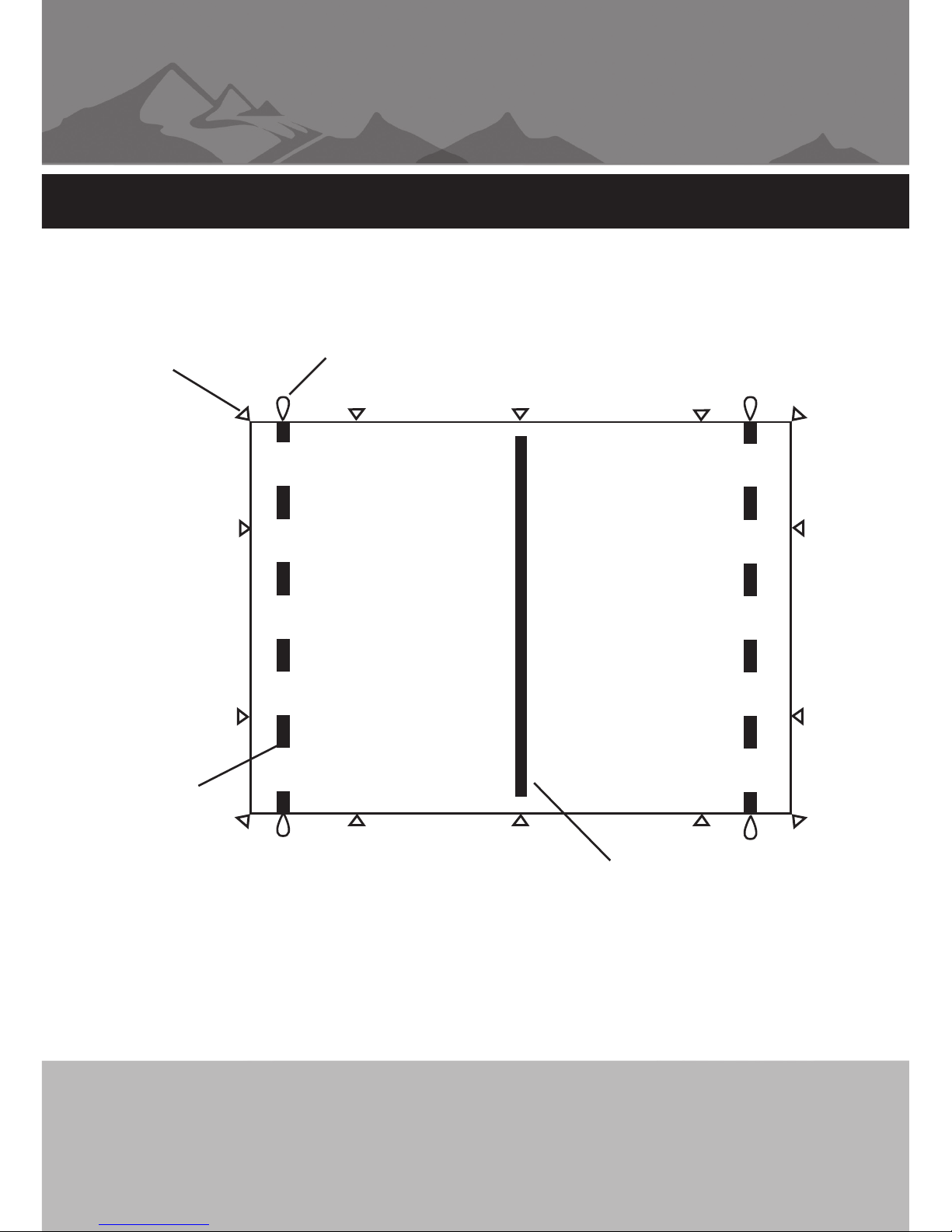

The divider has toggles on the edges which attach to the fabric loops inside the tent. To install the curtain,
push each toggle through its corresponding loop inside the tent.

8
FIGURES AND ILLUSTRATIONS
Figure 1
Side Ridge
Pole Loops
Ridge Pole Sleeve
Webbing Loops
Peg Loops

9
FIGURES AND ILLUSTRATIONS
Figure 2

10
Step 1 Release guy ropes.
Step 2 Unzip doors and windows and collapse the tent, removing and disassembling the
poles. Place the poles in the pole carry bag and tie shut.
Step 3 Remove pegs.
Do not remove pegs from the ground by pulling on peg loops.
This may cause the peg loops to tear out of the seam.

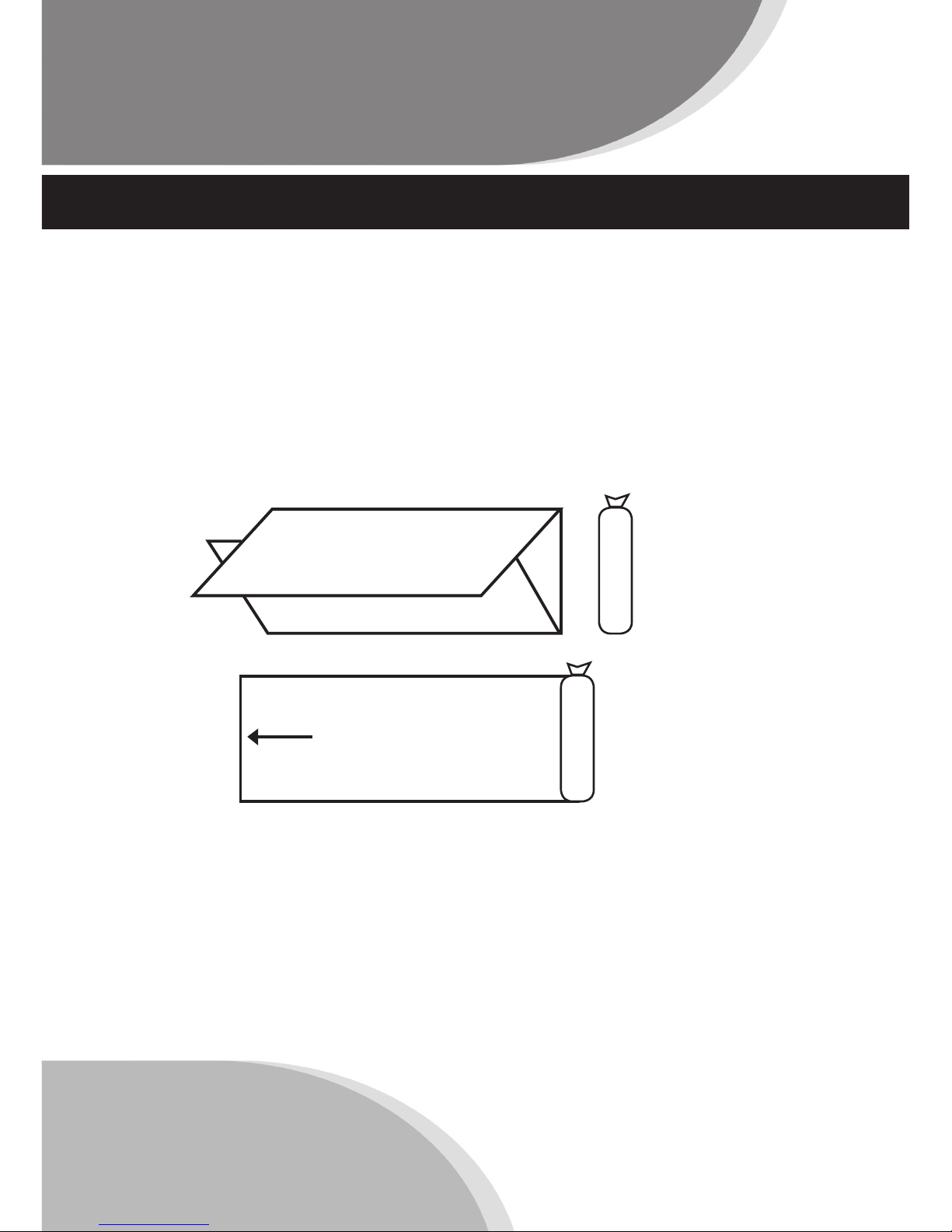

Step 4 Spread the tent out at with all loose fabric within the edges of the tent base.
Try to atten the tent as much as possible.
Step 5 Fold the tent in half, third or quarters.
The folded tent should be the width of the pole bag.
Step 6 Beginning at the back end, roll your tent tightly, forcing out excess air as you roll.
Keep tent edges straight as you roll.
Step 7 When tent is rolled up, tie straps around it and place into tent carry bag with peg
bag, instruction sheet, and other miscellaneous parts. If tent won’t t into bag, unroll
and reroll more tightly.
Important
Do not store your tent away wet, damp or dirty. If you have no choice but to return
home from your camping trip with a wet, damp or dirty tent, make sure you lay it out
to air in a cool, dry and shaded place and only pack it away when it is completely dry
and clean.
DISASSEMBLY INSTRUCTIONS
Do not remove pegs from the ground by pulling on peg loops.
This may cause the peg loops to tear out of the seam.

11
FOLDING INSTRUCTIONS
Figure 3
The width of the tent
should not exceed
the length of the
pole bag
Front of tent
(door unzipped)
Fold tent into a
Rectangular shape
ROLL

12
• Intermittent use only. Although our polyester fabrics are treated for extra UV
resistance, continuous exposure to sun light will break the fabric down. Fading
of colour is an early warning sign.These tents/shelters are not designed as
permanent dwellings or structures.
• During rain always lower awnings to avoid water ponding and collapsing the awning.
• If seam seal tape is lifting, simply cut the lifted tape o and apply seam sealer to the
seam.
• Never store a wet and/or soiled tent/shelter; as mildew and corrosion can form within a
few days. This condition is not covered by the warranty. Always allow the tent to dry
completely before packing and stowing. If mildew occurs, use a soft bristle brush
or sponge with mild detergent to clean it o.

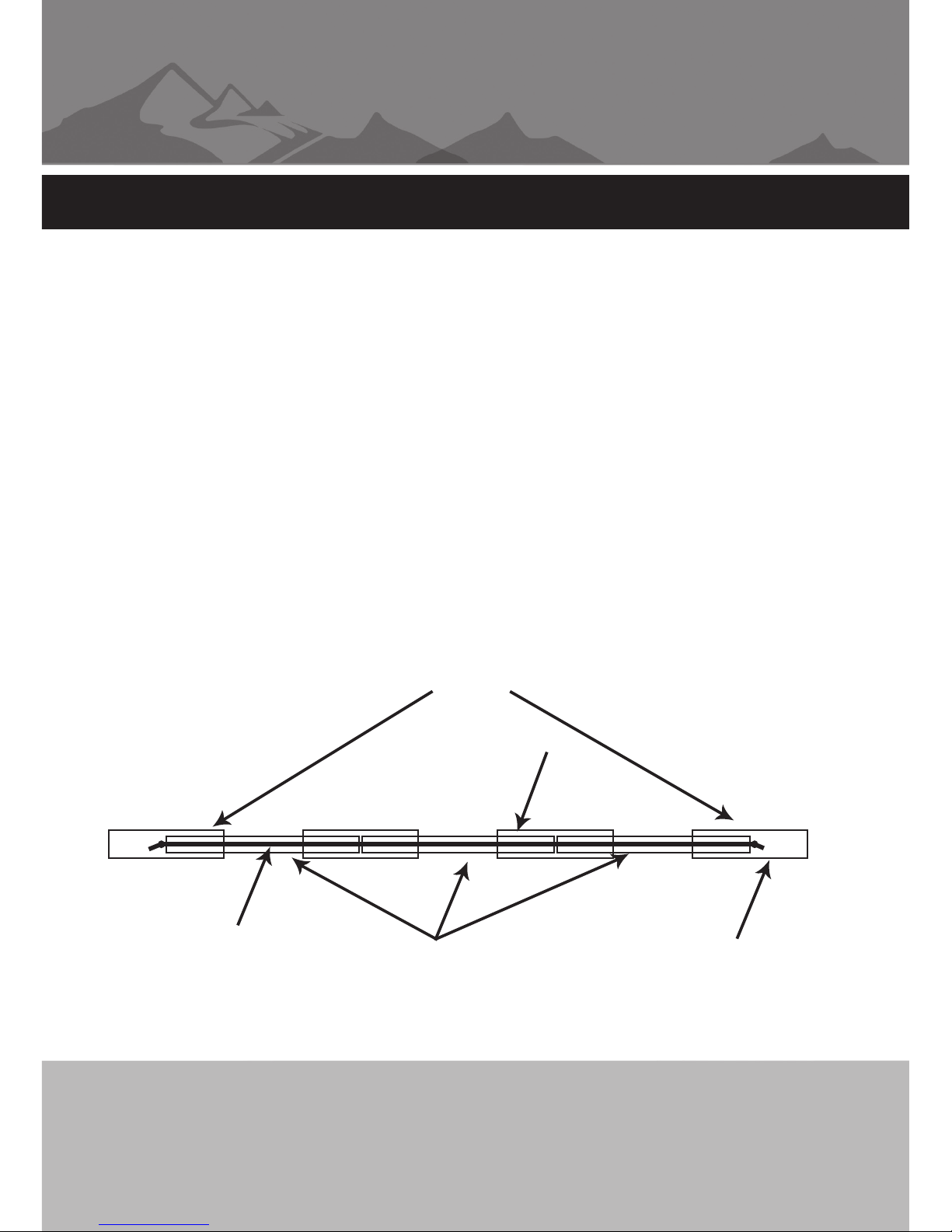

• The elastic shock cord within the poles is provided for easy assembly of the poles. The
shock cord is not required for any structural reason. The poles and tent perform perfectly
well without the shock cord. Age, over stretching and mishandling may cause failure. Shock
cord is not covered by warranty. It’s easy to replace, see instructions.

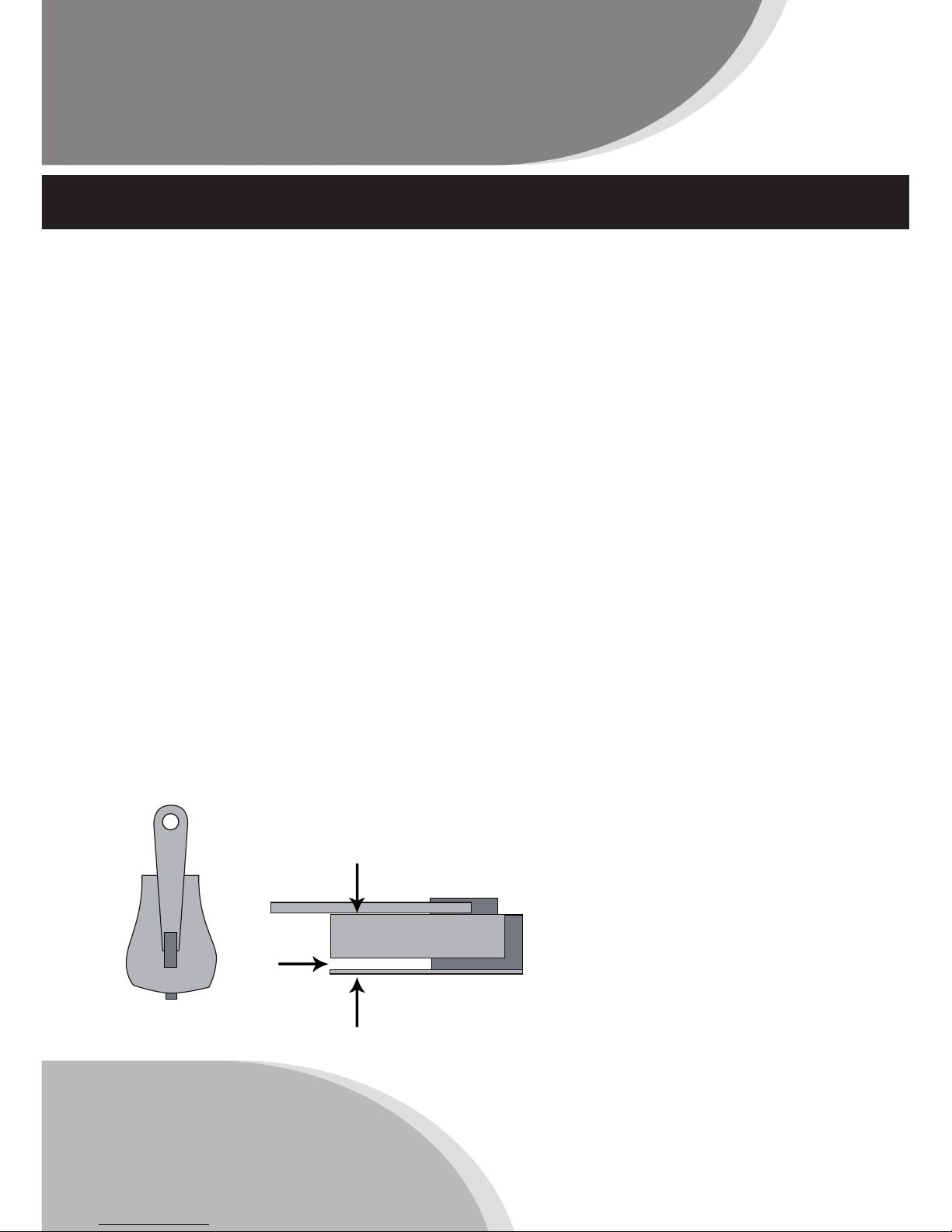

•Sometimes the zipper coil bursts open or does not close. This could be due to wear or
metal fatigue. The problem can be easily xed, see instructions.
•First aid for tears and ash burns is to carry a roll of tape, industrial or medical. This not only
blocks the hole, it will prevent further tearing. It could have other uses around the camp site
too.
• When removing pegs, do not use the webbing or corner of the tent as your handle.
Either use another peg, a peg remover or the claw of a hammer hooked under the peg to
remove them.
IMPORTANT - CONDITIONINGYOUR NEW CANVAS TENT
Once you get your new tent home, it is important to condition the tent. Simply pitch your
tent and wet it down with your garden hose. Pay particular attention to the seams - the thread
swells when wet and blocks the needle holes. The needle holes also shrink around the thread.
The canvas fabric also benets from this because the cotton swells into the weave and the
waterproof treatment settles within the fabric. Let the tent dry completely before doing it a
second time. Always pack your tent away dry.
PROLONGING THE LIFE OF YOUR TENT/SHELTER

13
UNDERSTANDING WATERPROOFNESS
What is not covered by warranty!
OZtrail tents use waterproof and water repellent fabrics. However, with the
addition of seams, zips and other desirable features a recreational tent will not be
as waterproof as a car, house or other solid structures. The following are common
examples of how water can enter a tent: -
Condensation - When warm moist air meets cooler air, condensation occurs. The tent/shelter
y forms an impermeable layer between the inside and outside conditions. The moisture inside
the tent/shelter condenses on the fabric. Sometimes in cold conditions it appears that the
fabric is leaking when in fact the cause is condensation. Condensation can be reduced if the
tent/shelter is well ventilated.
Zips - All care is taken in the design to cover zips with rain aps. At times wind driven rain could
force water under the rain aps and through the zips. To minimise this, make sure all doors and
windows are closed with the rain aps covering the zips.
Floor - If the ground is very wet or water pools under the oor, downward pressure of standing
or kneeling on the oor could force water through the oor fabric. To prevent this, do not pitch
the tent over hollows and make sure water drains away from the tent.
Structural Integrity - A perfectly pitched tent on perfectly at ground is structurally strong
and most waterproof. During prolonged periods of rain and wind it may be necessary to
tighten guy lines and reset the tent pegs and attend to drainage around the tent. Sagging and
incorrect pitching weakens the tent structure and could allow water to pool on the y placing
undue forces on the tent causing leaking and breakages.
PROLONGING THE LIFE OF YOUR TENT/SHELTER

14
Tent Pole
Knot tied in
Shock-Cord
Ferrule
End Ferrule
Pole Sections
Shock-Cord
Use this procedure to replace broken or untied Shock-Cord:-
1. Start by cutting the Shock-Cord to 2/3’s the length of the Tent Pole
2. Feed the cord through the rst pole section and tie a double knot. The knot will catch on the
end of the breglass pole inside the ferrule.
3. Stretch the Shock-Cord through each Pole Section keeping the cord stretched within the
poles so you have enough relaxed cord to feed through the next Pole Section.
4. Once all Pole Sections are threaded, double check that the Shock Cord tension is not either
too loose or too tight and then tie-o the free end.
Shock-cord can be purchased by the metre from Camping Stores or with Pole Repair Kits.
Replacing shock-cord in tent poles

15
Reducing the risk of jamming fabric in the zip ~
•When using the zip, hold the pull-tab between your thumb and forenger with your
thumb facing you.
•As you are closing the zip clear the way in front and under the zip slider using the back of
your hand, and cup the zip slider underneath with your remaining 3 ngers.
Use this action for opening or closing. Keep the fabric clear of the zip slider - zip and
unzip slowly.
What to do when the zipper gets caught ~
•Pull the fabric bit by bit out of the slider. Do not try and pull all the fabric in one go. Do not
force the slider, or use pliers on either the fabric or the zip.
If the slider does not close the zipper properly ~
•With use, the jaws of the zip slider can open ever so slightly. When this occurs the slider
does not compress the zip teeth or coil together tightly enough and the zip bursts open or
does not close.
•Undo the zip and with the slider at the end of the zip lightly crimp the jaws of the slider
together. Try top to bottom axis rst and then side to side axis.
Crimping A Zip-Slider
A
B
C
The most common reason why zips
burst open is that the zip slider does
not close the coil tightly enough.
Metal fatigue and production
variances cause the gap marked A to
open up.
By simply‘crimping”the slider
together at points B & C with a pair of
pliers, this solves the problem most
of the time. Crimping in other planes
is worth a try if B & C does not work.
This is to be done when the zip slider
is still attached to the zip in the open
position.
ZIPS

16
WARRANTY
We guarantee that the brand new product does not have faulty construction,
materials, components or function.
If a fault is discovered that existed in the brand new product within the rst 12-
months of use, we will replace or repair it at our discretion. Proof of purchase,
including the purchase date will be required.
Exceptions
Fair wear and tear, damage caused by improper use, misuse or abuse.
Commercial users are not covered by this warranty. Defects due to modication, accident,
damage caused by vandalism, rusting, acts of nature or any other event beyond the control
of the manufacturer. This warranty does not cover scratching, scung, natural breakdown
of materials that occur inevitably with extended use including Ultra Violet light damage,
exhausted zippers or other cosmetic damage that may result from normal wear and tear. In
addition, defects resulting from intentional damage, negligence or unreasonable use will void
the warranty. This warranty does not cover incidental expenses including property damage.
Imported by:
OZtrail Leisure Products
PO Box 1, Sumner Park QLD 4074
www.oztrail.com.au
Made in China
