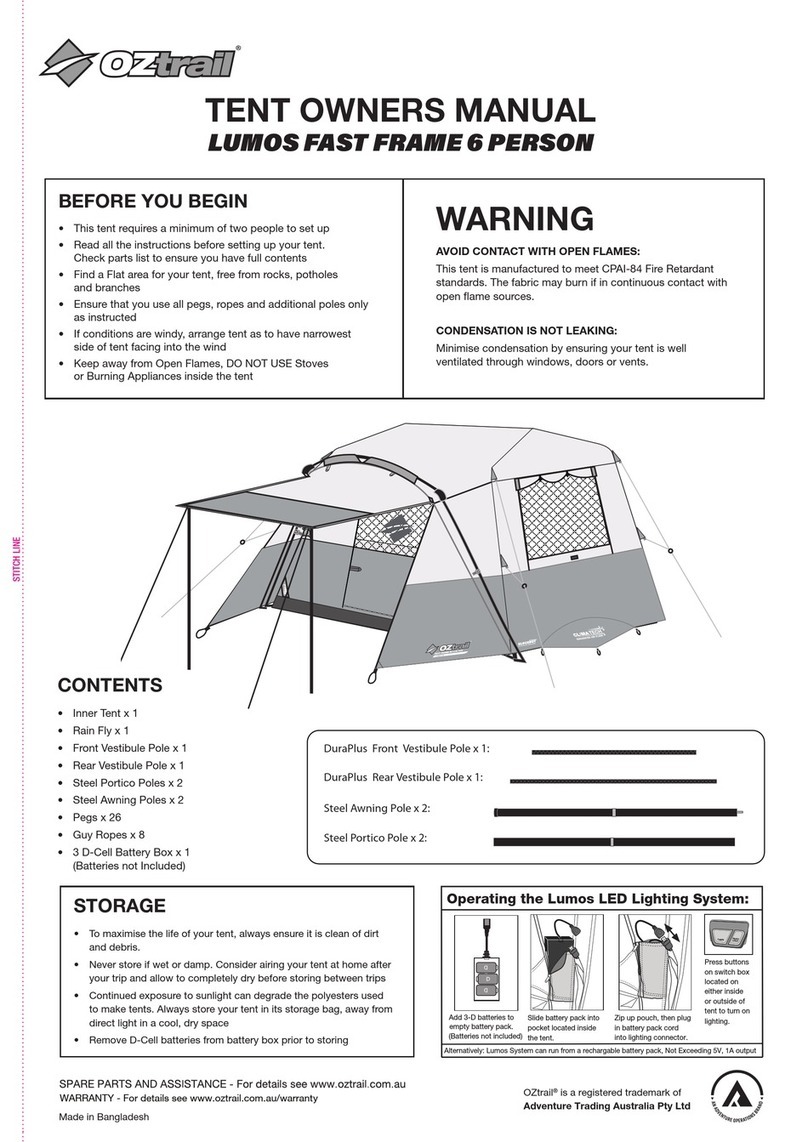

OZtrail FAST FRAME BLOCKOUT User manual

WARNING
AVOID CONTACT WITH OPEN FLAMES:
This tent is manufactured to meet CPAI-84 Fire Retardant
standards. The fabric may burn if in continuous contact with
open flame sources.
CONDENSATION IS NOT LEAKING:
Minimise condensation by ensuring your tent is well
ventilated through windows, doors or vents.
STITCH LINE
TENT OWNERS MANUAL
B LOCKOUT FAST FR AME 6 P ER S ON
BEFORE YOU BEGIN
• This tent requires a minimum of two people to set up
• Read all the instructions before setting up your tent.
Check parts list to ensure you have full contents
• Find a Flat area for your tent, free from rocks, potholes
and branches
• Ensure that you use all pegs, ropes and additional poles only
as instructed
• If conditions are windy, arrange tent as to have narrowest
side of tent facing into the wind
• Keep away from Open Flames, DO NOT USE Stoves
or Burning Appliances inside the tent
STORAGE
• To maximise the life of your tent, always ensure it is clean of
dirt and debris.
• Never store if wet or damp. Consider airing your tent at home
after your trip and allow to completely dry before storing
between trips
• Continued exposure to sunlight can degrade the polyesters
used to make tents. Always store your tent in its storage bag,
away from direct light in a cool, dry space
CONTENTS
• Inner Tent x 1
• Rain Fly x 1
• Front Vestibule Pole x 1
• Rear Vestibule Pole x 1
• Steel Portico Poles x 2
• Steel Awning Poles x 2
• Pegs x 26
• Guy Ropes x 8
WARRANTY - For details see www.oztrail.com.au/warranty
SEE OTHER SIDE FOR PITCHING INSTRUCTIONS
DuraPlus Front Vestibule Pole x 1:
Steel Awning Pole x 2:
Steel Portico Pole x 2:
DuraPlus Rear Vestibule Pole x 1:
OZtrail
®
is a registered trademark of
Adventure Trading Australia Pty Ltd
Designed & Imported by:
Adventure Trading Australia Pty Ltd
71 Charles Ulm Place,
Eagle Farm, QLD 4009
AUSTRALIA
Made in Bangladesh

STEP 2: ERECT THE INNER TENT FRAME
STEP 4: SECURE FLY TO INNER TENT
STEP 6: ALWAYS PEG OUT AND USE
GUY ROPES
STITCH LINE
TENT OWNERS MANUAL
B LOCKOUT FAST FR AME 6 P ER S ON
STEP 1: LAYOUT THE INNER TENT
STEP 3: PUT ON THE FLY
• Unfold the inner tent and outstretch over a flat, clear area
• Arrange the door so it is facing your desired area for entry & exit
• Place rain fly over inner tent so red webbing on fly faces rear of tent
• Install rear Vestibule pole by threading through sleeve on underside of fly above
rear door and inserting ends into eyelets on inner tent webbing clips
• Install Front Vestibule Pole by placing through sleeve located above the door on
outside of rain fly
• Insert Vestibule pole into black plastic molding
• Insert Steel Portico Pole into opposite side of black molding
• Connect base of Portico Pole to ring and pin on Grey Webbing stitched to
Inner tent corner
• Secure rain fly to tent with Velcro tabs located on underside
of rain fly
• Connect the fly to the tent using red and grey buckles on
tent corners
• Locate the Lower Leg section of the frame
• Raise to near vertical orientation
• Extend the leg section until the locking button clicks into the
locked position
• Repeat on other legs.
STEP 5: ASSEMBLE THE AWNINGS
PACK UP:
TO TAKE DOWN THE TENT, REVERSE THE PREVIOUS STEPS
• Use the awning poles and additional ropes to suspending
the door panel overhead
• Peg out the tent and fly around the perimeter
• In windy and rainy conditions, awnings must be
dismantled, and doors must be closed, and guy ropes
must be set out
CLICK
