OZtrail CTC-1209-D User manual

www.oztrail.com
OWNERS MANUAL
CABIN 12 x 9 TENT
CTC-1209-D

2
IMPORTANT SAFETY AND CARE INFORMATION
PLEASE READ BEFORE SETTING UP YOUR TENT/SHELTER
going away. If problems are discovered in the brand new product, they will bedealt with
underour warranty.
• This product is designed as aportable and temporary structure; itis notdesigned to be a
permanent structure ordwelling.
early warningsign. These tents/shelters are notdesigned as permanent dwellings or
structures.
are followed correctly, this product will withstand mild winds and rain. In gusty winds and
storms you must collapse the tent/shelter.
• We recommend that you discuss adding this investment to yourhousehold Insurance
Policy with your Insurance Agent.
CAMP SAFE - SAFETY HABITS
•Do notuse fuel burning, oxygen consumingdevices inside the tent. This includes candles,
•Do notuse gas appliances of any kind inside the tent/shelter
EXTREME CAUTION - Gas or fumes or lack of oxygen within the
tent/shelter could result in unconsciousness, brain damage and
even death

3
5
4
3
2
1
• Do notleave your
tent/shelter erected
in strong winds -
collapse the tent
onto the ground and
seek refuge in your
vehicle
• Do notpitch the tent/shelter near a camp fire or any other flame source
• Do notuse candles, matches or any other flame source in ornear the tent
• Onlyuse recommended water repellent compounds on the tent/shelter
fly
To prevent injury caused by electricity -
•
•Do notpitch your
tent/shelter near
cliffs in case of
collapse or rock fall
• Do notpitch your
tent/shelter on an
area that could get
flooded
•Do notpitch your
tent/shelter under
trees with dead
branches orunder
trees known to drop
branches
To prevent injury caused by fire -
To prevent injury caused by your camping environment -

4
Product Code - CTC-1209-D
Thank you for purchasing a superior OZtrail product.
Please keep thisOwners Manual in a safe and dry place, it
IMPORTANT
We recommend that you set up this product before you leave for your trip.
Check that all parts are present and that you familiarise yourself with the
assembly and disassembly of the product. If you have any problems, your
OZtrail dealer will be able to sort it out for you.
You should have the following parts: -
Product Code - CTC-1209-D









and features of the product may vary from details within thisOwners Manual.
PART DESCRIPTION
2x Adjustable Pole 90° bend short (010)
2x Adjustable Pole 90° bend long (011)
2x Fixed Pole 90°bend (060)
4x Awning Pole with Spigot 150cm (201)
1x Awning Pole with Spigot 165cm (203)
3x Ridge Poles (302)
3x Spreader Bar with Spigot (801)
2x Spreader Bar (901)
1x Tent Bag

5
PRODUCT AND PARTS




Part Description Cont.
1x Pole Bag
1x Peg Bag
18 x Pegs
6x Guy Ropes

6

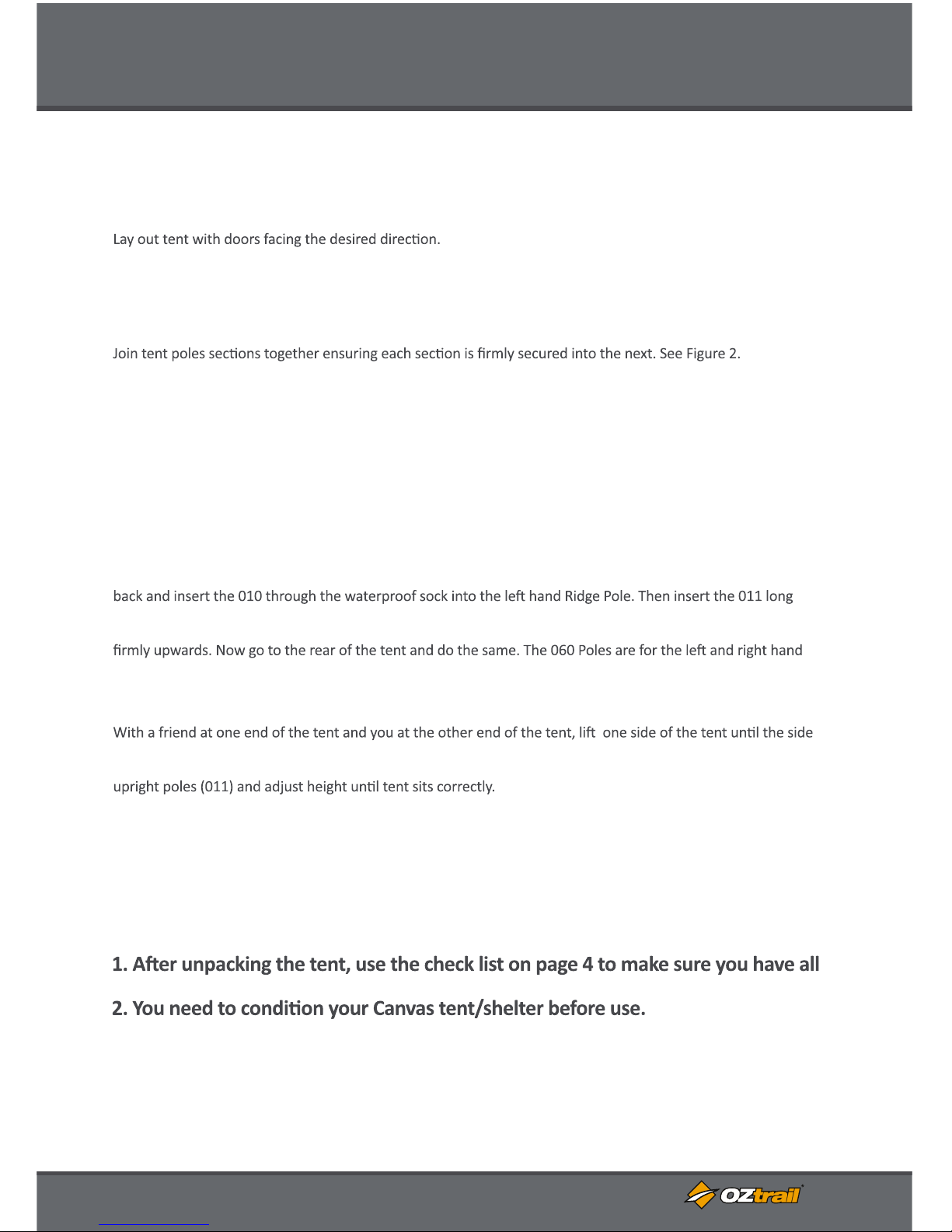

ASSEMBLY INSTRUCTIONS
IMPORTANT
the parts.
See page 12 - CONDITIONING YOUR NEW CANVAS TENT/SHELTER
STEP 1:
Select a sheltered camp site protected from the wind that will not allow water to pond under the tent floor.
Clear a level area of all stones, twigs, etc.
Open doors and windows to allow air inside when standing tent up.
WARNING
Failing to open doors and windows will put excessive stress on the fabric as the tent is raised and
may cause damage. This damage is not covered by warranty.
Peg down the corners of the tent. See Figure 1. Peg down all remainingpeg loops.
STEP 2: Install the ridge poles
Select the three ridge poles (301), slide one ridge pole through the sleeve that runs along the centre of the roof.
Slide the remaining ridge poles through the loops alongboth sides of the roof. Make sure that you do not miss
any loops including the webbing loops . See figure 1.
WARNING
Do not force poles through the sleeves as this may damage the sleeve. Check to ensure the pole
does not snag when sliding it through the sleeve.
STEP 3: Install the upright poles
Select the 4 cornerpoles 2x 060 & 2x 010 short and the 2 centre Ridge Poles 2x 011 long. Fold the awning
into the centre Ridge Pole the same way, then insert the 010 into right hand Ridge Pole the same way. Note that
the 010 Poles are adjustable. This allows you to move the poles away from the doorways while extending them
Ridge Poles and the 011 longis for the centre Ridge Pole. See figure 2.
STEP 4: Standing the tent up
wall is fullyupright and the cornerupright poles (010) support the sideof the tent. Repeat this for the other
side of the tent, the tent should now be supported by the four corneruprights (010). Connect the two centre
WARNING
Do not push the poles up too high as this may cause damage to the fabric. This damage is not
covered by warranty.

7
ASSEMBLY INSTRUCTIONS
STEP 5: Erect the Front awning
and adjust the polelength to match the length of the awning. Select the centre upright awningpole(203)
of the centre ridge upright (203) (ensure the adjustment screw for the diagonal ridge awningpoles are facing
1.5 – 2m from polebase. Repeat this procedure for the two corner awningupright poles (201) and side
(901) through the cornerupright spigot.
Tension all adjustablepoles and guy ropes so the roof sits taut and will nothold water.
WARNING
If the awning is not tensioned correctly, water will pond and may cause damage to the fabric and
poles. This damage is not covered by warranty.
STEP 6: Erect the side awning
lowered duringheavy rain.
STEP 7: Install room divider
push each toggle through its correspondingloop inside the tent.

8
FIGURES AND ILLUSTRATIONS
Figure 1
Side Ridge
PoleLoops
Ridge Pole
Sleeve
Webbing
Loops
Peg Loops

9

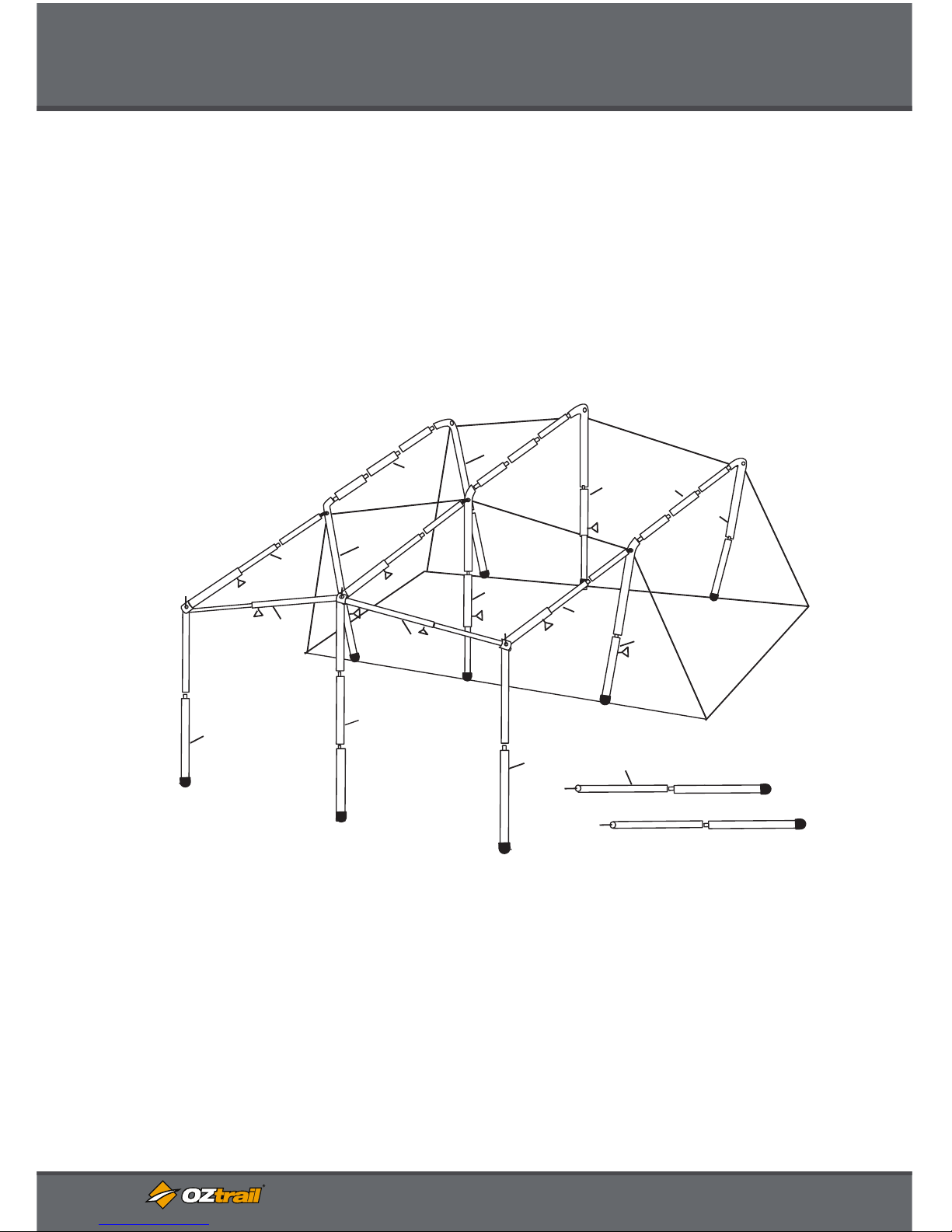

Figure 2
FIGURES AND ILLUSTRATIONS
011
011
010
010
060
060
201
201
201 203
302 302
302
801
801
801
901 901

10

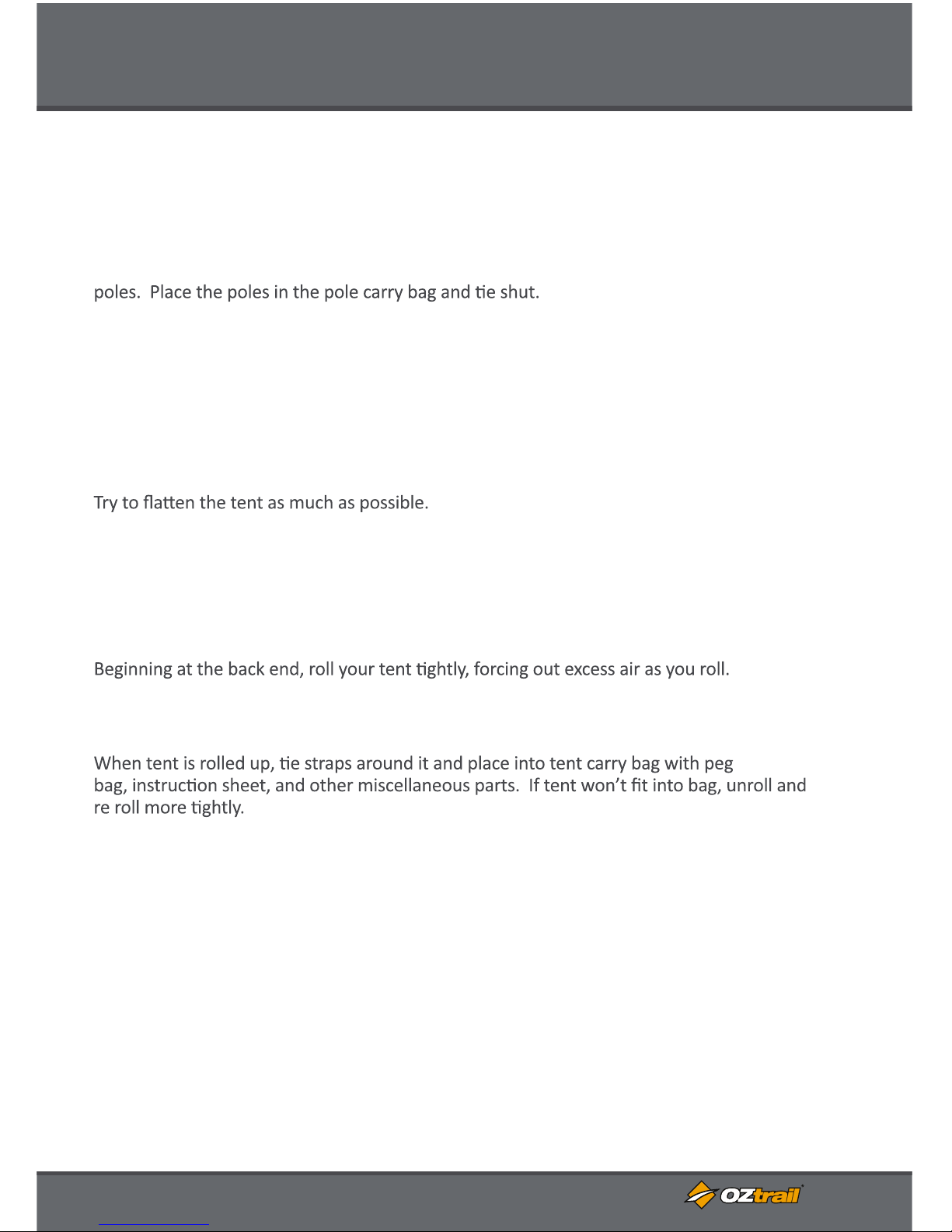

DISASSEMBLY INSTRUCTIONS
Important
Do not store your tent away wet, damp or dirty. If you have no choice but to return
home from your camping trip with a wet, damp or dirty tent, make sure you
lay it out to air in a cool, dry and shaded place and only pack it away when it is
completely dry and clean.
Do not remove pegsfrom the ground by pulling on peg loops.
This may cause the peg loops to tear out of the seam.
Release guy ropes.
Unzip doors and windows and collapse the tent, removing and disassembling the
Remove pegs.
Do not remove pegs from the ground by pullingon pegloops.
This may cause the peg loops to tear outof the seam.
Spread the tent out flat with all loose fabric within the edges of the tent base.
Fold the tent in half, third orquarters.
The folded tent should be the width of the pole bag.
Keep tent edges straight as you roll.
STEP 1:
STEP 2:
STEP 3:
STEP 4:
STEP 5:
STEP 6:
STEP 7:

11

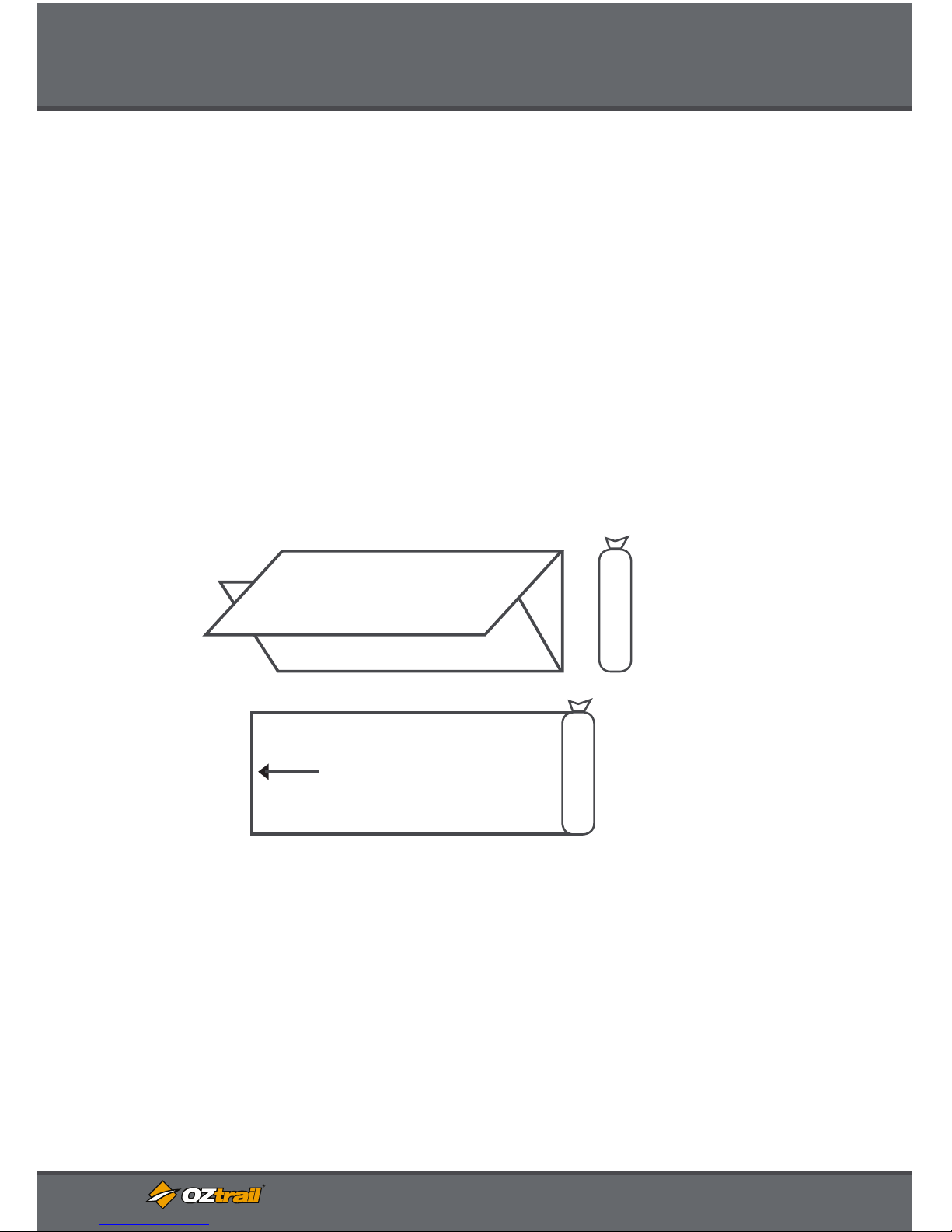

FOLDING INSTRUCTIONS
Figure 3
The width of
the tent should
not exceed the
length of the
polebag
Front of tent
(doorunzipped)
Fold tent into a
Rectangular shape
ROLL

12
PROLONGING THE LIFE OF YOUR TENT/SHELTER
early warning sign. These tents/shelters are not designed as permanent dwellings or
structures.
•During rain always lower awnings to avoid water ponding and collapsing the awning.
seam.
•Never store a wet and/or soiled tent/shelter; as mildew and corrosion can form within
sponge with mild detergent to clean it off.
shock cord is not required for any structural reason. The poles and tent perform perfectly
well without the shock cord. Age, over stretching and mishandling may cause failure.
•First aid for tears and ash burns is to carry a roll of tape, industrial or medical. This not only
blocks the hole, it will prevent further tearing. It could have other uses around the camp
site too.
•When removing pegs, do not use the webbing or corner of the tent as your handle.
Either use another peg, a peg remover or the claw of a hammerhooked under the peg to
remove them.
IMPORTANT-CONDITIONING YOUR NEW CANVAS TENT
thread swells when wet and blocks the needle holes. The needleholes also shrink around

13

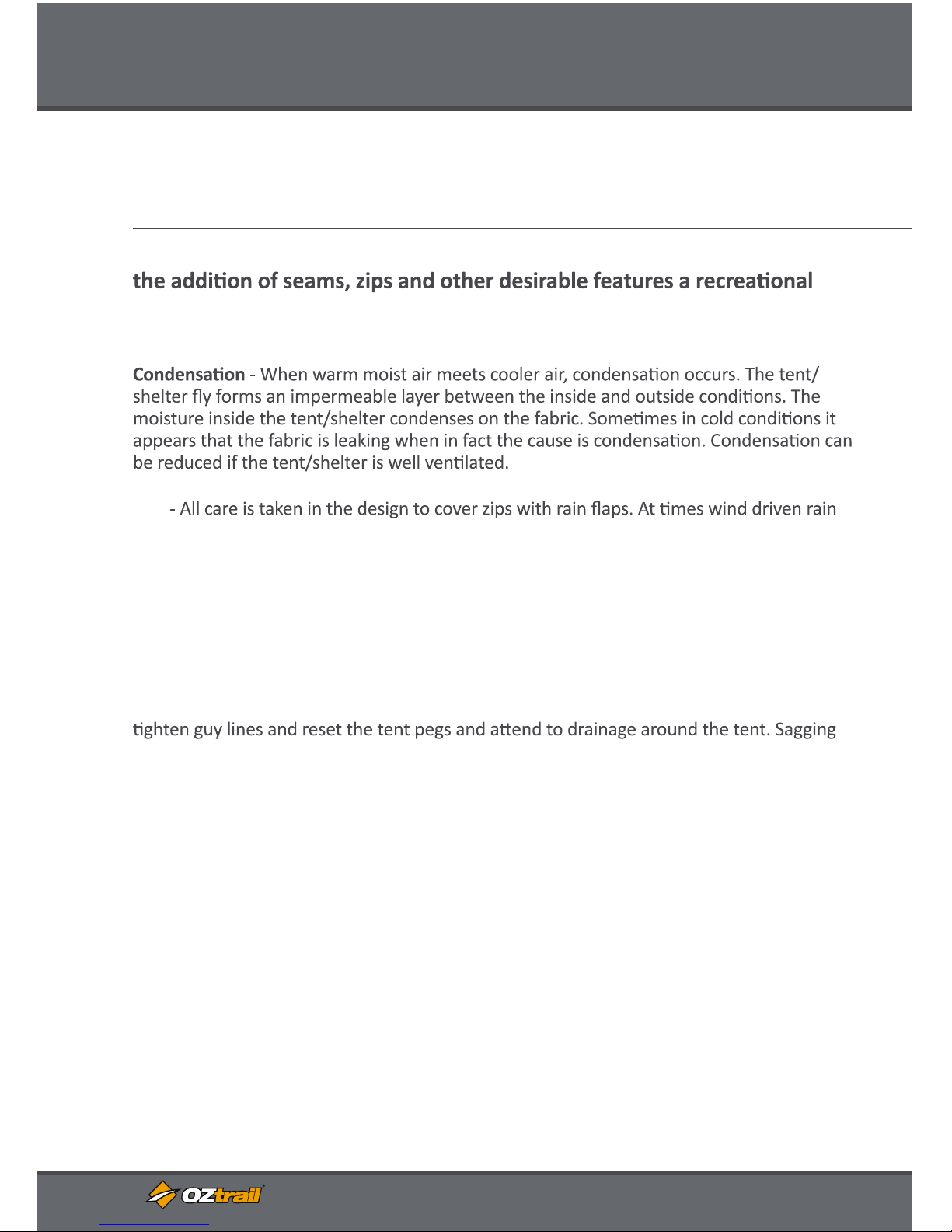

UNDERSTANDING WATERPROOFNESS
What is not covered by warranty!
OZtrail tents use waterproof and water repellent fabrics. However, with
tent will not be as waterproof as a car, house or other solid structures. The
following are common examples of how water can enter a tent: -
Zips
could force water under the rain flaps and through the zips. To minimise this, make sure all
doors and windows are closed with the rain flaps covering the zips.
Floor- If the ground is very wet or water pools under the floor, downward pressure of
standingor kneelingon the floor could force water through the floor fabric. To prevent this,
do notpitch the tent over hollows and make sure water drains away from the tent.
Structural Integrity- Aperfectly pitched tent on perfectly flat ground is structurally strong
and most waterproof. Duringprolonged periods of rain and wind it may benecessary to
and incorrect pitching weakens the tent structure and could allow water to pool on the fly
placingundue forces on the tent causingleaking and breakages.

14

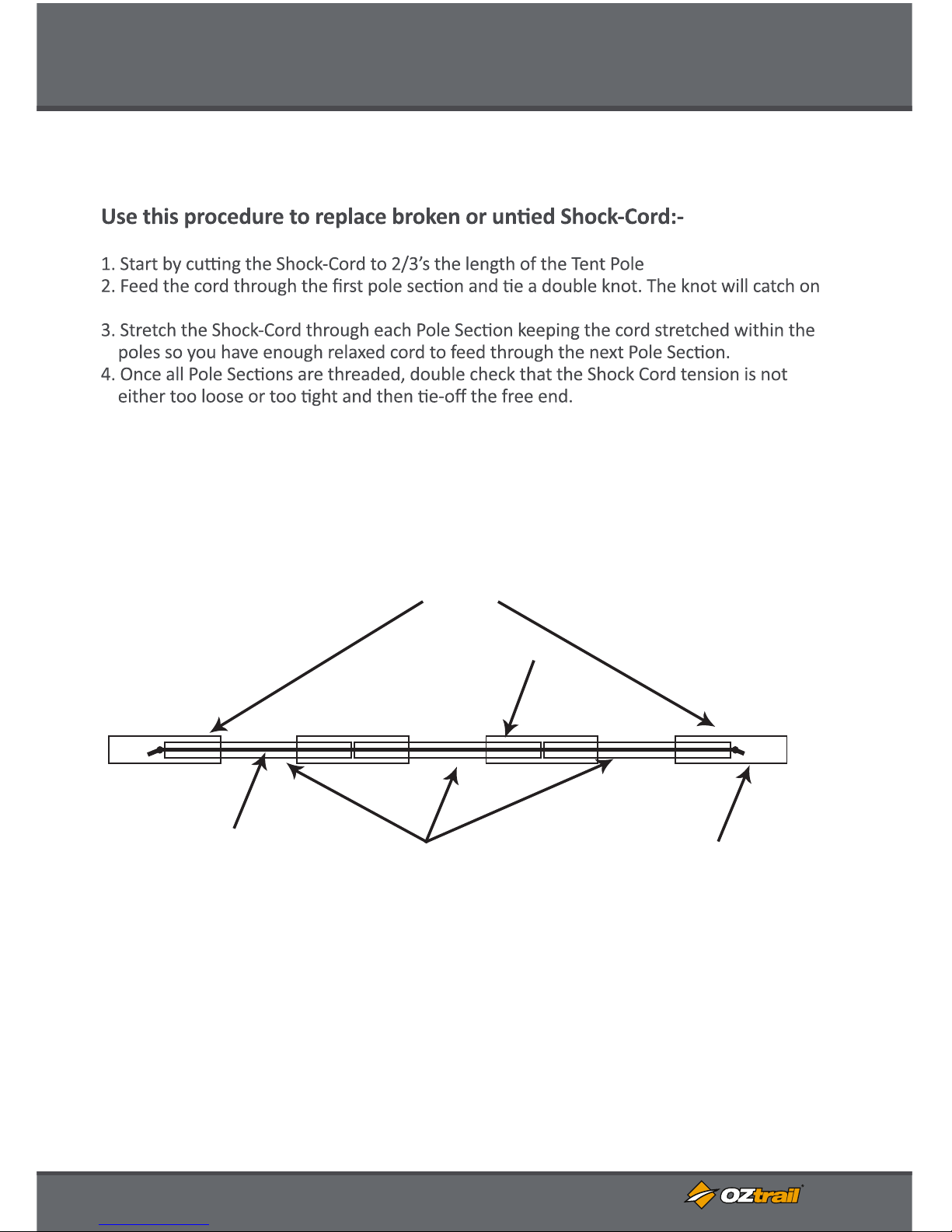

REPLACING SHOCK-CORD IN TENT POLES
Tent Pole
Knot tied in
Shock-Cord
Ferrule
End Ferrule
Pole Sections
Shock-Cord
the end of the fibreglass pole inside the ferrule.
Shock-cord can be purchased by the metre from Camping Stores or with Pole Repair Kits.

15
Zips
Reducing the risk of jamming fabric in the zip ~
• When using the zip, hold the pull-tab between your thumb and forefinger with your
thumb facing you.
•As you are closing the zip clear the way in front and under the zip slider using the back of
yourhand, and cup the zip sliderunderneath with your remaining 3 fingers.
slowly.
What to do when the zipper gets caught ~
• Pull the fabric bit by bitoutof the slider. Do not try and pull all the fabric in one go. Do
not force the slider, oruse pliers on either the fabric or the zip.
If the slider does not close the zipper properly ~
•With use, the jaws of the zip slider can open ever so slightly. When this occurs the slider
or does not close.
• Undo the zip and with the slider at the end of the zip lightly crimp the jaws of the slider

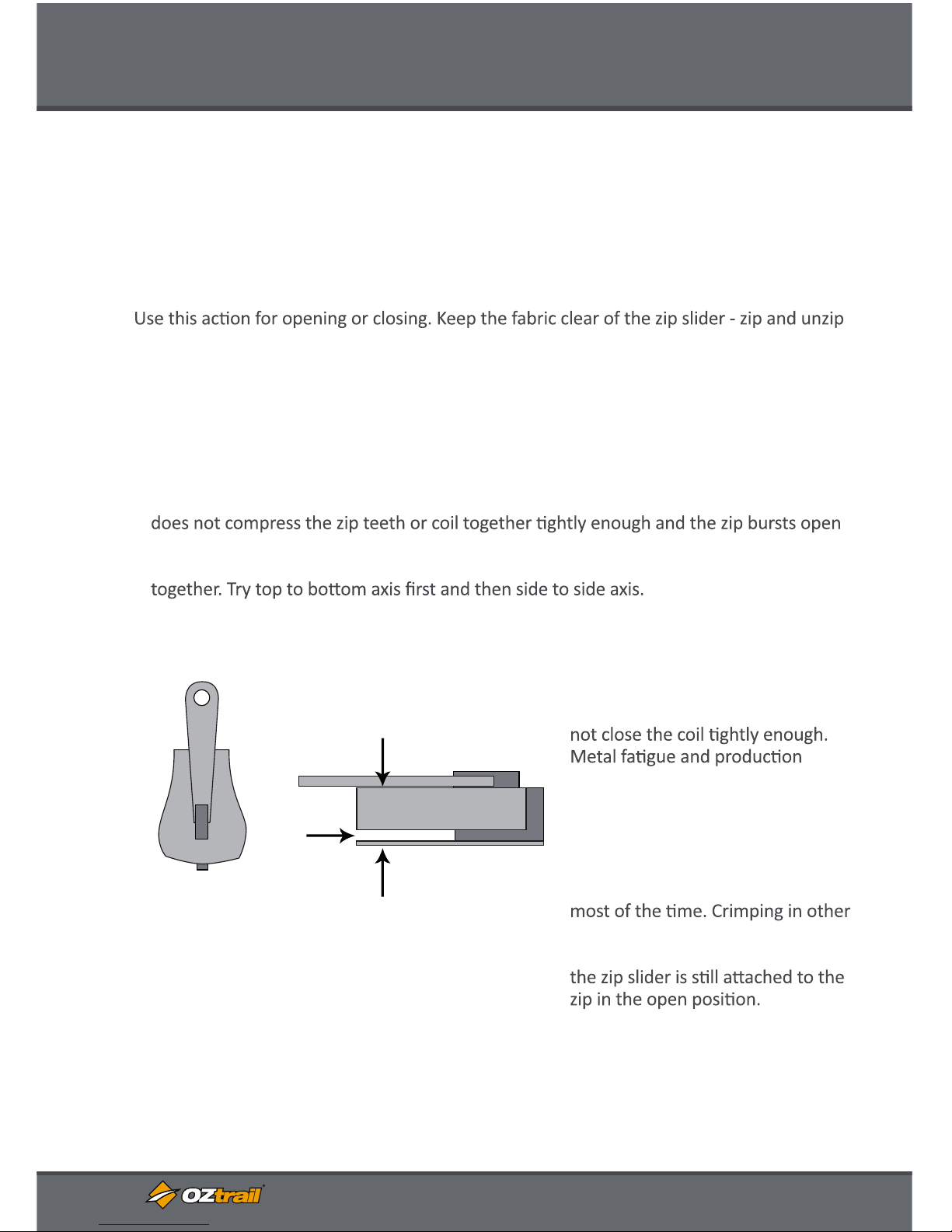

Crimping AZip-Slider
A
B
C
The most common reason why zips
burst open is that the zip slider does
variances cause the gap marked A to
open up.
By simply ‘crimping” the slider
together at points B& C with apair
of pliers, this solves the problem
planes is worth a try if B& C does
not work. This is to be done when

www.oztrail.com
See our website forthe full OZtrail range or
facebook.com/OZtrailAustralia.
WARRANTY
OZtrail warrants this product against defects for a period of two years from the date of purchase.
OZtrail will repair or replace the product, at its discretion, should a warrantable defect arise within
the warranty period. If the exact model is unavailable a model of equivalent nature will be
substituted at our discretion. This warranty excludes faults and failures caused by improper use
and abuse; fair wear and tear; or failure to follow instructions regarding care and maintenance.
Products used for a commercial nature are not covered by this warranty against defects. A
warranty may be claimed by returning the product to its place of purchase, with a detailed
proof-of- purchase clearly showing the date and detail of the purchase. You may also contact
OZtrail Leisure Products, by phone: [phone], or in writing: PO Box 1110, Eagle Farm QLD
4009, by email: [email protected]. The benefits under OZtrail’s warranty against defects are
in addition to other rights and remedies under law in relation to goods.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
For more detailed information and an explanation of these terms see
www.oztrail. com.au/warranty
Made in China
Designed & Imported by:
OZtrail Leisure Products
71 Charles Ulm Place, Eagle Farm
QLD 4009, AUSTRALIA
