Pacific Image Electronics Glite 965GW User manual

User’s Manual
Glite 965GW Gel Doc System

2

PACKAGE CONTENTS
» Scanner unit
» User’s manual » QIG
» Gel shovel » Gel cutting knife
» A/C adapter (12V, 4.1A, DC)
» Amber filter board (in box)
» Black plastic board (in box)
SCANNER COMPONENTS

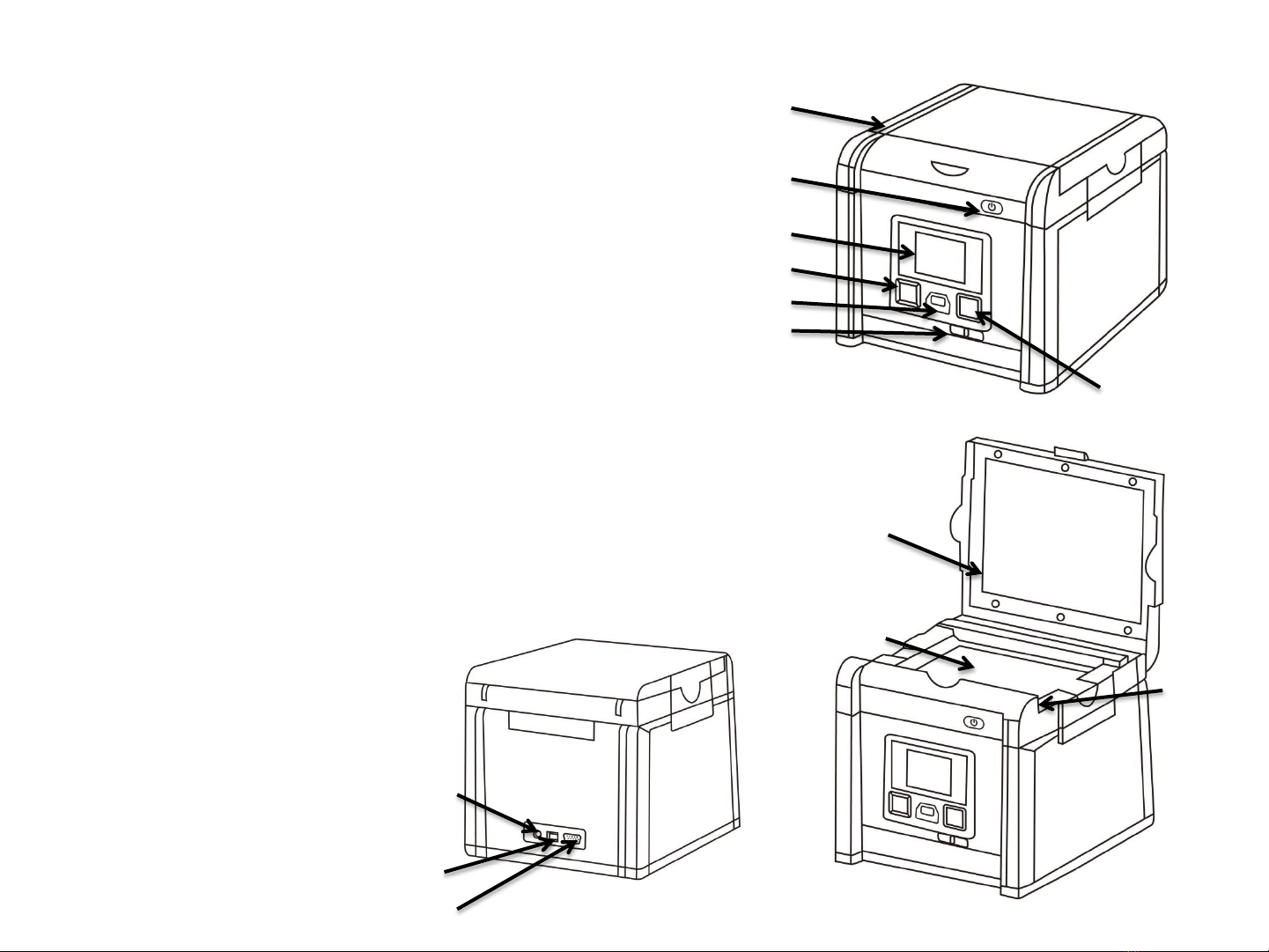

Front (Figure 1):
» Up/Down, Left/Right menu button
» USB 2.0 Port
» Scan button
» Cyan Light/White Light selection switch
» Power On/Off Button
» LCD display
» Upper lid
Back (Figure 2):
» DC power
» USB 2.0 port
» VGA port
Up/Down, Left/Right menu button
USB 2.0 Port
Scan button
Cyan Light/White Light selection switch
Power Button
LCD display
Upper lid
Figure 1
Figure 2
USB 2.0 port
DC power
Inside (Figure 3):
» Upper lid
» Lighting area
» Lid Sensor Figure 3
Upper lid
Lighting area
3VGA Our Port
Lid Sensor

SETUP
1. Remove all tapes used to hold items in place for shipping.
2. Place Glite 965GW unit on flat surface.
3. Connect power source –connect AC adapter to back of unit then plug into electrical outlet.
4. Push power button.
5. Insert USB flash drive.

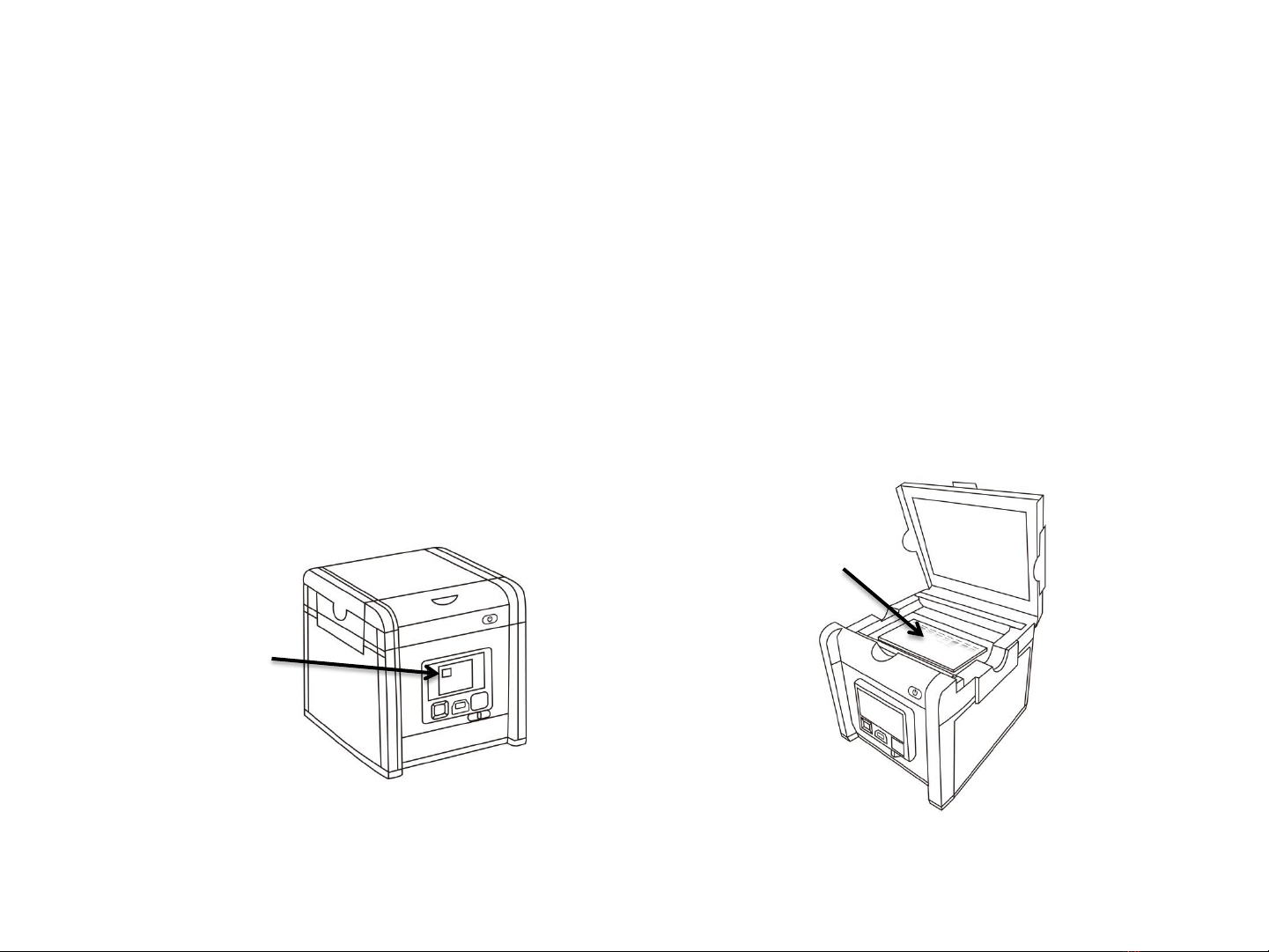

6. The Menu Mode icon will be displayed on the top left side of the display (Figure 4).
7. Place gel directly on the surface of the Lighting area (Figure 5).
8. Adjust the image condition and scan.
4
Figure 5
Place the gel directly
Menu mode icon
Figure 4

SCANNING GEL
1. In “Scanning Mode” , lift the lid to open the
scanner.
2. Slide the black plastic board into the groove of the
white backlight to block the white light on the lid*
(Figure 7).
3. Close the scanner lid.
4. Slide the Light Selection Switch on the front side of
the scanner to choose green light source for scanning
stained gel.
5. Set and adjust the desired image quality through the
Functional Menu if necessary (Please check
“Functional Descriptions” section for the details of all
functions).
6. Press SCAN button, green LED will flash and
“CAPTURING” will be displayed on the screen. If
thermal printer had connected with Glite 965GW,
“Printing Yes/No” will be displayed on the screen. The
scanned image will automatically save to USB flash
drive.
Scanning of the gel sample is now complete.
(*: it is suggested to slide the black plastic board to block the white backlight on
the lid for fluorescent stained gel scanning.)
Figure 7
Slide the black plastic board to avoid the background light for
fluorescent stained gel scanning.
5
Black plastic board
White backlight

SCANNING WESTERN BLOT/COLORIMETRIC STAINED GEL:
1. In “Scanning Mode” , lift the lid to open scanner.
2. Slide the black plastic board into the groove of the white backlight to block the white light on
the lid*.
3. Close the scanner lid.
4. Slide the Light Selection Switch on the front side of the scanner to select the white light
source for stained gel scanning.
5. Set “Transmitted” or “Epi* item through Functional Menu (Please check “LED Lighting” of
“Functional Descriptions” section for details of turn-on of “Transmitted” or “Epi” application ).
6. Adjust the desired image quality through the Functional Menu if necessary (Please check
“Functional Descriptions” section for the details of all functions).
7. Press SCAN button, green LED will flash and “CAPTURING” will be displayed on the screen. If
thermal printer had connected with Glite 965 GW, “Printing Yes/No” will be displayed on the
screen. The scanned image will automatically be saved to USB flash drive.
Scanning of the blot is now complete.
*: “Transmitted” mode is to scan the gel stained such as the SDS-PAGE gel stained with
coomassie blue stain.
6

BROWSE SCANNED IMAGES/DELETE SCANNED IMAGES
Examine Scanned Images
a. When icon displays on top left corner of the screen, press “OK” to get into
functional options.
b. When “Scan Mode” icon is highlighted , press “OK” again to get into “Play Mode”.
c. The “Play Mode” icon will display on top left corner of screen. The captured
images can then be reviewed one by one by pressing right arrow button.
Delete Scanned Images
a. When viewing the image that needs to be deleted, press “OK” to get into
Function Descriptions II.
b. Press right arrow button to choose “Edit Mode” .
c. Press up/down arrow button to choose “Delete”. Press right arrow button to select (yes/no)
to delete the file.
d. Press up/down arrow button to select “Yes”. Press “OK” to save the setting. The image
is thus deleted.
7

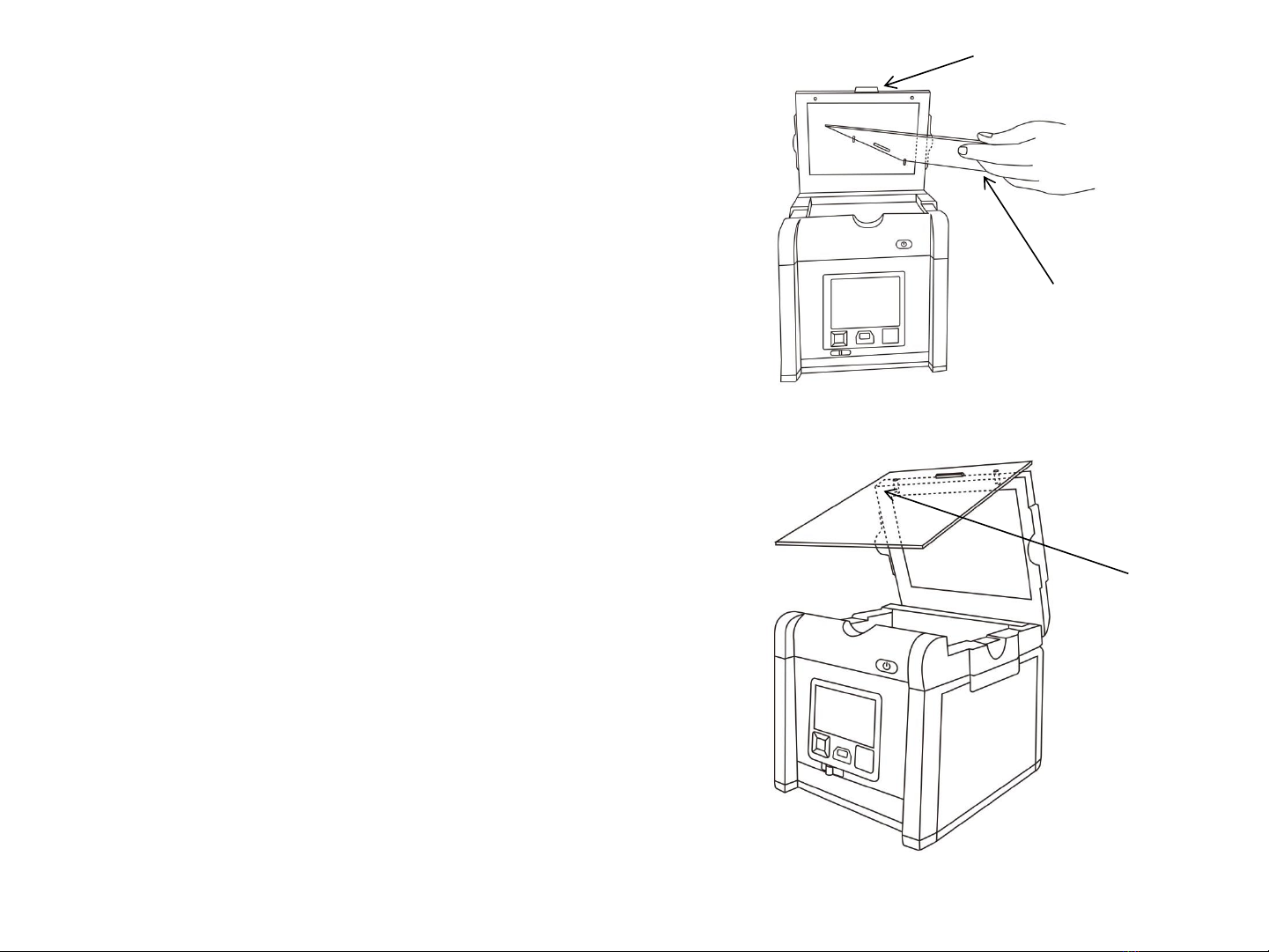

INSTALLATION OF AMBER FILTER BOARD
Glite 965GW is equipped with an amber filter
board for green light protection and gel cutting
purposes. Open the lid and install the filter board
so the gel cutting task may be conducted.
1. Open the lid, cyan light will auto turn off
2. Lift the lid to its maximum open angle
3. Position the amber filter board with the hole
for hanging on lid in front (Figure 8).
4. Place the amber filter board onto the filter
board hanging tab so the filter board may
hang as shown in (Figure 9).
5. When hanging on the lid, make sure the two
small rods on the filter board are placed
closely against the lid.
6. The installation is completed. One may turn
on cyan LEDs by “Scan button” for further gel
cutting purpose by using the provided gel
cutting knife.
Figure 8
Figure 9
Filter board hanging tab
Small rod
Amber Filter Board

DISPLAY SCANS ON Monitor or Projector
The display from the scanner can be displayed on a television rather than the built in scanner
preview screen using the VGA port.
1. Set the television to VGA mode (see monitor documentation for details).
2. Connect the included VGA cable to the video port on the monitor.
3. Connect the other end of the cable to the VGA port on the back of the scanner.
4. Video output from the scanner can now be seen on the connected monitor including the full
menu interface.
9

Functional Menu: When image display on screen in yellow border, press “OK” button so the
functional icon will show on the left upper corner.
A. Function Descriptions I:
Scan Mode: The object is able to be scanned in this mode.
LED Lighting Mode: To select the white light application for
Transmitted/Epi image scan, respectively (Note: this mode is available only when
white light application is selected.)
Exposure Mode: To adjust the exposure time frame in this mode.
G/W Switch Mode: To scan/display the image in monochrome and
normal/invert mode. Default setting: monochrome (black & white)
10

Set Up Mode: To set up the following parameters:
a. LCD: Dark, Normal, Bright
b. Display: LCD, VGA
c. Video Output: 800x600, 1024x768
d. Save Format: TIF, JPG, BMP, (“JPG” is default setting)
e. Quick View: 1 sec, 2sec, 3 sec, off (“2sec” is default setting)
f. Slide Show Interval: 2 sec, 3sec, 5 sec, 10 sec (“3sec” is default setting)
g. Power Save: 1 min, 3 min, 5 min, 10 min (“1 min” is default setting)
h. Language: English, 日本語
i. Date: setup date yyyy/mm/dd
j. Time: setup time hh/mm/ss
k. Reset: Yes, No. (Reset all current settings back to factory default)
11

Functional Menu:
B. Function Descriptions II:
Play Mode: To play the captured images. To examine the captured image.
Auto Play Mode: To automatically play the captured images one by one.
Edit Mode: To edit the captured images (such as to rotate or to delete the captured
image, etc…)
Preview Mode: To preview the captured images in a multi image thumbnail panel.
Set Up Mode: Same as the “Set Up Mode” functions in Function Descriptions I.
12

Function Descriptions I:
“Scan Mode”
When icon displays on top left corner of the screen, the object is ready to be scanned.
“LED Lighting Mode” *
a. When in “Scan Mode”, press “OK” to get into functional option list.
b. Press right arrow button to choose “LED Lighting Mode” . ”
c. Press up or down arrow button to choose light source (Transmitted & Epi1).
d. Press “OK” to save the setting.
*: “LED Lighting Mode” Is only available when switching to white light application.
1: “Transmitted” mode is to scan the gel stained such as the SDS-PAGE gel stained with coomassie blue
stain.

“Exposure Mode”
a. When icon displays on top left corner of the screen, press “OK” to get into functional
option list.
b. Press right arrow button to choose “Exposure Mode” .
c. Press up or down arrow button to choose the desired exposure level.
d. When the desired exposure level is selected, press “OK” to get back to “Scan mode”.
“G/W Switch Mode”
a. When icon displays on top left corner of the screen, press “OK” to get into functional
option list.
b. Press right arrow button to choose “G/W Switch Mode” .
c. Press up or down arrow button to choose to select the desired display mode (G & W;
color invert or G & W invert).
d. Press “OK” again to return to “Scan Mode”.
*: The default setting of the scanner is Black & White.
14

“Set Up Mode”
a. When icon displays on top left corner of the screen, press “OK” to get into functional
option list.
b. Press right arrow button to choose “Set Up Mode” .
C. Press down arrow button to get into “Setup Menu” and select the desired setting item.
d. Press right arrow button to get into setting mode. Then press up and down arrow button
to select the desired setting. Press “OK” to save the setting.
e. Press down arrow button to select other setting mode; or press “OK” again to return to
“Scan Mode”.
Setup Menu and related setting items:
a. LCD: Dark, Normal, Bright
b. Display: LCD, VGA
c. Video Output: 800x600, 1024x768
d. Save Format: TIFF, JPG, BMP
e. Quick View: 1 sec, 2 sec, 3sec, off
f. Slide Show Interval: 2 sec, 3sec, 5 sec, 10 sec
g. Power Save: 1 min, 3 min, 5 min, 10 min
h. Language: English,日本語
i. Date: yyyy/mm/dd
j. Time: hh/mm/ss
k. Reset: Yes, No. (Reset all current settings back to factory default)
l. About: F/W, S/W information, Update
15

Function Descriptions II:
“Play Mode”
a. When icon displays on top left corner of the screen, press “OK” to get into
functional options.
b. When “Scan Mode” icon is highlighted , press “OK” again to get into “Play Mode”.
c. The “Play Mode” icon will display on top left corner of screen. The captured
images can then be reviewed one by one by pressing right arrow button.
d. Press “OK” twice to get back to “Scan Mode” (It will take few seconds to complete
the process.)
“Auto Play Mode”
a. When in “Play Mode” , press “OK” to get into functional option list.
b. Press right arrow button to choose “Auto Play Mode” , then press “OK”.
c. The captured image will automatically display on LCD screen one by one. 16

“Edit Mode”
a. When in “Play Mode” , press “OK” to get into functional option list.
b. Press right arrow button to choose “Edit Mode” .
c. Press down arrow button to get into “Edit Menu” (Rotate/Delete) and select the
desired setting item.
d. Press right arrow button to get into setting mode:
Rotate: Right 900Delete: No
Left 900Yes
1800
Flip H.
Flip V.
e. Press up and down arrow button to select the desired setting. Press “OK” to save the setting.
f. Repeat step e. for “delete mode” setting or press “OK” again to return to “Play Mode”.
17

“Preview Mode”
a. When in “Play Mode” , press “OK” to get into functional option list .
b. Press right arrow button to choose “Preview Mode” .
c. Press down arrow button to get into “Preview Menu” (1 X 1, 2 X 2, 3 X 3) and select the
desired setting item.
Preview Mode: 1 X 1 Display 1 image at a time
2 X 2 Display 4 images at a time
3 X 3 Display 9 images at a time
d. Press “OK” button to save the setting.
e. The captured images will display on the screen based on the selected preview format setting.
“Set Up Mode”
Same as the “Set Up Mode” described in “Function Descriptions I” on page 9.
18

19
Specification
I. Image Capturing
Unit
Sensor
CMOS
Sensor
Resolution
9M Pixels
Exposure Time
0.2~
2 sec (11 Scales)
Image Storage
USB flash drive
View Area
16 x 10.5cm (Fixed Lens)
II. Lens and Filter
Filter Turret
Manual
-Driven, 2
position
Emission Filter
518nm
Amber Filter
III. Lighting
Blue Light
510 nm cyan LED
Light
Epi White Light
LED White Light
White Back Light
LED White Light Panel
VI. Interface
Display Panel
Build
-in 2.7” Touch
TFT LCD
Image Storage
SD Card Storage
Output
1. USB 2.0
x2
(Thermal printer and
USB flash drive
)
2.
VGA out (
800x600,
1024x768)
V. General Info
Power
AC Adaptor,
12V/4.6A
Dimension
(WxHxD)
207x229x254mm
( 8.14
x
9.02 x 10 inch)
Gel Tools
Shovel, Amber View
Shield
Weight
3.2Kg (7.05 lb)
Certification
CE, FCC

User’s Manual
Glite 965GW Gel Doc System
Made in Taiwan
PACIFIC IMAGE ELECTRONICS Co., Ltd.
7F., No. 239, Sec. 1, Datong Rd., Xizhi Dist.,
221 New Taipei City, Taiwan
TEL : [phone]
FAX : [phone]
www.scanace.com.tw
20
