Pacific PV-12 Installation and operation manual

READ THIS BOOK
This operator’s book has important information for the use
and safe operation of this machine. Read this book care-
fully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For new books write to:
Pacific
2259 S. Sheridan
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Pacific re-
serves the right to make changes or improvements to its
machines without notice.
FOR YOUR CONVENIENCE, RECORD THE
FOLLOWING INFORMATION:
MODEL _______________________________
SERIAL NUMBER _______________________
PART NUMBER _________________________
DATE PURCHASED ______________________
OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
WET/DRY VACUUMS
PV-12
PV-18
PV-18S
PV-18D
Gulper 12P
Gulper 18P
Gulper 18PS
Gulper 18PD

IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS
BEFORE USING THIS MACHINE!
WARNING! To reduce the risk of fire, electric shock, or injury:
1. You must be trained to operate this machine. This machine is to be operated for its intended use
only.
2. Do not operate this machine unless it is completely assembled.
3. Always use a three-wire electrical system connected to the electrical ground. For maximum protec-
tion against electrical shock, use a circuit that is protected by a ground fault circuit interrupter. Con-
sult your electrical contractor.
4. To prevent electrical shock: Always remove the electrical plug from the electrical outlet before per-
forming any repairs, maintenance or cleanup and when leaving the machine unattended.
5. To prevent electrical shock: Keep the machine surface dry; Do not subject to rain; Store the machine
in a dry building area; Clean the machine with a dry cloth only.
6. Machines can cause an explosion when near flammable materials and vapors. Do not use or store
this machine with or near fuels, grain dust, solvents, thinners, or other flammable materials. Do not
use flammables to clean this machine.
7. Maintenance and repairs must be done by a qualified or authorized person.
8. If the machine is not working as it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
9. To avoid damage to the machine’s electrical cord, always lift the machine over the cord. Do not run
the machine over the electircal cord.
10. Make sure all labels, decals, warnings, cautions and instructions are fastened to the machine.
This machine must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce the
risk of electric shock. This machine is equipped with a cord having an equip-
ment-grounding conductor and grounding plug. The plug must be inserted
into an appropriate outlet that is properly installed and grounded in accor-
dance with all local codes and ordinances.
WARNING - Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
service person if you are in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the machine - if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a grounded
plug that looks like the plug illustrated in figure A. A temporary adapter that
looks like the adapter illustrated in figures B and C may be used to connect
this plug to a 2-pole receptacle as shown in figure B if a properly grounded
outlet is not available. The temporary adapter should be used only until a
properly grounded outlet (figure A) can be installed by a qualified electri-
cian. The green colored rigid ear, lug, or the like extending from the adapter
must be connected to a permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the
Canadian Electrical Code
EXTENSION CORDS
Use only three-wire 16/3 or larger gauge approved extension cords that have
three-prong grounding type plugs and three-pole receptacles that accept the
appliance’s plug. Replace or repair any damaged cords or plugs.
When servicing, refer to authorized person only. Use only identical replace-
ment parts.
Grounding Instructions
NOTE: Do not use adapters shown in figures B & C in Canada
2

OPERATING PROCEDURES
WARNING! For the safe operation of this machine
follow the instructions given in this booklet and the
training given by your supervisor. Failure to do so can
result in personal injury and/or damage to machine
and property!
DO NOT OPERATE MACHINE IN AN EXPLOSIVE
ENVIRONMENT!
WARNING! NEVER USE THIS MACHINE TO PICK
UP VOLATILE OR EXPLOSIVE MATERIALS.
OPERATION
To prepare the machine for operation, make sure it is of the
correct voltage and properly assembled. If in doubt, ask
your supervisor.
FOR DRY PICK-UP:
“Dry” refers to material such as dust, dirt, debris and dry
foam shampoo.
1. Release the clamp on the side of the tank and head
assembly. Lift the head assembly off and set it aside.
2. Then lift the cloth filter assembly out of the collector
tank. Clean the cloth filter if needed (reference the
“Maintenance” section).
3. Empty the collector tank of all dust and debris. If the
debris is wet, empty and dry the inside of the tank thor-
oughly.
4. Place the cloth filter assembly back into the collector
tank. Check for a good seal around the outer filter lip
and tank rim.
5. Replace the head assembly and fasten the clamp. At-
tach the hose, wand and floor tool of choice (reference
page 5).
6. Plug the power cord into a 115-volt, 60 cycle grounded
outlet.
7. Turn the machine’s motor on by pressing the rocker
switch which is located on the head assembly.
FOR WET PICK-UP:
“Wet” refers to liquids such as water, scrub solutions and
detergents; NOT volatile or explosive materials.
1. Release the clamp on the side of the tank and head
assembly. Lift the head assembly off and set it aside.
2. Then lift the cloth filter assembly out of the collector
tank. Store the filter assembly for future, dry pick-up
use. DO NOT REINSTALL.
3. Empty the collector tank of all dust and debris. Also
wipe the inside of the collector tank to remove cling
ing dust.
4. Check the float shut-off device on the lower portion of
the head assembly. The float should have free move-
ment. When the recovered liquid soilage reaches the
collector tank capacity, the float will rise to shut off
the air flow, stopping the liquid recovery. This pre-
vents damaging overflow and signals the operator when
to empty the collector tank.
5. Replace the head assembly and fasten the clamp. At-
tach the hose, wand and floor tool of choice (reference
page 5).
6. Plug the power cord into a 115-volt, 60 cycle grounded
outlet.
7. Turn the machine’s motor on by pressing the rocker
switch which is located on the head assembly.
ACCESSORIES
Tool Kit #608809 is included with the Models PV-12/12P,
PV-18/18P and PV-18D/18PD. See Page 5 for the kit’s illus-
tration and assembly instructions.
The Front Mounted Squeegee #608521 is included with
the Model 18PS. Reference Pages 10 and 11 for the
squeegee’s illustration and assembly instructions.
The tool kit and front mounted squeegee are also available
as optional accessories.
3

4
MAINTENANCE
Good maintenance procedures assure better operation,
fewer repairs and longer life to your machine.
DISCONNECT THE ELECTRICAL PLUG OF THE
MACHINE FROM THE ELECTRICAL OUTLET
BEFORE DOING ANY CLEANUP, REPAIRS OR
MAINTENANCE OF THE MACHINE AND WHEN
LEAVING THE MACHINE UNATTENDED.
CLEAN THE MACHINE AFTER EACH USE:
1. Wipe the outside with a clean cloth.
2. Clean the collector tank: Release the clamps on each
side of the tank and head assembly. Lift the head as-
sembly off and set aside. Lift the filter assembly out
of the collector tank and set aside. Then wipe the
inside of the collector tank with a clean cloth.
3. Empty and check the filter assembly: Empty the
recovered soilage into a suitable container and shake
to remove clinging dirt. Brush the outside of the filter
bag to remove embedded dirt. Check the filter assem-
bly for tears or holes; repair or replace if necessary.
Install the clean filter assembly into the clean collec-
tor tank.
ELECTRICAL CABLE:
Check the cord for any nicks, cuts or damage. Report
these to your supervisor for correction.
VACUUM HEAD ASSEMBLY:
1. Gaskets: Clean the vacuum head gasket (23) and the
float shut-off gasket (24 on page 6).
2. Float Shut-Off Device: This should move freely. Remove
any debris or strings from the float cage.
3. Head Assembly: Replace and leave ajar if the collec-
tor tank is damp to prevent mildew.
WHEELS AND CASTERS:
Check these for cuts and nicks. Remove any strings or
debris that may restrict the free movement of the wheels.
Wipe the treads clean.
CARBON BRUSH INSPECTION:
Check for wear at six month intervals or every 600 hours
of operation. The carbon brushes must be replaced if worn
shorter than 3/8 inch.

5

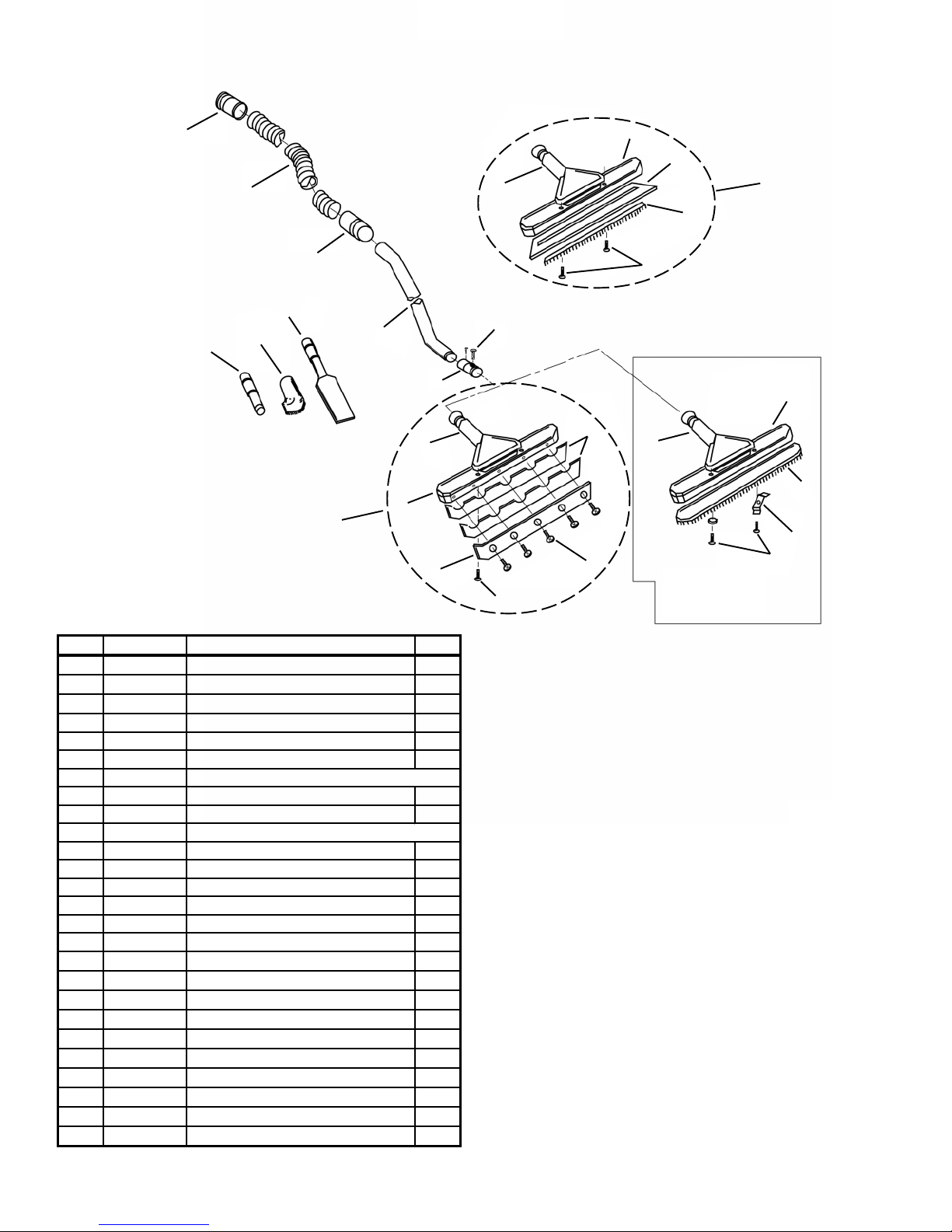

TOOL KIT
PART #608809
TOOL KIT ASSEMBLY:
1. Connect the hose to the collector tank by inserting the large,
grooved hose adapter end into the tank adapter. Press the
pawl (#35 on Wet/Dry Vac) to allow the hose adapter to slide
further in. Release the pawl to engage the large groove.
2. Insert the upper wand half firmly into the lower wand as-
sembly. The dimple on the lower wand aligns with the
groove of the upper half to assure a rigid fit.
3. Insert the wand end into the free end of the vacuum hose.
Then fasten the proper floor tool to the to the wand by in-
serting the mating end of the floor tool into the adapter
collar of the wand assembly. Pull the tool locking pin to
allow total engagement of the adapter and tool. Release the
pin to lock the tool to the wand.
4. The hand tools may also be used by inserting their adapter
directly into the free end of the vacuum hose.
5. Tool Selection: Choosing the proper tool will give the best
results. To vacuum dust and debris from floors or walls-
select the bristle floor tool. To remove water, liquid waste,
strip solution, etc. from hard surfaced floors-use the squee-
gee floor tool. When vacuuming carpets or rugs-choose the
carpet tool.

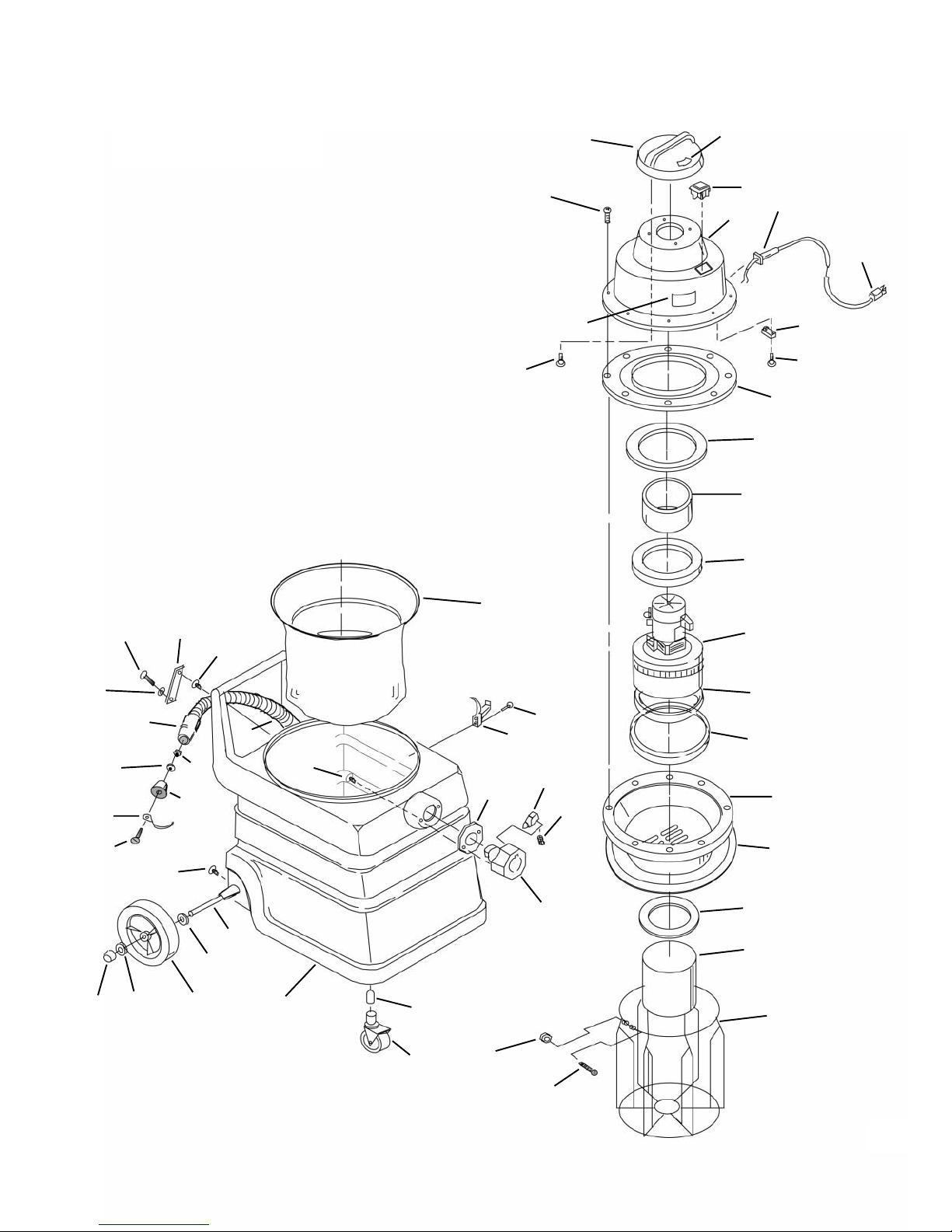

1
2
4
3
5
6
7 - 16” Bristle Floor
Tool Accessory
8
9
10
11
14
12
15
16
17
18
19
21
20
22
23
24
8
9
23
23
8
Not included with machine.
ITEM PART NO. DESCRIPTION QTY.
1 600206 Adaptor, 1-1/2 Hose, Vac End 1
2 604108 Hose, 1-1/2x10ft. (w/out adaptors) 1
604114 Hose Asm,1-1/2x10ft.(w/adaptors) 1
3 600205 Adaptor, 1-1/2 Hose, Wand End 1
4 609810 Wand Asm., with Adaptor & Pin 1
609813 Wand Half w/out Adaptor (top half)
609809 Wand Half w/Adaptor & Pin (bottom half)
5 606710 Disconnect Pin Assembly 1
6 600204 Adaptor, Wand 1
7 608810 16" Bristle Floor Tool Asm.-Optional
8 601803 Top Casting with Adaptor 1
9 601804 Base Casting, Bristle Tool 1
10 600901 Brush, Bristle Tool 1
11 602011 Clamp, Brush 2
12 600701 Blade, Squeegee Pickup 2
14 607212 Retainer 2
15 601802 Base Casting-Squeegee Tool 1
16 608812 16" Squeegee Floor Tool Asm. 1
17 608816 1-1/2" Crevice Tool 1
18 608820 3" Round Dusting Tool 1
19 600210 Tool Adaptor, 1-1/4 to 1-1/2 1
20 608811 16" Carpet Tool Asm. 1
21 607901 Carpet Shoe 1
22 600902 Brush Strip 1
23 964022 Screw 6
24 962115 10-24x3/8 Self-Tapping Screw 5

6
PV-12 & PV-18
GULPER 12P & 18P
1
2
3
4
6
7
8
9
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31 32
33
34 35
36
37
38
39 40 41
43
44
45
40
51
52
53
54
55
56
57
58
59
60
58

10/01
PV-12 & PV-18
GULPER 12P & 18P
ITEM PART NO. DESCRIPTION QTY.
1 601540 Cap 1
2 608010 Switch 1
3 602340 Cover, Motor 1
4 964022 Screw, Motor Cover 8
6 Serial Plate 1
7 515150 Warning Label 1
8 608530 Strain Relief 1
9 908010 Power Cord, 16-3x35ft. - PV-12/12P 1
908034 Power Cord, 16-3x35 ft.- PV-18/18P 1
11 964020 Screw, Cap 4
13 607210 Retainer, Cord 1
14 964021 Screw, Retainer 4
15 600214 Adaptor, Upper Motor 1
16 600216 Adaptor, Middle 1
17 602771 Filter, Air Vent 1
18 603473 Gasket, Upper Mtr (Use two for service) 2
19 605210 Motor,1.2HP,115V 1
605211 Motor,1.2HP,230V,2 Stage 1
600903 Brush, Carbon for 605210 & 605211 2
20 603410 Gasket, Lower Motor 1
21 603421 Gasket, cut to length 1
22 600215 Adaptor, Lower Motor 1
23 603442 Gasket, Lower Adaptor 1
24 603412 Gasket, Float Shut Off 1
25 603312 Float-Shut Off 1
26 602413 Cage 1
27 W106D Nut 1
28 962120 Screw 1
29 600530 Filter Bag Asm. 1
30 962015 Screw 2
31 602012 Clamp, Hose (where hose exits tank) 1
32 930005 Pop Rivet 4
33 605101 Latch 2
34 603415 Gasket, Plastic Cover 1
603425 Gasket, Foam Adaptor 1
35 607001 Pawl 1
36 608303 Spring 1
37 602415 Coupler Asm, Tank 1
38 619701 Caster, 3" Dia. 2
39 S482P Snap Axle Cap 2
40 509820 Washer 4
41 609758 Wheel 2
43 607712 Shaft, Wheel: PV-12/12P 1
607711 Shaft, Wheel: PV-18/18P 1
44 604650 Insert, Caster 2
45 962109 Screw 1
51 608670 Tank, PV-12/12P 1
608672 Tank, PV-18/18P 1
52 604107 Hose, Drain 1
53 608508 Strap 2
54 603313 Fastener 2
55 962112 Screw 2
56 962113 Screw 1
57 602408 Stretch Cord 1
58 W105D Washer 1
59 608504 Stopper 1
60 920017 Nut 1

8
PV-18S & PV-18D
GULPER 18PS & 18PD
1
2
3
4
6
7
8
9
11
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39 40 41
43
44
45
51
52
53
54
55
56
40
57
58
59
60
58
10

9
PV-18S & PV-18D
GULPER 18PS & 18PD
ITEM PART NO. DESCRIPTION QTY.
1 602370 Cap 1
2 911089 Switch 1
3 602770 Cover, Motor 1
4 960030 Screw, Motor Cover 4
6 Serial Plate 1
7 515150 Warning Label 1
8 608530 Strain Relief 1
9 908012 Power Cord, 16-3x50ft. - PV-18S/18PS 1
908034 Power Cord, 16-3x35 ft.- PV-18D/18PD 1
10 W131D Screw, 1/4-20x5 HH 4
11 W148D Nut, Cap 4
17 602771 Filter, Air Vent 1
18 603473 Gasket, Motor 2
19 605213 Motor, 1.2HP, 115V, 3 Stage 1
200951 Brush, Carbon 2
20 W136D1 Screw, Screen 4
21 608570 Screen 1
22 600272 Adaptor, Tank Head 1
23 603472 Gasket, Head 1
24 962003 Screw 4
25 603370 Float-Ball 1
26 602471 Cage 1
27 W106D Nut 1
28 962120 Screw 1
29 600670 Filter Bag Asm. 1
30 962015 Screw 2
31 602012 Clamp, Hose (located where hose exits tank) 1
32 930005 Pop Rivet 4
33 605101 Latch 2
34 603415 Gasket, Plastic Cover 1
603425 Gasket, Foam Adaptor 1
35 607001 Pawl 1
36 608303 Spring 1
37 602415 Coupler Asm, Tank 1
38 619701 Caster, 3" Dia. 2
39 S482P Snap Axle Cap 2
40 509820 Washer 4
41 609758 Wheel 2
43 607711 Shaft, Wheel 1
44 604650 Insert, Caster 2
45 962109 Screw 1
51 608672 Tank 1
52 604107 Hose, Drain 1
53 608508 Strap 2
54 603313 Fastener 2
55 962112 Screw 2
56 962113 Screw 1
57 602408 Stretch Cord 1
58 W105D Washer 2
59 608504 Stopper 1
60 920017 Nut 1

10
SQUEEGEE ASSEMBLY
PART #608521

SQUEEGEE ASSEMBLY
PART #608521
11
ITEM PART NO. DESCRIPTION QTY.
1 960008 Bolt, Shoulder 2
2 609703 Wheel 2
3 608506 Squeegee Channel Weldment 1
4 920019 Nut, 1/4-20 Hex Jam 3
5 W189D Screw, 14-20x3/4 HH CS 2
6 A13018 Knob 2
7 W506D Screw,5/16-18x3/4 HH MS 6
8 W380D Screw, 10-32x3/4 PHP 16
9 607209 Retainer-Squeegee Blade 2
10 600705 Blade, 28" Squeegee 2
11 600301 Arm Weldment-Squeegee 1
12 980006 Washer, 5/16 Lock 6
13 920001 Nut, 10-32 Elastic Stop 2
14 980007 Washer, 5/16 Flat 6
ITEM PART NO. DESCRIPTION QTY.
15 960007 Bolt, Shoulder, 3/8x1/2 Lg 2
16 600806 Bracket, Arm Support 2
17 600205 Adaptor, Hose 1
18 604106 Hose, Vacuum 1
19 600206 Adaptor, Hose 1
20 920012 Nut, 5/16-18 ESNA Lock 4
21 962015 Screw, 10-32x3/8 Pan Hd 2
22 608507 Support, Lock Backup 1
23 605102 Lock, Squeegee Spring 1
24 608201 Spacer, Squeegee Support 2
25 608512 Stop, Squeegee Arm 1
26 W168D Screw, Set 1
27 962010 Screw, 1/4-20x1 HHCS 1
For the Models PV-18S/Gulper 18PS which include the
Squeegee Assembly:
1. Position the machine on a level surface.
2. Unlock the lower squeegee lift arm weldment (11).
3. Align the squeegee with the lift arm weldment; using the
shoulder screws (5) on the back side of the lift arm
weldment, place the jam nuts (4) between the arm weldment
and squeegee and then screw the knobs (6) on the front of
the squeegee assembly. Leave the hardware slightly loose.
4. Position the squeegee assembly to assure that it sits flat
from side to side level with the surface. Then tighten the
knobs.
5. Connect the vacuum hose assembly, Items 17, 18 and 19
to the tank adaptor and squeegee adaptor.
6. Adjust the squeegee height by rotating the screw (27)
clockwise to lower the squeegee and counterclockwise to
raise the squeegee.
Squeegee Assembly as an Accessory - for the Models PV-
12/Gulper 12P, PV-18/Gulper 18P and PV-18D/Gulper
18PD:
1. Remove the head assembly and the filter bag assembly.
2. Turn the machine upside down.
3. Mount the arm support brackets (16) to the inner surface
of the squeegee lift arm weldment (11) using the shoulder
screws (15), flat washers (14) and jam nut (20). Reference
the illustration - two washers are on the outside of the lift
arm weldment and one washer is between the support
bracket and squeegee lift arm weldment. Tighten the hard-
ware and check for free rotation. If needed, slightly loosen
the jam nut.
4. Mount the squeegee arm stop (25) to the lift arm weldment
(11) using the set screw (26). Then assemble the screw
(27) and nut (4) to the stop (25) as illustrated.
5. Position this assembly on the bottom of the tank with the
foot pedal to the rear of the tank, facing down.
6. Attach the arm support brackets (16) and the spacers (24)
to the tank with the bolt (7) and washer (12).
7. Assemble the lock backup support (22) to the lock spring
(23) with the screw (21) and nut (13) keeping the edges
flush.
8. Attach the spring lock assembly (22&23) to the bottom of
the tank using the bolt (7) and washer (12).
9. With the spring lock pressed in against the tank, check
that the pedal clears the spring lock. Loosen the bolt (7)
to adjust the spring lock assembly (22&23) location.
10. Turn the machine upright.
11. Proceed with steps 1-4 from the previous section.
12. If using on a PV-12/12P remove the adaptor (17) and cut
the hose assembly (18&19) to a 16 inch length. The 16
inches includes the adaptor (19). Do not cut the hose
assembly for the PV-18/18P and PV-18D/18PD.
13. Screw adaptor (17) onto the hose assembly.
14. Connect the vacuum hose assembly, Items 17, 18 and 19
to the tank adaptor and squeegee adaptor.
15. Adjust the squeegee height by rotating the screw (27)
clockwise to lower the squeegee and counterclockwise to
raise the squeegee.
16. Replace the head assembly and filter bag assembly.
MOUNTING INSTRUCTIONS

WARRANTY POLICY
POLYETHYLENE WET/DRY VACUUMS
The Pacific Wet/Dry Vacuum has been manufactured, tested and inspected in accordance with specific engineering require-
ments and is WARRANTED to be free from defects in workmanship and materials as follows:
Five (5) Years Parts, One (1) Year Labor - Polyethylene Components
One (1) Year Parts and Labor - All other components unless excluded below.
This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with
Pacific Operating and Maintenance instructions.
This warranty does not apply to certain wear parts and accessories of the machine such as electrical cords, carbon motor
brushes, floor brushes, squeegee blades, hoses, tools, filters, casters, wheels, etc. Nor does it apply to damage or failure
caused by improper use, abuse or neglect. Warranty credit or replacement of return parts including motors, etc., is subject to
incoming inspection of those items.
To secure repair under this warranty, the following procedure should be taken:
•The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery
charges prepaid. If unable to locate the Dealer, you may contact Pacific at the address listed herein for the location of
the nearest Pacific repair center or agent or for other instructions pertaining to your warranty difficulty.
•Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge
or cost to the user.
•Only Pacific or its authorized dealers and agents may make no charge warranty repairs on this product. All others do so
at their own risk.
This warranty limits Pacific’s liability to the repair of the product and/or warranted parts replacement and does not include
incidental or consequential damages arising from the use of a Pacific machine whether defective or not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.
60560110/01
2259 Sheridan
Muskegon, Michigan 49442
Ph: [phone] Fax: [phone]
www.nextwaveofclean.com
