OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
This operator’s book has important information for the use
and safe operation of this machine. Read this book care-
fully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For new books write to:
Pacific
2259 S. Sheridan
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Pacific re-
serves the right to make changes or improvements to its
machines without notice.
FOR YOUR CONVENIENCE, RECORD THE FOLLOWING
INFORMATION:
MODEL_______________________________
SERIAL NUMBER_______________________
PART NUMBER _________________________
DATE PURCHASED ______________________
The WIZ

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
WARNING: to reduce risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer's attachments.
5. Do not use with damaged cord or plug. If appliance should not work as it should, has been dropped or
damaged, left outdoors, or dropped into water, return it to service center.
6. Do not pull or carry by cord, use cord as handle, close a door on cord or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord
8. Do not handle plug or appliance with wet hands.
9. Do not put any objects into opening. Do not use with any opening blocked: keep free of dust, lint,
hair and anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
11. Turn off all controls before unplugging.
12. Use extra care when vacuuming on stairs.
13. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they
may be present.
14. Connect to a properly grounded outlet only.
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
16. Do not use without dust bag and/or filters in place.
17. Do not use this vacuum for pick-up of wet debris; this vacuum is for dry pick-up only.
This machine must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for electric cur-
rent to reduce the risk of electric shock. This machine is equipped
with a cord having an equipment-grounding conductor and grounding
plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and
ordinances.
WARNING - Improper connection of the equipment-grounding con-
ductor can result in a risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with
the machine - if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a
grounded plug that looks like the plug illustrated in figure A. A
temporary adapter that looks like the adapter illustrated in figures B
and C may be used to connect this plug to a 2-pole receptacle as
shown in figure B if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly grounded
outlet (figure A) can be installed by a qualified electrician. The green
colored rigid ear, lug, or the like extending from the adapter must be
connected to a permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by
a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by
the Canadian Electrical Code
EXTENSION CORDS
Use only three-wire 16/3 or larger gauge approved extension cords
that have three-prong grounding type plugs and three-pole recep-
tacles that accept the appliance’s plug. Replace or repair any dam-
aged cords or plugs.
When servicing, refer to authorized person only. Use only identical
replacement parts.
Grounding Instructions
NOTE: Do not use adapters shown in figures B & C in Canada

ASSEMBLY AND OPERATION
Unpack your vacuum from its carton and inspect the ma-
chine, hose assembly and tools for any damage. If there is
damage to any component, file a claim with the carrier imme-
diately.
Assembly
This machine requires little assembly before operation. How-
ever, the following steps must be taken to ensure proper
operation.
1. Install a filter bag into the tank. To do this, release the
hook located on each side of the machine’s tank and
motor assembly. Lift the cover off and set it aside. In-
stall the filter bag by pushing its opening over the
vacuum hose adapter. Be sure the filter bag follows the
perimeter of the tank; the center area must remain clear
for replacement of the cover with motor assembly. Re-
place the cover and fasten both hooks.
2. Insert the vacuum hose assembly securely into the
adapter. Then attach the wand and selected tool. The
wand and tools attach by simply pushing them together.
Operation
The Model shown in this manual is intended for commercial
use and is to be used for only dry pick-up applications.
1. Before use, be sure a filter bag has been properly in-
stalled in the machine (reference assembly instructions).
2. Attach the hose assembly, wand and selected tools.
3. Plug the power cord into a 115-volt, 60 cycle, grounded
outlet.
4. Turn the power switch on; the vacuum motor will start.
The switch is located on the handle.
5. The vacuum suction is adjustable through an opening
located on the bent wand section of the hose assembly.
For maximum pick-up the opening must be closed, for
reduced suction expose the opening.
Tools
Four tools are provided with the vacuum: the combination
floor assembly, upholstery tool, crevice tool and dusting
brush. Each is used by inserting them directly into the free
end of the vacuum hose/wand.
The combination floor assembly tool can be utilized either
with or without bristles. The levers located on top of the
tool actuate the bristles.
Servicing
Warning: Always unplug your vacuum before per-
forming any service. Severe personal injury could
result if the electrical power is not disconnected.
1. Vacuum Filter Bag: When full, remove the paper filter
bag and install a new one. If the optional cloth filter
bag is being used, it must be emptied when full and
checked for any rips or holes. Replace if necessary.
2. Power Cord: Check the cord for cuts or nicks. If dam-
aged, have the cord replaced at a factory authorized
service center.
3. Casters: Remove any strings or debris that may re-
strict the free movement of the casters. Wipe the treads
clean.
4. Tools: Inspect the tools to ensure there is no obstruc-
tion of airflow. Remove any debris if found.
5. Motor Filter Bag: This vacuum has a cloth filter bag
that protects the motor assembly. This filter will require
periodic cleaning; remove any dust and debris by vacu-
uming with a different vacuum cleaner.
6. Vacuum Motor Maintenance: Have the vacuum motor
inspected annually by a factory authorized service tech-
nician. If the carbon brushes are worn, they should be
replaced. This service will prolong the life of the vacuum
motor.

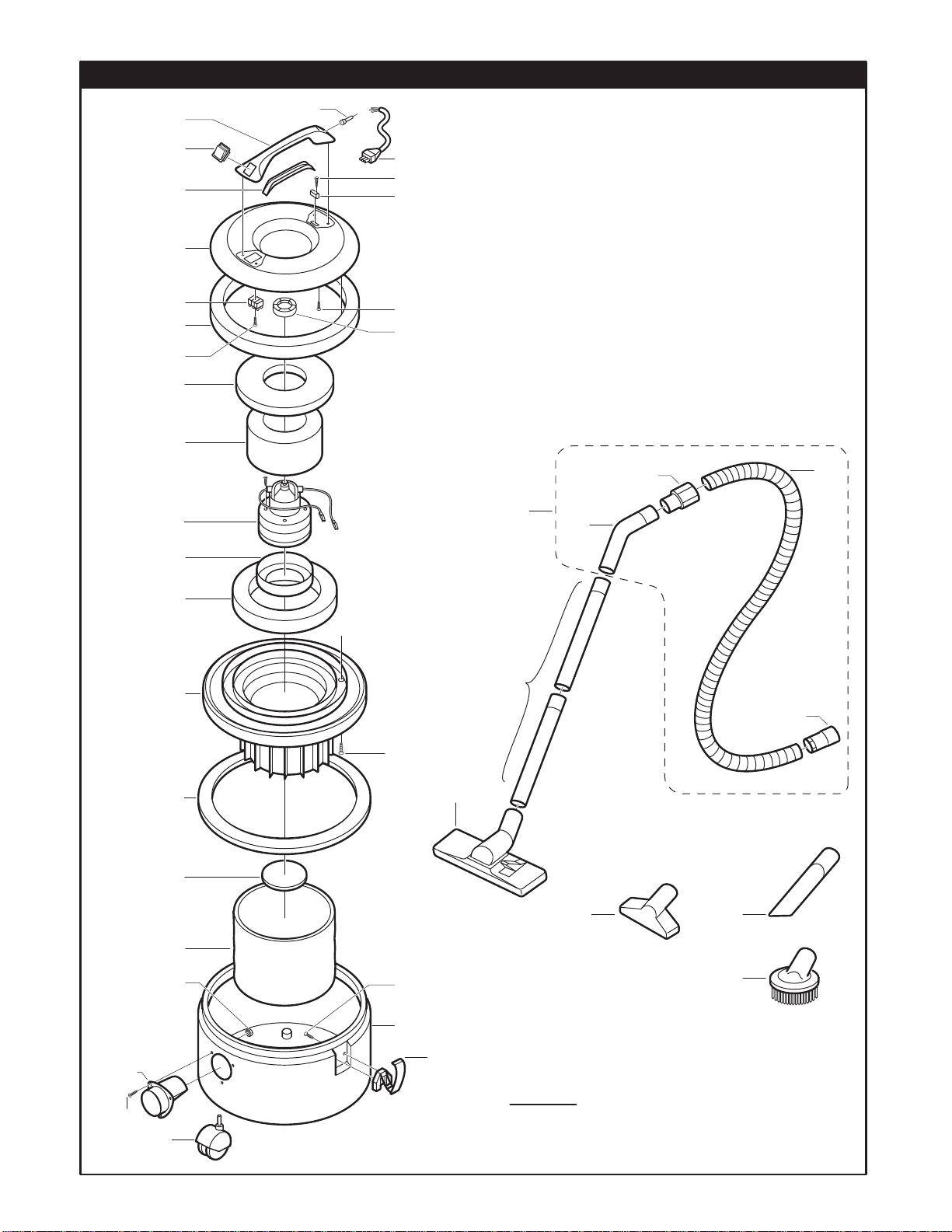

3

¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
¥
4
11
7
15
15
6
27
9
10
3
22
32
24
¥
25
30
16
26
12
13
17
14
37 ¥
38
¥
40
¥
39
35
34
¥
36
33
31
19
20
29
21
23
18
8
28
2
Not Shown:
41. Included: Part Number 600643, Paper Bag Filters-Pkg. of 10
The Wiz
4

5
The WIZ
ITEM # PART # DESCRIPTION QTY
Machine
1 603940 Handle 1
2 602341 Cover-Handle 1
3 964142 Screw 4
4 608010 Switch 1
5 607540 Cable Retainer 1
6 908081 Cord Assembly 1
7 911203 Terminal Board 1
8 964021 Screw 1
9 964021 Screw 2
10 607541 Retainer 1
11 601541 Motor Cap 1
12 604840 Insulation-Sound 1
13 604841 Insulation-Sound 1
14 604842 Insulation-Sound 1
15 604843 Insulation-Sound 1
16 603440 Gasket-Motor Exhaust 1
17 605240 Vacuum Motor 115V 1
18 603410 Vac. Motor Gasket 1
19 602342 Cover-Tank 1
*20 603443 Gasket-Cover 1
21 604844 Insulation-Sound 1
22 964143 Screw 6
23 600642 Filter Bag-Motor 1
24 608641 ABS Tank 1
25 604540 Hook 2
26 964144 Screw 4
27 600241 Adaptor-Vac.Hose 1
28 924065 Self-Locking Nut 2
29 964145 Screw 2
30 609740 Caster 4
Hose Assembly & Tools
31 600209 Adapter-Hose to Tank 1
32 604140 Hose-Vacuum 1
33 600243 Adapter-Hose to Wand 1
34 609041 Tube-Bent Wand Top 1
35 609812 Tube-Straight Wand 2
36 608840 Combination Floor Tool Asm. 1
37 608818 Upholstery Tool 1
38 608815 Crevice Tool 1
39 608814 Dusting Brush 1
40 604141 Vacuum Hose Assembly 1
41 600643 Paper Bag Filters-Pkg.of 10 1
*Indicates part number change since last revision.

605640
WARRANTY POLICY
PACIFIC LIMITED WARRANTY
The Pacific WIZ Vacuum has been manufactured, tested and inspected in accordance with specific engineering requirements and is
WARRANTED to be free from defects in workmanship and materials as follows:
One (1) year parts & labor - All components unless excluded below.
This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Pacific Operating
and Maintenance instructions.
This warranty does not apply to the following wear parts and accessories of the machine including:
Part Number Part Name
908081
604140
604141
600642
600643
608840
608818
608815
608814
Nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit or replacement of return parts including
motors, pumps, etc., is subject to incoming inspection of those items.
To secure repair under this warranty, the following procedure should be taken:
•The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery charges prepaid.
If unable to locate the Dealer, you may contact Pacific at the address listed herein for the location of the nearest Pacific repair center
or agent or for other instructions pertaining to your warranty difficulty.
•Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge or cost to the
user.
•Only Pacific or its authorized dealers and agents may make no charge warranty repairs on this product. All others do so at their own
risk.
This warranty limits Pacific’s liability to the repair of the product and/or warranted parts replacement and does not include incidental or
consequential damages arising from the use of a Pacific machine whether defective or not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.
10/01
2259 Sheridan
Muskegon, Michigan 49442
Ph: [phone] Fax: [phone]
www.nextwaveofclean.com
Cord Assembly
Hose - Vacuum
Vacuum Hose Asm
Filter Bag, Motor
Paper Bag Filters
Floor Tool Asm.
Upholstery Tool
Crevice Tool
Dusting Brush
