OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
This operator’s book has important information for the use
and safe operation of this machine. Read this book care-
fully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For new books write to:
Pacific
2259 S. Sheridan
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Pacific
reserves the right to make changes or improvements to its
machines without notice.
FOR YOUR CONVENIENCE, RECORD THE MACHINE
MODEL AND SERIAL NUMBER:
MODEL_______________________________
SERIAL NUMBER_______________________
PART NUMBER _________________________
DATE PURCHASED ______________________
BACK PACK
VACUUM
RAPID VAC

IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS IN THIS BOOK BEFORE USING THIS MACHINE! If
you do not understand, ask your supervisor.
WARNING: To reduce the risk of fire, electric shock, or injury:
1. DO NOT USE THIS VACUUM FOR PICK UP OF WET DEBRIS.
2. You must be trained to operate this machine. This machine is to be operated for its intended use only.
3. Do not operate this machine unless it is completely assembled.
4. Keep the machine surface dry. Do not subject to rain. Store the machine in a dry building area. Clean the machine with a dry
cloth only.
5. Machines can cause an explosion when near flammable materials and vapors. Do not use or store this machine with or near
fuels, grain dust, solvents, thinners, or other flammable materials. Do not use flammables to clean this machine.
6. Maintenance and repairs must be done by a qualified or authorized person.
7. If the machine is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a
service center.
8. Always use a three-wire electrical system connected to the electrical ground. For maximum protection against electrical
shock, use a circuit that is protected by a ground fault circuit interrupter. Consult your electrical contractor.
9. To prevent electric shock, always remove the electrical plug from the electrical outlet before doing any repairs or maintenance
and when leaving the machine unattended.
10. Do not pull cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from
heated surfaces. Do not use with damaged cord or plug.
11. Keep the electrical parts of the machine dry.
12. Make sure all labels, decals, warnings, cautions and instructions are fastened to the machine.
This machine must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for electric cur-
rent to reduce the risk of electric shock. This machine is equipped
with a cord having an equipment-grounding conductor and grounding
plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and
ordinances.
WARNING - Improper connection of the equipment-grounding con-
ductor can result in a risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with
the machine - if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a
grounded plug that looks like the plug illustrated in figure A. A
temporary adapter that looks like the adapter illustrated in figures B
and C may be used to connect this plug to a 2-pole receptacle as
shown in figure B if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly grounded
outlet (figure A) can be installed by a qualified electrician. The green
colored rigid ear, lug, or the like extending from the adapter must be
connected to a permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by
a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by
the Canadian Electrical Code
EXTENSION CORDS
Use only three-wire 14/3 or larger gauge approved extension cords
that have three-prong grounding type plugs and three-pole recep-
tacles that accept the appliance’s plug. Replace or repair any dam-
aged cords or plugs.
When servicing, refer to authorized person only. Use only identical
replacement parts.
Grounding Instructions
NOTE: Do not use adapters shown in figures B & C in Canada
2

OPERATING PROCEDURES
WARNING! For the safe operation of this machine fol-
low the instructions given in this booklet and the train-
ing given by your supervisor. Failure to do so can result
in personal injury and/or damage to machine and prop-
erty!
DO NOT OPERATE MACHINE IN AN EXPLOSIVE
ENVIRONMENT!
WARNING! NEVER USE THIS MACHINE TO PICK
UP VOLATILE OR EXPLOSIVE MATERIALS.
WARNING! DO NOT PICK UP WET MATERIAL
WITH THIS MACHINE.
The model shown in this manual is intended for commer-
cial use and for vacuuming dry material only.
PREPARATION
To prepare the machine for operation, make sure it is properly
assembled. If in doubt, ask your supervisor.
!Properly install the filter bag in the vacuum: Push the
filter bag inlet over the vacuum inlet elbow (item 8-re-
ceptacle) which is located on the bottom of the top
cover. Replace the filter bag when full.
OPERATION
1. Plug the machine’s power cable into a properly grounded
outlet (see Safety Instructions).
2. Connect the vacuum hose to the inlet port at the top of
the machine. Note: The top cover can be rotated for left
or right hand hose attachment.
3. Place the Back Pack Vacuum on your back by putting
your arms through the straps. Adjust the straps to a
comfortable working position. Then connect and ad-
just the waistband.
4. Attach the tool of your choice to the working end of the
vacuum hose. The tools included with the Back Pack
Vacuum are the upholstery, dusting and crevice tools.
5. Turn ON the switch (item 27) and begin your DRY pick
up maintenance application.
MAINTENANCE
ALWAYS turn the machine power switch OFF and UNPLUG
the power cord from the electrical outlet before doing any
clean up or repairs, and when the machine is left unat-
tended.
AFTER EACH USE:
!Inspect the filter bag. If the bag is full or damaged
install a new one.
Filter Bag, 10 Pack – Part Number 620601
Cloth Bag (optional) – Part Number 620602
!Check the cord and plug for nicks, cuts or damage.
Report these to your supervisor for correction. Also
wrap the electrical cord and hang it on the strap pro-
vided (item 16).
!Store the machine in a clean dry area.
WEEKLY:
!Inspect and clean the secondary filter assembly, item
10, part number 633301. This filter is constructed of
foam over a plastic mounting ring. It is installed over
the vacuum blower chamber located in the main hous-
ing. To remove the filter: slide it up and off the vacuum
blower housing. To clean the filter: Do NOT wet the
filter or blow the debris out with compressed air. Tap the
filter lightly to remove the excess debris. Replace the
filter if there are any rips or tears.
3

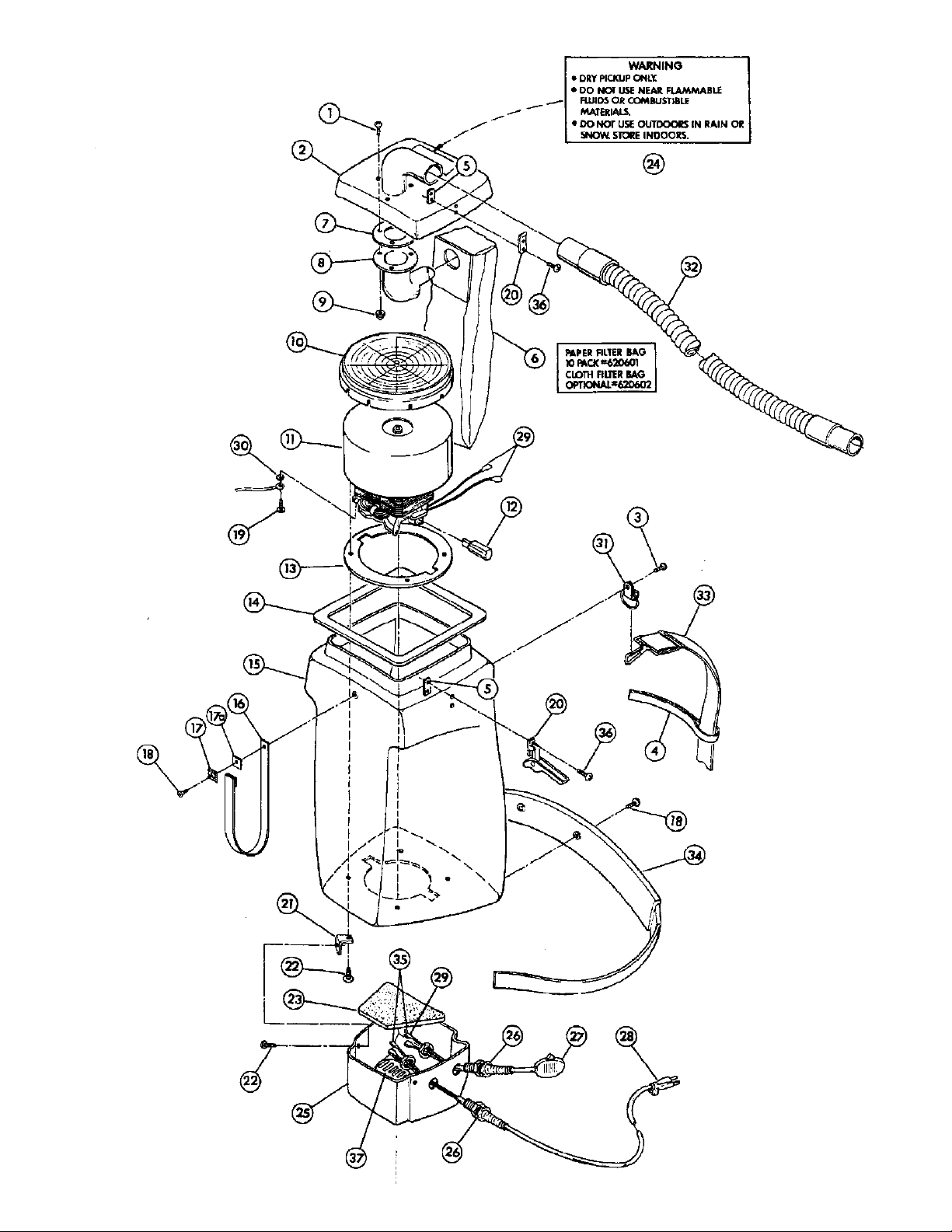

Parts List
ITEM PART NO. DESCRIPTION QTY.
1 W324D Screw 6-32x1/2 RHP 3
2 632303 Cover, Dark Gray 1
3 962015 Screw 10-32x3/8 PH 4
4 638504 Cross Strap R.H. 1
638505 Cross Strap L.H. 1
5 636601 Plate-Nut 4
6 620601 Filter Bag (Sold in 10pk) 0.1
620602 Filter Bag Cloth (Optional)
7 633401 Gasket-Bag Mount 1
8 637502 Receptacle-Bag 1
9 W144D Nut 6-32 Hex w/Nyloc 3
10 633301 Filter-Final 1
11 635201 Motor-Vac 115V 1
12 630901 Brush-Carbon 2
13 633403 Gasket-Motor Mount 1
14 633402 Gasket 1
15 634202 Housing-Main 1
16 228503 Strap 1
17 639402 Velcro 1
17a 638506 Support-Velcro 1
18 W310D Screw 10-32x3/8 FHP 3

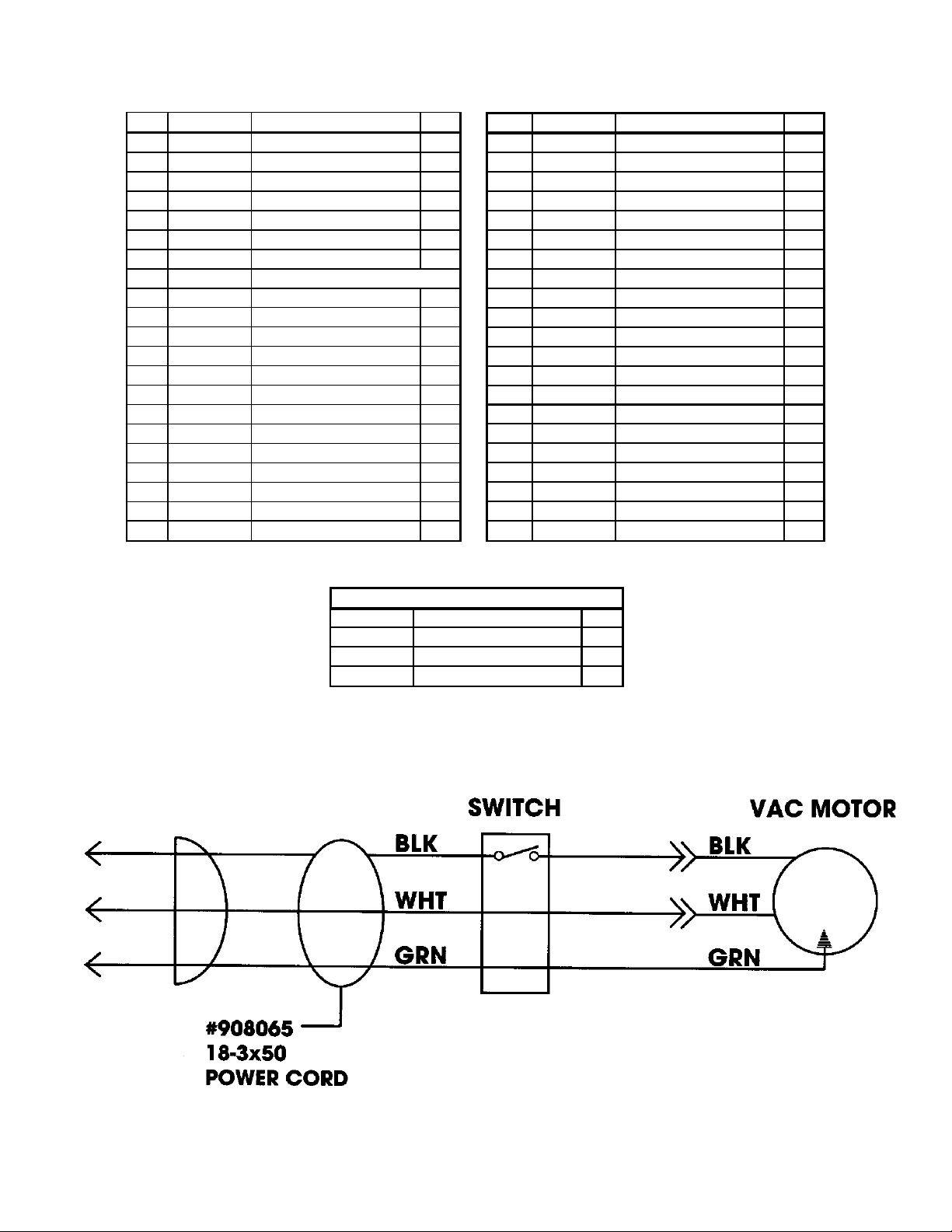

ITEM PART NO. DESCRIPTION QTY.
19 962030 Screw 10-32x1/2 PH 1
20 222001 Clamp 2
21 630801 Bracket-Vac Mounting 4
22 962089 Screw 10-32x3/4PHP 8
23 638503 Sound Deadener 1
24 615102 Lable-Warning 1
25 632304 Cover-Motor 1
26 632401 Strain Relief 2
27 908064 Switch 1
908064A Cord Asm w/Switch
28 908065 Cord Assembly 1
29 S936P Terminal-Male 3
30 W124D Washer, Lock #10Tooth 1
31 632001 Clamp-Ring for Strap 4
32 634101 Hose Assembly 1
33 638501 Strap Assembly 2
34 631301 Belt, Shoulder Strap 1
35 S948P Terminal-Female 3
36 W515D Screw 8-32x1/2 PHP 8
37 633601 Guard-Vac Exhaust 1
5
PART NO. DESCRIPTION QTY.
638802 Dusting Tool 1
638803 Upholstery Tool 1
638804 Crevice Tool 1
ACCESSORIES NOT SHOWN

6
NOTES

7
NOTES

01/04 635601
WARRANTY POLICY
PACIFIC LIMITED WARRANTY
The Pacific Back Pack Vacuum has been manufactured, tested and inspected in accordance with specific engineering requirements and is
WARRANTED to be free from defects in workmanship and materials as follows:
Five (5) years parts, One (1) year labor - Rotational molded components.
One (1) year parts & labor - All other components unless excluded below.
This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Pacific Operating
and Maintenance instructions.
This warranty does not apply to the following wear parts and accessories of the machine including:
Part Number Part Name
620601
620602
633301
630901
908065
634101
Nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit or replacement of return parts including
motors, pumps, etc., is subject to incoming inspection of those items.
To secure repair under this warranty, the following procedure should be taken:
•The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery charges prepaid.
If unable to locate the Dealer, you may contact Pacific at the address listed herein for the location of the nearest Pacific repair center
or agent or for other instructions pertaining to your warranty difficulty.
•Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge or cost to the
user.
•Only Pacific or its authorized dealers and agents may make no charge warranty repairs on this product. All others do so at their own
risk.
This warranty limits Pacific’s liability to the repair of the product and/or warranted parts replacement and does not include incidental or
consequential damages arising from the use of a Pacific machine whether defective or not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.
Paper Bag Filters
Cloth Bag Filters
Filter
Carbon Brush
Cord Assembly
Hose Assembly
2259 Sheridan
Muskegon, Michigan 49442
Ph: [phone] Fax: [phone]
www.nextwaveofclean.com
