paladin HARLEY POWER BOX RAKE T6 Programming manual

OPERATOR’S & PARTS
MANUAL
SERIAL NUMBER:________________
PURCHASE DATE:________________
800-437-9779 www.paladinbrands.com PO Box 230, Jamestown, ND 58402-0230, United States of America

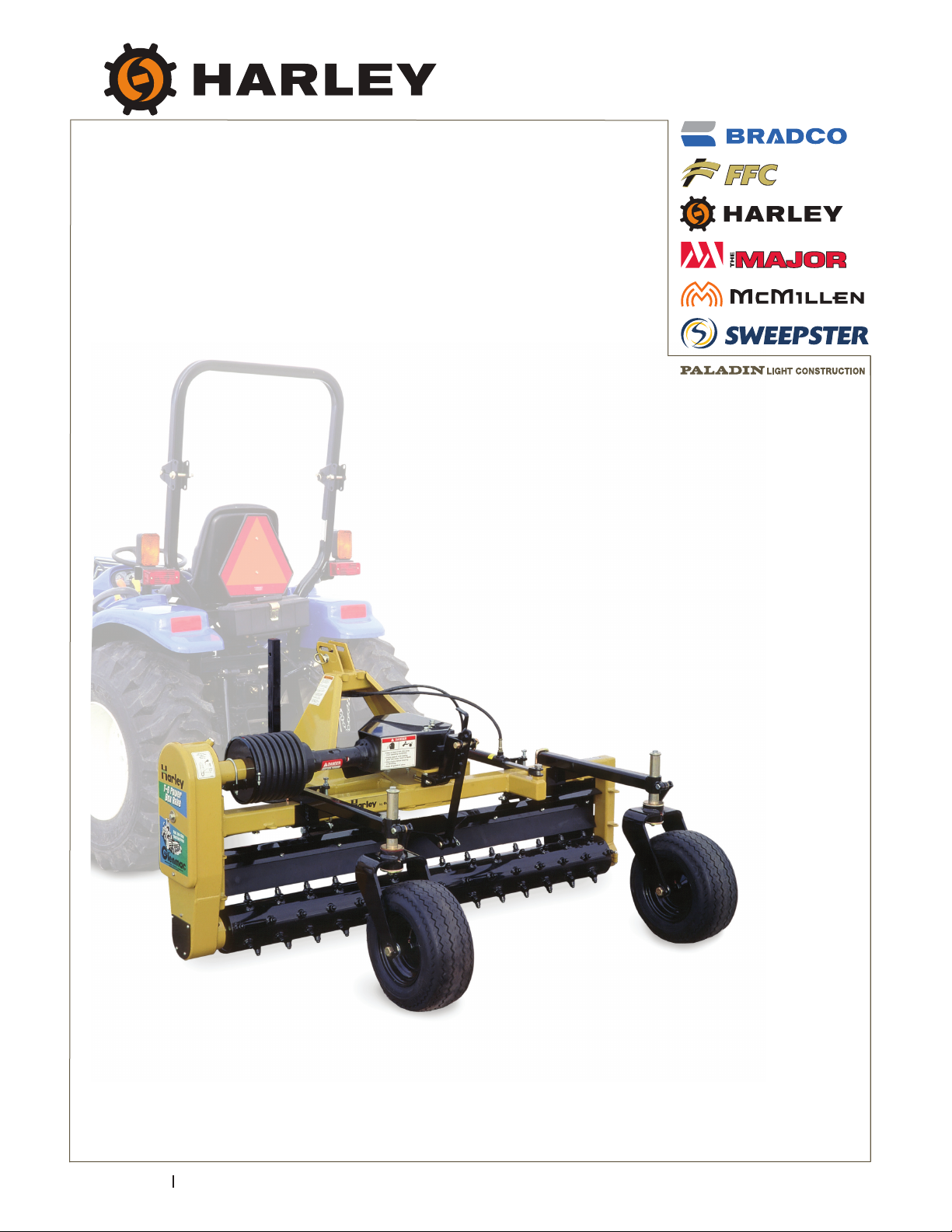

MODEL T6
POWER BOX RAKEr

MODEL T6 HARLEY POWER BOX RAKE® 1
This manual describes the installation, operation, and maintenance of the Harley Power Box
Rake. Read and understand the manual in its entirety before performing installation, operation
or maintenance in order to ensure the equipment’s optimum level of performance. Read and
follow all safety and precautionary notes included in this text.
Throughout this manual, references are made to front, back, right and left directions. These
are determined by sitting in the operator’s seat of the tractor.
REMINDER: Fill in the warranty card and mail within 10 days of your purchase date. While
lling in the card with the correct information, put the date purchased and the serial number on
the front cover of this manual. Should you need to call your dealer or Harley Attachments, this
information will help them to more quickly provide accurate service for you.
Any questions related to this should be directed to Harley Attachments customer service at
800-437-9779.
TABLE OF CONTENTS
OWNER ASSISTANCE ...............................................................................................................2
SPECIFICATIONS.......................................................................................................................3
BOLT TORQUE CHART..............................................................................................................4
SAFETY STATEMENTS..............................................................................................................5
GENERAL SAFETY PRECAUTIONS...................................................................................... 5-7
EQUIPMENT SAFETY PRECAUTIONS ................................................................................. 7-9
SAFETY DECAL AND SERIAL TAG PLACEMENT..............................................................10-11
OPERATIONAL PROCEDURE ........................................................................................... 12-17
MAINTENANCE .................................................................................................................. 18-23
TROUBLE SHOOTING .............................................................................................................24
ASSEMBLY, PARTS IDENTIFICATION............................................................................... 25-47
WARRANTY POLICY................................................................................................................48
PREFACE

2MODEL T6 HARLEY POWER BOX RAKE®
Harley Attachments, LLC and your authorized Harley dealer want you to be completely satis-
ed with your investment. To resolve any problems that may occur, please contact the Service
Manager of your local Harley dealer. If your problem has not been handled to your satisfac-
tion, contact:
Customer Service (8:00am – 5:00pm CT)
Harley Attachments, LLC
PO Box 230
Jamestown, ND 58402-0230
701-252-9300
800-437-9779
Parts Fax: [phone]
Email: [email protected]
Please be prepared to provide the following information:
• Your name, address, and telephone number
• Machine model and SERIAL NUMBER
• Dealership name and address
• Machine purchase date
• Nature of problem
__________________________________________________________________________
Local Dealer Information:
Contact: ______________________________________________________________
Address: _____________________________________________________________
Phone #1: ____________________________________________________________
Phone #2: ____________________________________________________________
Email: ________________________________________________________________
OWNER ASSISTANCE

MODEL T6 HARLEY POWER BOX RAKE® 3
Raking Width ........................................................................................................................... 72”
Roller Type ............................................................................. Tooth Roller Standard 9” Diameter
Roller Angle .......................................................................................15 Degrees Both Directions
Gap (Tube to Barrier) ................................................................................... 5/16” - 3” Adjustable
Tires .......................................................................................................................16.5 x 6.5-8
Tire Pressure ....................................................................................................................... 60 psi
Weight .............................................................................................................................. 840 lbs
Oil Capacity of Chain Case .....................................................................Approximately 1.5 Pints
Tractor Three-Point Attachment........................................................................................... Cat. 1
3-Point Lift Requirement at 24” 903 lbs
PTO Drive.......................................................................................................................540 RPM
Tractor Hydraulic System ........................................................3-Pt Hitch and One Remote Valve
Tractor PTO HP............................................................................................................22 - 35 HP
(*Tractor must meet ASAE lift capacity requirement.)
SPECIFICATIONS

4MODEL T6 HARLEY POWER BOX RAKE®
After every ten (10) hours of operation, check all hardware and tighten where required.
SAE Series Torque Chart
DO NOT use these values if a different torque value or tightening procedure is listed for a specic
application. Torque values listed are for general use only.
Fasteners should be replaced with the same grade.
Make sure fastener threads are clean and you properly start thread engagement. This will
prevent them from failing when tightening.
Metric Series Torque Chart
Use only metric tools on metric hardware. Other tools may not t properly. They may slip and
cause injury.
BOLT TORQUE CHART

MODEL T6 HARLEY POWER BOX RAKE® 5
SAFETY STATEMENTS
This statement is used where serious injury or death will result if the instruc-
tions are not followed properly.
This statement is used where serious injury or death could result if the instruc-
tions are not followed properly.
This statement is used where minor injury could result if the instructions are
not followed properly.
This statement is used where equipment or property damage could result if
the instructions are not followed properly.
This symbol by itself or used with a safety signal word throughout this manual
is used to call your attention to instructions involving your personal safety or
the safety of others. Failure to follow these instructions can result in injury or
death.
GENERAL SAFETY PRECAUTIONS
READ MANUAL PRIOR TO INSTALL
Improper installation, operation, or maintenance of this equipment could result
in serious injury or death. Operators and maintenance personnel should read
this manual as well as all manuals related to this equipment and the prime
mover thoroughly before beginning installation, operation, or maintenance.
FOLLOW ALL SAFETY INSTRUCTIONS IN THIS MANUAL AND THE
PRIME MOVERS MANUAL.
READ AND UNDERSTAND ALL SAFETY STATEMENTS
Read all safety decals and safety statements in all manuals prior to operat-
ing or working on this equipment. Know and obey all OSHA regulations, local
laws and other professional guidelines for your operation. Know and follow
good work practices when assembling, maintaining, repairing, mounting, re-
moving, or operating this equipment.
KNOW YOUR EQUIPMENT
Know your equipment’s capabilities, dimensions, and operations before op-
erating. Visually inspect your equipment before you start and never operate
equipment that is not in proper working order with all safety devices intact.
Check all hardware to assure it is tight. Make certain that all locking pins,
latches, and connection devices are properly installed and secured. Remove
and replace any damaged, fatigued, or excessively worn parts. Make certain
all safety decals are in place and are legible. Keep decals clean and replace
them if they become worn and hard to read.
DANGER
WARNING
CAUTION
NOTICE
WARNING
WARNING

6MODEL T6 HARLEY POWER BOX RAKE®
PROTECT AGAINST FLYING DEBRIS
Always wear proper safety glasses, goggles, or a face shield when driving
pins in or out or when any operation causes dust, ying debris, or any other
hazardous material.
LOWER OR SUPPORT RAISED EQUIPMENT
Do not work under raised 3 point lift arms without supporting them. Do not
use support material made of concrete blocks, logs, buckets, barrels, or any
other material that could suddenly collapse or shift positions. Make sure
support material is solid, not decayed, warped, twisted, or tapered. Lower lift
arms to ground level or onto blocks. Lower lift arms and attachments to the
ground before leaving the cab or operator’s station.
USE CARE WITH HYDRAULIC FLUID PRESSURE
Hydraulic uid pressure can penetrate the skin and cause serious injury or
death. Hydraulic leaks under pressure may not be visible. Before connecting
or disconnecting hydraulic hoses, read your prime movers operator’s manual
for detailed instructions on connecting and disconnecting hydraulic hoses or
ttings.
Keep unprotected body parts, such as face, eyes, and arms as far away as
possible from a suspected leak. Flesh injected with hydraulic uid may de
velop gangrene or other permanent disabilities.
If injured by injected uid, see a doctor at once. If your doctor is not
familiar with this type of injury, ask him to research immediately to deter-
mine proper treatment.
Wear safety glasses, protective clothing, and use a sound piece of card
board or wood when searching for hydraulic leaks. DO NOT USE YOUR
HANDS! SEE ILLUSTRATION BELOW.
DO NOT MODIFY MACHINE OR ATTACHMENTS
Modications may weaken the integrity of the attachment and may impair the
function, safety, life, and performance of the attachment. When making re-
pairs, use only the manufacturer’s genuine parts, following authorized instruc-
tions. Other parts may be substandard in t and quality. Never modify any
ROPS (Roll Over Protection System) equipment or device. Any modications
must be authorized in writing by the manufacturer.
WARNING
WARNING
WARNING
WARNING

MODEL T6 HARLEY POWER BOX RAKE® 7
SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are completely trained by a qualied
operator in how to use the controls, know its capabilities, dimensions, and all
safety requirements. See your prime movers manual for these instructions.
Keep all step plates, grab bars, pedals, and controls free of dirt, grease,
debris, and oil.
Never allow anyone to be around the equipment when it is operating or
being serviced.
Do not allow riders on the attachment or the prime mover.
Do not operate the equipment from anywhere other than the correct
operators position.
Never leave equipment unattended with the engine running or with this
attachment in a raised position.
Do not alter or remove any safety feature from the prime mover or this
attachment.
Know your work site safety rules as well as trafc rules and ow. When in
doubt on any safety issue, contact your supervisor or safety coordinator for
an explanation.
SAFELY MAINTAIN AND REPAIR EQUIPMENT
Do not wear loose clothing or any accessories that can catch in moving
parts. If you have long hair, cover or secure it so that it does not be come
entangled in the equipment.
Work on a level surface in a well lit area.
Use properly grounded electrical outlets and tools.
Use the correct tool for the job at hand. Make sure they are in good condi-
tion for the task required.
Wear the protective equipment specied by the tool manufacturer.
EQUIPMENT SAFETY PRECAUTIONS
Safety is a primary concern in the design and manufacture of our products.
Unfortunately, our efforts to provide safe equipment can be wiped out by a
single careless act of an operator. In addition, to the design and conguration
of equipment, hazard control and accident prevention are dependent upon
the awareness, concern, prudence, and proper training of personnel involved
in the operation, transport, maintenance, and storage of equipment. The
designed and tested safety of this equipment depends on it being operated
within the limitations as explained in this manual.
INITIAL SET-UP AND SYSTEMS CHECK
Always check with your prime mover manual or dealer for counter weight
ballast that may be required for machine stability.
Air in hydraulic systems can cause erratic operation and allows loads or
equipment components to drop unexpectedly.
Before operating equipment purge any air in the system by engaging all
hydraulic functions.
Check that all control lever positions function as instructed in the
Operator’s Manual. Do not operate until control lever and equipment
WARNING
WARNING
NOTICE
WARNING

8MODEL T6 HARLEY POWER BOX RAKE®
movements are correct.
Make sure all hydraulic hoses, ttings, and valves are in good condition
and not leaking before starting power unit. Check and route hoses care-
fully to prevent damage.
Hoses must not be twisted, bent sharply, kinked, frayed, pinched, or come
into contact with any moving parts.
Operate moveable components through full operational range to check
clearances. Replace damaged hoses immediately.
Ensure implement is properly attached, adjusted, and in good condition.
Tractor must be equipped with ROPS and seat belt/operator restraint.
Keep seat belt/operator restraint securely fastened/engaged. Falling off
tractor can result in death from being run over or crushed. Keep ROPS
systems in place at all times.
SAFELY OPERATE EQUIPMENT
Improper operation can cause the machine to tip or roll over and cause injury
or death.
Keep tractor lift arms and attachment as low as possible.
Turn on level ground.
Go up and down slopes, not across them.
Keep the heavy end of the machine uphill.
Only engage power when equipment is at ground level. Always disengage
power when equipment is raised off the ground.
Do not disconnect hydraulic lines until all system pressure is relieved.
Never go underneath equipment lowered to the ground or raised.
Hydraulic system leak down, hydraulic system failures, mechanical failures
or movement of control levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
Never direct discharge toward people, animals, or property.
Do not operate equipment while under the inuence of alcohol or drugs.
Operate only in the daylight or good articial lighting.
Always comply with all state and local lighting and marking requirements.
Ensure equipment is properly attached, adjusted and in good operating
condition.
Before starting tractor, check all equipment driveline guards for damage
and make sure they rotate freely on all drivelines. Replace any damaged
guards. If guards do not rotate freely on drivelines, repair and replace
bearings before operating.
Make sure driveline is correct length to prevent bottoming out or pulling
apart during the full lift range of the hitch.
Make sure spring-activated locking pin or collar slides freely and is seated
rmly in tractor PTO splined groove.
A minimum 20% of tractor and equipment weight must be on tractor front
wheels with attachments in “transport” position. Without this weight, tractor
could tip over causing personal injury or death. The weight may be at-
tained with a loader, front wheel weights, ballast in tires, or front tractor
weights. When attaining wheels, you must not exceed the Roll Over Pro-
tection Structure (ROPS) weight certication. Weigh the tractor and equip-
ment. Do not estimate.
WARNING

MODEL T6 HARLEY POWER BOX RAKE® 9
Ensure shields and guards are properly installed and in good condition.
Replace if damaged.
WATCH FOR OPERATING HAZARDS
Look down and to the rear and make sure area is clear before operating in
reverse.
Watch for hidden hazards on the terrain during operation.
Use extreme care when working close to fences, ditches, other obstruc-
tions, or on hillsides.
Reduce ground speed on slopes and rough terrain.
Do not operate on steep slopes.
Do not stop, start, or change directions suddenly on slopes.
Stop tractor and implement immediately upon striking an obstruction. Dis-
mount tractor using proper procedure. Inspect and repair any damage
before resuming operation.
MAINTENANCE SAFETY
Your dealer can supply original equipment hydraulic accessories and repair
parts. Substitute parts may not meet original equipment specications and
may be dangerous.
Avoid electrical system hazards. Never work on the electrical system
unless you are qualied and thoroughly familiar with system details and
the special handling requirements.
Disconnect battery before working on electrical system. Remove “ground”
cable rst. When reconnecting battery, connect “ground” cable last.
Never perform service or maintenance with engine running.
Tighten all bolts, nuts and screws, and check that all cotter pins are in-
stalled securely to ensure equipment is in a safe condition before operating.
WARNING
WARNING

10 MODEL T6 HARLEY POWER BOX RAKE®
SAFETY DECAL AND SERIAL TAG PLACEMENT
Figure 1. Safety Decals

MODEL T6 HARLEY POWER BOX RAKE® 11
SAFETY DECALS
#4 - PN: P970100
#1 - PN: P970400
#3 - PN: P970301
#2 - PN: P970300
#5 - PN: P970250
SERIAL # TAG

12 MODEL T6 HARLEY POWER BOX RAKE®
OPERATIONAL PROCEDURE
NOTICE
The T6 Power Box Rake® is designed for removing rock and small debris,
and for thatching. This manual contains information for the T6 models. Refer
to the information in this manual for specications, parts, assemblies, and
adjustments.
ATTACHING POWER RAKE TO TRACTOR
Move tractor into position in front of the power rake. Move back slowly and carefully, not allowing
anyone to be between the tractor and the rake. Turn off tractor engine. Attach the two lower
arms of the 3-point hitch with the two hitch-pin assemblies.
Attach the tractor center link to the upper hitch point of the power rake. Use either the “lock-out”
setting or the “oat” feature depending on your application.
Attach the front PTO from the power rake to the tractor. Slide the front section of the PTO into
the back section and attach to the PTO shaft at the rear of the tractor.
Reattach driveline storage chain in its original position so that it will contact PTO driveline.
If the PTO is too long, severe PTO and gearbox damage is possible
when hooking up the PTO from the power rake to the tractor. The front
 PTOislongenoughtotavarietyoftractors.Itispossiblethatthe
 frontPTOwillneedtobecut.TherewillbeNObenetbycuttingonly
one telescoping section. Both sections of the PTO must be cut. DO
NOT FORCE THE PTO TO FIT.
WARRANTY IS VOID IF THE PTO IS TOO LONG, resulting in gearbox,
 PTO,yoke,orcrossbearingdamage.
The PTO, when attached to the tractor and gearbox, must not extend so there is less than ve
inches of overlap within the PTO.
Attach the two hydraulic lines on the rake to the two female hydraulic couplers on the tractor.
The hydraulic hose ends on the power rake are ISO male couplers, which are compatible with
newer tractors.
Raise jackstand and secure in operating position.
Alwayscleanconnectorendspriortoattaching.Dirtcouldcontaminate
 hydraulicuidanddamagethehydraulicsystem.

MODEL T6 HARLEY POWER BOX RAKE® 13
OPERATIONAL PROCEDURE
POWER RAKE FUNCTION
The tractor PTO drives the roller, which digs into the ground, cultivating and pulling up rocks,
roots, and debris. The clean soil goes between the roller and barrier while the rocks, roots,
and debris work to the side in a windrow.
With the endplates mounted in the working position and the rake straight (endplates parallel
with tractor tires), material can be moved along, lling in the low spots.
Maximum safe PTO operating speed is 540 rpm.
Before using your new Harley Power Box Rake, the slip clutch assembly must be in RUN-IN.
See CLUTCH in the maintenance section, page 20, for the RUN-IN procedure. After you have
completed the RUN-IN of the clutch, return to the operating instructions and proceed with start-
up. Failure to run the clutch in could result in pre-mature drive line failure and warranty will be
voided.
Start tractor engine.
Lower power rake slowly to the ground.
Engage tractor PTO.
Increase engine rpm to give desired rpm at the roller. Normal operating speed must not ex-
ceed 540 rpm. If operating in heavy rock, reduce the speed slightly.
Move the tractor forward. Select a slow tractor speed and increase slightly until operation is
satisfactory.
Ground Speed
Ground speed should be between 3 and 5 mph under normal conditions. In heavy rock, reduce
the ground speed to 1 to 3 mph.
Power Rake Angle Adjustment
The power rake may be angled up to 15 degrees left or right for placing material in a windrow.
With the power rake angle cylinder connected to a tractor hydraulic control valve, move tractor
control valve to select the desired angle. Return the tractor control to neutral to maintain the
selected angle.
Power Roller
The roller should be level with the ground. To level rake from side to side, adjust one of the tractor
3-point lower lift arms.
The power rake should be level front to back. Level the rake using the tractor 3-point top link,
the 3-point lift arms, or the gauge wheels.

14 MODEL T6 HARLEY POWER BOX RAKE®
OPERATIONAL PROCEDURE
To allow the roller to penetrate deeper into the ground, loosen the handle and raise the gauge
wheels. To achieve the opposite, lower the gauge wheels. Be sure to check the air pressure in
each tire regularly so that an even, consistent grade will be maintained.
Barrier
The normal gap between the roller and barrier for average conditions is about 1-1/4”. This gap
can be adjusted by rotating the barrier and pinning in desired position. A wider opening will allow
more dirt and rock to pass through, allowing wet soil to dry for nal raking. For ner raking, reduce
the gap. Be careful not to let roller hit barrier. The gap should be the same all the way across.
Barrier adjustment is shown in Figure 2 (page 17).
OPERATING DEPTH
When power raking, the depth will determine how much dirt is carried ahead of the roller. The
ideal depth will vary with conditions and can be anywhere from skimming the surface to about 3
inches deep. See instructions in “Power Roller” on page 13 to set roller depth.
When making the rst windrow, the level of dirt may be halfway up on the barrier. When moving
the windrow two or three times, the level of the dirt may be to the top of the barrier. However, try
to prevent material from owing over the top.
The power rake allows fast raking of large areas of ground by being able to move windrows several
times. Of course, the volume or density of the material being raked will dictate how many times
a windrow can be moved.
Soil can be removed from the windrow of rocks by moving it back and forth a few times onto the
clean area. If dirt clods are a problem, running the tractor tire over the windrow and then moving
it a nal time will help to break up and cut down on dirt clods.
Endplates
The function of the endplates is to contain the material in front of the roller while the clean material
passes between the roller and barrier.
With the endplates mounted in the operating position and the rake straight (endplates parallel
with tractor tires), material can be moved along, lling in the low spots.
By decreasing the gap between the roller and barrier, more material can be pulled along. Barrier
adjustment is shown in Figure 2 (page 17).
When not using the endplates for operation, they can be placed in “storage” position, see Figure
2 (page 17).
Make sure the disconnected power rake is stored on a hard, level surface. Use the endplates
mounted on attachment side of rake to ensure stability.

MODEL T6 HARLEY POWER BOX RAKE® 15
OPERATIONAL PROCEDURE
Operator Production
Successful operation of the power rake will come with operator experience. The rake’s performance
also depends on the type and size of the tractor it’s mounted on.
An operator that masters the technique of adjusting the angle of attack of the roller against the
soil will also nd ideal settings under various conditions to give the desired results.
Do not drop power rake to the ground with the roller turning. Sudden
 highspeedjoltsmultiplystresstothedrivelineandcancauseextreme 
damage.
APPLICATION TECHNIQUES
The power rake is capable of many applications. The following are some of the common
applications.
See Figure 2 (page 17) for adjustment locations.
Pulverizing Topsoil
For breaking up compacted soil or conditioning hardened baseball diamonds, the 3-point top
link is set in the “lock-out” positions so that down pressure can be exerted on the tooth roller.
The top link is shortened to take the guide wheels off the ground so only the toothed roller is in
contact with the ground. The rake can be straight or angled, with the barrier opened up to allow
material to ow over the roller.
Debris Removal
Once the surface has been loosened, the process of removing debris can begin. The 3-point hitch
top link is mounted in the “oat” position holes. This allows the rake to begin the early stages of
the nal grading process. The 3-point hitch is lowered until the guide wheels control the depth
of the toothed roller. The rake can be angled at this time for windrowing debris or the rake can
be set straight with both endplates installed to collect debris. Tractor travel speed should be
increased for this process.
Finish Grading
For this operation, set the tractor top link in the “oat” position and mount both endplates in the
“forward” position. The rake is tilted forward until the teeth of the toothed roller are barely touching
the soil. Tractor speed can be increased for this operation, the idea being to collect material from
the high spots and leave it in the low areas.
Spreading Fill and Topsoil
Start with tractor top link in “xed” position and rake tilted on gauge wheels, since depth of cut
is not the objective. Endplates can be installed and the windrow angle set as needed to control
the material movement.
Changing Grade
Grade modication can be accomplished during nish grading by angling the rake to collect and
windrow the maximum amount of material toward targeted areas. With the ex model, grade
changes can be made by raising one gauge wheel and lowering the opposite.
NOTICE

16 MODEL T6 HARLEY POWER BOX RAKE®
OPERATIONAL PROCEDURE
WARNING
CAUTION
Thatching Existing Grass Areas
This procedure is done with the 3-point top link in the “lock-out” position so accurate depth control
can be maintained. The top link should be lengthened to support the rake on the gauge wheels
and toothed roller raised so teeth are just grazing the surface. Select and maintain a slow travel
speed.
Shutting Down
Stop equipment.
Lower the lift arms and power rake to the ground.
Purge any air in the system. Hydraulic system leakdown, hydraulic system failures, mechanical
failures, or movement of control levers can cause equipment to drop or rotate unexpectedly.
Shut off engine, set brake, remove key, and remove seat belt before leaving the tractor operator’s
seat.
Donotdisconnecthydrauliclinesuntilallsystempressureisrelieved. 
 Lowerunittoground,stopengine,andoperateallhydrauliccontrol 
levers.
REMOVING POWER RAKE FROM TRACTOR
Install endplates on attachment side of power rake as shown in Figure 2 (page 17).
Lower jackstand to “storage” position.
On a hard level surface, lower attachment to the ground.
Shut off engine, set brake, remove keys, and remove seat belt before leaving the tractor oper-
ator’s seat.
Disconnect driveline from tractor PTO shaft and support with storage chain.
Disconnect 3-point upper and lower links from power rake.
Disconnect hydraulic hoses from quick couplers. Install dust plugs for storage.
Move to tractor seat and start engine. Release brake and drive tractor forward until it is disen-
gaged from the attachment. The attachment should rest in a stable position for storage.
STORAGE
Make sure the disconnected power rake is stored on a hard, level surface. Endplates mounted
on attachment side of rake increase stability.
 Blockequipmentsecurelyforstorage.
 Keepchildrenandbystandersawayfromstoragearea.

MODEL T6 HARLEY POWER BOX RAKE® 17
OPERATIONAL PROCEDURE
Figure 2. Operation

18 MODEL T6 HARLEY POWER BOX RAKE®
MAINTENANCE
The information in this section is written for operators who possess basic mechanical skills.
Should you need help, your dealer has trained service technicians available. For your protec-
tion, read and follow all safety information in this manual.
Regular preventive maintenance and immediate repair of broken or worn parts will ensure
maximum efciency and long life.
Because of the nature of the jobs the power rake does, such as site preparation and rock rak-
ing, the power rake is constantly vibrating and shaking. Parts may loosen up as it is used. One
of the most important functions an operator can perform is observing and inspecting the equip-
ment for loose or worn parts to prevent further damage or excessive downtime.
PROCEDURE INTERVAL LUBE
Inspect prime movers hydraulic system to daily
be sure the level of hydraulic oil is adequate.
Repair hydraulic oil leaks. daily
Lubricate all grease ttings. weekly #2 lithium w/moly
Lubricate drive line u-joints. monthly #2 lithium w/moly
Check tire pressure. weekly 60 psi cold
Inspect and clean safety decals. Replace if damaged. monthly
(See safetydecals section for location.)
Inspect drive chain. monthly
Check oil level in chain case. monthly #00 uid gear grease
Change lubrication in chain case. quarterly #00 uid gear grease
Check gearbox oil level. quarterly 80-90 wt. gear lube
Figure 3. Lubrication Maintenance

MODEL T6 HARLEY POWER BOX RAKE® 19
CHAIN MAINTENANCE
The drive chain should be inspected monthly. New chain has a tendency to stretch, so it is nec-
essary to check the chain tension to prevent opping around, thus causing potential problems.
Chain tension is preset with the extension spring. If the chain becomes excessively loose, it
may be necessary to remove one link (two pitches). If unable to reassemble, add an offset link
to lengthen the chain.
 Replacementchainshouldbeonlyhighqualityoriginalequipment 
chain for longer life.
When being stored for a long period or at end of season, change the oil, adding #00 uid gear
grease, and rotate the roller several times allowing the chain to be coated with lubricant, en-
hancing chain life. Rotate the roller periodically to maintain lubrication.
PTO DRIVE LINES
Periodically check the yokes on both ends of the front and side PTO’s. Make sure the set
screws/jam nuts are tight and the yoke is not moving on the shaft. PTO shafts and U-joints
should be sparingly lubricated weekly.
SPROCKETS
Sprockets should be checked to be sure slotted hex nut or hex bolt is tight, the cotter pin is in
place, and the sprocket cannot move on shaft.
QUALIFIED TECHNICIAN MAINTENANCE
GEARBOX
The gearbox is almost maintenance-free, but should be checked quarterly to be sure that the
oil level is maintained at half full. EP 80-90 wt. gear lube is recommended for use in the gear-
box. Oil should be changed after the rst 100 hours or 30 days of operating. Then, normal
change should be adequate. In the case of seasonal usage, it is best to change the oil at the
end of the season to remove moisture and corrosive contaminants.
It should be noted that the gearbox only exceeds its thermal capacity when the oil temperature
exceeds 200°F.
BEARINGS
Highest quality bearings are used on the power rake. Only triple-seal bearings are used on the
roller which operates down in the dirt. Lubrication of the bearings will vary considerably with
conditions. As a rule, bearings should be under-lubricated rather than over-lubricated. Over-lu-
brication can cause seals to blow out.
 Replacementbearingsshouldbeonlyhighqualityoriginalequipment 
bearings for longer life.
Install new complete bearing housing if needed or just replace the bearing insert. The shafts
should be straight, free of burrs, and up to size. If shaft is worn, replace or have the shaft built
up to standard prior to completing assembly.
NOTICE
NOTICE
MAINTENANCE
