Installation Manual
Skyroof Compact

2
Dear Customer,
Installation manual contains suggestions and rules for fast and exact
installation of our product. We recommend you to read our instruction
carefully.
During installation all necessary actions have to be carried out by
authorized and specialized technicians.
All unauthorized interventions during warranty period will invalidate
the warranty.

3
INDEX
04
06
26
42
05
09
40
33
46
47
1. Symbols, Precautions and Warnings
2. Terminology
3. Packaging
4. Installation Steps
6. Sensors and Automation
7. Hardware
8. Tools
9. Frequently Asked Questions
10. Risk Table
5. Programming / Resetting of Panels and Lights

4
1. SYMBOLS, PRECAUTIONS AND WARNINGS
1.1. Symbols
Attention: General operation notes.
Attention: General hazards; possible risk for persons.
Attention: Electrical hazard.
Attention: Risk of crushing hands.
Contact: Palmiye service department or related parties.
1.2. Precautions and Warnings
The installation and maintenance personals (installers, electricians etc.) must have sucient
expertise and knowledge for undertaking the task at hand.
In case of anomalies, immediately stop the work and contact service department of
Palmiye.
Palmiye will not be responsible on use of non-original parts or unauthorized interventions and
modications for damage caused to people or animals or property.
It is forbidden to tamper to bioclimatic pergola system.
General Precautions
Before starting of any assembly, maintenance or cleaning operations, make sure that you have
fully understood the indications in this manual.
All electrical connections for Skyroof Compact must be made by qualied personnel.
In case of any incompatibility, call Palmiye.
General Safety Precautions
When using the panels, it is good practice to remember that all moving parts can be a source
of danger.
Make sure that power supply is cut o during maintenance.
It is recommended never to intervene on moving parts and to ensure that no operator
is near to the panels before reactivating it after a technical or maintenance intervention.
You can scan the barcodes located next to the titles in the page to see video
demonstration of the related steps.

5
2. TERMINOLOGY
Linear Actuator
The Linear Actuators works
with 24V power. The control
box provides needed power
for each linear actuator.
The control box works with
120V or 230V~50/60Hz.
Linear Actuators provide the
movement of bioclimatic
pergolas. Linear Actuators are
located on lateral Integrated
Gutter.
Also, linear actuators have to be
adjusted to exact movement.
Therefore, linear actuator
movement settings must be
done during to installation.

6
BOM ID Description Qty
1 M8x60 Stay Bolt 6
2 Sealed Nut M8 Stainless Steel 6
3 Washer M8 Stainless Steel 6
4 Insulation Cover - Right 1
5 Washer M6 2
6 Integrated Gutter For Compact Series 1
7 Insulation Cover - Left 1
8 M6x40 Stay Bolt 2
9 Nut (M6) 2
3. PACKAGING
3.1. Preliminary Checks
On receipt of the packed goods and before starting their assembly, check the integrity of the
material and the presence of all the components necessary for the installation.
In case of anomalies, immediately stop the work and contact with hospital.
Fixing elements such as screws, plugs etc. are included in the box.
If not please contact service department of Palmiye.
Do not use a knife to avoid the risk of ruining the paint or other materials.
3.2. Packed Parts
3.2.1. Integrated Gutter

7
3.2.2. Panel

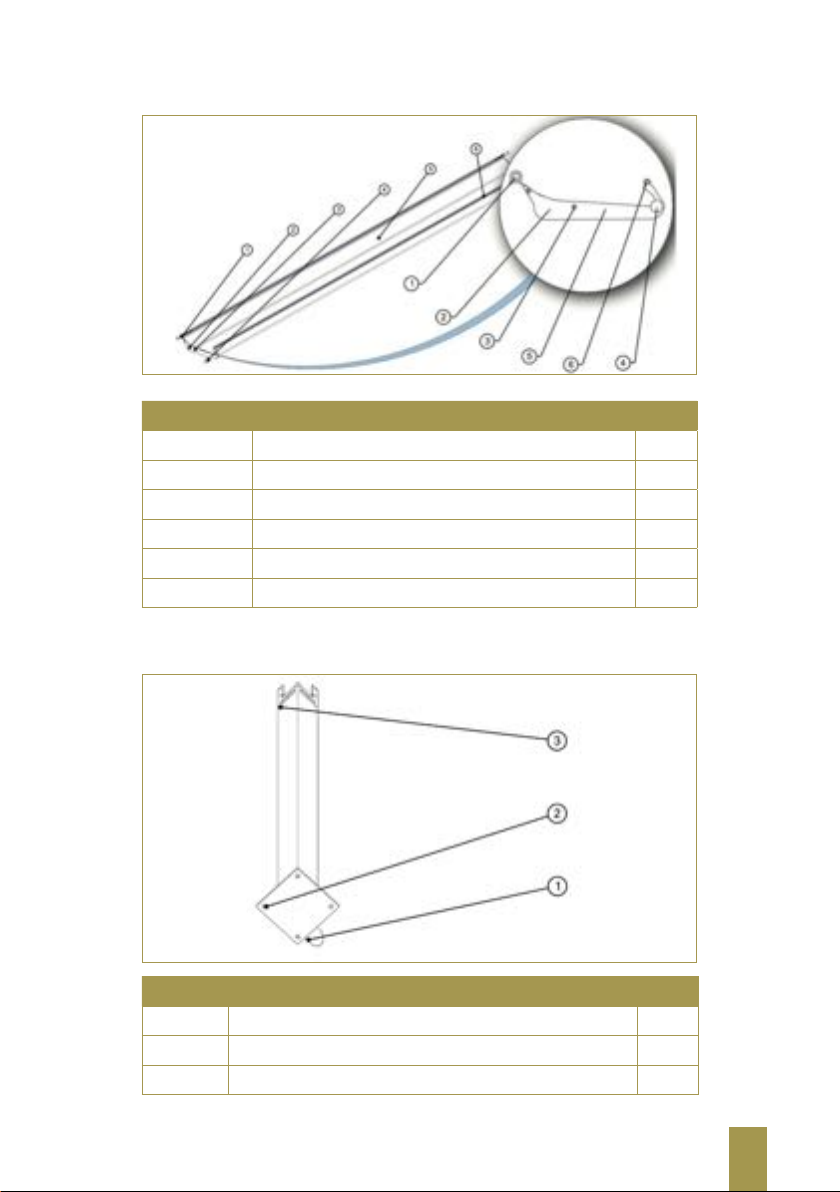

BOM ID Description Qty
1 Power Pin 2
2 Side Cover Cap 2
3 Side Cover Cap Screw 4
4 Fixed Pin 2
5 Panel Prole For Skyroof Compact Series 1
6 Top Gasket 1
3.2.3. Pillars
BOM ID Description Qty
1Water Output 70mm 1
2 250x250x10mm Aluminum Flange 1
3 120x120x3mm Aluminum Pillar 1

8
2. Metal Box
U Brackets, Mounting brackets, Pillar caps. It has a blue label on the box.
3. Plastic Box
Corner Plastics,
ELECTRIC
METAL
PLASTIC
3.2.4. Boxes
1. Electrical Box
Remote Controls, Sensors, Automations are on Electric box. It has a red label on the box.

9
4. INSTALLATION STEPS
4.1. Structure Installation
Rear Integrated Gutter has escalloped completely by CNC machine in order to place to Motor
tube.
Escallopped for control unit box
Rear Integrated Gutter
Escallopped for control unit box
Rear Integrated Gutter
Follow related product step;
4.1.1. Wall installation (move to step 4.1.1.)
4.1.2. Ceiling installation (move to step 4.1.2.)
4.1.3. Free standing (move to step 4.1.3.)
4.1.1. Wall installation
With the help of laser, all hole locations should be marked at the same level and
holes should be drilled with Ø16 mm drill. The bracket must away 35cm (1’ – 2”)
from the corner.
Brackets should be xed for every 150cm (5ft).
35cm (1ft)
150cm (5ft)
150cm (5ft)
Product width
35cm (1ft)
150cm (5ft)
150cm (5ft)
Product width

10
Fasten of the M12 steel rod to the wall and tighten of rods.
Place the Integrated gutter to the wall mounting bracket.

11
Fasten the wall mounting bracket cover on
top and tighten by M8x25mm bolt.
Fix by self-drilling screw to integrated gutter
and wall mounting bracket.
Important: All screwing should be discarded after product size control.
The Final view;
4.1.2. Ceiling installation
Dene to ceiling mounting bracket position on the ceiling and make a hole with
Ø16mm drill.
Ceiling Mounting Bracket
35cm (1ft)
Product Width
Ceiling
Ceiling Mounting Bracket
35cm (1ft)
Product Width
Ceiling

12
Fasten of the M20 steel rod to the
ceiling and tighten of rods;
Place the Integrated gutter to the ceiling mounting bracket.
M20x50mm screw
Ceiling Mounting Bracket
M20 Nut
M20 Steel Rod
Washer for M20 Screw
Rear Integrated Gutter
M20x50mm screw
Ceiling Mounting Bracket
M20 Nut
M20 Steel Rod
Washer for M20 Screw
Rear Integrated Gutter
The nal view;

13
4.1.3. Free Standing (Pillar and Integrated gutter connection)
Fix Aluminium Pillar on both side and Rear Integrated Gutter on ground with M10
Sealed Nut as you see in below gure.
Washer M8 Stainless Steel
Washer M6 Stainless Steel
Sealed Nut M8 Stainless Steel
Sealed Nut M6 Stainless Steel
Washer M8 Stainless Steel
Washer M6 Stainless Steel
Sealed Nut M8 Stainless Steel
Sealed Nut M6 Stainless Steel
SealantSealant
Lift up a rear frame.
Don’t work alone. You may need someone else.
SealantSealant

14
Important: All screwing
should be discarded after
product size control.
Rear Integrated Gutter
and Lateral Integrated
Gutter position shown at
below gure.
Rear Integrated Gutter
Left Side Lateral Integrated Gutter
Rear Integrated Gutter
Left Side Lateral Integrated Gutter
Linear Actuator placed
on the back side on
lateral integrated gutter
which is shown at below
gure.
The Linear Actuator have located on rear of the gutterThe Linear Actuator have located on rear of the gutter
The xing Lateral side
integrated gutter to rear
integrated gutter with
M10 Sealed Nut.

15
4.1.4. Cross Check and Level Control
4.1.5. Pillar Fixing
4.1.5.1. Stainless Steel Anchorage
First of all, dene to exact pillar position and mark it.

16
Slide the pillar then place the stainless steel anchorage to marked location. For ange
installation please refer to freestanding model.
Place the cap. Apply a sealant then place the
pillar into the anchorage.
At the end, x by M4,8x25mm self-tapping
screw.

17
Place the elbow and apply sealant.
4.1.5.2. Hidden Anchorage
Firstly, x the hidden anchorage to the ground with 4 M12 and chemical dowels. Then, put
the washers and nuts on the rods from inside and tighten them. Put the inner cover and apply
sealant to the sides.
SealantSealant
Fix with 4 M8x25 mm round head bolts from 3 sides.
Place the front cover and x it with 4 M8x25
mm round head bolts. Place the pillar on the anchorage.

18
While placing the panels start front panel.
First panel has a gasket for perfect insulation.
The frontier panel must be connected by
xing plate to the integrated gutter. The
xing plate located on the gutter prole.
4.2. Panel Installation
Place the middle panels to
escalloped lateral side integrated
gutter which is shown at below
gure.
The last 3 panel pins are shorter
than middle panel s because of
the reason is that prevent the
pins from striking the linear
actuator.
The last 3 panel pins are shorterThe middle panel pins are longer The last 3 panel pins are shorterThe middle panel pins are longer

19
In order to protect to remove the panels, should use to 1,5mm sheet.
4.3. Control box installation
Control box can be located on rear integrated gutter.

20
4.4. Panel – Linear actuator connecting
40x20mm Aluminium prole must be connect to the panels.This prole allows the movement
of the actuators to pass through the panels.
Pin house direction should be from outside to inside, as you see at below.
