Installation Manual
Skyroof Plus Hanging

2
Dear Customer,
Installation manual contains suggestions and rules for fast and exact
installation of our product. We recommend you to read our instruction
carefully.
During installation all necessary actions have to be carried out by
authorized and specialized technicians.
All unauthorized interventions during warranty period will invalidate
the warranty.

3
INDEX
04
06
13
30
05
09
27
20
34
35
1. Symbols, Precautions and Warnings
2. Terminology
3. Packaging
4. Installation Steps
6. Sensors and Automation
7. Hardware
8. Tools
9. Frequently Asked Questions
10. Risk Table
5. Programming / Resetting of Panels and Lights

4
1. SYMBOLS, PRECAUTIONS AND WARNINGS
1.1. Symbols
Attention: General operation notes.
Attention: General hazards; possible risk for persons.
Attention: Electrical hazard.
Attention: Risk of crushing hands.
Contact: Palmiye service department or related parties.
1.2. Precautions and Warnings
The installation and maintenance personals (installers, electricians etc.) must have sucient
expertise and knowledge for undertaking the task at hand.
In case of anomalies, immediately stop the work and contact service department of
Palmiye.
Palmiye will not be responsible on use of non-original parts or unauthorized interventions and
modications for damage caused to people or animals or property.
General Precautions
Before starting of any assembly, maintenance or cleaning operations, make sure that you have
fully understood the indications in this manual.
All electrical connections for Skyroof Plus Hanging, repair of motor accessories must be made
by qualied personnel.
In case of any incompatibility, call Palmiye.
General Safety Precautions
When using the panels, it is good practice to remember that all moving parts can be a source
of danger.
Make sure that power supply is cut o during maintenance.
It is recommended never to intervene on moving parts and to ensure that no operator
is near to the panels before reactivating it after a technical or maintenance intervention.
You can scan the barcodes located next to the titles in the page to see video
demonstration of the related steps.

5
2. TERMINOLOGY
Hanging pipe
Linear Actuator
Control Unit Box Panels
Hanging bracket
Gutter
Hanging pipe
Linear Actuator
Control Unit Box Panels
Hanging bracket
Gutter
Linear Actuator
The Linear Actuators works with 24V power. The control box provides needed power for each
linear actuator. The control box works with 120V or 230V~50/60Hz
Linear Actuators provide the movement of bioclimatic pergolas. Linear Actuators are located
on lateral Integrated Gutter.
Also, each linear actuator has to be synchronized. Therefore, linear actuators synchronization
settings must be done during to installation.

6
BOM ID Description Qty
1 Gutter Gasket 5
2 Gutter Sealant Cap 4
3 M10x60 Stay Bolt 10
4 Rear Integrated Gutter 2
5 Stay Bolt For Back Covering 3
3. PACKAGING
3.1. Preliminary Checks
On receipt of the packed goods and before starting their assembly, check the integrity of the
material and the presence of all the components necessary for the installation.
In case of anomalies, immediately stop the work and contact with hospital.
Fixing elements such as screws, plugs etc. are included in the box.
If not please contact service department of Palmiye.
Do not use a knife to avoid the risk of ruining the paint or other materials.
3.2. Packed Parts
3.2.1. Integrated Gutter

7
3.2.2. Panels
BOM ID Description Qty
1 Fixed Pin 2
2 M3x16mm Rounded Head Screw 4
3 Panel Cover 2
4 Panel Bottom Gasket 1
5 Pannel Gasket 1
6 Pannel Prole 1
7 Power Pin 2
3.2.3. Hanging Brackets
Hanging Bracket (Side)
Hanging pipe
Hanging Bracket (Front)
M30 Rod
Hanging Bracket (Side)
Hanging pipe
Hanging Bracket (Front)
M30 Rod

8
2. Metal Box
U Brackets, Mounting brackets, Pillar caps. It has a blue label on the box.
3. Plastic Box
Corner Plastics,
ELECTRIC
METAL
PLASTIC
3.2.4. Boxes
1. Electrical Box
Remote Controls, Sensors, Automations are on Electric box. It has a red label on the box.

9
4. INSTALLATION STEPS

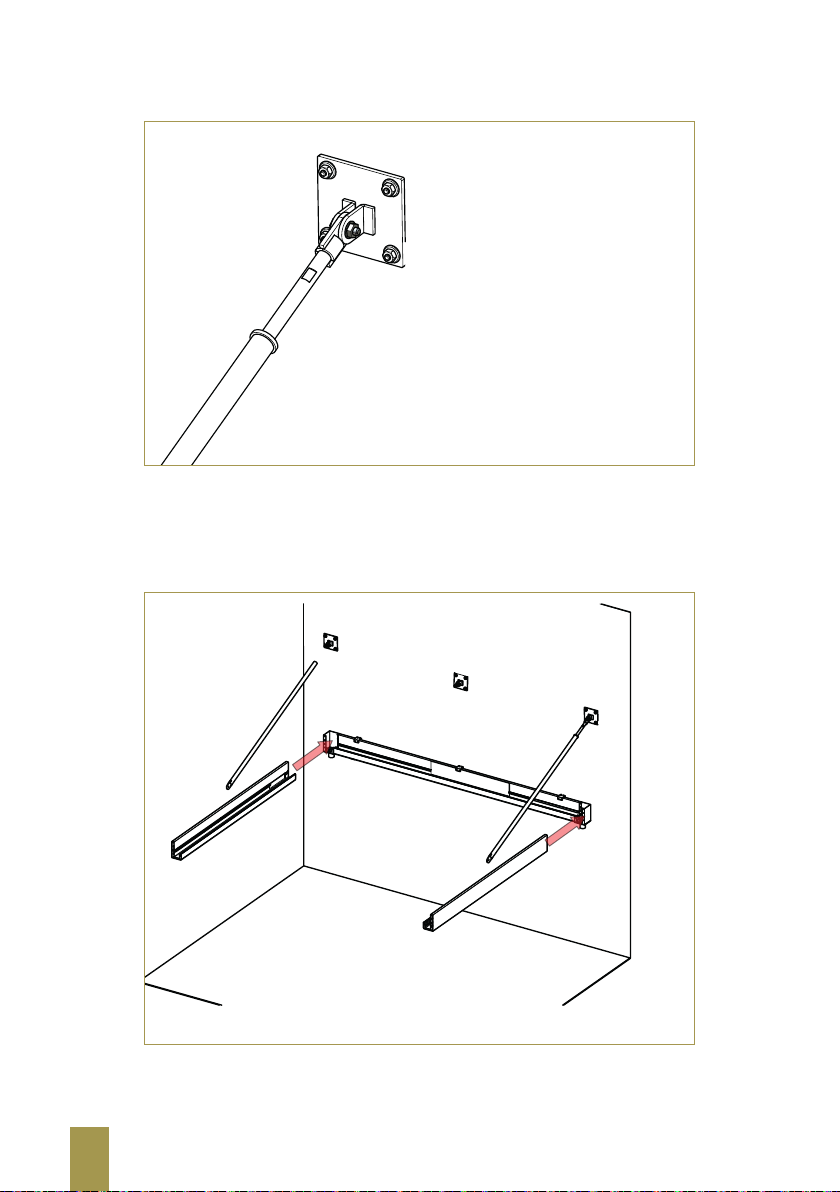

4.1. Wall ange connection
The wall anges must be aligned with hanging bracket. When you aligned the wall ange then
you can x it.
After connection of the wall ange, hanging pie must connect to the wall ange.

10
Final view at below.
4.2. Gutter Connection
The lateral gutters must connect to back gutter as a regular.

11
4.3. Hanging Brackets Connection
4.3.1. For Right – Left - Front
The hanging brackets must carry to lateral gutters. In order to carry this bracket must xed
properly. (The lateral gutters already produced ready to fix on factory)
Also, you should x from inside with bended bracket by nut.
4.3.2. For module
Also, the hanging options is available on module design.

12

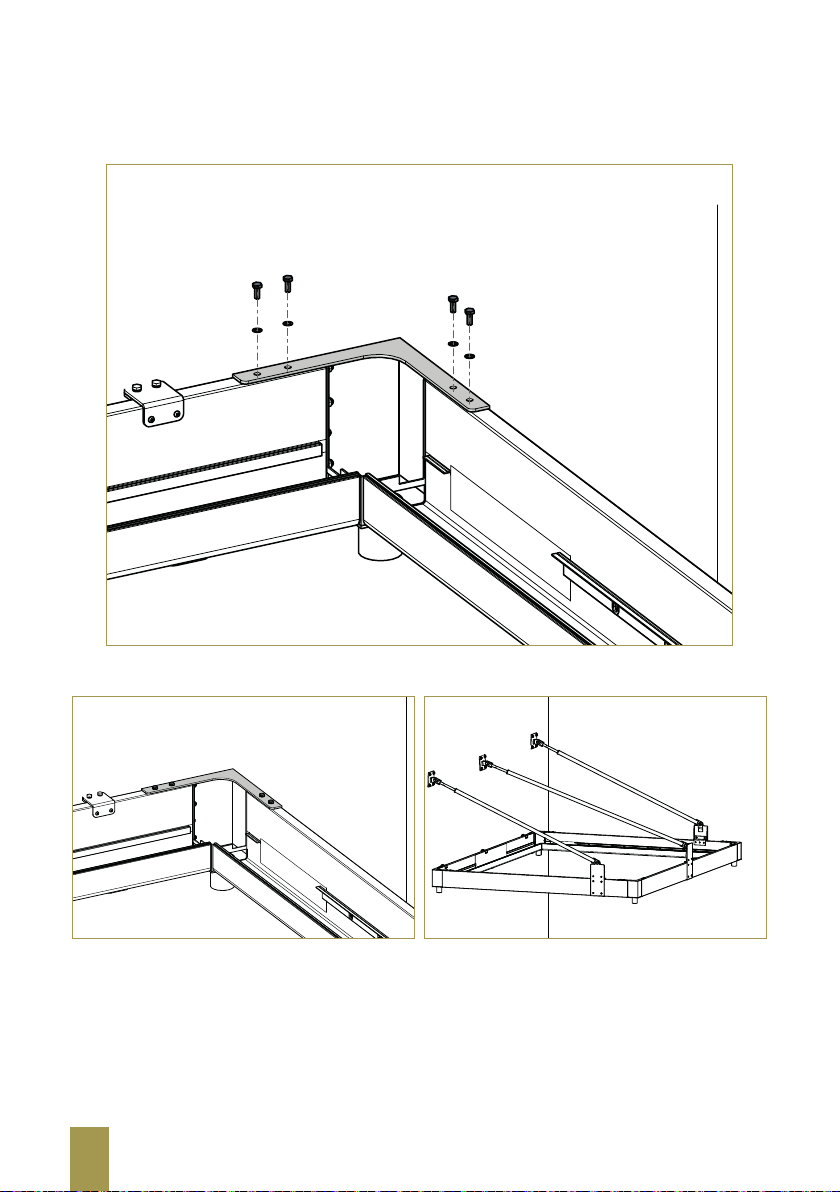

4.4. Corner Connector Connection
Finally, in order to protect any lateral movement, you should use corner connector on each
corner point.
At the end fasten by bolt. The Final view at below.

13
5. PROGRAMMING / RESETTING OF MOTOR AND LIGHTS
5.1. Attention
The installation and initial setup procedures are the responsibility of a specialized technician.
When bioclimatic pergola system is mounted, check the connection of drive system which is
control box - actuator and also actuator – 40x20mm aluminium prole.
Power supply (120 or 230VAC / 50~60 Hz)
• All wiring must conform to NEC (National Electrical Code) and local codes.
• The Control Unit Boxes can be wired in PARALLEL.
• A means of disconnecting the power at each motor independently should be provided.
• Power only needs to be supplied to the Control Unit Box. The receiver is completely
enclosed inside the Control Unit Box.
• PALMIYE Reserves the right to void the motor warranty if wiring recommendations are
not followed.
• The Control Box works 120 or 230 V AC / 50~60 Hz
Installation Requirements
• If the installation is made up of several RTS system, only one RTS system must be powered
during programming. All other RTS systems must be disconnected. This will avoid
interferences during the initial programming of each motor.
• Use only SOMFY RTS radio controls. The receiver (433,42 MHz) must be programmed with
transmitters.

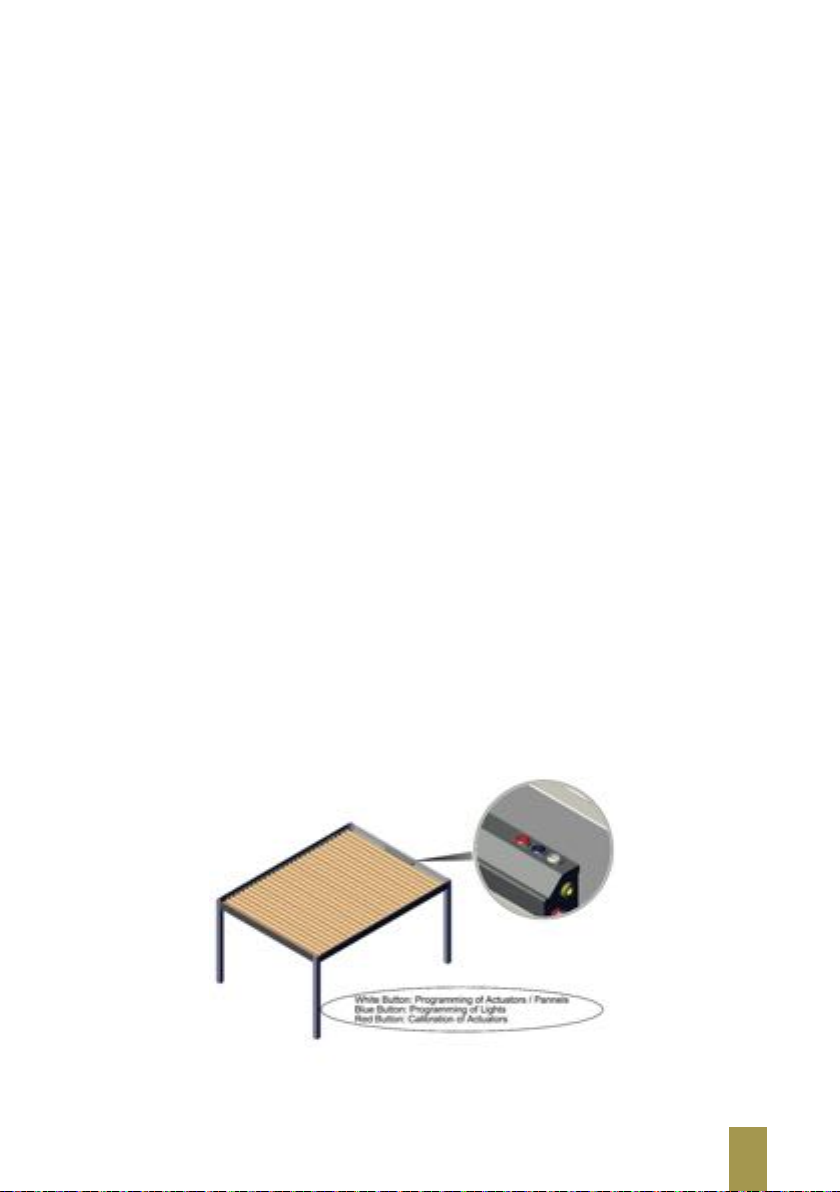

Control Box Button Congurations
*These colors only schematic. In real parts always Grey color

14

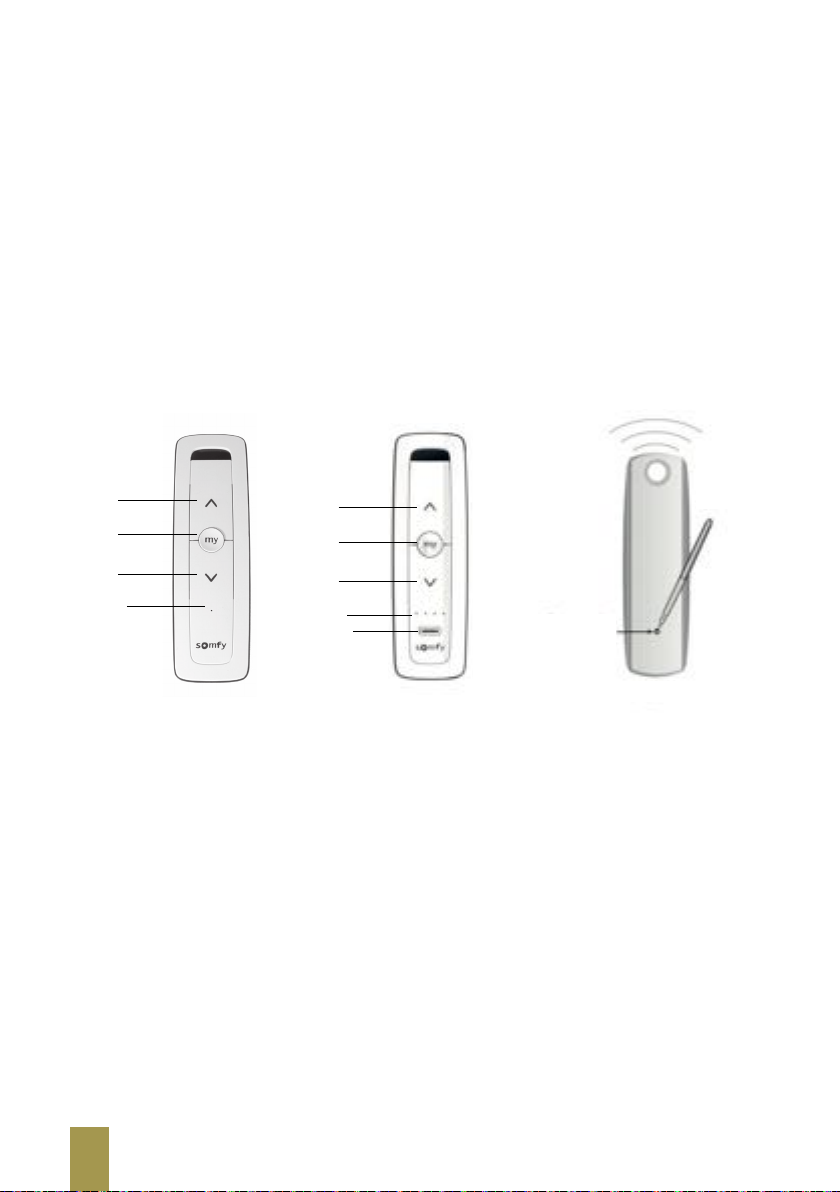

5.2. Remote Control
5.2.1. Button Congurations
Skyroof Plus Hanging is integrated with actuator driven with radio control, for opening, closing
or stopping the panels use the respective buttons (see gure).
There are 4 dierent remote-control models.
Pure, Patio, Lounge, Modulis;
• Situo 1 RTS (has only one channel. It means it can control 1 RTS motor).
• Situo 5 RTS (has 5 channels. It means it can control 5 dierent RTS motor).
• Telis 16 (has 16 channels. It means it can control 16 dierent RTS motor).
UP
STOP
DOWN
LED
Indicator
Light
Single Channel
Version
UP
STOP
DOWN
LED Light
Channel
Selector
Five Channel
Version
Back
Pen
Five Channel
Version

15
Situo 1 RTS Situo 5 RTS TELIS 16
Channels 1 5 16
Battery Type 2430 Lithium LR03AAA
Battery Voltage 3V 1,5 V
Thickness 22 18
Width 49 47
Height 145 151
Colour Silver Silver & Pure
Compatibility Compatible with a range of Somfy RTS enabled products
Radio Frequence For indoor use
Radio Range 433,42 MHz
Protection Index 200m in open eld or 20m through 2 reinforced concrete walls
Working tempera-
ture IP30
Information 0C to + 60C
Installation Wall brackets supplied
5.3. Remote Types

16

17
Using a small screwdriver loosen the screws on the reverse side of the remote control and
remove the back cover.
Replace the battery with one 2430 Lithium 3V Battery.
5.5. Programming
5.5.1. Actuators
Step 1: Select desired channel on your remote
Step 2: Press the“PROGRAMMING” button. (~5sec.)
Step 3: Press“PROG” button on your remote control.
5.5.2. Perimeter and / or Panel lights
Step 1: Select desired channel on your remote
Step 2: Press“UP”and“DOWN”button simultaneously. Both lighting system will TURN ON.
Step 3: Press“PROG” button on your remote control.
IMPORTANT NOTE: At this stage, if there is only one of these systems, the lighting
programming process is completed.
However, if there is both perimeter and panel lighting, both lighting systems are programmed
in only one channel. It means both light systems will TURN ON at same time.
Also, you can control as separately,
5.5.2.1. Separation of lighting systems * (Only if Plus product has both perimeter and panel
lighting)
Step 1: Cut o the power entering the control box and for 10sec. supply a power again after
waiting,
5.4. Replacing The Battery

18
Step 2: Select a channel you programmed both of lighting system.
Step 3: If you want to leave the lighting on the selected channel, follow the steps below for
other lighting;
Step 3.1: Cut o the power as 3sec,
Step 3.2: Supply a power as 10 sec.,
Step 3.3: Cut o the power as 3sec. (The LED’s will blink)
Step 3.4: Press“PROG” button until the LED’s will blink two times. (~5 sec.)
Step 4: To program the reset lighting system to the remote control;
Step 4.1: Cut o the power entering the control box and for 10sec. supply a power again after
waiting,
Step 4.2: Select desired channel on your remote control.
Step 4.3: Press“UP”and“DOWN” button simultaneously.
Step 4.4: Press “PROG” button on your remote control. Thus, the programming of lights will
be done.
5.5.3. RGB Led Programming
Press the programming button on the panel for 5 seconds, then press the programming
button on the back of the remote for 2 seconds.
5.6. Motor Calibration
The motors must be calibrated in the rst run in order to run synchronously. In any case when
the panels are not completely closed, press and hold the “Motor Calibration” button on the
panel until the motors move. When the panels are closed, the motors will be calibrated to
synchronous operation.
5.7. Resetting
5.7.1. Motor
Step 1: Choose the channel on your remote that you want to set for the motor.
Step 2: Press the “PROGRRAMING” button on the panel until the motor jogs for 2 times. (~10
sn.) All stored remotes will be deleted.
5.7.2. Lighting
Step 1: Press the lighting button for 3 sec
Step 2: Leave it for 10 sec
Step 3: Press it for 3 sec
Step 4: When you leave it, wait for leds will turn on and o for 2 times
Step 5: Press programming button until leds blink 2 times

19
5.7.2.1. RGB LED Resetting
Press the programming button on the panel for 5 seconds, then press the programming
button on the back of the remote for 2 seconds.
5.8. Using of Remote Control:
5.8.1. Using of Lights
• “UP”button: It’s ensures Activate on your lighting system. When you press constantly“UP”
button, the LED lights will up through DIMMING feature.
• “DOWN” button: It’s ensures Passive on your lighting system. When you press constantly
“DOWN”button, the LED lights will down through DIMMING feature.
• “MY” button: adjust to favorite light intensity automatically.
5.8.2. Using of motors
• “UP” button: Opens the panels.
• “DOWN”button: Closes the panels.
• “MY” button: It stops the motor from running and ensures that the panels remain where
they are.
5.8.3. Transfer the channel on the current remote control to a dierent remote control.
Step 1: On the current remote, select which channel you want to transfer,
Step 2: On the current control, keep the“PROG”key pressed (LEDs will be turned on and o.)
Step 3: In the new remote, select which channel you want to choose,
Step 4: On the new remote, press and release the“PROG”button. (LEDs will be turned on and
o.)
5.8.4. Favorite lighting programming
Step 1: After reaching the desired light intensity, press “MY” button for 5 sec., (LED lights will
blink.) Thus, favorite light programmed.
5.8.5. Favorite lights resetting
Step 1: While in favorite lighting press “MY” button as 5 sec., the LED’s will blink two times.
Thus, favorite lights will be reset.

20
6. SENSORS & AUTOMATION
6.1. Sensors
6.1.1. Connection to EOLIS RTS (Wind Sensor)
6.1.1.1. Cabling
6.1.1.2. Programming
The motor must be in its learning mode to record an EOLIS RTS Sensor.
Up to three EOLIS RTS Sensors can be memorized in a motor and one EOLIS RTS Sensor can be
memorized in several motors.
• Enter the“learning”mode;
• Press more than 2 seconds on the programming button of a RTS control which is
already memorized in the motor.
• Press briey on the“prog”button of the EOLIS RTS Sensor.
• The awning moves shortly (DOWN/UP).
• Record or delete a sensor;
• Press briey on the“prog”button of the EOLIS sensor RTS.
• The awning moves shortly (DOWN/UP).
• Erase all the sensors and record a new one;
• Press more than 7 sec. on the“prog”button of the new EOLIS RTS sensor.
• The awning moves shortly (DOWN/UP)
