Installation Manual
Skyroof Plus

2
Dear Customer,
Installation manual contains suggestions and rules for fast and exact
installation of our product. We recommend you to read our instruction
carefully.
During installation all necessary actions have to be carried out by
authorized and specialized technicians.
All unauthorized interventions during warranty period will invalidate
the warranty.

3
INDEX
04
07
32
49
05
10
46
39
53
54
1. Symbols, Precautions and Warnings
2. Terminology
3. Packaging
4. Installation Steps
6. Sensors and Automation
7. Hardware
8. Tools
9. Frequently Asked Questions
10. Risk Table
5. Programming / Resetting of Panels and Lights

4
1. SYMBOLS, PRECAUTIONS AND WARNINGS
1.1. Symbols
Attention: General operation notes.
Attention: General hazards; possible risk for persons.
Attention: Electrical hazard.
Attention: Risk of crushing hands.
Contact: Palmiye service department or related parties.
1.2. Precautions and Warnings
The installation and maintenance personals (installers, electricians etc.) must have sucient
expertise and knowledge for undertaking the task at hand.
In case of anomalies, immediately stop the work and contact service department of
Palmiye.
Palmiye will not be responsible on use of non-original parts or unauthorized interventions and
modications for damage caused to people or animals or property.
It is forbidden to tamper to bioclimatic pergola system.
General Precautions
Before starting of any assembly, maintenance or cleaning operations, make sure that you have
fully understood the indications in this manual.
All electrical connections for Skyroof Prestige must be made by qualied personnel.
In case of any incompatibility, call Palmiye.
General Safety Precautions
When using the panels, it is good practice to remember that all moving parts can be a source
of danger.
Make sure that power supply is cut o during maintenance.
It is recommended never to intervene on moving parts and to ensure that no operator
is near to the panels before reactivating it after a technical or maintenance intervention.
You can scan the barcodes located next to the titles in the page to see video
demonstration of the related steps.

5
2. TERMINOLOGY

6
Linear Actuator
The Linear Actuators works with 24V power. The control box provides needed power
for each linear actuator. The control box works with 120V or 230V~50/60Hz
Linear Actuators provide the movement of bioclimatic pergolas. Linear Actuators are located
on lateral Integrated Gutter. (see below)
Also, each linear actuator has to be synchronized. Therefore, linear actuators synchronization
settings must be done during to installation.
The control box is located on Rear Integrated Gutter. (see above)

7
BOM ID Description Qty
1 Gutter Gasket 1
2 Gutter Sealant Cap 2
3 M10x60 Stay Bolt 10
4 Integrated Gutter 1
5 Stay Bolt For Back Covering 1
6 M6x40 stay Bolt 2
3. PACKAGING
3.1. Preliminary Checks
On receipt of the packed goods and before starting their assembly, check the integrity of the
material and the presence of all the components necessary for the installation.
In case of anomalies, immediately stop the work and contact with hospital.
Fixing elements such as screws, plugs etc. are included in the box.
If not please contact service department of Palmiye.
Do not use a knife to avoid the risk of ruining the paint or other materials.
3.2. Packed Parts
3.2.1. Integrated Gutter
.
6

8
3.2.2. Panels
BOM ID Description Qty
1 Fixed Pin 2
2 M3x16mm Rounded Head Screw 4
3 Panel Cover 2
4 Panel Bottom Gasket 1
5 Panel Gasket 1
6 Panel Prole 1
7 Power Pin 2
3.2.3. Pillars
BOM ID Description Qty
1150x150x3mm Pillar (CNC Operated for connection to Integrated Gutter) 1
2 250x250x10mm Base Plate 1

9
2. Metal Box
U Brackets, Mounting brackets, Pillar caps. It has a blue label on the box.
3. Plastic Box
Corner Plastics,
ELECTRIC
METAL
PLASTIC
3.2.4. Boxes
1. Electrical Box
Remote Controls, Sensors, Automations are on Electric box. It has a red label on the box.

10
Follow related product step;
4.1.1. Wall installation (move to step 4.1.1.)
4.1.2. Ceiling installation (move to step 4.1.2.)
4.1.3. Free standing (move to step 4.1.3.)
4.1.2. Wall installation
With the help of laser, all hole locations should be marked at the same level and
holes should be drilled with Ø16 mm drill. The bracket must away 35cm (1’– 2”) from
the corner.
Brackets should be xed for every 150cm (5ft).
35cm (1ft)
150cm (5ft)
150cm (5ft)
Product width
35cm (1ft)
150cm (5ft)
150cm (5ft)
Product width
4. INSTALLATION STEPS
4.1. Structure Installation

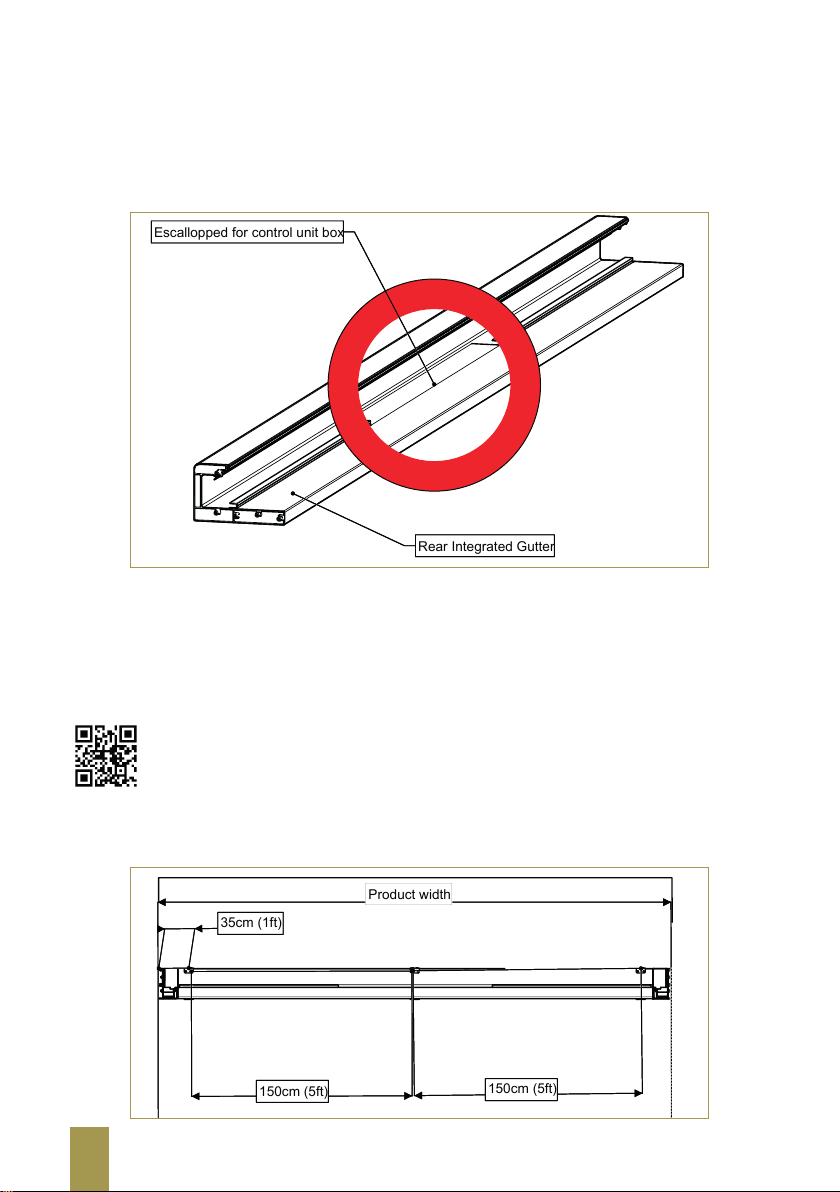

Note: Rear Integrated Gutter has escalloped completely by CNC machine in order to place to
Motor tube.
Escallopped for control unit box
Rear Integrated Gutter
Escallopped for control unit box
Rear Integrated Gutter

11
Fasten of the M12 steel rod to the wall and tighten of rods.
Place the Integrated gutter to the wall mounting bracket.

12
Fasten the wall mounting bracket cover on
top and tighten by M8x25mm bolt.
Fix by self-drilling screw to integrated gutter
and wall mounting bracket.
Important: All screwing should be discarded
after product size control.
The Final view;
4.1.3. Ceiling installation
Dene to ceiling mounting bracket position on the ceiling and make a hole with
Ceiling Mounting Bracket
35cm (1ft)
Product Width
Ceiling
Ceiling Mounting Bracket
35cm (1ft)
Product Width
Ceiling

13

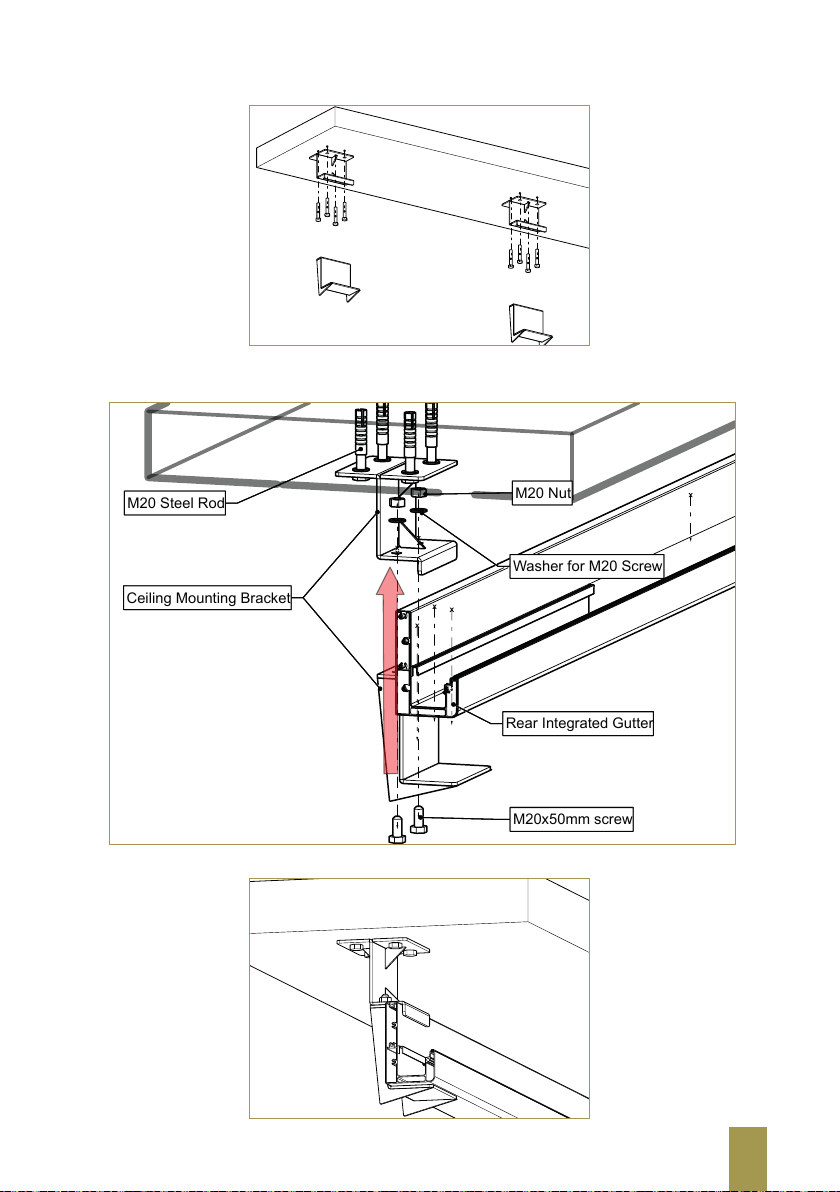

Fasten of the M20 steel rod to the ceiling and tighten of rods;
Place the Integrated gutter to the ceiling mounting bracket.
M20x50mm screw
Ceiling Mounting Bracket
M20 Nut
M20 Steel Rod
Washer for M20 Screw
Rear Integrated Gutter
M20x50mm screw
Ceiling Mounting Bracket
M20 Nut
M20 Steel Rod
Washer for M20 Screw
Rear Integrated Gutter

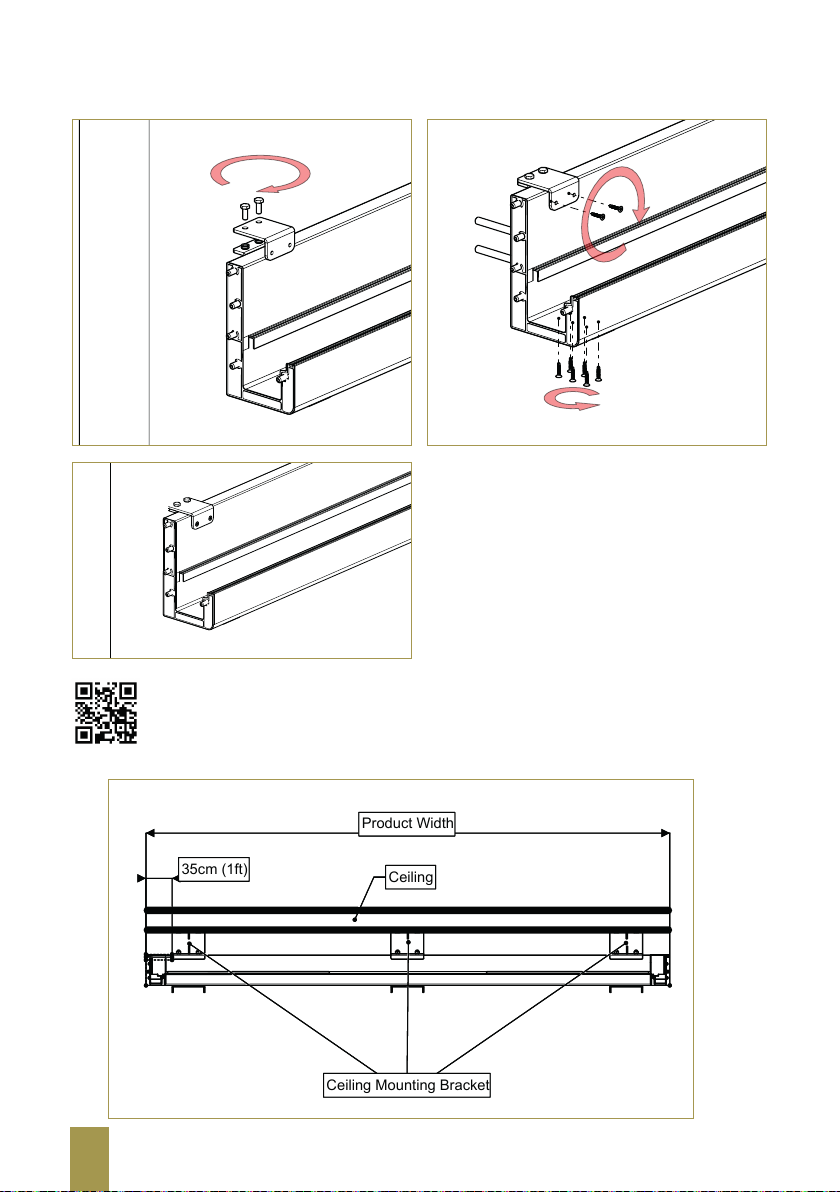

The nal view;

14
4.1.4. Free Standing (Pillar and Integrated gutter connection)
Fix Aluminium Pillar on both side and Rear Integrated Gutter on ground with M10
Sealed Nut as you see in below gure.
M10 Washer Stainless Steel
M10 Nut Stainless Steel
M10 Washer Stainless Steel
M10 Nut Stainless Steel
SealantSealant
SealantSealant
Lift up a rear frame.
Don’t work alone. You may need someone else.

15
Important: All screwing should be discarded after product size control.
Rear Integrated Gutter and Lateral Integrated Gutter position shown at below gure.
Rear Integrated Gutter
Left Side Lateral Integrated Gutter
Rear Integrated Gutter
Left Side Lateral Integrated Gutter
Linear Actuator placed on the back side on lateral integrated gutter which is shown at below
gure.
The Linear Actuator have located on rear of the gutterThe Linear Actuator have located on rear of the gutter

16
The xing Lateral side integrated gutter to rear integrated gutter with M10 Sealed Nut.
4.1.5. Cross Check and Level Control

17
Slide the pillar then place the stainless steel anchorage to marked location. For ange
installation please refer to freestanding model.
First of all, dene to exact pillar position and
mark it.
4.1.6. Pillar Fixing
4.1.6.1. Stainless Steel Anchorage

18
Place the cap. Apply a sealant then place the
pillar into the anchorage.
At the end, x by M4,8x25mm self-tapping
screw.
• 4.1.6.2. Hidden Anchorage
Firstly, x the hidden anchorage to the
ground with 4 M12 and chemical dowels.
Then, put the washers and nuts on the rods
from inside and tighten them. Put the inner
cover and apply sealant to the sides. Place the elbow and apply sealant.
SealantSealant
Place the front cover and x it with 4 M8x25
mm round head bolts. Place the pillar on the anchorage.

19
Fix with 4 M8x25 mm round head bolts from 3 sides.
While placing the panels start front panel. First panel has a gasket for perfect insulation.
4.2. Panel Installation
Start place from front panelStart place from front panel
The front panel has a gasket for perfect insulationThe front panel has a gasket for perfect insulation

20
The frontier panel must be connected by
xing plate to the integrated gutter. The xing
plate located on the gutter prole.
The front panel has a short pin as last 3 panelsThe front panel has a short pin as last 3 panels
Place the middle panels to escalloped lateral
side integrated gutter which is shown at
below gure.
In order to prevent the dislocation of panels, to remove the panels, 1.5mm sheet should be
xed.
