Panasonic CS-A18BTP User manual

1 SERVICE INFORMATION 3
2 FEATURES 4
3 SPECIFICATION (HEAT PUMP TYPE ) 8
4 SPECIFICATION (COOLING ONLY TYPE ) 9

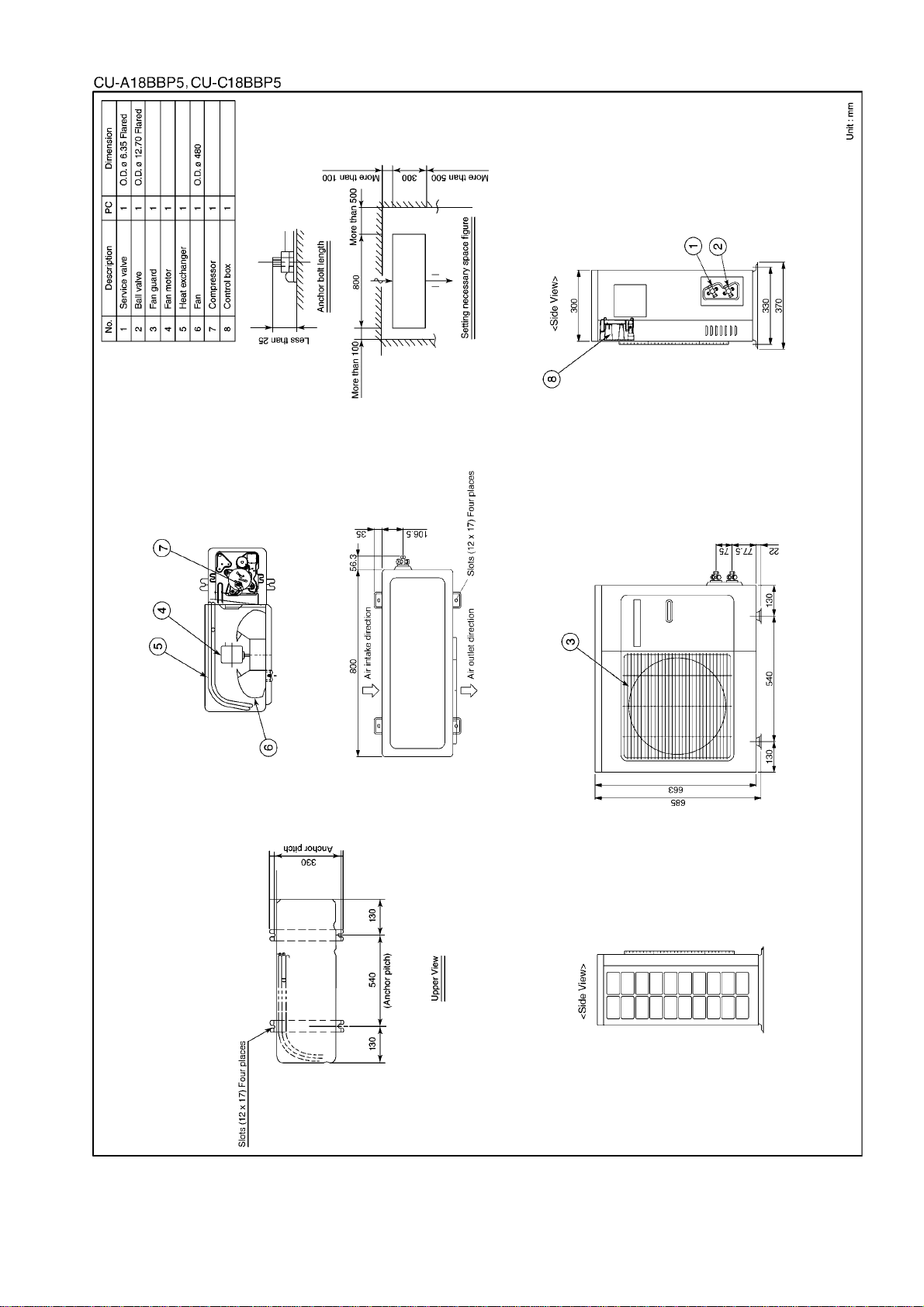

5 TECHNICAL DRAWING 10

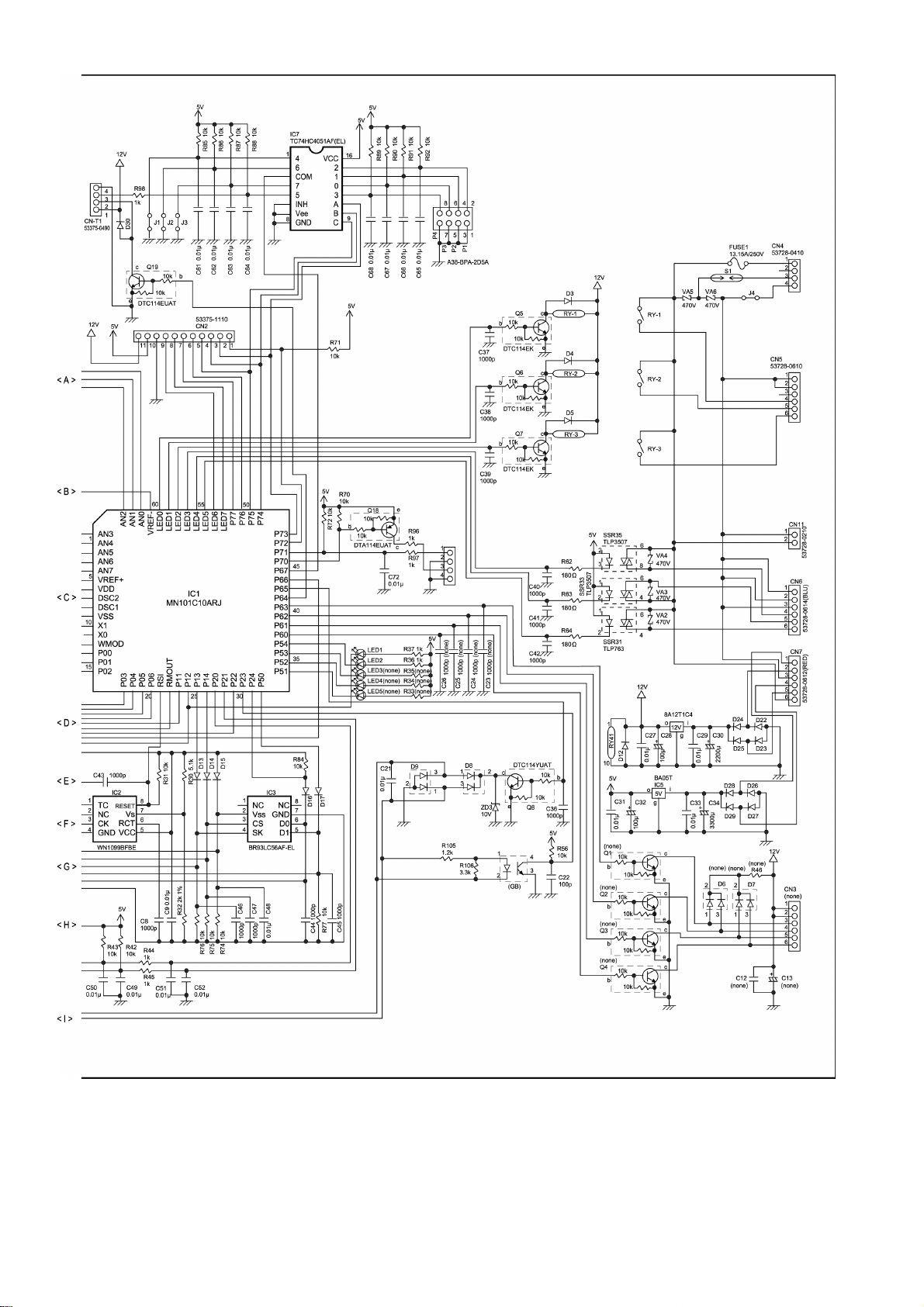

6 CIRCUIT DIAGRAM 12
7 OPERATING INSTRUCTION 24
8 REFRIGERATION CYCLE 26
9 OPERATION RANGE 28
10 PIPE LENGTH 29
11 OPERATING CHARACTERISTIC 31
12 FAN PERFORMANCE 32
13 SAFETY DEVICE 33
14 COMPONENT SPECIFICATION 34
15 CAPACITY AND POWER CONSUMPTION 35
16 DISCHARGE AND SUCTION PRESSURE 37
17 POSITION OF THE CENTRE GRAVITY 38
© 2002 Matsushita Industrial Corporation Sdn. Bhd.
(11969-T). All rights reserved. Unauthorized copying
and distribution is a violation of law.
CS-A18BTP CU-A18BBP5
CS-A18BTP CU-C18BBP5
18 REACHING DISTANCE 39
19 SOUND DATA 40
20 TWIN AND TRIPLE 42
21 WIRING MISTAKE PREVENTION 47
22 TEST OPERATION AND SELF DIAGNOSIS 48
23 SETTING OF SAVE ENERGY AND THERMISTOR SWITCH 52
24 GROUP CONTROL 53
25 TROUBLESHOOTING 54
26 EMERGENCY OPERATION 59
27 CONTROL 60
28 WIRED REMOTE CONTROL INSTALLATION MANUAL 70
29 WIRELESS REMOTE CONTROL INSTALLATION MANUAL 75
30 INSTALLATION (INDOOR UNIT) 82
31 INSTALLATION (OUTDOOR UNIT) 91
32 REPLACEMENT PARTS 101
33 HEATING CAPACITY PERFORMANCE DATA 110
AIR CONDITIONER
CONTENTS
Page Page
ORDER NO. MAC0208029C8

34 COOLING CAPACITY PERFORMANCE DATA 111
2

1 SERVICE INFORMATION
Caution:
●Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use
a high temperature soldering iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ± 10°C).
●Pb free solder will tend to splash when heated too high (about 1100° F/600°C).
Notice of Address setting for NEW Ceiling / NEW Outdoor Unit.
The new Ceiling / new Outdoor models are possible to have address setting for twin / triple control or group control
automatically when main power supply is switched on.
(Manual address setting is also possible by using DSW1 switch on the indoor unit P.C. board.) However, this address setting is
only possible when proper wiring connection is made and indoor unit must be of original unit.
1.1. Example of trouble during test operation
If the below phenomenon is found during test operation, wrong address setting is possible.
Therefore, please inspect the address setting.
1.LCD display of the wired remote control is not illuminated although the main power supply switch is ‘on’.
2.LCD display had indicated as normal illumination when power supply switch is ‘on’, however outdoor unit cannot be operated.
(But, it is necessary to take 3 to 5 minutes for outdoor unit to start from the timing of remote control OFF/ON button is ‘on’.)
(For normal operation, the outdoor unit will only start its operation after 3 to 5 minutes upon pressing the OFF/ON button.)
3.P.C. board had memorized wrong setting information.
a.If main power supply is switched on with the wrong connection.
b.When changing the connection or combination of units due to re-installation etc.
• • •
• When changing the system from twin to triple (triple to twin).
• • •
• When changing the system from group control to normal one to one system.
• • •
• When making the replacement of units of master and slave etc.
1.2. Caution during test operation
Do not touch the remote control button and do not change any wirings for one minute when the main power supply switch is ‘on’.
(Because the unit is having automatic address setting during the first one minute.)
1.3. Caution during automatic address setting
When the main power supply switch is ‘on’, the P.C. board will automatically memorize the connecting system.
Consequently, when initial power supply is ‘on’, there mustn’t be any interchanging of units even of the same type and same
capacity unit.
Therefore, connection of the unit to another system is prohibited.
3

2.1. New design
2.1.1. Gentle curved styling
• • •
• The base has gentle curves which express a functional
beauty. It spreads the air quietly over a wide area.
2.2. Such quietness!
2.2.1. Several new mechanism add up to
low 36 dB noise (A18BT - High Fan
Speed)
1.Delta throat fan
A delta throat (projection) has been attached to the fan
outlet to suppress the generation of vortexes. This helps
maintain air flow sped even at lower fan speeds and is
effective in reducing noise.
2.Reflux orifice
The orifice at the intake port is equipped with an air flow
guide which minimizes the flow disturbances which occur at
the orifice and inside the impeller.
This reduces pressure losses inside the casing and also
helps reduce noise.
3.Adoption of wing-shaped vanes
• • •
• The vanes of the fan have been changed to
“aerodynamic”shaped vanes, so that the air flow more
smoothly over the vane surfaces and noise is thus
suppressed.
• • •
• Side filters have been adopted in the pipe partitions.
These allow the air intake space to be increased and
also further reduce noise.
2.2.2. Automatic swinging louvre
• • •
• The horizontal air flow angle is a wide 100 degrees
(manual). The louvre can swing automatically (through 70
degrees vertically) using the remote control. This increases
the area of comfortable air flow and warms the air even to
floor level.
2.2.3. Newly-shaped louvre
• • •
• The newly-shaped louvre and air outlet effectively distribute
the air flow. During cooling, this stops warm air from
collecting near the louvre, and prevents freezing.
2 FEATURES
4

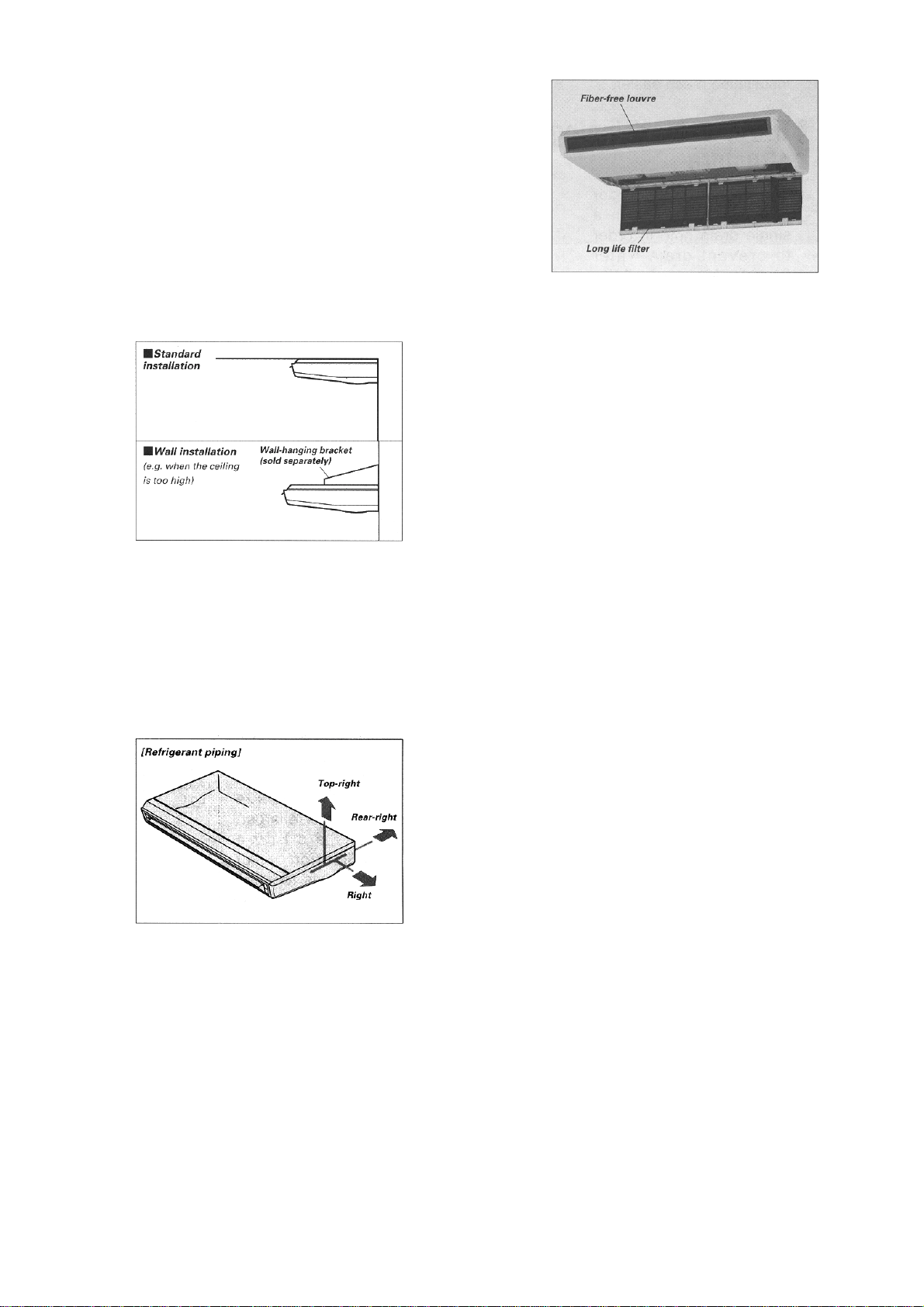

2.3. Easy installation
2.3.1. Easy suspension
• • •
• A suspension bolt fixing bracket with 4-point support is
attached to the main unit, which increases the space
available for installation.
2.3.2. Two installation methods :
standard and wall
• • •
• In addition to the standard (1) ceiling installation, a wall (2)
installation method (using a wall-hanging bracket) is
available for cases where the ceiling is too high for the main
unit to be suspended.
2.4. Piping
2.4.1. 3-direction pipe lead-out
• • •
• The refrigerant piping can lead out in one of three directions
(right, rear-right and top-right), and the drain pipe direction
can be selected from four directions (right, rear-right, left
and rear-left).
2.5. Easy maintenance
2.5.1. Long life filter (standard
equipment)
• • •
• In general office environments, cleaning (maintenance) is
not required until after approximately 2,500 hours of
operation, thus reducing maintenance work.
• • •
• For optimum comfort, it is recommended to clean the air
filter every 1-1/2 months.
2.5.2. Maintenance is possible from
underneath the unit.
• • •
• If the bottom panel is detached, the drain pan can then be
removed and installed from underneath the unit, and
inspection and servicing of component such as the control
panel also becomes easier.
2.6. Auto fan mode (indoor unit)
• • •
• Auto fan mode is added besides high, medium and low. It
automatically adjusts the fan speed according to the indoor
unit’s temperature.
2.7. Hot start system (heat pump
models)
2.8. Automatic changeover
function (heat pump models)
• • •
• The unit automatically switches between cooling and
heating in accordance with operating load in order to
maintain a comfortable indoor temperature.
2.9. Greatly improved workability
increases system renewal
capability
• • •
• Pipes that are one size larger can also be connected for
renewal.
− − −
− If renewing the system, existing refrigerant pipes can be
utilized so that only the indoor and outdoor units need to
be replaced.
− − −
− For example, liquid and gas pipes from 10 years ago
can be connected to current pipes with the same size or
one size larger. Effective utilization of materials reduces
working time and trouble. (Adaptor sockets are not
supplied.)
5

• • •
• Additional refrigerant charging unnecessary for 10 m
− − −
− All models do not require any additional charging of
refrigerant for 10 m of pipe length. This makes
installation much easier.
• • •
• Drain water dripping-prevention structure
− − −
− The base of the outdoor unit is provided with a single
drain hole in order to prevent drain water from leaking
out of the unit. By connecting a drain elbow and a
discharge pipe, water leakages can be prevented even
when the unit is installed to a wall.
• • •
• Long pipe design for refrigerant pipes
− − −
− Maximum piping length of 25m for all models.
2.10. A brand-new control method
using the latest in technology
• • •
• Easier power supply wiring connection
Power supply wiring and other wiring tasks can be carried
out more easily.
− − −
− Twin non-polar wires used to connect indoor and
outdoor units.
− − −
− Adoption of connection error prevention circuits for drive
wires and signal wires. If a connection error is made, the
relay does not operate and current does not flow to the
circuit boards.
• • •
• Twin and Triple operation
− − −
− Simultaneous air conditioning of wide spaces and
corners is possible. Indoor units of different
horsepowers can even be used in combination.
− − −
− Master unit and slave-units can be set automatically in
twin and triple systems. No address setting is
necessary.
− − −
− Multiple indoor units can be operated simultaneously
with a single remote control. Note that individual
operation is not possible.
• • •
• Separate indoor/outdoor unit power supplies
The power supply can be connected to (1) just the outdoor
units, or (2) to both the indoor and outdoor units.
• • •
• Easy test operation
Test operation can be carried out for both indoor and
outdoor units.
• • •
• Automatic setting initialization function (Remote control
and Indoor unit)
In accordance with the indoor and outdoor units connected
and the connection methods, conditions such as the
connection configuration (twin or triple format) and remote-
control functions such as automatic louvre operation and
cooling or heating mode are automatically detected and set
instantly.
2.11. Wired Remote Control
• • •
• The new design includes an easily-visible red pilot lamp.
The power can be turned on and off at a single touch,
without opening the cover.
• • •
• Has a build-in thermistor, allowing indoor temperature
detection in accordance with indoor conditions by switching
with main unit thermistor.
• • •
• Twin non-polar wires make installation work easy. (10 m
cable supplied as accessory.)
6

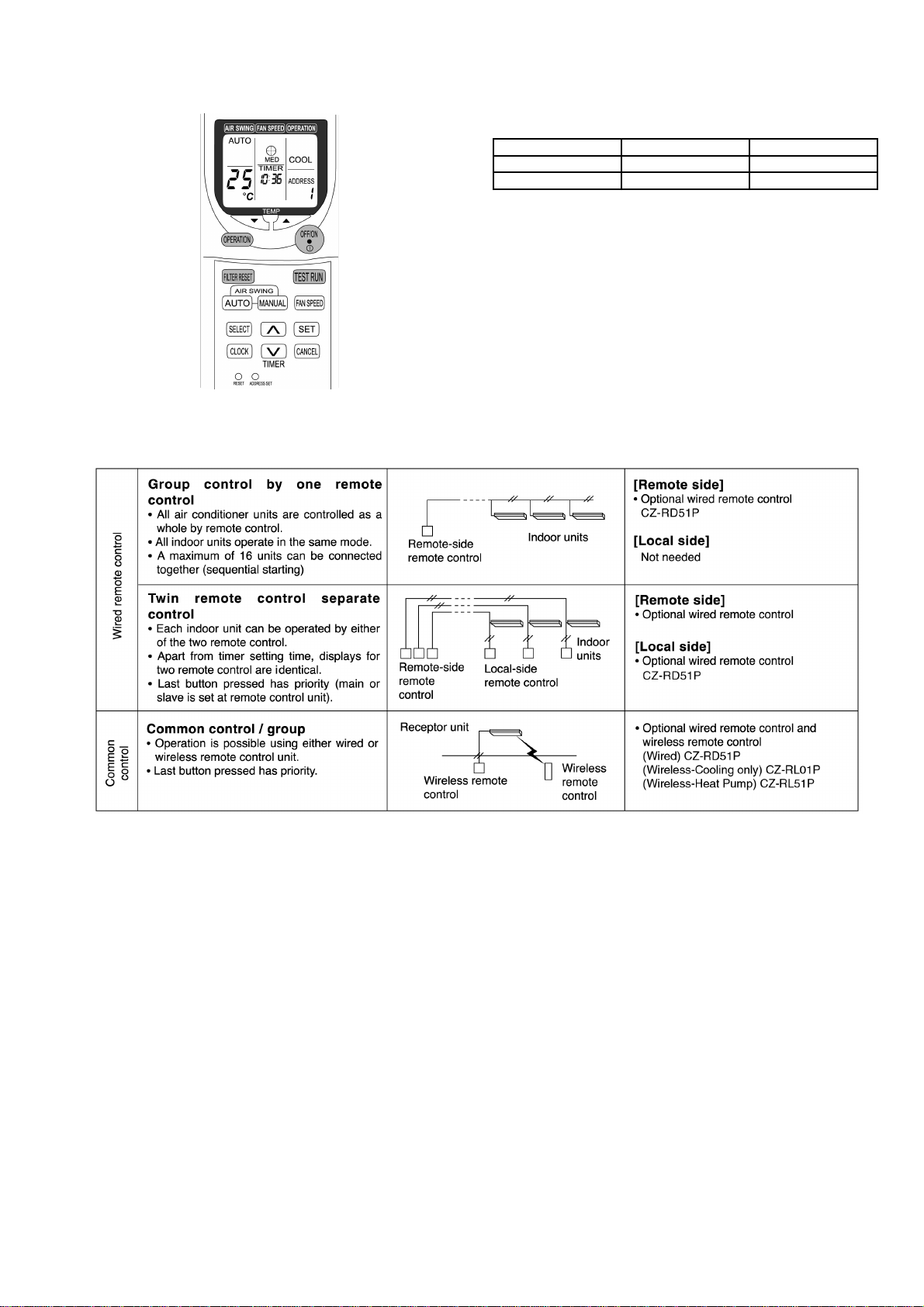

2.12. Wireless Remote Control
• • •
• New design with compact size. (Operation range within
approximately 8 m.)
• • •
• Built-in timer with ON/OFF timer setting (within 24 hours)
Wired Wireless
Heat Pump CZ-RD51P CZ-RL51P
Cooling CZ-RD51P CZ-RL01P
NOTE: Both of the above remote control is packed separately
from the indoor unit.
2.13. Group Control Equipment
7

3 SPECIFICATION (HEAT PUMP TYPE )
3.1. CS-A18BTP / CU-A18BBP5
ITEM / MODEL Indoor Unit Outdoor unit
Main Body CS-A18BTP CU-A18BBP5
Remote CZ-RD51P (Wired)
Control CZ-RL51P (Wireless)
Cooling Capacity kW 5.0
BTU/h 17,100
Heating Capacity kW 5.6
BTU/h 19,100
Refrigerant Charge-less m 10
Standard Air Volume for High, m3/min 14 Hi 43
Medium and Low Speed cfm 494 1518
Outside Dimension (H x W x D) mm 210 x 1245 x 700 685 x 800 x 300
inch 8-17/32 x 49-1/64 x 27-9/16 26-31/32 x 31-1/2 x 11-13/16
Net Weight kg 33 56
lbs 73 123
Piping
Connection Refrigerant Gas mm (inch) O.D Ø12.7 (1/2) Flared Type
Liquid mm (inch) O.D Ø6.35 (1/4) Flared Type
Drain mm O.D Ø20 I.D Ø20 x 1
Compressor Type, Number of Set -Hermetic-1 (Rotary), 1
Starting Method - Direct on-line starting
Motor Type -2-pole single phase induction
motor
Input kW -Cool/Heat 2.31/2.30
Rated Output kW - 1.5
Fan Type, Number of Set Sirocco fan-4 Propeller fan-1
Motor Type 4-pole single phase induction motor 4-pole single phase induction
motor
Input kW 0.08 0.11
Rated Output kW 0.03 0.045
Air-heat Exchanger Slit-fin type Louvre-fin type
Refrigerant Control Cool Capillary tube -
Heat - Capillary tube
Refrigerant Oil (Charged) litre - M60 (0.67)
Refrigerant (Charged) kg - (2.0)
oz (71)
Running
Adjustment Control Switch Wireless or Wired Remote Control -
Room Temperature Thermostat (Main Body) -
Safety Devices Internal protector for compressor, Internal thermostat for fan motor,
Crankcase heater, High and heating pressure switch, Current
transformer
Noise Level dB (A) Hi 40 Lo 36 Heating:55 Cooling:54
Power level dB Hi 57 Lo 53 Heating:68 Cooling:67
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
2.Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F
D.B.), 6°C W.B. (42.8°F W.B.)
ELECTRICAL DATA (50Hz)
ITEM / MODEL CS-A18BTP, CU-A18BBP5
Condition by JIS B 8615
Volts V 220 230 240
Phase Single Single Single
Power Consumption kW Cool 1.90 1.90 1.90
Heat 1.88 1.88 1.88
Running Current ACool 8.7 8.5 8.4
Heat 8.6 8.4 8.3
Starting Current A 38 40 42
Power Factor % Cool 99 97 94
Heat 99 97 94
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 1~220, 230, 240V 50Hz
8

4 SPECIFICATION (COOLING ONLY TYPE )
4.1. CS-A18BTP / CU-C18BBP5
ITEM / MODEL Indoor Unit Outdoor unit
Main Body CS-A18BTP CU-C18BBP5
Remote CZ-RD51P (Wired)
Control CZ-RL01P (Wireless)
Cooling Capacity kW 5.0
BTU/h 17,100
Refrigerant Charge-less m 10
Standard Air Volume for High, m3/min Hi 17 Me 15 Lo 14 Hi 43
Medium and Low Speed cfm 600 530 494 1518
Outside Dimension (H x W x D) mm 210 x 1,245 x 700 685 x 800 x 300
inch 8-17/32 x 49-1/64 x 27- 9/16 26-31/32 x 31-1/2 x 11-13/16
Net Weight kg 33 52
lbs 73 115
Piping Connection Refrigerant Gas mm (inch) O.D Ø12.7 (1/2) Flared Type
Liquid mm (inch) O.D Ø6.35 (1/4) Flared Type
Drain mm O.D Ø20 I.D Ø20 x 1
Compressor Type, Number of Set -Hermetic-1 (Rotary), 1
Starting Method - Direct on-line starting
Motor Type -2-pole single phase induction
motor
Input kW -Cool 2.31
Rated Output kW - 1.5
Fan Type, Number of Set Sirocco fan-4 Propeller fan-1
Motor Type 4-pole single phase induction motor 4-pole single phase induction
motor
Input kW 0.08 0.11
Rated Output kW 0.03 0.045
Air-heat Exchanger Slit-fin type Louvre-fin type
Refrigerant Control Capillary tube -
Refrigerant Oil (Charged) litre - M60 (0.67)
Refrigerant (Charged) kg - (1.6)
oz (56)
Running
Adjustment Control Switch Wireless or Wired Remote Control -
Room Temperature Thermostat (Main Body) -
Safety Devices Internal protector for compressor, Internal thermostat for fan motor,
Crankcase heater, High pressure switch, Current transformer
Noise Level dB (A) Hi 40 Lo 36 Cooling: 54
Power level dB Hi 57 Lo 53 Cooling: 67
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
ELECTRICAL DATA (50Hz)
ITEM / MODEL CS-A18BTP, CU-C18BBP5
Condition by JIS B 8615
Volts V 220 230 240
Phase Single Single Single
Power Consumption kW Cool 1.90 1.90 1.90
Running Current ACool 8.7 8.5 8.4
Starting Current A 38 40 42
Power Factor % Cool 99 97 94
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 1~220, 230, 240V, 50Hz
9

5 TECHNICAL DRAWING
10

11

6 CIRCUIT DIAGRAM
12

13

14

15

16

17

18

19

20
