1 SERVICE INFORMATION
Notice of Address setting for NEW Duct / NEW Outdoor Unit.
The new Duct Type / New Outdoor models are possible to have address setting for twin control by automatic when main
power supply is switched on.
(Manual address setting is also possible by using Dip switch on Indoor unit P.C. board.) However, this address setting is only
possible when made proper wiring connection and also Indoor unit should be original virgin unit.
1.1. Example of trouble at test operation
If found out as following phenomenon at test operation on site, it may have possibility of wrong address setting.
Therefore, please ensure of the address setting.
1.LCD display of wired remote control had not illuminate although the main power supply switch is ‘on’.
2.LCD display had indicated as normal illumination when power supply switch is ‘on’, however outdoor unit cannot be operated.
(But, it is necessary to take 3 to 5 minutes for outdoor unit to start from the timing of remote control ON/OFF switch is ‘on’.)
3.P.C. board had memorized wrong setting information.
a.If main power supply is switched ‘on’ with the wrong connection.
b.When changing the connection or combination of units due to re-installation etc.
• When changing the system from twin control to normal one to one system.
• When making the replacement of units as master and slave etc.
1.2. Caution of test operation
Do not touch the remote control switch and do not change any wirings for one minute when the main power supply switch is ‘on’.
(Because the unit is having automatic address setting during the first one minute.)
1.3. Caution during automatic address setting
When main power supply switch is ‘on’, the P.C. board will automatically memorized the connecting system.
Consequently, when initial power supply is ‘on’, there will not be interchangeability of units even of the same type and same
capacity unit. Therefore unable to connect the unit to another system.
1.4. Operation range
The applicable voltage range for each unit is given in “the following table”. The working voltage among the three phases must be
balanced within 3% deviation from each voltage at the compressor terminals. The starting voltage must be higher than 85% of the
rated voltage.
1.4.1. Power Supply
Model
CU- Unit Main Power Applicable Voltage
Phase, Volts Hz Maximum Minimum
B24DBE5
B28DBE5
B34DBE5
1~220 50 242 198
1~230 50 253 207
1~240 50 264 216
B28DBE8
B34DBE8
B43DBE8
B50DBE8
3N~380 50 418 342
3N~400 50 440 360
3N~415 50 457 374
1.4.2. Indoor and Outdoor Temperature
Model 50Hz ... B24DBE5, B28DBE5, B28DBE8, B34DBE5, B34DBE8, B43DBE8, B50DBE8
Operating Hz Indoor Temp. (D.B./W.B.) (°C) Outdoor Temp. (D.B./W.B.) (°C)
Maximum Minimum Maximum Minimum
Cooling 50 32/23 21/15 43/- -10/-
Heating 50 27/- 16/- 24/18 -10/-
3

2.1. Hide-away type
2.1.1. Thin, lightweight design
• The unit has a low height, so it allows installation in limited
ceiling spaces. The lightweight, attractive design simplifies
installation, and matches virtually all room interiors.
2.1.2. Flexible installation
• The powerful airflow enables a longer duct to be used.
Since the air outlet can be installed away from the main
unit, a variety of air conditioner layouts become possible.
2.1.3. Easy maintenance
• Maintenance works can be done from the underside of the
indoor unit.
2.2. Outdoor unit
2.2.1. Flexible installation in smaller
spaces
• Space-saving outdoor unit with the improvement of the
outdoor unit fan makes it possible to install the outdoor unit
into a smaller space where the conventional model cannot
be installed.
• Long pipe design with a maximum piping length of 50m.
• Additional charging of refrigerant are not required for 30m
of pipe length.
• Flexible 4-way piping.
• Centralized drain method gather multiple outdoor units’
drain pipes into a single drain pipe to make installation
easier and also improve appearance.
• Side-by-side continuous installation is possible even for
outdoor units with different capacities.
2.2.2. Quiet, efficient design
• A host of silencing technologies achieves super-quiet
operation.
• The noise-suppressing winglet fan is a result of new
research into vane design theory. The unique curved shape
suppresses the generation of vortexes, thus reduces air
flows noise.
• Operating efficiency is improved and energy consumption is
reduced.
2.2.3. Low ambient cooling operation
• The unit can set for cooling even when the outdoor
temperature drops to -10°C. This is ideal for location such
as non-residential computer room (where the temperature
is not less than 21°C and humidity is not more than 45%)
that require cooling even in winter.
2 FEATURES
4

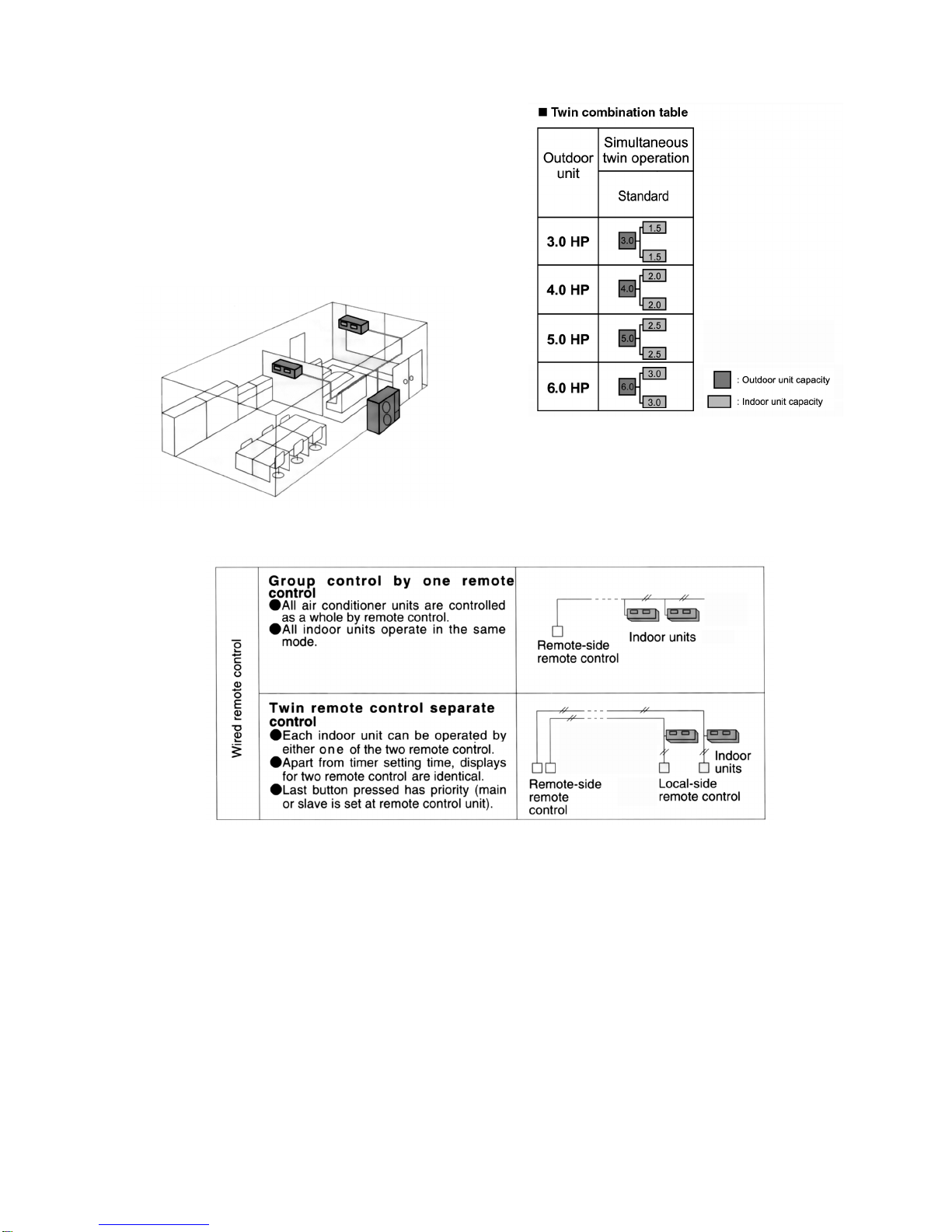

2.3.1. Twin operation
• Simultaneous air conditioning of wide spaces and corners is
possible. Indoor units of same horsepowers and models
can even be used in combination.
• Master unit and slave-units can be set automatically in twin
systems. No address setting is necessary.
• Multiple indoor units can be operated simultaneously with a
single remote control. Note that individual operation is not
possible.
2.3. A brand-new control method using the latest in technology
2.3.2. Group control equipment
5

3 SPECIFICATION
3.1. CS-F24DD2E5 CU-B24DBE5
ITEM / MODEL Indoor Unit Outdoor Unit
Main Body CS-F24DD2E5 CU-B24DBE5
Cooling Capacity kW 6.6
BTU/h 22,500
Heating Capacity kW 7.1
BTU/h 24,200
Refrigerant Charge-less m 30
Standard Air Volume for High Speed m3/min Hi 22 Hi 60
cfm Hi 777 Hi 2120
External Static Pressure Pa Hi 69 -
mmAq Hi 7.0
Outside Dimension (H x W x D) mm 290 x 1000 x 500 795 x 900 x 320
inch 11-13/32 x 39-5/16 x 19-21/32 31-5/16 x 35-7/16 x 12-19/32
Net Weight kg (lbs) 35 (78) 69 (152)
Piping
Connection Refrigerant Gas mm (inch) O.D Ø 15.88 (5/8) Flared Type
Liquid mm (inch) O.D Ø 9.53 (3/8) Flared Type
Drain mm O.D Ø 32 I.D Ø 20 x 1
Compressor Type, Number of Set - Hermetic, 1
Starting Method - Permanent Split Capacitor
Motor Type - 2-pole single phase brushless motor
Rated Output kW - 2.2
Fan Type, Number of Set Sirocco fan, 2 Mix flow fan - 1
Motor Type 4-pole single phase induction motor 6-pole single phase induction motor
Rated Output kW 0.135 0.07
Air-heat Exchanger (Row x Stage x FPI) Louvre-fin type (3 x 12 x 15) Corrugate-fin type (2 x 36 x 19)
Refrigerant Control - Exp. Valve
Refrigerant Oil (Charged) cm3-FV50S (1130)
Refrigerant (Charged) R410A kg (oz) - 1.7 (60)
Running
Adjustment Control Switch Wired Remote Control -
Room Temperature Thermostat -
Noise Level dB (A) Cooling : Hi 45 Lo 41 Cooling 50, Heating 51
Heating : Hi 43 Lo 39
Power level dB Cooling : Hi 61 Lo 57
Heating : Hi 59 Lo 55 Cooling 66, Heating 67
Moisture Removal L/h (Pt/h) 3.80 (8.0)
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
2.Heating capacities are based on indoor temperature 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F
D.B.), 6°C W.B. (42.8°F W.B.)
ELECTRICAL DATA (50 Hz)
ITEM / MODEL Condition by ISO5151
Volts V 220 230 240
Phase Single Single Single
Power Consumption kW Cool 2.61 2.64 2.70
Heat 2.45 2.53 2.62
Running Current ACool 12.9 13.1 13.4
Heat 11.6 11.9 12.3
Starting Current A 59 62 65
Power Factor %Cool 92 88 84
Heat 96 92 89
EER W/W 2.53 2.50 2.44
COP W/W 2.9 2.81 2.71
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 1~220V, 230V, 240V 50Hz
6

3.2. CS-F28DD2E5 CU-B28DBE5
ITEM / MODEL Indoor Unit Outdoor Unit
Main Body CS-F28DD2E5 CU-B28DBE5
Cooling Capacity kW 7.3
BTU/h 24,900
Heating Capacity kW 8.0
BTU/h 27,300
Refrigerant Charge-less m 30
Standard Air Volume for High Speed m3/min Hi 22 Hi 63
cfm Hi 777 Hi 2226
External Static Pressure Pa Hi 69 -
mmAq Hi 7.0
Outside Dimension (H x W x D) mm 290 x 1000 x 500 795 x 900 x 320
inch 11-13/32 x 39-5/16 x 19-21/32 31-5/16 x 35-7/16 x 12-19/32
Net Weight kg (lbs) 35 (78) 69 (152)
Piping
Connection Refrigerant Gas mm (inch) O.D Ø 15.88 (5/8) Flared Type
Liquid mm (inch) O.D Ø 9.53 (3/8) Flared Type
Drain mm O.DØ32 I.D Ø 20 x 1
Compressor Type, Number of Set - Hermetic, 1
Starting Method - Permanent Split Capacitor
Motor Type - 2-pole single phase brushless motor
Rated Output kW - 2.2
Fan Type, Number of Set Sirocco Fan, 2 Mix flow fan - 1
Motor Type 4-pole single phase induction motor 6-pole single phase induction motor
Rated Output kW 0.135 0.07
Air-heat Exchanger (Row x Stage x FPI) Louvre-fin type (3 x 12 x 15) Corrugate-fin type (2 x 36 x 19)
Refrigerant Control - Exp. Valve
Refrigerant Oil (Charged) cm3-FV50S (1130)
Refrigerant (Charged) R410A kg (oz) - 2.05 (72)
Running
Adjustment Control Switch Wired Remote Control -
Room Temperature Thermostat -
Noise Level dB (A) Cooling : Hi 45 Lo 41 Cooling 52, Heating 53
Heating : Hi 43 Lo 39
Power level dB Cooling : Hi 61 Lo 57
Heating : Hi 59 Lo 55 Cooling 67, Heating 68
Moisture Removal L/h (Pt/h) 4.3 (9.0)
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
2.Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F
D.B.), 6°C W.B. (42.8°F W.B.)
ELECTRICAL DATA (50 Hz)
ITEM / MODEL Condition by ISO5151
Volts V 220 230 240
Phase Single Single Single
Power Consumption kW Cool 2.81 2.86 2.91
Heat 2.62 2.71 2.80
Running Current ACool 13.5 13.7 13.9
Heat 12.5 12.6 13.0
Starting Current A 62 65 68
Power Factor %Cool 95 91 87
Heat 95 93 90
EER W/W 2.60 2.55 2.51
COP W/W 3.05 2.95 2.86
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 1~220V, 230V, 240V 50Hz
7

3.3. CS-F28DD2E5 CU-B28DBE8
ITEM / MODEL Indoor Unit Outdoor Unit
Main Body CS-F28DD2E5 CU-B28DBE8
Cooling Capacity kW 7.3
BTU/h 24,900
Heating Capacity kW 8.0
BTU/h 27,300
Refrigerant Charge-less m 30
Standard Air Volume for High Speed m3/min Hi 22 Hi 63
cfm Hi 777 Hi 2226
External Static Pressure Pa Hi 69 -
mmAq Hi 7.0
Outside Dimension (H x W x D) mm 290 x 1000 x 500 795 x 900 x 320
inch 11-13/32 x 39-5/16 x 19-21/32 31-5/16 x 35-7/16 x 12-19/32
Net Weight kg (lbs) 35 (78) 69 (152)
Piping
Connection Refrigerant Gas mm (inch) O.D Ø 15.88 (5/8) Flared Type
Liquid mm (inch) O.D Ø 9.53 (3/8) Flared Type
Drain mm O.D Ø 32 I.D Ø 20 x 1
Compressor Type, Number of Set - Hermetic, 1
Starting Method - Permanent Split Capacitor
Motor Type - 2-pole single phase brushless motor
Rated Output kW - 2.2
Fan Type, Number of Set Sirocco Fan, 2 Mix flow fan - 1
Motor Type 4-pole single phase induction motor 6-pole single phase induction motor
Rated Output kW 0.135 0.07
Air-heat Exchanger (Row x Stage x FPI) Louvre-fin type (3 x 12 x 15) Corrugate-fin type (2 x 36 x 19)
Refrigerant Control - Exp. Valve
Refrigerant Oil (Charged) cm3-FV50S (1130)
Refrigerant (Charged) R410A kg (oz) - 2.05 (72)
Running
Adjustment Control Switch Wired Remote Control -
Room Temperature Thermostat -
Noise Level dB (A) Cooling : Hi 45 Lo 41 Cooling 52, Heating 53
Heating : Hi 43 Lo 39
Power level dB Cooling : Hi 61 Lo 57
Heating : Hi 59 Lo 55 Cooling 67, Heating 68
Moisture Removal L/h (Pt/h) 4.3 (9.0)
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
2.Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F
D.B.), 6°C W.B. (42.8°F W.B.)
ELECTRICAL DATA (50 Hz)
ITEM / MODEL Condition by ISO5151
Volts V 380 400 415
Phase 3N 3N 3N
Power Consumption kW Cool 2.81 2.86 2.91
Heat 2.62 2.71 2.80
Running Current ACool 4.85 4.9 4.95
Heat 4.65 4.7 4.75
Starting Current A 23 25 27
Power Factor %Cool 88 84 82
Heat 86 83 82
EER W/W 2.60 2.55 2.51
COP W/W 3.05 2.95 2.86
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 3N~380V, 400V, 415V 50Hz
8

3.4. CS-F34DD2E5 CU-B34DBE5
ITEM / MODEL Indoor Unit Outdoor Unit
Main Body CS-F34DD2E5 CU-B34DBE5
Cooling Capacity kW 10.0
BTU/h 34,100
Heating Capacity kW 11.2
BTU/h 38,200
Refrigerant Charge-less m 30
Standard Air Volume for High Speed m3/min Hi 38 Hi 94
cfm Hi 1342 Hi 3316
External Static Pressure Pa Hi 98 -
mmAq Hi 10.0
Outside Dimension (H x W x D) mm 360 x 1000 x 650 1170 x 900 x 320
inch 14-3/16 x 39-3/8 x 25-19/32 46-1/16 x 35-7/16 x 12-19/32
Net Weight kg (lbs) 48 (106) 102 (225)
Piping
Connection Refrigerant Gas mm (inch) O.D Ø 15.88 (5/8) Flared Type
Liquid mm (inch) O.D Ø 9.53 (3/8) Flared Type
Drain mm O.D Ø 32 I.D Ø 20 x 1
Compressor Type, Number of Set - Hermetic, 1
Starting Method - Permanent Split Capacitor
Motor Type - 2-pole single phase brushless motor
Rated Output kW - 3.0
Fan Type, Number of Set Sirocco fan, 2 Mix flow fan - 2
Motor Type 4-pole single phase induction motor 6-pole single phase induction motor
Rated Output kW 0.27 0.07 x 2
Air-heat Exchanger (Row x Stage x FPI) Louvre-fin type (3 x 18 x 13) Corrugate-fin type (2 x 44 x 20)
Refrigerant Control - Exp. Valve
Refrigerant Oil (Charged) cm3-FV68D (1500)
Refrigerant (Charged) R410A kg (oz) - 2.7 (95)
Running
Adjustment Control Switch Wired Remote Control -
Room Temperature Thermostat -
Noise Level dB (A) Cooling : Hi 49 Lo 45 Cooling 55, Heating 56
Heating : Hi 47 Lo 44
Power level dB Cooling : Hi 64 Lo 60
Heating : Hi 62 Lo 59 Cooling 69, Heating 70
Moisture Removal L/h (Pt/h) 6.0 (12.6)
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
2.Heating capacities are based on indoor temperature 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F
D.B.), 6°C W.B. (42.8°F W.B.)
ELECTRICAL DATA (50 Hz)
ITEM / MODEL Condition by ISO5151
Volts V 220 230 240
Phase Single Single Single
Power Consumption kW Cool 3.89 3.97 4.08
Heat 3.9 3.98 4.05
Running Current ACool 18.6 18.8 19.0
Heat 18.6 18.7 19.0
Starting Current A 92 95 98
Power Factor %Cool 95 92 89
Heat 95 93 89
EER W/W 2.57 2.52 2.45
COP W/W 2.87 2.81 2.77
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 1~220V, 230V, 240V 50Hz
9

3.5. CS-F34DD2E5 CU-B34DBE8
ITEM / MODEL Indoor Unit Outdoor Unit
Main Body CS-F34DD2E5 CU-B34DBE8
Cooling Capacity kW 10.0
BTU/h 34,100
Heating Capacity kW 11.2
BTU/h 38,200
Refrigerant Charge-less m 30
Standard Air Volume for High Speed m3/min Hi 38 Hi 94
cfm Hi 1342 Hi 3316
External Static Pressure Pa Hi 98 -
mmAq Hi 10.0
Outside Dimension (H x W x D) mm 360 x 1000 x 650 1170 x 900 x 320
inch 14-3/16 x 39-3/8 x 25-19/32 46-1/16 x 35-7/16 x 12-19/32
Net Weight kg (lbs) 48 (106) 100 (221)
Piping
Connection Refrigerant Gas mm (inch) O.D Ø 15.88 (5/8) Flared Type
Liquid mm (inch) O.D Ø 9.53 (3/8) Flared Type
Drain mm O.D Ø 32 I.D Ø 20 x 1
Compressor Type, Number of Set - Hermetic, 1
Starting Method - Permanent Split Capacitor
Motor Type - 2-pole single phase brushless motor
Rated Output kW - 3.0
Fan Type, Number of Set Sirocco fan, 2 Mix flow fan - 2
Motor Type 4-pole single phase induction motor 6-pole single phase induction motor
Rated Output kW 0.27 0.07 x 2
Air-heat Exchanger (Row x Stage x FPI) Louvre-fin type (3 x 18 x 13) Corrugate-fin type (2 x 44 x 20)
Refrigerant Control - Exp. Valve
Refrigerant Oil (Charged) cm3-FV68D (1500)
Refrigerant (Charged) R410A kg (oz) - 2.7 (95)
Running
Adjustment Control Switch Wired Remote Control -
Room Temperature Thermostat -
Noise Level dB (A) Cooling : Hi 49 Lo 45 Cooling 55, Heating 56
Heating : Hi 47 Lo 44
Power level dB Cooling : Hi 64 Lo 60
Heating : Hi 62 Lo 59 Cooling 69, Heating 70
Moisture Removal L/h (Pt/h) 6.0 (12.6)
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
2.Heating capacities are based on indoor temperature 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F
D.B.), 6°C W.B. (42.8°F W.B.)
ELECTRICAL DATA (50 Hz)
ITEM / MODEL Condition by ISO5151
Volts V 380 400 415
Phase 3N 3N 3N
Power Consumption kW Cool 3.79 3.83 3.92
Heat 3.63 3.68 3.75
Running Current ACool 6.4 6.5 6.6
Heat 6.3 6.4 6.5
Starting Current A 41 44 47
Power Factor %Cool 90 85 83
Heat 88 83 80
EER W/W 2.64 2.61 2.55
COP W/W 3.09 3.04 2.99
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 3N~380V, 400V, 415V 50Hz
10

3.6. CS-F43DD2E5 CU-B43DBE8
ITEM / MODEL Indoor Unit Outdoor Unit
Main Body CS-F43DD2E5 CU-B43DBE8
Cooling Capacity kW 12.5
BTU/h 42,600
Heating Capacity kW 14.0
BTU/h 47,700
Refrigerant Charge-less m 30
Standard Air Volume for High Speed m3/min Hi 40 Hi 94
cfm Hi 1413 Hi 3316
External Static Pressure Pa Hi 98 -
mmAq Hi 10.0
Outside Dimension (H x W x D) mm 360 x 1000 x 650 1170 x 900 x 320
inch 14-3/16 x 39-3/8 x 25-19/32 46-1/16 x 35-7/16 x 12-19/32
Net Weight kg (lbs) 48 (106) 102 (225)
Piping
Connection Refrigerant Gas mm (inch) O.D Ø 15.88 (5/8) Flared Type
Liquid mm (inch) O.D Ø 9.53 (3/8) Flared Type
Drain mm O.DØ32 I.D Ø 20 x 1
Compressor Type, Number of Set - Hermetic, 1
Starting Method - Permanent Split Capacitor
Motor Type - 2-pole single phase brushless motor
Rated Output kW - 3.75
Fan Type, Number of Set Sirocco Fan, 2 Mix flow fan - 2
Motor Type 4-pole single phase induction motor 6-pole single phase induction motor
Rated Output kW 0.27 0.07 x 2
Air-heat Exchanger (Row x Stage x FPI) Louvre-fin type (3 x 18 x 13) Corrugate-fin type (2 x 44 x 20)
Refrigerant Control - Exp. Valve
Refrigerant Oil (Charged) cm3-FV68D (1500)
Refrigerant (Charged) R410A kg (oz) - 3.10 (109)
Running
Adjustment Control Switch Wired Remote Control -
Room Temperature Thermostat -
Noise Level dB (A) Cooling : Hi 49 Lo 45 Cooling 56, Heating 57
Heating : Hi 47 Lo 44
Power level dB Cooling : Hi 64 Lo 60
Heating : Hi 62 Lo 59 Cooling 70, Heating 71
Moisture Removal L/h (Pt/h) 7.9 (16.6)
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
2.Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F
D.B.), 6°C W.B. (42.8°F W.B.)
ELECTRICAL DATA (50 Hz)
ITEM / MODEL Condition by ISO5151
Volts V 380 400 415
Phase 3N 3N 3N
Power Consumption kW Cool 4.85 4.92 5.04
Heat 4.56 4.66 4.78
Running Current ACool 8.1 8.2 8.3
Heat 7.9 8.0 8.1
Starting Current A 54 57 60
Power Factor %Cool 91 87 84
Heat 88 84 82
EER W/W 2.58 2.54 2.48
COP W/W 3.07 3.00 2.93
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 3N~380V, 400V, 415V 50Hz
11

3.7. CS-F50DD2E5 CU-B50DBE8
ITEM / MODEL Indoor Unit Outdoor Unit
Main Body CS-F50DD2E5 CU-B50DBE8
Cooling Capacity kW 13.5
BTU/h 46,000
Heating Capacity kW 15.0
BTU/h 51,100
Refrigerant Charge-less m 30
Standard Air Volume for High Speed m3/min Hi 45 Hi 96
cfm Hi 1590 Hi 3387
External Static Pressure Pa Hi 98 -
mmAq Hi 10.0
Outside Dimension (H x W x D) mm 360 x 1000 x 650 1170 x 900 x 320
inch 14-3/16 x 39-3/8 x 25-19/32 46-1/16 x 35-7/16 x 12-19/32
Net Weight kg (lbs) 48 (106) 102 (225)
Piping
Connection Refrigerant Gas mm (inch) O.D Ø 15.88 (5/8) Flared Type
Liquid mm (inch) O.D Ø 9.53 (3/8) Flared Type
Drain mm O.D Ø 32 I.D Ø 20 x 1
Compressor Type, Number of Set - Hermetic, 1
Starting Method - Permanent Split Capacitor
Motor Type - 2-pole single phase brushless motor
Rated Output kW - 4.5
Fan Type, Number of Set Sirocco Fan, 2 Mix flow fan - 2
Motor Type 4-pole single phase induction motor 6-pole single phase induction motor
Rated Output kW 0.27 0.07 x 2
Air-heat Exchanger (Row x Stage x FPI) Louvre-fin type (3 x 18 x 13) Corrugate-fin type (2 x 44 x 20)
Refrigerant Control - Exp. Valve
Refrigerant Oil (Charged) cm3-FV68D (1500)
Refrigerant (Charged) R410A kg (oz) - 3.4 (120)
Running
Adjustment Control Switch Wired Remote Control -
Room Temperature Thermostat -
Noise Level dB (A) Cooling : Hi 49 Lo 45 Cooling 56, Heating 57
Heating : Hi 47 Lo 44
Power level dB Cooling : Hi 64 Lo 60
Heating : Hi 62 Lo 59 Cooling 70, Heating 71
Moisture Removal L/h (Pt/h) 8.6 (18.1)
1.Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air
temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)
2.Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F
D.B.), 6°C W.B. (42.8°F W.B.)
ELECTRICAL DATA (50 Hz)
ITEM / MODEL Condition by ISO5151
Volts V 380 400 415
Phase 3N 3N 3N
Power Consumption kW Cool 5.31 5.36 5.46
Heat 5.08 5.13 5.18
Running Current ACool 8.8 8.9 9.1
Heat 8.3 8.5 8.7
Starting Current A 55 58 61
Power Factor %Cool 92 87 83
Heat 93 87 83
EER W/W 2.54 2.52 2.47
COP W/W 2.95 2.92 2.90
*Power Factor means total figure of compressor, indoor fan motor and outdoor fan motor.
Panasonic Power source AC, 3N~380V, 400V, 415V 50Hz
12

4 DIMENSIONS
4.1. CS-F24DD2E5 CS-F28DD2E5
13

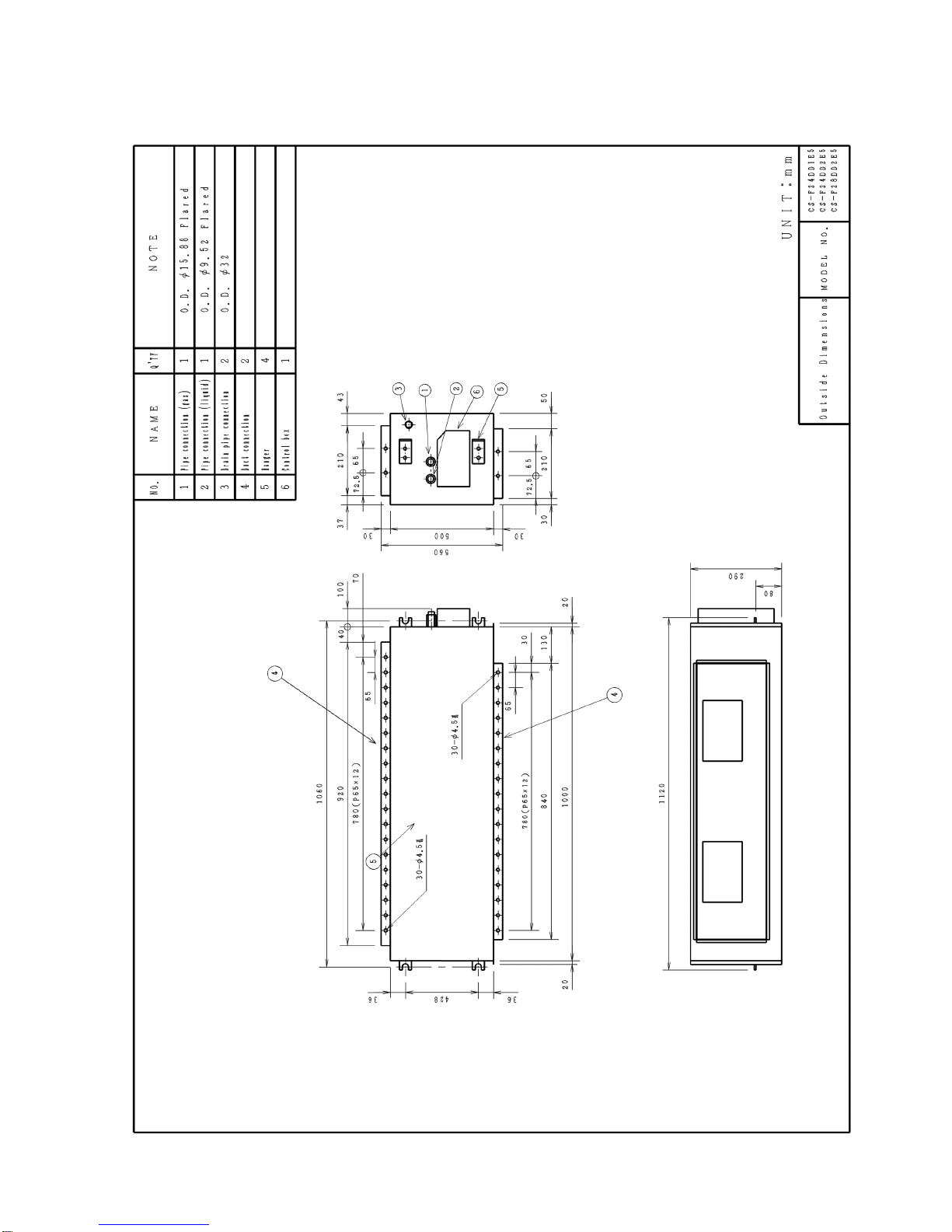

4.2. CS-F34DD2E5 CS-F43DD2E5 CS-F50DD2E5
14

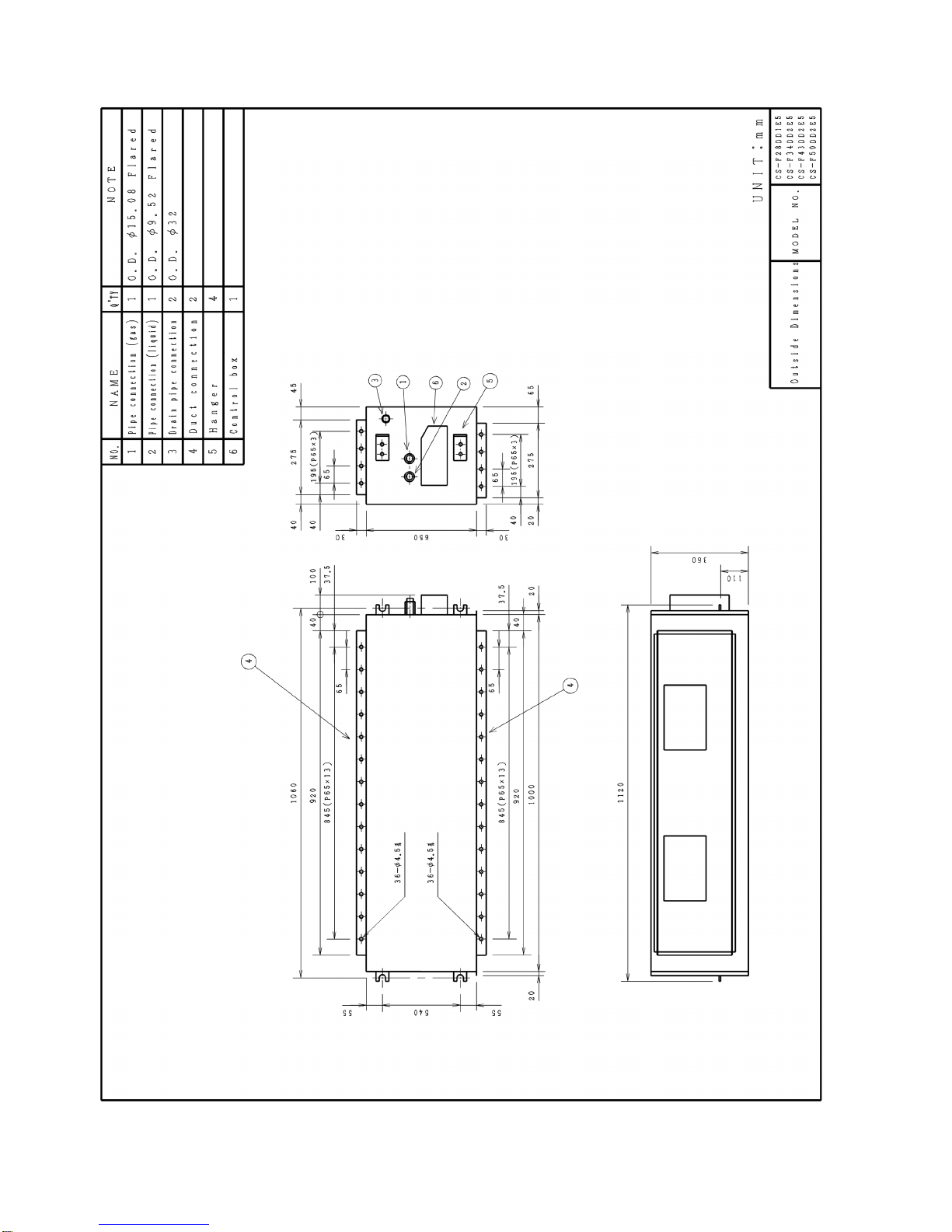

4.3. CU-B24DBE5 CU-B28DBE5 CU-B28DBE8
15

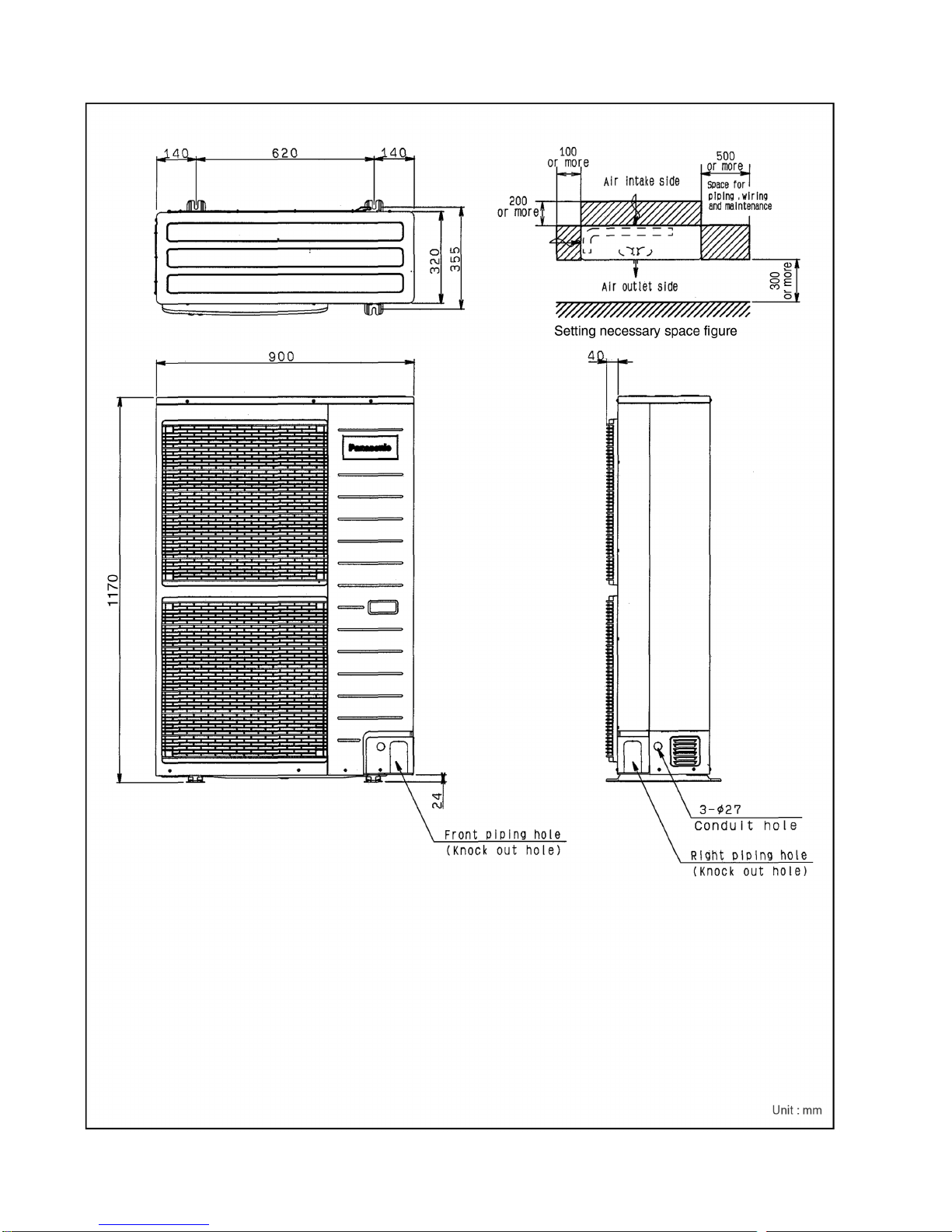

4.4. CU-B34DBE5 CU-B34DBE8 CU-B43DBE8 CU-B50DBE8
16

5 REFRIGERATION CYCLE
5.1. CS-F24DD2E5 CU-B24DBE5
CS-F28DD2E5 CU-B28DBE5 CU-B28DBE8
17

5.2. CS-F34DD2E5 CU-B34DBE5 CU-B34DBE8
CS-F43DD2E5 CU-B43DBE8
CS-F50DD2E5 CU-B50DBE8
18

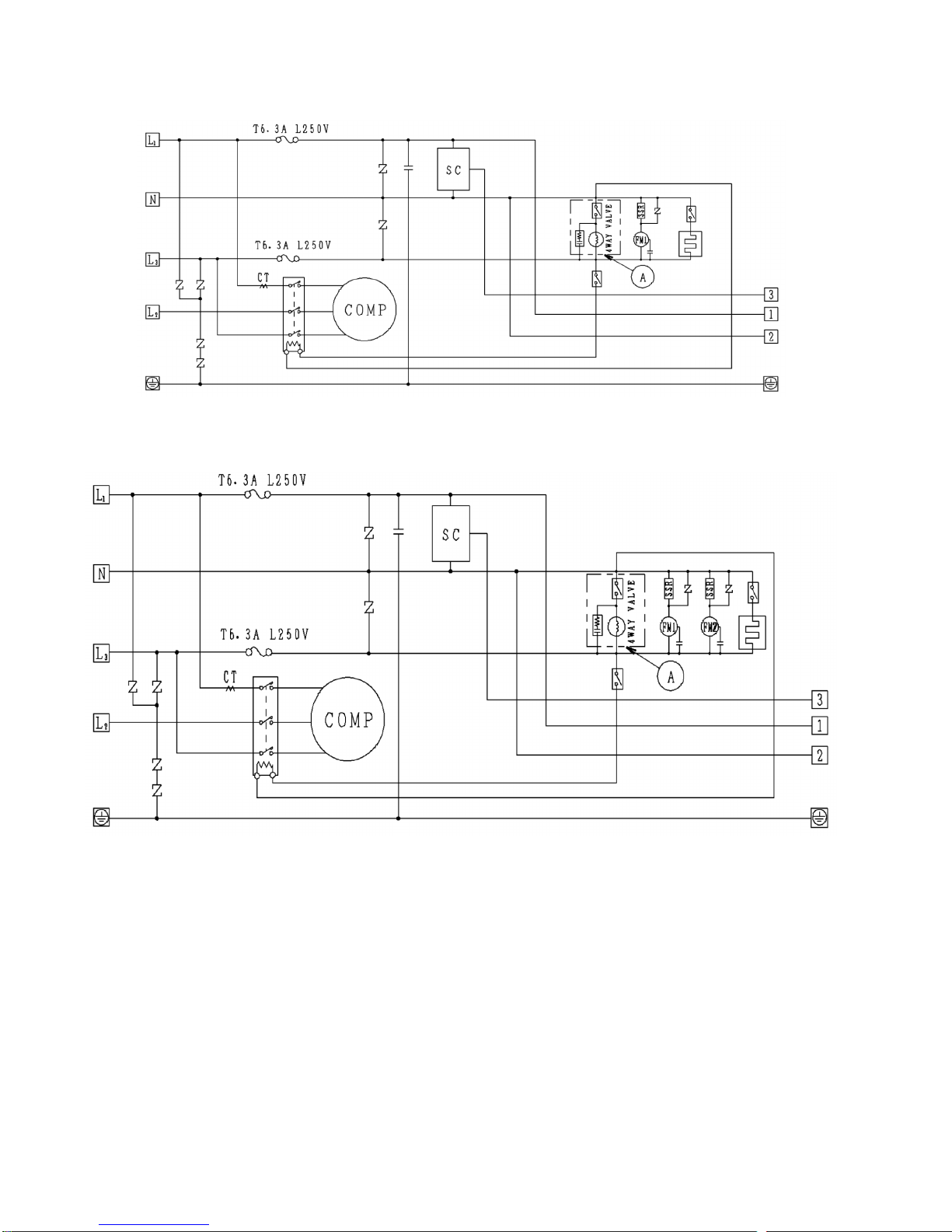

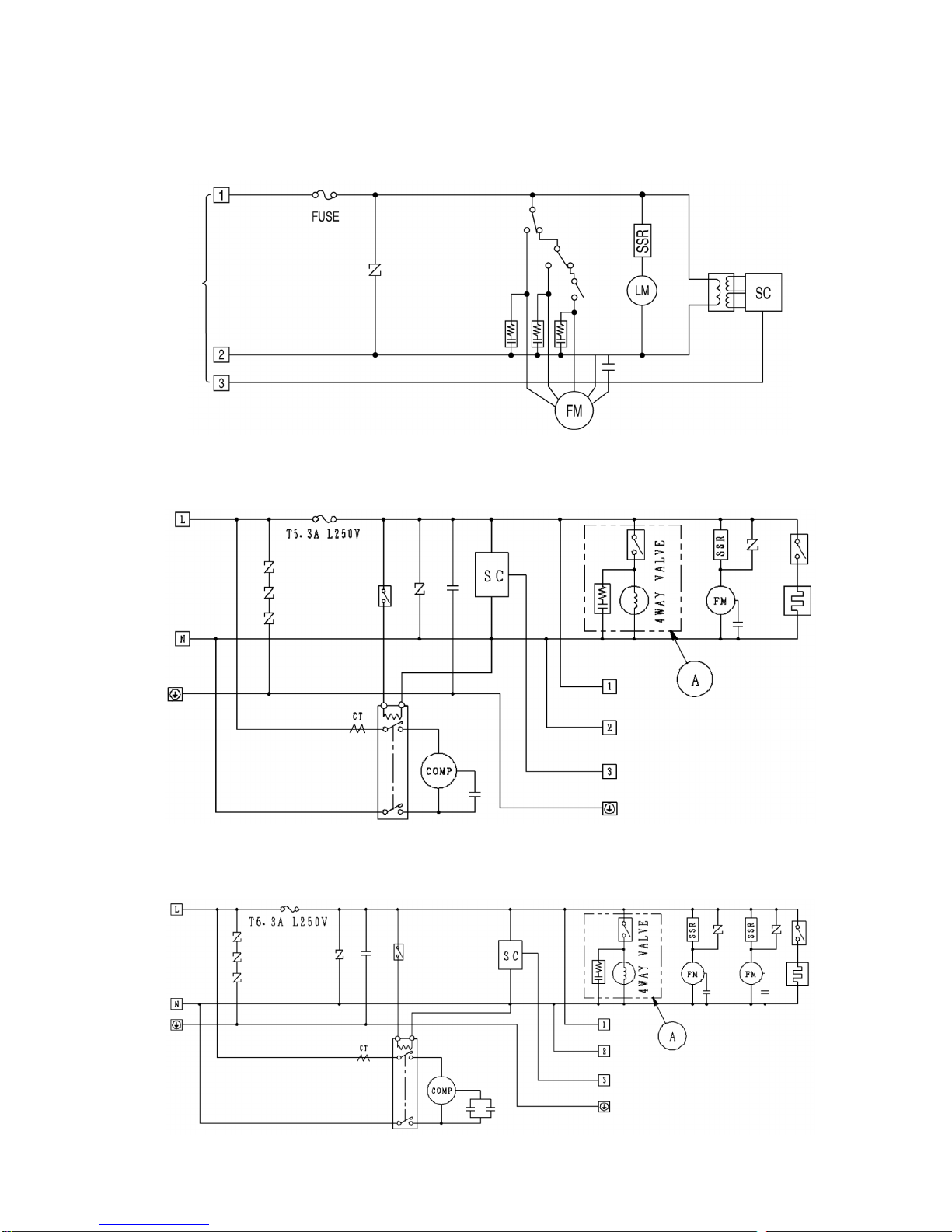

6 BLOCK DIAGRAM
6.1. CS-F24DD2E5 CS-F28DD2E5 CS-F34DD2E5 CS-F43DD2E5
CS-F50DD2E5
6.2. CU-B24DBE5 CU-B28DBE5
6.3. CU-B34DBE5
19

6.4. CU-B28DBE8
6.5. CU-B34DBE8 CU-B43DBE8 CU-B50DBE8
20
