Panasonic CS-MXS9UKZ User manual

Operating Instructions
Air Conditioner
Operating Instructions
Air Conditioner
2-13
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
The included Installation Instructions should be kept and read
by the installer before installation.
Remote control is packaged in the indoor unit and removed
by the installer before installation.
操作說明書
空調器
14-25
在操作空調器前, 請細讀此操作說明, 並保存此書以備日後
參考。
附帶的安裝說明須保存並請安裝人員在安裝前閲讀。
遙控器包裝在室内機箱子裏並請安裝人員在安裝前取出。
Model No.
Indoor Unit Outdoor Unit
CS-MXS9UKZ
CS-MXS12UKZ
CS-MXS15UKZ
CS-MXS18UKZ
CS-MXS24UKZ
CU-2XS20UKZ
CU-3XS27UKZ
CU-4XS30UBZ
CU-4XS34UBZ
ACXF55-17770
中文 English
ACXF55-17770_FA1217-0.indb 1ACXF55-17770_FA1217-0.indb 1 12/5/2017 9:24:13 AM12/5/2017 9:24:13 AM

Flexibility to connect
Single Split System or
Multi Split System Air
Conditioner to suit your
needs. For complete
product features, please
refer to catalogue.
2
Provide fast cooling, maximum comfort,
clean air and optimise energy saving
Use remote
control within 8 m
from the remote
control receiver of
the indoor unit.
Quick Guide
Inserting the batteries
12
3
1Pull out the back cover
of remote control.
2
Insert AAA or R03
batteries.
3Close the cover.
AClock setting
1Press and
set the
time .
• Press and hold
for approximately
5 seconds to show
time in 12-hour
(am/pm) or 24 hour
indication.
2Confirm
SET
.
2
the
in
doo
r u
nit
.
AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
QUIET
TEMP
OFF/ON
AUTO
COMFORT
AIR SWING
POWERFUL/
AIR CONDITIONER
ON
OFF
TIMER
CANCEL
FAN SPEED
QUIET
AUTO
COMFORT
AIR SWING
POWERFUL/
A
B
Sunlight sensor and
remote control receiver
Human activity
sensor
• Area Search
• Activity Detection
• Absence Detection
ACXF55-17770_FA1217-0.indb 2ACXF55-17770_FA1217-0.indb 2 12/5/2017 9:24:16 AM12/5/2017 9:24:16 AM

3
Table of contents
Safety precautions ………… 4-5
How to use
……………………… 6-7
To learn more
………………… 8-9
Cleaning instructions
……… 10
Troubleshooting
………… 11-13
Information………………… 26
Accessories
• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control
holder × 2
The illustrations in this manual are for
explanation purposes only and may differ
from the actual unit. They are subject
to change without notice for future
improvement.
BBasic operation
1Press
MODE
to select
the desired mode.
DRY
AUTO COOL
2Press to
start/stop the
operation.
POWER
• Please note that
the indication
is on display to
start the unit.
3Select the desired
temperature.
Up
Down
TEMP
Selection range:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
• Press and hold for
approximately 10 seconds
to switch the temperature
indication in °C or °F.
Thank you for purchasing
Panasonic Air Conditioner.
English
ACXF55-17770_FA1217-0.indb 3ACXF55-17770_FA1217-0.indb 3 12/5/2017 9:24:17 AM12/5/2017 9:24:17 AM

4
Safety precautions
To prevent personal injury, injury to others or property
damage, please comply with the following:
Incorrect operation due to failure to follow instructions
below may cause harm or damage, the seriousness of
which is classified as below:
This appliances is not intended for accessibility by the
general public.
WARNING This sign warns of death
or serious injury.
CAUTION This sign warns of injury
or damage to property.
The instructions to be followed are classified by the
following symbols:
This symbol denotes an action that
is PROHIBITED.
These symbols denote actions
COMPULSORY.
Indoor unit
Outdoor unit
Power supply
Remote control
Air inlet
Air inlet
Air inlet
Air inlet
Air outlet
Air outlet
Air outlet
Air outlet
WARNING
Indoor unit and outdoor unit
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with
the appliance.
Please consult authorised dealer or specialist
to clean the internal parts, repair, install,
remove and reinstall the unit. Improper
installation and handling will cause leakage,
electric shock or fire.
Confirm with authorised dealer or specialist on
usage of any specified refrigerant type. Using
refrigerant type other than the specified may
cause product damage, burst and injury etc.
Do not use means to accelerate the defrosting
process or to clean, other than those
recommended by manufacturer.
Any unfit method or using incompatible material
may cause product damage, burst and serious
injury.
Do not install the unit in a potentially explosive
or flammable atmosphere.
Failure to do so could result in fire.
Do not insert your fingers or other
objects into the air conditioner indoor or
outdoor unit, rotating parts may cause
injury.
Do not touch the outdoor unit during lightning, it
may cause electric shock.
Do not expose yourself directly to cold air for a
long period to avoid excess cooling.
Do not sit or step on the unit, you may
fall down accidentally.
Remote control
Do not allow infants and small children to play
with the remote control to prevent them from
accidentally swallowing the batteries.
Power supply
Do not use a modified cord,
joint cord, extension cord or
unspecified cord to prevent
overheating and fire.
To prevent overheating, fire or electric shock:
• Do not share the same power outlet with other
equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or
pulling out the power plug.
ACXF55-17770_FA1217-0.indb 4ACXF55-17770_FA1217-0.indb 4 12/5/2017 9:24:17 AM12/5/2017 9:24:17 AM

5

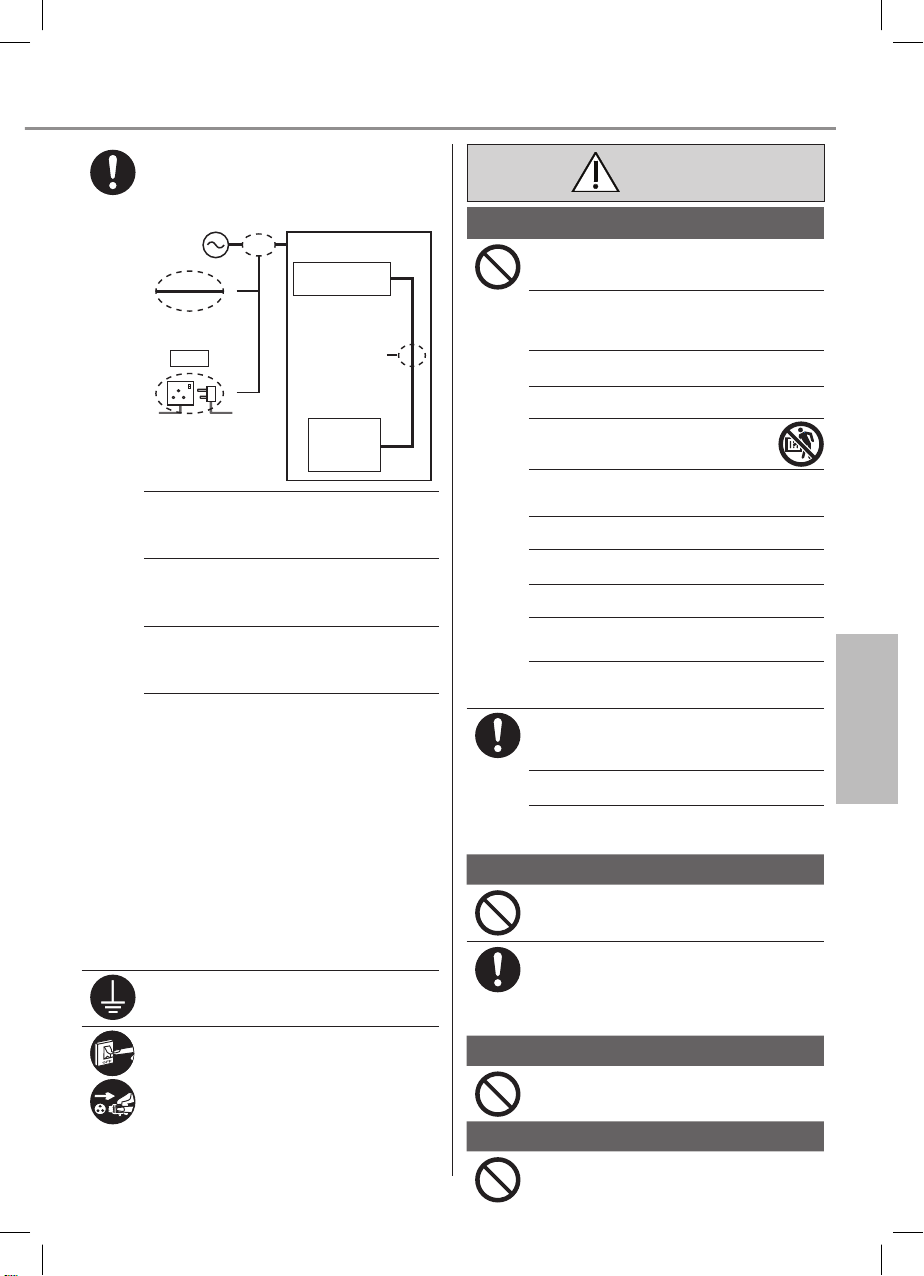

Safety precautions
Use complete power supply cord without
joining. In unavoidable circumstances that
complete power supply cord without joining
is impossible, use an approved connection
means (for example: socket and plug).
Air Conditioner
◄
Complete wire
without joining
◄
◄
Approved connecting
means (for example:
approved socket and
plug)
Complete
wire without
joining
Power
Supply
OR
Indoor Unit
Outdoor
Unit
If the supply cord is damaged, it must be
replaced by the manufacturer, service agent
or similarly qualified persons in order to avoid
a hazard.
It is strongly recommended to be installed
with Earth Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD) to prevent
electric shock or fire.
To prevent overheating, fire or electric shock:
• Insert the power plug properly.
• Dust on the power plug should be periodically
wiped with a dry cloth.
Stop using the product if any abnormality/
failure occurs and disconnect the power plug or
turn off the power switch and breaker.
(Risk of smoke/fire/electric shock)
Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is
observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it
is switched on for operation.
• The fan does not stop even if the operation
is stopped.
Contact your local dealer immediately for
maintenance/repair.
This equipment must be earthed to prevent
electrical shock or fire.
Prevent electric shock by switching off the
power supply and unplug:
- Before cleaning or servicing,
- When extended non-use, or
- During abnormally strong lightning activity.
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit with water,
benzine, thinner or scouring powder to avoid
damage or corrosion at the unit.
Do not use for preservation of precise
equipment, food, animals, plants, artwork
or other objects. This may cause quality
deterioration, etc.
Do not use any combustible equipment in front
of the airflow outlet to avoid fire propagation.
Do not expose plants or pet directly to airflow to
avoid injury, etc.
Do not touch the sharp aluminium fin,
sharp parts may cause injury.
Do not switch ON the indoor unit when waxing
the floor. After waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and smoky areas
to prevent damage to the unit.
Do not dismantle the unit for cleaning purpose
to avoid injury.
Do not step onto an unstable bench when
cleaning the unit to avoid injury.
Do not place a vase or water container on the
unit. Water may enter the unit and degrade the
insulation. This may cause an electric shock.
Do not open window or door for long time during
operation, it may lead to inefficient power usage
and uncomfortable temperature changes.
Prevent water leakage by ensuring drainage pipe is:
- Connected properly,
- Kept clear of gutters and containers, or
- Not immersed in water
After a long period of use or use with any
combustible equipment, aerate the room regularly.
After a long period of use, make sure the
installation rack does not deteriorate to prevent
the unit from falling down.
Remote control
Do not use rechargeable (Ni-Cd) batteries. It
may damage the remote control.
To prevent malfunction or damage of the
remote control:
• Remove the batteries if the unit is not going to
be used for a long period of time.
• New batteries of the same type must be
inserted following the polarity stated.
Power supply
Do not disconnect the plug by pulling the cord
to prevent electric shock.
nanoe-G generator
Do not touch the sharp pin which may cause
injury.
English
ACXF55-17770_FA1217-0.indb 5ACXF55-17770_FA1217-0.indb 5 12/5/2017 9:24:17 AM12/5/2017 9:24:17 AM

AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
QUIET
TEMP
OFF/ON
AUTO
COMFORT
AIR SWING
POWERFUL/
Not used
in normal
operations.
Press to restore
the remote
control to default
setting.
Indicator
POWER
TIMER
AUTO COMFORT
nanoe-G
POWERFUL
QUIET
6
How to use
To adjust airflow directionTo adjust airflow direction
AIR SWING
Upper direction
Lateral direction
• Do not adjust the flap by hand.
To adjust fan speed
AUTO
FAN
FAN SPEED
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
To switch between POWERFUL/QUIET
QUIET
POWERFUL/
POWERFUL:
To reach temperature quickly
• This operation stops automatically after 4 hours.
QUIET:
To enjoy quiet operation
• This operation reduces airflow noise.
To save energy
• When manual AIR SWING is selected, the
ECONAVI operations will be cancelled.
To maximise comfort
AUTO
COMFORT
• When manual AIR SWING is selected, the
AUTO COMFORT operations will be cancelled.
ACXF55-17770_FA1217-0.indb 6ACXF55-17770_FA1217-0.indb 6 12/5/2017 9:24:17 AM12/5/2017 9:24:17 AM

7
See "To learn more..." for details.

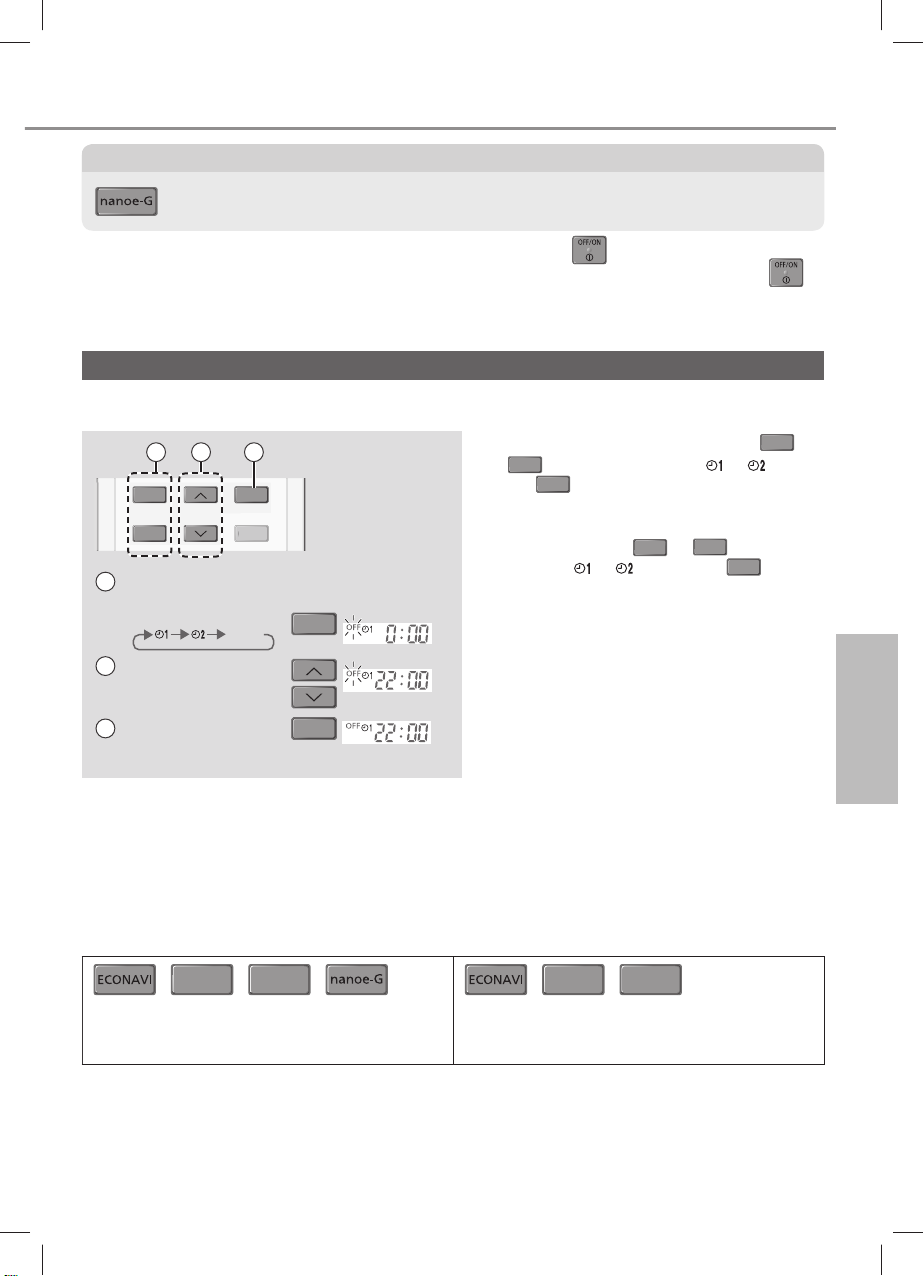

How to use
To purify the air
• nanoe-G starts automatically when the unit is turned on with .
• nanoe-G will not start automatically during ON timer if the unit has been turned off by .
• Can be activated even when the unit is turned off. In this condition, the unit will operate as a
fan with AUTO fan speed and flap swing.
To set the timer
2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset
times.
ON
OFF
SET
TIMER
CANCEL
C
AN
C
E
L
21 3
1Select ON or OFF
timer
Example:
OFF at 22:00
• Each time pressed:
OFF
Cancel
2Set the time
3Confirm
SET
• To cancel ON or OFF timer, press
ON
or
OFF
to select respective or then
press
CANCEL
.
• If timer is cancelled manually or due to
power failure, you can restore the timer
again by pressing
ON
or
OFF
to select
respective or then press
SET
.
• The nearest timer setting will be displayed
and will activate in sequence.
• Timer operation is based on the clock set
in the remote control and repeats daily
once set. For clock setting, please refer to
Quick Guide.
Note
,
QUIET
POWERFUL/
,
AUTO
COMFORT
, ,
QUIET
POWERFUL/
,
AUTO
COMFORT
• Can be activated in all modes and can be
cancelled by pressing the respective button
again.
• Cannot be selected at the same time.
English
ACXF55-17770_FA1217-0.indb 7ACXF55-17770_FA1217-0.indb 7 12/5/2017 9:24:20 AM12/5/2017 9:24:20 AM

8
To learn more...
Operation mode
AUTO : During operation mode selection the POWER indicator blinks.
COOL : Provides efficient comfort cooling to suit your needs.
DRY : Unit operates at low fan speed to give a gentle cooling operation.
Energy saving temperature setting
Operating the unit within the recommended temperature range may save energy.
COOL : 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.
Air flow direction
In COOL/DRY mode:
If AUTO is set, the flap swings left/right and up/down automatically.
Auto restart control
If power is resumed after a power failure, the operation will restart automatically after a
period of time with previous operation mode and airflow direction.
• This control is not applicable when TIMER is set.
nanoe-G in-filter deactivation
Depending on the unit’s accumulated operation time, nanoe-G in-filter deactivation may
activate only once a day after the unit turned off.
To remove the moisture left in the internal parts, the fan will operate for 30 minutes with flap
opened slightly. This process only applicable when the unit is operated in COOL/DRY mode
before turned off. Then, nanoe-G deactivates viruses/bacteria on the filter for 2 hours with
fan stopped and flap closed.
Do not turn off the power supply during this operation. After power failure, this operation will
not resume.
ACXF55-17770_FA1217-0.indb 8ACXF55-17770_FA1217-0.indb 8 12/5/2017 9:24:21 AM12/5/2017 9:24:21 AM

9
ECONAVI and AUTO COMFORT
■Econavi with intelligent eco sensors
Intelligent eco sensors detect potential waste of energy using the human activity sensor and
sunlight sensor.
■Auto Comfort with intelligent eco sensors
Intelligent eco sensors detect potential waste of energy using the human activity sensor
and auto adjust the temperature and fan speed during high activity level to provide comfort
environment.
The human activity sensor scans areas of heat source and movement in a room.
• Based on area activeness, flap will adjust its position automatically.
• The human activity sensor is influenced by the location of the indoor unit, the movement
speed of human/non-human activity, temperature range, etc.
• The human activity sensor may mistakenly detect non-human activity and source of heat,
such as pets, or may not detect the human activity or source of heat if the person stays
motionless.
• Do not place large objects near the sensor and keep away heating units or humidifier from
the sensor’s detections area.
The sunlight sensor detects changes in sunlight intensity in the room. It reduces the waste
of energy under less sunlight conditions.
5 Features
1Temperature
wave
2Area search 3Activity
detection
4Absence
detection
5Sunlight
detection
7m
120º
Rhythmic
temperature-
controlled pattern to
save energy without
sacrificing comfort.
Human activity sensor detects presence/absence
of human beings and the movement speed of
human activities minimising the required amount of
energy.
Adjusts power
to changes in
sunlight intensity.
Operating conditions
Use this air conditioner in the temperature range indicated in the table.
Temperature °C (°F) Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)
Min. 16 (60.8) 11 (51.8) 16 (60.8) 11 (51.8)
DBT: Dry bulb temperature, WBT: Wet bulb temperature
To learn more...English
ACXF55-17770_FA1217-0.indb 9ACXF55-17770_FA1217-0.indb 9 12/5/2017 9:24:21 AM12/5/2017 9:24:21 AM

10
Cleaning instructions
To ensure optimal performance of the unit,
cleaning has to be carried out at regular
intervals. Dirty unit may cause malfunction
and you may see nanoe-G indicator blinks or
error code “H99”. Please consult authorised
dealer.
• Switch off the power supply and unplug before
cleaning.
• Do not touch the aluminium fin, sharp parts may
cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household
detergent.
• Do not use water hotter than 40 °C / 104 °F.
Indoor unit
nanoe-G Generator
Once every 2 weeks
• Clean with dry cotton bud.
• Do not touch during operation.
Air filters
Once every 2 weeks
• Wash/rinse the filters gently with
water to avoid damage to the
filter surface.
• Dry the filters thoroughly under shade, away
from fire or direct sunlight.
• Replace any damaged filters.
Remove air filter Attach air filter
Insert into the unit
Indoor unit
Wipe the unit gently with a soft,
dry cloth.
Coils and fans should be clean
for at least every 6 months by an
authorised dealer.
Human activity sensor
Do not hit or violently press or poke it with a sharp
object. This can lead to damage and malfunction.
Outdoor unit
Clear debris that surround the unit.
Clear any blockage from drain
pipe.
Front panel
Wash gently and dry.
Remove the front panel
1Release the
hooks at
both ends.
2Pull out and lift up.
Close it securely
1Insert
at both
sides.
2Push in.
3Close down.
4Press both ends and center of the front panel.
Aluminium fin
Front panel
Air filters nanoe-G Generator
Human activity
sensor
ACXF55-17770_FA1217-0.indb 10ACXF55-17770_FA1217-0.indb 10 12/5/2017 9:24:21 AM12/5/2017 9:24:21 AM

11
Cleaning instructions / Troubleshooting
Troubleshooting
The following symptoms do not indicate malfunction.
Symptom Cause
POWER indicator blinks before the unit
is switched on.
• This is a preliminary step in preparation for the
operation when the ON timer has been set.
• When ON Timer is set, the unit may start earlier
(up to 15 minutes) before the actual set time in
order to achieve the desired temperature on time.
TIMER indicator is always on. • The timer setting repeats daily once set.
Operation is delayed a few minutes after
restarting.
• The delay is a protection to the unit’s
compressor.
Indoor fan stops occasionally during
automatic fan speed setting.
• This helps to remove the surrounding odour.
The room has a peculiar odour. • This may be due to damp smell emitted by the
wall, carpet, furniture or clothing.
Cracking sound during operation. • Changes of temperature caused the expansion/
contraction of the unit.
Water flowing sound during operation. • Refrigerant flow inside the unit.
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Discoloration of some plastic parts. • Discoloration is subject to material types used in
plastic parts, accelerated when exposed to heat,
sun light, UV light or environmental factor.
Dust may have collected around the front
panel, grilles and wall surrounding the
unit after extended use.
• The dust accumulation is due to air purification
effect of negative ions from nanoe-G. Remove
the dust regularly with a clean dampened cloth.
Check the following before calling for servicing.
Symptom Check
Operation in COOL mode is not working
efficiently.
• Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet
vents.
Noisy during operation. • Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is
weak.)
• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from
the remote control.
• Make sure the receiver is not obstructed.
• Certain fluorescent lights may interfere with
signal transmitter. Please consult authorised
dealer.
English
ACXF55-17770_FA1217-0.indb 11ACXF55-17770_FA1217-0.indb 11 12/5/2017 9:24:21 AM12/5/2017 9:24:21 AM

12
Troubleshooting
When...
■The remote control is missing or a malfunction has occurred
AUTO
OFF/ON
1. Raise the front panel.
2. Press the button once to use in AUTO mode.
3. Press and hold the button until you hear 1 beep, then release to use in
forced COOL mode.
4. Press the button again to turn off.
■The indicators are too bright
• To dim or restore the unit’s indicator brightness, press and hold for 5 seconds.
■Conducting a seasonal inspection after extended non-use
• Check the remote control batteries.
• Check that there is no obstruction around the air inlet and outlet vents.
• Use Auto OFF/ON button to select COOL operation. After 15 minutes of operation, it is
normal to have the following temperature difference between the air inlet and outlet vents:
COOL: ≥8 °C / 14.4 °F
■The units are not going to be used for a long period of time
• Activate nanoe-G operation for 2~3 hours as an alternative to remove moisture left in the
internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.
NON SERVICEABLE CRITERIAS
TURN OFF THE POWER SUPPLY AND UNPLUG then please consult an authorised
dealer when in following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
ACXF55-17770_FA1217-0.indb 12ACXF55-17770_FA1217-0.indb 12 12/5/2017 9:24:21 AM12/5/2017 9:24:21 AM

13
Troubleshooting
How to retrieve error codes
If the unit stops and the TIMER indicator blinks, use the remote control to retrieve the error code.
ON
OFF
SET
TIMER
CANCEL
ON
O
FF
S
ET
TIMER
C
AN
C
E
L
Press for 5
seconds
Press until you hear beep
sound, then write down the
error code
21
Press for 5
seconds to
quit checking
3Turn the unit off and
reveal the error code to
authorised dealer
4
• For certain errors, you may restart the unit for limited operation if there are 4 beeps when operation starts.
* Some error code may not be applicable to your model. Consult authorised dealer for clarification.
Diagnostic
display
Abnormality/Protection control
H 00 No memory of failure
H 11 Indoor/outdoor abnormal
communication
H 12 Indoor unit capacity unmatched
H 14 Indoor intake air temperature sensor
abnormality
H 15 Outdoor compressor temperature
sensor abnormality
H 16 Outdoor current transformer (CT)
abnormality
H 17 Outdoor suction temperature sensor
abnormality
H 19 Indoor fan motor mechanism lock
H 21 Indoor float switch operation
abnormality
H 23 Indoor heat exchanger temperature
sensor 1 abnormality
H 24 Indoor heat exchanger temperature
sensor 2 abnormality
H 25 Indoor ion device abnormality
H 26 Minus ION abnormality
H 27 Outdoor air temperature sensor
abnormality
H 28 Outdoor heat exchanger temperature
sensor 1 abnormality
H 30 Outdoor discharge pipe temperature
sensor abnormality
H 31 Abnormal swimming pool sensor
H 32 Outdoor heat exchanger temperature
sensor 2 abnormality
H 33 Indoor/outdoor misconnection
abnormality
H 34 Outdoor heat sink temperature sensor
abnormality
H 35 Indoor/outdoor water adverse current
abnormality
H 36 Outdoor gas pipe temperature sensor
abnormality
H 37 Outdoor liquid pipe temperature
sensor abnormality
H 38 Indoor/outdoor mismatch (brand code)
H 39 Abnormal indoor operating unit or
standby units
Diagnostic
display
Abnormality/Protection control
H 41 Abnormal wiring or piping connection
H 50 Ventilation fan motor locked
H 51 Ventilation fan motor locked
H 52 Left-right limit switch fixing
abnormality
H 58 Indoor gas sensor abnormality
H 59 Eco sensor abnormality
H 64 Outdoor high pressure sensor
abnormality
H 67 nanoe abnormality
H 70 Light sensor abnormality
H 71 DC cooling fan inside control board
abnormality
H 72 Abnormality tank temperature sensor
H 97 Outdoor fan motor mechanism lock
H 98 Indoor high pressure protection
H 99 Indoor operating unit freeze protection
F 11 4-way valve switching abnormality
F 16 Total running current protection
F 17 Indoor standby units freezing
abnormality
F 18 Dry circuit blocked abnormality
F 87 Control box overheat protection
F 90 Power factor correction (PFC) circuit
protection
F 91 Refrigeration cycle abnormality
F 93 Outdoor compressor abnormal
revolution
F 94 Compressor discharge pressure
overshoot protection
F 95 Outdoor cooling high pressure
protection
F 96 Power transistor module overheating
protection
F 97 Compressor overheating protection
F 98 Total running current protection
F 99 Outdoor direct current (DC) peak
detection
English
ACXF55-17770_FA1217-0.indb 13ACXF55-17770_FA1217-0.indb 13 12/5/2017 9:24:22 AM12/5/2017 9:24:22 AM

靈活地連接單一分體式
或多聯分體式空調器以
滿足您的需求。有關於
完整產品功能 ，請參閱
目錄冊。
14
提供快速製冷，最佳的舒適度，
清新的空氣及更有效的節省能源
在室内機遙控接收
器的 8 米範圍内
使用遙控器。
簡易指南
裝入電池
12
3
1 拉出遙控器的背蓋。
2
裝入 AAA 或R03 電池。
3 把蓋關上。
A 時間設定
1 按下 並
設置時間
。
• 持續按下 大約
5 秒以顯示 12 小時
(am/pm) 或24 小時
的格式。
2 確認
SET
。
14
4
AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
QUIET
TEMP
OFF/ON
AUTO
COMFORT
AIR SWING
POWERFUL/
AIR CONDITIONER
ON
OFF
TIMER
CANCEL
FAN SPEED
QUIET
AUTO
COMFORT
AIR SWING
POWERFUL/
A
B
陽光感測器及
遙控接收器
人類活動感測器
• 範圍搜尋
• 活動感測
• 不在場感測
ACXF55-17770_FA1217-0.indb 14ACXF55-17770_FA1217-0.indb 14 12/5/2017 9:24:22 AM12/5/2017 9:24:22 AM

15
目錄
安全措施 .......................... 16-17
如何使用 .......................... 18-19
學習更多… ..................... 20-21
清洗說明 ............................... 22
故障檢修 .......................... 23-25
信息 ...................................... 26
附件
• 遙控器
• AAA 或R03 電池 × 2
• 遙控器托架
• 用於遙控器托架的螺釘 × 2
本操作說明書裡的圖解僅作為說明用途,
並且可能與實際產品有所區別。若因為產
品改進而發生變更,恕不另行通知。
B 基本操作
1 按
MODE
選擇所需的
模式。
DRY
AUTO COOL
2 按 開始/
停止操作。
POWER
• 請注意 指示
燈顯示在顯示屏以
啟動本機。
3 選擇所需要的溫度。
上升
下降
TEMP
選擇範圍：
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
• 持續按下 大約 10
秒以轉換為 °C 或°F 的格
式顯示溫度。
感謝您購買 Panasonic 空調器。
中文
ACXF55-17770_FA1217-0.indb 15ACXF55-17770_FA1217-0.indb 15 12/5/2017 9:24:23 AM12/5/2017 9:24:23 AM

16
安全措施
為了防止個人傷害，危害其他人或財物的損失，請遵守以
下指示：
因不遵守以下指示導致的錯誤操作將引起傷害或損壞，其
嚴重程度分類如下：
此設備不適合用于公共場所。
警告 此標識所示的行為有可能導致嚴
重傷害或死亡。
注意 此標識所示的行為有可能導致傷
害或財產損失。
要遵守的指示按下列符號分類：
此符號表示被禁止的行為。
此符號表示務必執行的行為。
室內機
室外機
電源
遙控器
空氣吸入口
空氣吸入口
空氣吸入口
空氣吸入口
空氣吹出口
空氣吹出口
空氣吹出口
空氣吹出口
警告
室內機及室外機
此裝置不適合殘疾、感應欠佳或智障，經驗與知
識不足的人士(包括兒童)使用。除非負責其安全
的監督人從旁監督或指示如何正確使用此裝置。
務必監督兒童以確保他們不會玩弄本機。
請諮詢授權經銷商或專業人員清潔内部零件，修
理、安裝、拆卸和重新安裝本機。安裝及處理不
當將導致漏電，觸電或火災。
請向授權經銷商或專業人員確認有關任何指定製
冷劑類型之運用。使用所指定以外的製冷劑類型
會導致產品損壞，爆裂並導致傷害等。
切勿使用除製造商建議以外的方法來加速除霜
過程或清理。
任何不適當的方法或使用不相容的材料可能導致
產品損壞，爆裂和嚴重傷害。
切勿將本機安裝在爆炸或可燃性的環境中。
否則會導致火災。
切勿把手指或其他物件插入空調器的室內
或室外機以免受到旋轉部件傷害。
閃電時切勿觸摸室外機，否則會導致觸電。
切勿長時間受冷氣流直接吹拂以免過冷。
切勿坐或踩踏在本機上以免意外摔跤。
遙控器
切勿讓嬰兒和小孩玩遙控器以免不小心吞下電
池。
電源
切勿採用改裝電線，接合電
線，延長電線或非指定的電
線,以免過熱及火災。
為免過熱，火災或觸電：
• 切勿與其他設備共用一個電源插座。
• 切勿用潮濕的手操作。
• 切勿過度扭曲電線。
• 切勿以插入或拉出插頭的方式來操作或停止
本機。
ACXF55-17770_FA1217-0.indb 16ACXF55-17770_FA1217-0.indb 16 12/5/2017 9:24:23 AM12/5/2017 9:24:23 AM

17
安全措施
請採用不須進行接合的完整電線。在沒有完整
電線而必須接合電線的情況下，請採用合格的
連接配件(例如插座及插頭)。
空調器
◄
不須進行接合的
完整電線
◄
◄
合格的連接配件(例如
合格的插座及插頭)
不須進行接合
的完整電線
電源
或
室內機
室外機
如果電線損壞，必須由製造商、其服務代理商
或具有同等資格的合格人員進行更換以免遭受
危害。
強烈建議您安裝接地漏電電源斷路器 (ELCB) 或
殘餘電流裝置 (RCD) 以免觸電或火災。
為免過熱，火災或觸電：
• 妥當插入插頭。
• 務必定時用乾布擦掉插頭上的灰塵。
當出現任何異常/故障時，請停止使用本機，拔
出電插頭或關掉電源開關及斷路器。
（煙霧/火災/觸電危險）
異常/故障舉例
• 接地漏電電源斷路器 (ELCB) 頻繁跳閘。
• 出現燒焦味。
• 本機出現異常噪音或振動。
• 室内機漏水。
• 電線或插頭變得異常熱。
• 無法控制風量。
• 本機立即停止運轉，雖然已經打開準備操作。
• 雖然已經停止操作, 風扇仍然不停止轉動。
立即諮詢經銷商以進行保養/修理。
本設備必須接地以免觸電或火災。
為免觸電，請在下列情況時關閉電源並拔出插
頭：
-清洗或維修之前，
-長期不使用時，或
-異常強烈閃電時。
注意
室內機及室外機
切勿用水、苯、稀釋劑或潔亮粉末清洗室内機以
免損壞或腐蝕本機。
切勿充作其他用途，如貯藏食物、動物、植物、
藝術品或其他物件。否則會破壞品質等。
切勿在氣流出口使用任何易燃器具以免引起火
災。
切勿讓植物或寵物受冷氣流直接吹拂以免損傷
等。
切勿觸摸尖銳的鋁散熱片以免受到尖銳
部件傷害。
當在地面打蠟時切勿開啟室內機。打蠟完畢之
後，請先讓房間良好通風再操作本機。
切勿將本機安裝在油煙重的場所以免損壞本機。
切勿拆卸本機來進行清洗工作以免受傷。
當清洗本機時切勿踩踏在不穩固的架子上以免
受傷。
切勿將花瓶或水容器放置在本機上。水會進入本
機而導致絕緣受到破壞。這會引起觸電。
在操作過程中切勿長時間打開窗戶或門，否則可
能導致低效的電力使用和不舒適的溫度變化。
為免漏水，請確保排水軟管：
-連接正確，
-不受通水道及容器阻擋，或
-不浸在水裏
長時間使用或與其他易燃設備一起使用後請定時讓房
間通風換氣。
長期使用後，請注意安裝支架是否有損壞以免
主機墜落。
遙控器
切勿使用可充電電池 (Ni-Cd)。它會損壞遙控
器。
為免遙控器失靈或損壞：
• 如果準備長期不使用本機，務必將電池取出。
• 務必採用同類型的新電池並對準電極插入。
電源
切勿以抽拉電線的方式來拔除插頭以免觸電。
nanoe-G 產生器
請勿觸摸尖角，以免造成傷害。
中文
ACXF55-17770_FA1217-0.indb 17ACXF55-17770_FA1217-0.indb 17 12/5/2017 9:24:23 AM12/5/2017 9:24:23 AM

AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
QUIET
TEMP
OFF/ON
AUTO
COMFORT
AIR SWING
POWERFUL/
在正常操作下
不使用。
按下以恢復遙控
器的出廠設定。
指示燈
POWER
TIMER
AUTO COMFORT
nanoe-G
POWERFUL
QUIET
18
如何使用
調整垂直風向調整垂直風向
AIR SWING
朝上方向
朝橫方向
• 切勿用手調節葉片。
調節風量
AUTO
FAN
FAN SPEED
• 至於 AUTO (自動)運轉，室內風扇風量將依據運轉
模式自動調節。
轉換於 POWERFUL/QUIET (強勁/安靜)之間
QUIET
POWERFUL/
POWERFUL (強勁):
迅速達到設定溫度
• 此運轉在 4 小時後自動停止。
QUIET (安靜):
享受安靜運轉
• 此功能將減低氣流噪音。
節省能源
• 當手動 AIR SWING (空氣擺動) 被選取
時，ECONAVI (節能導航)運轉將被取消。
為獲取最佳的舒適度
AUTO
COMFORT
• 當手動 AIR SWING (空氣擺動) 被選取
時，AUTO COMFORT (自動舒適)運轉將被取消。
ACXF55-17770_FA1217-0.indb 18ACXF55-17770_FA1217-0.indb 18 12/5/2017 9:24:23 AM12/5/2017 9:24:23 AM

19
參閲 “學習更多…” 以獲取詳情。
如何使用
以淨化空氣
• 用 啟動本機時 nanoe-G 功能會自動開始操作。
• 如果已透過 關閉本機，在 ON (開機)定時器期間，nanoe-G 功能不會自動開始操作。
• 此功能在本機關閉時依然可以啟動。在此情況下，本機將 AUTO (自動)調節風量及擺動葉片
並送風。
設定預約時間
具有兩組 ON (開機)及 OFF (關機)定時預約時間以在不同的預約時間下 ON (啟動)或
OFF (關閉) 主機。
ON
OFF
SET
TIMER
CANCEL
C
AN
C
E
L
21 3
1
選擇“ON (開機)”
或“OFF (關機)”模式
舉例：
在 22:00 OFF (關機)
• 每次按下時：
OFF
Cancel
2設定時間
3確認
SET
• 按下
ON
或
OFF
以選擇相關的 或
然後按下
CANCEL
以取消開機或關機定
時預約時間。
• 如果自行取消定時預約或因爲發生停電而
被 取消，您可按下
ON
或
OFF
以選
擇相關的 或 然後按下
SET
以恢
復之前的設定。
• 最接近的定時操作設置會顯示，並且會順
序啟動。
• 定時預約機能將依據遙控器所設定的時間
操作，並且一旦被設定後會每天重覆操
作。至於時鐘設定，請參閱簡易指南。
備註
,
QUIET
POWERFUL/
,
AUTO
COMFORT
, ,
QUIET
POWERFUL/
,
AUTO
COMFORT
• 可以在任何模式中操作。再分別按下相關
的按鈕即可取消操作。
• 無法被同時選取。
中文
ACXF55-17770_FA1217-0.indb 19ACXF55-17770_FA1217-0.indb 19 12/5/2017 9:24:26 AM12/5/2017 9:24:26 AM

20
學習更多…
運轉模式
AUTO (自動) : 在運轉模式選擇時，POWER (電源)指示燈將閃爍。
COOL (製冷) :提供高效舒適製冷，以滿足您的需求。
DRY(除濕) :空調以低速運轉，進行極為柔和的製冷運轉。
節能溫度設定
在所建議的溫度範圍內操作本機可為您節省能源。
COOL (製冷): 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.
氣流方向
在COOL/DRY (製冷/除濕)模式下：
如果設定為 AUTO (自動)風向時，葉片將自動向左/右及向上/下擺動。
自動重新啟動控制
如果在電源中斷後恢復電源，在一段時間後運轉將自動重新啟動於先前的運轉模式和風向。
• 當 TIMER (定時器)被設置時此功能將無效。
nanoe-G 濾塵網抗菌功能
視本機的累積操作時間而定，在關閉主機後 nanoe-G 濾塵網抗菌功能可能會每天只啟動一
次。
為排除留在內部機件的濕氣，葉片將在稍微打開的情況下操作風扇送風 30 分鐘。此流程只會
在主機關閉之前操作 COOL/DRY (製冷/除濕)模式方為有效。之後，nanoe-G 將於停止風扇
送風和關閉葉片的狀態下在濾塵網中消滅病毒/細菌達 2 小時。
切勿在此功能操作中關閉電源。電源中斷後此功能操作將不恢復。
ACXF55-17770_FA1217-0.indb 20ACXF55-17770_FA1217-0.indb 20 12/5/2017 9:24:27 AM12/5/2017 9:24:27 AM
