Operating Instructions
FS Multi Air Conditioner
Model No.
Indoor Unit Outdoor Unit
S-22KA1E5 U-4LA1E5
S-28KA1E5 U-5LA1E5
S-36KA1E5 U-6LA1E5
S-45KA1E5 U-4LA1E5-1
S-56KA1E5 U-5LA1E5-1
S-63KA1E5 U-6LA1E5-1
S-71KA1E5 * U-4LA1E5-1P
S-22KA1E5S * U-5LA1E5-1P
S-28KA1E5S * U-6LA1E5-1P
S-36KA1E5S
S-45KA1E5S
ENGLISH
Before operating the unit, read these operating instructions thoroughly and keep them for future reference.
* Available to selected country
2 ~ 13
B.MALAYSIA
Sebelum menggunakan unit ini, baca arahan operasi ini dengan teliti dan simpan untuk rujukan masa depan.
* Beli untuk negara khas
14 ~ 25
Ё᭛
೼᪡԰ぎ䂓఼ࠡˈ䂟㌄䅔ℸ᪡԰䁾ᯢˈϺֱᄬℸ᳌ҹ٭᮹ᕠগ㗗DŽ
* ⡍ᅮ೟ᆊৃ䋐Пൟ㰳
26 ~ 37
ѓѥќѥѳъѕ
дѷѠьѲнѸѯзіѪѷѠк еѠѲўѸѠѷѥьзѦѰьѣьѦ ѲьдѥіѲнѸкѥьѲўѸјѣѯѠѨѕч ѰјѣѯдѶэѳњѸѝѦўіѤэѲнѸѠѸѥкѠѧкѲьѠьѥзш.
* лѤчоѪѸѠѝѦўіѤэюіѣѯъћъѨѷіѣэѫ
38 ~ 49
B.INDONESIA
Sebelum mengoperasikan unit, baca terlebih dahulu petunjuk penggunaan secara teliti dan simpan untuk referensi
selanjutnya.
* P embelian untuk negara khusus
51 ~ 64
ESPAÑOL (L.AMERICA)
Antes de utilizar la unidad, sírvase leer atentamente estas instrucciones de funcionamiento y conservarlas como
futuro elemento de consulta.
* Compre para un país especial
66 ~ 77
ɋɎCCKɃɄ
ɉɟɪɟɞ ɧɚɱɚɥɨɦ ɷɤɫɩɥɭɚɬɚɰɢɢ ɞɚɧɧɨɝɨ ɭɫɬɪɨɣɫɬɜɚ ɜɧɢɦɚɬɟɥɶɧɨ ɩɪɨɱɢɬɚɣɬɟ ɢɧɫɬɪɭɤɰɢɢ ɩɨ ɷɤɫɩɥɭɚɬɚɰɢɢ ɢ
ɫɨɯɪɚɧɢɬɟ ɢɯ.
* ɉɨɤɭɩɤɚ ɜɤɨɧɤɪɟɬɧɨɣ ɫɬɪɚɧɟ
79 ~ 92
ɎKPAȏHCBKA
ɍɜɚɠɧɨ ɩɪɨɱɢɬɚɣɬɟ ɰɸ ɿɧɫɬɪɭɤɰɿɸ ɩɟɪɟɞ ɟɤɫɩɥɭɚɬɚɰɿɽɸ ɤɨɧɞɢɰɿɨɧɟɪɚ ɿɡɛɟɪɟɠɿɬɶ ʀʀ ɞɥɹ ɞɨɜɿɞɨɤ ɭɦɚɣɛɭɬɧɶɨɦɭ.
* ɉɨɤɭɩɤɚ ɭɤɨɧɤɪɟɬɧɿɣ ɤɪɚʀɧɿ
93 ~ 106

2
SAFETY
PRECAUTIONS
SAFETY
PRECAUTIONS
To prevent personal injury, injury to others, or property damage, please
comply with the following.
Incorrect operation due to failure to follow instructions below may cause
harm or damage, the seriousness of which is classi¿ed as below:
WARNING
This sign warns of death or serious injury.
CAUTION
This sign warns of injury or damage to property.
The instructions to be followed are classi¿ed by the following symbols:
This symbol denotes an action that is
PROHIBITED.
This symbol denotes an action that is
COMPULSORY.
Thank you for purchasing
Panasonic Air Conditioner
TABLE OF CONTENTS
TABLE OF CONTENTS
SAFETY PRECAUTIONS
2~3
INFORMATION
4
MULTI AIR CONDITIONER
FUNCTION
5
PRODUCT OVERVIEW &
OPERATIONS
(WIRELESS REMOTE
CONTROL)
6~7
PRODUCT OVERVIEW &
OPERATIONS
(WIRED REMOTE
CONTROL)
8~10

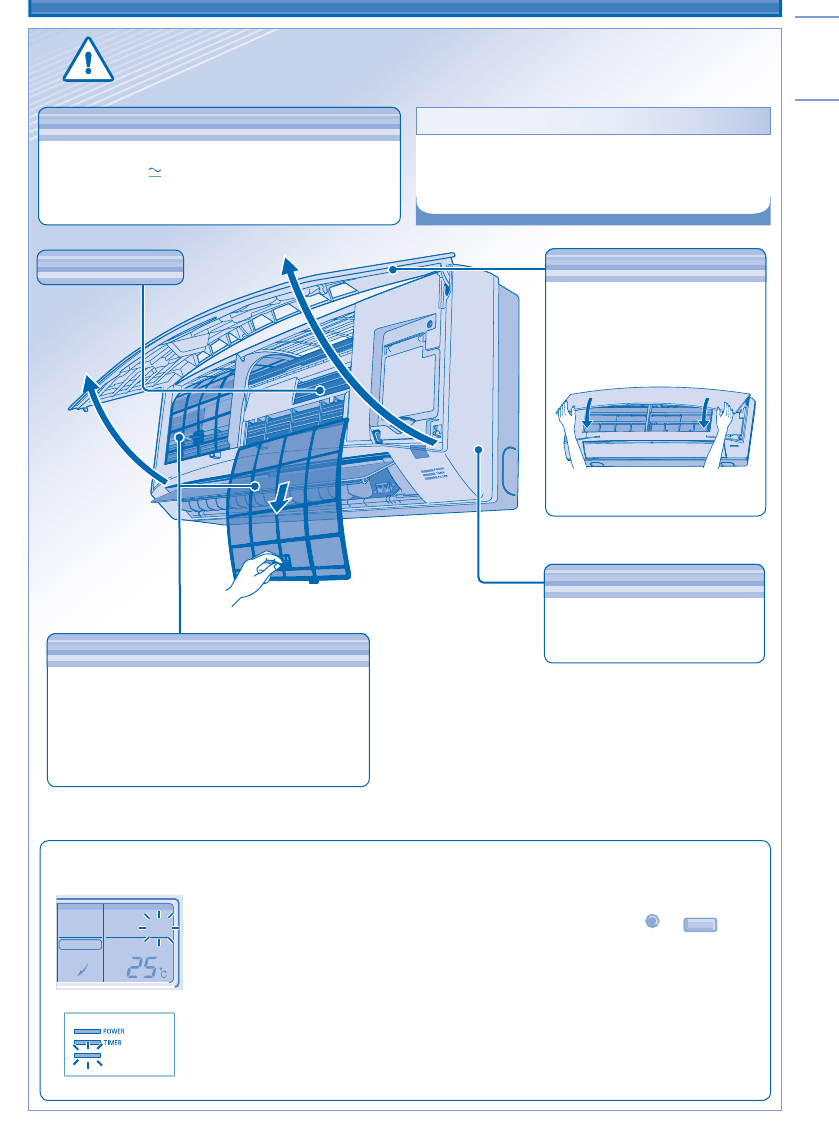

CARE & CLEANING
11
TROUBLESHOOTING
12~13
QUICK GUIDE
BACK COVER
NOTE
NOTE
The illustrations in this manual are for
explanation purposes only and may
differ from the actual unit. It is subjected
to change without notice for future
improvement.
WARNING
INDOOR UNIT AND OUTDOOR UNIT
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
Please consult authorized dealer or specialist to repair, install,
remove and reinstall the unit. Improper installation and handling
will cause leakage, electric shock or ¿re.
Do not install the unit in a potentially explosive or Àammable
atmosphere. Failure to do so could result in ¿re.
Do not insert your ¿ngers or other objects into the
air conditioner indoor or outdoor unit, rotating parts
may cause injury.
Do not touch the outdoor unit during lightning, it may cause
electric shock.
REMOTE CONTROL
Do not allow infants and small children to play with the remote
control to prevent them from accidentally swallowing the
batteries.

3
ENGLISH
CAUTION
INDOOR UNIT AND OUTDOOR UNIT
Do not wash the indoor unit with water, benzene,
thinner or scouring powder.
Do not use for other purpose such as
preservation of food.
Do not use any combustible equipment in front of
the airÀow outlet to avoid ¿re propagation.
Do not expose yourself directly to cold air for a
long period.
Do not sit or step on the unit, you may
fall down accidentally.
Do not touch the sharp aluminium ¿n,
sharp parts may cause injury.
Do not switch ON the indoor unit when waxing
the Àoor. After waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and smoky areas.
Ensure drainage pipe is connected properly.
Otherwise, leakage may occur.
Aerate the room regularly.
After long period of use, make sure the
installation rack is not deteriorate to prevent the
unit from falling down.
REMOTE CONTROL
Do not use rechargeable (Ni-Cd) batteries.
It may damage the remote control.
Remove the batteries if the unit is not going to be
used for a long period of time.
New batteries of the same type must be inserted
following the polarity stated to prevent
malfunction of the remote control.

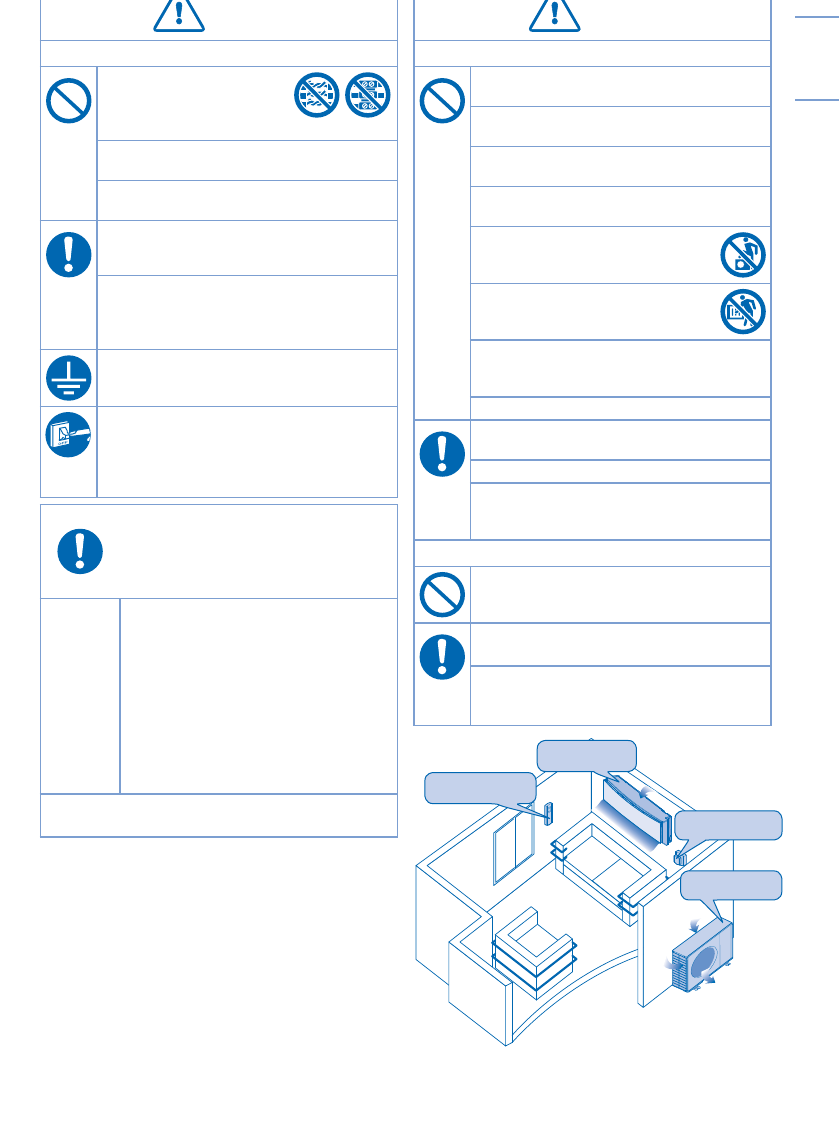

WARNING
POWER SUPPLY
Do not use modi¿ed cord,
joint cord, extension cord or
unspeci¿ed cord to prevent
overheating and ¿re.
Do not share the same power outlet with other
equipment to prevent overheating and ¿re.
Do not operate with wet hands to prevent electric
shock.
If the supply cord is damage, it must be replaced
by the manufacturer, its service agent or similarly
quali¿ed persons in order to avoid a hazard.
It is strongly recommended to be installed
with Earth Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD) to prevent
electric shock or ¿re.
This equipment must be earthed to prevent
electrical shock or ¿re.
Prevent electric shock by switching off the power
supply when:
- Before cleaning or servicing.
- Extended non-use.
- Abnormally strong lightning activity.
Stop using the product when any
abnormality/failure occurs and disconnect
the power plug or turn off the power
switch and breaker.
(Risk of smoke/Àre/electric shock)
Examples of
abnormality/
failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is
observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it is
switched on for operation.
• The fan does not stop even if the operation
is stopped.
Contact immediately your local dealer for
maintenance/repair. Power Supply
A r
Air Inlet
Air Ou l t
Air Outlet
Air Outlet
Air Inlet
Air n
Air nlet
Indoor Unit
Remote Control
Outdoor Unit

4
INFORMATION
INFORMATION
OPERATION CONDITION
OPERATION CONDITION
Use this air conditioner under the following temperature range
Temperature (°C) Indoor Outdoor
COOLING Maximum 32 43
Minimum 21 -5
HEATING Maximum 27 24
Minimum 16 -15
NOTICE: • This unit is still able to operate as a cooler with outdoor temperature as low as -5 C in a non-living room, such
as a computer room, with a room temperature of 21 C or above, and room humidity up to 80%.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and
2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your
local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement
set by the Directive for the chemical involved.
Pb

5
ENGLISH
MULTI
AIR
CONDITIONER
FUNCTION
MULTI
AIR
CONDITIONER
FUNCTION
DEFINITION
Multi air conditioner system has one outdoor unit connected to multiple indoor units.
Room C
Room C
Outdoor Unit
Outdoor Unit
Room B
Room B
Room A
Room A
• It is possible to operate the indoor units individually or simultaneously.
• The operation mode priority is given to the ¿rst unit that turned on.
• During operation, heating and cooling mode could not be activated at the same time for different indoor unit.
• The power indicator blinks to indicate the indoor unit is standing by for different operation mode.
INDOOR UNIT
INDOOR UNIT

6

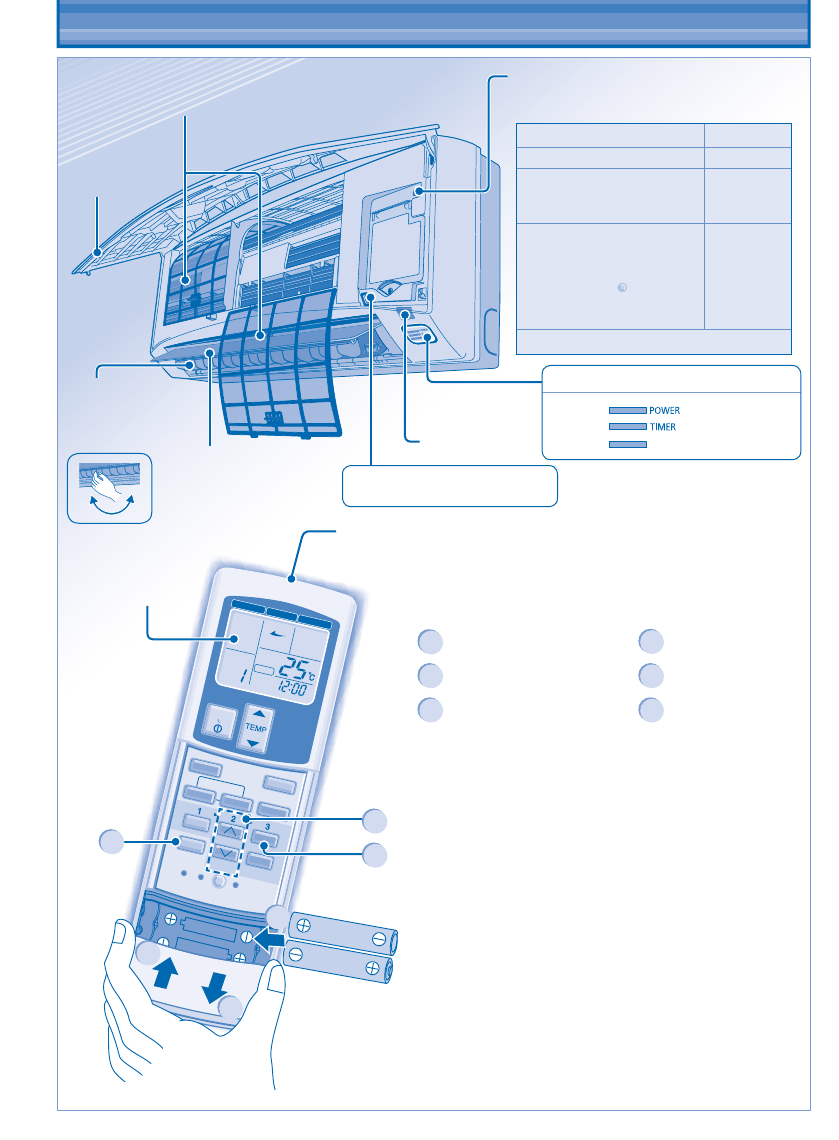

Remote Control Preparation
1Press and pull out 4Set time
2Insert AAA or R03 batteries
(can be used ~ 1 year) 5Con¿rm
3Press CLOCK 6Close the cover
Auto OFF/ON button
• To operate the unit if the wireless remote
control is misplaced or malfunctioning.
Action Mode
Press once. Auto
Press and hold until you hear 1
beep, then release. Cooling
1.Press and hold until you hear 2
beeps then release.
2.Press the
SET
button for 5 seconds.
Heating
Press the button to turn off.
PRODUCT
OVERVIEW
&
OPERATIONS
(WIRELESS REMOTE CONTROL)
PRODUCT
OVERVIEW
&
OPERATIONS
(WIRELESS REMOTE CONTROL)
ADDRESS
AUTOAUTO
TIMER
ON
MODE
AIR SWING
FAN SPEED
OFF ON
SET AC RESETRC RESET ADDRESS
AIR SWING
TIMER
SET
CANCEL
SELECT
CLOCK
FAN SPEED
F LTER RESET
MANUAL
MODE
AUTO
Remote control
display
5
4
3
1
2
6
Transmitter
Maximum distances: 8m
CZ-RWS1 (Heat-pump model)
CZ-RWC1 (Cooling model)
Front panel
Receiver
Horizontal airÀow
direction louver
• Manually
adjustable. Vertical airÀow
direction louver
• Do not adjust
by hand.
Air Filters
INDICATOR
(Green)
(Orange)
(Red)
FILTER
Error Code Display (For servicing use only)

7
ENGLISH

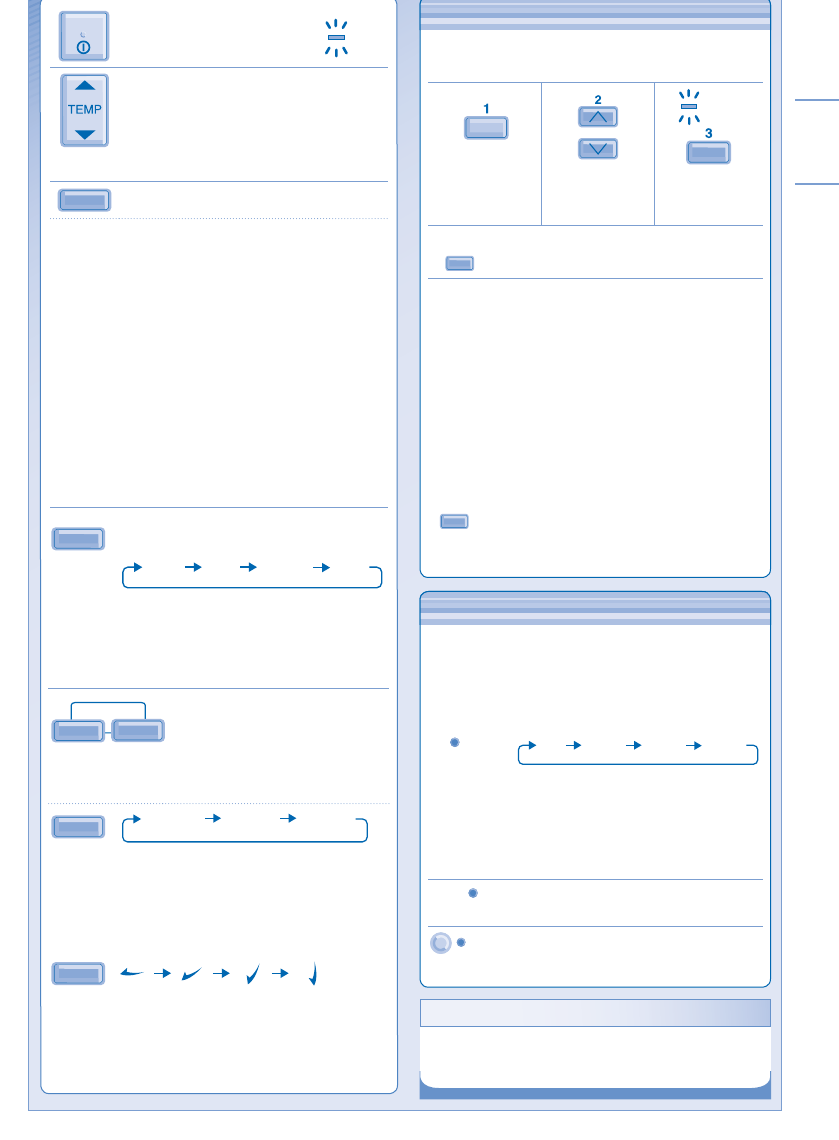

TO SET DAILY TIMER
TO SET DAILY TIMER
• To turn ON or OFF the unit at a preset time.
SELECT
TIMER
SET
Select ON or
OFF timer. Set the time. ConÀrm.
• To cancel ON or OFF timer, press
CANCEL
.
• When ON timer is set, the unit may start early before
the actual set time in order to achieve the desired
temperature on time.
• Timer operation is based on the clock set in the remote
control and repeats daily once set. For clock setting,
please refer to Remote Control preparation.
• The timer closest to the current time will be activated
¿rst.
• If timer is cancelled manually, you can restore the
previous setting by pressing SET .
• If the main power is switched off for an hour or more,
the clock and timer will need to be set again.
ADDRESS
• To avoid unintentional operation, you can
assign a different address to each indoor
unit.
• Press repeatedly to select your desired
address setting.
Address 1 Address 2Group Address 3
• By default, ADDRESS 1 is selected. You
do not need to change this setting for
normal operation.
• If the address is set to GROUP, more
than one indoor unit can be operated at
the same time.
RC RESET
Press to restore the remote control’s default
setting.
SET
AC RESET
Not used in normal operations.
HINT
HINT
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
OPTIONAL SETTINGS
OPTIONAL SETTINGS
FAN SPEED
TO SELECT FAN SPEED (3 OPTIONS)
LOW MEDIUMAUTO HIGH
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
• If the operation mode is set to Fan, the fan speed will
be ¿xed at MEDIUM regardless of the temperature
setting.
AIR SWING
MANUAL
AUTO
TO ADJUST AIRFLOW
DIRECTION
• Keeps the room ventilated.
• The air is discharge evenly through 4 output vents.
AUTO
AUTO 1 AUTO 2 AUTO 3
• There are 3 options for auto vertical airÀow direction
but with same swing angles.
• The vertical airÀow louver swings up and down
automatically.
• Do not adjust the vertical airÀow direction louvers by
hand.
MANUAL
• There are 4 options for manual vertical airÀow
direction.
• The airÀow direction can be adjusted as desired by
using remote control.
OFF/ON
TO TURN ON OR OFF THE
UNIT POWE
R
TO SET TEMPERATURE
• Selection range: 16 C ~ 31 C.
MODE TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects operation mode according to temperature
setting, outdoor and room temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up.
FAN mode - To enables air circulation in the room
COOL mode - To enjoy cool air
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
• During soft dry operation, the indoor fan operates at a
low fan speed.
• The louvers movement might not align with the remote
control display.

CHECK ODOUR WASH VENTILATION TEST RUN FILTER RESET
TEMP/
A/C No.
UP
DOWN
MODE
SELECT
SET
CANCEL
OFF /ON
TIMER/CLOCK
AIR SWING
ECONOMY
AUTO
AUTO
AUTO 1
FAN SPEED
AIR SWING
MON TUE WED THU FRI SAT SUN
ON
UP
DOWN
FAN
SPEED
AUTO
MODE
MANUAL
CZ RT1
8
Remote Control Preparation
1Press
S
ELECT
2Press to set day
3Con¿rm
4Repeat steps 2 and 3 to set the
current time.
• For normal operation, the
ODOUR WASH
,
ECONOMY
,
VENTILATION
and
TEST RUN
buttons are not in use.
3
1
2
PRODUCT
OVERVIEW
&
OPERATIONS
(WIRED REMOTE CONTROL)
PRODUCT
OVERVIEW
&
OPERATIONS
(WIRED REMOTE CONTROL)
CZ-RT1
Front panel
Horizontal airÀow
direction louver
• Manually
adjustable.
Vertical airÀow
direction louver
• Do not adjust
by hand.
Air Filters
INDICATOR
(Green)
(Orange)
(Red)
FILTER
Error Code Display (For servicing use only)

9
ENGLISH
TO SET DAILY TIMER
TO SET DAILY TIMER
• To turn ON or OFF the unit at a preset time.
12
MODE SELECT
Enter daily timer mode. Select ON or OFF timer.
34
UP
DOWN
SET
Set the time. ConÀrm.
• To cancel ON or OFF timer, press
CANCEL
.
• When ON timer is set, the unit may start early before
the actual set time in order to achieve the desired
temperature on time.
• Timer operation is based on the clock set in the remote
control and repeats daily once set. For clock setting,
please refer to Remote Control preparation.
• The timer closest to the current time will be activated
¿rst.
• If timer is cancelled manually, you can restore the
previous setting by pressing
SET
.
• If the main power is switched off for an hour or more,
the clock and timer will need to be set again.
FAN
SPEED
TO SELECT FAN SPEED (3 OPTIONS)
LO MEDAUTO HI
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
• If the operation mode is set to Fan, the fan speed will
be ¿xed at MED regardless of the temperature setting.
AIR SWING
AUTO MANUAL
TO ADJUST AIRFLOW
DIRECTION
• Keeps the room ventilated.
• The air is discharge evenly through 4 output vents.
AUTO
• The vertical airÀow louver swings up and down
automatically.
• Do not adjust the vertical airÀow direction louvers by
hand.
MANUAL
• There are 4 options for manual vertical airÀow
direction.
• The airÀow direction can be adjusted as desired by
using remote control.
HINT
HINT
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
OFF /ON
TO TURN ON OR OFF THE UNIT
UP
DOWN
TO SET TEMPERATURE
• Selection range: 16 C ~ 31 C.
MODE
TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects operation mode according to temperature
setting, outdoor and room temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up.
FAN mode - To enables air circulation in the room
COOL mode - To enjoy cool air
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
• During soft dry operation, the indoor fan operates at a
low fan speed.
• The louvers movement might not align with the remote
control display.

• Weekly timer is only applicable for wired remote
control, press
MODE
for 3 seconds to select daily
timer or weekly timer.
• Daily timer and weekly timer could not be set at the
same time.
• Promotes energy saving by allowing you to set up to
6 timers in any given day.
• Same timer program cannot be set on the same day.
Check Timer
Modify Or Add Timer
• Perform check timer operation to select the day.
Repeat steps 4 to 8 to modify existing timer program,
or add any new timer program.
Cancel Timer
• Perform the step below to cancel the timer program
for a particular day.
10
ON
OFF
TIMER
1
MON TUE WED THU FRI SAT SUN
23456
4. Press to cancel the
timer set.
Will light up if Timer
operation is selected
6 different programs can
be set in a day (1 ~ 6)
Time to be
selected (Interval
10 minutes)
ON-Timer. To automatically switch “ON” the unit.
OFF-Timer. To automatically
switch “OFF” the unit.
Day to be selected
Indicate the
selected day
CHECK ODOUR W SH V NT LAT ON TEST RUN FLTER RES T
TE
AC
MODE
SE ECT
SET
CANCEL
OFF /ON
T MER CLOCK
A R SW NG
ECONOMY
AUTO
AU O
AU O 1
AN PEED
A R SWING
WED HU RI S T SU
UP
DOWN
FAN
SPEED
AUTO MANUAL
CZ R 1
OUR WAS
MODE
SELECT
SET
CANCEL
TIMER/CLOCK
ECONOMY
UP
DOWN
CZ RT1
MODE
SELECT
SET
CANCEL
ECONOMY
UP
DOWN
MODE
SELECT
SET
CANCEL
TIMER/ LOCK
ECONOMY
UP
DOWN
TO SET WEEKLY TIMER
TO SET WEEKLY TIMER
Change Display
1. Press
MODE
for 3 seconds to change the display to
weekly timer.
Select days to run timer
2. Press
SELECT
to enter day setting.
3. Press to select your desired day.
The selected day will be highlighted with .
Press
SET
to deselect or select mark.
Repeat this step includes other day.
Select ON/OFF Timer
4. Press
SELECT
to enter Timer 1.
5. Press to choose ON or OFF.
6. Press
SET
to con¿rm the selection.
Select Timer
7. Press to select your desired time.
If you want to set together with your desired
temperature, press
UP
DOWN
to select the temperature.
8. Press
SET
to con¿rm the setting.
• Repeat steps 5 to 8 to set Timer 2 to 6, or press
CANCEL
to cancel the related timers.
Disable Weekly Timer
• To disable weekly timer setting, press
MODE
, then
press
CANCEL
.
Enable Weekly Timer
• To enable previous weekly timer setting, press
MODE
,
then press
SET
.
OPERATION DETAILS
OPERATION DETAILS
1. Enter timer mode.
2. Select the day.
3. The display will show the program for each of the
selected day.
1. Enter timer mode.
2. Select the day.
3. Press to enter day
setting.

11
Air Filter Maintenance
Cleaning is needed when: • lt is recommended to clean the air ¿lter every 6
weeks.
• After the air ¿lter is cleaned, press
FILTER RESET
/
FILTER RESET
to
reset.
• Do not operate without an air ¿lter.
• Wash/rinse the air ¿lter gently with water to avoid
damage to the air ¿lter surface.
• Do not dry the part with a hair dryer or a stove.
• Replace any damaged air ¿lter.
“FILTER RESET” appears on
the remote control display.
(For wired remote control)
“FILTER” lights up on the
indicator display.
(For wireless remote control)
ENGLISH
CARE
&
CLEANING
CARE
&
CLEANING
•Switch off the power supply before cleaning.
•Do not touch the aluminium Àn, sharp parts may cause injury.
CLEANING INSTRUCTIONS
CLEANING INSTRUCTIONS
• Do not use benzene, thinner or scouring powder.
• Use only soap ( pH7) or neutral household detergent.
• Do not use water hotter than 40 C.
HINTS
HINTS
• Clean the ¿lter regularly for best performance and to
reduce power consumption.
• Please consult your nearest dealer for seasonal
inspection.
AUTO FAN
COOL DRY
FILTER
RESET
AUTO
AUTO 123
FAN SPEED
A R SWING
(Green)
(Orange)
(Red)
FILTER
CAUTION
Remove
Remov
ALUMINIUM FIN
ALUMINIUM FIN
FRONT PANEL
FRONT PANEL
Remove Front Panel
• Raise and pull to remove the
front panel.
• Wash gently and dry.
Close Front Panel
• Press down both ends of the
front panel to close it securely.
Wipe the unit gently with a soft,
dry cloth.
INDOOR UNIT
INDOOR UNIT
AIR FILTERS
AIR FILTERS
• Air ¿lters cleaning is needed every two weeks.
• Wash/rinse the ¿lters gently with water to avoid
damage to the ¿lter surface.
• Dry the ¿lters thoroughly under the shade, away
from ¿re or direct sunlight.
• Replace any damage ¿lter.

12
TROUBLESHOOTING
TROUBLESHOOTING
Symptom
Symptom
Cause
Cause
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water Àowing sound during operation. • Refrigerant Àow inside the unit.
The room has a peculiar odour. • This may be due to damp smell emitted by the wall, carpet, furniture or
clothing.
Indoor fan stops occasionally during automatic
fan speed setting. • This helps to remove the surrounding odours.
Operation is delayed a few minutes after
restart. • The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Timer indicator is always on. • The timer setting repeats daily once set.
Indoor fan stops occasionally during heating
operation. • To avoid unintended cooling effect.
Cracking sound can be heard during
operation. • Changes of temperature cause the expansion/contraction of the unit.
Unit switch to FAN operation and air become
humid. • This happens when the room temperature reaches the set temperature, operation switches to FAN mode and the humidity increase.
Outdoor unit emits noise during heating
operation. • This is due to changes inÀow of refrigerant gas when operation stops and starts.
Operation does not stop immediately after
pressed the OFF/ON button. • Discharging heat is in process. Operation will stops automatically after approximately 60 seconds.
Operation stops occasionally. (“DEFROST”
appears on the remote control display) • The unit is in defrosting mode, and the melted frost is drained from the outdoor unit.
AirÀow does not start immediately after
operation is started. (“PRE HEAT” appears on
the remote control display)
• The unit is warming up to provide warm air.
Operation starts after power resumes. • Auto restart is in function and operates under previous setting.
During dry mode, cold air blow out.
• The unit is running cooling operation with low fan speed to dehumidify the room.
Fan speed change occasionally during heating
mode.
• The room temperature has reached the remote control setting. When the
room temperature drops again, the fan speed will resume to the remote
control settings.
Outdoor unit emits steam during heating
mode. • This is due to defrost operation happens at the heat exchanger.
The following symptoms do not indicate malfunction.
The following symptoms do not indicate malfunction.

13
ENGLISH
Symptom
Symptom
Check
Check
Heating/Cooling operation is not working
ef¿ciently. • Set the temperature correctly. • Close all doors and windows.
• Clean or replace the ¿lters.
• Clear any obstruction at the air inlet and air outlet vents.
Heating mode cannot be operated. • The unit is forced to operate at cooling mode only in a non-living room,
such as a computer room.
Noisy during operation. • Check if the unit has been installed at an incline or the intake grille is not
closed properly.
Remote control does not work.
(Wireless remote control display is dim or
transmission signal is weak.)
• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the
remote control. • Make sure the receiver not obstructed. • Make sure the address is set correctly.
• Make sure the remote control signal transmission is within the range.
• Certain Àuorescent lights may interfere with signal transmitter. Please
consult your nearest dealer.
The unit stopped and TIMER indicator blinks. •
Turn OFF the power supply to reset the unit (TIMER indicator stop blinking).
• Turn ON the power supply and restart the unit.
• If TIMER indicator blinks again, please consult your nearest dealer.
Check the following before calling for servicing.
Ch
ec
k
th
e
f
o
ll
ow
i
ng
b
e
f
ore ca
lli
ng
f
or serv
i
c
i
ng.
FOR SEASONAL INSPECTION AFTER EXTENDED
FOR SEASONAL INSPECTION AFTER EXTENDED
NON-USE
NON-USE
• Checking of remote control batteries (wireless remote
control).
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling/Heating
operation, after 15 minutes of operation, it is normal to
have the following temperature difference between air inlet
and air outlet vents:
Cooling: 8 C Heating: 14 C
NON SERVICEAB
NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY then CALLAuthorized
Distributor under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
FOR EXTENDED NON-US
FOR EXTENDED NON-USE
• Activate Heat Mode for 2~3 hours to remove moisture left
in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply.
• Remove the remote control batteries (wireless remote
control).

14
PERINGATAN
KESELAMATAN
PERINGATAN
KESELAMATAN
Untuk mengelakkan kecederaan diri sendiri, kecederaan orang lain, atau
kerosakan harta benda, sila patuhi peraturan di bawah.
Penggunaan yang tidak betul kerana gagal mematuhi arahan akan
menyebabkan kemalangan atau kerosakan, bahaya tersebut dikelaskan
seperti berikut:
AMARAN
Ini adalah amaran tentang perkara yang boleh
mengakibatkan maut atau cedera parah.
AWAS
Ini adalah amaran tentang perkara yang boleh
mengakibatkan kecederaan atau kerosakan pada
harta benda.
Arahan-arahan yang harus dipatuhi dikelaskan mengikut simbol-simbol
berikut:
Simbol ini menandakan perbuatan yang
DILARANG.
Simbol ini menandakan perbuatan yang
MESTI DIPATUHI.
Terima kasih kerana telah
membeli Alat Penyaman Udara
Panasonic
JADUAL KANDUNGAN
JADUAL KANDUNGAN
PERINGATAN KESELAMATAN
14~15
MAKLUMAT
16
FUNGSI ALAT PENYAMAN
UDARA BERBILANG
17
GAMBARAN KESELURUHAN
PRODUK & OPERASI
(ALAT KAWALAN JAUH
TANPA DAWAI)
18~19
GAMBARAN KESELURUHAN
PRODUK & OPERASI
(ALAT KAWALAN JAUH
TERDAWAI)
20~22
PENJAGAAN &
PEMBERSIHAN
23
MENGESAN MASALAH
24~25
PANDUAN SEGERA
HALAMAN BELAKANG
NOTA
NOTA
Ilustrasi dalam arahan operasi ini
adalah untuk tujuan penerangan
sahaja dan mungkin berbeza dengan
unit sebenar. Perubahan bagi tujuan
pembaikan akan dibuat tanpa sebarang
notis.
AMARAN
UNIT DALAMAN DAN UNIT LUARAN
Peralatan ini bukan untuk kegunaan individu (termasuk
kanak-kanak) yang kurang keupayaan ¿zikal, deria atau
mental, atau kurang pengalaman dan pengetahuan, melainkan
mereka diawasi atau diberi arahan tentang cara menggunakan
peralatan oleh orang yang bertanggungjawab atas keselamatan
mereka. Kanak-kanak harus diawasi bagi memastikan mereka
tidak bermain dengan alat ini.
Sila rujuk kepada pengedar yang bertauliah atau pakar untuk
membaiki, memasang, mengalih dan memasang semula alat
ini. Pemasangan dan pengendalian yang tidak betul akan
menyebabkan kebocoran, kejutan elektrik atau kebakaran.
Jangan pasang alat ini di atmosfera yang berpotensi meletup
atau mudah bakar. Kegagalan berbuat demikian boleh
mengakibatkan kemalangan api.
Jangan masukkan jari anda atau objek lain ke
dalam unit dalaman atau luaran alat penyaman
udara, komponen yang berputar boleh
menyebabkan kecederaan.
Jangan sentuh unit luaran semasa kilat, ia mungkin
menyebabkan kejutan elektrik.
ALAT KAWALAN JAUH
Jangan biarkan bayi dan kanak-kanak kecil bermain dengan
alat kawalan jauh bagi mengelakkan mereka tertelan bateri
secara tidak sengaja.

15
B.MALAYSIA
AWAS
UNIT DALAMAN DAN UNIT LUARAN
Jangan bersihkan unit dalaman ini dengan air,
benzena, bahan pencair atau serbuk sental.
Jangan gunakan alat ini untuk tujuan lain seperti
mengawet makanan.
Jangan gunakan sebarang peralatan yang
mudah terbakar di depan saluran keluar udara
untuk mengelakkan daripada merebakkan api.
Jangan duduk terlalu lama di depan aliran udara
sejuk.
Jangan duduk atau pijak unit ini, anda
mungkin terjatuh.
Jangan sentuh kepingan aluminium,
bahagian yang tajam boleh
menyebabkan kecederaan.
Jangan HIDUPKAN suis unit dalaman semasa
menggilap lantai dengan penggilap berlilin.
Selepas menggilap, alirkan udara bilik dengan
sempurna sebelum memulakan operasi unit.
Jangan pasang unit di kawasan berminyak dan
berasap.
Pastikan paip aliran air disambung dengan betul.
Jika tidak, kebocoran boleh berlaku.
Bilik hendaklah selalu dianginkan.
Selepas digunakan dalam tempoh yang lama,
pastikan rak pemasangan tidak menjadi rosak
untuk mengelakkan unit daripada terjatuh.
ALAT KAWALAN JAUH
Jangan guna bateri yang boleh dicas semula
(Ni-Cd).
Ia boleh merosakkan alat kawalan jauh.
Keluarkan bateri jika alat ini tidak digunakan
untuk jangka masa yang lama.
Bateri baru yang sama jenis mesti dimasukkan
mengikut arah kutub bateri yang dinyatakan
untuk mengelakkan alat kawalan jauh tidak
berfungsi.
AMARAN
BEKALAN KUASA
Jangan gunakan wayar yang
diubah suai, wayar yang
disambung-sambung, wayar
penyambung atau wayar
yang tidak ditentukan untuk
mengelakkan kepanasan
lampau dan kebakaran.
Jangan berkongsi saluran keluar kuasa yang
sama dengan peralatan lain untuk mengelakkan
kepanasan lampau dan kebakaran.
Jangan mengoperasikan alat ini dengan tangan
yang basah untuk menghalang kejutan elektrik.
Jika wayar bekalan kuasa rosak, ia perlu
diganti oleh pembuat, ejen servis atau orang
yang mempunyai kelayakan yang serupa bagi
mengelakkan bahaya.
Amat disyorkan untuk memasang Pemutus
Litar Bocoran Bumi (ELCB) atau Alat Arus Baki
(RCD) untuk mengelakkan kejutan elektrik atau
kebakaran.
Peralatan ini perlu dibumikan untuk mengelakkan
kejutan elektrik atau kebakaran.
Elakkan kejutan elektrik dengan mematikan
bekalan kuasa apabila:
- Sebelum membersihkan atau menservis.
- Tempoh tidak digunakan berlanjutan.
- Aktiviti kilat yang kuat.
Berhenti daripada menggunakan produk
jika berlaku sebarang keabnormalan/
kegagalan dan cabut palam kuasa
atau matikan suis kuasa dan pemutus
(Risiko asap/kebakaran/kejutan elektrik)
Contoh
/
keabnormalan/
kegagalan
• ELCB kerap terbelantik.
• Terdapat bau terbakar.
• Terdapat bunyi atau gegaran abnormal
pada unit.
• Air bocor daripada unit dalaman.
• Kord atau palam kuasa menjadi panas yang
abnormal.
• Kelajuan kipas tidak boleh dikawal.
• Unit berhenti serta-merta walaupun suis
dipasang untuk operasi.
• Kipas tidak berhenti walaupun operasi
dihentikan.
Hubungi pengedar di tempat anda untuk
penyelenggaraan/pembaikan.
Bekalan Kuasa
Salur udara masuk
Sa ur u a a k u r
Salur udara keluar
Salur udara
keluar
ur udar
Salur udara masuk
Salu a a mas
Salur udara masuk
Unit Dalaman
Alat Kawalan Jauh
Unit Luaran

16
MAKLUMAT
MAKLUMAT
KEADAAN OPERASI
KEADAAN OPERASI
Gunakan alat penyaman udara ini mengikut julat suhu berikut
Suhu (°C) Dalam Luar
PENYEJUKAN Maksimum 32 43
Minimum 21 -5
PEMANASAN Maksimum 27 24
Minimum 16 -15
NOTIS: • Unit ini masih boleh beroperasi sebagai penyejuk dengan suhu di luar serendah -5 C di dalam bilik selain bilik
rehat, seperti bilik komputer, dengan suhu bilik 21 C atau lebih tinggi, dan kelembapan bilik sehingga 80%.
Maklumat untuk Pengguna tentang Pungutan dan Pelupusan Peralatan Lama dan Bateri terpakai
Simbol-simbol ini pada produk, bungkusan, dan/atau dokumen yang disertakan bermaksud bahawa produk
elektrik dan elektronik dan bateri terpakai tidak harus dicampurkan dengan bahan buangan umum rumah.
Untuk pengendalian, pemulihan dan pengitaran semula produk lama dan bateri terpakai dengan cara yang
betul, sila bawanya ke tempat pengumpulan yang berkenaan, menurut undang-undang kebangsaan anda dan
Arahan 2002/96/EC dan 2006/66/EC.
Dengan melupuskan produk dan bateri ini dengan cara yang betul, anda membantu menjaga sumber bernilai
dan mengelakkan sebarang kemungkinan kesan negatif pada kesihatan manusia dan alam sekitar yang boleh
timbul daripada pengendalian bahan buangan yang tidak sempurna.
Untuk mendapatkan maklumat lanjut tentang pengumpulan dan pengitaran semula produk dan bateri lama, sila
hubungi majlis perbandaran tempatan anda, perkhidmatan pelupusan bahan buangan anda atau tempat jualan
di mana anda membeli item tersebut.
Denda boleh dikenakan atas pelupusan bahan buangan ini jika dibuat dengan cara yang salah, menurut
undang-undang kebangsaan.
Bagi pengguna perniagaan di Kesatuan Eropah
Jika anda ingin membuang peralatan elektrik dan elektronik, sila hubungi pengedar atau pembekal anda untuk
mendapatkan maklumat lanjut.
[Maklumat tentang Pelupusan di Negara lain di luar Kesatuan Eropah]
Simbol-simbol ini hanya sah dalam Kesatuan Eropah. Jika anda ingin membuang alat ini, sila hubungi pihak
berkuasa tempatan atau pengedar anda dan tanyakan tentang kaedah pelupusan yang betul.
Nota untuk simbol bateri (contoh dua simbol di bawah):
Simbol ini mungkin digunakan bersama-sama dengan simbol kimia. Dalam kes ini ia mematuhi keperluan yang
ditetapkan oleh Arahan untuk bahan kimia yang terlibat.
Pb

17
B.MALAYSIA
Bilik C
Bilik C
Bilik B
Bilik B
Bilik A
Bilik A
FUNGSI
ALAT
PENYAMAN
UDARA
BERBILANG
FUNGSI
ALAT
PENYAMAN
UDARA
BERBILANG
DEFINISI
Sistem penyaman udara berbilang mempunyai satu unit luaran yang disambungkan kepada berbilang unit dalaman.
Unit Luaran
Unit Luaran
• Boleh mengoperasi unit-unit dalaman secara berasingan atau serentak.
• Keutamaan mod pengoperasian diberi kepada unit yang paling dahulu dihidupkan.
• Semasa pengoperasian, mod pemanasan dan penyejukan tidak dapat diaktifkan serentak bagi unit dalaman yang
berlainan.
• Penunjuk kuasa berkelip untuk menunjukkan unit dalaman sedang menunggu sedia bagi mod operasi yang berbeza.
UNIT DALAMAN
UNIT DALAMAN

18
GAMBARAN
KESELURUHAN
PRODUK
&
OPERASI
(ALAT KAWALAN JAUH TANPA DAWAI)
GAMBARAN
KESELURUHAN
PRODUK
&
OPERASI
(ALAT KAWALAN JAUH TANPA DAWAI)
Paparan alat
kawalan jauh
Persediaan Alat Kawalan Jauh
1Tekan dan tarik keluar 4Tetapkan masa
2Masukkan bateri AAA atau R03
(boleh digunakan ~ 1 tahun) 5Sahkan
3Tekan CLOCK (JAM) 6Tutup penutup
Jarak Maksimum
pemancar: 8m
Butang HIDUP/MATI automatik
• Untuk mengoperasikan unit jika alat kawalan
jauh tanpa dawai hilang atau rosak.
Tindakan Mod
Tekan sekali. Auto
Tekan sehingga anda
mendengar 1 bip, kemudian
lepaskan. Penyejukan
1.Tekan sehingga anda
mendengar 2 bip kemudian
lepaskan.
2.Tekan butang
SET
selama 5
saat.
Pemanasan
Tekan butang untuk mematikan.
ADDRESS
AUTOAUTO
TIMER
ON
MODE
AIR SWING
FAN SPEED
OFF ON
SET AC RESETRC RESET ADDRESS
AIR SWING
TIMER
SET
CANCEL
SELECT
CLOCK
FAN SPEED
F LTER RESET
MANUAL
MODE
AUTO
5
4
3
1
2
6
Panel depan
Penerima
Ram arah aliran
udara mendatar
• Boleh dilaras
secara manual. Ram arah aliran
udara menegak
• Jangan laras
dengan tangan.
Penapis udara
PENUNJUK
(Hijau)
(Jingga)
(Merah)
FILTER
Paparan Kod Ralat
(Untuk kegunaan baik pulih sahaja)
CZ-RWS1 (Model pemanasan)
CZ-RWC1 (Model penyejukan)

19
B.MALAYSIA
UNTUK MENETAPKAN PEMASA HARIAN
UNTUK MENETAPKAN PEMASA HARIAN
• Untuk MENGHIDUPKAN atau MEMATIKAN unit pada
masa yang telah ditetapkan terlebih dahulu.
SELECT
TIMER
SET
Pilih ON(HIDUP)
atau OFF(MATI)
pemasa.
Tetapkan masa. Sahkan.
• Untuk membatalkan HIDUP atau MATI pemasa, tekan
CANCEL
.
• Apabila pemasa HIDUP ditetapkan, unit mungkin
dimulakan lebih awal sebelum masa tetapan sebenar
bagi mencapai suhu yang dikehendaki pada masa
yang ditetapkan.
• Operasi pemasa berdasarkan jam yang ditetapkan
pada alat kawalan jauh dan diulang setiap hari selepas
ditetapkan. Untuk penetapan jam, sila rujuk persediaan
Alat Kawalan Jauh.
• Pemasa yang paling hampir dengan waktu semasa
akan diaktifkan terlebih dahulu.
• Jika pemasa dibatalkan secara manual, anda boleh
mengembalikan tetapan sebelumnya dengan menekan
SET .
• Jika kuasa utama dimatikan selama satu jam atau
lebih, jam dan pemasa perlu ditetapkan semula.
ADDRESS
• Untuk mengelakkan operasi yang tidak
disengajakan, anda boleh peruntukkan
alamat berbeza untuk setiap unit
dalaman.
• Tekan berulang kali untuk memilih
tetapan alamat yang dikehendaki.
Address 1 Address 2Group Address 3
• Secara asalnya, ADDRESS 1 dipilih.
Anda tidak perlu mengubah tetapan ini
untuk operasi biasa.
• Jika alamat ditetapkan kepada GROUP,
lebih daripada satu unit dalaman boleh
beroperasi pada masa yang sama.
RC RESET
Tekan untuk mengembalikan tetapan asal
alat kawalan jauh.
SET
AC RESET
Tidak digunakan untuk operasi biasa.
PETUA
PETUA
• Gunakan langsir untuk menghalang cahaya matahari
dan haba dari luar bagi mengurangkan penggunaan
kuasa semasa mod sejuk.
PENETAPAN PILIHAN
PENETAPAN PILIHAN
FAN SPEED
UNTUK MEMILIH KELAJUAN KIPAS
(3 PILIHAN)
LOW MEDIUMAUTO HIGH
• Untuk AUTO, kelajuan kipas dalaman dilaraskan
secara automatik mengikut mod operasi.
• Jika mod operasi ditetapkan pada FAN, kelajuan kipas
akan ditetapkan pada MEDIUM tanpa mengambil kira
tetapan suhu.
AIR SWING
MANUAL
AUTO
UNTUK MELARAS
ARAH ALIRAN UDARA
• Mengekalkan aliran udara bilik.
• Udara dikeluarkan dengan sama rata melalui 4 salur
keluar.
AUTO
AUTO 1 AUTO 2 AUTO 3
• Terdapat 3 pilihan untuk arah aliran udara menegak
automatik tetapi dengan sudut ayunan yang sama.
• Ram aliran udara menegak berayun ke atas dan ke
bawah secara automatik.
• Jangan melaras ram arah aliran udara menegak
dengan tangan.
MANUAL
• Terdapat 4 pilihan untuk arah aliran udara menegak
manual.
• Arah aliran udara boleh dilaraskan seperti yang
diinginkan dengan menggunakan alat kawalan jauh.
OFF/ON
UNTUK MENGHIDUPKAN
ATAU MEMATIKAN UNIT POWER
UNTUK MENETAPKAN SUHU
• Julat pilihan: 16 C ~ 31 C.
MODE UNTUK MEMILIH MOD OPERASI
Mod AUTO – Untuk kemudahan anda
• Unit memilih mod operasi mengikut tetapan suhu, suhu
luaran dan suhu bilik.
Mod HEAT – Untuk menikmati udara panas
• Unit mengambil sedikit masa untuk pemanasan.
Mod FAN – Untuk membolehkan peredaran udara di
dalam bilik
Mod COOL – Untuk menikmati udara sejuk
Mod DRY – Untuk menyahlembapkan persekitaran
• Unit beroperasi pada kelajuan kipas yang rendah untuk
memberikan operasi penyejukan yang lembut.
• Ketika operasi kering lembut, kipas dalaman
beroperasi pada kelajuan kipas yang rendah.
• Pergerakan ram mungkin tidak sejajar dengan paparan
alat kawalan jauh.

20
GAMBARAN
KESELURUHAN
PRODUK
&
OPERASI
(ALAT KAWALAN JAUH TERDAWAI)
Persediaan Alat Kawalan Jauh
1Tekan
S
ELECT
2Tekan untuk menetapkan hari
3Sahkan
4Ulangi langkah 2 dan 3 untuk
menetapkan waktu semasa.
• Untuk operasi biasa, butang
ODOUR WASH
,
ECONOMY
,
VENTILATION
and
TEST RUN
tidak digunakan.
GAMBARAN
KESELURUHAN
PRODUK
&
OPERASI
(ALAT KAWALAN JAUH TERDAWAI)
CHECK ODOUR WASH VENTILATION TEST RUN FILTER RESET
TEMP/
A/C No.
UP
DOWN
MODE
SELECT
SET
CANCEL
OFF /ON
TIMER/CLOCK
AIR SWING
ECONOMY
AUTO
AUTO
AUTO 1
FAN SPEED
AIR SWING
MON TUE WED THU FRI SAT SUN
ON
UP
DOWN
FAN
SPEED
AUTO
MODE
MANUAL
CZ RT1
3
1
2
CZ-RT1
Panel depan
Ram arah aliran
udara mendatar
• Boleh dilaras
secara manual.
Ram arah aliran
udara menegak
• Jangan laras
dengan tangan.
Penapis udara
PENUNJUK
(Hijau)
(Jingga)
(Merah)
FILTER
Paparan Kod Ralat (Untuk kegunaan baik
pulih sahaja)
