Panasonic CS-PE9CKE User manual

1 Functions 2
2 Product Specifications 5
3 Dimensions 9
4 Refrigeration Cycle Diagram 11
5 Block Diagram 12
6 Wiring Diagram 13
7 Operation Details 15
8 Installation Instructions 47
9 Installation and Servicing Air Conditioner Using R410A 57
© Guangzhou Matsushita Air Conditioner Co., Ltd.
(GMAC) All rights reserved. Unauthorized copying
and distribution is a violation of law.
CS-PE9CKE
CU-PE9CKE
CS-PE12CKE
CU-PE12CKE
10 Disassembly of the parts 68
11 Trouble-shooting guide 73
12 Technical Data 75
13 Exploded View 76
14 Replacement Parts List 77
15 Exploded View 78
16 Replacement Parts List 79
17 Electronic Circuit Diagram 80
18 Electronic Circuit Diagram (Remote Control) 84
Room Air Conditioners
CONTENTS
Page Page
Order No. GMAC0401003C2
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

1 Functions
Operation START/STOP
Operation Mode Selection
Automatic Operation
Heating Mode Operation
Cooling Mode Operation
Soft Dry Mode Operation
Mode
Indoor Fan Speed Selection
Medium Speed
Low Speed
Supper Low Speed
Automatic Speed
Airflow Direction Control
Auto Airflow Direction
Airflow Direction Manual Control
Room Temperature Setting
Temperature Setting(16 to 30 )
Auto Operation
Check Point
Self diagnosis function
Reset Point
Clear memory data

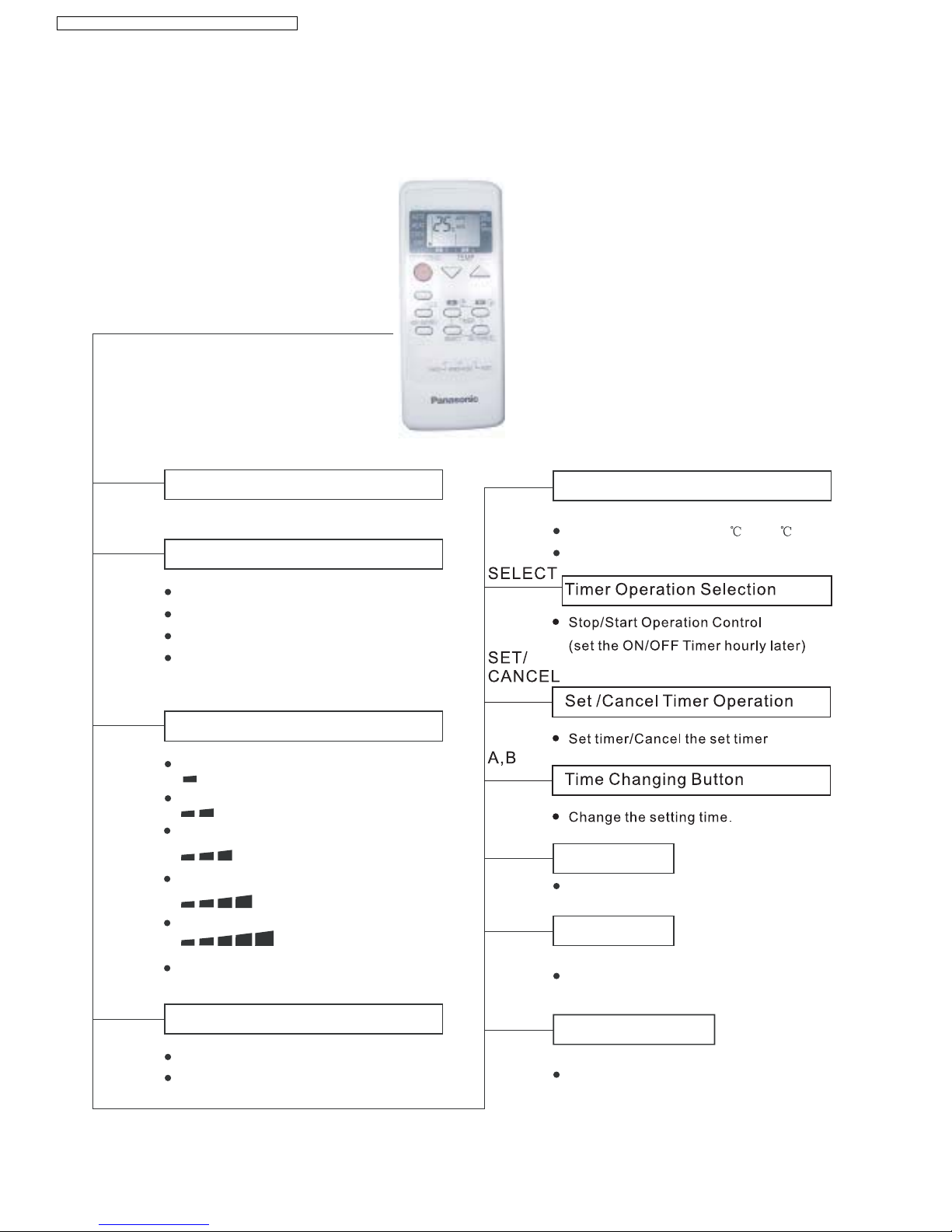

Remote Control
OFF/ON
MODE
FAN
SPEED
High Speed
Supper High Speed
AIR
SWING
TEMP
CHECK
RESET
Error Reset Point
To reset the indoor unit.
ERROR
RESET
2
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

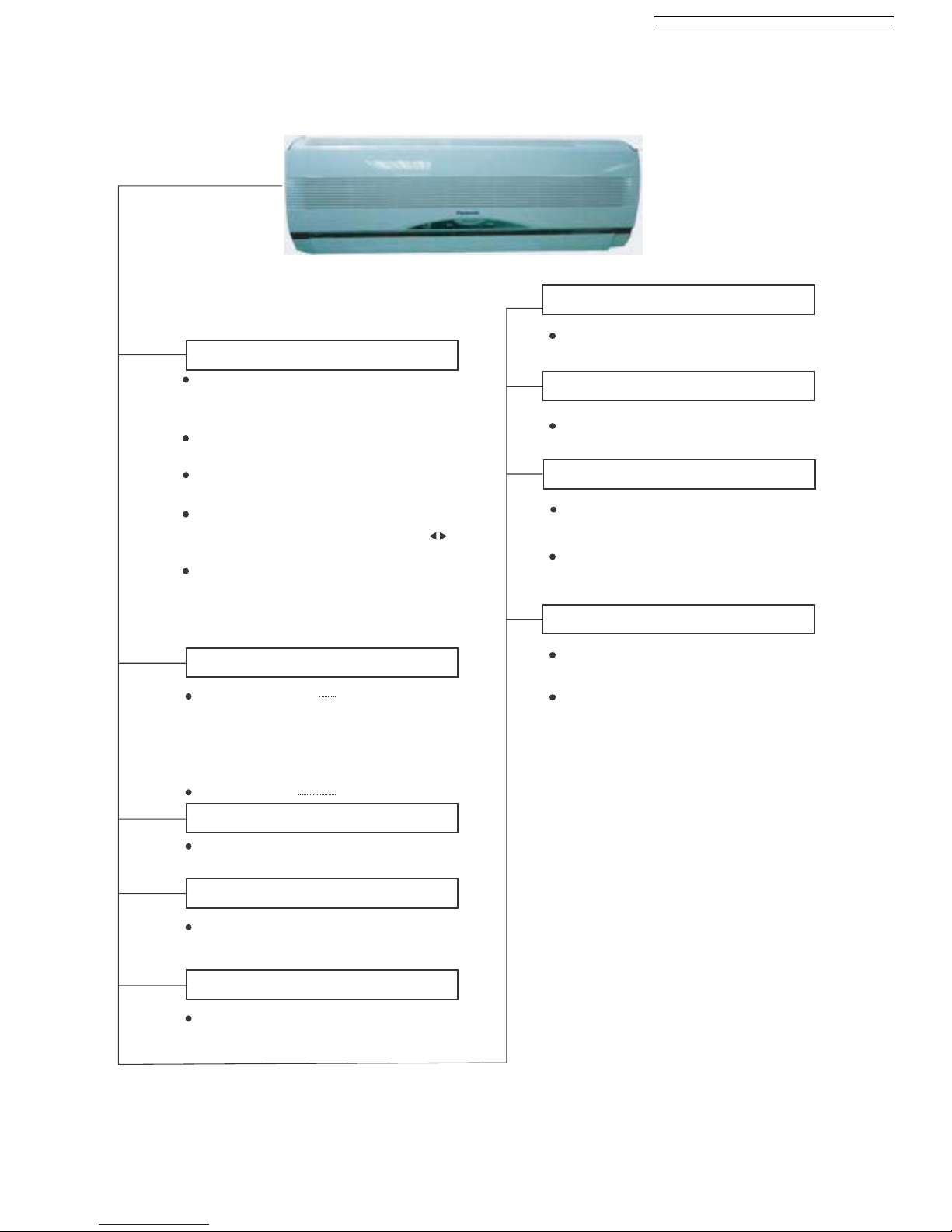

Indoor Unit

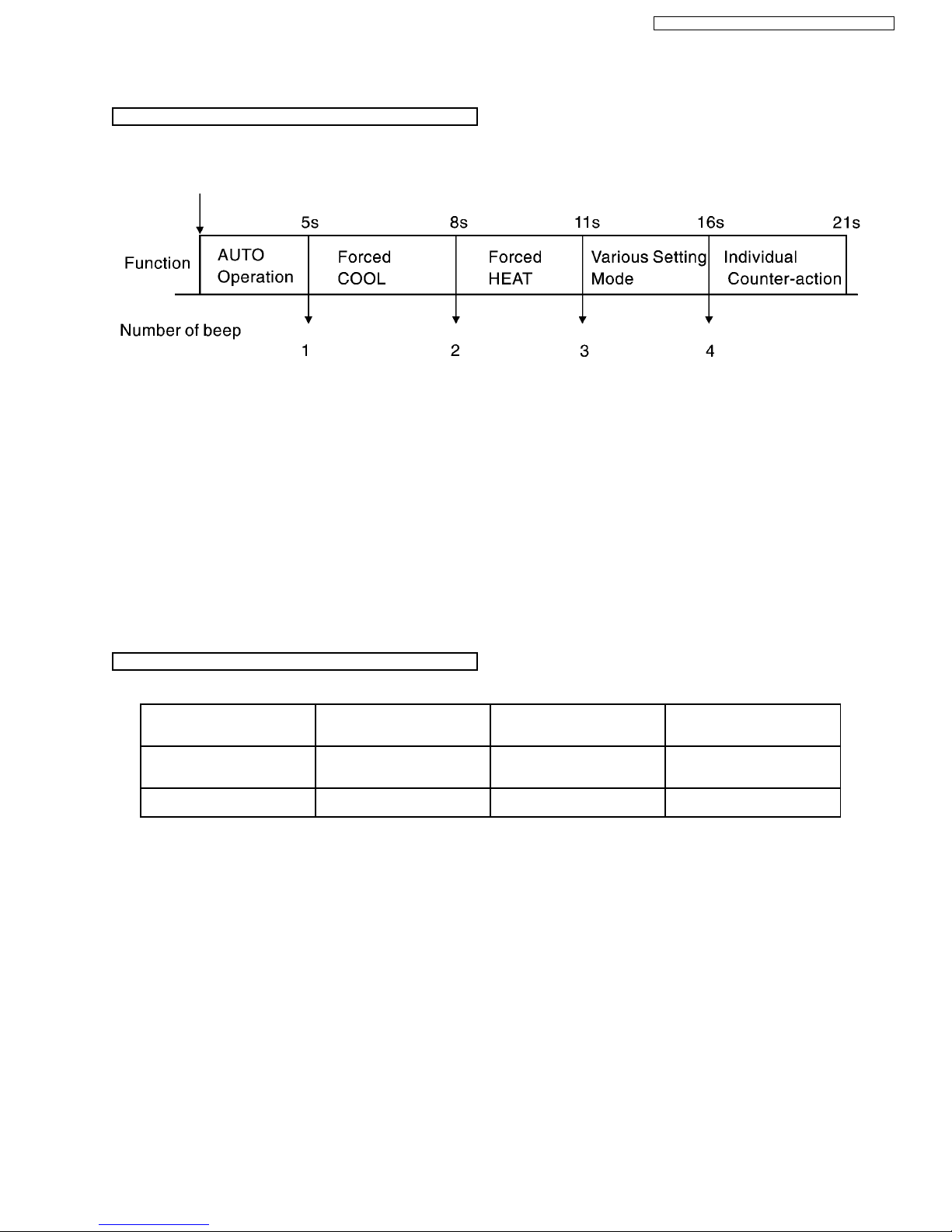

Automatic Operation Switch
Press for <5s to run Automatic Operation.
(Used when the remote control cannot be
used.)
Press continuously for 5s and < 8s to run
Forced Cooling Operation.
Press continuously for 8s and <11s to run
Forced Heating Operation.
Press continuously for 11s and <16s to change
different remote controlling setting(A B)
Mode.
Press continuously for 16s and < 21s to switch
OFF/ON Remote Control receiving Sound or
H14 Abnormality Detection Mode.
Operation Indication Lamps
Operation (green)
Timer(orange)
Iights up in operation
Blinks during Test
Run operation and
determining Auto
Operation mode
Timer in operation
Operation Mode
Heating/Cooling/Soft Dry Operation/
Auto Operation
Time Delay Safety Control
The unit will restart operation 3-4
minutes after each pause.
Auto Restart Control
Operation is restarted automatically at
previous mode after a power failure.
Anti-freezing Control for the Evaporator
Cooling or Soft Dry Operation
Supper Low , Low , Medium, High, Supper
High and Auto Fan Speed can be selected.
Deodorization control is available for
cooling and soft dry operation.
Indoor Fan Speed Control
Automatic Airflow Direction Control
The louver automatically swings up and down
Airflow Direction Manual Control
Airflow Direction Control
Anti-fog Discharge Control
Cooling or Soft Dry Operation
AUTO
OFF/ON
3
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

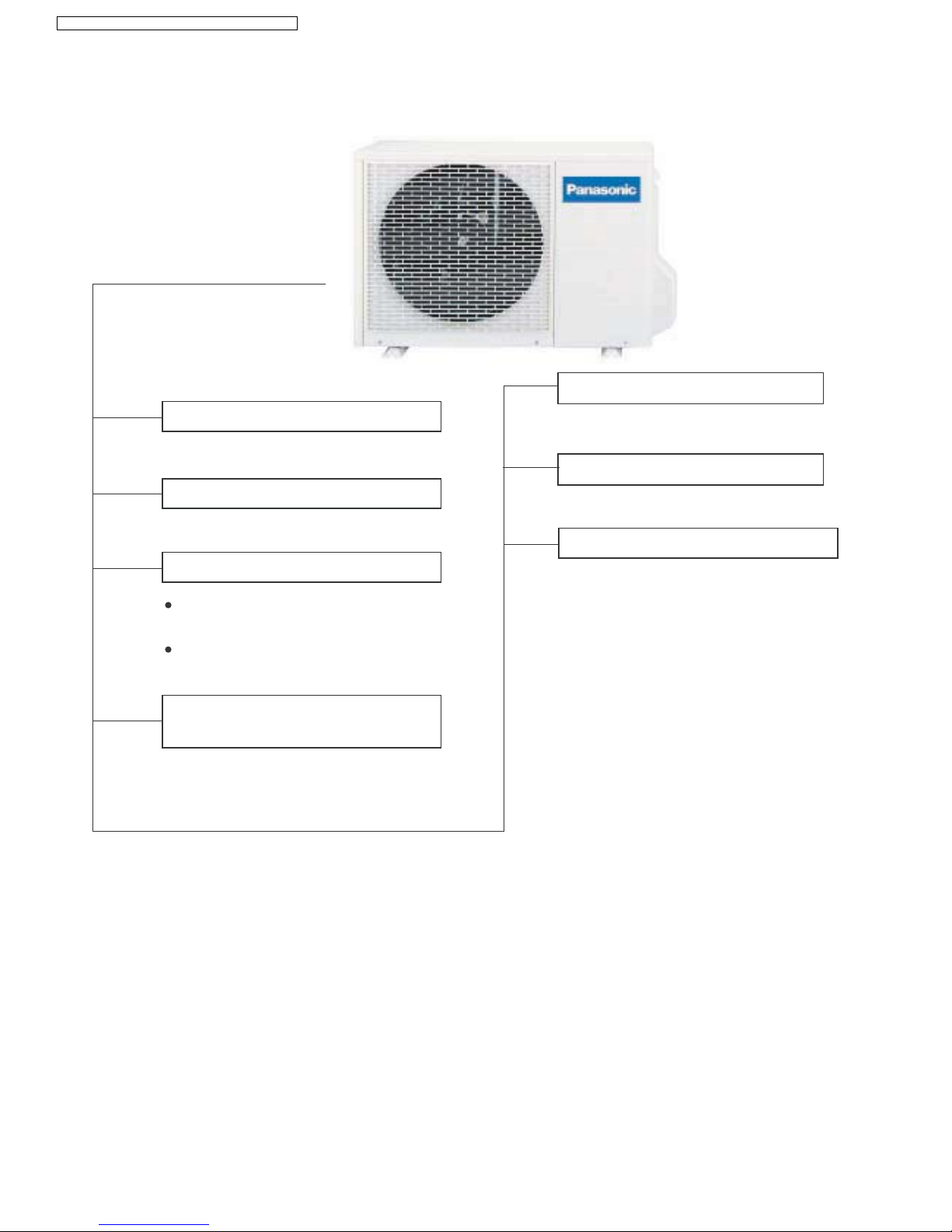

Outdoor Unit
Time Delay Safety Control
30 Seconds Forced Operation Control
Anti-freezing operation for outdoor unit(during
Heating Mode Operation only)
Temperature of the condenser is tested by TRS.
Deicing Control
Outdoor Fan Motor Control
Panasonic
IPM(Power Transistor)
Overheating Protection Control
Total Running Current Control
DC Peak Current Control
4
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

2 Product Specifications
Unit CS-PE9CKE CU-PE9CKE
Cooling Capacity kW 2.50(0.90-3.00)
Heating Capacity kW 3.7
Moisture Removal L/h 1.4
Power Source Phase
V
Cycle
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor air (low) m3/min 6.1 —
Indoor air (medium) m3/min 7.9 —
Indoor air (high) m3/min 9.7 —
Outdoor air m3/min — —
Noise Level dB(A) Cooling: High42, Low27 Cooling: High46
Heating: High42, Low27 Heating: High47
Electrical Data Input W Cooling: 780(190-1000)
Heating: 910(170-1110)
Running Current ACooling: 3.7
Heating: 4.0
EER W/W Cooling: 2.76
/COP Heating:3.63
Starting Current A 5.1
Piping Connection Port (Flare piping) Inch
Inch
G: half union 3/8"
L: half union 1/4"
G: 3-way valve 3/8"
L: 2-way valve 1/4"
Piping Size
(Flare piping)
Inch
Inch
G: gas side 3/8"
L: liquid side 1/4"
G: gas side 3/8"
L: liquid side 1/4"
Drain
Hose
Inner diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length (Number of core-wire) m 2.2
3 core-wire/1.5mm2
—
—
Dimensions Height mm 275 540
Width mm 799 780
Depth mm 210 289
Net Weight kg 8.5 32
Compressor Type —Rotary Type
Motor Type —Brushless
Rated Output W — 650
5
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

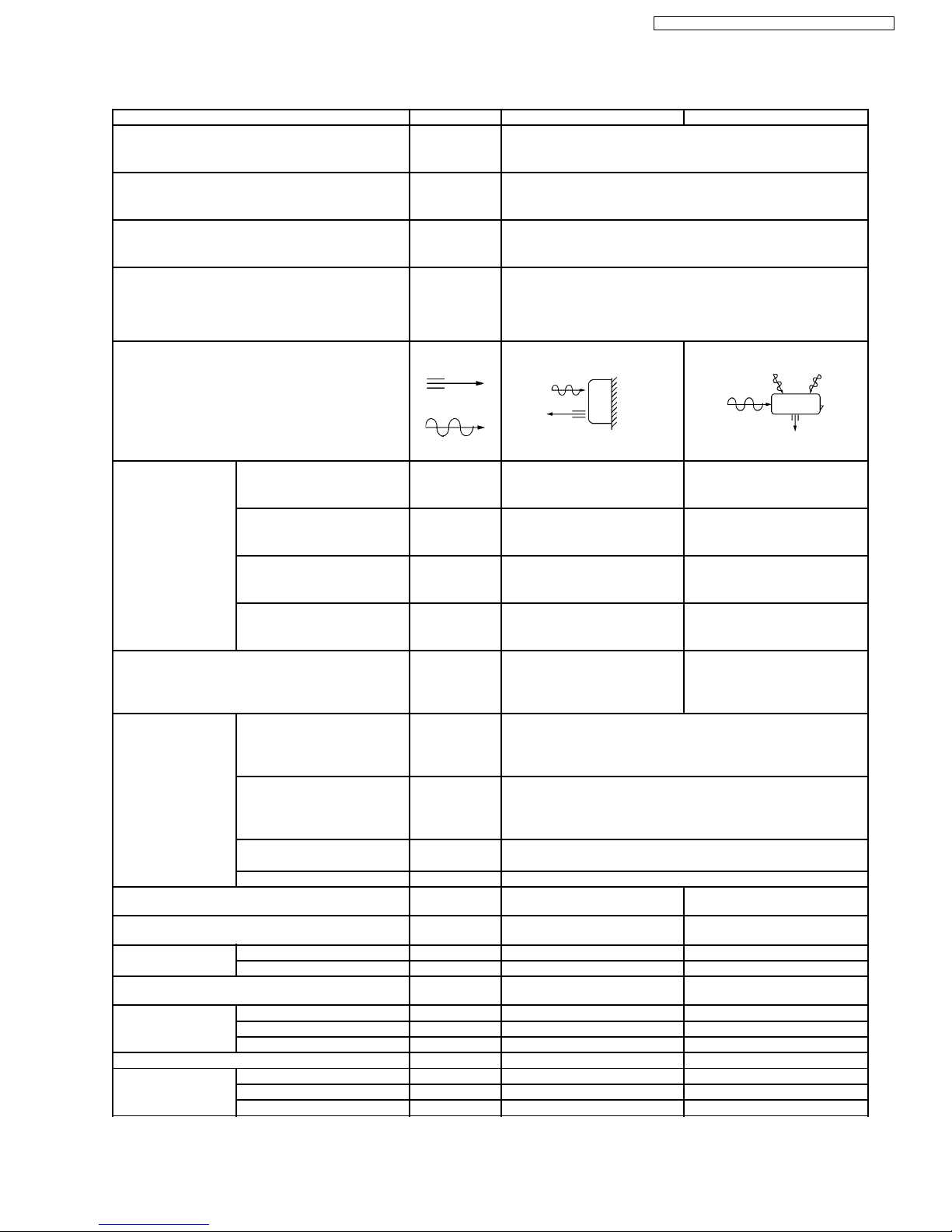

Unit CS-PE9CKE CU-PE9CKE
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Transistor(8poles) Induction (6 pole)
Input W — 56
Rated Output W 30 15
Fan Speed Low rpm 820±60 —
Medium rpm 1060±60 —
High rpm 1300±60 670±60
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 1×24
FPI 18 19
Dimensions mm 610 × 315 × 25.4 726 × 504 × 18.2
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — RB68A or Freol Alpha68A
Refrigerant (R410A) g — 840
Thermostat Electronic Control Overload Protector
Protection Device —
Capillary Length mm — 600
Circulation L/min — 8.15
Inner dia mm — 1.3
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Fan Motor Capacitor µFV — 1.2µF, 400V
• ••
• Specifications are subject to change without notice for further improvement
6
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-PE12CKE CU-PE12CKE
Cooling Capacity kW 3.15(0.90-3.80)
Heating Capacity kW 4.5
Moisture Removal L/h 2.1
Power Source Phase
V
Cycle
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor air (low) m3/min 6.7 —
Indoor air (medium) m3/min 8.3 —
Indoor air (high) m3/min 9.9 —
Outdoor air m3/min — —
Noise Level dB(A) Cooling: High42, Low30 Cooling: High48
Heating: High42, Low33 Heating: High50
Electrical Data
Input W Cooling: 980(190-1270)
Heating: 1130(170-1400)
Running Current ACooling: 4.5
Heating: 5.0
EER W/W Cooling:2.77
COP Heating: 3.63
Starting Current A 6.5
Piping Connection Port
(Flare piping)
Inch
Inch
G: half union 1/2"
L: half union 1/4"
G: 3-way valve 1/2"
L: 2-way valve 1/4"
Piping Size
(Flare piping)
Inch
Inch
G: gas side 1/2"
L: liquid side 1/4"
G: gas side 1/2"
L: liquid side 1/4"
Drain
Hose
Inner diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length
(Number of core-wire)
m 2.1
3 core-wire/1.5mm2
—
—
Dimensions Height mm 275 540
Width mm 799 780
Depth mm 210 289
Net Weight kg 8.5 36
Compressor Type —RotaryType
Motor Type —Brushless
Rated Output W — 650
7
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-PE12CKE CU-PE12CKE
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Transistor(8poles) Induction (6 pole)
Input W — 63
Rate Output W 30 25
Fan Speed Low rpm 880±60 —
Medium rpm 1100±60 —
High rpm 1310±60 770±30
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 2×24
FPI 18 17
Dimensions mm 610 × 315 × 25.4 726 × 504 × 36.4
696 × 504 × 36.4
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — RB68A or Freol Alpha68A
Refrigerant (R410A) g — 1020
Thermostat Electronic Control —
Protection Device — —
Capillary Length mm — Cooling: 310, Heating: 565
Circulation L/min — Cooling: 11.3, Heating: 12.3
Inner dia mm — Cooling: 1.3, Heating: 1.5
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Fan Motor Capacitor µFV — 1.8µF, 400V
• ••
• Specifications are subject to change without notice for further improvement
8
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

3 Dimensions
9
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

10
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

4 Refrigeration Cycle Diagram
11
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

5 Block Diagram
12
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

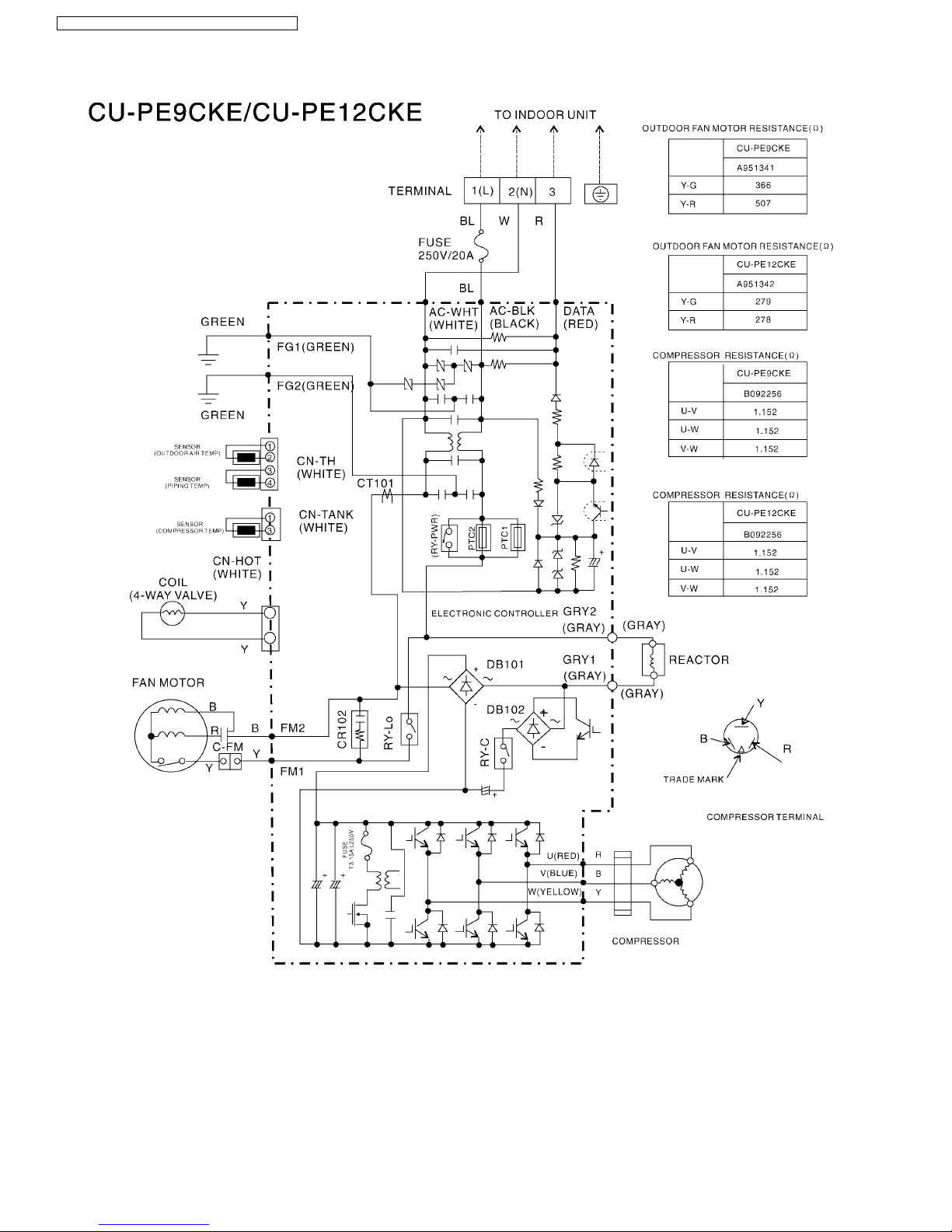

6 Wiring Diagram
13
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

14
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

1.Original Setting
2.ON/OFF Button
3.Mode Selecting Button

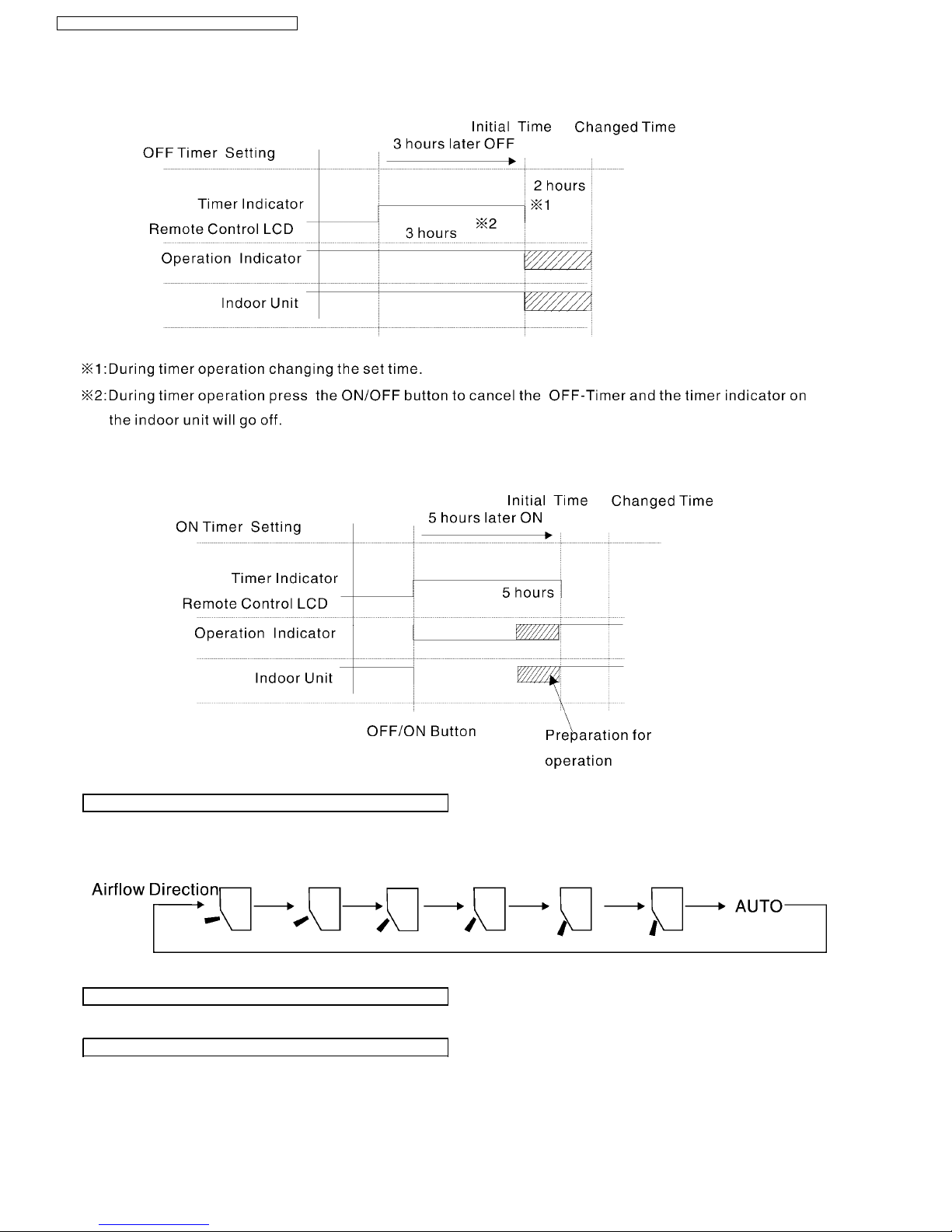

7 Operation Details
7.1. Operation and Display of Remote Controller
1. Function and Display of the button:
AUTO, HEAT, COOL, DRY can be selected by pressing the button. Initial display of LCD is as follow
MODE SET TEMP FAN SPEED AIR SWING
AUTO 25°C AUTO AUTO
HEAT 22°C AUTO AUTO
COOL 27°C AUTO AUTO
DRY 25°C AUTO AUTO
Keeping the button depressed continuously, the operation mode will change as
15
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

4.Fan Speed Button
2. Shift time of the Mode selection button
a. Single press
b. Keep depressed( less than 500ms)
c. Keep depressed continuously
If the ON/OFF button is pressed after the operation mode is set, or change the operation mode during operation, or the signal
is received from the remote controller, the indoor indicator will flash or light up to start the operation.
1. The display on the remote controller changes as follow by pressing the AIR SWING button.
2. If the ON/OFF button is pressed after the fan speed mode is set, or change the fan speed mode during operation, or the signal
is received from the remote controller, the indoor indicator will flash or light up to start the operation.
3. The shift time of the fan speed button is the same to that of mode selection button.
16
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

5.Temp Adjusting Button
6.Timer Set Button
1. Press this button to change the set temperature
2. If the ON/OFF button is pressed after temperature is set, or change the temperature during operation, or the signal is received
from the remote controller, the indoor indicator will flash or light up to start the operation.
1) The Function of the Timer-Setting Button
1. SELECT Button
2. Button A and B
The set time can be changed with manner of 1,2,3,4,5,6,7,8,9,10,11,12,1,2,3,4... by pressing the buttons.Pressing the button
A can change the time for ON Timer and OFF Timer, off time for OFF-ON Timer, on time for ON-OFF Timer; Pressing the button
B can change the time for on time for OFF-ON Timer and off time for ON-OFF Timer setting.
3. SET/CANCEL Button
Pressing the button to set or cancel the set timer during the timer setting or activate the previous timer setting.After the timer
setting is determined, “ON” or “OFF” will stop flashing. If the timer setting is cancelled, “ON” or“OFF” will disappear on the
remote control display.The time on the remote control will change every hour.
Notes:
a. During the operation, OFF Timer and OFF- ON Timer can be set.
b. Duing the operation, if the ON Timer or ON-OFF Timer is set, the operation will be stopped.
c. Timer setting can operate only once.
d. If the OFF/ON button on the remote control or the AUTO Switch on the indoor unit is pressed, the timer setting will be
cancelled.
e. If Auto Restart Control occurs , timer setting will be cancelled.
17
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

7.Air Swing Button
8.Display of Diagnosis
9.Change the Code of Remote Controller
2) Timing Chart of Timer-Setting
1. OFF Timer
2. ON Timer
1. The airflow direction will change as follow by pressing the AIR SWING button.
Refer to Diagnosis section.
Keep the "AUTO" switch on the indoor unit depressed for more than 11 seconds until 3 beeps are heard and the other remote
control code will be selected.
18
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

1.AUTO Operation Switch
2.Indoor Unit Indicator
7.2. Operation and Display of Indoor Unit
AUTO Operation
1. When the switch is pressed between 0 to 5 seconds, Auto Mode operation starts to function.
2. When the switch is pressed between 5 to 8 seconds, the unit is forced to operate in Cooling Mode.
3. When the switch is pressed between 8 to 11 seconds, the unit is forced to operate in Heating Mode.
4. When the switch is pressed between 11 to 16 seconds and together with the signal from the remote controller, the unit can
be changed to different controlling setting (A-B).
5. When the switch is pressed between 16 to 21 seconds, either H14 error detection selection mode or remote controller’s
signal receiving sound can be cancelled or turned on.
6. If the intake air temperature is less than 16°C and the Forced Cooling is activated, because the prior operation mode is
heating, the compressor will stop for 3 minutes to start the Forced Cooling operation.
ON OFF FLASH
Operation
(Green)
Run Stop Hot start, deice control,mode
judging and ON TimerOperation
detecting.
Timer
(Orange)
Timer set Timer not set Malfunction happens.
19
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

1.Indoor Fan Motor Control
7.3. Common Features
A. Basic Fan Speed
Fan speed is determined by the setting of the remote control. And W4~W6 can be calculated according the equations
below:
Me- :W4=W3+W10
Me :W5=W4+W10
Me+ :W6=W5+W10
20
CS-PE9CKE / CU-PE9CKE / CS-PE12CKE / CU-PE12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com
