Operating Instructions
Air Conditioner
Model No.
Indoor Unit Outdoor Unit
CS-T19KD2H5 CU-YT19KBH52
CS-T24KD2H5 CU-YT24KBH52
CS-T34KD2H5 CU-YT34KBH52
CS-T43KD2H5 CU-YT43KBH52
CU-YT19KBH5
CU-YT24KBH5
CU-YT34KBH5
CU-YT43KBH5
CU-YT19KBP5
CU-YT24KBP5
CU-YT34KBP5
CU-YT43KBP5
P07-T11230
ENGLISH 2 ~ 9
Before operating the unit, read these operating
instructions thoroughly and keep them for future
reference.
中文 10 ~ 17
在操作空調器前,請細讀此操作說明,並保
存此書以備日後參考。
B.MALAYSIA 18 ~ 25
Sebelum menggunakan unit ini, baca arahan
operasi ini dengan teliti dan simpan untuk rujukan
masa depan.
B.INDONESIA 27 ~ 36
Sebelum mengoperasikan unit, baca terlebih
dahulu petunjuk penggunaan secara teliti dan
simpan untuk referensi selanjutnya.
TIẾNG VIỆT 38 ~ 45
Đọc kỹhướng dẫn trước khi sửdụng và
giữtài liệu này cẩn thận để tham khảo
vềsau.

2
SAFETY PRECAUTIONS
To prevent personal injury, injury to others, or property damage, please
comply with the following.
Incorrect operation due to failure to follow instructions below may cause
harm or damage, the seriousness of which is classified as below:
WARNING
WARNING
This sign warns of death or serious injury.
CAUTION
CAUTION
This sign warns of injury or damage to
property.
The instructions to be followed are classified by the following symbols:
This symbol denotes an action that is
PROHIBITED.
These symbols denote an actions that
is COMPULSORY.
WARNING
WARNING
INDOOR UNITAND OUTDOOR UNIT
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Please consult authorized dealer or specialist to repair,
install, remove and reinstall the unit. Improper installation
and handling will cause leakage, electric shock or fire.
Do not install the unit in a potentially explosive or flammable
atmosphere. Failure to do so could result in fire.
Do not insert your fingers or other objects into the
air conditioner indoor or outdoor unit, rotating parts
may cause injury.
Do not touch the outdoor unit during lightning, it may cause
electric shock.
Thank you for purchasing
Panasonic Air Conditioner
TABLE OF CONTENTS
TABLE OF CONTENTS
SAFETY PRECAUTIONS 2~3
WIRED REMOTE CONTROL
4~6
CARE & CLEANING 7
TROUBLESHOOTING 8
INFORMATION 9
QUICK GUIDE
BACK COVER
NOTE
NOTE
The illustrations in this manual are for
explanation purposes only and may
differ from the actual unit. It is subjected
to change without notice for future
improvement.
OPERATION CONDITION
OPERATION CONDITION
Use this air conditioner under the following
temperature range
Temperature (°C) Indoor
COOLING Max. 32
Min. 21
Temperature (°C) Outdoor
COOLING Max. 43
Min. -5
* DBT: Dry bulb temperature
* WBT: Wet bulb temperature

ENGLISH
3
CAUTION
CAUTION
INDOOR UNITAND OUTDOOR UNIT
Do not wash the indoor unit with water, benzene,
thinner or scouring powder.
Do not use for other purpose such as
preservation of food.
Do not use any combustible equipment in front of
the airflow outlet to avoid propagation fire.
Do not expose yourself directly to cold air for a
long period.
Do not sit or step on the unit, you may
fall down accidentally.
Do not touch the sharp aluminium fin,
sharp parts may cause injury.
Do not switch ON the indoor unit when waxing
the floor. After waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and smoky areas.
Ensure drainage pipe is connected properly.
Otherwise, leakage may occur.
Aerate the room regularly.
After long period of use, make sure the
installation rack is not deteriorate to prevent the
unit from falling down.
WARNING
WARNING
POWER SUPPLY
Do not use modified cord,
joint cord, extension cord or
unspecified cord to prevent
overheating and fire.
Do not share the same power outlet with other
equipment to prevent overheating and fire.
Do not operate with wet hands to prevent electric
shock.
If the supply cord is damage, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
It is strongly recommended to be installed
with Earth Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD) to prevent
electric shock or fire.
This equipment must be earthed to prevent
electrical shock or fire.
In case of emergency or abnormal conditions
(burnt smell, etc), turn off the power supply, and
please consult authorized dealer.
Prevent electric shock by switching off the power
supply when:
- Before cleaning or servicing.
- Extended non-use.
- Abnormally strong lightning activity.
Air Outlet
Air Outlet
Air Inlet
Air Inlet
Air Inlet
Air Inlet
Outdoor
Unit
Power
Supply
Indoor
Unit
Remote
Control

4

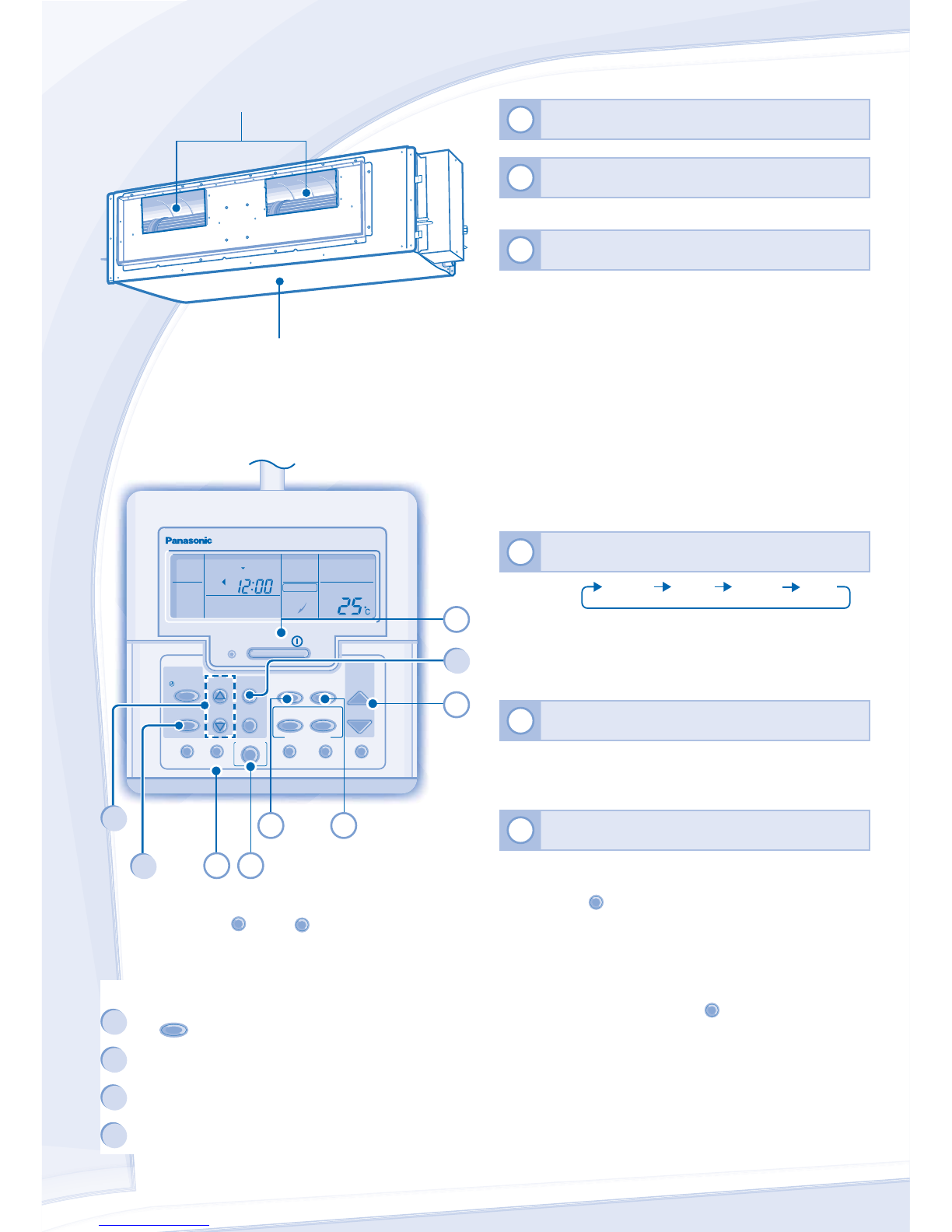

WIRED REMOTE CONTROL
Press the remote control’s button
1TO TURN ON OR OFF THE UNIT
2TO SET TEMPERATURE
• Selection range: 16˚C ~ 31˚C.
3TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects operation mode according to temperature
setting, outdoor and room temperature.
FAN mode - To enables air circulation in the room
COOL mode - To enjoy cool air
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
• During soft dry operation, the indoor fan operates at a low
fan speed.
• The louvers movement might not align with the remote
control display.
4TO SELECT FAN SPEED (3 OPTIONS)
FAN
SPEED
LO MEDAUTO HI
• For AUTO, the indoor fan speed is automatically adjusted
according to the operation mode.
• If the operation mode is set to Fan, the fan speed will be
fixed at MED regardless of the temperature setting.
5TO REDUCE POWER CONSUMPTION
• Recommend to use when desired room temperature is
reached.
• Economy operation can be activated in all modes and can
be cancelled by pressing the respective button again.
6TO ENJOY CLEAN AND FRESH AIR
ODOUR REMOVING
• Helps to remove unpleasant odour from the surrounding
area during operation.
• To enable the odour removing function, press the
ODOUR WASH
once.
• To cancel, press the respective button again.
ODOUR CLEAR
• To remove odour and minimize the growth of odour
causing moulds in the air conditioner’s interior section.
• To enable this function, press the
ODOUR WASH
for more than 3
seconds.
• The unit will automatically perform Fan mode for
approximately 20 minutes and then stops automatically.
• Recommended to open the windows during this
operation.
Remote Control Preparation
aPress
S
ELECT
bPress to set day
cConfirm
dRepeat steps “b” and “c” to set the current time.
• For normal operation, the
VENTILATION
and
TEST RUN
buttons are not
in use.
CHECK ODOUR WASH VENTILATION TEST RUN FILTER RESET
TEMP/
A/C No.
UP
DOWN
MODE
SELECT
SET
CANCEL
OFF /ON
TIMER/CLOCK
AIR SWING
ECONOMY
AUTO
AUTO
AUTO 123
FAN SPEED
AIR SWING
MON TUE WED THU FRI SAT SUN
ON
UP
DOWN
FAN
SPEED
AUTO
MODE
MANUAL
CZ-RD513C
1
2
34
56
Air outlet
Air inlet
b
a
c

ENGLISH
5

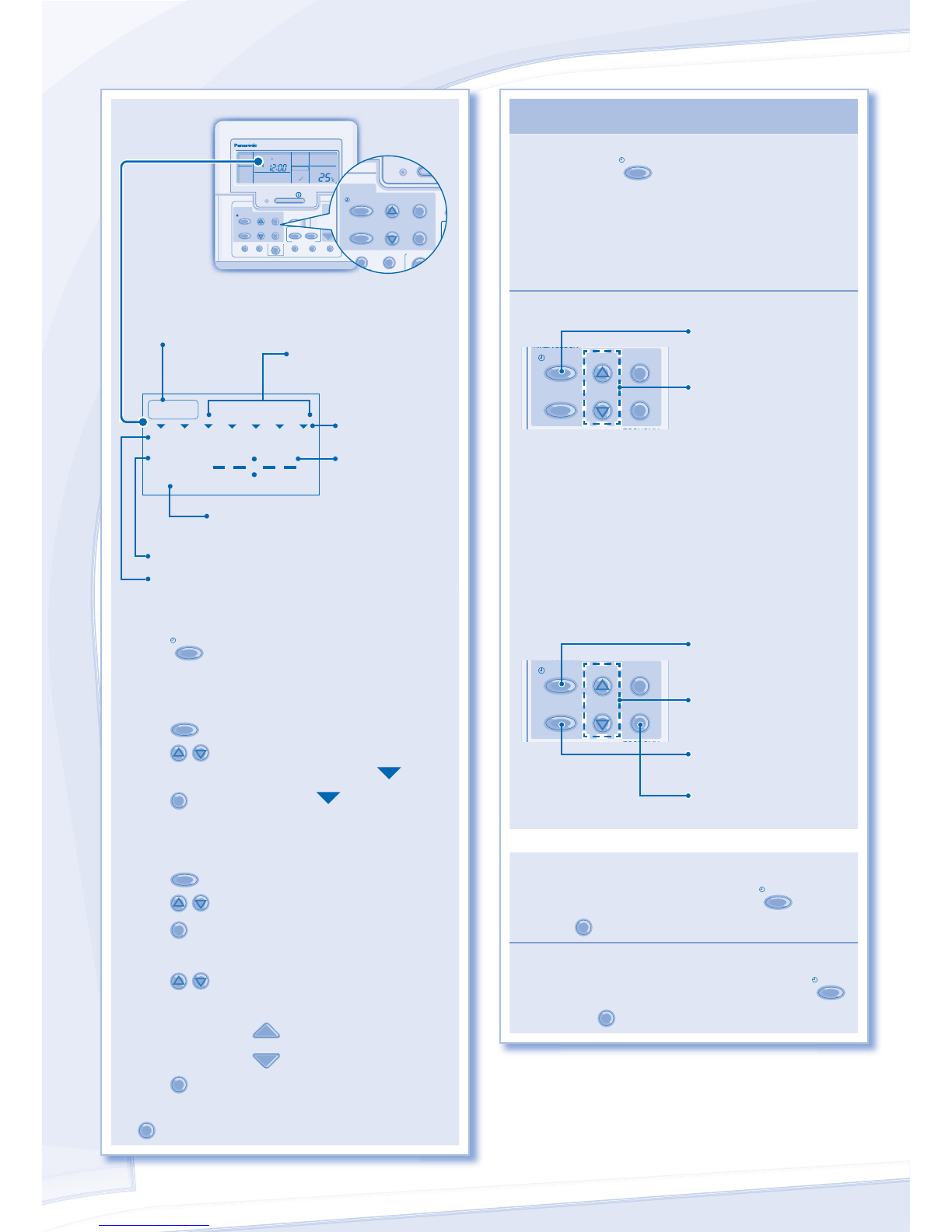

TO SET DAILY TIMER
TO SET DAILY TIMER
• To turn ON or OFF the unit at a preset time.
12
MODE SELECT
Enter daily timer mode Select ON or OFF timer
34
UP
DOWN
SET
Set the time Confirm
• To cancel ON or OFF timer, press
CANCEL
.
• When ON timer is set, the unit may start early before
the actual set time in order to achieve the desired
temperature on time.
• Timer operation is based on the clock set in the
remote control and repeats daily once set. For clock
setting, please refer to Remote Control preparation.
• The timer closest to the current time will be activated
first.
• If timer is cancelled manually, you can restore the
previous setting by pressing
SET
.
• If the main power is switched off for an hour or more,
the clock and timer will need to be set again.

6
ON
OFF
TIMER
1
MON TUE WED THU FRI SAT SUN
23456
Will light up if Timer
operation is selected
6 different programs can
be set in a day (1 ~ 6)
Time to be
selected (Interval
10 minutes)
ON-Timer. To automatically switch “ON” the unit.
OFF-Timer. To automatically
switch “OFF” the unit.
Day to be selected
Indicate the
selected day
CHECK ODOUR WASH VENTILATION TEST RUN FILTER RESET
TEMP/
A/C No.
UP
DOWN
MODE
SELECT
SET
CANCEL
OFF /ON
TIMER/CLOCK
AIR SWING
ECONOMY
AUTO
AUTO
AUTO 1 23
FAN SPEED
AIR SWING
MON TUE WED THU FRI SAT SUN
ON
UP
DOWN
FAN
SPEED
AUTO
MODE
MANUAL
CZ-RD513C
CHECK ODOUR WASH VE
MODE
SELECT
SET
CANCEL
OFF /O
TIMER/CLOCK
ECONOMY
UP
DOWN
CZ-RD513C
Change Display
1. Press
MODE
for 3 seconds to change the display to
weekly timer.
Select days to run timer
2. Press
SELECT
to enter day setting.
3. Press to select your desired day.
The selected day will be highlighted with .
Press
SET
to deselect or select mark.
Repeat this step includes other day.
Select ON/OFF Timer
4. Press
SELECT
to enter Timer 1.
5. Press to choose ON or OFF.
6. Press
SET
to confirm the selection.
Select Timer
7. Press to select your desired time.
If you want to set together with your desired
temperature, press
UP
DOWN
to select the temperature.
8. Press
SET
to confirm the setting.
• Repeat steps 5 to 8 to set Timer 2 to 6, or press
CANCEL
to cancel the related timers.
OPERATION DETAILS
OPERATION DETAILS
• Weekly timer is only applicable for wired remote
control, press
MODE
for 3 seconds to select daily
timer or weekly timer.
• Daily timer and weekly timer could not be set at the
same time.
• Promotes energy saving by allowing you to set up to
6 timers in any given day.
• Same timer program cannot be set on the same day.
Check Timer
MODE
SELECT
SET
CANCEL
TIMER/CLOCK
ECONOMY
UP
DOWN
1. Enter timer mode.
2. Select the day.
3. The display will show the program for each of the
selected day.
Modify OrAdd Timer
• Perform check timer operation to select the day.
Repeat steps 4 to 8 to modify existing timer program,
or add any new timer program.
Cancel Timer
• Perform the step below to cancel the timer program
for a particular day.
4. Press to cancel the
timer set.
MODE
SELECT
SET
CANCEL
TIMER/CLOCK
ECONOMY
UP
DOWN
1. Enter timer mode.
2. Select the day.
3. Press to enter day
setting.
Disable Weekly Timer
• To disable weekly timer setting, press
MODE
, then
press
CANCEL
.
Enable Weekly Timer
• To enable previous weekly timer setting, press
MODE
,
then press
SET
.
WEEKLY TIMER SETTING (WIRED REMOTE CONTROL)

ENGLISH
7
CAUTION
•Switch off the power supply before cleaning.
•Do not touch the aluminium fin, sharp parts may cause injury.
CARE & CLEANING
CLEANING INSTRUCTIONS
CLEANING INSTRUCTIONS
• Please consult your nearest dealer for any suction or discharge air grille (optional parts) cleaning.
• Do not use benzene, thinner or scouring powder.
• Use only soap ( pH7) or neutral household detergent.
• Do not use water hotter than 40°C.
Air Filter Maintenance
Cleaning is needed when:
Cleaning is needed when:
AUTO FAN
COOL DRY
FILTER
RESET
AUTO
AUTO 123
FAN SPEED
AIR SWING
MON TUE WED THU FRI SAT SUN
ON
“FILTER RESET” appears on the remote control display.
• Please consult your nearest dealer for any air filter maintenance or cleaning.
• After the air filter is cleaned, press
FILTER RESET
to reset.

8
TROUBLESHOOTING
The following symptoms do not indicate malfunction.
The following symptoms do not indicate malfunction.
SYMPTOM
SYMPTOM
CAUSE
CAUSE
Mist emerges from indoor unit. ►• Condensation effect due to cooling process.
Water flowing sound during operation. ►• Refrigerant flow inside the unit.
The room has a peculiar odour. ►• This may be due to damp smell emitted by the wall,
carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed
setting.
►• This helps to remove the surrounding odours.
Operation is delayed a few minutes after restart. ►• The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. ►• Condensation or evaporation occurs on pipes.
Cracking sound can be heard during operation. ►• Changes of temperature cause the expansion/contraction
of the unit.
Unit switch to FAN operation and air become humid. ►• This happens when the room temperature reaches the
set temperature, operation switches to FAN mode and
the humidity increase.
Operation does not stop immediately after pressed the
OFF/ON button.
►• Discharging heat is in process. Operation will stops
automatically after approximately 60 seconds.
Operation starts after power resumes. ►• Auto restart is in function and operates under previous
setting.
During dry mode, cold air blow out. ►• The unit is running cooling operation with low fan speed
to dehumidify the room.
Check the following before calling for servicing.
Check the following before calling for servicing.
SYMPTOM
SYMPTOM
CHECK
CHECK
Cooling operation is not working efficiently. ►• Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. ►• Check if the unit has been installed at an incline or the
intake grille is not closed properly.
The unit does not work. ►• Check if the circuit breaker is tripped.
• Check if timers have been set.
“
“
CHECK”
CHECK”
Display on Wired Remote Control.
Display on Wired Remote Control.
If the “CHECK” indicator flashes on the wired remote
control.
• Turn off the unit.
• Turn on again after 3 minutes.
• If “CHECK” continues to blink, press
CHECK
for error messages.
If problem persist, please consult your nearest authorized
dealer.

ENGLISH
9
INFORMATION
Information for Users on Collection and Disposal of Old Equipment and used Batteries
[Information on Disposal in other Countries
outside the European Union]
These symbols are only valid in the European
Union. If you wish to discard these items,
please contact your local authorities or dealer
and ask for the correct method of disposal.
Note for the battery symbol (bottom two
symbol examples):
This symbol might be used in combination with
a chemical symbol. In this case it complies with
the requirement set by the Directive for the
chemical involved.
Pb
FOR SEASONAL INSPECTIONAFTER EXTENDED
NON-USE
• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• After 15 minutes of operation, it is normal to have the
following temperature difference between air inlet and
air outlet vents:
Cooling: ≥8°C
FOR EXTENDED NON-USE
• Activate Fan mode for 2~3 hours as an alternative to
remove moisture left in the internal parts thoroughly to
prevent mould growth.
• Turn off the power supply.
• Remove the remote control batteries.
NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY then CALL Authorized
Distributor under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote
control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
• The odour persists even after odour wash operation is
used continuously.

10
感謝您購買
Panasonic 空調器
目錄
目錄
安全措施 10~11
有線遙控器 12~14
保養與清洗 15
故障檢修 16
信息 17
簡易指南
封底
操作條件
操作條件
在以下溫度範圍內使用空調器
溫度 (°C) 室內
制冷 最高 32
最低 21
溫度 (°C) 室外
制冷 最高 43
最低 -5
* DBT:
乾球溫度
* WBT: 濕球溫度
安全措施
為了防止個人傷害，危害其他人或財物的損失，請遵守以下
指示。
因不遵守以下指示導致的錯誤操作將引起傷害或損壞，其嚴重
程度分類如下：
警告
警告 此標識所示的行為有可能導致嚴重傷
害或死亡。
注意
注意
此標識所示的行為有可能導致傷害或
財產損失。
要遵守的指示按下列符號分類：
此符號表示被禁止的行為。
此符號表示務必執行的行為。
警告
警告
室内機及室外機
此裝置不適合殘疾、感應欠佳或智障，經驗與知識
不足的人士（包括兒童）使用。除非負責其安全的
監督人從旁監督或指示如何正確使用此裝置。務必
監督兒童以確保他們不會玩弄本機。
請諮詢授權經銷商或專業人員修理，安裝，拆卸
和重新安裝本機。安裝不當將導致漏電，觸電或
火災。
切勿將本機安裝在爆炸或可燃性的環境中。否則會
導致火災。
切勿把手指或其他物件插入空調器的室内
或室外機以免受到旋轉部件傷害。
閃電時切勿觸摸室外機，否則會導致觸電。
注
注
本操作說明書裡的圖解僅作為說
明用途,並且可能與實際產品有所
區别。若因為產品改進而發生變
更,恕不另行通知。
