Panasonic CS-TE25TKEW User manual

Nederlands Italiano Deutsch Español Français English
ACXF55-04100
Model No.
Indoor Unit Outdoor Unit
CS-TE20TKEW
CS-TE25TKEW
CS-TE35TKEW
CS-TE42TKEW
CS-TE50TKEW
CS-TE60TKEW
CS-TZ20TKEW
CS-TZ25TKEW
CS-TZ35TKEW
CS-TZ42TKEW
CS-TZ50TKEW
CS-TZ60TKEW
CS-TZ71TKEW
CS-MTZ16TKE
Outdoor Unit
Single Split (R410A)
CU-TE20TKE
CU-TE25TKE
CU-TE35TKE
CU-TE42TKE
CU-TE50TKE
CU-TE60TKE
Single Split (R32)
CU-TZ20TKE
CU-TZ25TKE
CU-TZ35TKE
CU-TZ42TKE
CU-TZ50TKE
CU-TZ60TKE
CU-TZ71TKE
Multi Split (R410A)
CU-3E18PBE
CU-4E23PBE
CU-4E27PBE
CU-5E34PBE
CU-2E12SBE
CU-2E15SBE
CU-2E18SBE
CU-3E23SBE
CU-2RE15SBE
CU-2RE18SBE
CU-3RE18SBE
Multi Split (R32)
CU-2Z35TBE
CU-2Z41TBE
CU-2Z50TBE
CU-3Z52TBE
CU-3Z68TBE
CU-4Z68TBE
CU-4Z80TBE
CU-5Z90TBE
CU-2TZ41TBE
CU-2TZ50TBE
CU-3TZ52TBE
Operating Instructions
Air Conditioner
Operating Instructions
Air Conditioner
2-15
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
The included Installation Instructions should be kept and read
by the installer before installation.
Remote control is packaged in the indoor unit and removed
by the installer before installation.
Comment utiliser l’appareil
Climatiseur
16-29
Avant d’utiliser l’appareil, veuillez lire ce mode d’emploi dans
son intégralité et conservez-le pour toute référence ultérieure.
Le manuel d’installation inclus doit être conservé et lu par
l’installateur avant l’installation.
La télécommande est emballée dans l’unité intérieure et
retirée par l’installateur avant l’installation.
Instrucciones de funcionamiento
Climatizador de aire
30-43
Antes de utilizar la unidad, sírvase leer atentamente estas
instrucciones de funcionamiento y conservarlas para futuras
consultas.
El instalador debe guardar y leer las Instrucciones de
instalación incluidas antes de la instalación.
El mando a distancia viene embalado en la unidad interior y
debe ser retirado por el instalador antes de la instalación.
Bedienungsanleitung
Klimagerät
44-57
Bevor Sie das Gerät in Betrieb nehmen, lesen Sie bitte diese
Bedienungsanleitung aufmerksam durch und bewahren Sie
sie als künftige Referenz auf.
Das mitgelieferte Installationshandbuch sollte aufbewahrt und
vor der Installation vom Installateur gelesen werden.
Die Fernbedienung ist im Innengerät verpackt und wird vor
der Installation durch den Installateur entfernt.
Istruzioni di funzionamento
Condizionatore d’aria 58-71
Prima di utilizzare l’unità, leggere attentamente le istruzioni
e conservare questo opuscolo per potervi fare riferimento in
futuro.
Le istruzioni per l’installazione fornite in dotazione
devono essere conservate e lette dall’installatore prima
dell’installazione.
Il telecomando si trova nell’unità interna e deve essere
rimosso dall’installatore prima dell’installazione.
Handleiding
Airconditioner
72-85
Lees voor u het apparaat gebruikt deze gebruikshandleiding
grondig en bewaar deze voor toekomstig gebruik.
De bijgevoegde installatiehandleiding moet door de
installateur worden bewaard en gelezen vóór de installatie.
De afstandsbediening is in de binnenunit verpakt en moet
vóór de installatie door de installateur worden verwijderd.
ACXF55-04100_01EN.indd 1ACXF55-04100_01EN.indd 1 12/19/2016 5:29:53 PM12/19/2016 5:29:53 PM
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Panasonic CS-
TE25TKEW o cerca il tuo prodotto tra le migliori offerte di Climatizzazione

2

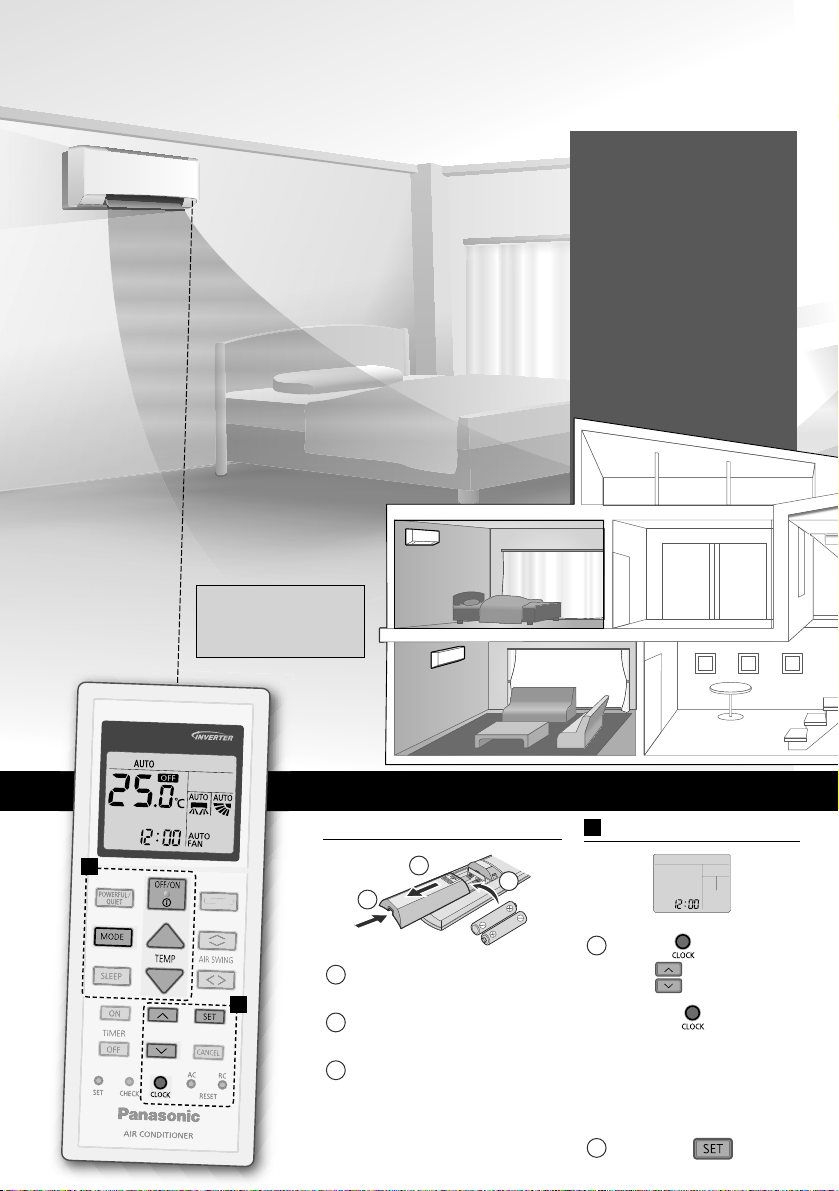

Multi air
conditioner
system
Multi air conditioner
systems save space
by letting you connect
multiple indoor units to
a single outdoor unit.
For complete product features,
please refer catalogue.
Provides maximum comfort and clean air
with optimal energy saving methods.
Use remote
control within 8 m
from the remote
control receiver of
the indoor unit.
Quick Guide
Inserting the batteries
12
3
1Pull out the back cover
of remote control.
2
Insert AAA or R03
batteries.
3Close the cover.
AClock setting
1Press and
set the
time .
•Press and hold
for approximately
5 seconds to show
time in 12-hour
(am/pm) or 24 hour
indication.
2Confirm .
* Remote control display
and functions may
vary depending on the
model.
FAN SPEED
FAN SPEED
A
B
ACXF55-04100_01EN.indd 2ACXF55-04100_01EN.indd 2 12/19/2016 5:29:54 PM12/19/2016 5:29:54 PM

3
English
Table of contents
Safety precautions ………… 4-7
How to use
……………………… 8-9
To learn more
…………… 10-11
Cleaning instructions
……… 12
Troubleshooting
………… 13-15
Information………………… 86
Accessories
• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control
holder × 2
The illustrations in this manual are for
explanation purposes only and may differ
from the actual unit. They are subject
to change without notice for future
improvement.
BBasic operation
1Press to select
the desired mode.
DRY
AUTO HEAT
COOL
2Press to start/
stop the operation.
POWER
•Please note that
the indication
is on display to
start the unit.
3Select the desired
temperature.
Up
Down
Selection range:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
•Press and hold for
approximately 10 seconds
to switch the temperature
indication in °C or °F.
Thank you for purchasing
Panasonic Air Conditioner.
ACXF55-04100_01EN.indd 3ACXF55-04100_01EN.indd 3 12/19/2016 5:29:55 PM12/19/2016 5:29:55 PM

4
Safety precautions
To prevent personal injury, injury to
others or property damage, please
comply with the following:
Incorrect operation due to failure to
follow instructions below may cause
harm or damage, the seriousness of
which is classified as below:
This appliance is not intended for
accessibility by the general public.
For appliance filled with R32
(mild flammable refrigerant).
If the refrigerant is leaked and
exposed to an external ignition
source, there is a risk of fire.
WARNING
This sign
warns of
death or
serious
injury.
CAUTION
This sign
warns of
injury or
damage to
property.
The instructions to be followed are
classified by the following symbols:
This symbol denotes an
action that is PROHIBITED.
These symbols denote
actions COMPULSORY.
WARNING
Indoor unit and outdoor unit
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
Please consult authorised dealer
or specialist to clean the internal
parts, repair, install, remove
and reinstall the unit. Improper
installation and handling will
cause leakage, electric shock or
fire.
Confirm with authorised dealer
or specialist on usage of any
specified refrigerant type.
Using refrigerant type other than
the specified may cause product
damage, burst and injury etc.
Do not install the unit in
a potentially explosive or
flammable atmosphere.
Failure to do so could result in
fire.
Do not insert your fingers
or other objects into the
air conditioner indoor or
outdoor unit, rotating parts
may cause injury.
Do not touch the outdoor
unit during lightning, it may
cause electric shock.
Indoor unit
Outdoor unit
Power supply
Remote control
Air inletAir inlet
Air inletAir inlet
Air outletAir outlet
Air outletAir outlet
ACXF55-04100_01EN.indd 4ACXF55-04100_01EN.indd 4 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM

5
EnglishSafety precautions
Do not expose yourself directly
to cold air for a long period to
avoid excess cooling.
Do not sit or step on the
unit, you may fall down
accidentally.
Remote control
Do not allow infants and small
children to play with the remote
control to prevent them from
accidentally swallowing the
batteries.
Power supply
Do not use a
modified cord, joint
cord, extension cord
or unspecified cord to
prevent overheating
and fire.
To prevent overheating, fire or
electric shock:
•Do not share the same power
outlet with other equipment.
•Do not operate with wet hands.
•Do not over bend the power
supply cord.
•Do not operate or stop the unit
by inserting or pulling out the
power plug.
If the supply cord is damaged,
it must be replaced by the
manufacturer, service agent or
similarly qualified persons in
order to avoid a hazard.
It is strongly recommended to
be installed with Earth Leakage
Circuit Breaker (ELCB) or
Residual Current Device (RCD)
to prevent electric shock or fire.
To prevent overheating, fire or
electric shock:
•Insert the power plug properly.
•Dust on the power plug should
be periodically wiped with a dry
cloth.
Stop using the product if any
abnormality/failure occurs and
disconnect the power plug or
turn off the power switch and
breaker.
(Risk of smoke/fire/electric
shock)
Examples of abnormality/failure
•The ELCB trips frequently.
•Burning smell is observed.
•Abnormal noise or vibration of
the unit is observed.
•Water leaks from the indoor
unit.
•Power cord or plug becomes
abnormally hot.
•Fan speed cannot be controlled.
•The unit stops running
immediately even if it is
switched on for operation.
•The fan does not stop even if
the operation is stopped.
Contact your local dealer
immediately for maintenance/
repair.
This equipment must be earthed
to prevent electrical shock or fire.
Prevent electric shock by
switching off the power supply
and unplug:
-Before cleaning or servicing,
-When extended non-use, or
-During abnormally strong
lightning activity.
ACXF55-04100_01EN.indd 5ACXF55-04100_01EN.indd 5 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM

6
Safety precautions
WARNING
Precaution for appliance filled
with R32
Pay careful attention to the following
points when operating the appliances
and dealing with different refrigerants.
The appliance shall be installed,
and/or operated in a room with
floor area larger than Amin (m²)
and keep away from ignition
sources, such as heat/sparks/
open flame or hazardous areas
such as gas appliances, gas
cooking, reticulated gas supply
systems or electric cooking
appliances, etc. (Refer to Table
A of Installation instructions table
for Amin (m²))
Be aware that refrigerant may
not contain an odour, highly
recommended to ensure suitable
flammable refrigerant gas
detectors are present, operating
and able to warn of a leak.
Since the working pressure is
higher than that of refrigerant
R22 models, some of the piping
and installation and service tools
are special.
Especially, when replacing a
refrigerant R22 model with a new
refrigerant R32 model, always
replace the conventional piping
and flare nuts with the R32 and
R410A piping and flare nuts on
the outdoor unit side.
The R32 flare nut and pipe on
the outdoor unit side can also be
used for a R410A model.
Models that use refrigerant R32
and R410A have a different
charging port thread diameter to
prevent erroneous charging with
refrigerant R22 and for safety.
Therefore, check beforehand.
[The charging port thread
diameter for R32 and R410A is
12.7 mm (1/2 inch).]
Be extra careful so that foreign
matter (oil, water, etc.) does not
enter the piping.
Also, when storing the piping,
securely seal the opening by
pinching, taping, etc. (Handling
of R32 is similar to R410A.)
This appliance shall be stored in
a well ventilated area.
This appliance shall be stored
in a room without continuously
operating open flames and
ignition sources.
This appliance shall be stored
so as to prevent mechanical
damage from occurring.
Do not use means to accelerate
the defrosting process or
to clean, other than those
recommended by manufacturer.
Any unfit method or using
incompatible material may cause
product damage, burst and
serious injury.
Do not pierce or burn as the
appliance is pressurized. Do not
expose the appliance to heat,
flame, sparks, or other sources
of ignition. Else it may explode
and cause injury or death.
ACXF55-04100_01EN.indd 6ACXF55-04100_01EN.indd 6 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM

7
English
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit
with water, benzine, thinner
or scouring powder to avoid
damage or corrosion at the unit.
Do not use for preservation
of precise equipment, food,
animals, plants, artwork or other
objects. This may cause quality
deterioration, etc.
Do not use any combustible
equipment in front of the airflow
outlet to avoid fire propagation.
Do not expose plants or pet
directly to airflow to avoid injury,
etc.
Do not touch the sharp
aluminium fin, sharp parts
may cause injury.
Do not switch ON the indoor
unit when waxing the floor. After
waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and
smoky areas to prevent damage
to the unit.
Do not dismantle the unit for
cleaning purpose to avoid injury.
Do not step onto an unstable
bench when cleaning the unit to
avoid injury.
Do not place a vase or water
container on the unit. Water may
enter the unit and degrade the
insulation. This may cause an
electric shock.
Do not open window or door
for long time during operation,
it may lead to inefficient power
usage and uncomfortable
temperature changes.
Safety precautions
Prevent water leakage by
ensuring drainage pipe is:
-Connected properly,
-Kept clear of gutters and
containers, or
-Not immersed in water
After a long period of use or use
with any combustible equipment,
aerate the room regularly.
After a long period of use, make
sure the installation rack does
not deteriorate to prevent the unit
from falling down.
Remote control
Do not use rechargeable (Ni-Cd)
batteries. It may damage the
remote control.
To prevent malfunction or
damage of the remote control:
•Remove the batteries if the unit
is not going to be used for a
long period of time.
•New batteries of the same type
must be inserted following the
polarity stated.
Power supply
Do not disconnect the plug
by pulling the cord to prevent
electric shock.
ACXF55-04100_01EN.indd 7ACXF55-04100_01EN.indd 7 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM

8
How to use
To adjust airflow direction
To adjust fan speed
To switch between powerful/quiet
POWERFUL:
To reach the preset temperature quickly
•This operation stops automatically after 20 minutes.
QUIET:
To enjoy quiet operation
•This operation reduces airflow noise.
•For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
•To have low noise priority operation, select the
lowest fan speed ( ).
AUTO
FAN
Indicator
POWER
(Green)
TIMER
(Orange) •Do not adjust the flap by hand.
To adjust airflow direction
To adjust airflow direction
AIR SWING
Upper direction
(CS-TE/TZ20/25/35/42TKEW, CS-MTZ16TKE)
To adjust airflow direction
AIR SWING
Upper direction
Lateral direction
(CS-TE50/60TKEW, CS-TZ50/60/71TKEW)
•For lateral direction, it is manually
adjustable as shown.
•Do not adjust the flap by hand.
CS-TE50/60TKEW
CS-TZ50/60/71TKEW
FAN SPEED
Not used
in normal
operations.
Press to restore
the remote
control to default
setting.
CS-TE/TZ20/25/35/42TKEW
CS-MTZ16TKE
FAN SPEEDFAN SPEED
ACXF55-04100_01EN.indd 8ACXF55-04100_01EN.indd 8 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM

9
English
See "To learn more..." for details.

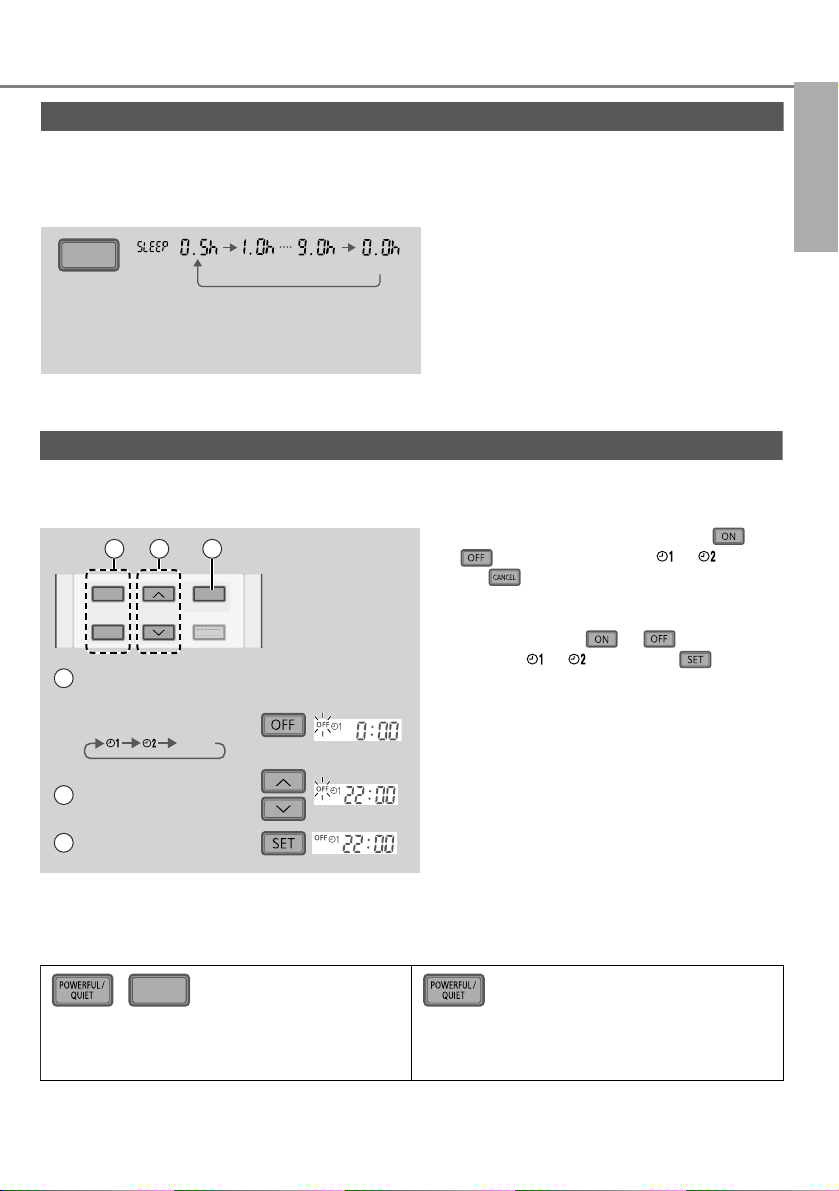

To set the timer
Note
,
SLEEP
•Can be activated in all modes and can be
cancelled by pressing the respective button
again.
•Cannot be selected at the same time.
ON
OFF
TIMER
CANCEL
SET
C
AN
C
E
L
21 3
1Select ON or OFF
timer Example: OFF at 22:00
•Each time pressed:
Cancel
2Set the time
3Confirm
•To cancel ON or OFF timer, press
or to select respective or then
press .
•If timer is cancelled manually or due to
power failure, you can restore the timer
again by pressing or to select
respective or then press .
•The nearest timer setting will be displayed
and will activate in sequence.
•Timer operation is based on the clock set
in the remote control and repeats daily
once set. For clock setting, please refer to
Quick Guide.
2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset
times.
How to use
To maximise comfort while sleeping
• This operation can be set together with timer.
Sleep operation has the priority over OFF
timer.
• This operation can be cancelled by pressing
the respective button when the sleep timer
reaches 0.0h.
This operation provides you with a comfortable environment while sleeping. It will
automatically adjust the sleep pattern temperature during the activation period. The indoor
unit indicator will dim when this operation is activated. This is not applicable if the indicator
brightness has been manually dimmed.
SLEEP
(Cancel)
This operation is incorporated with the
activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9
hours).
ACXF55-04100_01EN.indd 9ACXF55-04100_01EN.indd 9 12/19/2016 5:29:57 PM12/19/2016 5:29:57 PM

10
Operation mode
AUTO : During operation, the POWER indicator will blinks at initial.
Single •Unit selects operation mode every 10 minutes according to the setting and room
temperatures.
Multi •Unit selects operation mode every 3 hours according to setting temperature,
outdoor temperature and room temperature.
•It is possible to operate the indoor units individually or simultaneously. The priority
of operation is placed on the first unit that turned on.
•During operation, HEAT and COOL modes cannot activate at the same time for
different indoor units.
•The power indicator blinks to indicate the indoor unit is standing by for different
operation mode.
HEAT : The POWER indicator blinks at the initial stage of this operation. Unit takes a while
to warm up.
Multi •For system which HEAT mode has been locked, if operation mode other than
HEAT is selected, the indoor unit stops and the POWER indicator blinks.
COOL : Provides efficient comfort cooling to suit your needs.
DRY : Unit operates at low fan speed to give a gentle cooling operation.
Energy saving temperature setting
Operating the unit within the recommended temperature range may save energy.
HEAT : 20.0 °C ~ 24.0 °C / 68 °F ~ 75 °F.
COOL: 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.
Air flow direction
In COOL/DRY mode:
(CS-TE/TZ20/25/35/42TKEW, CS-MTZ16TKE)
If AUTO is set, the flap swings up/down automatically.
(CS-TE50/60TKEW, CS-TZ50/60/71TKEW)
I f AUTO is set, the flap swings left/right and up/down automatically.
In HEAT mode:
If AUTO is set, the horizontal flap is fixed at the predetermined position. The vertical flap
swings left/right after the temperature rises.
Auto restart control
If power is resumed after a power failure, the operation will restart automatically after a
period of time with previous operation mode and airflow direction.
•This control is not applicable when TIMER is set.
To learn more...
ACXF55-04100_01EN.indd 10ACXF55-04100_01EN.indd 10 12/19/2016 5:29:58 PM12/19/2016 5:29:58 PM

11
English
Operating conditions
Use this air conditioner in the temperature range indicated in the table.
Temperature °C (°F) Indoor Single split outdoor unit *1Multi split outdoor unit *2
DBT WBT DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8) 46 (114.8) 26 (78.8)
Min. 16 (60.8) 11 (51.8) -10 (14.0) - -10 (14.0) -
HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4) 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -15 (5.0) -16 (3.2) -15 (5.0) -16 (3.2)
Temperature °C (°F) Multi split outdoor unit *3
DBT WBT
COOL Max. 43 (109.4) 26 (78.8)
Min. 16 (60.8) 11 (51.8)
HEAT Max. 24 (75.2) 18 (64.4)
Min. -10 (14.0) -11 (12.2)
DBT: Dry bulb temperature, WBT: Wet bulb temperature
*1
CU-TE20TKE, CU-TE25TKE, CU-TE35TKE, CU-TE42TKE, CU-TE50TKE, CU-TE60TKE, CU-TZ20TKE, CU-TZ25TKE,
CU-TZ35TKE, CU-TZ42TKE, CU-TZ50TKE, CU-TZ60TKE, CU-TZ71TKE
*2
CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E23SBE,
CU-2Z35TBE, CU-2Z41TBE, CU-2Z50TBE, CU-3Z52TBE, CU-3Z68TBE, CU-4Z68TBE, CU-4Z80TBE, CU-5Z90TBE
*3
CU-2RE15SBE, CU-2RE18SBE, CU-3RE18SBE, CU-2TZ41TBE, CU-2TZ50TBE, CU-3TZ52TBE
To learn more...
ACXF55-04100_01EN.indd 11ACXF55-04100_01EN.indd 11 12/19/2016 5:29:58 PM12/19/2016 5:29:58 PM

12
Cleaning instructions
To ensure optimal performance of the unit,
cleaning has to be carried out at regular intervals.
Dirty unit may cause malfunction and you may
see error code “H 99”. Please consult authorised
dealer.
•Switch off the power supply and unplug before
cleaning.
•Do not touch the aluminium fin, sharp parts may
cause injury.
•Do not use benzine, thinner or scouring powder.
•Use only soap ( pH 7) or neutral household
detergent.
•Do not use water hotter than 40 °C / 104 °F.
Indoor unit
Wipe the unit gently with a soft,
dry cloth.
Outdoor unit
Make sure the air outlet of the
outdoor unit is not blocked by
fallen leaves or snow.
Clear any blockage from the
drain pipe.
Air filters
Once every 2 weeks
•Wash/rinse the filters gently
with water to avoid damage to
the filter surface.
•Dry the filters thoroughly under shade,
away from fire or direct sunlight.
•Replace any damaged filters.
Remove air filter Attach air filter
Insert into the unit
Front panel
Wash gently and dry.
Remove the front panel Close it securely
1Release the hooks at
both ends.
2Pull out and lift up.
1Insert at
both sides.
2Push in.
3Close down.
4Press both ends and center of the front panel.
Indoor unit Aluminium fin
Front panel
Air filters
Air Purifying Filter
•Do not wash/rinse the filter with water.
•Replace the filter every 2 years or replace
any damaged filter.
Part no.: CZ-SA31P
Air Purifying Filter
Air Purifying Filter
(CS-TE50/60TKEW,
CS-TZ50/60/71TKEW)
Air Purifying Filter
(CS-TE/TZ20/25/
35/42TKEW,
CS-MTZ16TKE)
ACXF55-04100_01EN.indd 12ACXF55-04100_01EN.indd 12 12/19/2016 5:29:58 PM12/19/2016 5:29:58 PM

13
English
The following symptoms do not indicate malfunction.
Symptom Cause
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water flowing sound during operation. • Refrigerant flow inside the unit.
The room has a peculiar odour. • This may be due to damp smell emitted by the wall,
carpet, furniture or clothing.
Indoor fan stops occasionally during automatic
fan speed setting. • This helps to remove the surrounding odour.
Airflow continues even after operation has
stopped. • Extraction of remaining heat from the indoor unit (maximum 30 seconds).
Operation is delayed a few minutes after
restarting. • The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
TIMER indicator is always on. • The timer setting repeats daily once set.
POWER indicator blinks during HEAT mode
with no warm air supply (and flap is closed). • The unit is in defrost mode (and AIR SWING is set to AUTO).
Indoor fan stops occasionally during heating
operation. • To avoid unintended cooling effect.
POWER indicator blinks before the unit is
switched on. • This is a preliminary step in preparation for the operation when the ON timer has been set.
When ON Timer is set, the unit may start earlier (up
to 35 minutes) before the actual set time in order to
achieve the desired temperature on time.
Cracking sound during operation. • Changes of temperature caused the expansion/
contraction of the unit.
Dusts accumulated on the wall. • Due to air circulation or static electricity generated
by the air conditioner. Some types of wall paper may
collect dusts easily (recommended to clean the area
around the air conditioner frequently).
During COOL/DRY mode, the indoor unit
stops and POWER indicator blinks. • The system has locked to operate in HEAT model only.
Discoloration of some plastic parts. • Discoloration is subject to material types used in plastic
parts, accelerated when exposed to heat, sun light, UV
light or environmental factor.
Cooling/heating capacity reduced during the
lowest fan speed setting. • The low fan speed is low noise priority operation, so cooling/heating capacity may be reduced (depending
on the condition). Increase the Fan Speed to increase
the capacity.
Check the following before calling for servicing.
Symptom Check
Operation in HEAT/COOL mode is not working
efficiently. • Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet
vents.
Noisy during operation. • Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is weak.)
• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the
remote control. • Make sure the receiver is not obstructed.
• Certain fluorescent lights may interfere with signal
transmitter. Please consult authorised dealer.
Troubleshooting
Cleaning instructions / Troubleshooting
ACXF55-04100_01EN.indd 13ACXF55-04100_01EN.indd 13 12/19/2016 5:30:00 PM12/19/2016 5:30:00 PM

14
Troubleshooting
When...
■The remote control is missing or a malfunction has occurred
AUTO
OFF/ON
1.Raise the front panel.
2.Press the button once to use in AUTO mode.
3.Press and hold the button until you hear 1 beep, then release to use in
forced COOL mode.
4.Repeat step 3. Press and hold the button until you hear 2 beeps, then
release to use in forced HEAT mode.
5.Press the button again to turn off.
■The indicators are too bright
•To dim or restore the unit’s indicator brightness, press and hold for 5 seconds.
■Conducting a seasonal inspection after extended non-use
•Check the remote control batteries.
•Check that there is no obstruction around the air inlet and outlet vents.
•Use Auto OFF/ON button to select COOL/HEAT operation. After 15 minutes of operation, it
is normal to have the following temperature difference between the air inlet and outlet vents:
COOL: ≥8 °C / 14.4 °F HEAT: ≥14 °C / 25.2 °F
■The units are not going to be used for a long period of time
•
Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to
prevent mould growth.
•Turn off the power supply and unplug.
•Remove the remote control batteries.
NON SERVICEABLE CRITERIAS
TURN OFF THE POWER SUPPLY AND UNPLUG then please consult an authorised
dealer when in following conditions:
•Abnormal noise during operation.
•Water/foreign particles have entered the remote control.
•Water leaks from Indoor unit.
•Circuit breaker switches off frequently.
•Power cord becomes unnaturally warm.
•Switches or buttons are not functioning properly.
ACXF55-04100_01EN.indd 14ACXF55-04100_01EN.indd 14 12/19/2016 5:30:00 PM12/19/2016 5:30:00 PM

15
English
Troubleshooting
Diagnostic
display
Abnormality/Protection
control
H 00 No memory of failure
H 11 Indoor/outdoor abnormal
communication
H 12 Indoor unit capacity unmatched
H 14 Indoor intake air temperature sensor
abnormality
H 15 Outdoor compressor temperature
sensor abnormality
H 16 Outdoor current transformer (CT)
abnormality
H 19 Indoor fan motor mechanism lock
H 21 Indoor float switch operation
abnormality
H 23
Indoor heat exchanger temperature
sensor 1 abnormality
H 24
Indoor heat exchanger temperature
sensor 2 abnormality
H 25 Indoor ion device abnormality
H 27 Outdoor air temperature sensor
abnormality
H 28
Outdoor heat exchanger temperature
sensor abnormality
H 30 Outdoor discharge pipe temperature
sensor abnormality
H 32
Outdoor heat exchanger
temperature sensor 2 abnormality
H 33 Indoor/outdoor misconnection
abnormality
H 34 Outdoor heat sink temperature sensor
abnormality
H 35 Indoor/outdoor water adverse current
abnormality
H 36 Outdoor gas pipe temperature
sensor abnormality
Diagnostic
display
Abnormality/Protection
control
H 37 Outdoor liquid pipe temperature
sensor abnormality
H 38 Indoor/outdoor mismatch
(brand code)
H 39 Abnormal indoor operating unit or
standby units
H 41 Abnormal wiring or piping
connection
H 59 Eco sensor
abnormality
H 64 Outdoor high pressure sensor
abnormality
H 67 nanoe
abnormality
H 70 Light sensor abnormality
H 97 Outdoor fan motor mechanism lock
H 98 Indoor high pressure protection
H 99 Indoor operating unit freeze protection
F 11 4-way valve switching abnormality
F 17 Indoor standby units freezing
abnormality
F 90 Power factor correction (PFC)
circuit protection
F 91 Refrigeration cycle abnormality
F 93 Outdoor compressor abnormal
revolution
F 94 Compressor discharge pressure
overshoot protection
F 95 Outdoor cooling high pressure
protection
F 96 Power transistor module overheating
protection
F 97 Compressor overheating protection
F 98 Total running current protection
F 99 Outdoor direct current (DC) peak
detection

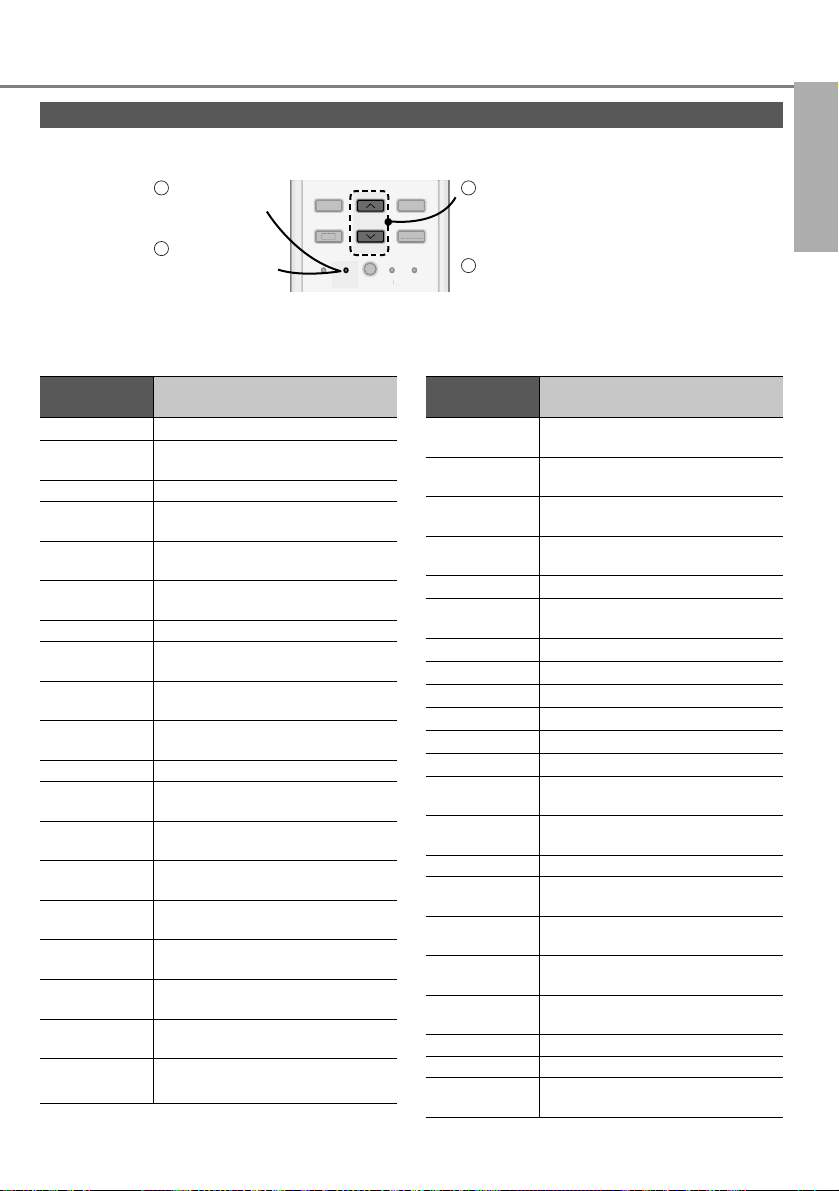

How to retrieve error codes
If the unit stops and the TIMER indicator blinks, use the remote control to retrieve the error
code.
TIMER
SET
CANCEL
ON
OFF
SET CHECK CLOCK RESET
AC RC
TIMER
S
ET
C
AN
C
E
L
ON
O
FF
S
ET CL
O
C
K
R
E
S
ET
A
C
RC
Press for
5 seconds
Press for 5
seconds to
quit checking
Press until you hear
beep sound, then write
down the error code
Turn the unit off and
reveal the error code to
authorised dealer
21
3
4
• For certain errors, you may restart the unit for limited operation if there are 4 beeps when
operation starts.
Troubleshooting
ACXF55-04100_01EN.indd 15ACXF55-04100_01EN.indd 15 12/19/2016 5:30:00 PM12/19/2016 5:30:00 PM

16
Système de
climatisation
multiple
Les systèmes de
climatisation multiple
permettent une économie
d’espace en reliant
plusieurs unités intérieures
à une seule unité extérieure.
Pour connaître les caractéristiques
complètes des produits, veuillez
vous référer à un catalogue.
Fournit un confort maximum et de l’air propre avec des
méthodes d’économie d’énergie optimales.
Guide Rapide
Insertion des piles
12
3
1Retirez le couvercle
arrière de la
télécommande.
2
Placez des piles AAA ou
R03.
3Fermez le couvercle.
A
Réglage de l’horloge
1
Appuyez sur et
réglez l’heure time .
• Maintenez la touche
enfoncée pendant environ
5 secondes pour passer du
mode d’affichage 12 heures
(am/pm) ou au mode 24
heures et inversement.
2Confirmez .
Utilisez la
télécommande
dans les 8 m du
récepteur de la
télécommande de
l’unité intérieure.
6
FAN SPEED
FAN SPEED
A
B
* L’affichage et les
fonctions de la
télécommande peuvent
varier selon le modèle.
ACXF55-04100_02FR.indd 16ACXF55-04100_02FR.indd 16 12/19/2016 5:30:17 PM12/19/2016 5:30:17 PM

17
Français
Table des matières
Consignes de sécurité …… 18-21
Consignes d’utilisation
… 22-23
Pour en savoir plus
………… 24-25
Instructions de nettoyage
… 26
Dépannage
………………………… 27-29
Informations
………………………………… 87
Accessoires
• Télécommande
• Piles AAA ou R03 × 2
• Support de la télécommande
• Vis pour le support de la
télécommande × 2
Les illustrations de ce mode d’emploi
sont fournies à titre d’exemple
uniquement et peuvent présenter des
différences par rapport à l’appareil
proprement dit. Celui-ci peut être modifié
sans préavis à des fins d’amélioration.
BFonctionnement de base
1Appuyez sur
pour sélectionner le
mode souhaité.
DRY
AUTO HEAT
COOL
2Appuyez sur
pour mettre le
fonctionnement en
marche/arrêt.
POWER
•Veuillez noter
que l’indication
se trouve sur
l’afficheur pour
démarrer l’unité.
3Sélectionnez la
température souhaitée.
Haut
Bas
Plage de sélection:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
•Maintenez la touche
enfoncée pendant environ
10 secondes passer
l’indication de température
en °C ou en °F.
Nous vous remercions d’avoir
porté votre choix sur un climatiseur
Panasonic.
ACXF55-04100_02FR.indd 17ACXF55-04100_02FR.indd 17 12/19/2016 5:30:18 PM12/19/2016 5:30:18 PM

18
Consignes de sécurité
Pour éviter des blessures corporelles sur
vousmême et sur les autres ou des dégâts
matériels, respectez les instructions ci-
dessous:
Tout dysfonctionnement dû au non-respect
des instructions peut occasionner des
nuisances ou des dégâts dont la gravité est
classée comme décrit ciaprès:
Cet appareil n’est pas conçu pour être
accessible du grand public.
Pour appareil rempli de R32
(réfrigérant inflammable doux).
Il existe un risque d’incendie
en cas de fuite du réfrigérant
et d’exposition à une source
d’inflammation externe.
AVERTISSEMENT
Ce symbole
signale la
présence
d’un danger
pouvant
provoquer
des blessures
graves ou
mortelles.
ATTENTION
Ce symbole
signale la
présence
d’un danger
pouvant
provoquer
des blessures
corporelles
ou des
dégâts
matériels.
Les instructions à respecter sont
classées d’après les symboles suivants:
Ce symbole désigne une
action INTERDITE.
Ces symboles
désignent des actions
OBLIGATOIRES.
Unité
intérieure
Unité
extérieure
Alimentation électrique
Télécommande
Entrée d’airEntrée d’air
Entrée d’airEntrée d’air
Sortie d’airSortie d’air
Sortie d’airSortie d’air
AVERTISSEMENT
Unité intérieure et unité extérieure
Cet appareil peut être utilisé par des
enfants âgés de 8 ans et plus et par
des personnes ayant des capacités
physiques, sensorielles ou mentales
réduites, ou dénuées d’expérience
et de connaissances si elles ont été
formées et encadrées pour l’utilisation
de cet appareil en toute sécurité
et comprennent bien les dangers
auxquels ils s’exposent. Les enfants
ne doivent pas jouer avec l’appareil. Le
nettoyage et l’entretien par l’utilisateur
ne doivent pas être effectués par des
enfants sans surveillance.
Veuillez consulter un revendeur agréé
ou un spécialiste pour le nettoyage
des pièces internes et pour la
réparation, l’installation, le retrait et la
réinstallation de l’unité. Une installation
et une manipulation incorrectes
pourraient occasionner des fuites, un
choc électrique ou un incendie.
Validez auprès du revendeur agréé ou
du spécialiste l’usage de tout type de
réfrigérant spécifié. L’utilisation d’un
type de réfrigérant autre que le type
spécifié peut endommager le produit
ou provoquer des explosions, des
brûlures, etc.
ACXF55-04100_02FR.indd 18ACXF55-04100_02FR.indd 18 12/19/2016 5:30:19 PM12/19/2016 5:30:19 PM

19
FrançaisConsignes de sécurité
N’installez pas l’appareil dans une
atmosphère potentiellement explosive
ou inflammable. Sinon, il y a un risque
d’incendie.
N’insérez jamais vos doigts ou
des objets dans l’unité intérieure
ou extérieure du climatiseur,
les parties tournantes peuvent
causer des blessures.
Ne touchez pas l’unité extérieure
au cours d’un orage, cela pourrait
provoquer un choc électrique.
Ne vous exposez pas directement
à de l’air froid pendant une
période prolongée afin d’éviter un
refroidissement excessif.
Ne vous asseyez pas et
ne piétinez pas sur l’unité,
vous risquez de tomber
accidentellement.
Télécommande
Maintenez la télécommande hors de
portée des bébés et des enfants pour
éviter qu’ils n’avalent accidentellement
les piles.
Alimentation électrique
N’utilisez pas de cordon
modifié, de raccords, de
rallonge ou de cordon
non spécifié afin d’éviter
une surchauffe et un
incendie.
Pour éviter une surchauffe, un
incendie ou un choc électrique:
• Ne partagez pas la prise
d’alimentation avec un autre appareil.
• N’utilisez pas l’unité avec des mains
mouillées.
• Ne pas plier excessivement la fiche
électrique.
• Ne pas opérer ou arrêter l’unité en
insérant ou en tirant sur la fiche
électrique.
Si le cordon d’alimentation est
endommagé, il doit être remplacé par
le fabriquant, par un de ses techniciens
ou par une personne qui possède des
qualifications équivalentes afin d’éviter
tout risque.
Il est fortement conseillé d’installer
un disjoncteurdétecteur de fuite à la
terre (DDFT) ou un dispositif à courant
résiduel (DCR) afin d’éviter un choc
électrique ou un incendie.
Pour éviter une surchauffe, un
incendie ou un choc électrique:
• Insérez la fiche d’alimentation
correctement.
• Il faut régulièrement essuyer la
poussière sur la fiche d’alimentation à
l’aide d’un chiffon sec.
Cesser d’utiliser le produit lorsqu’une
anomalie ou défaillance quelconque
se produit et débrancher la fiche
d’alimentation ou mettre hors tension
l’interrupteur et le disjoncteur.
(Risque de fumée / feu / choc
électrique)
Exemples d’anomalie ou défaillance
• L’ELCB se déclenche fréquemment.
• Odeur de brûlé est observée.
• Un bruit ou des vibrations anormales
de l’unité sont observés.
• Fuite d’eau de l’unité intérieure.
• Le cordon d’alimentation ou la prise
deviennent anormalement chaud.
• La vitesse du ventilateur ne peut pas
être contrôlée.
• L’unité s’arrête de fonctionner
immédiatement même si elle est
activée pour opérer.
• Le ventilateur ne s’arrête pas même
si l’opération est arrêtée.
Contacter immédiatement votre
revendeur local pour l’entretien /
réparation.
Cet équipement doit être raccordé à la
terre afin d’éviter un choc électrique ou
un incendie.
ACXF55-04100_02FR.indd 19ACXF55-04100_02FR.indd 19 12/19/2016 5:30:19 PM12/19/2016 5:30:19 PM

20
Consignes de sécurité
Prévenez les chocs électriques
en coupant l’alimentation et en
débranchant l’unité:
-Avant le nettoyage ou l’entretien,
-En cas de non utilisation
prolongée,ou
-En période d’activité orageuse
anormalement forte.
AVERTISSEMENT
Précautions pour appareil
rempli de R32
Prêtez attention aux points suivants lorsque
vous utilisez les appareils et traitez avec
différents réfrigérants.
L’appareil doit être installé et/ou utilisé
dans une pièce dont la surface au
sol dépasse Amin (m²) et maintenu à
distance des sources d’inflammation,
comme la chaleur/les étincelles/
les flammes nues, ou des zones
dangereuses, comme les appareils à
gaz, les appareils de cuisson au gaz,
les systèmes d’approvisionnement
en gaz ou les appareils de cuisson
électrique, etc. (Référez-vous au
Tableau A du tableau des consignes
d’installation pour Amin (m²))
Sachez que le réfrigérant peut ne
pas comporter d’odeur. Il est très
recommandé de s’assurer que
les détecteurs appropriés de gaz
réfrigérants inflammables sont utilisés,
fonctionnent bien et peuvent alerter en
cas de fuite.
La pression de fonctionnement étant
supérieure à celle des modèles
à réfrigérant R22, certaines des
tuyauteries et certains outils
d’installation et d’entretien sont
spécifiques. En particulier, lorsque
vous remplacez un modèle à
réfrigérant R22 par un nouveau
modèle à réfrigérant R32, remplacez
toujours la tuyauterie classique et
les écrous d’évasement avec la
tuyauterie et les écrous d’évasement
R32 et R410A côté extérieur de l’unité.
L’écrou évasé et le tuyau de R32 côté
unité extérieure peuvent également
être utilisés pour un modèle R410A.
Les modèles qui utilisent le réfrigérant
R32 et R410A ont différents diamètres
de filetage des ports de charge, pour
éviter les charges erronées avec du
réfrigérant R22 et pour la sécurité.
Vérifiez donc en amont. [Le diamètre
de filetage du port de charge pour R32
etR410A est de 12,7 mm (1/2 pouces).]
Soyez extrêmement prudent afin que
les matières étrangères (huile, eau,
etc.) n’entrent pas dans le tuyau.
Lorsque vous stockerez la tuyauterie,
scellez bien l’ouverture en pinçant,
tapant, etc. (La manipulation du R32
est similaire à celle du R410A.)
Cet appareil doit être stocké dans un
endroit bien ventilé.
Cet appareil doit être stocké dans une
pièce sans flammes nues et sources
d’inflammation continuellement
actives.
Cet appareil doit être stocké de sorte à
empêcher tout dommage mécanique.
N’utilisez pas des moyens
d’accélération du processus de
dégivrage ou de nettoyage autres que
ceux recommandés par le fabricant.
L’utilisation d’une méthode inadaptée
ou d’un matériel incompatible peut
endommager le produit, provoquer des
explosions et des blessures graves.
ACXF55-04100_02FR.indd 20ACXF55-04100_02FR.indd 20 12/19/2016 5:30:19 PM12/19/2016 5:30:19 PM
