Panasonic CS-W7CKP User manual

1 Features 2
2 Functions 3
3 Product Specifications 6

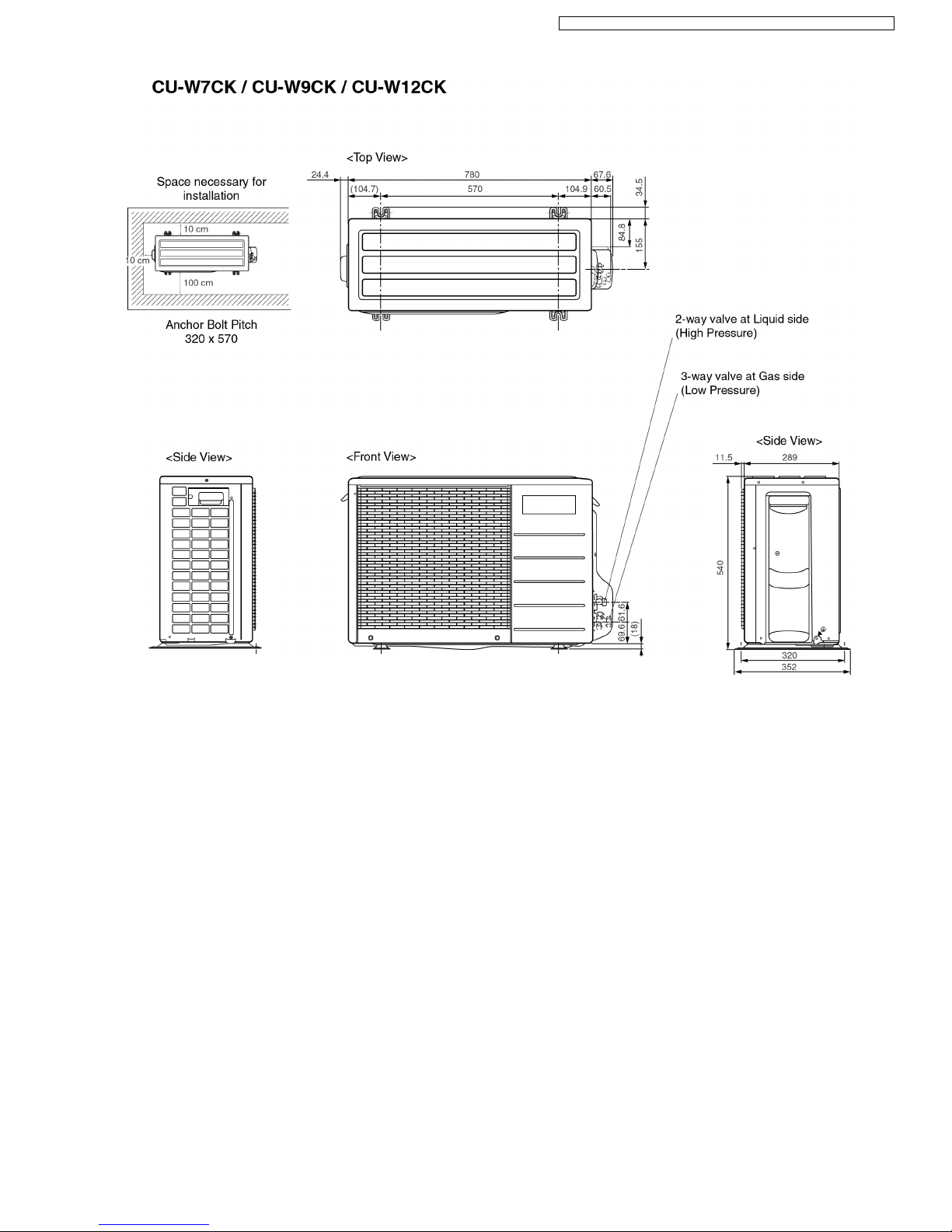

4 Dimensions 12
5 Refrigeration Cycle Diagram 14
6 Block Diagram 15
7 Wiring Diagram 16
8 Operation Details 17
9 Operating Instructions 39
10 Installation Instructions 44
© 2002 Matsushita Industrial Corp. Sdn. Bhd.
(11969-T). All rights reserved. Unauthorized copying
and distribution is a violation of law.
CS-W7CKP CU-W7CKP5
CS-W9CKP CU-W9CKP5
CS-W12CKP CU-W12CKP5
11 Installation and Servicing Air Conditioner Using R410A 54
12 Servicing Information 65
13 Troubleshooting Guide 69
14 Technical Data 71
15 Exploded View 76
16 Replacement Parts List 77
17 Exploded View 78
18 Replacement Parts List 79
19 Electronic Circuit Diagram 80
Room Air Conditioner
CONTENTS
Page Page
Order No. MAC0210044C2
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

• High Efficiency
• Compact Design
• Comfort Environment
− Ionizer control for generate negative ion in discharge air
− Air filter with function to reduce dust and smoke
− Wider range of horizontal discharge air
• Auto Restart
− Random auto restart after power failure for safety restart
operation
• Removable and Washable Front Panel
• Remote Control Self-illuminating Button
• Catechin Air Purifying Filter
− Trap dust, tobacco smoke and tiny particles
− Prevent the growth of bacteria and viruses trapped
• Triple Deodorizing Filter
− Absorb odours produced by wall paper, construction
material and living environment
• Quality Improvement
− Gas leakage protection
− Prevent compressor reverse cycle
− 2-stage OLP to protect compressor
− Noise prevention during soft dry operation.
− Compressor Protection Control (Cooling & Soft Dry)
− Overload Protection Control (Heating)
− Outdoor Fan Control
− Compressor High Pressure Control
− Blue Coated Condenser
− High resistance to corrosion.
• Operation Improvement
− Quiet mode to provide extra quiet operation
− Powerful mode to reach the desired room temperature
quickly
• Long Installation Piping
− CS/CU-W7CK, CS/CU-W9CK, long piping up to 10
meter
− CS/CU-W12CK, long piping up to 15 meter
• 24-hour Timer Setting
• Environmental Friendly
− R410A, which does not contain chlorine, is used as its
refrigerant, so there is no danger of damage to the
ozone layer in Stratosphere.
1 Features
2
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

2 Functions
Remote Control
Operation OFF / ON
OFF / ON IRoom Temperature Setting
TEMP.
Operation Mode Selection
•AUTO Automatic Operation Mode
•HEAT Heating Operation Mode
•COOL Cooling Operation Mode
•DRY Soft Dry Operation Mode
MODE
TIME Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Indoor Fan Speed Selection
FAN SPEED
•FAN Low Fan Speed
•FAN Medium Fan Speed
•FAN High Fan Speed
•AUTO Automatic Fan Speed
FAN
Vertical Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER Timer Operation Selection
SET
CANCEL Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
AIR SWING
•AUTO Automatic Vertical Airflow
Direction Control
•MANUAL Vertical Airflow Direction
Manual Control (5 stages of
adjustment)
Powerful Mode Operation OFF/ON
POWERFUL
Quiet Mode Operation OFF/ON
QUIET
Heating, Cooling, Soft Dry Operation.
• Temperature Setting (16°C to 30°C)
Automatic Operation
•Operation with 2°C higher than
standard temperature.
• Operation with standard temperature.
•Operation with 2°C lower than
standard temperature.
Self illuminating
button
Ionizer Operation OFF / ON
3
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Indoor Unit
Random Auto Restart Control
•Operation is restarted randomly after power
failure at previous setting mode.
Anti-Freezing Control
•Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
Ionizer Control
•Ionizer control for generate negative ion in
discharge air.
Indoor Fan Speed Control
•High, Medium and Low.
•Automatic Fan Speed Mode
–Heating : Fan speed varies from Me →
SSLo in accordance with
indoor heat exchanger.
–Cooling : Fan rotates at Hi, Me and SLo
speed. Deodorizing control is
available.
–Soft Dry : Fan rotates at Lo- speed.
Deodorizing control is
available.
•Automatic air swing and manual adjusted
by remote control for vertical airflow.
•Manually adjusted by hand for horizontal
airflow.
Airflow Direction Control
Automatic Operation Button
•Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
•Press continuously for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
•Press continuously for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep”sound will
be heard at the 10th second.
AUTO
OFF / ON
Operation Indication Lamps (LED)
• POWER (Green) ......... Lights up in operation,
blinks in Automatic
Operation Mode judging.
• QUIET (Orange) ......... Lights up in Quiet Mode
Operation.
• TIMER (Orange) ......... Lights up in Timer
Setting.
• POWERFUL (Orange) ... Lights up in Powerful
Mode Operation.
• (Green) ............ Lights up in Ionizer
Mode Operation.
Operation Mode
•Heating, Cooling, Soft Dry and Automatic
Mode.
Powerful Operation
•Reaches the desired room temperature
quickly.
Time Delay Safety Control
• Restarting is inhibited for appro. 3 minutes.
Starting Current Control
Quiet Operation
•To provide extra quiet operation.
7 Minutes Time Save Control
•Cooling Operation only.
•Fan motor is delayed for 1.6 seconds when
compressor starts simultaneously.
30 Minutes Time Save Control
•Heating Operation only.
Hot-Start Control
•At Heating Operation the indoor fan will
operate at SLo speed when indoor heat
exchanger temperature reaches 30°C.
Anti Cold Draft Control
•The indoor fan operates at SSLo when the
indoor heat exchanger temperature is low.
(During Heating mode thermal off)
4
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Outdoor Unit
•To protect compressor from reverse
rotation when there is a instantaneous
power failure.
60 Secs. Forced Operation Control
•Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector
•2-Stage OLP to protect the compressor.
Overload Protector will trip when
–Temperature of compressor increases
to 120°C.
–High temperature or high current flows
to compressor.
(Refer circuit diagram for OLP
characteristic)
Compressor Reverse Rotation
Protection Control
Outdoor Fan Operation Control
•Temperature Fuse.
4-Way Valve Control
•When the unit is switched to “OFF”
during Heating Operation, 4-way valve
stays at Heating position for 5 minutes.
Overload Protection Control
•Outdoor fan stops when indoor heat
exchanger temperature rises to 51°C
and above, and restarts when the indoor
heat exchanger temperature drops to
49°C and below.
•Compressor stop when indoor heat
exchanger temperature reaches 65°C or
above. (Heating Operation Only)
Deice Control
•To prevent frosting at outdoor heat
exchanger. (Only for Heating Operation)
•
Temperature of outdoor heat exchanger
is sensed by TRS (Thermal Reed Switch).
TRS OFF temperature 4°C.
TRS ON temperature -3°C.
Compressor Protection Control
•If the outdoor fan motor is not running
after compressor starts for 50 secs.,
compressor will stop. (Cooling and Soft
Dry Operation only).
5
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

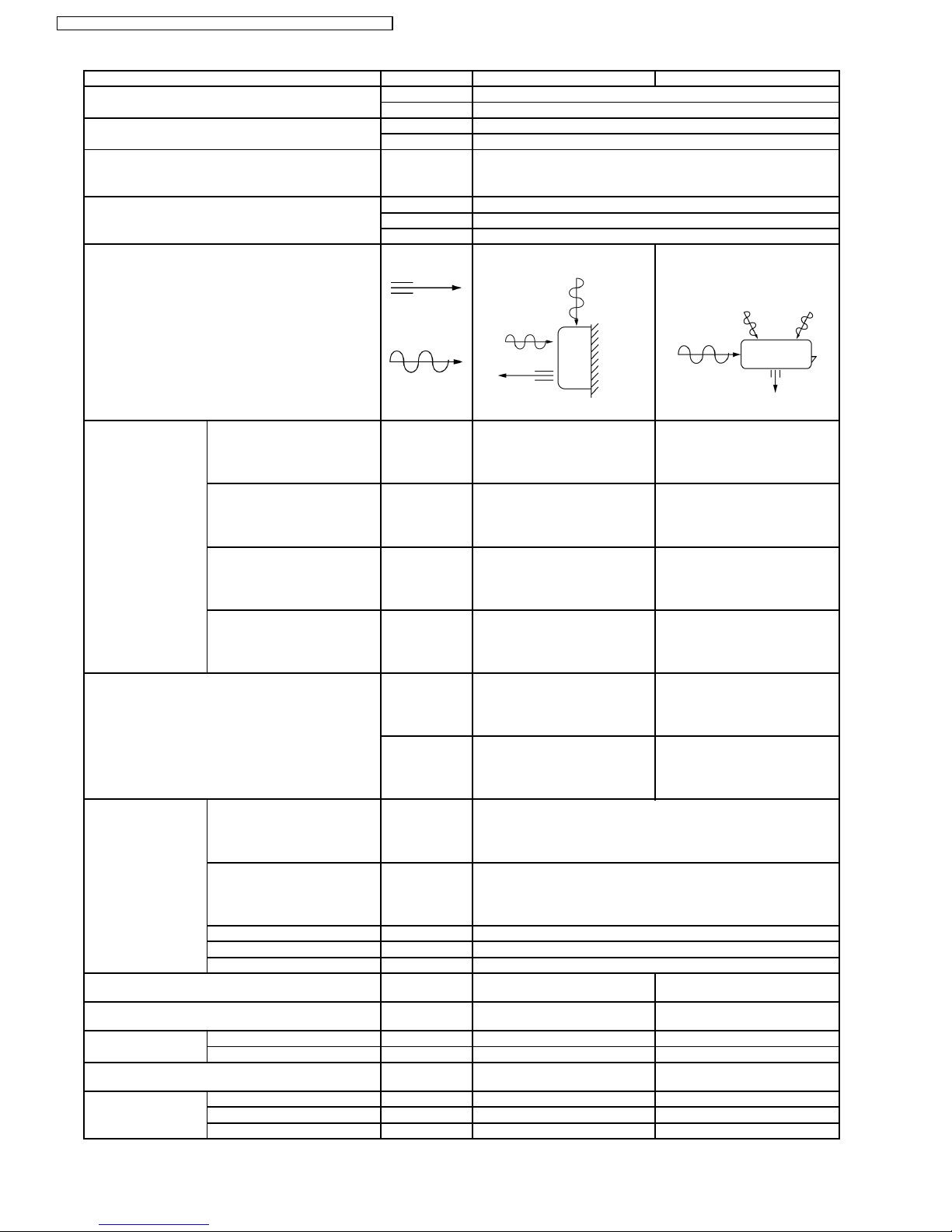

3 Product Specifications
Unit CS-W7CKP CU-W7CKP5
Cooling Capacity kW (kcal/h) 2.38 (2,050)
BTU/h 8,120
Heating Capacity kW (kcal/h) 2.45 (2,110)
BTU/h 8,350
Moisture Removal l/h (Pint/h) 1.5 (3.2)
Phase Single
Power Source V230
Cycle 50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.4 (230) —
Heating; 7.0 (250)
Indoor Air (Me) m3/min (cfm) Cooling; 7.6 (270) —
Heating; 7.7 (270)
Indoor Air (Hi) m3/min (cfm) Cooling; 8.5 (300) Cooling; 34.5 (1,220)
Heating; 9.9 (350)
Indoor Air (SHi) m3/min (cfm) Cooling; 9.9 (350) —
Heating; 9.9 (350)
Noise Level dB (A) Cooling; High 34, Low 26 Cooling; High 46
Heating; High 36, Low 26 Heating; High 48
Power level dB Cooling; High 47 Cooling; High 61
Heating; High 49 Heating; High 63
Electrical Data Input WCooling; 660
Heating; 595
Running Current ACooling; 3.0
Heating; 2.7
EER W/W (BTU/hW) Cooling; 3.61 (12.3)
COP W/W (BTU/hW) Heating; 4.12 (14.0)
Starting Current A12.5
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8”
L ; Half Union 1/4”
G ; 3-way valve 3/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length
Number of core-wire
m1.9
3 (1.0 mm2)
—
—
6
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-W7CKP CU-W7CKP5
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) 20 (9.0) 71 (32)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—670
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W49.2 63.0
Rated Output W15 29
Fan Speed Low rpm Cooling; 780 —
Heating; 840
Medium rpm Cooling; 920 —
Heating; 920
High rpm Cooling; 1,030 820
Heating; 1,190
SuperHigh rpm Cooling; 1,190 —
Heating; 1,190
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Corrugate Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 21 17
Size (W × H × L) mm 610 × 315 × 25.4 841 × 508 × 22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3) — FVC68D (330)
Refrigerant (R-410A) g (oz) —970 (34.2)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —Cooling; 970, Heating; 610
Flow Rate l/min —Cooling; 5.0, Heating; 6.5
Inner Diameter mm —Cooling; 1.2, Heating; 1.2
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —25 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
• Specifications are subject to change without notice for further improvement.
7
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-W9CKP CU-W9CKP5
Cooling Capacity kW (kcal/h) 2.90 (2,490)
BTU/h 9,890
Heating Capacity kW (kcal/h) 3.14 (2,700)
BTU/h 10,700
Moisture Removal l/h (Pint/h) 1.7 (3.6)
Phase Single
Power Source V230
Cycle 50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.8 (240) —
Heating; 7.0 (250)
Indoor Air (Me) m3/min (cfm) Cooling; 8.3 (290) —
Heating; 8.0 (280)
Indoor Air (Hi) m3/min (cfm) Cooling; 9.9 (350) Cooling; 34.5 (1,220)
Heating; 10.2 (360)
Indoor Air (SHi) m3/min (cfm) Cooling; 10.2 (360) —
Heating; 10.2 (360)
dB (A) Cooling; High 36, Low 26 Cooling; High 48
Heating; High 39, Low 26 Heating; High 49
Noise Level
Power level (dB) Cooling; High 49 Cooling; High 63
Heating; High 52 Heating; High 64
Electrical Data Input WCooling; 850
Heating; 780
Running Current ACooling; 3.7
Heating; 3.5
EER W/W (BTU/hW) Cooling; 3.41 (11.6)
COP W/W (BTU/hW) Heating; 4.03 (13.7)
Starting Current A15.9
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8”
L ; Half Union 1/4”
G ; 3-way valve 3/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length
Number of core-wire
m1.9
3 (1.0 mm2)
—
—
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
8
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-W9CKP CU-W9CKP5
Net Weight lb (kg) 20 (9.0) 73 (33)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—780
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W49.2 63.0
Rated Output W15 29
Fan Speed Low rpm Cooling; 780 —
Heating; 840
Medium rpm Cooling; 960 —
Heating; 960
High rpm Cooling; 1,140 820
Heating; 1,230
SuperHigh rpm Cooling; 1,230 —
Heating; 1,230
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Corrugate Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 21 17
Size (W ×H×L) mm 610 ×315 ×25.4 841 ×508 ×22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3)—FVC68D (330)
Refrigerant (R-410A) g (oz) —940 (33.2)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —Cooling; 970, Heating; 720
Flow Rate l/min —Cooling; 5.0, Heating; 7.5
Inner Diameter mm —Cooling; 1.2, Heating; 1.3
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —30 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
• Specifications are subject to change without notice for further improvement.
9
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-W12CKP CU-W12CKP5
Cooling Capacity kW (kcal/h) 3.74 (3,220)
BTU/h 12,800
Heating Capacity kW (kcal/h) 4.09 (3,520)
BTU/h 14,000
Moisture Removal l/h (Pint/h) 2.2 (4.6)
Phase Single
Power Source V230
Cycle 50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 7.3 (260) —
Heating; 7.8 (270)
Indoor Air (Me) m3/min (cfm) Cooling; 9.1 (320) —
Heating; 9.1 (320)
Indoor Air (Hi) m3/min (cfm) Cooling; 10.2 (360) Cooling; 33.0 (1,160)
Heating; 10.6 (370)
Indoor Air (SHi) m3/min (cfm) Cooling; 10.6 (370) —
Heating; 10.6 (370)
dB (A) Cooling; High 39, Low 29 Cooling; High 49
Heating; High 40, Low 29 Heating; High 49
Noise Level
Power level (dB) Cooling; High 52 Cooling; High 64
Heating; High 53 Heating; High 65
Electrical Data Input kW Cooling; 1.10
Heating; 1.07
Running Current ACooling; 4.9
Heating; 4.8
EER W/W (BTU/hW) Cooling; 3.40 (11.6)
COP W/W (BTU//hW) Heating; 3.82 (13.1)
Starting Current A17.8
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length
Number of core-wire
m1.9
3 (1.0 mm2)
—
—
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
10
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-W12CKP CU-W12CKP5
Net Weight lb (kg) 20 (9.0) 77 (35)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—830
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W49.2 67.4
Rated Output W15 33
Fan Speed Low rpm Cooling; 900 —
Heating; 960
Medium rpm Cooling; 1,120 —
Heating; 1,120
High rpm Cooling; 1,260 845
Heating; 1,300
SuperHigh rpm Cooling; 1,300 —
Heating; 1,300
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Corrugate Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 2×24
FPI 21 17
Size (W ×H×L) mm 610 ×315 ×25.4 705.8
735.1
×504 ×18.9
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3)—FVC68D (330)
Refrigerant (R-410A) g (oz) —1,060 (37.4)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —Cooling; 970, Heating; 590
Flow Rate l/min —Cooling; 5.0, Heating; 8.2
Inner Diameter mm —Cooling; 1.2, Heating; 1.3
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —35 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
• Specifications are subject to change without notice for further improvement.
11
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

4 Dimensions
12
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

13
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

5 Refrigeration Cycle Diagram
14
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

6 Block Diagram
15
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

7 Wiring Diagram
16
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Cooling in operation according to Remote Control setting.
Time Delay Safety Control (3 minutes)
7 minutes Time Save Control
Starting Current Control
Anti-Freezing Control
• If the temperature of the indoor heat exchanger falls
continuously below 2°C for 4 minutes or more, the
compressor turns off to protect the indoor heat exchanger
from freezing. The fan speed setting remains the same.
• Compressor will restart again when the indoor heat
exchanger temperature rises to 10°C (Recovery).
3 minutes waiting of Time Delay Safety Control is valid for
Cooling Operation.
Compressor Reverse Rotation Protection Control
8 Operation Details
8.1. Cooling Mode Operation
• When the compressor is stopped by Remote Control, it restarts after 3 minutes when it is turned ON by Remote Control.
• When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
• The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
• When the compressor outdoor fan motor and indoor fan motor are simultaneously started, the indoor fan motor will operate 1.6
second later.
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between intake air and
indoor heat exchanger is 2.5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid)
▲T = Intake air temperature - Indoor heat exchanger temperature
This is to protect reverse rotation of the compressor when there is a instantaneous power failure.
17
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Compressor Protection Control
Automatic Fan Speed Mode
• After the compressor starts for 50 seconds but the outdoor fan motor is still OFF, the compressor will stop and restart
automatically. (Time Delay Safety Control is valid).
• If the above phenomenon is repeated for 3 times, the compressor will stop totally.
• The above phenomenon is reset when there is a change to heating mode or stopped by Remote Control Switch.
When Automatic Fan Speed is selected at Remote Control during cooling operation.
• Fan speed rotates in the range of Hi to Me.
• Deodorizing Control.
18
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Cooling Operation Time Diagram
19
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Quiet Operation Control
(For Cooling Mode or cooling region of Soft Dry Mode)
• Purpose of this operation is to provide quite cooling operation compare to normal operation.
• When the Quiet Mode is set at the remote control, Quiet Mode LED illuminates, the sound level will be automatically decreased
2 dB (Lo), decreased 3 dB (Hi, Me), against the present sound level operation.
• Quiet setting of fan speed rpm refer to Indoor Fan Speed Control.
• Dew formation become severe at Quiet Lo cool, therefore Quiet Lo cool is operated only 1h 30 min (1h QLo, 30 min QLo + 50).
After that, it goes back to Lo cool (However Quiet LED remains on).
• Manual Airflow Direction:-
− RPM control during Lo cool
− RPM control during Hi & Me cool
• Auto Airflow Direction:-
• Quiet Mode Operation will stop if:-
− Quiet mode button is pressed again.
− Stopped by ON/OFF switch.
− Timer OFF activates.
− Powerful mode button is pressed.
− When change mode to Air Circulation mode.
20
CS-W7CKP CU-W7CKP5 / CS-W9CKP CU-W9CKP5 / CS-W12CKP CU-W12CKP5
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com
