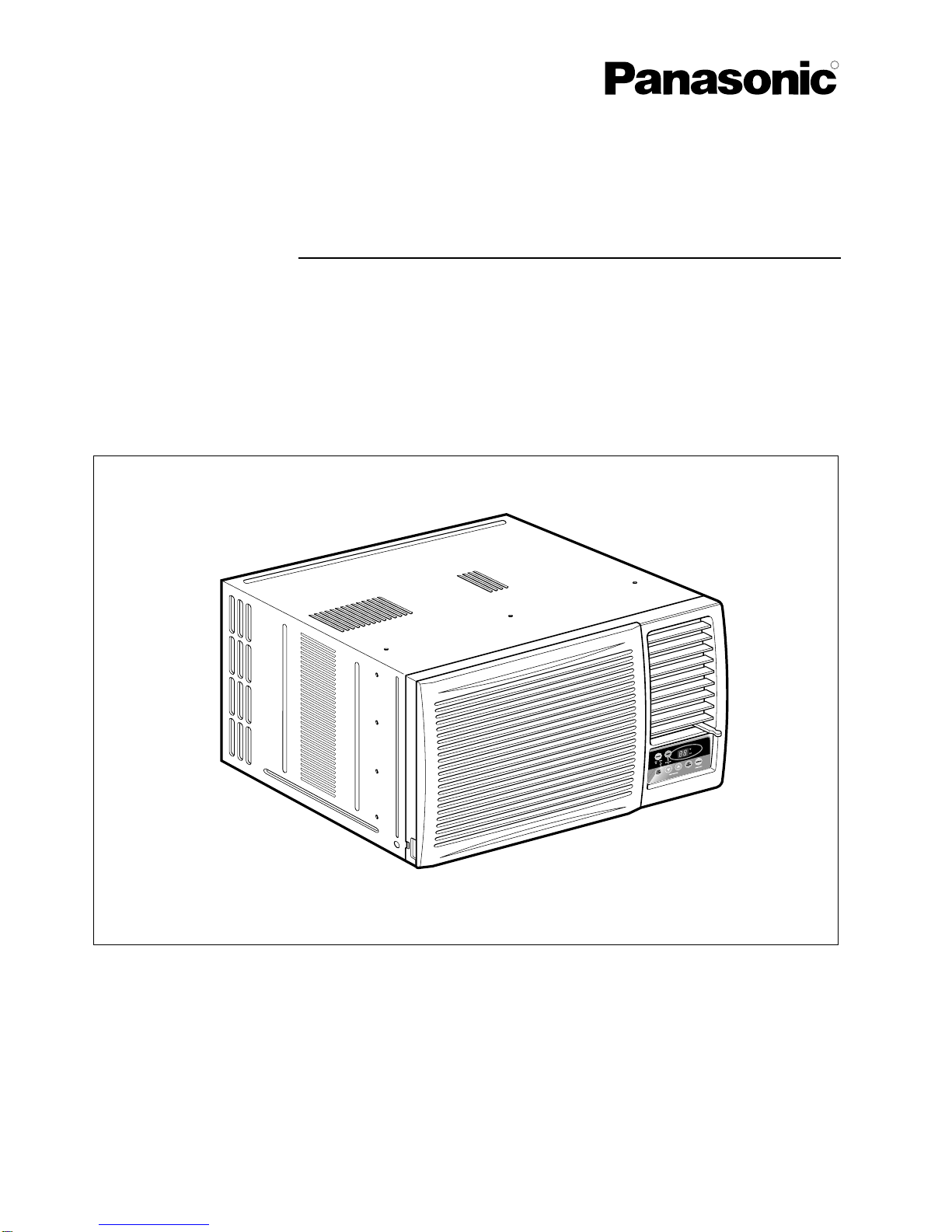

Panasonic CW-XC145HU User manual

Models: CW-XC145HU
CW-XC185HU
CW-XC245HU
Please read these operating instructions thoroughly
before using your air conditioner and keep for future
reference.
For assistance, please call: 1-800-211-PANA(7262) or
Register your product at :http://www.panasonic.com/register
Room Air Conditioner
CW382820391S
R
INSTALLATION AND OPERATING INSTRUCTIONS

2
Safety Precautions
About the Controls on the Air Conditioner
Features and Installation
Before you call for service...
FOR YOUR RECORDS
Staple your receipt to this page in case you need it later.
Write down the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
READ THIS MANUAL
CAUTION
• Contact an authorized Service technician for repair or
maintenance of this unit.
• The air conditioner is not intended for use by young
children or infirm persons without supervision.
• Young children should be supervised to ensure that they
do not play with the air conditioner.
Safety Precautions
Safety Precautions.............3
About the Controls on
the Air Conditioner
Controls..............................5
Remote Controller..............6
Ventilation ..........................7
Air Direction........................7
How to Secure Drain Pipe ....7
Care and Maintenance
Air Filter Cleaning...............8
How to Insert Batteries.......8

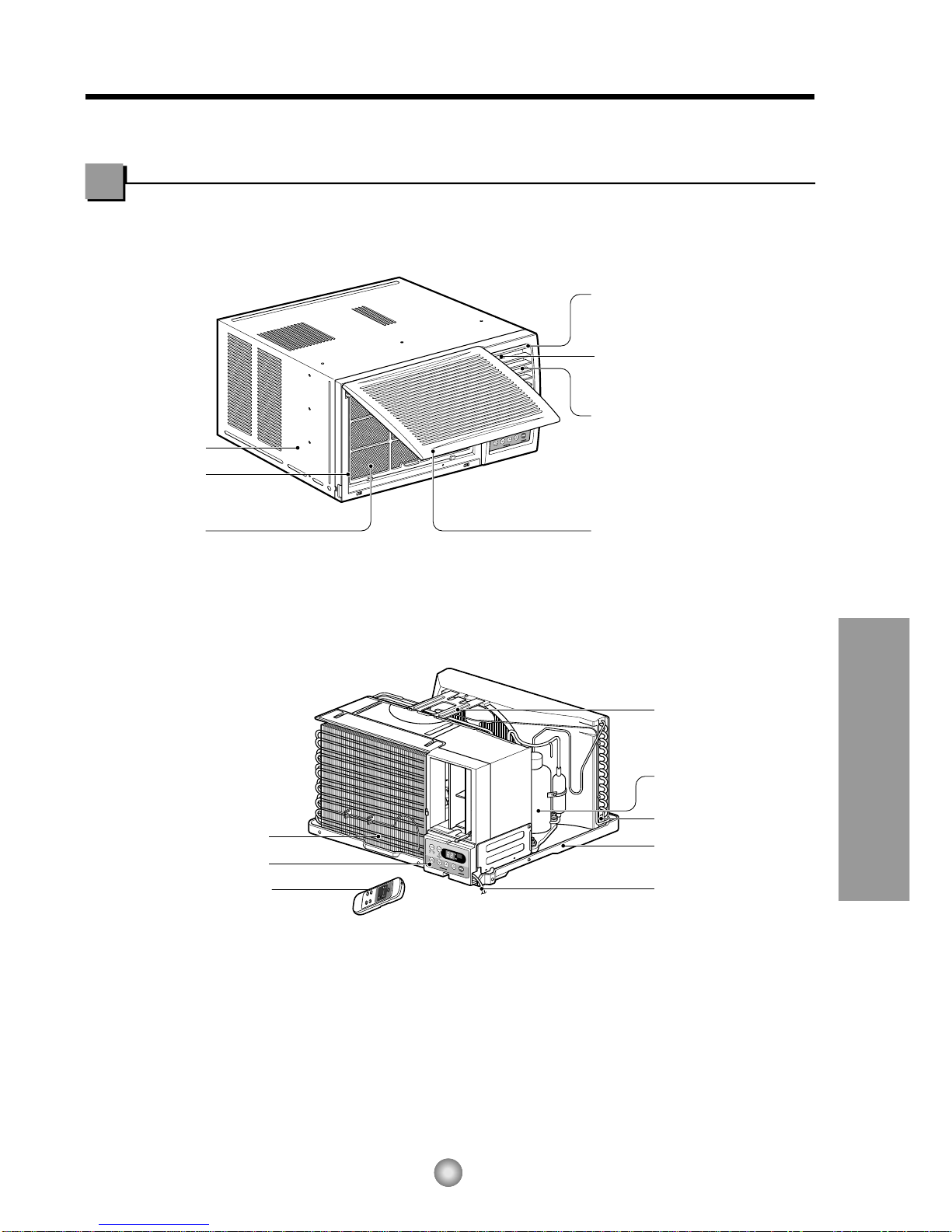

Features
Features.............................9
Installation
How to Install the Unit......10
Window Requirements.....10
Installation Kit Contents ...11
Suggested Tool
Requirements...................12

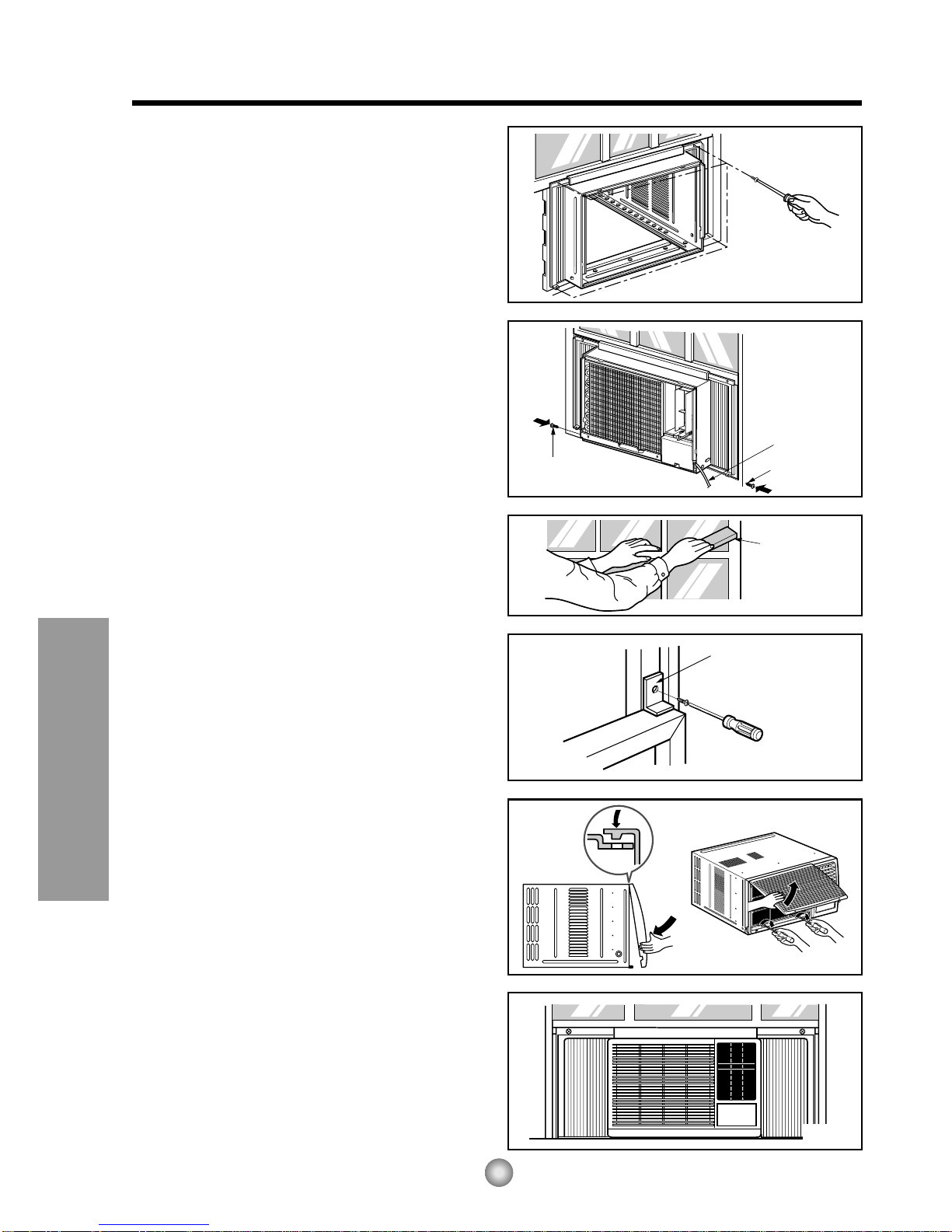

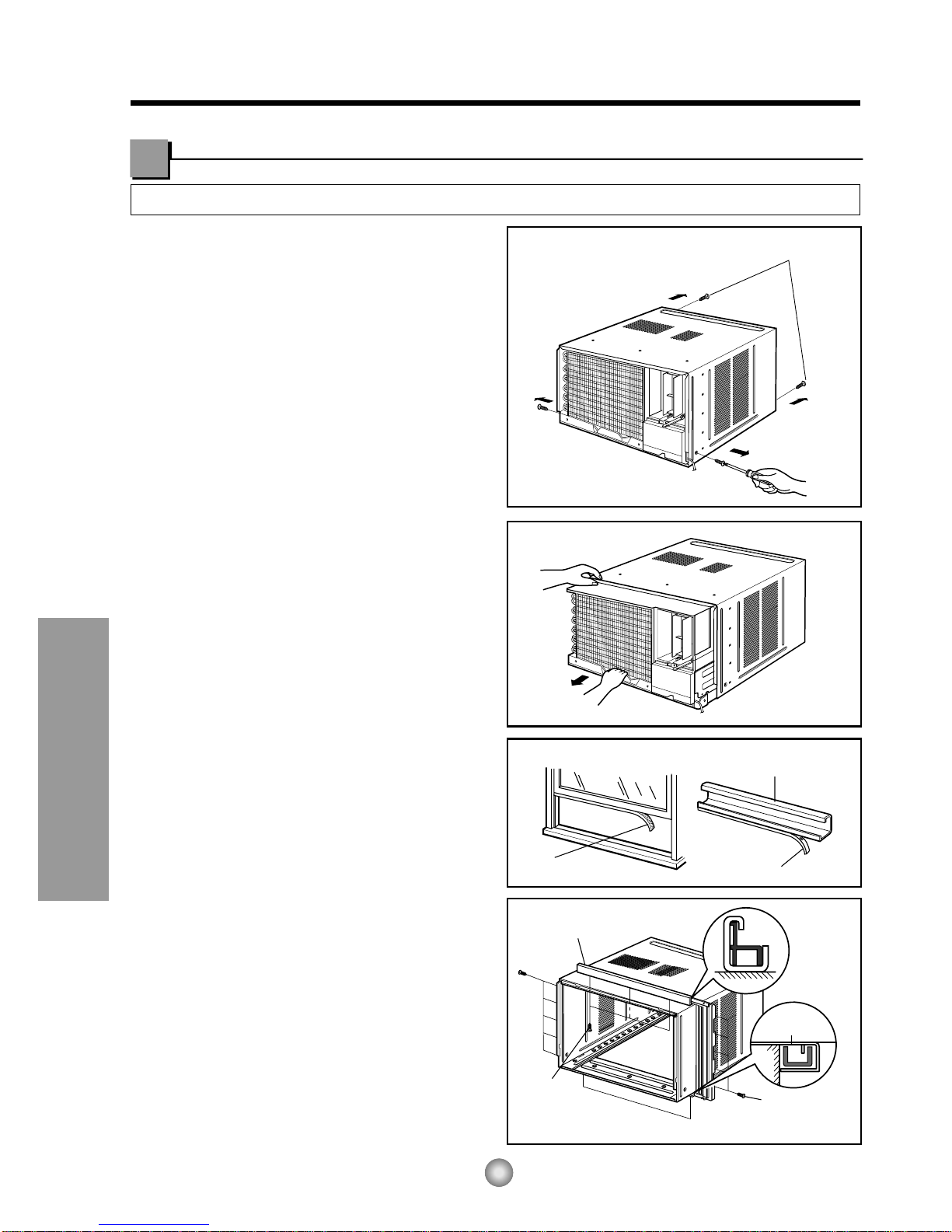

Cabinet Installation...........13

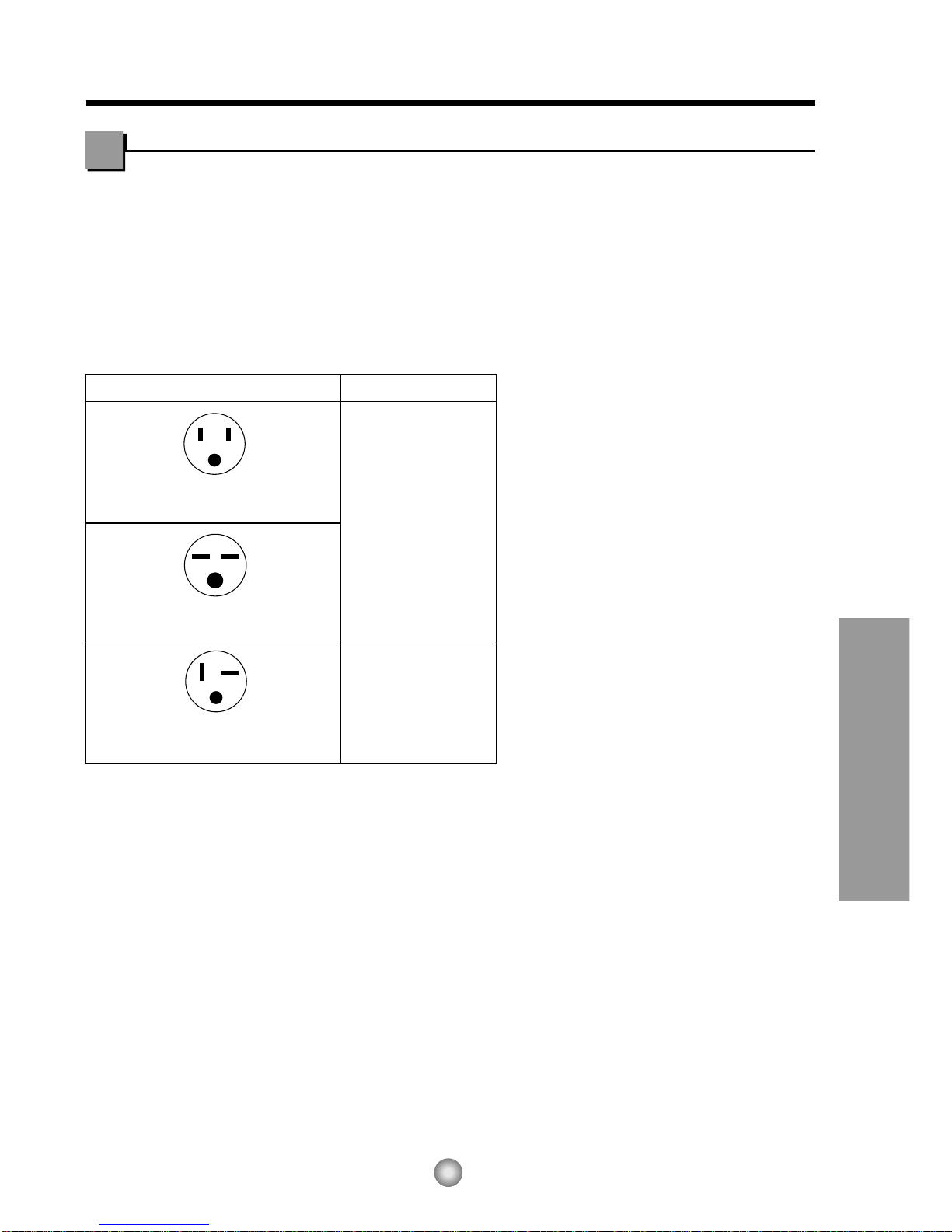

Electrical Data..................15
Electrical Safety ...............16
Before you call for
service...
Normal Operation.............17
Abnormal Operation.........17

WARNING
3
Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be
followed.
■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified
by the following indications.
■Meanings of symbols used in this manual are as shown below.
Plug in the power plug
properly.
• Otherwise, it will cause electric
shock or fire due to heat
generation.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or fire.
• If the power cord is damaged, it must
be replaced by the manufacturer or
an authorized service center or a
similarly qualified person in order to
avoid a hazard.
Do not modify power cord
length or share the outlet
with other appliances.
• It will cause electric shock or fire
due to heat generation.
Do not operate with wet
hands or in a damp
environment.
• It will cause electric shock.
Do not direct air flow at room
occupants.
• This could lead to health
problems.
WARNING : This symbol indicates the possibility of death or serious injury.
CAUTION :This symbol indicates the possibility of injury or damage to
property only.
Be sure not to do this.
Be sure to follow the instructions.

4
Safety Precautions
When the air filter is to be
removed, do not touch the
metal parts of the unit.
• It may cause an injury.
Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Ventilate well when used
together with a stove, etc.
• An oxygen shortage may occur.
When the unit is to be
cleaned, switch off, and turn
off the breaker.
•Since the fan rotates at high
speed during operation, it may
cause an injury.
Do not put a pet or house
plant where it will be exposed
to direct air flow.
• This could injure the pets or
plants.
Do not use for special
purposes.
• Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
Do not operate switches
with wet hands .
• It may cause an electric shock.
Do not apply an insecticide
or flammable spray.
• It may cause a fire or deformation
of the cabinet.
Do not put a heater, etc.
where it is exposed to direct
air flow.
•
It may cause imperfect
combustion.

5
About the Controls on the Air Conditioner
2
1
7
4 6
3
5
About the Controls on the Air Conditioner

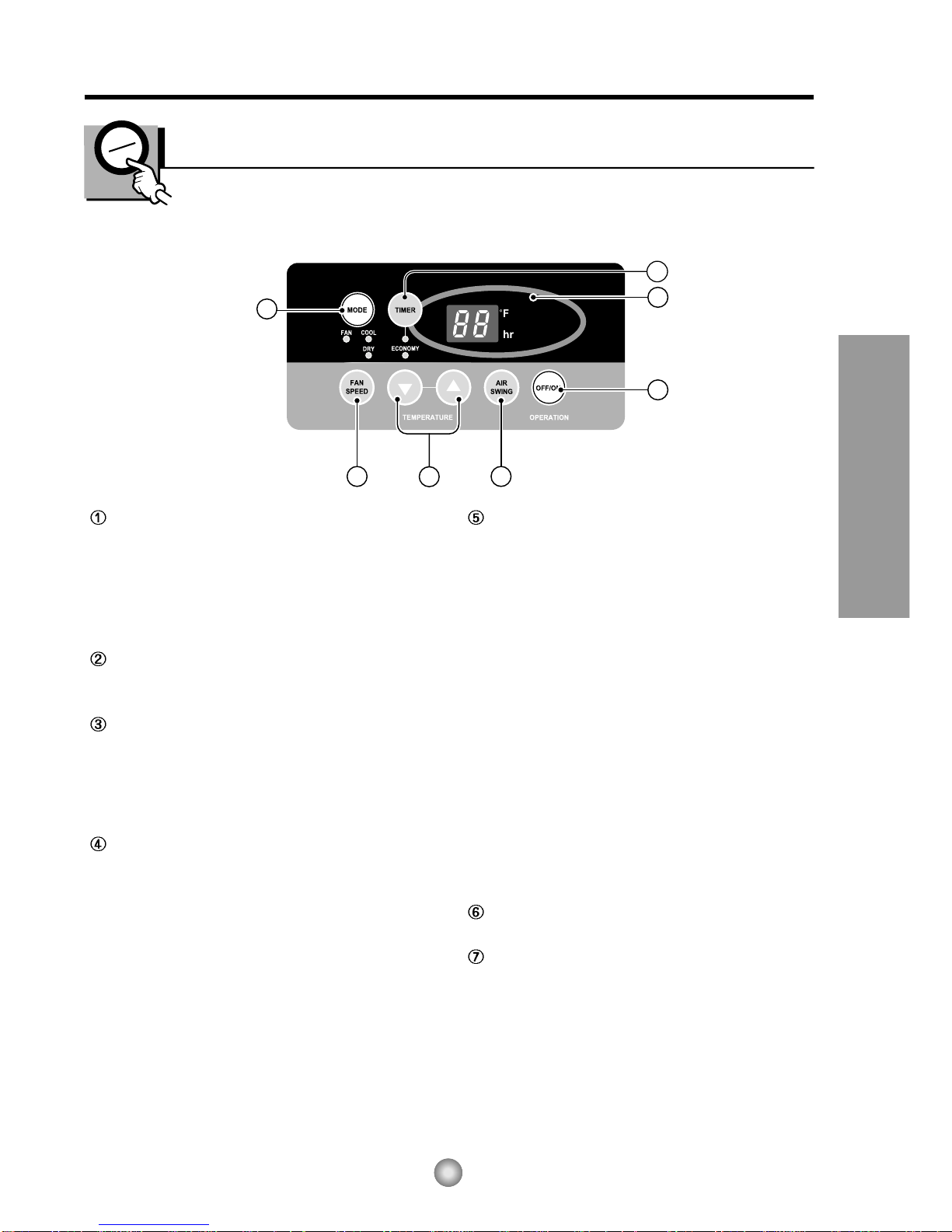

Controls
OPERATION
• To turn the air conditioner ON, push the button. To turn
the air conditioner OFF, push the button again.
•This button takes priority over any other buttons.
•When you first turn it on, the air conditioner is on the
High cool mode and the temperature is set at
72°F (22°C)
MODE
Every time you push this button, it will toggle between
COOL, ECONOMY, FAN, DRY.
TEMPERATURE SETTING
This button can automatically control the temperature of
the room. The temperature can be set within a range of
60°F to 86°F by 2°F. (16°C to 30°C by 1°C)
Select a lower number for a lower temperature in the
room.
FAN SPEED
Every time you push this button, it is set as follows.
{High(F3) →Low(F1) →Med(F2) →High(F3)...}.
ON/OFF TIMER
You can set the time when the unit will turn on or turn off
automatically by pressing the timer button. If the unit is
operating, this button controls the time it will be turned off.
If the unit is in off state, this button controls the time it will
start. Every time you push this button, the remaining time
will be set as follows.
- STOPPING OPERATION
•Every time you push this button, when the air
conditioner is operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours →
6Hours →7Hours →8Hours →9Hours →10Hours →
11Hours →12Hours →0Hour →1Hour →2Hours →...)
•The Setting Temperature will be raised by 2°F(1°C)
30min. later and by 2°F(1°C) after another 30 min.
- STARTING OPERATION
•Every time you push this button, when the air
conditioner is not operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours →
6Hours →7Hours →8Hours →9Hours →10Hours →
11Hours →12Hours →0Hour →1Hour →2Hours →...)
AIR SWING
This button can automatically control the air flow direction.
REMOTE CONTROL SIGNAL RECEIVER
DRY
When this unit is in dry mode, the fan rotates in low
speed. The fan stops when the compressor stops cooling.
Approximately every 3 minutes the fan will turn on and the
unit checks the room air temperature to set itself.

6
About the Controls on the Air Conditioner
OPERATION
TEMP
TIMER AIR
SWING
MODE
ECONOMY
FAN SPEED
1
5
2 4
7
3
6

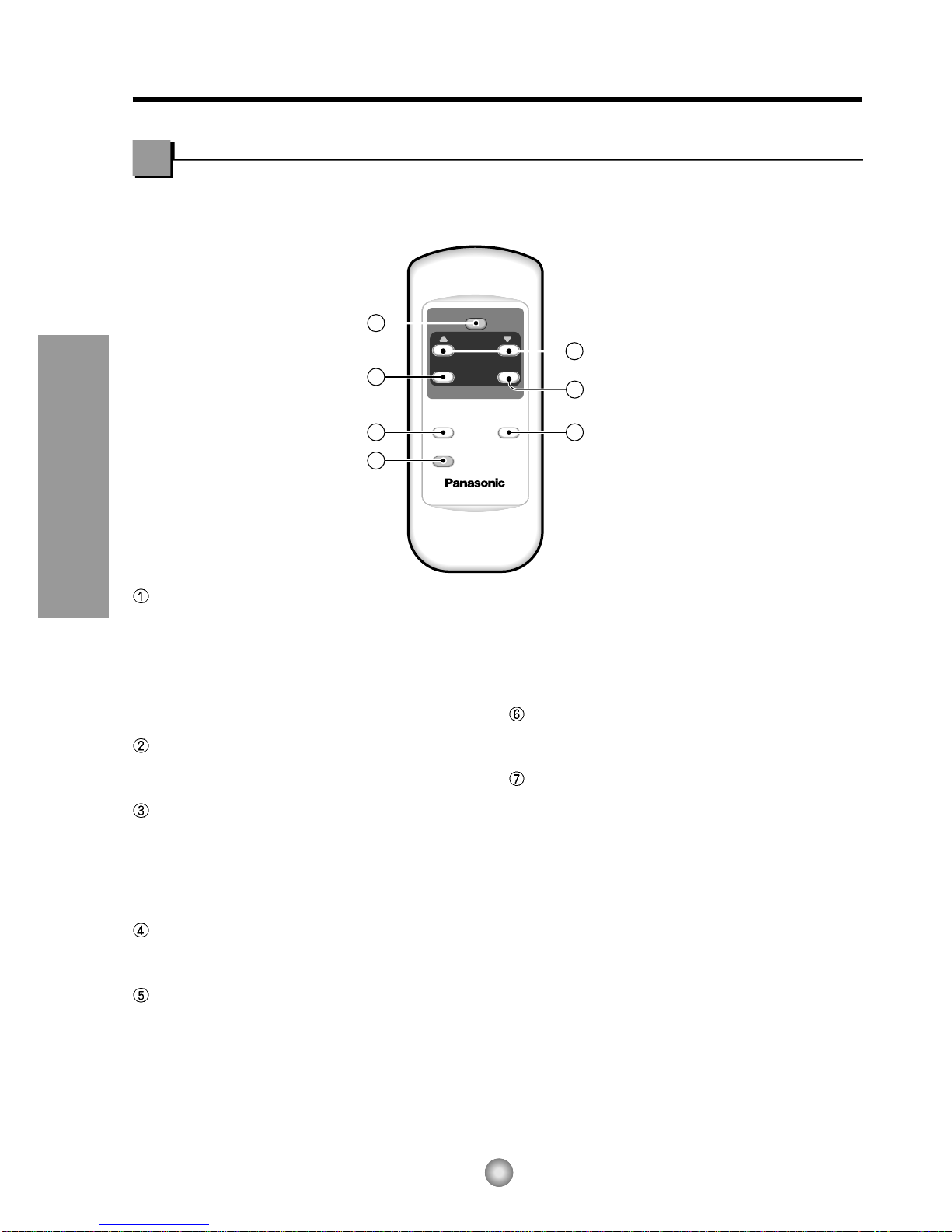

Remote controller
OPERATION
•To turn the air conditioner ON, push the button.
To turn the air conditioner OFF, push the button
again.
•This button takes priority over any other buttons.
•When you first turn it on, the air conditioner is on
the High cool mode and the temperature is set at
72°F (22˚C).
MODE
•Every time you push this button,it will toggle
between COOL, ECONOMY, FAN and DRY.
TEMPERATURE SETTING
•This button can automatically control the
temperature of the room.
The temperature can be set within a range of 60°F
to 86°F by 2°F.(16˚C to 30˚C by 1˚C) Select a
lower number for a lower temperature in the room.
FAN SPEED
•Every time you push this button it is set as follows.
{High(F3) →Low(F1) →Med(F2) →High(F3)...}.
ON/OFF TIMER
- STOPPING OPERATION
•Every time you push this button, when the air
conditioner is operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours
→6Hours →7Hours →8Hours →9Hours →
10Hours →11Hours →12Hours →O)
•The Setting Temperature will be raised by
2°F (1°C) 30 min. later and by 2°F (1°C) after
another 30 min.
- STARTING OPERATION
•Every time you push this button, when the air
conditioner is not operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours
→6Hours →7Hours →8Hours →9Hours →
10Hours →11Hours →12Hours →O)
AIR SWING
•This button can automatically control the air flow
direction.
ECONOMY
•If the switch is set to "On", the fan stops when the
compressor stops cooling. Approximately every 3
minutes the fan will turn on and check the room air
to determine if cooling is needed.
DRY
•When this unit is in dry mode, the fan rotates in
low speed. The fan stops when the compressor
stops cooling.
Approximately every 3 minutes the fan will turn on
and the unit checks the room air temperature to
set itself.
Precaution: The Remote Controller will not function properly if strong light strikes the sensor window of the
air conditioner or if there are obstacles between the Remote Controller and the air conditioner.

7
About the Controls on the Air Conditioner
Additional controls and important information.
Ventilation
The ventilation lever must be in the CLOSE position in order to maintain the
best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the
OPEN position.
The damper is opened and room air is drawn out.
Air Direction
The direction of air can be controlled wherever you want to cool by adjusting the
horizontal louver and the vertical louver.
How to Secure the Drain Pipe
In humid weather, excess water may cause the BASE PAN to overflow. To drain the water, remove the DRAIN
CAP and secure the DRAIN PIPE to the rear hole of the BASE PAN. Press the drain pipe into the hole by pushing
down and away from the fins to avoid injury. (See Fig. 1)
Optional(CW3H02502C)
1. Remove the rubber plug and slide the chassis out
from the cabinet. (See Fig. 2)
2. Install the drain pan over the corner of the cabinet
where you removed the plug with 4 screws.
(See Fig. 3)
3. Connect the drain hose to the outlet located at the
bottom of the drain pan. You can purchase the drain
hose or tubing locally to satisfy your particular
needs. (Drain hose is not supplied). (See Fig. 3)
4. Select the most appropriate connection from among
the figures to the right (by considering the hole of the
unit) to fit drain pan to your own unit. (See Fig. 3)
5. Slide the chassis back into the cabinet. Reinstall the
cabinet screws. Secure the cabinet to chassis by
using screws. (See Fig. 4)
VENTCLOSE OPEN
Part A
Part B
Drain pipe
Drain cap
Fig. 4
Fig. 3
Fig. 2
DRAIN HOSE
Inside diameter 17mm (5/8")
Fig. 1
OFF/ON
OPERATION
TEMP/TIMER
COOL
FAN
HIGH
MED
LOW
MODE
FANSPEED
SET
TIMER
SET/
CANCEL
AIRSWING
ECONOMY
hr
F
Wireless
RemoteControl
DRAIN
PAN
CABINET
SCREW
Remove the
rubber plug
OFF/ON
OPERATION
TEP/TI
COOL
FAN
HIGH
MED
LOW
MOE
FANSPEED
SET
TIMER
SET/
CNE
AIR
ECONOMY
F
Wireless
RemoteControl
Controlled
manually Controlled by Remote
Controller
NOTE: Before using the ventilation feature, and prior to installing the front
grille, pull down part until level with part .
•VERTICAL AIR-DIRECTION CONTROL • HORIZONTAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted
by rotating the horizontal louver
forward or backward manually.
The horizontal air direction is adjusted by
rotating the vertical louver right or left manually
or by Remote Controller.

8
About the Controls on the Air Conditioner
Air Filter Cleaning
The air filter behind the front grille should be checked and cleaned at least once every 2
weeks or more often if necessary.
TO REMOVE:
1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by
pulling out the top of the inlet grille.
2. Using the tab, pull up slightly on the filter to release it and pull it down or up.
3. Clean the filter with warm, soapy water below 40°C (104°F).
4. Rinse and gently shake the water from the filter and let it dry before replacing it.
CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will
clog it and reduce performance.
Care and Maintenance
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
•Do not use rechargeable
batteries. Such batteries
differ from standard dry cells in
shape, dimensions, and
performance.
•Remove the batteries from the
remote controller if the air
conditioner is not going to be
used for an extended length of
time.
•Keep the remote control away
from infants and small children
to prevent them from
accidentally swallowing the
batteries.
How to insert batteries
1. Remove the cover from the back of
the remote
controller.
2. Insert two AAA dry cell batteries.
•Be sure that the (+) and (-)
directions are correct.
•Be sure that both batteries are new.
3. Re-attach the cover.

9
Features and Installation
Learning parts name prior to installation will help you understand the installation procedure.
Features
Features
CABINET
FRONT GRILLE
AIR FILTER AIR INTAKE
(INLET GRILLE)
AIR DISCHARGE
HORIZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)
VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
EVAPORATOR
POWER CORD
BASE PAN
CONDENSER
COMPRESSOR
BRACE
CONTROL BOARD
REMOTE CONTROLLER

NOTE: All supporting parts should be secured to firm wood, masonry, or metal.
WINDOW REQUIREMENTS
1. This unit is designed for installation in
standard double hung windows with actual
opening widths from 29" to 41".
The top and bottom window sashes must
open sufficiently to allow a clear vertical
opening of 18" from the bottom of the upper
sash to the window stool.
2. The stool offset (height between the stool
and sill) must be less than 1 1/4".
10
Features and Installation
About 1/2"
Over 20"
Heat
Radiation
Fence
Awning
INSIDE OUTSIDE
Foam
Cooled
Air
30-60"
Level
1/4 Bubble
29" to 41"
18" min
Offset
Sill
Exterior
Interior Wall
Stool
Installation
How to Install the Unit
1. To prevent vibration and noise, make sure the unit is installed securely and firmly
2. Install the unit where the sunlight does not shine directly on the unit.
3. The outside of the cabinet must extend outward for at least 30.5 cm(12") and there
should be no obstacles, such as a fence or wall, within 50.8 cm(20") from the back of
the cabinet because it will prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the cooling efficiency of the air conditioner.
CAUTION: All side louvers of the cabinet must remain exposed to the outside of the
structure.
4. Install the unit a little slanted so the back is slightly lower than the front
(about 12.7 mm(1/2")).
This will force condensed water to flow to the outside.
5. Install the unit with the bottom about 76.2~152.4 cm(30"~60") above the floor level.
Window Requirements

Foam-PE
(Adhesive-Backed)
Foam-PE
(Adhesive-Backed)
Type C (5) Type D (2)
Type A (14)
Carriage Bolt (2) Lock Nut (4)
Type B (7)
Foam strip
(Plain-Back)
Right frame
curtain
Drain pipe
Window locking
bracket
Left frame
curtain
Sill bracket (2)
Support bracket(2)
11
Features and Installation
Installation Kits Contents
■Top retainer bar is in product package.

12
Features and Installation
Foam-PE
Top retainer bar
Top retainer bar
Foam-PE
Screw
(Type A)
Screw (Type A)
Shipping screws
Lower guide
PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet at
both sides and at the back.(See Fig.1)
2. Slide the unit out from the cabinet by gripping the
base pan handle and pulling forward while
bracing the cabinet.(See Fig. 2)
3. Cut the window sash seal to the proper length.
Peel off the backing and attach the Foam-PE to the
underside of the window sash.(See Fig. 3)
4. Remove the backing from Foam-PE with 3 holes
and attach it to the bottom of the Top retainer
bar.(See Fig. 3)
5. Attach the Top retainer bar the top of the cabinet
with 3 screws (Type A).(See Fig. 4)
6. Insert the Frame Curtain into the Top retainer bar
and Lower guide.(See Fig. 4)
7. Fasten the curtains to the unit with 10 screws
(Type A) at both sides.(See Fig. 4)
Suggested Tool Requirements
SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL
Fig. 1
Fig. 2
Fig. 3
Fig. 4

13
Features and Installation
Cabinet Installation
1. Open the window. Mark a line on the center
of the window stool between the side
window stop moldings.
Loosely attach the sill bracket to the support
bracket using the carriage bolt and the lock
nut. (See Fig. 5)
2. Attach the sill bracket to the window sill
using the screws (Type B).
Carefully place the cabinet on the window
stool and align the center mark on the
bottom front with the center line marked
window stool.(See Fig. 6)
3. Using the M-screw and the lock nut, attach
the support bracket to the cabinet track hole.
Use the first track hole after the sill bracket
on the outer edge of the window sill. Tighten
the carriage bolt and the lock nut. Be sure
the cabinet slants outward. (See Fig. 6)
CAUTION: DO NOT DRILL A HOLE IN THE
BOTTOM PAN.
The unit is designed to operate
with approximately 12.7 mm
(1/2") of water in bottom pan.
4. Pull the bottom window sash down behind
the Top retainer bar until they meet.(See
Fig. 7)
NOTE: 1. Do not pull the window sash down so
tightly that the movement of Frame
curtain is restricted. Attach the
cabinet to the window stool by
driving the screws (Type B) through
the cabinet into window stool. (See
Fig. 8)
2. The cabinet should be installed with
a very slight tilt downward toward the
outside.
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Support
Bracket
Lock nut
Sill
Bracket
Carriage
Bolt
(Type M)
Window sash Top retainer bar
Cabinet
Foam-PE
Frame curtain
Screw (Type B)
Front Angle
Sash track
Foam-PE
Cabinet
Track hole
Support
Bracket
Carriage bolt
and lock nut
Machine screw (Type D)
and lock nut
Outer edge
of window
sill
Screw (Type B)
Sill bracket

14
Features and Installation
Power Cord
Screw
Screw
Window locking
bracket
Foam-Strip
Screw (Type C)
5. Pull each Frame curtain fully to each window
sash track, and pull the bottom window sash
down behind the Top retainer bar until it
meets.
6. Attach each Frame curtain the window sash
by using screws (Type C.) (See Fig. 9)
7. Slide the unit into the cabinet.(See Fig. 10)
CAUTION: For security purpose, reinstall screws
at cabinet's sides.
8. Cut the Foam-strip to the proper length and
insert between the upper window sash and
the lower window sash.(See Fig. 11)
9. Attach the Window locking bracket with a
screw (Type C.) (See Fig. 12)
10. Attach the front grille to the cabinet by
inserting the tabs on the grille into the tabs
on the front of the cabinet. Push the grille in
until it snaps into place.(See Fig.13)
11. Lift the inlet grille and secure it with two
screws (Type A) through the front grille.(See
Fig. 13)
NOTE: Please refer to p.7 for setting ventilation
kit.
12. Window installation of room air conditioner is
now completed. See ELECTRICAL DATA for
attaching power cord to electrical outlet.
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14

15
Features and Installation
Use Wall Receptacle Power Supply
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Use 20 AMP. time
delay fuse or 20 AMP.
circuit breaker.
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
Electrical Data
USE OF EXTENSION CORDS
Because of potential safety hazards, we
strongly discourage the use of an extension
cord. However, if you wish to use an extension
cord, use a CSA certified/UL-listed 3-wire
(grounding) extension cord, rated 15A, 125V.
All wiring should be made in accordance
with local electrical codes and regulations.
ELECTRICAL SAFETY
NOTE : Aluminum house wiring may pose special problems. Consult a qualified electrician.
IMPORTANT GROUNDING INSTRUCTIONS
Air conditioner has a three-prong grounding plug on
its power supply cord, which must be plugged into
properly grounded three-prong wall receptacle for
your protection against possible shock hazard.
230, 208, and 230/208 VOLT UNITS
These units are equipped with a three-prong
grounding plug on the power supply cord, which
must be plugged into a matching properly grounded
three-prong wall receptacle for your protection
against possible shock hazard. If such an outlet is
not present, one must be installed by a qualified
electrician in accordance with the National Electrical
Code and local codes and ordinances.
NOTE: DO NOT USE AN EXTENSION CORD ON
230, 208, AND 230/208 VOLT UNITS.
Power cord may include a current interrupter device. A test and reset button is provided on the plug
case. The device should be tested on a periodic basis by first pressing the TEST button and then the
RESET button. If the TEST button does not trip or if the RESET button will not stay engaged,
discontinue use of the air conditioner and contact a qualified service technician.
Damaged power supply cord must be replaced with a new power supply cord obtained from the product
manufacture and not repaired.

PREFERRED METHOD
Ensure proper ground
exists before use
TEMPORARY METHOD
Adapter plug
Receptacle cover
Metal screw
16

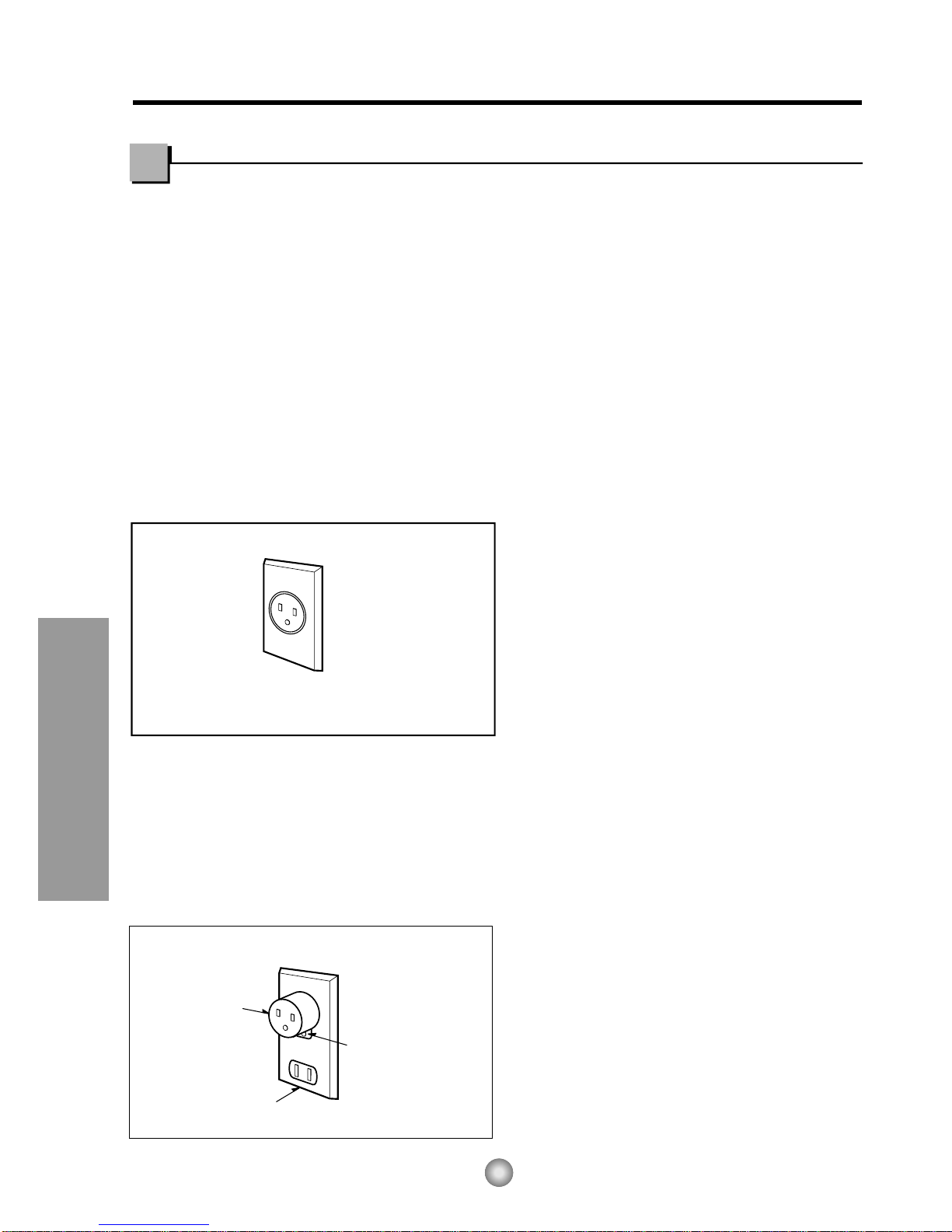

Features and Installation
Electrical Safety
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong (grounding) plug. Use this with a
standard three-slot (grounding) wall power outlet
(Fig. 15) to minimize the hazard of electric shock.
The customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properly grounded.
DO NOT CUT OR REMOVE THE THIRD
(GROUND) PRONG FROM THE POWER
PLUG.
A. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED ONLY
OCCASIONALLY:
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However, if
you wish to use an adapter, a TEMPORARY
CONNECTION may be made. Use UL-listed
adapter, available from most local hardware stores
(Fig. 16). The large slot in the adapter must be
aligned with the large slot in the receptacle to
assure a proper polarity connection.
CAUTION: Attaching the adapter ground terminal to
the wall receptacle cover screw does not ground the
appliance unless the cover screw is metal, and not
insulated, and the wall receptacle is grounded
through the house wiring.
The customer should have the circuit checked by a
qualified electrician to make sure the
receptacle is properly grounded.
Disconnect the power cord from the adapter, using
one hand on each. Otherwise, the adapter ground
terminal might break. DO NOT USE the appliance
with a broken adapter plug.
B. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to
an eventual breakage of the ground terminal. The
wall power outlet should be replaced by a three-slot
(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord. However,
if you wish to use an extension cord, use a CSA
certified/UL-listed 3-wire (grounding) extension
cord, rated 15A, 125V.
Fig. 15
Fig. 16

17
Before you call for service...
Before you call for service...
Troubleshooting Tips
Save time and money! Review the chart below first and you may not need to call for service.
Problem Possible Causes What To Do
■ The air conditioner is
unplugged.
■ The fuse is blown/circuit
breaker is tripped.
■ Power failure.
■ The current interrupter
device is tripped.
■ Airflow is restricted.
■ TEMP Control is set at too
high a number.
■ The air filter is dirty.
■ The room may have been
hot.
■ Cold air is escaping.
■ Cooling coils have iced up.
■ Ice blocks the air flow and
stops the air conditioner
from cooling the room.
•Make sure the air conditioner plug is pushed
completely into the outlet.
•Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
•When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
• Press the RESET button located on the power cord plug.
•If the RESET button will not stay engaged,
discontinue use of the air conditioner and contact a
qualified service technician.
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner.
•Set the TEMP Control to a lower number.
•Clean the filter at least every 2 weeks.
See the operating instructions section.
•When the air conditioner is first turned on
you need to allow time for the room to cool down.
•Check for open furnace floor registers
and cold air returns.
•Set the air conditioner's vent to the closed position.
•See Air Conditioner Freezing Up below.
•Set the mode control at High Fan or High Cool with
the high temperature.
Air conditioner
does not start
Air conditioner
does not cool as it
should
Air conditioner
freezing up
Normal Operation
•You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency.
•You may hear the thermostat click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days. The water may overflow
and drip from the outdoor side of the unit.
•The fan may run even when the compressor does not.
Abnormal Operation
