INSTALLATION AND OPERATING INSTRUCTIONS
Room Air Conditioner
Model: CW-XC55HU
Please read these operating instructions thoroughly
before using your air conditioner and keep for future
reference.
For U.S. customers:
For assistance, please call: 1-800-211-PANA(7262) or
Register your product at : http://www.panasonic.com/register
CW382820391M
R
TEMP TEMP
F
DRY
ECONOMY
FAN
COOL
OPERATION
OPERATION
OFF/ON
FAN
SPEED
TIMER
MODE

About the Controls on the Air Conditioner
Features and Installation
Before you call for service...
2
Safety Precautions
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of the unit.
Dealer's Name
Date Purchased
Staple your receipt here for proof of purchase.
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
READ THIS MANUAL
CAUTION
• Contact an Authorized Service Center for repair or
maintenance of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
Safety Precautions
Safety Precautions .............3
About the Controls
on the Air Conditioner
Controls..............................5
Air direction ........................7
Care and Maintenance ......7
Features
and Installation
Features .............................8
Window Requirements .......9
Electrical Data ..................12
Electrical Safety ...............13
Before You Call
For Service...
Normal Operation.............14
Abnormal Operation .........14

WARNING
3
Safety Precautions

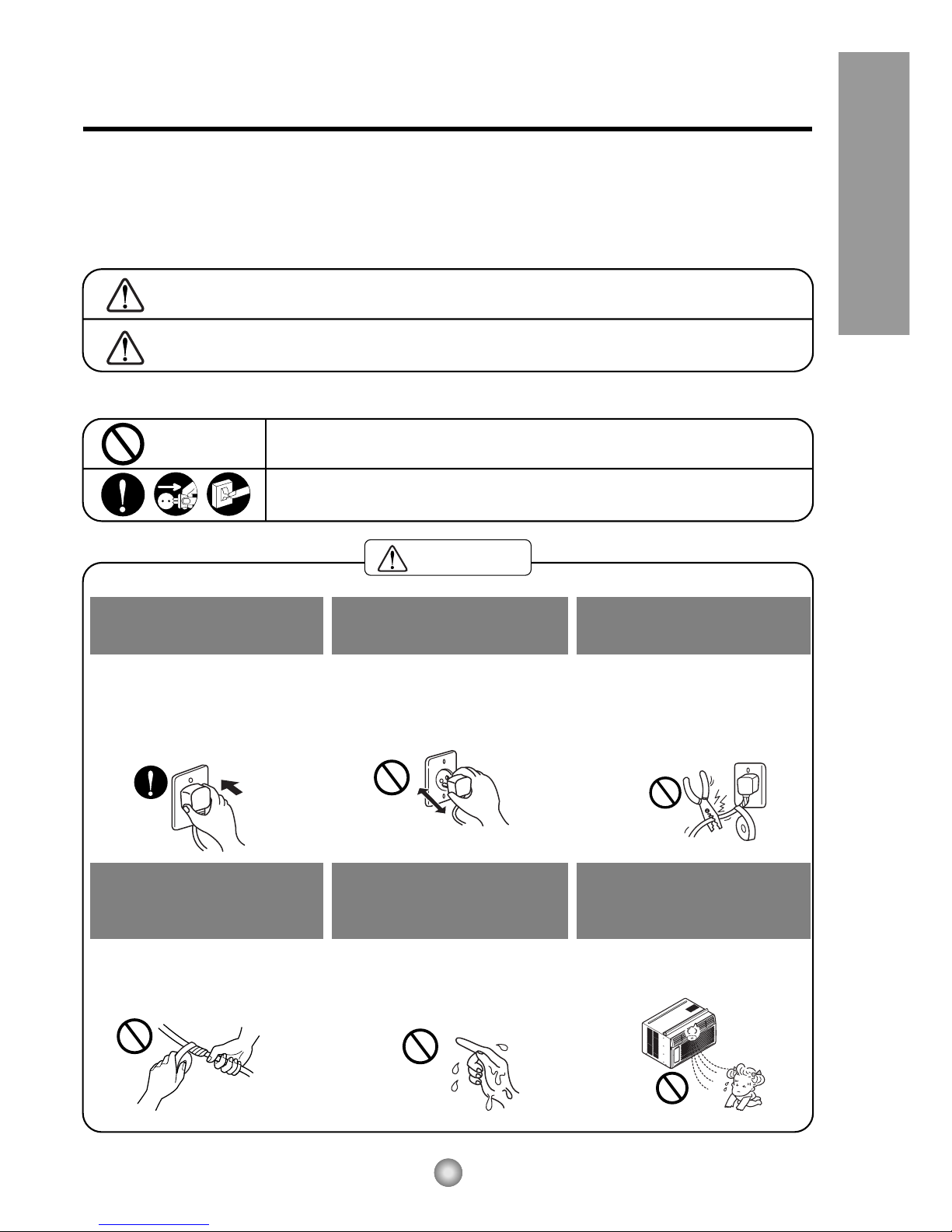

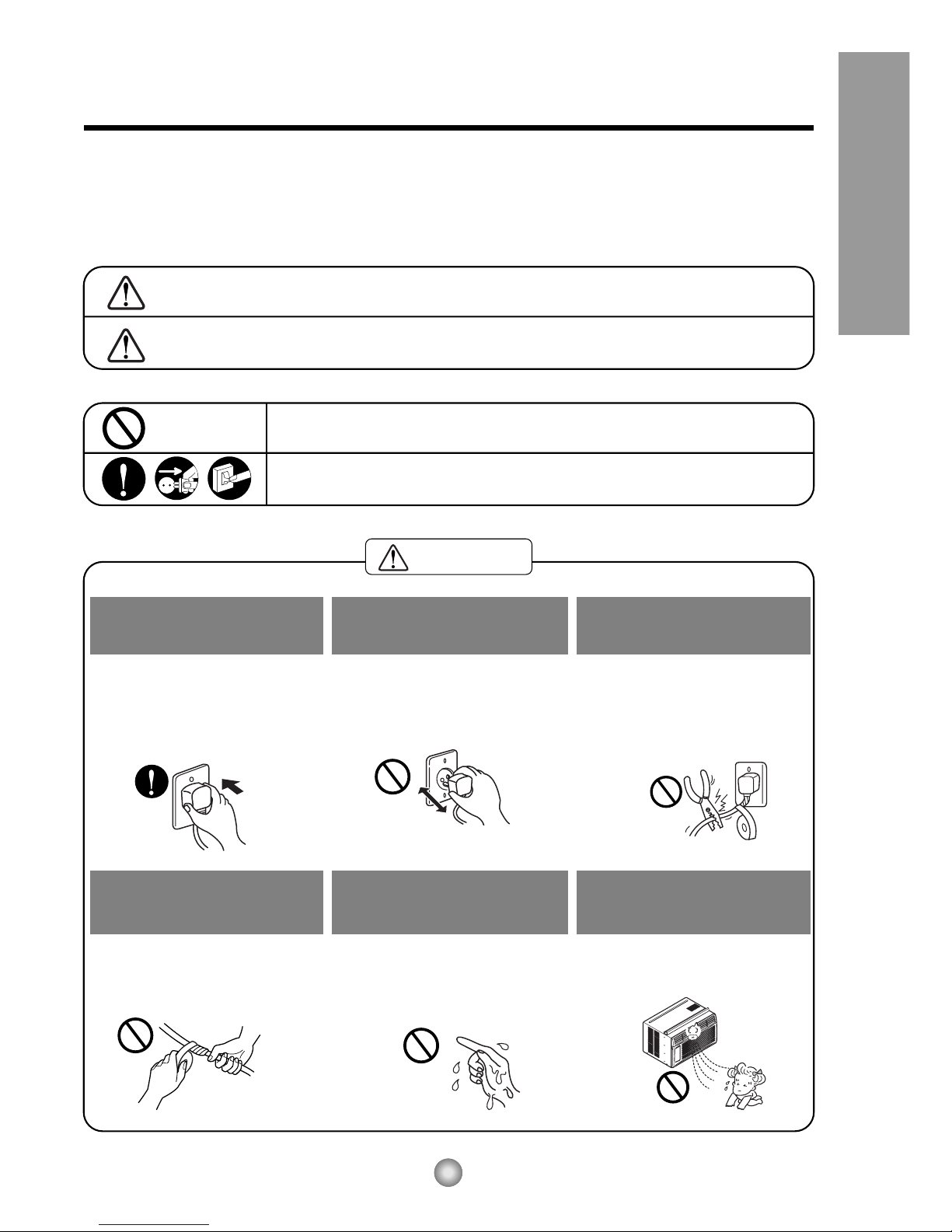

Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be followed:
■Incorrect operation will cause harm or damage. The seriousness is classified by the following indications.
■Because of the weight of the product, it is recommended that you have a helper to assist in the installation.
■Use Caution! Sharp Edges! See Warning, page 4.
WARNING : This symbol indicates the possibility of death or serious injury.
CAUTION :This symbol indicates the possibility of injury or damage to
property only.
■Meanings of symbols used in this manual are as shown below.
Be sure not do this.
Be sure to follow the instructions.
Plug in the power plug
properly.
• Otherwise, it will cause electric
shock or fire due to heat
generation.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or fire.
•
If the power cord is damaged, it must
be replaced by the manufacturer or
its service agent or a similarly
qualified person in order to avoid a
hazard.
Do not modify the length of
the power cord or use an
extension cord.
• It will cause electric shock or fire
due to heat generation.
Do not operate with wet
hands or in a damp
environment.
• It will cause electric shock.
Do not direct air flow at room
occupants.
• This could lead to health
problems.

Sharp edges
When the air filter is to be
removed, do not touch the
metal parts of the unit.
•They are sharp and may cause
an injury.

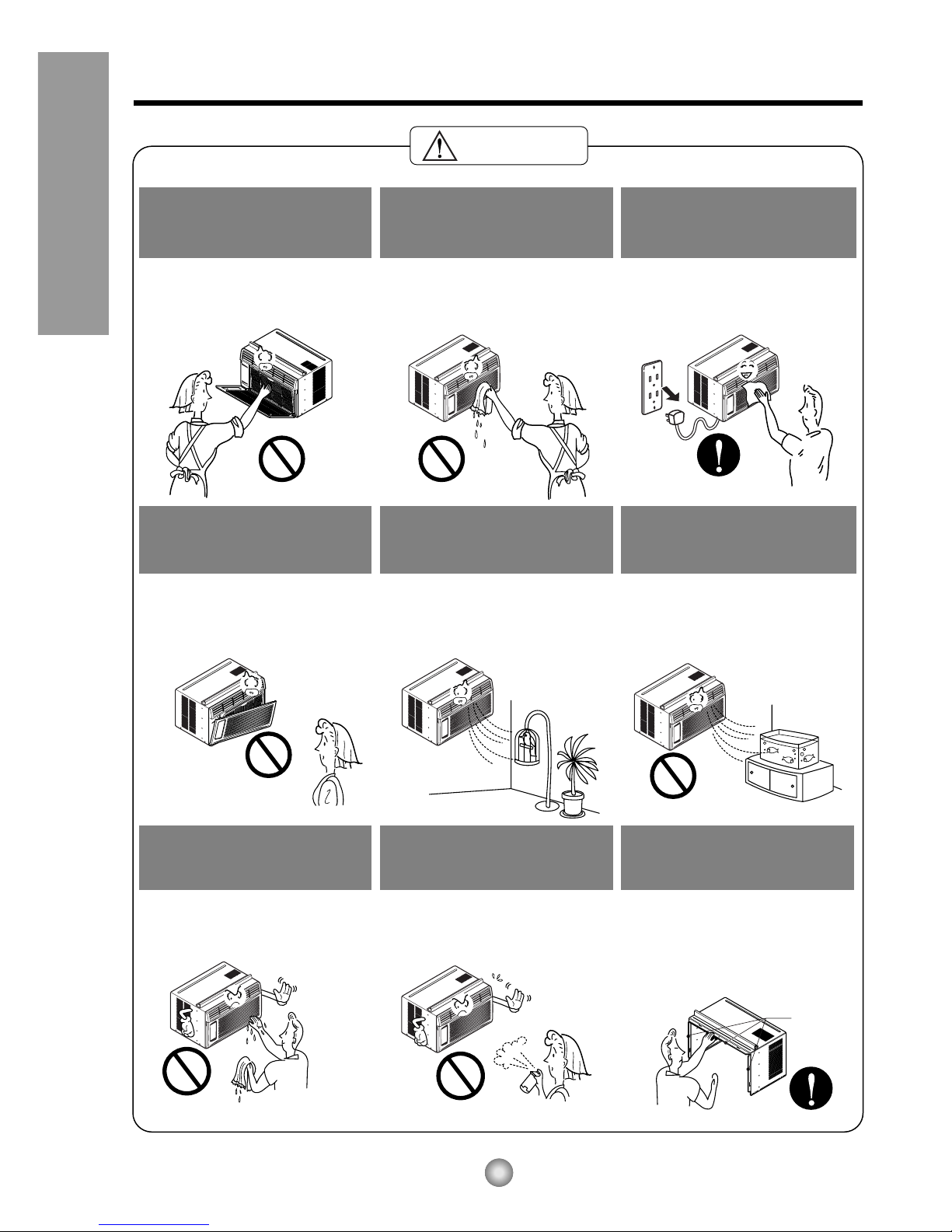

Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
When the unit is to be
cleaned, switch the unit off,
and unplug it.
•Since the fan rotates at high
speed during operation, it may
cause an injury.
Do not operate the unit
without the air filter or when
the front intake grille has
been removed.
•It could cause dust to
accumulate on the heat
exchanger.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
•This could injure the pets
or plants.
Do not use the unit for any
other purpose than its
intended use.
•Do not use this air conditioner to
preserve precision devices, food,
pets, plants, or art objects.
It may cause deterioration of
quality, etc.
Do not operate switches
with wet hands .
•It may cause an electric shock.
Do not apply an insecticide
or flammable spray.
•It may cause a fire or damage of
the cabinet.
SHARP EDGES!
•Use caution when handling the
case. Grip it firmly and do not allow
it to slip while holding it.
•Use heavy gloves to handle the
case if necessary.
4
Safety Precautions

About the Controls on the Air Conditioner
5
About the Controls on the air conditioner

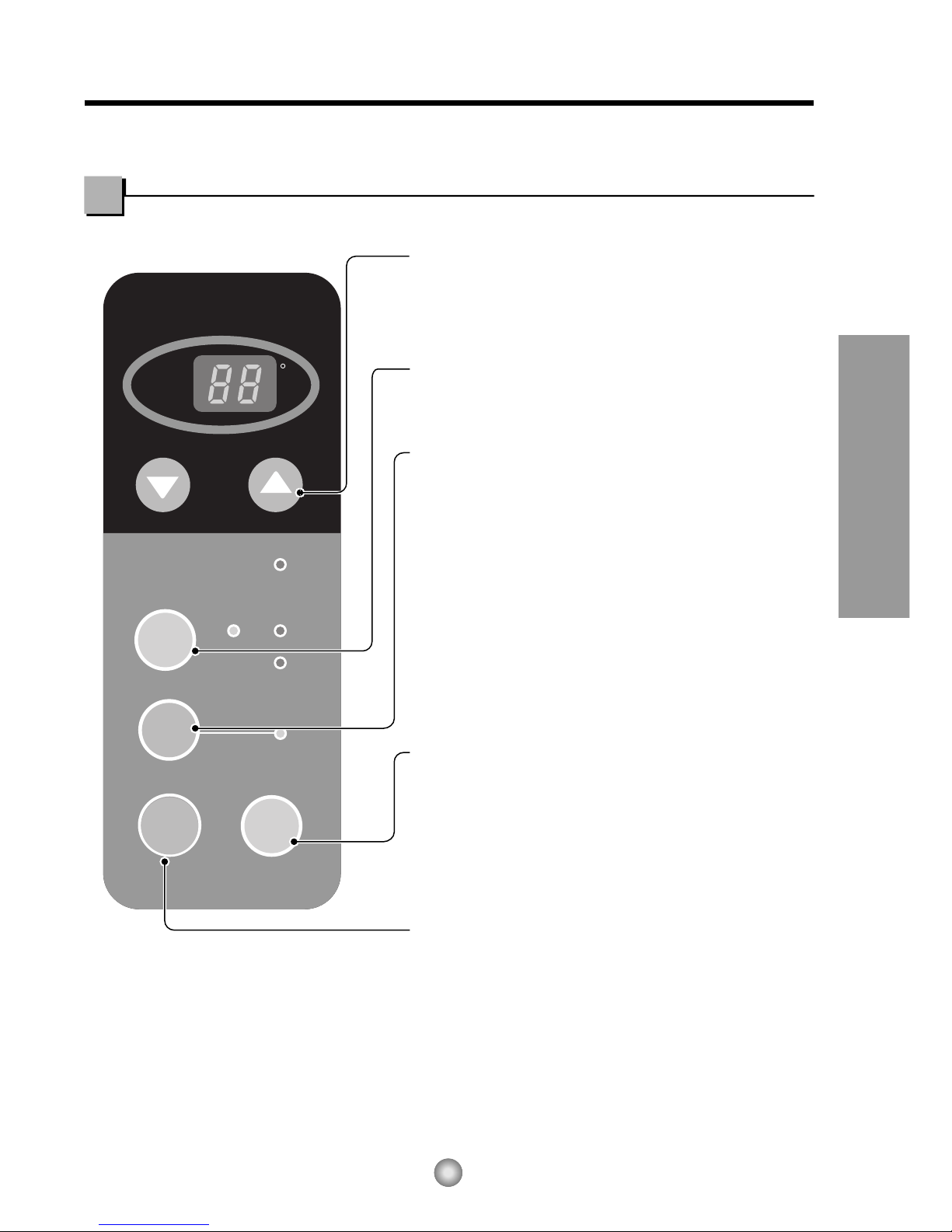

The controls will look like the following.
Controls
hr
F
FAN
COOL
DRY
ECONOMY
FAN
SPEED
MODE
TEMP
OPERATION
OFF/ON
TIMER
ON/OFF TIMER
- STOPPING OPERATION
•Every time you push this button, when the unit is operating,
timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours →6Hours →
7Hours →8Hours →9Hours → 10Hours →11Hours →12Hours →Cancel)
•The Setting Temperature will be raised by 2°F (1°C) 30 min. later
and by 2°F (1°C) after another 30 min.
- STARTING OPERATION
•Every time you push this button, when the unit is
not operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours →6Hours →
7Hours →8Hours →9Hours →10Hours →11Hours →12Hours → Cancel)
MODE
•Every time you push this button, it will toggle between
COOL, ECONOMY, FAN and DRY.
POWER
•To turn the unit ON, push the button. To turn the unit OFF,
push the button again.
•This button takes priority over any other buttons.
•When you first turn it on, the unit is on the High cool mode
and the temperature is set at 72°F (22°C).
TEMPERATURE SETTING
•This button can automatically control the temperature
of the room. The temperature can be set within a range of
60°F (16°C) to 86°F (30°C) by 1°F (1°C).
Select a lower number for a lower temperature in the room.
FAN SPEED
•Every time you push this button it is set as follows.
{High(F2)
→ Low(F1) → High(F2)...}.
DRY
•When this unit is in dry mode, the fan rotates at low speed.
The fan stops when the compressor stops cooling.
Approximately every 3 minutes the fan will turn on and the unit
checks the room air temperature to set itself.

6
About the Controls on the Air Conditioner

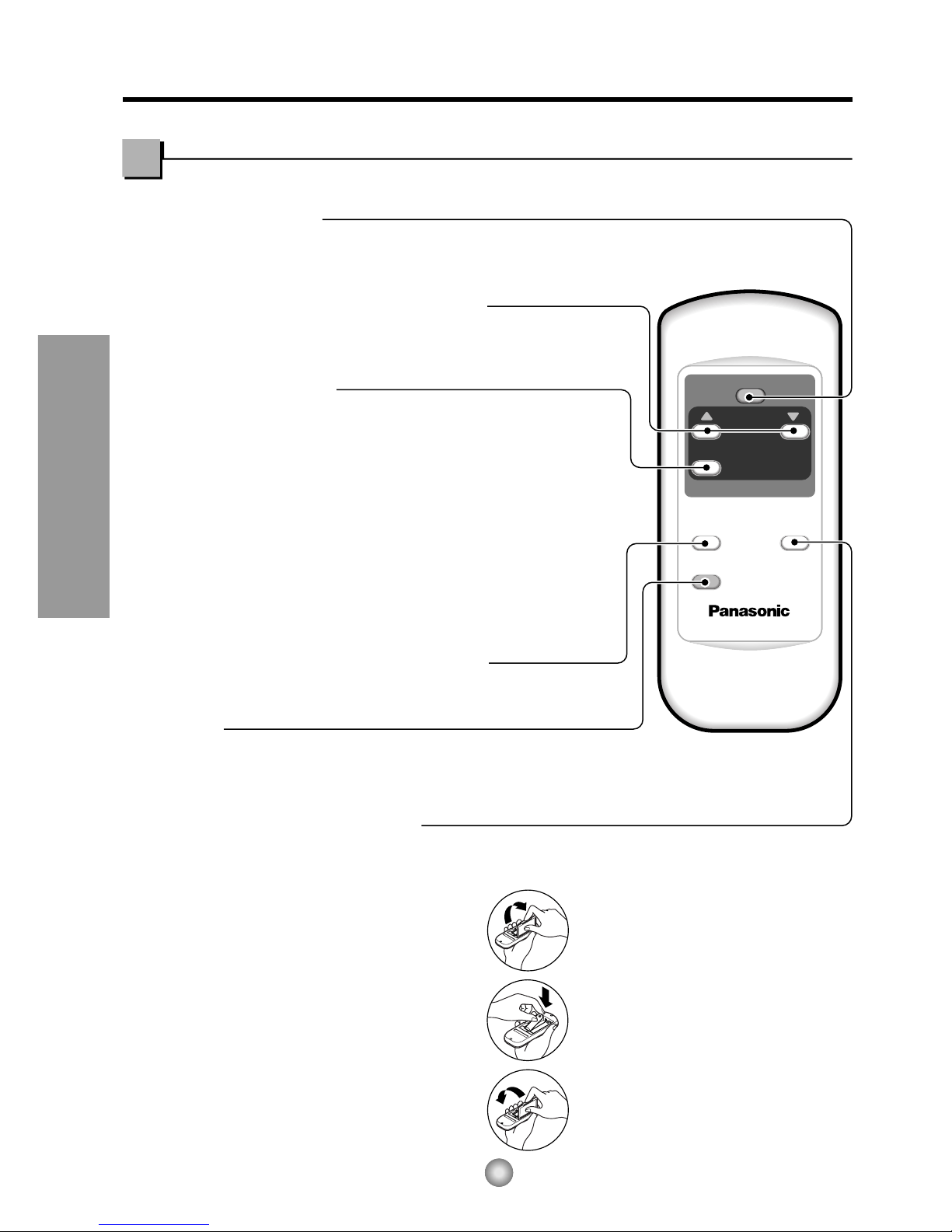

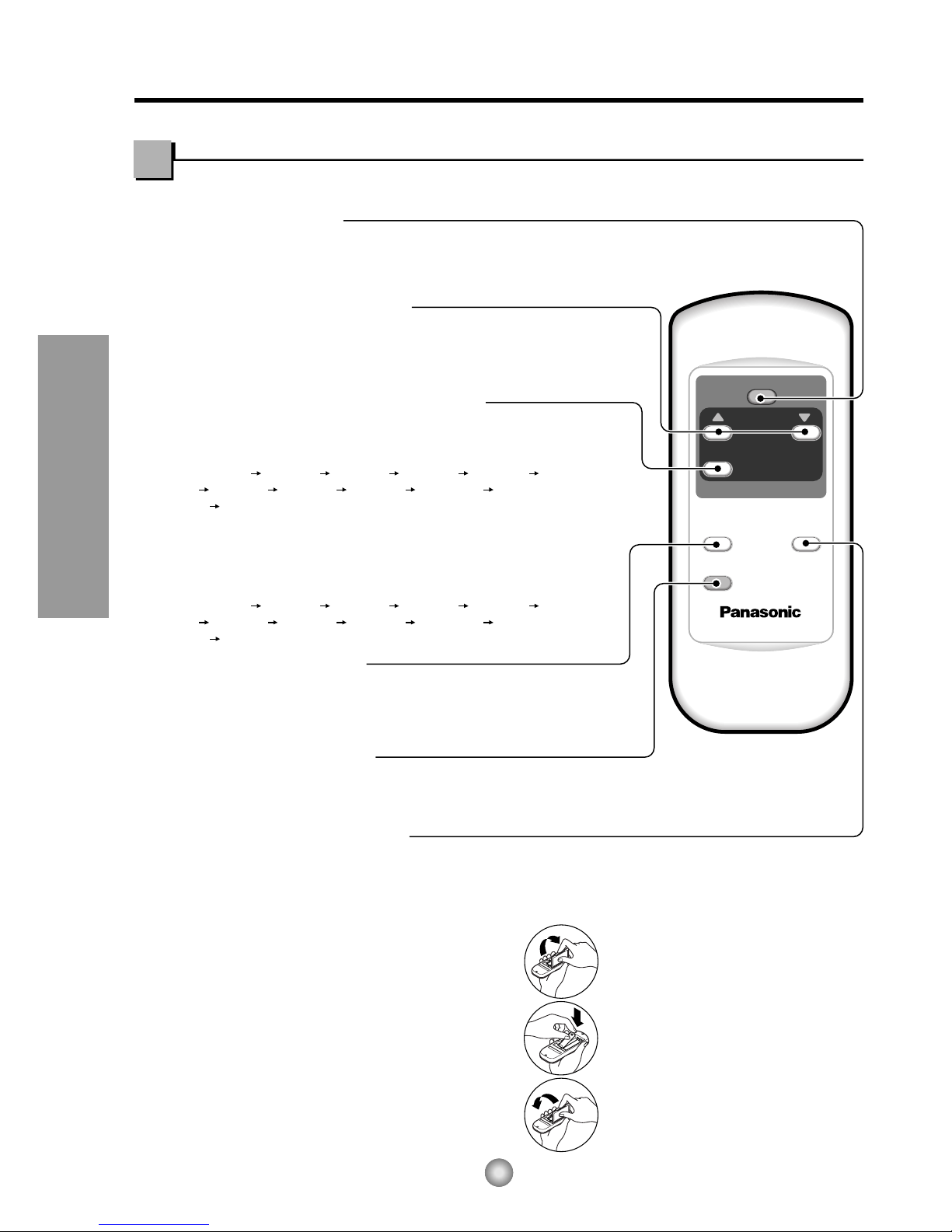

Remote controller
Precaution: The Remote Controller will not function properly if strong light strikes the sensor window of the air
conditioner or if there are obstacles between the Remote Controller and the air conditioner.
1. Remove the cover from the back of the
remote
controller
2. Insert two batteries.
•Be sure that the (+) and (-) directions are
correct.
•Be sure that both batteries are new.
3. Re-attach the cover.
•Do not use rechargeable batteries.
Such batteries
differ from standard dry cells in
shape, dimensions, and
performance.
•Remove the batteries from the
remote controller if the air
conditioner is not going to be used
for an extended length of time.
•Keep the remote control away from
infants and small children to
prevent them from accidentally
swallowing the batteries.
How to Insert Batteries
OPERATION
TEMP
TIMER
MODE
ECONOMY
FAN SPEED
ROOM TEMPERATURE SETTING BUTTON
ECONOMY
ON/OFF TIMER BUTTON
OPERATION BUTTON
FAN SPEED SELECTION BUTTON
OPERATION MODE SELECTION BUTTON
•To turn the air conditioner ON, push the button. To turn the air conditioner OFF, push the button again.
•This button takes priority over any other buttons.
•When you first turn it on, the air conditioner is on the High cool mode and the temp. at 72°F (22°C).
• Every time you push this button, it will toggle between COOL, ECONOMY, FAN
and DRY.
•If you push this button, the fan stops when the compressor stops cooling. Approximately every
3 minutes the fan will turn on and check the room air to determine if cooling is needed.
•You can set the time when the unit will turn on or turn off automatically by pressing the timer
button. If the unit is in operation, this button controls the time it will be turned off. If the unit is
in off state, this button controls the time it will start. Every time you push this button, the
remaining time will be set as follows:
- STOPPING OPERATION
•Every time you push this button, when the air conditioner is operating, timer is set as
follows : (1Hour
→ 2Hours → 3Hours → 4Hours → 5Hours → 6Hours → 7Hours →
8Hours
→ 9Hours → 10Hours → 11Hours → 12Hours → 0Hour → 1Hour → 2Hours → ...)
•The Setting Temperature will be raised by 2°F (1°C) 30 min. later and by 2°F (1°C) after
another 30 min.
- STARTING OPERATION
•Every time you push this button, when the air conditioner is not operating, timer is set as
follows : (1Hour
→ 2Hours → 3Hours → 4Hours → 5Hours → 6Hours → 7Hours →
8Hours → 9Hours → 10Hours → 11Hours → 12Hours → 0Hour → 1Hour → 2Hours → ...)
Every time you push this button, it is set as follows.
{High(F2)
→ Low(F1) → High(F2)...}.
This button can automatically control the temperature of the room. The temperature
can be set within a range of 60°F to 86°F by 1°F. (16°C to 30°C by 1°C)
Select a lower number for a lower temperature in the room.

7
About the Controls on the Air Conditioner
Do not force open
or open too
far (about 56°)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
• TO CLEAN FILTER
The air filter will become dirty as it removes
dust from the inside air.
It should be washed at least every 2 weeks.
If the air filter remains full of dust, the air
flow will decrease and the cooling capacity
will be reduced, possibly damaging the unit.

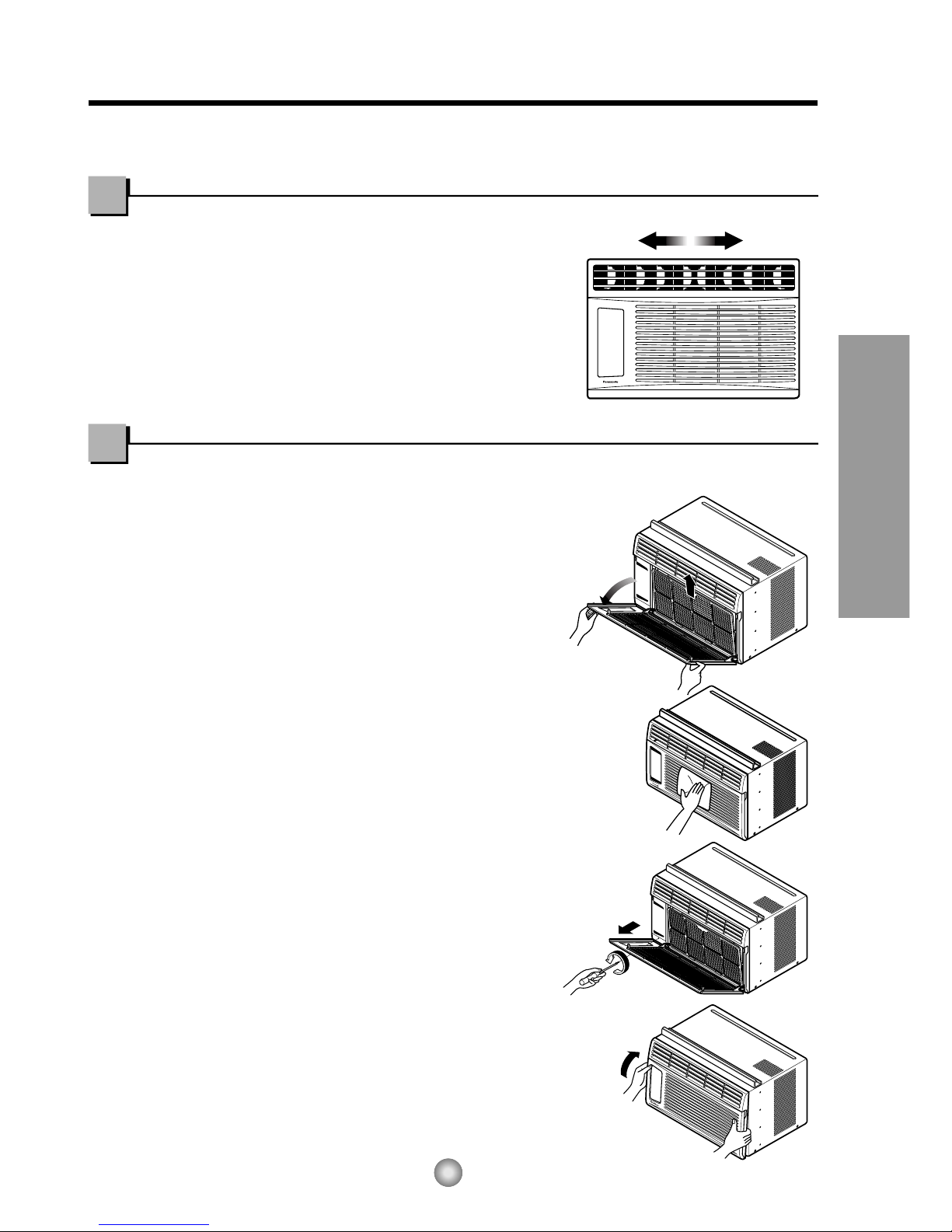

1. Pull the inlet grille forward and pull out the
air filter. (Fig. 1)
2. Wash the air filter in warm 104°F (40°C) water.
Be sure to shake off all the water before
replacing the filter.
• CLEANING THE AIR CONDITIONER
The front grille and inlet grille may be wiped with a
cloth dampened in a mild detergent solution. (Fig. 2)
The cabinet may be washed with mild soap or
detergent and lukewarm water, then polished with
a liquid wax used for appliances.
To ensure continued peak efficiency, the condenser
coils (outside of unit) should be checked
periodically and cleaned if clogged with soot or
dirt from the atmosphere.
• HOW TO REMOVE THE FRONT GRILLE
1. Pull the inlet grille forward.
2. Remove the screw securing the front grille. (Fig. 3)
3. Push the grille up from the bottom and pull
the top of the grille away from the case as
the top tabs lift out of their slots. (Fig. 4)
Additional controls and important information.
Care and Maintenance
Air Direction
• ADJUSTING THE AIR DIRECTION USING THE HORIZONTAL AIR-DEFLECTOR CONTROL
Using the control tabs, the air flow can be directed
to the left, right, straight ahead, or any combination
of these directions.

8
Features and Installation
1
8
5
3
2
6
TEMP TEMP
F
DRY
ECONOMY
FAN
COOL
OPERATION
OPERATION
OFF/ON
FAN
SPEED
TIMER
MODE
TEMP TEMP
F
DRY
ECONOMY
FAN
COOL
OPERATION
OPERATION
OFF/ON
FAN
SPEED
TIMER
MODE
7
9
4
10
Wire net
Groove

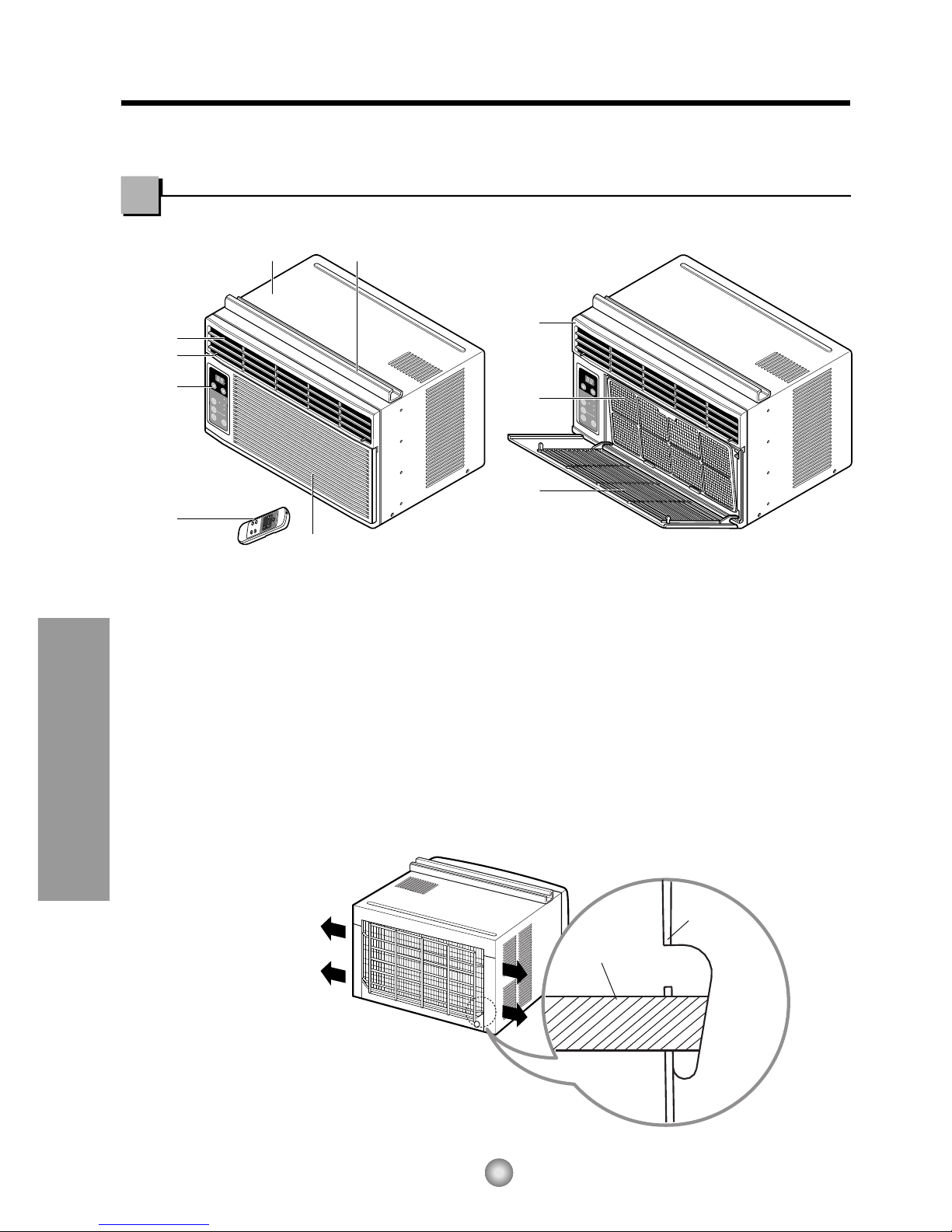

Learning parts name prior to installation will help you understand the installation procedure.
Features
■How to install wire net on the back side of the cabinet
(Optional : CW353020031B)
Insert the rear grill wire ends into the 4 respective slots provided along the groove at the back of unit.
1. CABINET
2. HORIZONTAL AIR DEFLECTOR
3. COOL AIR DISCHARGE
4. FRONT GRILLE
5. INLET GRILLE
6. AIR FILTER
7. CONTROL BOARD
8. AIR INTAKE
9. UPPER GUIDE
10. REMOTE CONTROLLER
Features and Installation

9
Features and Installation

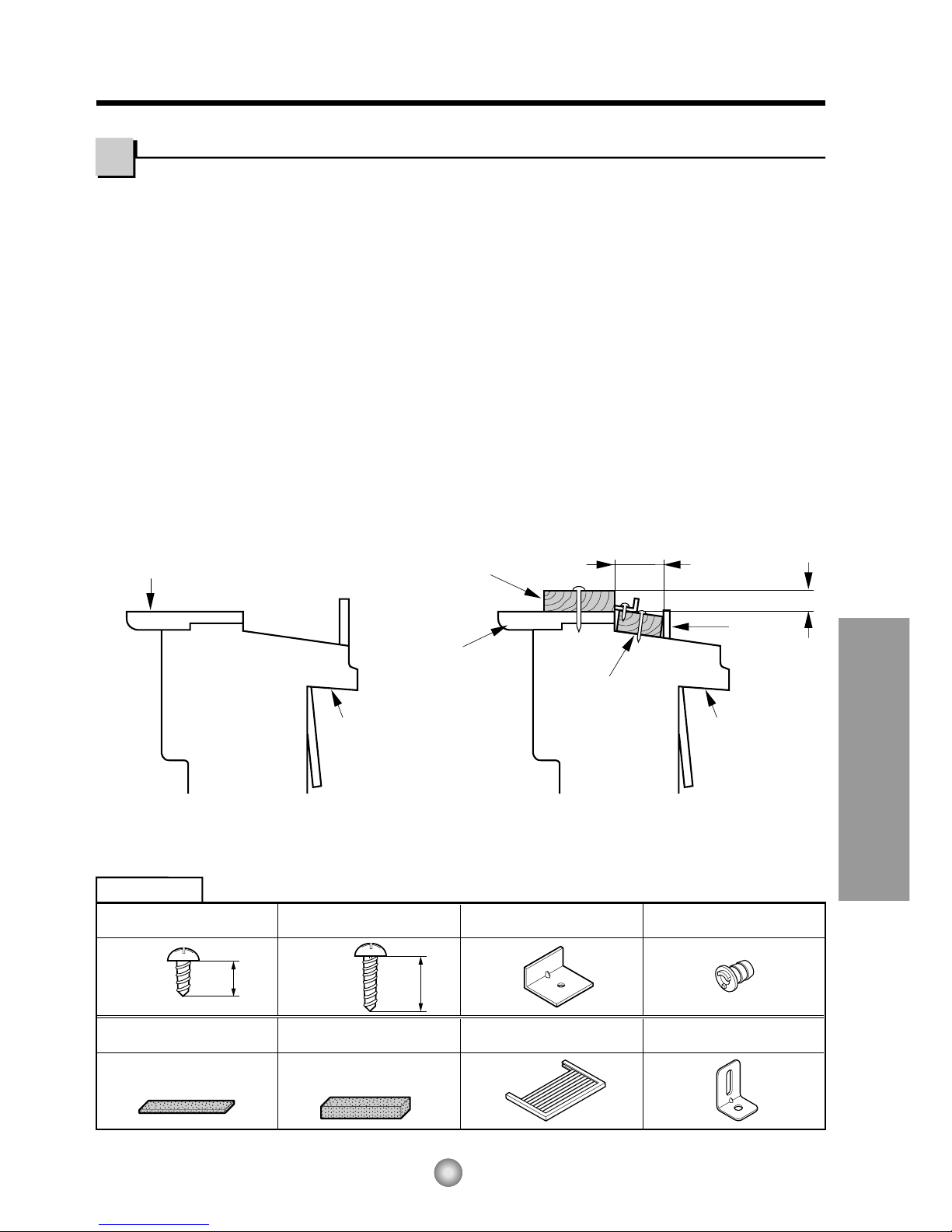

OUTDOORSINDOORS
INNER
SILL
OUTER
SILL
INNER
SILL
WOOD STRIP MOUNTED
ON TOP OF INNER SILL 1"
WOOD STRIP
FOR
L BRACKET
3/4"
CLEARANCE
STORM
WINDOW
FRAME
OUTDOORSINDOORS
OUTER
SILL
TYPE B: Qty:5
(WOOD SCREW)
HARDWARE
TYPE A: Qty:11
(SHORT SCREW)
TYPE C: Qty:3
( L BRACKET)
TYPE E: Qty:1
(SASH SEAL)
(Not adhesive backed)
TYPE D: Qty:1
(SEAL STRIP)
(Adhesive backed)
TYPE F: Qty:2
(GUIDE PANEL)
TYPE G: Qty:1
(SUPPORT BRACKET)
25/64"
(10mm)
5/8"
(16mm)
DRAIN PIPE
Qty:1
NOTE: All supporting parts should be secured to firm wood, masonry, or metal.
1. This unit is designed for installation in standard double hung windows with actual opening widths of
22" to 36". The upper and lower sash must open sufficiently to allow a clear vertical opening of 13"
from the bottom of the sash to the window stool.
2.If a storm window presents interference, fasten a 2" wide wood strip to the inner window sill across
the full width of the sill. The wood strip should be thick enough to raise the height of the window sill
so that the unit can be installed without interference by the storm window frame.
See Fig. 5-2. The top of the wood strip should be approximately 3/4" higher than the storm window
frame (STORM WINDOW FRAME) or wood strip (OUTDOORS) to help condensation to drain
properly to the outside.
3. Install a second wood strip (approximately 18" long by 11/2" wide and same thickness as first strip)
in the center of the outer sill flush against the back off the inner sill. This will raise the Lbracket as
shown in Fig. 5-2.
4. The thickness of the second wood strip may not be the same as the first wood strip.
The thickness of the second wood strip must be defined to keep the 3/4inch distance between the
inner sill or the top of the first wood strip and the outer sill.
Window Requirements
Installation
Fig. 5-1 Fig. 5-2

10
Features and Installation
ROOM SIDE
CENTER LINE
INNER SILL
SEAL STRIP
(TYPE D)
CENTER LINE
OUTSIDE
INSIDE
L BRACKET
OUTER SILL
INNER SILL
TYPE A
8"
8"
CENTER LINE
SEAL
WINDOW FRAME
BOTTOM
GUIDE
ABOUT 1/4"
L BRACKET
UPPER GUIDE
TYPE A
TYPE A
A. BEFORE INSTALLATION
1. Insert the guide panels into the guides of the air
conditioner. Fasten the curtains to the unit with
screws (TYPE A), as shown Fig. 6.
2. Cut the adhesive-backed seal strip (TYPE D) to the
window width.
Remove the backing from the seal strip and attach
the seal strip to the underside of the bottom
window. (Fig. 7)
B. NOW START INSTALLATION
1. LOCATING UNIT IN A WINDOW
Open the window and mark center line on the
center of the inner sill, as shown in Fig. 8.
2. ATTACH L BRACKET
a. Install the Lbrackets behind the inner window
sill, with short side of bracket as shown. Use the
2 screws (TYPE A) provided.
b. The bracket helps to hold the unit securely in
place. Be sure to place bracket edge flush
against back of inner sill. See Fig. 9.
3. INSTALL THE AIR CONDITIONER IN THE
WINDOW
a. Carefully lift the air conditioner and slide it into
the open window. Make sure the bottom guide of
the air conditioner drops into the notches of the
Lbracket. See Fig. 9.
IMPORTANT :
When the air conditioner drops into the Lbracket, the
air conditioner will be centered in window opening as
shown in Fig. 10.
b. While steadying the air conditioner, carefully
bring the window sash down behind the upper
guide of the air conditioner, as shown in Fig. 11.
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
During the following step, hold unit firmly until
window sash is lowered to top channel behind
side panel frames. Personal injury or property
damage may result if unit falls from window.
CAUTION

11
Features and Installation
TYPE B
SASH SEAL
(TYPE E)
LBRACKET
TYPE A
DRAIN PIPE DRAIN CAP
TYPE B
Support Bracket (TYPE G)
Fig. 12
Fig. 13
Fig. 14
4. SECURE THE GUIDE PANELS
Extend the guide panels (TYPE F) to fill the window
opening using 4 screws (TYPE B) to secure them, as
shown in Fig. 12.
5. INSTALL THE SASH SEAL AND SASH LOCK
a. Cut the sash seal (TYPE E) to the window width.
Stuff the sash seal between the glass and the
window to prevent air and insects from getting into
the room, as shown in Fig. 12.
b. Fasten the Lbracket using a screw (TYPE A), as
shown in Fig. 12.
6. a. Remove the screws that secure the cabinet and
base pan in the right side.
b.
Fasten the support bracket (TYPE G) using a
removed screw. Attach the support bracket (TYPE G)
in the inner window sill with a screw (TYPE B), as
shown Fig. 13.
7. Window installation of room air conditioner is now
completed. See ELECTRICAL DATA for attaching
power cord to electrical outlet.
C. HOW TO SECURE THE DRAIN PIPE
In humid weather, excess water may cause the BASE
PAN to overflow. To drain the water, remove the
DRAIN CAP and secure the DRAIN PIPE to the rear
hole of the BASE PAN. (Fig. 14) Press the drain pipe
into the hole by pushing down and away from the fins
to avoid injury.
REMOVAL FROM WINDOW
Turn the air conditioner off, disconnect the power cord, remove the Support Bracket, Lbracket and the screws
installed through the top and bottom of the guide panels, and save for reinstallation later. Close the guide panels.
Keeping a firm grip on the air conditioner, raise the sash, and carefully tilt the air conditioner backward, draining
any condensate. Lift the air conditioner from the window and remove the sash seal from between the windows.
Hang Push

12
Features and Installation
Use Wall Receptacle Power Supply
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Electrical Data
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly discourage the use of an extension cord. However, if you wish to
use an extension cord, use a CSA certified/UL-listed 3-wire (grounding) extension cord, rated 15A, 125V.
All wiring should be made in accordance with local electrical codes and regulations.
NOTE : Aluminum house wiring may pose special problems. Consult a qualified electrician.
ELECTRICAL SAFETY
IMPORTANT GROUNDING INSTRUCTIONS
Air conditioner has a three-prong grounding plug on its power supply cord, which must be plugged into
properly grounded three-prong wall receptacle for your protection against possible shock hazard.
Power cord may include a current interrupter device. A test and reset button is provided on the plug
case. The device should be tested on a periodic basis by first pressing the TEST button and then the
RESET button. If the TEST button does not trip or if the RESET button will not stay engaged,
discontinue use of the air conditioner and contact a qualified service technician.
Damaged power supply cord must be replaced with a new power supply cord obtained from the product
manufacture and not repaired.

PREFERRED METHOD
Ensure proper ground
exists before use
TEMPORARY METHOD
Adapter plug
Receptacle cover
Metal screw
13
Features and Installation
Electrical Safety
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong (grounding) plug. Use this with a
standard three-slot (grounding) wall power outlet
(Fig. 15) to minimize the hazard of electric shock.
The customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properly grounded.
DO NOT CUT OR REMOVE THE THIRD
(GROUND) PRONG FROM THE POWER
PLUG.
A. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED ONLY
OCCASIONALLY:
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However, if
you wish to use an adapter, a TEMPORARY
CONNECTION may be made. Use UL-listed
adapter, available from most local hardware stores
(Fig. 16). The large slot in the adapter must be
aligned with the large slot in the receptacle to
assure a proper polarity connection.
CAUTION: Attaching the adapter ground terminal to
the wall receptacle cover screw does not ground the
appliance unless the cover screw is metal, and not
insulated, and the wall receptacle is grounded
through the house wiring.
The customer should have the circuit checked by a
qualified electrician to make sure the
receptacle is properly grounded.
Disconnect the power cord from the adapter, using
one hand on each. Otherwise, the adapter ground
terminal might break. DO NOT USE the appliance
with a broken adapter plug.
B. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to
an eventual breakage of the ground terminal. The
wall power outlet should be replaced by a three-slot
(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord. However,
if you wish to use an extension cord, use a CSA
certified/UL-listed 3-wire (grounding) extension
cord, rated 15A, 125V.
Fig. 15
Fig. 16

14
Before you call for service...
Before you call for service...
Troubleshooting Tips
Save time and money! Review the chart below first and you may not need to call for service.
Problem Possible Causes What To Do
■ The air conditioner is
unplugged.
■ The fuse is blown/circuit
breaker is tripped.
■ Power failure.
■ The current interrupter
device is tripped.
■ Airflow is restricted.
■ TEMP Control is set at too
high a number.
■ The air filter is dirty.
■ The room may have been
hot.
■ Cold air is escaping.
■ Cooling coils have iced up.
■ Ice blocks the air flow and
stops the air conditioner
from cooling the room.
•Make sure the air conditioner plug is pushed
completely into the outlet.
•Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
•When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
•
Press the RESET button located on the power cord plug.
•If the RESET button will not stay engaged,
discontinue use of the air conditioner and contact a
qualified service technician.
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner.
•Set the TEMP Control to a lower number.
•Clean the filter at least every 2 weeks.
See the operating instructions section.
•When the air conditioner is first turned on
you need to allow time for the room to cool down.
•Check for open furnace floor registers
and cold air returns.
•Set the air conditioner's vent to the closed position.
•See Air Conditioner Freezing Up below.
•Set the mode control at High Fan or High Cool with
the high temperature.
Air conditioner
does not start
Air conditioner
does not cool as it
should
Air conditioner
freezing up
Normal Operating
•You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency.
•You may hear the thermostat click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days. The water may overflow
and drip from the outdoor side of the unit.
•The fan may run even when the compressor does not.
Abnormal Operation

15
Memo

Instrucciones de FuncionamientoRequerimientos de la Ventana
Antes de avisar al Servicio Técnico
16
Precauciones Importantes de seguridad
PARA SU INFORMACION
Escriba aquí los números de serie y modelo de las
unidades exterior e interior:
Nº de Modelo
Nº Serie
Los números figuran en una etiqueta en el lateral de cada
unidad.
Distribuidor
Fecha de compra
Adjunte su recibo aquí para probar que lo adquirió.
• Aquí encontrará numerosas sugerencias sobre cómo
utilizar y mantener adecuadamente su acondicionador de
aire. Con unos cuantos cuidados preventivos se puede
ahorrar mucho tiempo y dinero a lo largo de la vida útil de
su acondicionador de aire.
• En la tabla de sugerencias para la resolución de
problemas encontrará respuestas a la mayoría de los
problemas más comunes. Si consulta primero la tabla de
Sugerencias para la resolución de problemas, quizá ni
siquiera necesite avisar al servicio técnico.
• Consulte con el servicio técnico autorizado sobre la
reparación o el mantenimiento de esta unidad.
• El acondicionador de aire no debe ser utilizado por
niños pequeños o personas inestables sin
supervisión.
• Es preciso vigilar a los niños pequeños para
asegurarse de que no juegan con el acondicionador
de aire.
LEA ESTE MANUAL
PRECAUCION
Precauciones
Importantes de
Seguridad
Precauciones Importantes
de seguridad ....................17
Instrucciones de
Funcionamiento
Controles..........................19
La dirección del aire ........21
Cuidado y
Mantenimiento.................21
Requerimientos de la
Ventana
Características .................22
Requerimientos de la
Ventana ...........................23
Datos Electricos ...............26
Informacion Electrica........27
Antes de Avisar Al
Servicio Técnico
Operacíon normal ............28
Operacíon anormal ..........28

WARNING
17
Precauciones Importantes de seguridad
Precauciones Importantes de Seguridad
Para prevenir tanto lesiones al usuario u otras personas como daños materiales, es preciso seguir estas instrucciones:
■El manejo incorrecto debido a la inobservancia de estas instrucciones puede causar lesiones o daños cuya gravedad
está clasificada en las siguientes indicaciones.
■A cause del peso pesado del producto, se recomienda que usted tenga a un ayudante a participa en la instalación.
■Tenga Precaución! Bordes Afilados! Ver Advertencia, página 16.
ADVERTENCIA Este símbolo indica la posibilidad de lesiones mortales o graves.
PRECAUCION
Este símbolo indica la posibilidad de lesiones o daños
materiales.
■ El significado de los símbolos utilizados en este manual se indica a continuación.
Asegúrese de no hacerlo.
Asegúrese de seguir las instrucciones.
Conecte correctamente el
enchufle
• De otra forma, ello ocasionaría
una descarga eléctrica o
incendio a causa de la
generación de calor.
No opere o pare la unidad
insertando o tirando del
enchufe
• Ello ocasionaría una descarga
eléctrica o incendio a causa de
la generación de calor.
No dañe o utilize un cable
eléctrico inadecuado
• Ello ocasionaría una descarga
eléctrica o incendio.
No modifique el largo del cable
eléctrico.
• Ello ocasionaría una descarga
eléctrica o incendio a causa de
la generación de calor.
No lo maneje con las manos
humedas
• Puede ocasionar una descarga
eléctrica.
No exponga durante mucho
tiempo la piel al aire frío
procedente directamente del
acondicionador.
• Esto podría dirigir al problema
de la salud.

Bordes
afilados
PRECAUCION
Cuando se vaya a quitar el
filtro de aire no toque las
partes metálicas de la unidad
interior.
•Esto podría causar heridas.
No limpie el acondicionador
de aire con agua.
•El agua podría entrar en la
unidad y degradar el aislamiento.
También podría causar una
sacudida eléctrica.
Cuándo la unidad deberáser
limpiada, cambia la unidad
lejos, y lo quita.
•Puesto que el ventilador gira a
alta velocidad durante la
operación, podría ocasionar
heridas.
No opere sin el filtro de aire o
cuando la rejilla frontal de toma
de aire haya sido removida.
•Podría causar acumulamiento de
polvo en el intercambiador de
calor.
No ponga un animal doméstico
ni una planta donde quede
directamente expuesto al flujo
de aire.
•Esto podría dañar al animal o a
la planta.
No lo utilice para propósitos
especiales.
• No utilice este acondicionador de
aire para conservar dispositivos de
precisión, alimentos y objetos de
arte; no ponga tampoco animales y
plantas cerca de él. Esto podría
deteriorar la calidad, etc.
No manipule los
interruptores con las manos
mojadas.
•Esto podría causar una sacudida
eléctrica.
No aplique aerosoles con
insecticida o productos
inflamables.
•Esto podría causar un incendio o
deformar la caja.
BORDES AFILADOS!
•Tenga precaución al majenar la
carcasa. Agárrelo firmemente y no
permita que se deslice mientras lo
mantiene.
•Utilice guantes gruesas para manejar la
carcasa según la necesidad.
18
Precauciones Importantes de seguridad

F
hr
FAN
COOL
DRY
ECONOMY
FAN
SPEED
MODE
TEMP
OPERATION
OFF/ON
TIMER
FRÍO/VENTILADOR/SECO
ENECNDIDO/APAGADO
•Para ENCENDER el sistema presione el botón,
y para APAGARLO presione el botón otra vez.
•Este botón tiene prioridad sobre todos los otros botones.
•Cuando Ud. Io enciende por primera vez, el sistema estáen
el y la temperatura es de 72˚F (22°C).
AJUSTE DE LA TEMPERATURA
MARCADOR DE ENCENDIDO/APAGADO
VELOCIDAD DEL VENTILADOR
•Cada vez que presione este botón, el ajuste es como sigue
{Alto (F2)
→ Bajo (F1) → Alto (F2)...}.
•Cada vez que presione este botón, este señalaráentre
COOL, ECONOMY, FAN y DRY.
- OPERACIÓN DE PARADA:
•Cada vez que presione este botón, cuando el sistema esté
operando, el marcador de tiempo se ajustaráde la siguiente
manera: (1 Hora → 2 Horas → 3 Horas →4 Horas →5 Horas
6 Horas → 7 Horas →8 Horas →9 Horas →10 Horas →11 Horas
→ 12 Horas → Cancelar).
•La temperatura de ajuste se elevará2˚F (1°C), 30 minutos
después, y otros 2˚F (1°C) media hora después.
- OPERACIÓN DE INICIACIÓN:
•Cada vez que presione este botón, cuando el sistema esté
operando, el marcador de tiempo se ajustaráde la siguiente
manera: (1 Hora → 2 Horas → 3 Horas → 4 Horas → 5 Horas →
6 Horas → 7 Horas → 8 Horas → 9 Horas → 10 Horas → 11 Horas
→ 12 Horas →Cancelar).
•Este botón puede controlar la temperatura del cuarto
automáticamente. La temperatura se puede ajustar de grado
en grado, desde 60˚F hasta 86˚F cada 1˚F (16°C hasta 30°C
cada 1°C). Seleccione el número más bajo para la
temperatura más baja en el cuarto.
OPERATION
DRY
•Cuando esta unidad se torna al modo seco, el ventilador gira
en velocidad lenta. El ventilador se detiene cuando el
compresor se para de enfriar.
Aproximadamente cada 3 minutos se encenderáel ventilador
y la unidad comprueba la temperatura del aire de la
habitación para ajustarse a si mismo.
Instrucciones de Funcionamiento
19
Instruccionnes de Funcionamiento
La apariencia de los controles será como uno de los siguientes.
Controles

20
Instrucciones de Funcionamiento
OPERATION
TEMP
TIMER
MODE
ECONOMY
FAN SPEED
ENECNDIDO/APAGADO
•Para ENCENDER el sistema presione el botón, y para APAGARLO presione el botón otra vez.
•Este botón tiene prioridad sobre todos los otros botones.
•Cuando Ud. Io enciende por primera vez, el sistema estáen el y la temperatura es de 72˚F (22°C).
AJUSTE DE LA TEMPERATURA
•Este botón puede controlar la temperatura del cuarto automáticamente.
La temperatura se puede ajustar de grado en grado, desde 60˚F (16°C)
hasta 86˚F (30°C). Seleccione el número más bajo para la temperatura más
baja en el cuarto.
VELOCIDAD DEL VENTILADOR
•Cada vez que presione este botón, el ajuste es como sigue.
{Alto (F2) → Bajo (F1) → Alto (F2)...}
MARCADOR DE ENCENDIDO/APAGADO
- OPERACIÓN DE PARADA:
•Cada vez que presione este botón, cuando el sistema esté
operando, el marcador de tiempo se ajustaráde la siguiente
manera: (1Hora 2 Horas 3 Horas 4 Horas 5 Horas
6 Horas 7 Horas 8 Horas 9 Horas 10 Horas 11 Horas
12 Horas Cancelar).
•La temperatura de ajuste se elevará2˚F (1°C), 30 minutos después,
y otros 2˚F (1°C) media hora después.
- OPERACIÓN DE INICIACIÓN:
•Cada vez que presione este botón, cuando el sistema esté
operando, el marcador de tiempo se ajustaráde la siguiente
manera: (1Hora 2 Horas 3 Horas 4 Horas 5 Horas
6 Horas 7 Horas 8 Horas 9 Horas 10 Horas 11 Horas
12 Horas Cancelar).
AHORRADOR DE ENERGÍA
FRÍO/VENTILADOR/SECO
•Cada vez que presione este botón, las palabras COOL, FAN y DRY
aparecéran alternadamente.(Modelo : CW-XC54HK)
•Cada vez que presione este botón, las, palabras COOL, ECONOMY, FAN
y DRY aparecéran aiternadamente. (Modelo : CW-XC54HU)
El ventilador se detiene cuando el compressor no sigue enfriando.
•Aproximadamente cada 3 minutos el ventilador se encenderá, y necesitaráverificar la
temperatura del cuarto para saber si es necesario más enfriamiento.
Requerimientos de la Ventana
1. Quite la tapa de la parte posterior del
telemando. Para ello haga deslizar la tapa
según la dirección del la flecha.
2. Introduzca las dos baterías, asegurándose de
que las direcciones (+) y (-) estén colocadas
correctament. Use baterías nuevas.
3. Volver a cerrar, resbalando la tapa hasta la
posición inicial.
•No utilice baterís recargables,
éstas son diferentes de forma,
de dimensión y uso respecto a
las baterías secas usuales.
•Seque las baterías del
telemando cuando el
acondicionador no vaya a ser
usado durante un largo
período.
•No deje el control remoto a
mano de ninos y bebes para
que no absorben las baterias.
Cómo Poner las Baterías
Control remoto
