Panasonic CW-XC83HU (English, French) User manual

INSTALLATION AND OPERATING INSTRUCTIONS
MANUEL D'INSTALLATION ET D'UTILISATION
Room Air Conditioner
Climatiseur de fenêtre
Model, Modèle:CW-XC63HU, CW-XC63HK, CW-C83GU, CW-XC83GU,
CW-XC83HU, CW-XC83HK, CW-XC78HU
Please read these operating instructions thoroughly
before using your air conditioner and keep for future reference.
Il est recommandé de lire attentivement ce manuel avant
d'utiliser l'appareil. Conservez ce manuel.
For U.S customers :
For assistance, please call : 1-800-211-PANA(7262) or
Register your product at : http://www.panasonic.com/register
For customers in Canada :
For assistance, please call : 905-624-5505
R

2
Safety Precautions
About the Controls on the Air Conditioner
Features and Installation
Before you call for service...
FOR YOUR RECORDS
Staple your receipt to this page in case you need it later.
Write down the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
READ THIS MANUAL
CAUTION
• Contact the authorized Service technician for repair or
maintenance of this unit.
• The air conditioner is not intended for use by young
children or infirm persons without supervision.
• Young children should be supervised to ensure that they
do not play with the air conditioner.
Safety Precautions
Safety Precautions.............3
About the Controls on
the Air Conditioner
Controls..............................5
Remote Controller..............7
Ventilation ..........................8
Air Direction........................8
How to Secure Drain Pipe ....8
Care and Maintenance
Air Filter Cleaning...............9
Features
Features...........................10

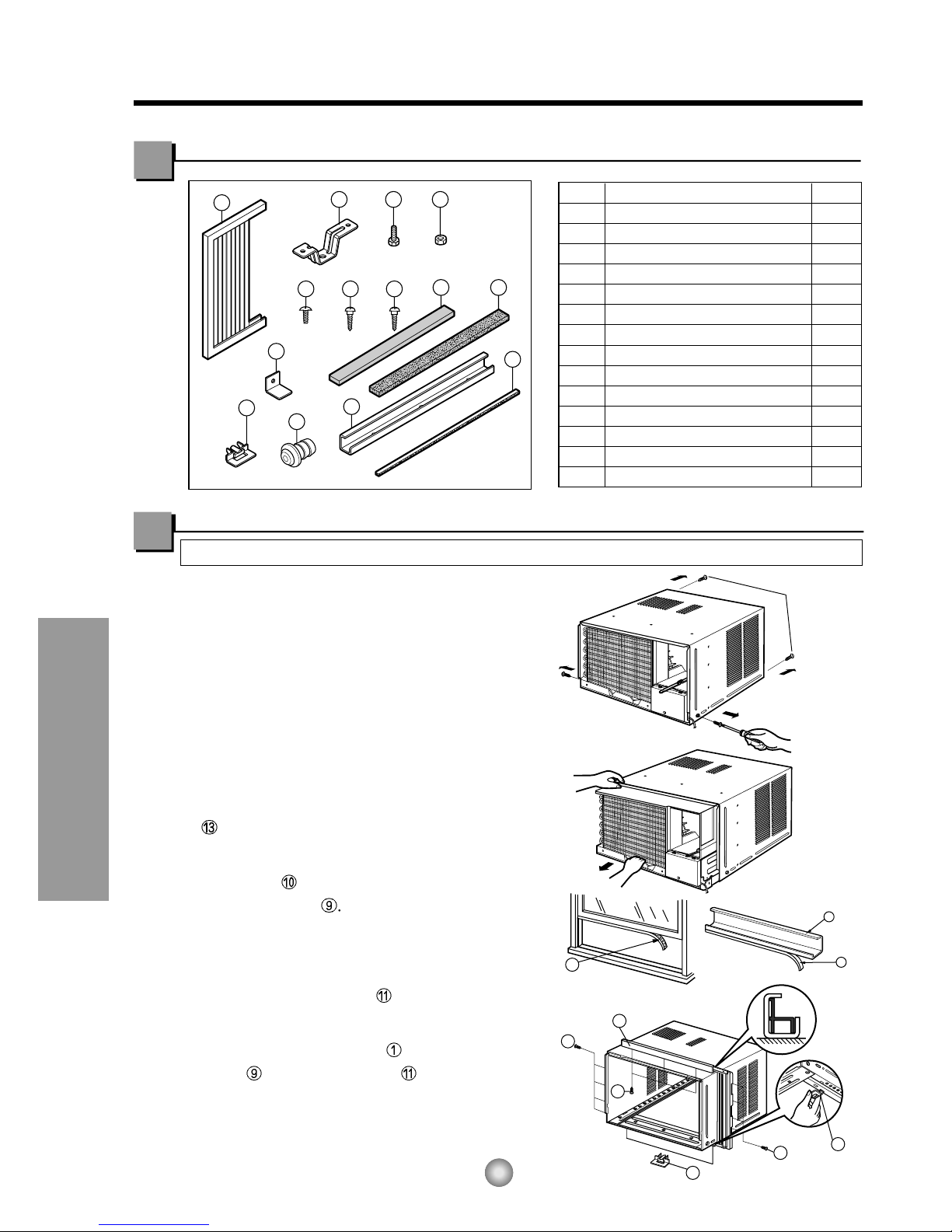

Installation

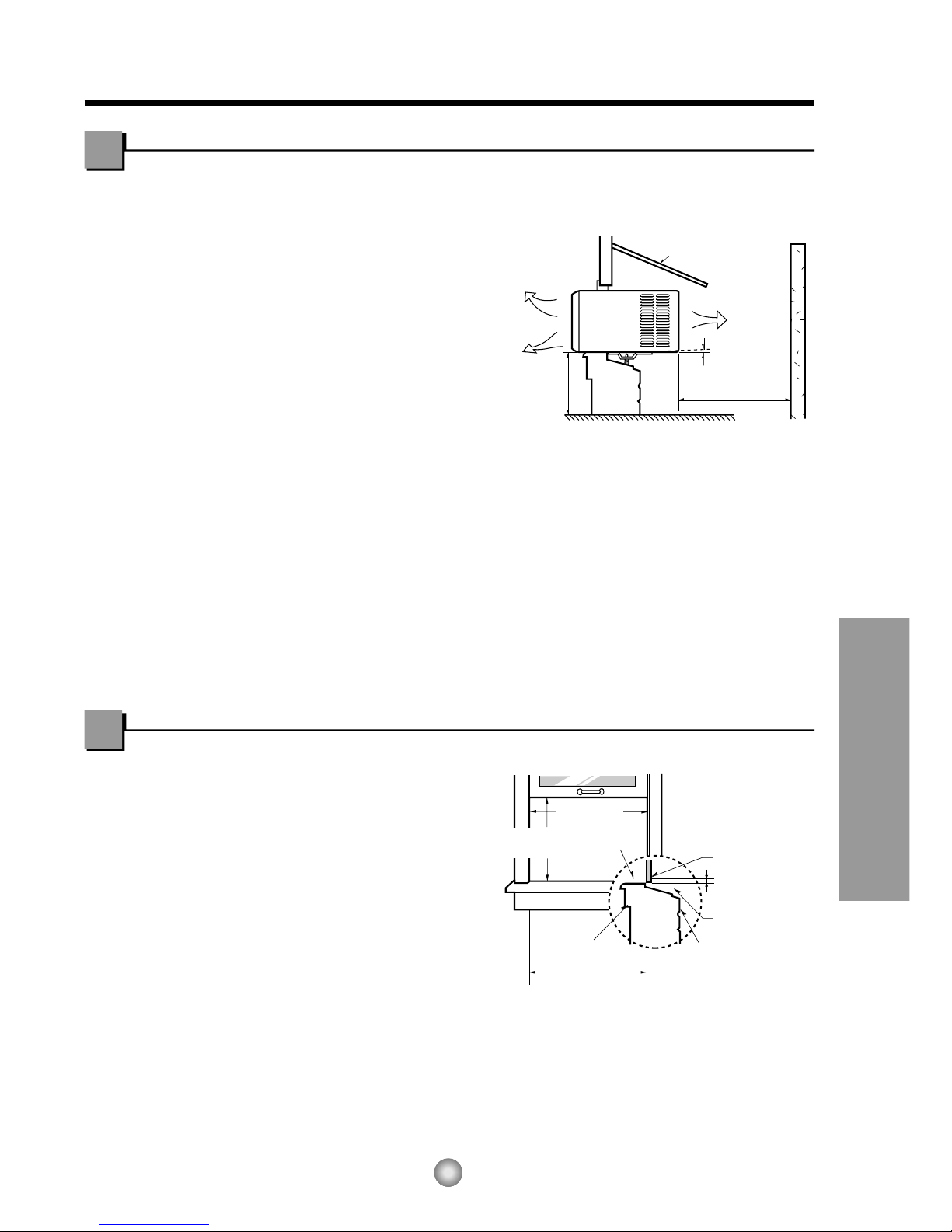

How to Install the Unit......11
Window Requirements.....11
Installation Kit Contents ...12
Suggested Tool
Requirements...................12
Cabinet Installation...........13

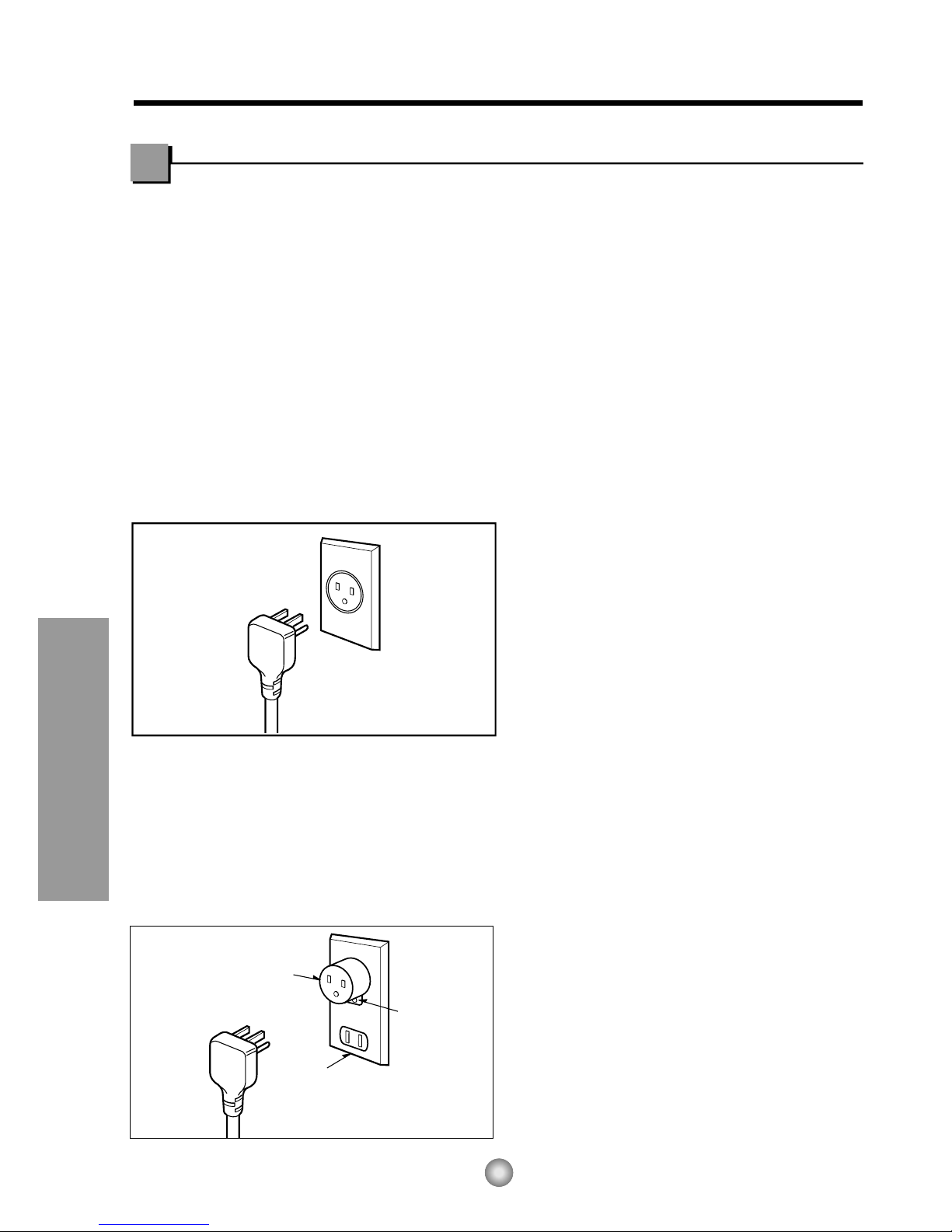

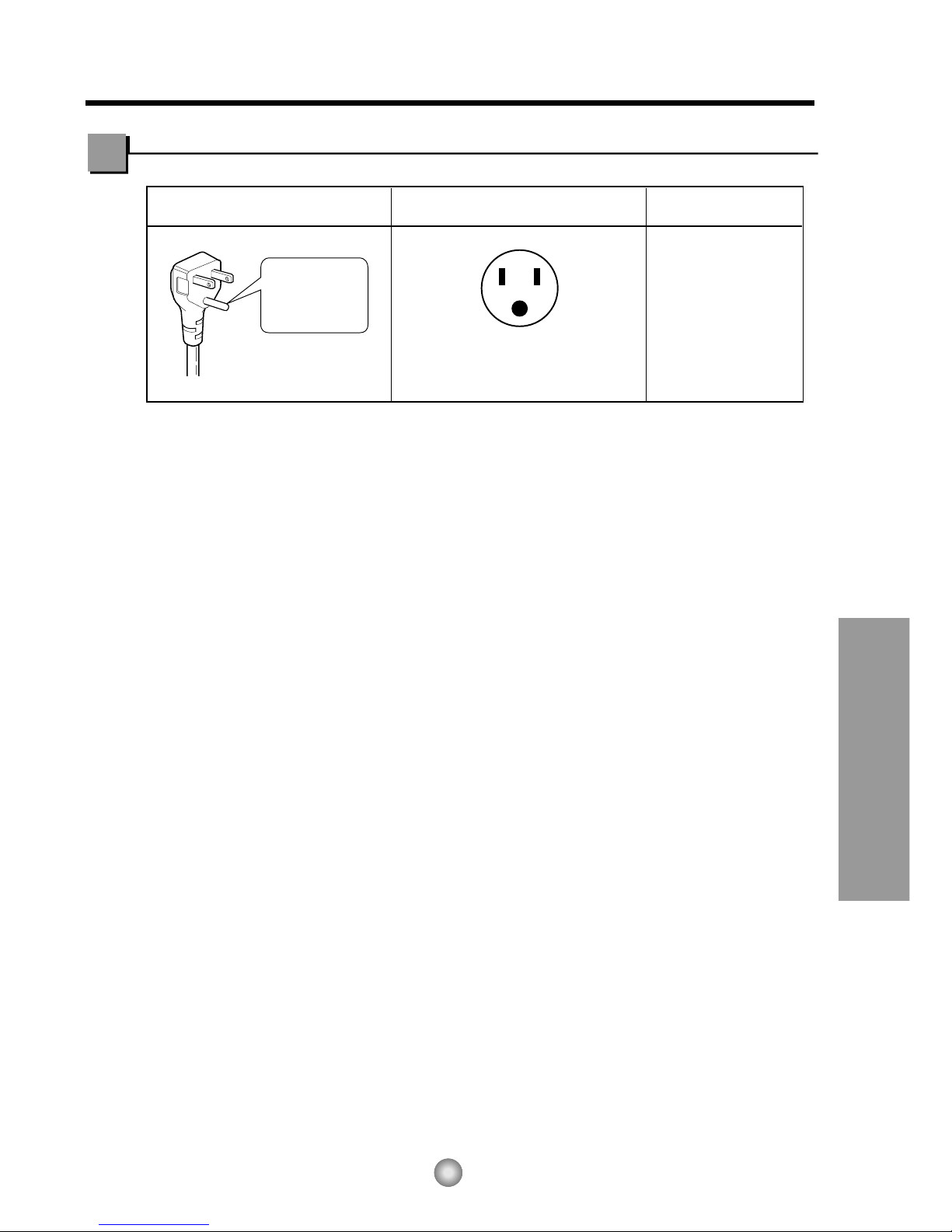

Electrical Data..................15
Electrical Safety ...............16
Before you call for
service...
Normal Operation.............17
Abnormal Operation.........17

WARNING
3

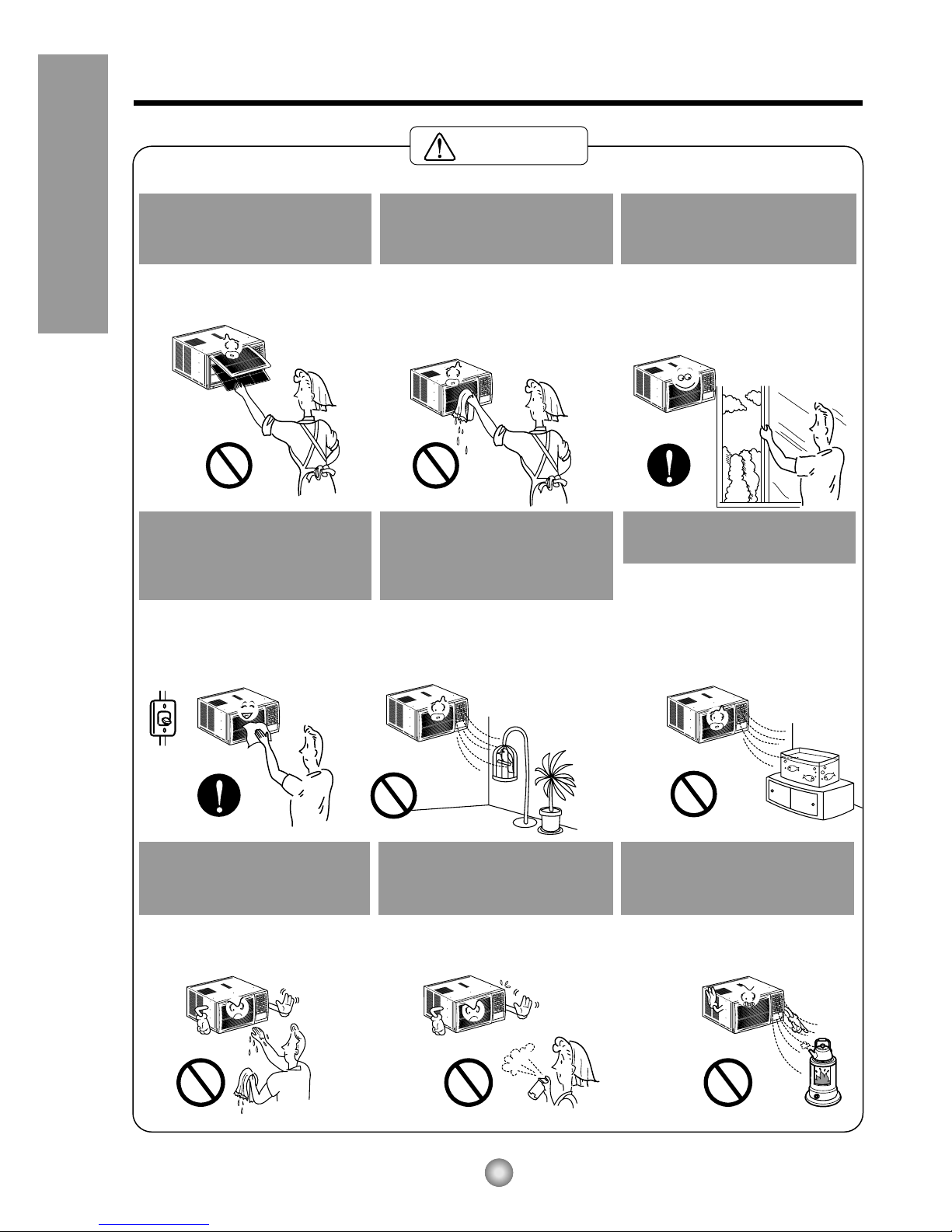

Safety Precautions
Safety Precautions

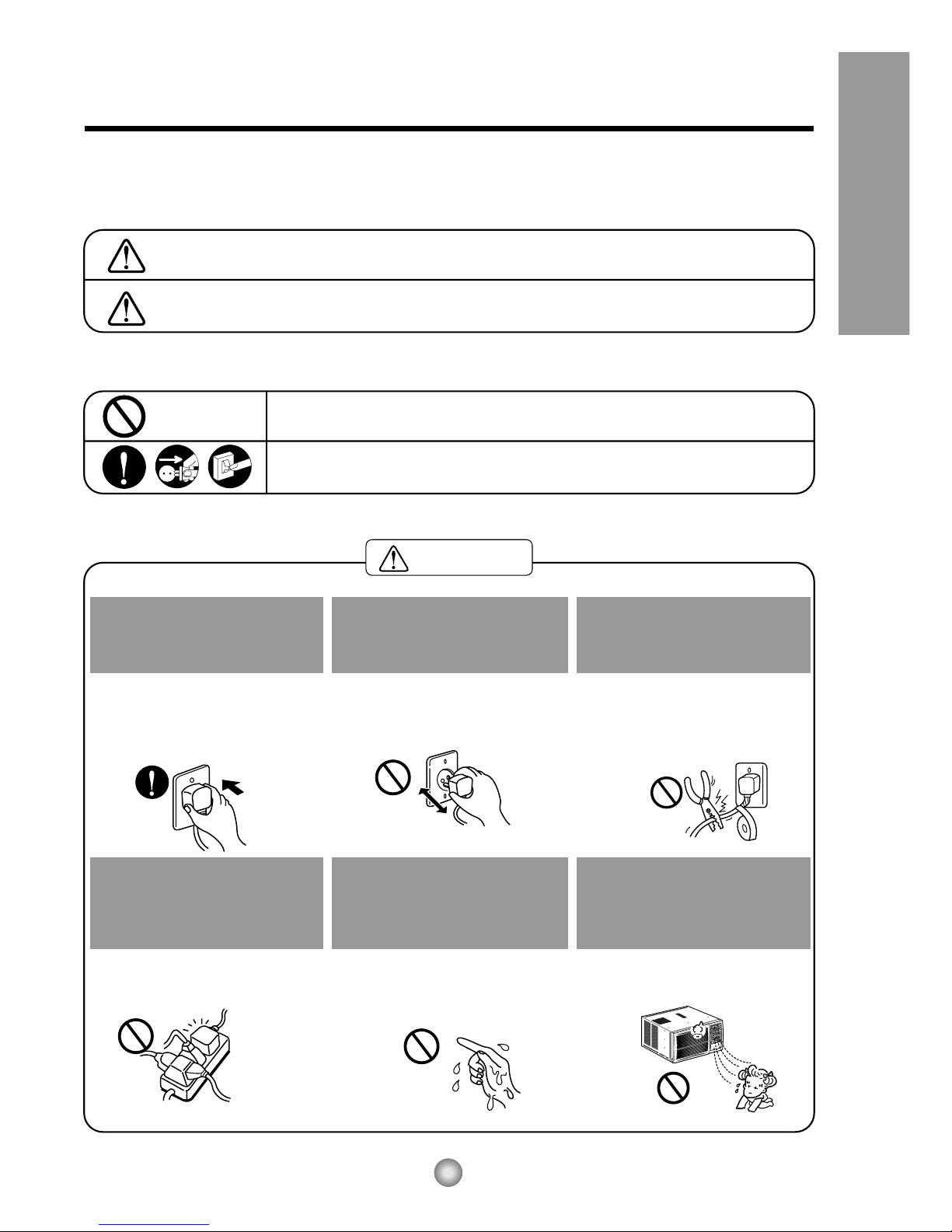

To prevent injury to the user or other people and property damage, the following instructions must be
followed.
■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified
by the following indications.
WARNING : This symbol indicates the possibility of death or serious injury.
CAUTION :This symbol indicates the possibility of injury or damage to
property only.
■Meanings of symbols used in this manual are as shown below.
Be sure not to do this.
Be sure to follow the instructions.
Plug in the power plug
properly.
• Otherwise, it will cause electric
shock or fire due to heat
generation.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or fire.
• If the power cord is damaged, it must
be replaced by the manufacturer or
an authorized service center or a
similarly qualified person in order to
avoid a hazard.
Do not modify power cord
length or share the outlet
with other appliances.
• It will cause electric shock or fire
due to heat generation.
Do not operate with wet
hands or in a damp
environment.
• It will cause electric shock.
Do not direct air flow at room
occupants.
• This could lead to health
problems.

4
Safety Precautions

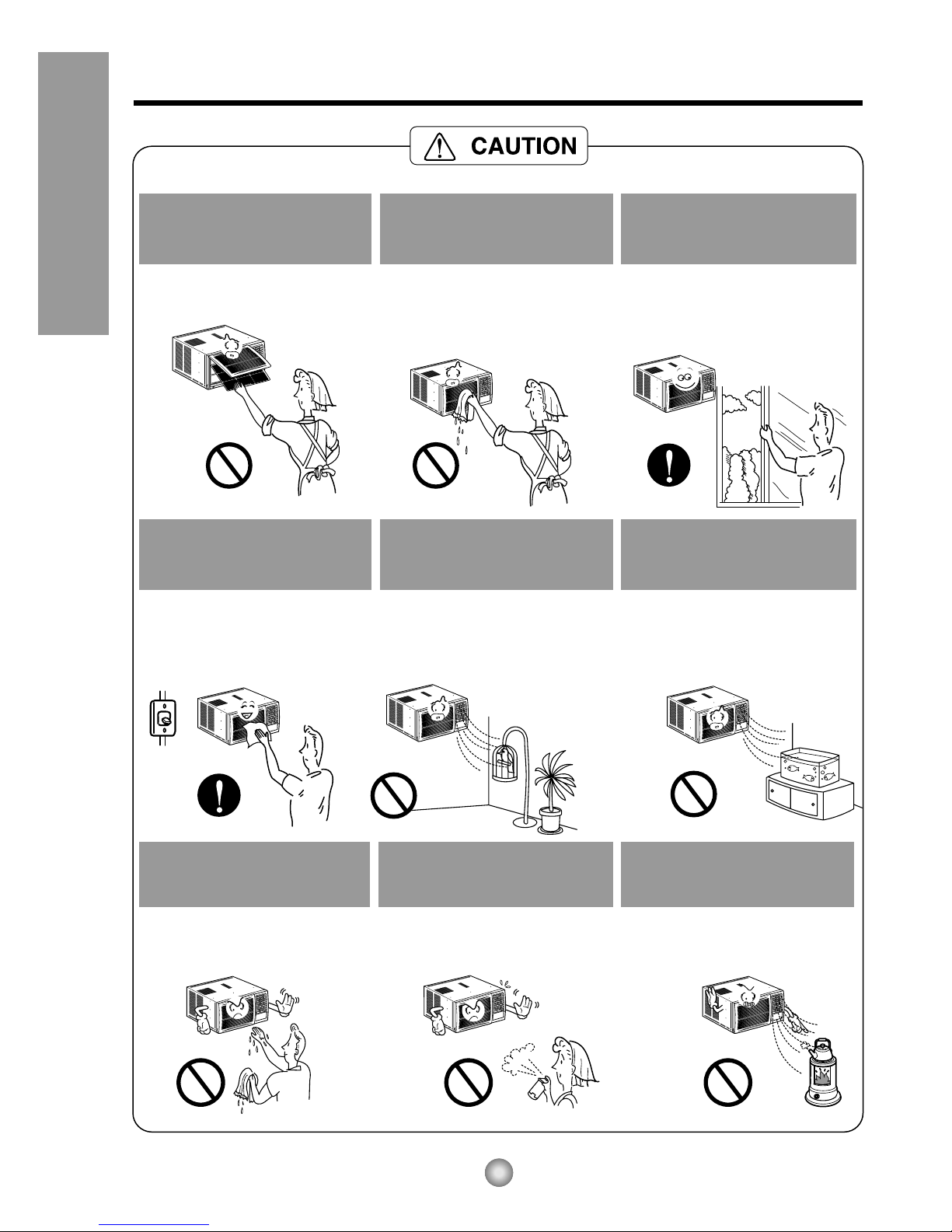

When the air filter is to be
removed, do not touch the
metal parts of the unit.
• It may cause an injury.
Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Ventilate well when used
together with a stove, etc.
• An oxygen shortage may occur.
When the unit is to be
cleaned, switch off, and turn
off the breaker.
•Since the fan rotates at high
speed during operation, it may
cause an injury.
Do not put a pet or house
plant where it will be exposed
to direct air flow.
• This could injure the pets or
plants.
Do not use for special
purposes.
• Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
Do not operate switches
with wet hands .
• It may cause an electric shock.
Do not apply an insecticide
or flammable spray.
• It may cause a fire or deformation
of the cabinet.
Do not put a heater, etc.
where it is exposed to direct
air flow.
•
It may cause imperfect
combustion.

5
About the Controls on the Air Conditioner
About the Controls on the Air Conditioner

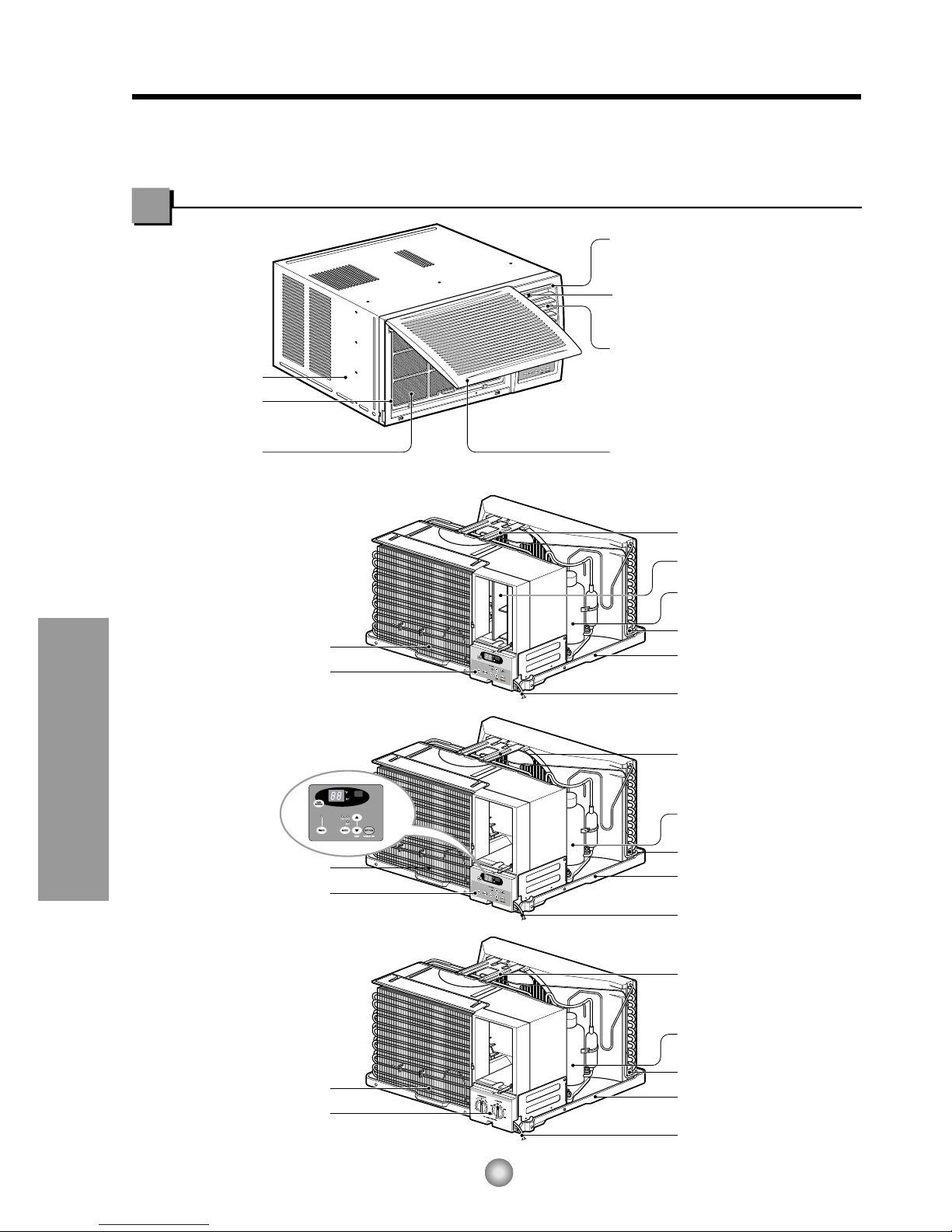

The controls will look like one of the following.

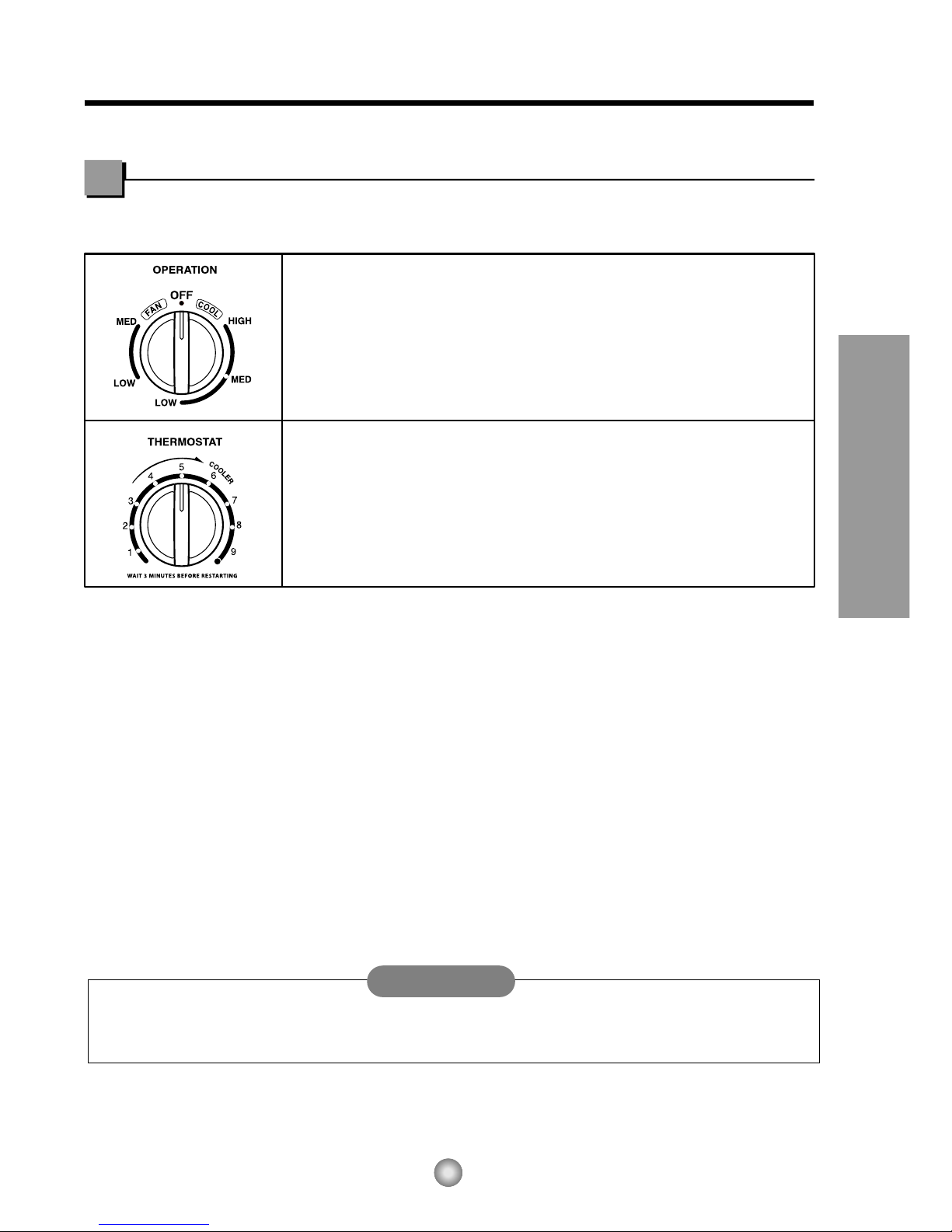

Controls
When the air conditioner has performed its cooling operation and is turned off or set to the fan
position, wait at least 3 minutes before resetting to the cooling operation again.
Off - Turns air conditioner off.
Med Fan - Med speed fan operation without cooling.
Low Fan - Low speed fan operation without cooling.
High Cool - Cooling with high speed fan operation.
Med Cool - Cooling with med speed fan operation.
Low Cool - Cooling with low speed fan operation.
This automatically controls the temperature of the indoor air.
Turn the knob so that arrow points to the higher number for greater cooling.
Point the arrow to the lower number for more moderate cooling.
(i.e. the higher the number, the greater the cooling)
• FOR NORMAL COOLING
1. Turn the operation switch to the High Cool or the Low Cool setting.
2. Set the Thermostat control to the desired temperature mark 5(the mid-point is a good starting position).
If the room temperature is not satisfactory after a reasonable time, adjust the control to a cooler or warmer
setting, as appropriate.
• FOR MAXIMUM COOLING
1. Turn the Operation Knob to the High Cool setting.
2. Set the Thermostat control to the largest (9) temperature mark.
• FOR QUIETER OPERATION
1. Turn the Operation Knob to the Low Cool setting.
2. Set the Thermostat control as needed.
CAUTION
Model : CW-C83GU

4
4
1
1
7
8
8
3
3 2
6 2
4
1
8
3 6 2 5
5
5
8
Model: CW-XC83HU
Model: CW-XC83GU
CW-XC63HU
Model: CW-XC83HK
CW-XC63HK
Model: CW-XC78HU
6
About the Controls on the Air Conditioner

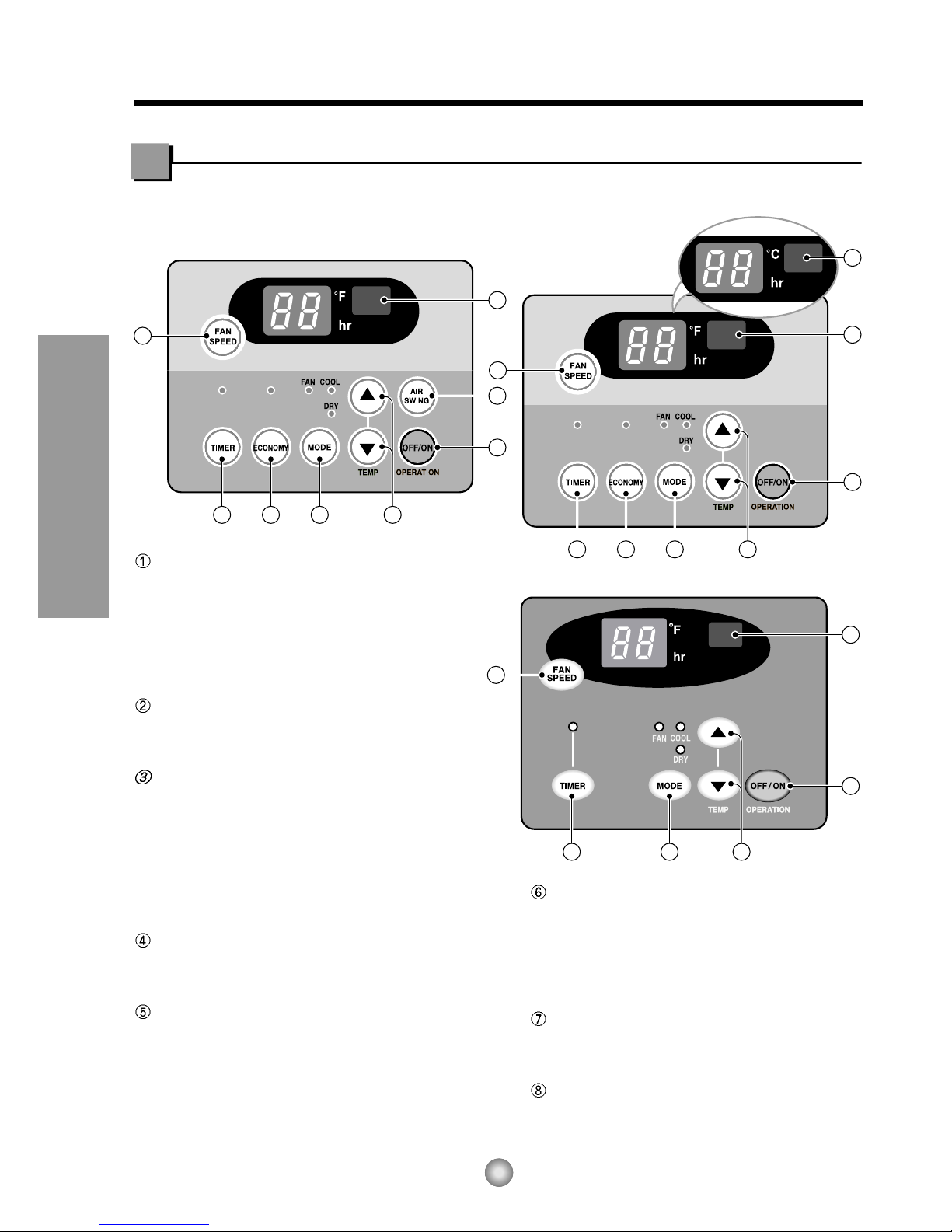

Controls
OPERATION
•To turn the air conditioner ON, push the button.
To turn the air conditioner OFF, push the button
again.
•This button takes priority over any other buttons.
•When you first turn it on, the air conditioner is on
the High cool mode and the temp. at 72°F(22°C)
MODE
•Every time you push this button, it will toggle
between COOL, FAN and DRY.
ON/OFF TIMER
•Every time you push this button, timer is set as
follows. (1Hour →2Hours →3Hours →4Hours →
5Hours 6Hours →7Hours →8Hours →9Hours
→10Hours 11Hours →12Hours →O)
•The Setting Temperature will be raised by
2°F(1˚C) 30min. later and by 2°F(1˚C) after
another 30 min.
FAN SPEED
• Every time you push this button it is set as follows.
{High(F3) →Low(F1) →Med(F2) →High(F3)...}.
TEMPERATURE SETTING
• This button can automatically control the temperature of
the room. The temperature can be set within a range of
60°F to 86°F by 1°F.(16˚C to 30˚C by 1˚C) Select the
lower number for lower temperature of the room.
ECONOMY
•If you push the button, the fan stops when the
compressor stops cooling.
•Approximately every 3 minutes the fan will turn
on and check the room air to determine if
cooling is needed.
AIR SWING
•This button can automatically control the air
flow direction.
REMOCON SIGNAL RECEIVER

OPERATION
TEMP
TIMER AIR
SWING
MODE
ECONOMY
FAN SPEED
1
3
2 4
6
5
7
OPERATION
TEMP
TIMER
MODE
ECONOMY
FAN SPEED
1
3
2 4
6
5
OPERATION
TEMP
TIMER
MODE FAN SPEED
1
3
2 4
5
Model: CW-XC83HU Model: CW-XC78HU Model: CW-XC63HU, CW-XC63HK
CW-XC83GU, CW-XC83HK
7
About the Controls on the Air Conditioner

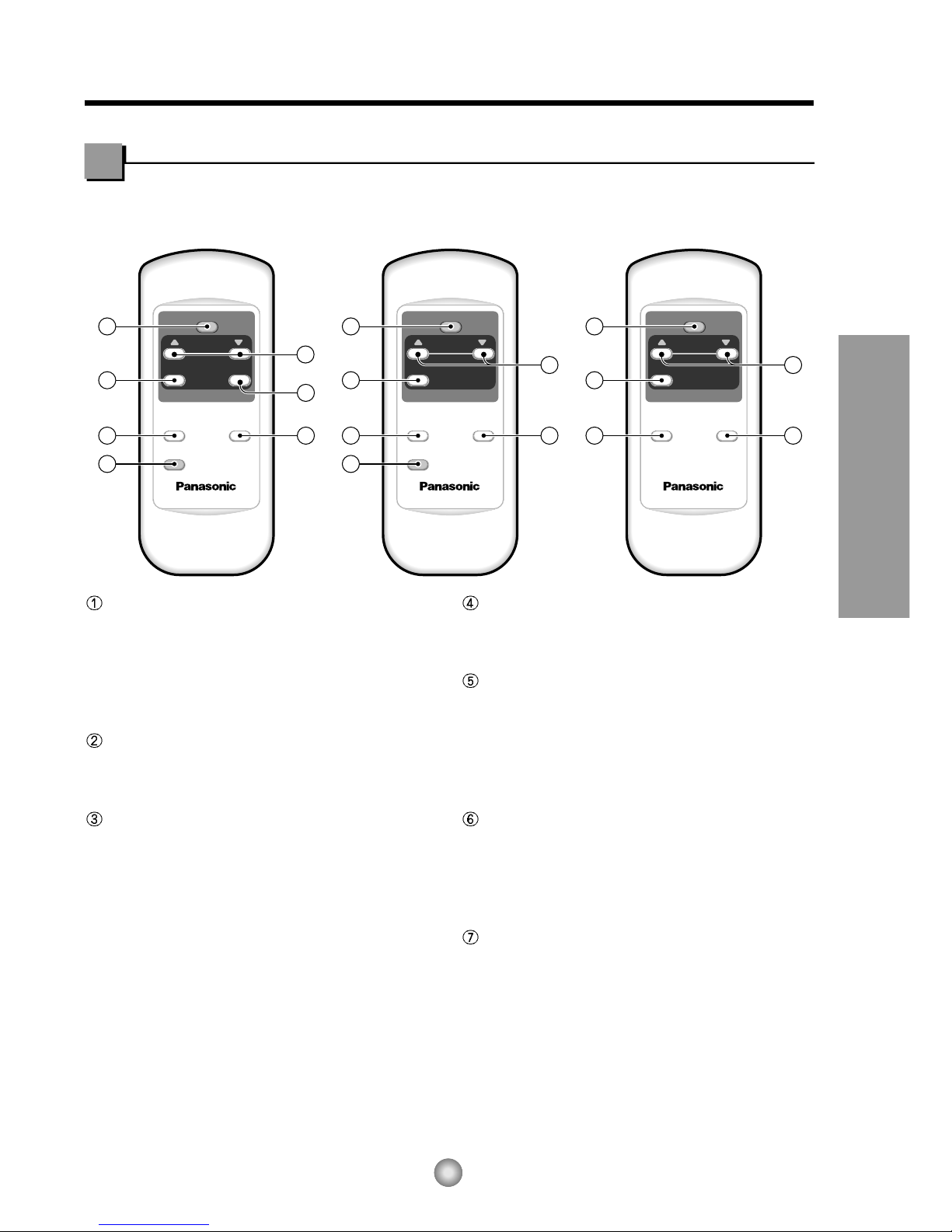

Remote controller
OPERATION
• To turn the air conditioner ON, push the button. To
turn the air conditioner OFF, push the button again.
• This button takes priority over any other buttons.
• When you first turn it on, the air conditioner is on
the High cool mode and the temp. at 72°F(22˚C).
MODE
• Every time you push this button, it will toggle
between COOL, FAN and DRY.
ON/OFF TIMER
- STOPPING OPERATION
• Every time you push this button, when the air
conditioner is operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours
→6Hours →7Hours →8Hours →9Hours →
10Hours →11Hours →12Hours →O)
• The Setting Temperature will be raised by
2°F(1°C) 30min. later and by 2°F(1°C) after
another 30 min.
- STARTING OPERATION
• Every time you push this button, when the air
conditioner is not operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours
→6Hours →7Hours →8Hours →9Hours →
10Hours →11Hours →12Hours →O)
FAN SPEED
• Every time you push this button it is set as follows.
{High(F3) →Low(F1) →Med(F2) →High(F3)...}.
TEMPERATURE SETTING
• This button can automatically control the
temperature of the room.
The temperature can be set within a range of 60°F
to 86°F by 1°F.(16˚C to 30˚C by 1˚C) Select the
lower number for lower temperature of the room.
ECONOMY
• If the switch is set to "On", the fan stops when the
compressor stops cooling. Approximately every 3
minutes the fan will turn on and check the room air
to determine if cooling is needed.
AIR SWING
• This button can automatically control the air flow
direction.
Precaution: The Remote Controller will not function properly if strong light strikes the sensor window of the
air conditioner or if there are obstacles between the Remote Controller and the air conditioner.

VENTCLOSE OPEN
Part A
Part B
Drain pipe
Drain cap
Controlled
manually
Controlled
manually
Controlled by Remote
Controller
8
About the Controls on the Air Conditioner
Additional controls and important information.

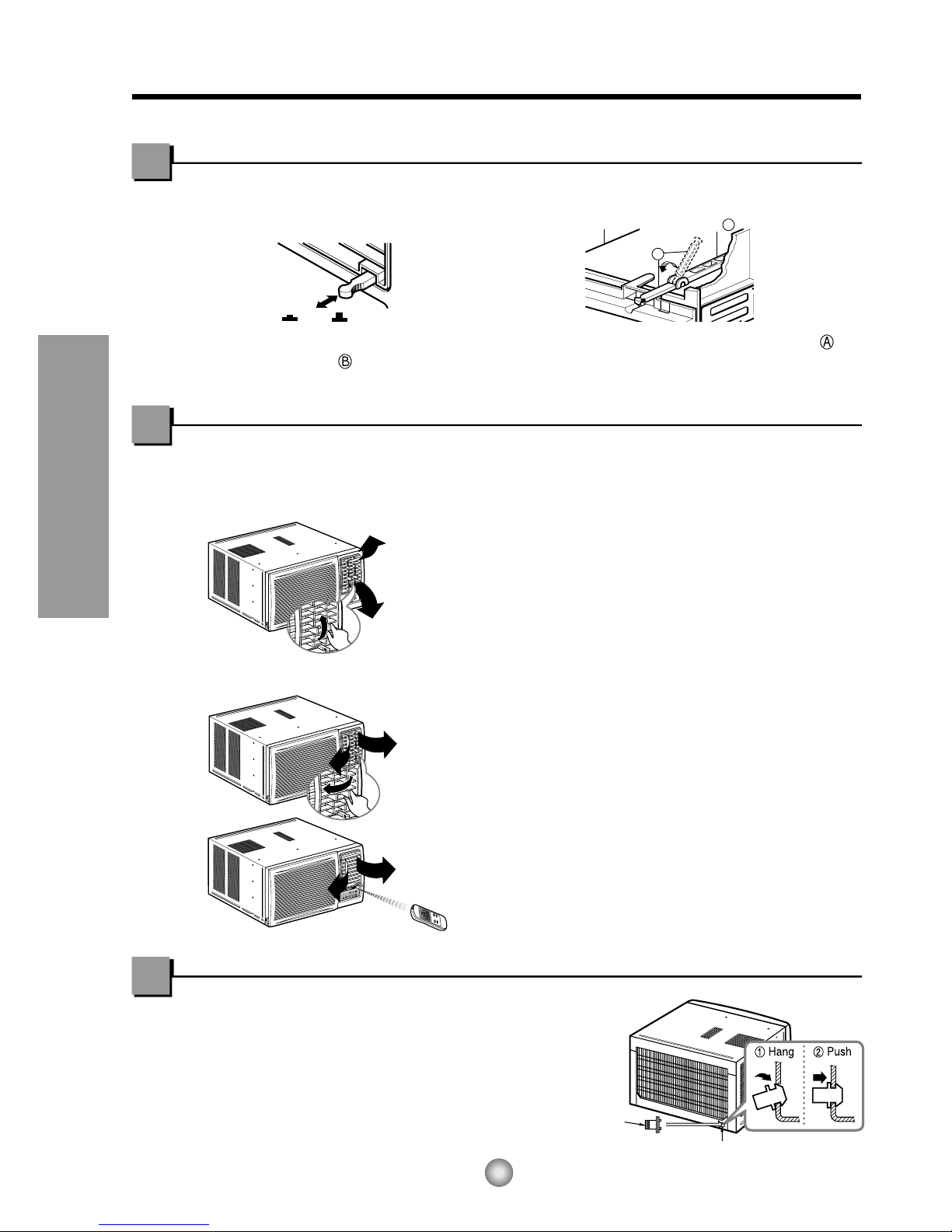

Ventilation
The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN position.
The damper is opened and room air is drawn out.
NOTE: Before using the ventilation feature, and prior to installing the front grille, pull down part until
level with part .
Air Direction
The vertical air direction is adjusted by rotating the
horizontal louver forward or backward manually.
The horizontal air direction is adjusted by rotating the
vertical louver right or left manually or by Remote Controller.
The direction of air can be controlled wherever you want to cool by adjusting the horizontal louver
and the vertical louver.
•VERTICAL AIR-DIRECTION CONTROL
• HORIZONTAL AIR-DIRECTION CONTROL
How to Secure the Drain Pipe
In humid weather, excess water may cause the BASE
PAN to overflow. To drain the water, remove the DRAIN
CAP and secure the DRAIN PIPE to the rear hole of the
BASE PAN. Press the drain pipe into the hole by pushing
down and away from the fins to avoid injury.

9
About the Controls on the Air Conditioner

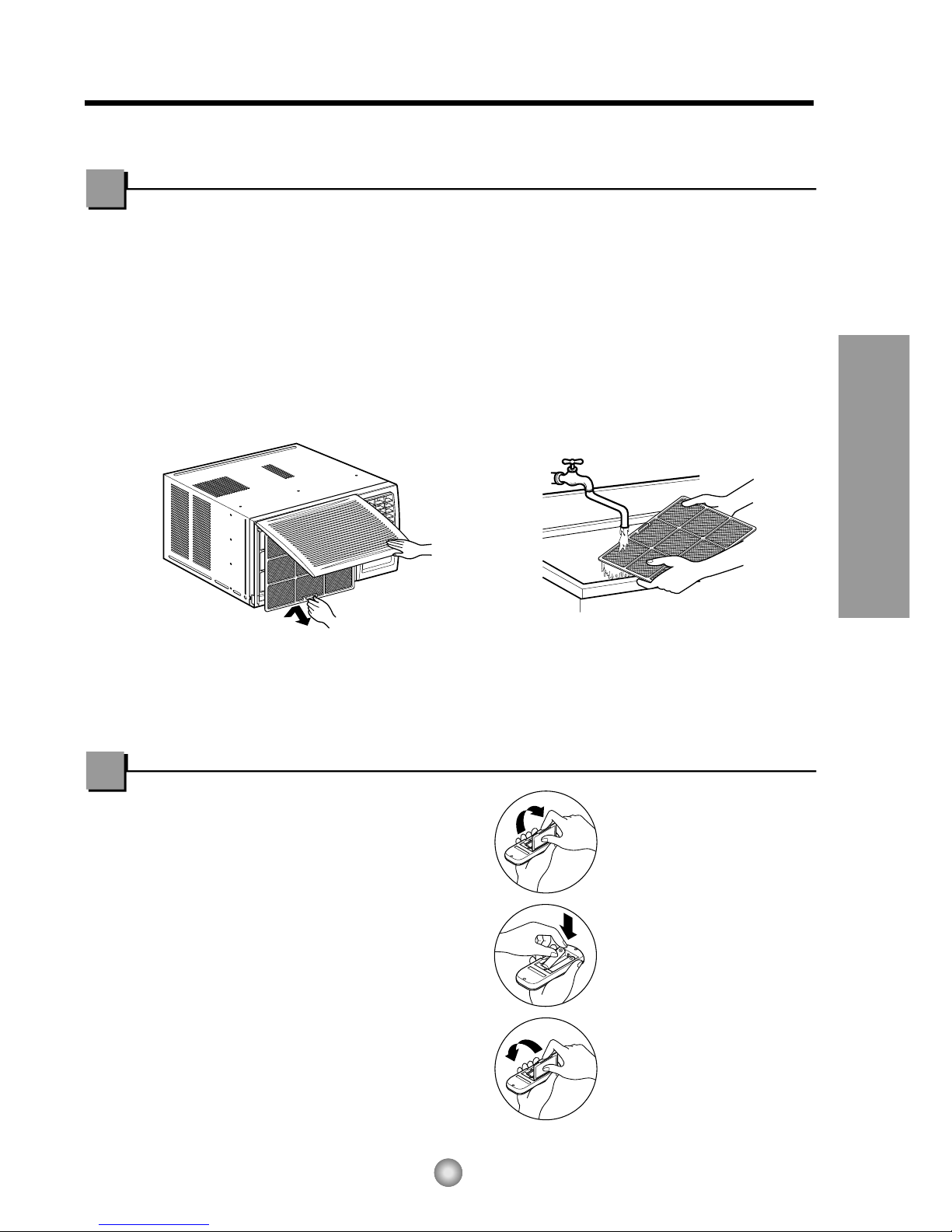

Air Filter Cleaning
The air filter behind the front grille should be checked and cleaned at least once every 2
weeks or more often if necessary.
TO REMOVE:
1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by
pulling out the top of the inlet grille.
2. Using the tab, pull up slightly on the filter to release it and pull it down or up.
3. Clean the filter with warm, soapy water under 40°C (104°F).
4. Rinse and gently shake the water from the filter and let it dry before replacing it.
CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will
clog it and reduce performance.
How to Insert Batteries
Care and Maintenance
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
1. Remove the cover from the back of the
remote
controller.
2. Insert two AAA dry cell batteries.
•Be sure that the (+) and (-) directions
are correct.
•Be sure that both batteries are new.
3. Re-attach the cover.
•Do not use rechargeable
batteries. Such batteries
differ from standard dry
cells in shape,
dimensions, and
performance.
•Remove the batteries
from the remote
controller if the air
conditioner is not going
to be used for an
extended length of time.

10
Features and Installation
Learning parts name prior to installation will help you understand the installation procedure.
Features
Features
CABINET
FRONT GRILLE
AIR FILTER AIR INTAKE
(INLET GRILLE)
AIR DISCHARGE
HORIZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)
VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
EVAPORATOR
POWER CORD
BASE PAN
CONDENSER
COMPRESSOR
BRACE
CONTROL BOARD
EVAPORATOR
CONTROL BOARD POWER CORD
BASE PAN
CONDENSER
COMPRESSOR
BRACE
EVAPORATOR
POWER CORD
BASE PAN
CONDENSER
COMPRESSOR
BRACE
CONTROL BOARD
VERTICAL LOUVER
Model: CW-XC83HU
Model: CW-C83GU
Model: CW-XC63HU, CW-XC63HK
CW-XC83GU, CW-XC83HK
Modèle: CW-XC78HU

About 12.7mm (
1
/ 2 ")
76.2cm (30")~
152.4cm (60")
Awning
Cooled air
Fence
Over 50.8cm (20")
Heat
radiation
55.8cm (22") to
91.44cm (36")
Offset
12.7mm (
1
/ 2 ") to
31.8mm (1
1
/ 4 ")
Sill
Exterior
Interior wall
47cm (181/2") min.
(Without frame curtain)
Stool
38cm (15") min
(With frame curtain)
11
INSTALLATION
Features and Installation
1. To prevent vibration and noise, make sure
the unit is installed securely and firmly
2. Install the unit where the sunlight does not
shine directly on the unit.
3. The outside of the cabinet must extend
outward for at least 28cm (11") and there
should be no obstacles, such as a fence or
wall, within 50.8cm (20") from the back of
the cabinet because it will prevent heat
radiation of the condenser.
Restriction of outside air will greatly reduce
the cooling efficiency of the air conditioner.
CAUTION: All side louvers of the cabinet must remain exposed to the outside of the
structure.
4. Install the unit a little slanted so the back is slightly lower than the front
(about 12.7mm (1/2")).
This will force condensed water to flow to the outside.
5. Install the unit with the bottom about 76.2cm (30")~152.4cm (60") above the floor level.
Window Requirements
NOTE: All supporting parts should be secured to firm wood, masonry, or metal.
This unit is designed for installation in
standard double hung windows with actual
opening widths from 55.88cm (22") to
91.44cm (36").
The top and bottom window sash must open
sufficiently to allow a clear vertical opening of
38cm (15") from the bottom of the upper sash
to the window stool.
How to Install the Unit

9
10
9
5
5
5
11
11
(Type A)
(Type A)
13
12 3 4
813
14
10
765
9
12
11
Shipping
Screws
PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet
at both sides and at the back.
2. Slide the unit from the cabinet by gripping the
base pan handle and pulling while bracing the
cabinet.
3. Cut the window sash seal to the proper
length.
Peel off the backing and attach the FOAM-PE
to the underside of the window sash.
4. Remove the backing from the top upper guide
FOAM-PE and attach it to the bottom of
the upper guide
5. Attach the upper guide onto the top of the
cabinet with 3 type A screws.
6. Insert the frame guides into the bottom of
the cabinet.
7. Insert the Frame Curtain into the upper
guide and frame guides .
8. Fasten the curtains to the unit with 4 Type
A screws.
12
Features and Installation
Suggested Tool Requirements
Installation Kit Contents
SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL
NO. NAME OF PARTS Q'TY
1 FRAME CURTAIN 2
2 SILL SUPPORT 2
3 BOLT 2
4 NUT 2
5 SCREW(TYPE A) (10mm(2/5"))
16
6 SCREW(TYPE B) 3
7 SCREW(TYPE C) 5
8 FOAM-STRIP 1
9 UPPER GUIDE 1
10 FOAM-PE (466mm x 10mm x 2mm) 1
11 FRAME GUIDE 2
12 WINDOW LOCKING BRACKET 1
13 FOAM-PE (920mm x 30mm x 2mm) 1
14 DRAIN PIPE 1
D5.1mm(0.2")
16mm(0.63")
D4.1mm(0.17")
16mm(0.63")

13
Features and Installation
Upper Guide
Window Sash
Window sill
Front Angle
Upper guide
9
Frame Curtain
1
Foam-pe
10
Foam-pe
13
Cabinet
INDOOR OUTDOOR
INDOOR OUTDOOR
Sash track
Front Angle
Cabinet
About 12.7mm (1/2")
About 12.7mm (
1
/
2
")
Sill Support
2
Nut
4
Bolt
3
Frame Guide
11
Screw (Type B)
6
Screw (Type B)
6
Sill support
2
Sill support
2
Screw (Type A)
5

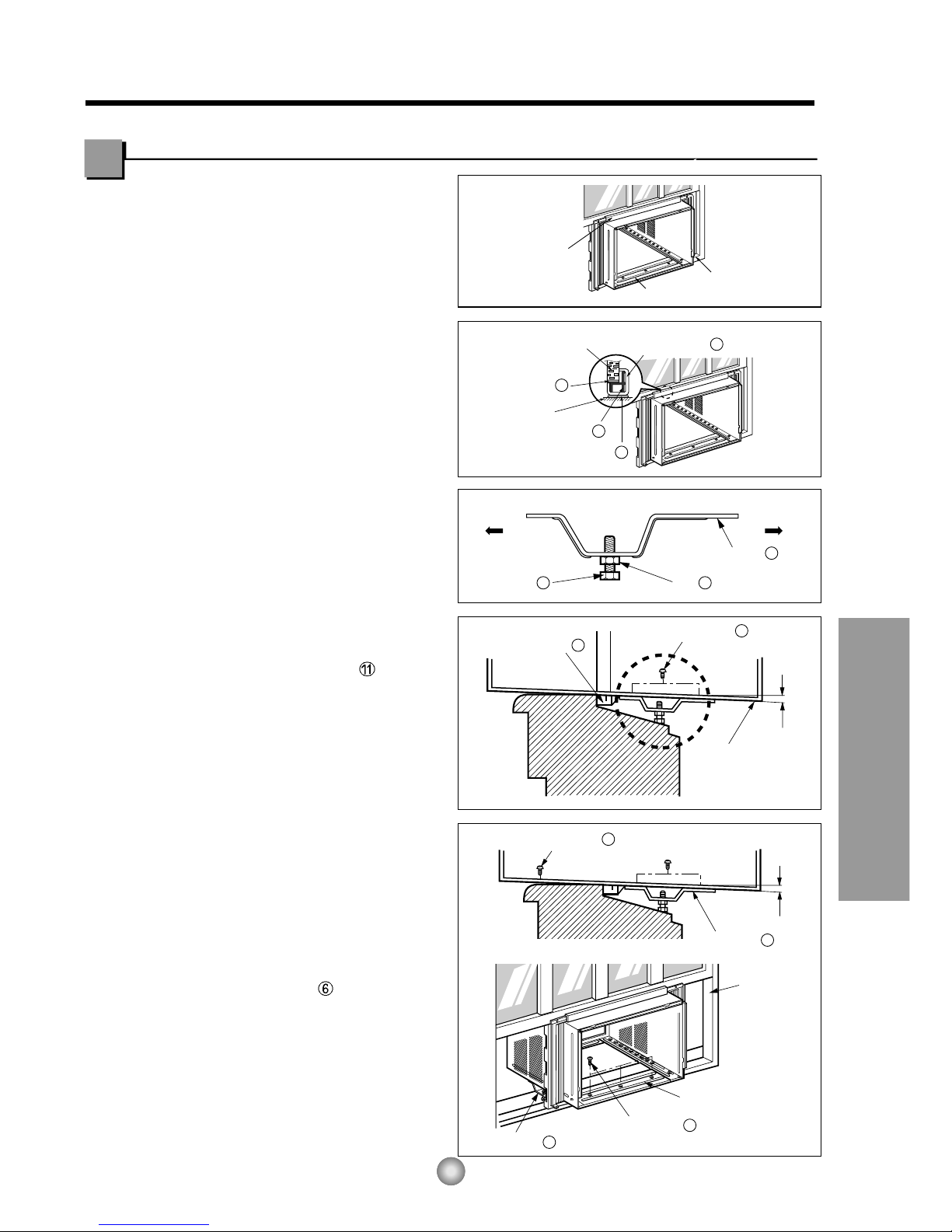

1. Open the window. Mark a line on
center of the window sill (or desired
air conditioner location).
Carefully place the cabinet on the
window sill and align the center mark
on the bottom front with the center
line marked in the window sill.
2. Pull the bottom window sash down
behind the upper guide until it meets.
NOTE:
•Do not pull the window sash down so
tightly that the movement of Frame
Curtain is restricted.
3. Loosely assemble the sill support
using the parts in Fig. 3.
4. Select the position that will place the
sill support near the outer most point
on sill (See Fig. 4)
NOTE: Be careful when you install the
cabinet (frame guides are
broken easily).
5. Attach the sill support to the cabinet
track hole in relation to the selected
position using 2 Type A screws in
each support (See Fig. 4).
6. The cabinet should be installed with a
very slight tilt (about 12.7mm(1/2"))
downward toward the outside (See
Fig. 5).
Adjust the bolt and the nut of sill
support for balancing the cabinet.
7. Attach the cabinet to the window sill
by driving the screws (Type B)
through the front angle into window
sill.
8. Pull each Frame curtain fully to each
window sash track, and repeat step 2.
Cabinet Installation
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5

Type C
7
Screw (Type A)
Screw (Type A)
Power cord
Foam-Strip
8
Window locking bracket
12
14
Features and Installation

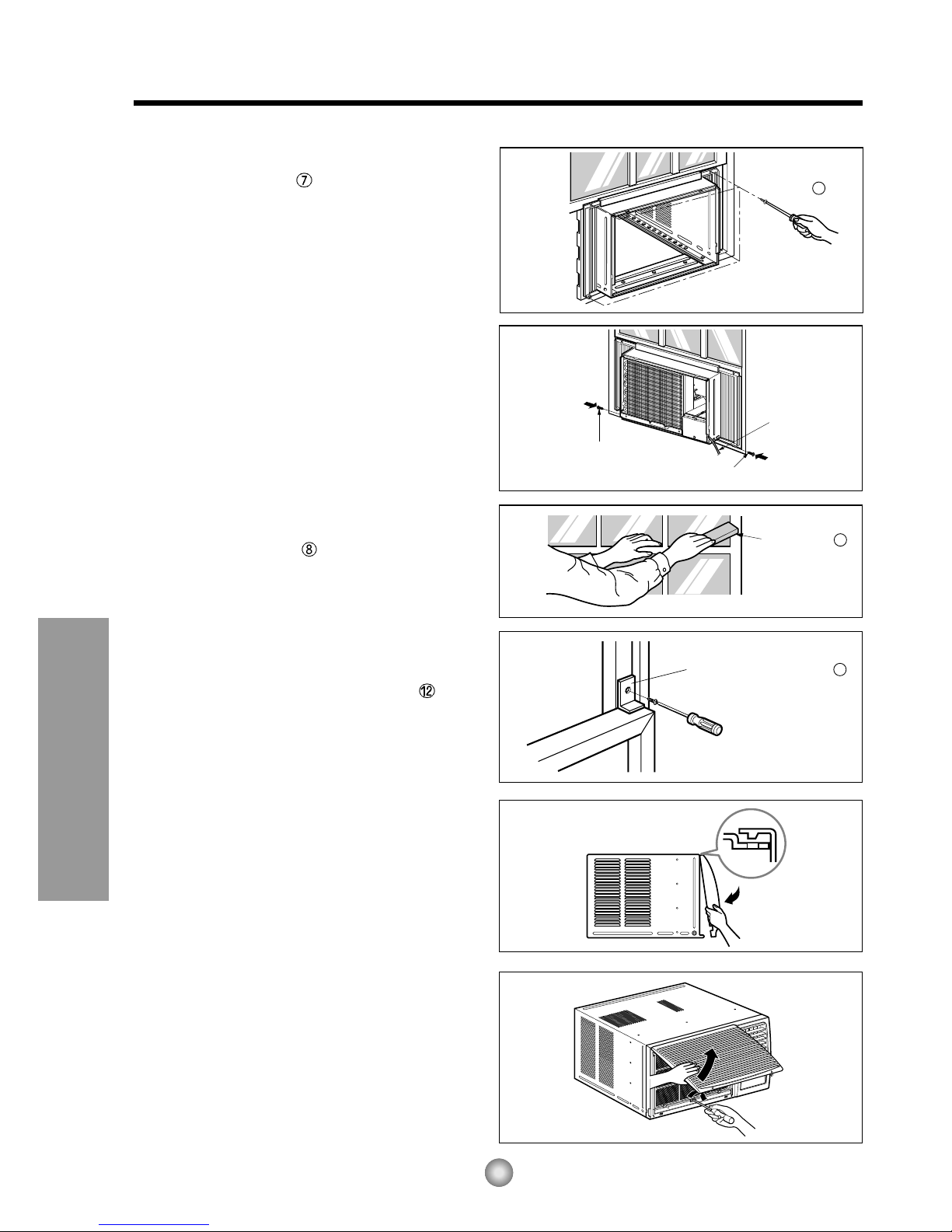

9. Attach each Frame curtain to the window
sash using screws (Type C). (See Fig. 6)
CAUTION: DO NOT DRILL A HOLE IN THE
BOTTOM PAN.
The unit is designed to operate
with approximately 12.7mm (1/2") of
water in bottom pan.
10. Slide the unit into the cabinet. (See Fig. 7)
CAUTION: For security purposes, reinstall
screws (Type A) at cabinet's sides.
11. Cut the foam-strip to the proper length
and insert between the upper window sash
and the lower window sash.
(See Fig. 8)
12. Attach the window locking bracket with
a type C screw. (See Fig. 9)
13. Attach the front grille to the cabinet by
inserting the tabs on the grille into the tabs
on the front of the cabinet. Push the grille
in until it snaps into place. (See Fig.10)
NOTE: Please refer p.8 for setting ventilation
kit.
14. Lift the inlet grille and secure it with a type
A screw through the front grille.
(See Fig. 11)
15. Window installation of room air conditioner
is now completed. See ELECTRICAL DATA
for attaching power cord to electrical outlet.
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11

15
Features and Installation
Do not under any
circumstances cut
or remove the
grounding prong
from the plug.
Line Cord Plug Use Wall Receptacle Power Supply
Power supply cord with
3-prong grounding plug Standard 125V, 3-wire grounding receptacle rated 15A, 125V AC
Use 15 AMP, time
delay fuse or circuit
breaker.
Electrical Data
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly discourage the use of an extension cord. However, if
you wish to use an extension cord, use a CSA certified/UL-listed 3-wire (grounding) extension cord,
rated 15A, 125V.

PREFERRED METHOD
Ensure proper ground
exists before use
TEMPORARY METHOD
Adapter plug
Receptacle cover
Metal screw
16
Electrical Safety (Applies to USA only)
Features and Installation
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong (grounding) plug. Use this with a
standard three-slot (grounding) wall power outlet
(Fig. 16) to minimize the hazard of electric shock.
The customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properly grounded.
DO NOT CUT OR REMOVE THE THIRD
(GROUND) PRONG FROM THE POWER
PLUG.
A. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED ONLY
OCCASIONALLY:
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However, if
you wish to use an adapter, a TEMPORARY
CONNECTION may be made. Use UL-listed
adapter, available from most local hardware stores
(Fig. 17). The large slot in the adapter must be
aligned with the large slot in the receptacle to
assure a proper polarity connection.
CAUTION: Attaching the adapter ground terminal to
the wall receptacle cover screw does not ground the
appliance unless the cover screw is metal, and not
insulated, and the wall receptacle is grounded
through the house wiring.
The customer should have the circuit checked by a
qualified electrician to make sure the
receptacle is properly grounded.
Disconnect the power cord from the adapter, using
one hand on each. Otherwise, the adapter ground
terminal might break. DO NOT USE the appliance
with a broken adapter plug.
B. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to
an eventual breakage of the ground terminal. The
wall power outlet should be replaced by a three-slot
(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord. However,
if you wish to use an extension cord, use a CSA
certified/UL-listed 3-wire (grounding) extension
cord, rated 15A, 125V.
Fig. 16
Fig. 17

17
Before you call for service...
Before you call for service...
Troubleshooting Tips save time and money!
Review the chart below first and you may not need to call for service.
Problem Possible Causes What To Do
■ The air conditioner is
unplugged.
■ The fuse is blown/circuit
breaker is tripped.
■ Power failure.
■ Airflow is restricted.
■ The THERMOSTAT may
not be set high enough.
■ The air filter is dirty.
■ The room may have been
hot.
■ Cold air is escaping.
■ Cooling coils have iced up.
■ Ice blocks the air flow and
stops the air conditioner
from cooling the room.
•Make sure the air conditioner plug is pushed
completely into the outlet.
•Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
•If power failure occurs, turn the mode control to OFF.
When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner.
•Turn the knob to a higher number. The highest
setting provides maximum cooling.
•Clean the filter at least every 2 weeks.
See the operating instructions section.
•When the air conditioner is first turned on
you need to allow time for the room to cool down.
•Check for open furnace floor registers
and cold air returns.
•Set the air conditioner's vent to the closed position.
•See Air Conditioner Freezes Up below.
•Set the mode control at Med Fan or High Cool with
the thermostat at 1or 2.
Air conditioner
does not start
Air conditioner
does not cool as it
should
Air conditioner
freezes up
Normal Operation
•You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency.
•You may hear the thermostat click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days. The water may overflow
and drip from the outdoor side of the unit.
•The fan may run even when the compressor does not.
Abnormal Operation

18
Instructions de fonctionnement
Instructions d'installation
Conseils de dépannage
Mesures de sécurité
Mesures de sécurité
Mesures de sécurité ........19
Instructions de
fonctionnement
Les commandes................21
Télécommande..................22
La ventilation.....................24
Ajuster la direction d’air.....24
Comment utiliser le tuyau
d’évacuation......................24
Nettoyage et entretien
Nettoyage du filtre à air.....25
Caractéristiques
Caractéristiques ................26
Instructions pour
l’installation
Choisissez le meilleur
emplacement...........................27
Conditions requises pour
l’installation à la fenêtre...........27
Contenu de l’ensemble
d’installation ............................28
Outils requis pour l’installation ......28
Installation du boîtier...............29
Données sur l’électricité..........31
Mesures de sécurité électriques .... 32
Avant de placer un
appel de service...
Fonctionnement normal ...33
Fonctionnement anormal ....33
ENREGISTREMENT
Reportez ici les numéros de modèle et de série.
Unité
N° de série
Ces numéros sont inscrits sur l'étiquette apposée sur le
flanc de chaque unité.
Raison sociale du vendeur
Date d'achat
•Le présent manuel communique de nombreuses et
précieuses informations quant à l'utilisation et à la
maintenance de ce climatiseur. Un entretien préventif
simple se traduit par une longévité accrue du climatiseur,
d'où une importante économie de temps et d'argent.
• Les conseils de dépannage permettent de résoudre les
problèmes les plus courants. La consultation préalable des
Conseils de dépannage peut éviter le recours à un
technicien de réparation.
• Toute intervention (réparation ou maintenance) de cet
appareil doit être confiée à un technicien agréé.
• Ce climatiseur n'est pas destiné à être utilisé sans
surveillance par de jeunes enfants ou des personnes
handicapées.
• Veillez à ne pas laisser de jeunes enfants jouer avec le
climatiseur.
ATTENTION
LISEZ CE MANUEL

Mesures de sécurité
AVERTISSEMENT
19
Mesures de sécurité
Les instructions ci-après doivent être observées dans le but de prévenir tout risque de dommages corporels
ou matériels.
■L'utilisation non conforme, résultant de la négligence des instructions, est susceptible de provoquer des
dommages corporels ou matériels dont la gravité est signalée par les indications suivantes :
AVERTISSEMENT : Ce symbole signale un risque de blessure grave, voire mortelle.
ATTENTION : Ce symbole signale un risque limité aux dommages matériels.
■Les significations respectives des symboles utilisés dans ce manuel sont indiquées ci-dessous.
Pratique àéviter impérativement
Instruction àobserver impérativement
Veillez àbrancher
correctement votre appareil
• Tout mauvais branchement peut
entraîner une surchauffe de votre
appareil et causer électrocution
ou incendie.
Veuillez ne pas mettre en
marche ou éteindre votre
appareil en le branchant ou
débranchant.
• Ceci provoquera une surchauffe
et un risque d'électrocution ou
d'incendie.
Evitez d'endommager le
cordon d'alimentation
électrique ou d'en utiliser un
non-agéé
• Ceci pourrait causer
électrocution ou incendie.
Ne modifiez pas la longueur du
cordon d'alimentation et ne
branchez pas votre climatiseur
en commun avec d'autres
appareils sur la même prise
• Ceci pourrait provoquer un choc
électrique ou un incendie, dû à
une surchauffe.
Ne faites pas fonctionner
l'appareil les mains
mouillées.
• II y a risque d'électrocution.
Ne pas se projeter
directement de l'air froid sur
la peau pendant de longs
moments.
• Cela peut un nuire à votre santé.

20
Mesures de sécurité
ATTENTION!
Lorsque le filtre àair doit être
retiré, ne pas toucher les
parties métaliques de
l'appareil intérieur.
• Vous risquez de vous blesser.
Ne pas nettoyer le
climatiseur àgrande eau.
• L'eau peut s'infiltrer dans
l'appareil et affecter l'isolement.
Cela peut également provoquer
une électrocution.
Assurer une ample
circulation d'air dans la pièce
si un appareil de chauffage
est utilisé.
• En effet, l'oxygène s'appauvrit
dans ces conditions d'utilisation.
Lorsque l'appareil doit être
nettoyé, couper l'alimentation
et débrancher la prise
d'alimentation ou couper le
disjoncteur.
• Le ventilateur de refroidissement
tournant à grande vitesse dans
l'appareil, cela peut provoquer un
accident.
Ne pas placer une plante
d'intérieur ou un animal
domestique près de l'appareil
en risquant de l'exposer
directement àl'air froid.
• L'animal comme la plante
peuvent en souffrir.
Ne pas se servir de l'appareil
àdes fins spéciales.
• Le climatiseur ne doit pas être
utilisé pour protéger certains
appareils de précision, des
aliments, des animaux, des
plantes et des objets d'art. La
qualité risque d'en souffrir.
Ne pas actionner les
dispositifs de commande les
mains mouillées.
• Il y a risque d'électrocution.
Ne pas utiliser d'insecticide à
proximitéde l'appareil ni de
produits inflammables.
• L'appareil risque de prendre feu
ou le coffret risque d'être
déformé.
Ne jamais placer d'appareil de
chauffage, etc., près du climatiseur
et notamment oùil risque de
recevoir directement l'air froid.
• La combustion de l'appareil de
chauffage risque d'être
entravée.
